2 Introduction

2.1 Symbols used in this Manual

This symbol point out to especially information.

2.2 Important Instructions

This chapter contains instructions which must be observed when using your Flatman Monitor.
The manufacturer’s instructions provide useful information on your device.

2.3 Note on the Warranty

Due to their limited service life, parts which by their nature are subject to a particularly high degree of wear
(wearing parts) are excluded from the warranty beyond that provided by law. This applies to the CMOS
battery, for example.

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

6

3 General Safety Instructions

The ext. supply shall meet the criteria for SELV (Safety Extra-low Voltage) and <240VA acc. UL 60950-1.
It must be assumed that safe operation is no longer possible, if the device has visible damage or if the device

no longer functions. In these cases the device must be shut down and secured against unintentional
operation.

Please read this section carefully and observe the instructions for your own safety and correct use of the
device. The chapter also contains information on approval and interference suppression of your device.
Observe the warnings and instructions on the device and in the manual.
In order to maintain this condition and ensure safe operation, the user must observe the instructions and
warnings contained in this manual.

• The device must be used in accordance with the instructions for use.

• The electrical installations in the room must correspond to the requirements of the local (country-

specific) regulations.

• Take care that there are no cables, particularly power cables, in areas where persons can trip over
them.

• Only use the power cord supplied. Don’t use injured or damaged power cords.

• For DC power connection:

The DC power source should be able to be switched off and on via an isolating switch.
The unit is only completely disconnected from the DC main power source, when the DC power cord is
disconnected either from the power source or the unit. Therefore, the DC power cord and its
connectors must always remain easily accessible.

• For AC power connection via external AC/DC adapter:

The main power cable of the external AC/DC adapter serves as disconnecting device. For this reason
the outlet of the AC power source must be located near to the device and be easily accessible.

• Do not place the device in direct sunlight, near heat sources or in a damp place. Make sure the device

has adequate ventilation.

• Only devices and components which fulfill the requirements of an SELV circuit (safety extra low

voltage) in accordance with EN60950 may be connected to the interfaces of the system.

• All plugs on the connection cables must be screwed or locked to the housing.

• The device generates heat during operation. Make sure it is adequately ventilated. Do not cover the

air intake and exhaust openings of the device.

• Repairs may only be carried out by qualified specialist personnel authorized by S&T.

• Maintenance or repair on the open device may only be carried out by qualified personnel authorized

by SNT which is aware of with the associated dangers.

• When accessing internal components the device must be switched off and disconnected from the

power source.

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

7

4 Electromagnetic Compatibility

4.1 Electromagnetic Compatibility EU

This product is in conformity with the protection requirements of EU Council Directive 2004/108/EC on the
approximation of the laws of the Member States relating to electromagnetic compatibility. If the user modifies
and/or adds to the equipment (e.g. installation of add-on cards) the prerequisites for the CE conformity
declaration (safety requirements) may no longer apply.

4.2 Electrostatic Discharge (ESD)

A sudden discharge of electrostatic electricity can destroy static-sensitive devices or micro-circuitry. Therefore
proper packaging and grounding techniques are necessary precautions to prevent damage. Always take the
following precautions:

• Keep electrostatic sensitive parts in their containers until they arrive at the ESD-safe workplace.

• Always be properly grounded when touching a sensitive board, component, or assembly.

4.2.1 Grounding Methods

The following measures help to avoid electrostatic damages to the device:

• Cover workstations with approved antistatic material. Always wear a wrist strap connected to

workplace as well as properly grounded tools and equipment.

• Use antistatic mats, heel straps, or air ionizers for more protection.

• Always handle electrostatically sensitive components by their edge or by their casing.

• Avoid contact with pins, leads, or circuitry.

• Turn off power and input signals before inserting and removing connectors or connecting test

equipment.

• Keep work area free of non-conductive materials such as ordinary plastic assembly aids and

styrofoam.

• Use field service tools such as cutters, screwdrivers, and vacuum cleaners which are conductive.

• Always place drives and boards PCB-assembly-side down on the foam.

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

8

5 Technical Data / Environmental Specification

Display size

10.4“

12.1“

12.1“ XGA

15.0“

Display manufacturer Innolux Innolux Innolux Innolux
Display type G104AGE-L02 G121AGE-L03 G121X1-L03 G150XNE-L01 (new !!!)
Resolution 800x600 800x600 1024x768, XGA 1024x768
Format 4:3 4:3 4:3 4:3
Contrast ratio 700:1 1500:1 700:1 2500:1
Brightness 400cd 450cd 600cd 500cd
Angle View H160° / V140° H178° / V178° H160°/ V140° H176° / V176°
Colors 16.7 million 16.7 million 16.2 million 16.7 million
LED Lifetime (> 50%, 25°C) > 50.000h > 50.000h > 50.000h > 70.000h
Dimensions (WxHxD - mm) 297 x 244 x 65 338 x 277 x 65 338 x 277 x 65 396 x 312 x 69
Weight ~ 3,9kg ~ 4,7kg ~ 4,7kg ~ 6,4kg
Touch Options Protection glass / PCAP / resistive
Mounting Option full metal housing / built-in-mounting
Fastening VESA 75/75 or 100/100 (full metal housing only); fastening clips (built-in-variant only)
Color RAL 7021 (black anthracite)

Display size

15.6“

15.6“ Full HD

17.0“

18.5“

Display manufacturer

Innolux

AUO

AUO

Innolux

Display type

G156BGE-L01

G156HTN02.0

G170EG01V1

G185BGE-L01

Resolution 1366x768, HD

1920x1080, Full HD

1280x1024

1366x768, HD

Format 16:9

16:9

5:4

16:9

Contrast Ratio 500:1

500:1

800:1

1000:1

Brightness 300cd

400cd

350cd

300cd

Angle View H160° / V160°

H140° / V120°

H160° / V140°

H178° / V170°

Colors 16.7 million

16.2 million

16.7 million

16.7 million

LED Lifetime (> 50%, 25°C) > 50.000h

> 50.000h

> 50.000h

> 50.000h

Dimensions (WxHxD - mm) 432 x 281 x 74 432 x 281 x 74 427 x 360 74 500 x 321 x 74
Weight ~ 6,7kg

~ 6,7kg

~ 7,8kg

~ 8,6kg

Touch Options Protection glass / PCAP / resistive
Mounting Option full metal housing / built-in-mounting
Fastening VESA 75/75 or 100/100 (full metal housing only); fastening clips (built-in-variant only)
Color RAL 7021 (black anthracite)

Display size

18.5“

Full HD

19.0“

21.5“

23.8“

Display manufacturer

AUO AUO AUO

AUO

Display type

G185HAN01.0 G190ETN01.2 G215HVN01.0

G238HAN01.1 (new !!!)

Resolution 1920x1080

1280x1024 1920x1080, Full HD

1920x1080

Format 16:9

5:4 16:9

16:9

Contrast Ratio 1000:1

1000:1 3000:1

1000:1

Brightness 350cd/m2 350cd 300cd 400cd/m2
Angle View 178°/178°

H170° / V160° H178° / V178°

178°/178°

Colors 16,7million

16.7 million 16.7 million

16,7million

LED Lifetime (> 50%, 25°C) 50.000h

> 50.000h > 50.000h

50.000h

Dimensions (WxHxD - mm) 500 x 321 x 74

473 x 396 x 68 575 x 367 x 74

569 x 357 x 69

Weight ~ 8,6kg ~ 9,4kg ~ 10,7kg ~ 11,8 kg
Touch Options Protection glass / PCAP / resistive Protection glass / PCAP
Mounting Option full metal housing / built-in-mounting
Fastening VESA 75/75 or 100/100 (full metal housing only); fastening clips (built-in-variant only)
Color RAL 7021 (black anthracite)

• other Display manufacturers and types are possible

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

9

5.1 Technical Information ECO LINE

CPU Intel® BayTrail Celeron Quad Core J1900

Option: Intel® Braswell Celeron Quad Core

Memory 4GB DDR3 SO-DIMM

4GB DDR3 SO-DIMM

BIOS AMI uEFI BIOS

AMI uEFI BIOS

I/O Standard 2xGbE (1x Intel® I210, 1x Realtek RTL8111G),

1x HDMI, 1x VGA, 1x USB3.0, 2x USB2.0

2xGbE (2x Intel® I210), 1x HDMI, 1x DP, 4x USB3.0,

1x VGA, 2x USB2.0 (option)

Power Supply 12-30VDC Input

12-30VDC Input

Cooling

Fanless passive cooling

Fanless passive cooling

Operating Temperature

0°C - 50°C ambient (**)

0°C - 50°C ambient (**)

Operating Altitude

Up to 3000m (9900 ft)

Up to 3000m (9900 ft)

Storage Altitude

Up to 5000m (16500 ft)

Up to 5000m (16500 ft)

Humidity

10%-90% @ 39°C, non condensing

10%-90% @ 39°C, non condensing

OS Support Windows7 incl Embedded, Windows8.1 Pro,

Windows10 IoT, Linux Ubuntu

Windows7 incl Embedded, Windows8.1 Pro,

Windows10

IoT

, Linux

Ubuntu

Certification

CE, cULus, Design to meet FCC

CE

Protection class

Front: IP65, Housing IP20

Front: IP65, Housing IP20

EMC

EN55022 class B

EN55022 class B

Options

(Further options on request)

8GB RAM
CF/SD Card Adapter
SD Card Memory 4GB, 16GB, 32GB, 64GB
CF Card Memory on demand
mSATA SSD 32GB, 64GB, 128GB, 256GB, 512GB
2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
RFID, WiFi (on demand)

8GB RAM
CF/SD Card Adapter
SD Card Memory 4GB, 16GB, 32GB, 64GB
CF Card Memory on demand
mSATA SSD 32GB, 64GB, 128GB, 256GB, 512GB
2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
RFID, WiFi (on demand)

CPU Intel® Apollo Lake Pentium® N4200
Memory 4GB DDR3 SO-DIMM
BIOS AMI uEFI BIOS
I/O Standard 2xGbE (Intel® I210) 1x HDMI, 1x DP, 4x USB3.0
Power Supply 12-30VDC Input
Cooling Fanless passive cooling
Operating Temperature

0°C - 50°C ambient (**)

Operating Altitude

Up to 3000m (9900 ft)

Storage Altitude

Up to 5000m (16500 ft)

Humidity

10%-90% @ 39°C, non condensing

OS Support

Windows10 IoT, Linux Ubuntu

Certification

CE, cULus, Design to meet FCC

Protection class

Front: IP65, Housing IP20

EMC

EN55022 class B

Options

(Further options on request)

8GB RAM
CF/SD Card Adapter
SD Card Memory 4GB, 16GB, 32GB, 64GB
CF Card Memory on demand
M.2 SSD 64GB, 128GB, 256GB, 512GB
2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
RFID, WiFi (on demand)

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

10

5.2 Technical Information PRO LINE

CPU Intel® Haswell ULT i5-4300U

Option: Intel® Broadwell ULT i5-5350U

Memory 4GB DDR3 SO-DIMM

4GB DDR3 SO-DIMM

BIOS AMI uEFI BIOS

AMI uEFI BIOS

Hardware Monitor Temperature, Voltages

Temperature, Voltages

Watchdog

Programmable WDT to generate System reset

event

Programmable WDT to generate System reset event

RTC Processor integrated RTC

Processor integrated RTC

I/O Standard

3x GbE (2x Intel® I210, 1x Intel® I218-LM), 2x

Display Port, 4x USB3.0

3x GbE (2x Intel® I210, 1x Intel® I218-LM), 2x

Display Port, 4x USB3.0

Power Supply

12-30VDC Input via Phoenix Connector PSC
1,5/3-F

12-30VDC Input via Phoenix Connector PSC 1,5/3-F

Cooling Fanless passive cooling

Fanless passive cooling

Operating Temperature 0°C - 50°C ambient (UL listed 0°C - 45°C) (**)

0°C - 50°C ambient (UL listed 0°C - 45°C) (**)

Operating Altitude

Up to 3000m (9900 ft)

Up to 3000m (9900 ft)

Storage Altitude

Up to 5000m (16500 ft)

Up to 5000m (16500 ft)

Humidity 10%-90% @ 39°C, non condensing

10%-90% @ 39°C, non condensing

OS Support

Windows7 incl Embedded, Windows8.1 Pro,

Windows10 IoT, Linux Ubuntu

Windows7 incl Embedded, Windows8.1 incl

Embedded, Linux, Windows10

IoT

Certification CE, cULus, Design to meet FCC

CE

Protection class Front: IP65, Housing IP20

Front: IP65, Housing IP20

EMC EN55022 class B

EN55022 class B

Options

(Further options on request)

8GB RAM
CF/SD Card Adapter
SD Card Memory 4GB, 16GB, 32GB, 64GB

mSATA SSD 32GB, 64GB, 128GB, 256GB, 512GB

2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
CF Card Memory ,
RFID, WiFi (on demand)

8GB RAM
CF/SD Card Adapter
SD Card Memory 4GB, 16GB, 32GB, 64GB
mSATA SSD 32GB, 64GB, 128GB, 256Gb, 512GB
2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
CF Card Memory ,
RFID, WiFi (on demand)

(** except panel pc in size 23.8“: operating temperature 0-45°C ambient)

CPU Intel® Skylake ULT Core™ i5-6300U Intel® Kaby Lake ULT Core™ i5-7300U
Memory 4GB DDR4 SO-DIMM 4GB DDR4 SO-DIMM
BIOS AMI uEFI BIOS AMI uEFI BIOS
Hardware Monitor Temperature, Voltages Temperature, Voltages

Watchdog

Programmable WDT to generate System reset

event

Programmable WDT to generate System reset event

RTC Processor integrated RTC Processor integrated RTC

I/O Standard

3x GbE (2x Intel® I210, 1x Intel® I218-LM), 2x

Display Port, 4x USB3.0

3x GbE (2x Intel® I210, 1x Intel® I218-LM), 2x

Display Port, 4x USB3.0

Power Supply

12-30VDC Input via Phoenix Connector PSC
1,5/3-F

12-30VDC Input via Phoenix Connector PSC 1,5/3-F

Cooling Fanless passive cooling Fanless passive cooling
Operating Temperature 0°C - 50°C ambient (UL listed 0°C - 45°C) (**) 0°C - 50°C ambient (UL listed 0°C - 45°C) (**)
Operating Altitude

Up to 3000m (9900 ft) Up to 3000m (9900 ft)

Storage Altitude

Up to 5000m (16500 ft) Up to 5000m (16500 ft)

Humidity 10%-90% @ 39°C, non condensing 10%-90% @ 39°C, non condensing

OS Support

Windows7 incl Embedded,

Windows10 IoT, Linux Ubuntu

Windows10 IoT, Linux Ubuntu

Certification CE, cULus, Design to meet FCC CE, cULus, Design to meet FCC
Protection class Front: IP65, Housing IP20 Front: IP65, Housing IP20
EMC EN55022 class B EN55022 class B
Options

(Further options on request)

8GB or 16GB RAM

M.2 SSD 64GB, 128GB, 256GB, 512GB

2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
RFID, WiFi (on demand)

8GB or 16GB RAM

M.2 SSD 64GB, 128GB, 256GB, 512GB

2x COM (RS232, RS422, RS485)
Audio with amplifier (2x 3W)
RFID, WiFi (on demand)

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

11

5.3 Order Information

Example:
EN00-Z11100-01
(FLATMAN ECO 10.4“ with Intel® BayTrail Celeron Quad Core J1900 resistive touch
in full metal housing with 4GB RAM, 32GB mSATA, no any other options

EN00 -y y y y y y - x x

- Internal Code

-

Display Size/CPU Z1 = 10.4“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z2 = 12.1“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z3 = 15.0“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z4 = 15.6“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z5 = 17.0“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z6 = 18.5“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z7 = 19.0“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z8 = 21.5“ with Intel® BayTrail Celeron Quad Core J1900 inside

ZH = 23.8“ with Intel® BayTrail Celeron Quad Core J1900 inside
Z9 = 15.6“ with Intel® Haswell ULT, i5-4300U inside

ZA = 17.0“ with Intel® Haswell ULT, i5-4300U inside
ZB = 18.5“ with Intel® Haswell ULT, i5-4300U inside
ZC = 19.0“ with Intel® Haswell ULT, i5-4300U inside
ZD = 21.5“ with Intel® Haswell ULT, i5-4300U inside
ZE = 15.0“ with Intel® Haswell ULT, i5-4300U inside
ZF = 12.1“ with Intel® Haswell ULT, i5-4300U inside
ZG = 10.4“ with Intel® Haswell ULT, i5-4300U inside
ZJ = 23.8“ with Intel® Haswell ULT, i5-4300U inside

Option variant with Intel® Braswell CPU Intel® Broadwell on request, ask for it at our sales department

Display Size/CPU Y1 = 10.4“ with Intel® Apollo Lake Pentium® N4200 inside
Y2 = 12.1“ with Intel® Apollo Lake Pentium® N4200 inside
Y3 = 15.0“ with Intel® Apollo Lake Pentium® N4200 inside
Y4 = 15.6“ with Intel® Apollo Lake Pentium® N4200 inside
Y5 = 17.0“ with Intel® Apollo Lake Pentium® N4200 inside
Y6 = 18.5“ with Intel® Apollo Lake Pentium® N4200 inside
Y7 = 19.0“ with Intel® Apollo Lake Pentium® N4200 inside
Y8 = 21.5“ with Intel® Apollo Lake Pentium® N4200 inside

YH = 23.8“ with Intel® Apollo Lake Pentium® N4200 inside

Y9 = 15.6“ with Intel® Skylake ULT, Core TM i5-6300U inside

YA = 17.0“ with Intel® Skylake ULT, Core TM i5-6300U inside
YB = 18.5“ with Intel® Skylake ULT, Core TM i5-6300U inside
YC = 19.0“ with Intel® Skylake ULT, Core TM i5-6300U inside
YD = 21.5“ with Intel® Skylake ULT, Core TM i5-6300U inside
YE = 15.0“ with Intel® Skylake ULT, Core TM i5-6300U inside
YF = 12.1“ with Intel® Skylake ULT, Core TM i5-6300U inside
YG = 10.4“ with Intel® Skylake ULT, Core TM i5-6300U inside
YJ = 23.8“ with Intel® Skylake ULT, Core TM i5-6300U inside

1 2

3 4 5

6

1

2

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

12

Display Size/CPU X9 = 15.6“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside

XA = 17.0“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XB = 18.5“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XC = 19.0“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XD = 21.5“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XE = 15.0“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XF = 12.1“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XG = 10.4“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside
XJ = 23.8“ with Intel® Kaby Lake ULT, Core TM i5-7300U inside

- Touch Technology:

0 = with protection glass
1 = Touch resistive
2 = Touch PCAP
3 = with protection glass and stainless steel front
4 = Touch resistive and stainless steel front
5 = Touch PCAP and stainless steel front

6 = Touch PCAP V2

7 = with protection glass V2

- Mounting Variant: 1 = PPC full metal
2 = PPC built-in-mounting

- Options: counted on demand, possible options are

- 8GB RAM

- CF/SD Card Adapter

- SD Card 8GB – 16GB – 32GB – 64GB

- CF Card 8GB – 16GB – 32GB

- Up to 2x COM (RS232, RS422, RS485)

- mSATA SSD 32GB – 64GB – 128GB – 256GB – 512GB

- M.2 SSD 64GB, 128GB, 256GB, 512GB

- Audio with amplifier (2x 3W)

- WiFI

- RFID

- Display-Option (full HD; XGA; …)

- Internal Code (Revision)

3

4

5

6

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

13

5.4 CE Directives and Standards CE Directives

Low Voltage Directive (Electrical Safety) 2014/35/EU
EMC Directive 2004/108/EC
RoHS II Directives 2011/65/EU
Minimum health and safety requirements regarding the exposure of

workers to the risks arising from physical agents (electromagnetic fields)

2013/35/EU

Electromagnetic compatibility (EMC), Part 6-2:Generic Standards –
Immunity for industrial environments + CENELEC- Cor.:2005

EN 61000-6-2:2005 +
Cor.:2005

Information technology equipment, Radio disturbance characteristics,
Limits and methods of measurement (CISPR 22:2008, modified)

EN 55022 :2010

Information technology equipment, lmmunity characteristics, Limits and
methods of measurement

EN 55024 :2010

Safety for information technology equipment including electrical business
equipment

EN 60950-1 :2006 +A11
:2009 +A1 :2010 +A12
:2011 +A2 :2013

6 Scope of Delivery (options)

This chapter describes the components which can be optionally ordered and delivered:

Qty Part# Description

1 EE04-100001-01 Phoenix Power Subcon w/ housing

1

840-0059 EU-Powercord 1,8m

1

ER40-100001-01 Set Power supply 24VDC /w Phoenix Connector

1 PR22-100004-01

Adapter Kabel HDMI - Displayport, 20cm, 4K aktiv,
Delock: 62607

1 PR22-100005-01 Adapter HDMI - Displayport 1.2, 4K aktiv, Delock: 65573
1 PR22-100006-01 Adapter DVI-D - Displayport 1.1, Delock: 65257
1 PR22-100007-01 Adapter VGA - Displayport 1.1, Delock: 65567
1 PR22-100008-01 Adapter DVI-I – HDMI, Delock: 65467

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

14

1

840-0758 Display-Port-cable 1,8m

1 840-0759 DP Kabel 3m
1 840-0760 DP Kabel 5m

1 840-0598 Adapter VGA / DVI

1 840-0039 VGA/SVGA cable 1,8m/2,0m

1 840-0273 USB-cable 1,8m, Type A – Type B

1 840-0134 DVI-cable 2m

6.1 Type Label and Product Identification

Product and Package Label, size 85 x 35mm, polyester matt silver

fig. 1: Type Label

Technical data,

depending on device

Short Description,
depending on device

internal use only!

Barcode Part#
Part# (s. chapter 5.3)

Barcode Series#
Series#
11 numeric digits, xxxxxxyyccc

Certification print,

depending on device

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

15

7 Product Description

7.1 Product view

7.1.1 Front View Description

fig. 2: Front view

7.1.2 Rear View Description – full metal-variant

fig. 3: Rear view

TFT Display with resitive
or P-CAP Touch front

Front plate

RFID sign (option!)

Rear cover

Peripherie Backside,
description s. chapter 9

Holes for VESA mounting (full-metal-variant only!)

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

16

7.1.3 Rear View Description – built-in-variant

fig. 4: Rear view Built-in-variant

Rear cover

Mounting clips

Sealing cord

Peripherie Backside,
description s. chapter 9

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

17

8 Mechanical Specifications

8.1 Dimension Drawing

8.1.1 10.4“ built-in-variant

fig. 5: Dimension drawing 10,4" built-in

8.1.2 10.4“ full metal

fig. 6: Dimension drawing 10,4" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

18

8.1.3 12.1“ built-in-variant

fig. 7: Dimension drawing 12,1“ built-in

8.1.4 12.1“ full metal

fig. 8: Dimension drawing 12,1“ full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

19

8.1.5 15.0“ built-in-variant

fig. 9: Dimension drawing 15,0“ built-in

8.1.6 15.0“ full metal

fig. 10: Dimension drawing 15,0“ full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

20

8.1.7 15.6“ built-in-variant

fig. 11: Dimension drawing 15,6" built-in

8.1.8 15.6“ full metal

fig. 12: Dimension drawing 15,6" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

21

8.1.9 17.0“ built-in-variant

fig. 13: Dimension drawing 17,0" built-in

8.1.10 17.0“ full metal

fig. 14: Dimension drawing 17,0" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

22

8.1.11 18.5“ built-in-variant

fig. 15: Dimension drawing 18,5" built-in

8.1.12 18.5“ full metal

fig. 16: Dimension drawing 18,5" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

23

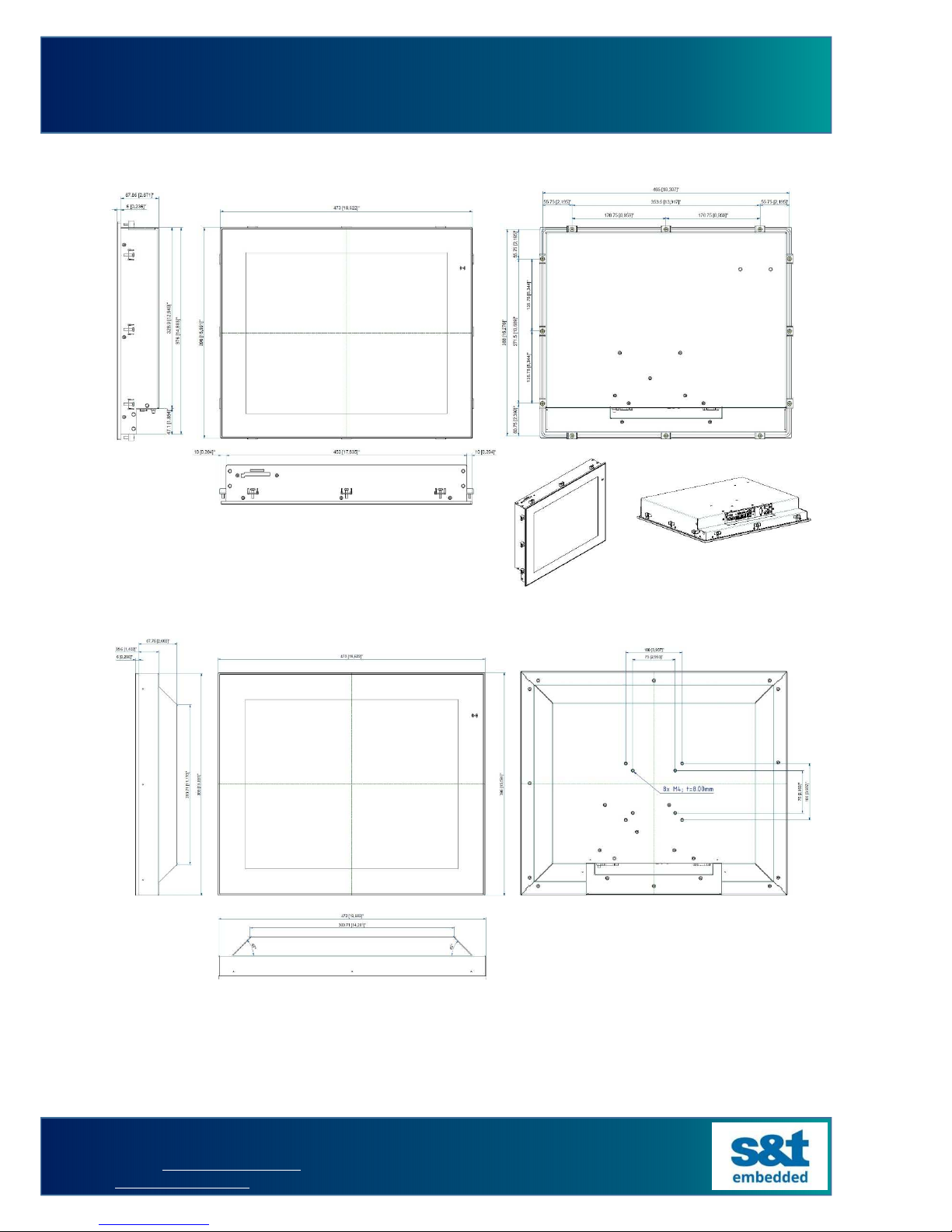

8.1.13 19.0“ built-in-variant

fig. 17: Dimension drawing 19,0" built-in

8.1.14 19.0“ full metal

fig. 18: Dimension drawing 19,0" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

24

8.1.15 21.5“ built-in-variant

fig. 19: Dimension drawing 21,5" built-in

8.1.16 21.5“ full metal

fig. 20: Dimension drawing 21,5" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

25

8.1.17 23.8“ built-in-variant

fig. 21: Dimension drawing 23,8" built-in

8.1.18 23.8“ full metal

fig. 22: Dimension drawing 23,8" full metal

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

26

9 Connectors

9.1 Panel PC BayTrail variant

fig. 23: Peripherie Panel BayTrail variant

9.2 Panel PC Haswell variant

fig. 24: Peripherie Panel Haswell variant

9.3 Panel PC Apollo Lake variant

fig. 25: Peripherie Panel Apollo Lake variant

9.4 Panel PC Skylake / Kaby Lake variant

fig. 26: Peripherie Panel Skylake variant

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

27

9.5 PWR: Input Power Connector

Pin Signal Mating connector

1 GND

Phoenix Contact

PSC 1,5/ 3-F
Order# 1841909

2 Shield

3 VCC

fig. 27: Power Connector

See also General Safety Instructions chapter 3 (page 6).

left LED: Power right LED: Drive activity

off No Power off No drive inside

green active

Green

blinking

Drive active

Green

blinking

Standby

fig. 28: PWR on LED

9.6 USB2.0 Type-A Connector

Pin Signal Name Pin Signal Name

1 +USB_VCC 5 +USB_VCC
2 USBA_A- 6 USBB_B­3 USBA_A+ 7 USBB_B+
4 GND 8 GND

fig. 29: USB2.0 Type-A connector

9.7 USB3.0 Type-A Connector

Pin Signal Name Pin Signal Name

1 +USB_VCC 5 USB_RX­2 USB_D- 6 USB_RX+
3 USB_D+ 7 GND
4 GND 8 USB_TX-

9 USB_TX+

fig. 30: USB3.0 Type-A connector

3

2

PWR
On

PWR
LED

Drive
activity

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

28

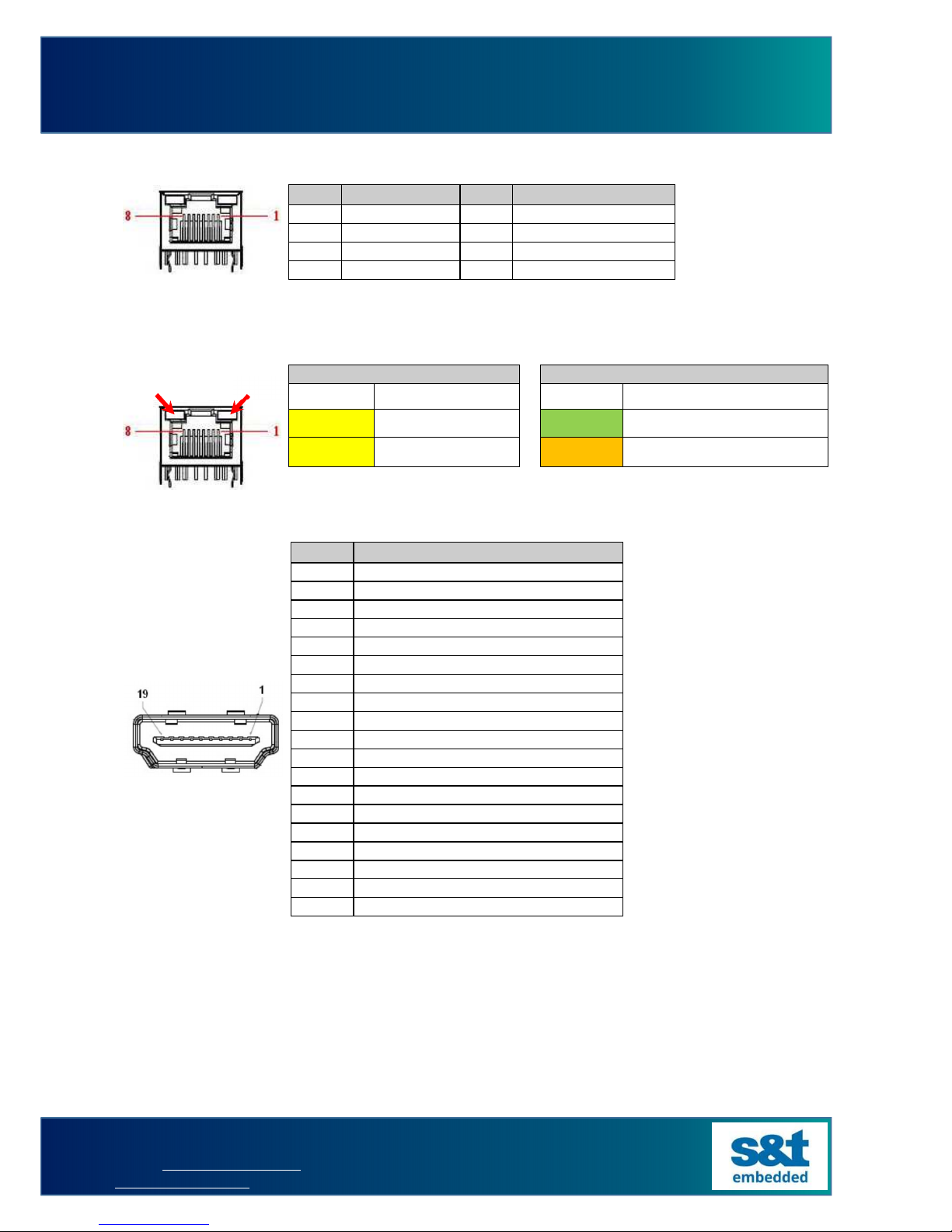

9.8 LAN: GbE RJ-45 Connector

Pin Signal Name Pin Signal Name

1 TX1+ 5 TX3­2 TX1- 6 TX2­3 TX2+ 7 TX4+
4 TX3+ 8 TX4-

fig. 31: GbE RJ45 Connector

9.8.1 LED Diagram of LAN Connectors:

(front view)

left LED: activity / link right LED: 10/100/1000

off No LAN connectivity off 10 Mbit

yellow link green 100 Mbit

blinking activity orange 1 GbE

9.9 HDMI Connector

Pin Signal Name

1 TMDS Data2+
2 GND
3 TMDS Data2–
4 TMDS Data1+
5 GND
6 TMDS Data1–
7 TMDS Data0+
8 GND

9 TMDS Data0–
10 TMDS Clock+
11 GND
12 TMDS Clock–
13 Reserved
14 Reserved
15 DDC_CLK
16 DDC_DATA
17 GND
18 +5 V Power
19 Hot Plug Detect

fig. 32: HDMI connector

left

right

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

29

9.10 DP Connector

Pin Signal Pin Signal

1 TX0+ 11 GND

2 GND 12 TX3-

3 TX0- 13 GND

4 TX1+ 14 GND

5 GND 15 AUX+

6 TX1- 16 GND

7 TX2+ 17 AUX-

8 GND 18 HPD

9 TX2- 19 GND
10 TX3+ 20 PWR

fig. 33: Display Port connector

9.11 DB15 VGA Connector

Pin Signal Name Pin Signal Name

1 Red 2 Green
3 Blue 4 n.c.
5 GND 6 GND
7 GND 8 GND

9 VCC 10 GND
11 n.c. 12 DDC Data
13 Hsync 14 Vsync
15 DDC Clock

fig. 34: VGA connector

9.12 Option: COM1 RS-232/422/485 (via internal cable connection to ECX-Board)

9.13 Option: COM2 RS-232/422/485 (via internal cable connection to ECX-Board)

Pin RS-232 RS-422

Half Duplex

RS-485

Full Duplex

RS-485

1

DCD Tx- DATA- Tx-

2

RxD Tx+ DATA+ Tx-

3

TxD Rx+ - Rx+

4

DTR Rx- - Rx-

5

GND GND GND GND

6

DSR - - -

7

RTS - - -

8

CTS - - -

9

RI - - -

fig. 35: COM (RS232) connector

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

30

10 Startup Procedure

To activate your Flatman Panel PC connect the power supply to power connector on the Flatman back side.
Alternative use the mating power connector for connecting your power cable.
The LED “PWR” gives a green light now.

If there is no power on the device, push the button “PWR”.

Don´t hesitate to ask for support:
e-mail:

[e-mail]

Phone: [phone] - 0

10.1 Drivers

Any essential drivers you´ll find on our homepage

www.snt-embedded.de

11 Warranty

There is a protection label on your Flatman Panel PC.
If you open the device, the warranty is lost!

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

31

12 Technical Support

For technical support, please contact our Technical Support department:

e-mail:

[e-mail]

Phone: [phone] - 0

Make sure you have the following information on hand when you call:

• the unit part id number (PN)

• the serial number (SN) of the unit;

(the serial number can be found on the type label, placed on the rear side of the system)

Be ready to explain the nature of your problem to the service technician.

12.1 Returning Defective Merchandise

Please follow these steps before you return any merchandise to S&T Embedded GmbH:

1. See information on our website:

http://www.snt-embedded.de/support/88436.de.php

fig. 36: S&T webpage: RMA

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

32

2. Download the RMA corresponding form and fill it out, describe the fault that has occurred.

fig. 37: S&T RMA form

3. When returning a device:

• Pack it securely in its original box.

• Enclose RMA form with the consignment.

4. Sent the device to the following adress:
s&t embedded GmbH

RMA support
Gutenbergstr. 2
D- 85737 Ismaning

(If you send more than one device in a package fill out a form for each device!)

5. After receiving your device at s&t you will get a confirmation of the order via email to the adress which

is above-named on the form. This order number is your RMA number.

FLATMAN ECO / PRO – User Manual

s&t embedded GmbH – Gutenbergstr. 2 – 85737 Ismaning - Germany

Phone: [phone] – 0 Fax: [phone]
Mail to: [e-mail]
www.snt-embedded.de V1.7

33

13 Appendix

13.1 Illustration Directory

fig. 1: Type Label ............................................................................................................................................... 14

fig. 2: Front view ................................................................................................................................................ 15

fig. 3: Rear view ................................................................................................................................................. 15

fig. 4: Rear view Built-in-variant ......................................................................................................................... 16

fig. 5: Dimension drawing 10,4" built-in ............................................................................................................. 17

fig. 6: Dimension drawing 10,4" full metal.......................................................................................................... 17

fig. 7: Dimension drawing 12,1“ built-in ............................................................................................................. 18

fig. 8: Dimension drawing 12,1“ full metal .......................................................................................................... 18

fig. 9: Dimension drawing 15,0“ built-in ............................................................................................................. 19

fig. 10: Dimension drawing 15,0“ full metal ........................................................................................................ 19

fig. 11: Dimension drawing 15,6" built-in .......................................................................................................... 20

fig. 12: Dimension drawing 15,6" full metal........................................................................................................ 20

fig. 13: Dimension drawing 17,0" built-in ........................................................................................................... 21

fig. 14: Dimension drawing 17,0" full metal........................................................................................................ 21

fig. 15: Dimension drawing 18,5" built-in ........................................................................................................... 22

fig. 16: Dimension drawing 18,5" full metal........................................................................................................ 22

fig. 17: Dimension drawing 19,0" built-in ........................................................................................................... 23

fig. 18: Dimension drawing 19,0" full metal........................................................................................................ 23

fig. 19: Dimension drawing 21,5" built-in ........................................................................................................... 24

fig. 20: Dimension drawing 21,5" full metal........................................................................................................ 24

fig. 21: Dimension drawing 23,8" built-in ........................................................................................................... 25

fig. 22: Dimension drawing 23,8" full metal........................................................................................................ 25

fig. 23: Peripherie Panel BayTrail variant .......................................................................................................... 26

fig. 24: Peripherie Panel Haswell variant ........................................................................................................... 26

fig. 25: Peripherie Panel Apollo Lake variant..................................................................................................... 26

fig. 26: Peripherie Panel Skylake variant ........................................................................................................... 26

fig. 27: Power Connector ................................................................................................................................... 27

fig. 28: PWR on LED .......................................................................................................................................... 27

fig. 29: USB2.0 Type-A connector ..................................................................................................................... 27

fig. 30: USB3.0 Type-A connector ..................................................................................................................... 27

fig. 31: GbE RJ45 Connector ............................................................................................................................. 28

fig. 32: HDMI connector ..................................................................................................................................... 28

fig. 33: Display Port connector ........................................................................................................................... 29

fig. 34: VGA connector ....................................................................................................................................... 29

fig. 35: COM (RS232) connector ....................................................................................................................... 29

fig. 36: S&T webpage: RMA .............................................................................................................................. 31

fig. 37: S&T RMA form ....................................................................................................................................... 32
