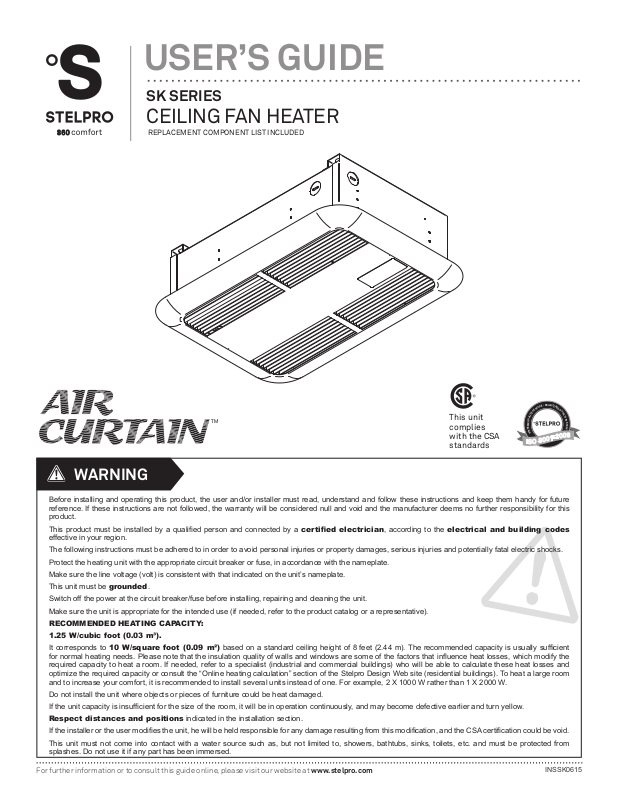

Page 1
USER’S GUIDE
HISTORIQUE DES RÉVISIONS | REVISIONS HISTORY
REV. DATE DESCRIPTION MODIFIÉ PAR | MODIFIED BY:
SK SERIES
CEILING FAN HEATER
REPLACEMENT COMPONENT LIST INCLUDED
E
R
-
É
I
F
I
T
R
E
C
É
T
I
L
A
This unit
complies
with the CSA
U
Q
E
M
È
T
S
Y
S
standards
WARNING
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future
reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this
product.
, according to the
effective in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit must be .
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
It corresponds to
required capacity to heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and
optimize the required capacity or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room
and to increase your comfort, it is recommended to install several units instead of one. For example, 2 X 1000 W rather than 1 X 2000 W.
Do not install the unit where objects or pieces of furniture could be heat damaged.
indicated in the installation section.
This unit must not come into contact with a water source such as, but not limited to, showers, bathtubs, sinks, toilets, etc. and must be protected from
splashes. Do not use it if any part has been immersed.
G
I
S
T
E
R
E
D
Q
U
A
L
I
T
Y
S
Y
S
T
E
M
For further information or to consult this guide online, please visit our website at www.stelpro.com
INSSK0615

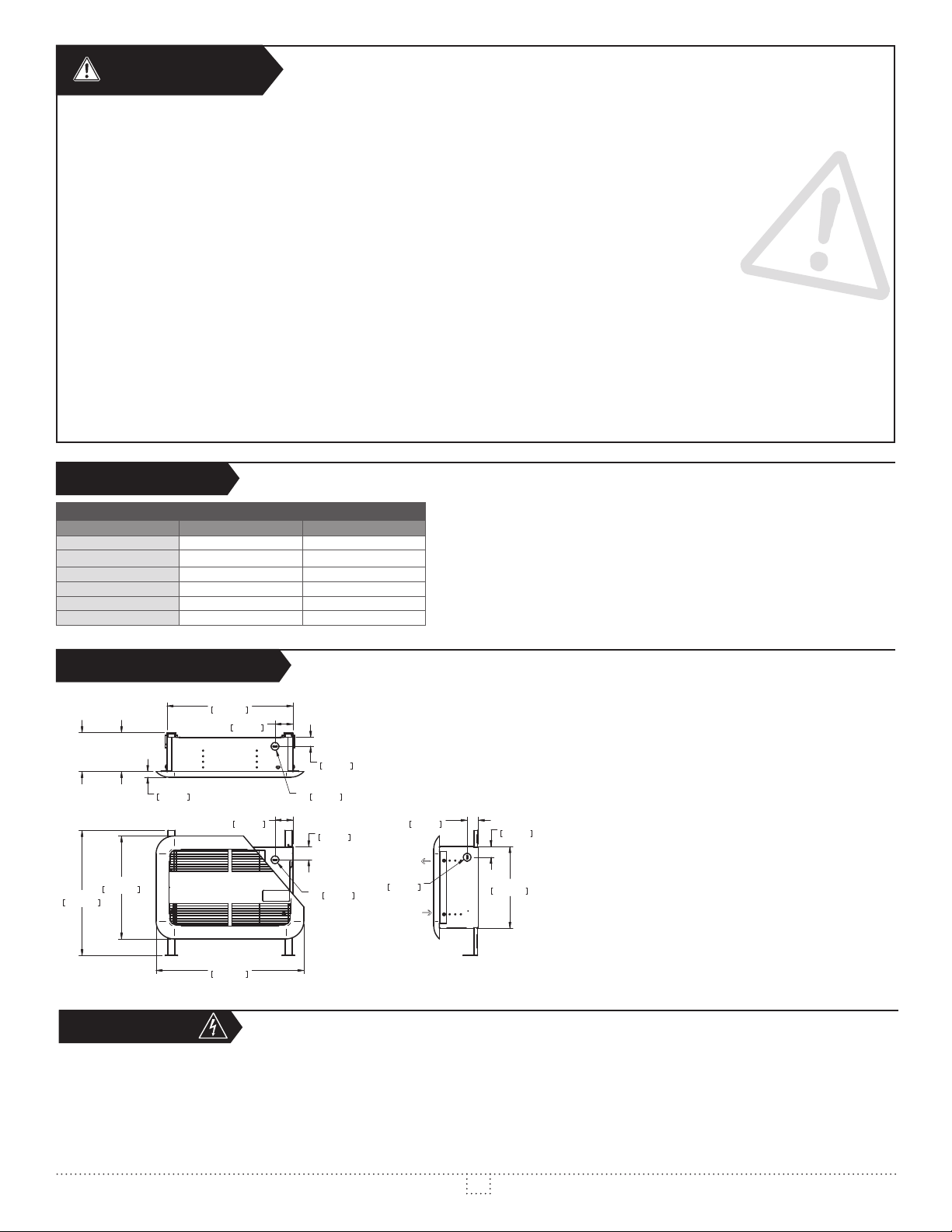

Page 2
WARNING
When mounting the unit, make sure that the anchorage used can support the total weight of the unit with the mounting brackets.
When cutting or drilling into a ceiling, do not damage electrical wiring and other hidden utilities.
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be and when using it. To avoid burns, do
not let bare skin touch hot surfaces. The unit must cool down for few minutes since it will stay warm for some time after shut-down.
This unit must be installed at least from the walls and between and
objects or pieces of furniture do not come into contact with the unit and keep them at least
the unit can withstand heat.
products.
Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit based on the amount of dirt accumulated on
in accordance with these instructions.
The thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or
damaged. (Refer to the limited warranty)
SPECIFICATIONS
VOLTS 120, 208, 240, 277 V 277, 347 V
500 À 2000 W 1000 À 2000 W
11 LB / 5 KG 14 LB / 6,4 KG
4 3/8’’ / 111 MM 6 3/8’’ / 161 MM
14 1/16” / 357 MM 14 1/16” / 357 MM
11 1/2” / 292 MM 11 1/2” / 292 MM
TECHNICAL DRAWINGS
14 1/16"
357mm
2"
TOP
51mm
2"
51mm
1"
25mm
KO
7/8"
O
22mm
1 1/4"
O
1 7/16"
37mm
KO
7/8"
22mm
32mm
KO
7/8"
O
22mm
1 3/16"
30mm
9 1/8"
232mm
SKII
6 3/8"
[161mm]
14"
355mm
SK
4 5/16"
[111mm]
11 1/2"
292mm
5/8"
16mm
FRONT
16 1/2"
419mm
SIDE
INSTALLATION
you know when it is time to refer to the template, indicating: .
2
INSSK0615

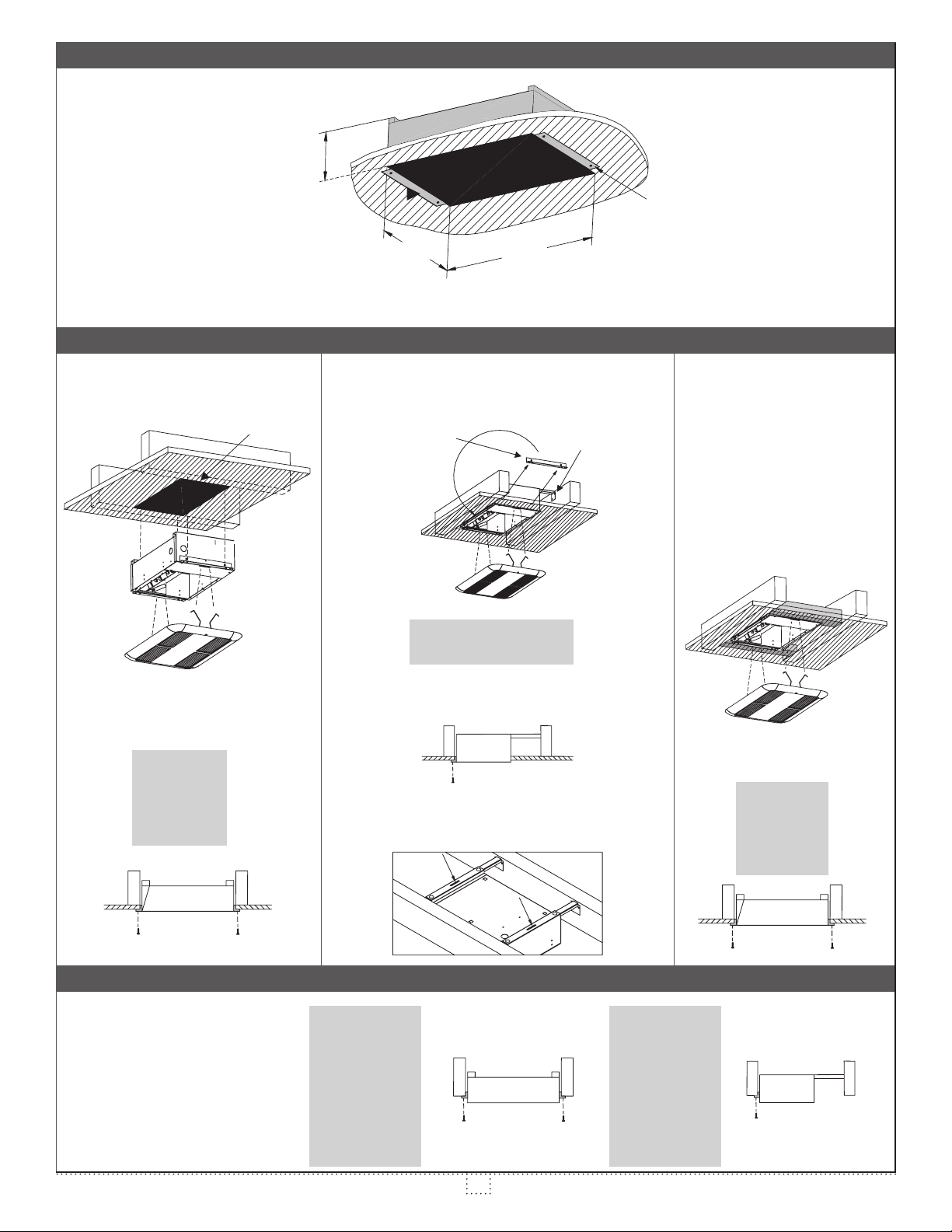

Page 3
SKI
Placed directly
Interchangeable
SKII
between the joists.
Unit
4 1/2”
[114 mm]
6 1/2”
[165 mm]
9 1/4”
[235 mm]
Opening dimensions required
for a recessed installation into
a finished ceiling.
14 1/4”
[362 mm]
shoulder (fixed
to the unit)
Ceiling
bracket
(included)
When the unit is recessed, the
flanged shoulders must rest
on the finished surface.
Screw wooden boards (2’’ X 4’’) between
the ceiling joists in order to create a
‘‘box’’ in which you will insert the unit.
FOLLOW
CUT A ON
TEMPLATE
FOLLOW CUT C ON
TEMPLATE
You must unscrew the shoulder and reposition it on the side that
will rest on the ceiling joist. Screw the shoulder into the lowest level
of holes on the enclosure so that they will be in line.
Measure the distance between the enclosure and the joist on which
bracket) until the proper length has been achieved.
ceiling.
FOLLOW
CUT A ON
TEMPLATE
interchangeable shoulders should be
raised by screwing them into the second
level of holes on the enclosure. So,
once installed, the enclosure will rest
FOLLOW CUT B
ON TEMPLATE
(TO CUT THE
LASTERBOARD
BEFORE ITS
INSTALLATION)
FOLLOW CUT C
ON TEMPLATE
(TO CUT THE
PSTERBOARD
BEFORE ITS
INSTALLATION)
3
INSSK0615

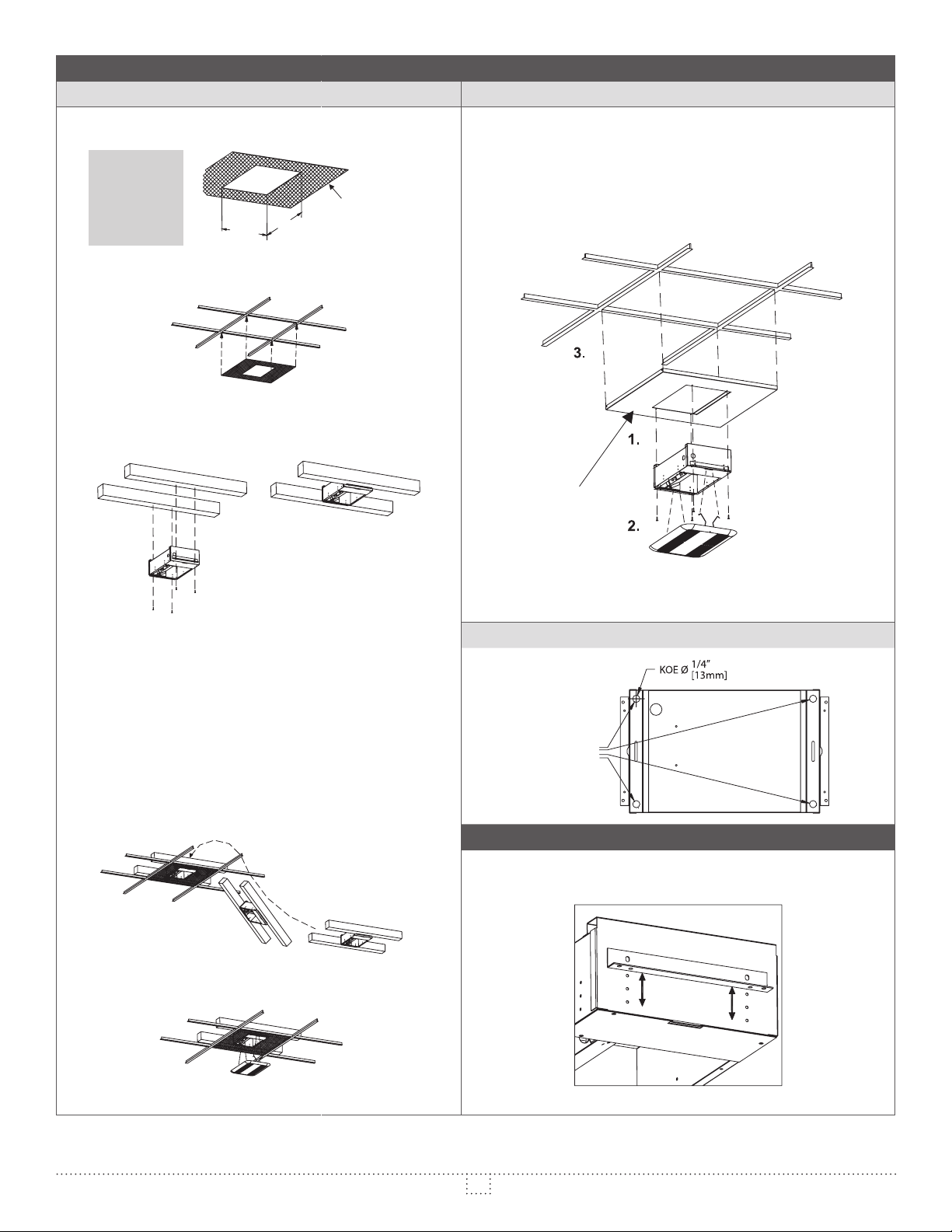

Page 4
Will adjust to all types of
1. Remove a tile where you want to install the unit and cut on an opening
within it (see dimensions hereinafter).
FOLLOW
CUT A ON
TEMPLATE
14 1/4”
[362 mm]
2. Put the cut tile back on.
3. Fix the unit between two wooden boards (2” x 4”) using four (4) screws
long enough to cross over the T-bar ceiling supports in order to support the
weight of the heater).
9 1/4”
[235 mm]
Suspended
ceiling tile
1. Fix the unit directly to the T-bar adapter (optional) by screwing the shoulders into
the adapter at both sides with four (4) screws, in such a way that the unit will be
entirely recessed.
2. Install the grille by putting the clips into their respective slots within the enclosure
and pushing it up into place.
existing suspended ceiling tile.
T-Bar adapter
(optional)
(24”x24”)
room to put the two boards at their respective locations.
B) Pick up the assembly and place it above the cut tile, and across the
T-bar ceiling supports. The enclosure of the heater must be suspended
exactly above the opening and in line with the tile.
5. Install the grille by putting the clips into their respective slots within the
enclosure and pushing it up into place.
Threaded
rods
installation
holes
suspended ceilings.
* Wooden boards are merely a recommendation, any other material capable
of supporting the weight of the heater may be used.
4
INSSK0615

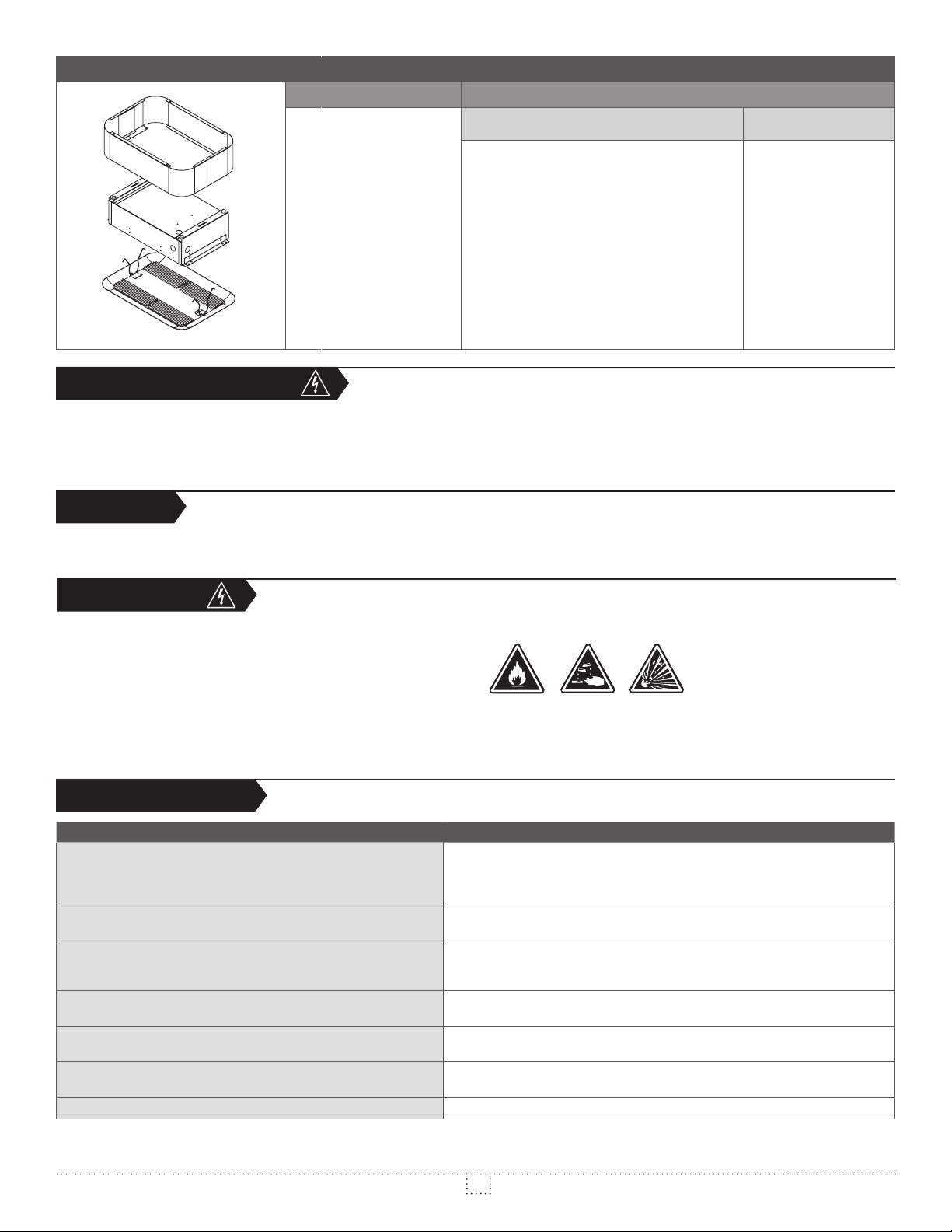

Page 5
1. Screw the surface adapter
(optional) to the ceiling
(4 screws), making sure the
joist will support its weight.
2. Screw the unit to the
surface adapter (optional) (4
screws).
3. Install the grille by putting
the clips into their respective
slots within the enclosure
and pushing it up into place.
TO THE SUSPENDED CEILING TILE
1. Insert the surface adapter (optional) into the tile
screw through two wooden boards (2’’x 4’’) which
should be laying across the supports of the T-Bar
ceiling.
2. Screw the unit to the surface adapter (optional)
(4 screws).
3. Install the grille by putting the clips into their
respective slots within the enclosure and pushing
it up into place.
TO THE T-BAR ADAPTER
(OPTIONAL)
1. Screw the surface
adapter (optional) (4
screws) directly onto
the T-Bar adapter
(optional).
2. Screw the unit to
the surface adapter
(optional) (4 screws).
3. Install the grille by
putting the clips into
their respective slots
within the enclosure and
pushing it up into place.
ELECTRICAL CONNECTION
The ground fault protection connection must be made by connecting the green wire coming from the circuit breaker panel to the green screw located inside the
junction box of the heater.
OPERATION
(thermostat and timer not included).
MAINTENANCE
soft rag for dusting. When cleaning, use only a damp rag and non-abrasive dish
soap. Do not use abrasive or chemical cleaners because they may damage
to remove dust and other foreign objects from the grilles. Note that cigarette
smoke could yellow the discharge grille and that the best way to prevent it is to
clean the unit on a regular basis.
TROUBLESHOOTING
Defective thermostat/timer or wrong thermostat/timer setting
The unit does not work
The unit runs continuously
The enclosure is extremely hot
The unit cycles under control of the thermal protection
(overheat indicator)
Overheating
The breaker trips when the heater is turned on
Elements are on, but the motor does not work
Open circuit breaker or fuse
The thermal protection has been activated
Faulty connections
Defective thermostat/timer or wrong thermostat/timer setting
Defective thermal protection
Blocked air vents
Defective motor
Blocked air vents
Defective motor
Defective thermostat/timer or wrong thermostat/timer setting
Defective motor
Faulty connections
Voltage higher than that written on the nameplate
Defective motor
N.B. If you do not solve the problem after checking these points, cut off the power supply at the main electrical panel and contact our customer service (see the
“Limited warranty” section to obtain the phone numbers).
5
INSSK0615

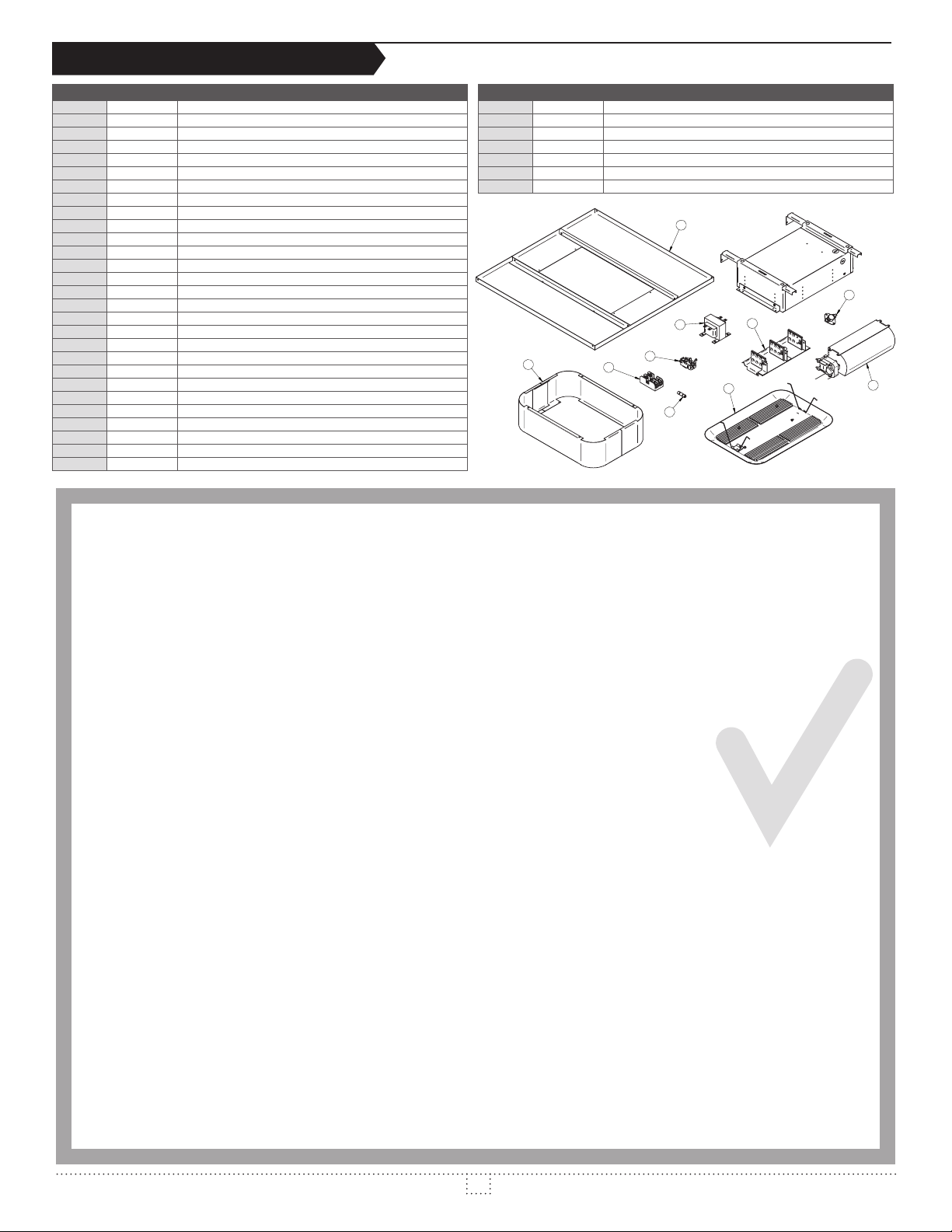

Page 6
REPLACEMENT COMPONENT LIST
1 ELF-SK001 ELEMENT (KIT) 500 W-120 V / 2000 W-240 V / 1500 W-208 V
1 ELF-SK002 ELEMENT (KIT) 500 W-240 V
1 ELF-SK003 ELEMENT (KIT) 1000 W-240 V / 750 W-208 V
1 ELF-SK004 ELEMENT (KIT) 1000 W-120 V
1 ELF-SK005 ELEMENT (KIT) 1000 W-347 V
1 ELF-SK006 ELEMENT (KIT) 1250 W-240 V
1 ELF-SK007 ELEMENT (KIT) 1500 W-120 V
1 ELF-SK008 ELEMENT (KIT) 1500 W-240 V
1 ELF-SK009 ELEMENT (KIT) 2000 W-208 V / 750 W-120 V
1 ELF-SK010 ELEMENT (KIT) 2000 W-347 V / 1250 W-277 V
1 ELF-SK011 ELEMENT (KIT) 1000 W-600 V / 1500 W-600 V / 2000 W-600 V
1 ELF-SK012 ELEMENT (KIT) 750 W-240 V / 1000 W-277 V / 1500 W-347 V
1 ELF-SK013 ELEMENT (KIT) 1250 W-120 V
1 ELF-SK014 ELEMENT (KIT) 1250 W-347 V / 750 W-277 V
1 ELF-SK015 ELEMENT (KIT) 2000 W-277 V
1 ELF-SK016 ELEMENT (KIT) 500 W-277 V
1 ELF-SK017 ELEMENT (KIT) 500 W-208 V
1 ELF-SK018 ELEMENT (KIT) 1000 W-208 V
1 ELF-SK019 ELEMENT (KIT) 1500 W-277 V
1 ELF-SK020 ELEMENT (KIT) 1250 W-208 V
2 GRILLE
3 MO-008 MOTOR/BLOWER (240 V) (FOR 2000 W MODELS)
3 MO-009 MOTOR/BLOWER (120 V)
3 MO-032
4 PROT-005
5 TRF320100
5 TRF620100
5 TRF720100
6
7
7
8 ST-017
9
10 FS-005
6
5
7
8
9
10
1
2
4
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY
This limited warranty is offered by Stelpro Design inc. (“Stelpro”) and applies to the following products made by Stelpro: models SKI and SKII.
, Stelpro warrants its products and their components
against defects in workmanship and/or materials for the following periods from the date of purchase:. This warranty applies only to the original
purchaser; it is non-transferable and cannot be extended.
If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and contact 1)
your installer or distributor, 2) your service center or 3) Stelpro’s customer service department. In all cases, you must have a
and provide the . Stelpro reserves the right to examine or to ask one of its representatives to
examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price
or repair a defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out
by persons authorized by Stelpro.
(electricians and distributors - French), (electricians and distributors - English), or
(consumers). The authorization number must be clearly written on the parcel or it will be refused.
This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly disclaims
Stelpro’s liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities whatsoever,
whether based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings, acts or omissions
relating thereto. Without limiting the generality of the foregoing, Stelpro expressly disclaims any liability for property or personal injury damages,
services, shutdowns, slowdowns, or for other types of economic loss or for claims of a dealer’s customers or any third party for such damages. Stelpro
This warranty does not cover any damages or failures resulting from: 1) a faulty installation or improper storage; 2) an abusive or abnormal use, lack
of maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was designed; 3) a natural
disaster or an event out of Stelpro’s control, including, but not limited to, hurricanes, tornadoes, earthquakes, terrorist attacks, wars, overvoltage,
negligence of the user or owner of the product. Moreover, it does not cover the cost of disconnection, transport, and installation.
The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price,
replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty
period. This warranty will be considered null and void and Stelpro will have the right to refuse any claims if without
corrosion or discoloration caused by excessive heat, chemical cleaning products and abrasive agents. It does not cover any damage that occurred
during the shipping.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow limitations
may have other rights which vary from state to state or from province to province.
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
3
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Québec | J3V 6L7
