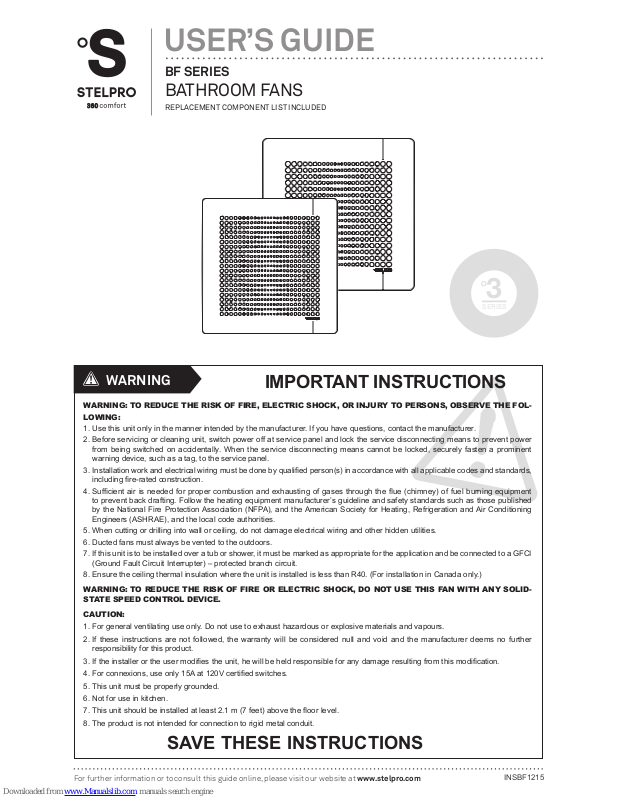

INSBF1215
USER’S GUIDE
BF SERIES
BATHROOM FANS
REPLACEMENT COMPONENT LIST INCLUDED
3
SERIES
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOL-
LOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualied person(s) in accordance with all applicable codes and standards,
including re-rated construction.
4. Sufcient air is needed for proper combustion and exhausting of gases through the ue (chimney) of fuel burning equipment
to prevent back drafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI
(Ground Fault Circuit Interrupter) – protected branch circuit.
8. Ensure the ceiling thermal insulation where the unit is installed is less than R40. (For installation in Canada only.)
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLIDSTATE SPEED CONTROL DEVICE.
CAUTION:
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapours.
2. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further
responsibility for this product.
3. If the installer or the user modies the unit, he will be held responsible for any damage resulting from this modication.
4. For connexions, use only 15A at 120V certied switches.
5. This unit must be properly grounded.
6. Not for use in kitchen.
7. This unit should be installed at least 2.1 m (7 feet) above the oor level.
8. The product is not intended for connection to rigid metal conduit.
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
WARNING
For further information or to consult this guide online, please visit our website at www.stelpro.com
Page 2
2
INSBF1215
BF050/070
BF090/110
INSTALLATION
Note: When a part of the product specication must be changed to improve operability or other functions, priority is given to the product
specication itself. In such instances, the instruction manual may not entirely match all the functions of the actual product. Therefore, the
actual product and packaging, as well as the name and illustration, may differ from the manual.

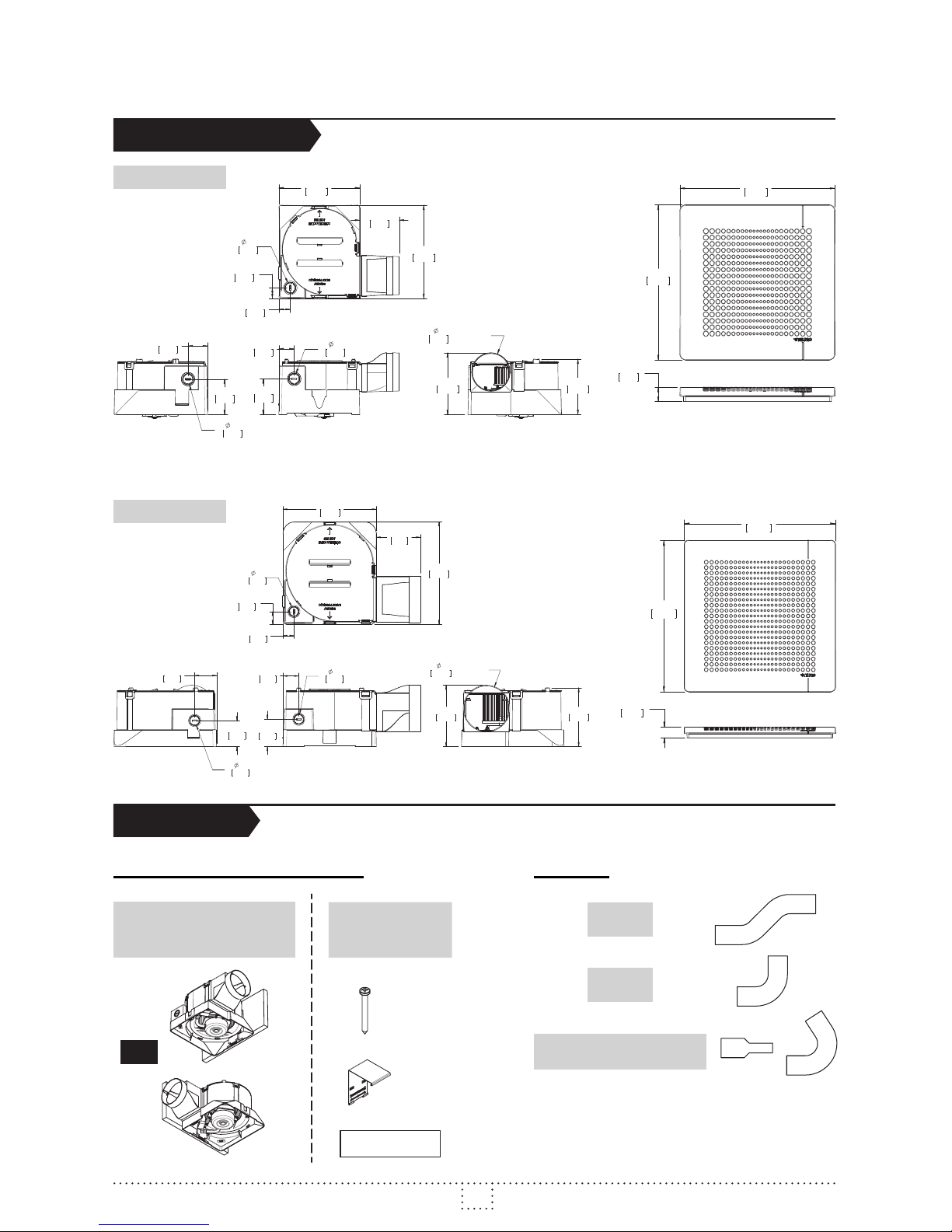

TECHNICAL DRAWINGS
1 1/2"
38mm
KO
7/8''
22mm
2 3/4"
69mm
4 3/4"
121mm
1 3/16" KO
30mm
22mm
7/8''
2 3/4"
70mm
7 3/16"
183mm
7/8''
22mm
KO
3 1/16"
77mm
21mm
6 1/4"
158mm
13/16"
7/8"
22mm
109mm
4 1/4"
3"
75mm
DUCT ADAPTOR
TOP
EDISTNORF EDISEDISSIDE FRONT
TOP
2 5/16"
34mm
59mm
2" KO 7/8"
22mm
5 3/16"
132mm
56mm
22mm
2 3/16"
KO 7/8"
1 7/8"
47mm
24mm
15/16"
1 1/16"
28mm
KO 7/8"
22mm
EDISTNORFSIDE
TOPTOP
EDISEDIS FRONT
127mm
5"
4"
102mm
DUCT ADAPTOR
8 11/16"
221mm
201mm
7 15/16"
3 3/4"
95mm
218mm
8 9/16"
8 9/16"
218mm
GRILLE
13/16"
20mm
GRILLEGRILLE
10 3/16"
259mm
10 3/16"
259mm
11/16"
18mm
CASING INSTALLATION
PARTS
NEEDED
X 2
X 1
Parts supplied
ON JOIST
INSTALLATION
OR
DUCTS
NOT RECOMMENDED
[Good] : PVC or Galvani
zed steel
[Mediu
m] : Flexible aluminum
[Poor] : Vinyl
GOOD
BEST
Page 3
3
INSBF1215

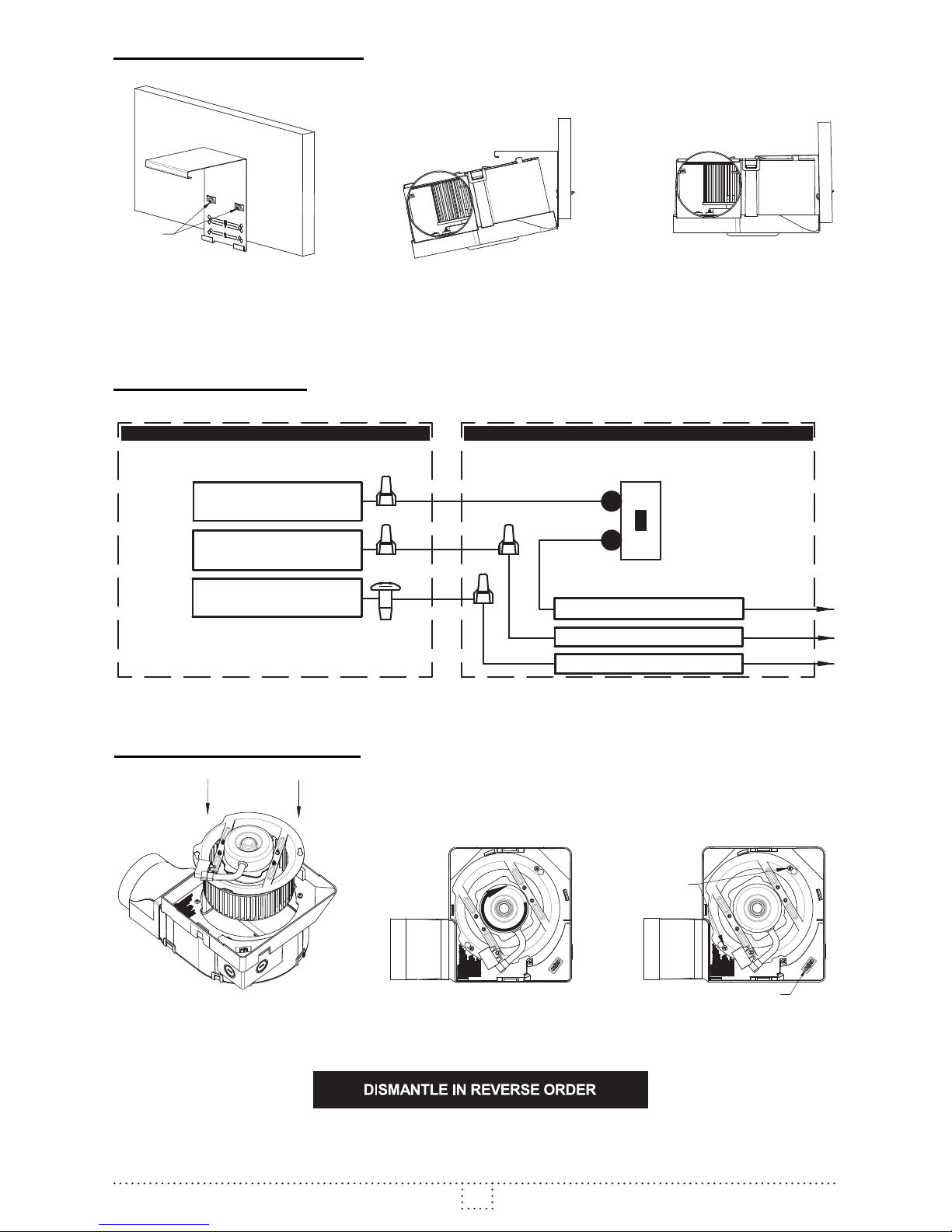

CASING INSTALLATION
SCREW 2X
THE JOIST AT THE NEEDED HEIGHT
DEPENDING OF THE GYPSUM THICKNESS.
BY INCLINING IT.
INSTALL THE SUPPORT ON
PUT THE CASING ON THE SUPPORT
PUSH UP THE CASING.
WIRING DIAGRAM
BLACK Fan
WHITE Neutral
GREEN Ground
Fan junction box Switch box
WHITE Neutral
BARE Ground
Fan
BLACK Live
MOTOR INSTALLATION
CONNECT
SCREW 2X
INSERT THE MOTOR ASSEMBLY IN THE CASING
WHILE ALIGNING THE HOLES WITH THE SCREWS.
.ESIWKCOLC NRUT SCREW THE PLATE AND CONNECT THE MOTOR.
Page 4
4
INSBF1215
4
1
5
6
3
2

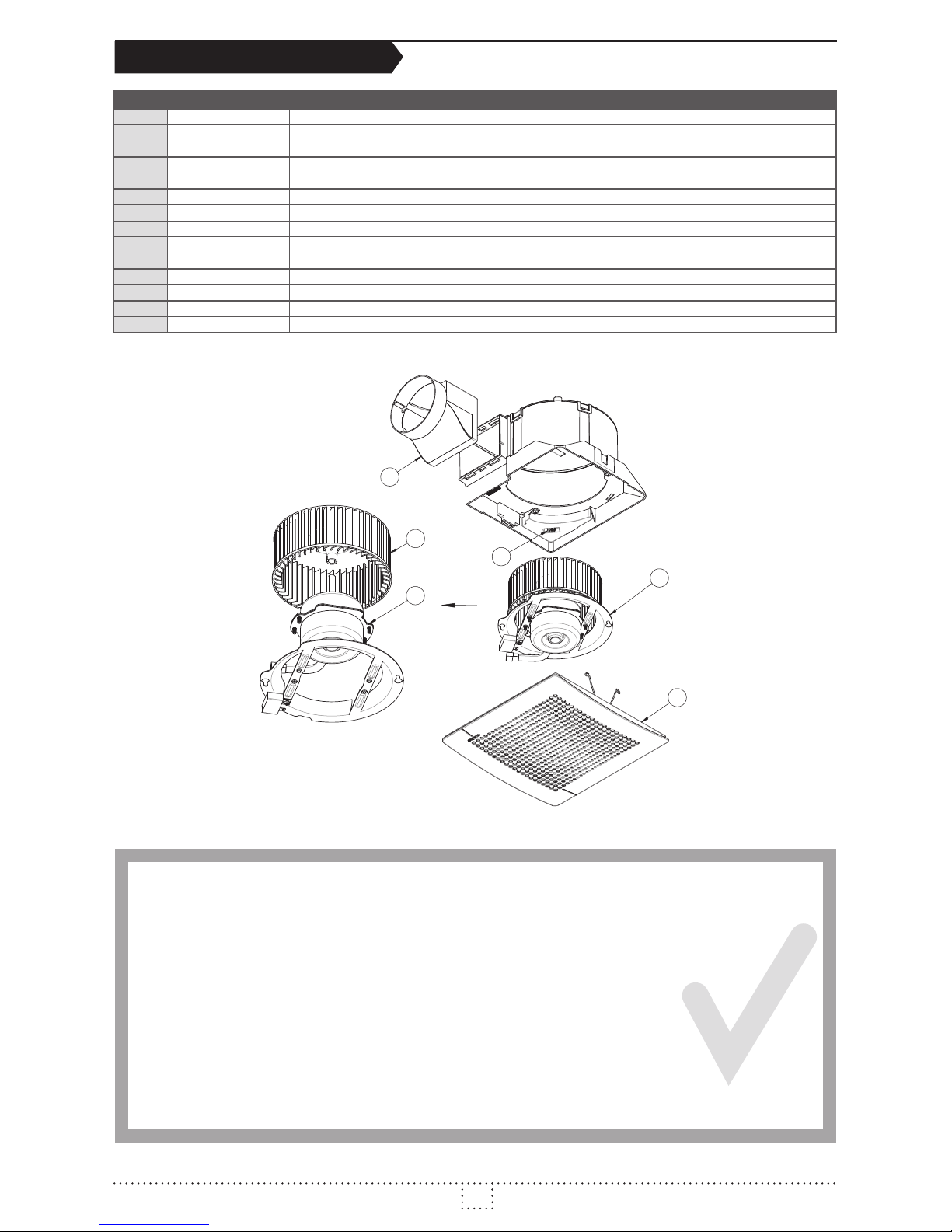

REPLACEMENT COMPONENT LIST
REF. # PART # DESCRIPTION
1 SA-BF-0006 BF050 MOTOR SUBASSEMBLY
1 SA-BF-0007 BF070 MOTOR SUBASSEMBLY
1 SA-BF-0008 BF090 MOTOR SUBASSEMBLY
1 SA-BF-0009 BF110 MOTOR SUBASSEMBLY
2 MO-061 MOTOR 44W 1 SPEED 120V 60Hz CCW (WITH 3 PINS CONNECTOR) FOR BF
2 MO-062 C-FRAME MOTOR 120V, 60Hz, 50 CFM
2 MO-063 C-FRAME MOTOR 120V, 60Hz, 70 CFM
3 BLO-BF BF IMPELLER
3 BLO-BFQ BFQ IMPELLER
4 BDD-008 BACKDRAFT DAMPER 4’’ FOR BFQ & BF090/110
4 BDD-009 BACKDRAFT DAMPER 3’’ FOR BF
5 HAR-029 HARNESS, BF CUSTOMER INTERFACE
6 GRI-BF050/070 BF050/070 GRILLE SUBASSEMBLY
6 GRI-BF090/110 BF090/110 GRILLE SUBASSEMBLY
BF series models are warranted for 1 year. If at any time during this period the unit becomes defective,
it must be returned to its place of purchase with a copy of the invoice, or simply contact our customer
service department (with a copy of the invoice in hand). The warranty is limited to the factory repair or the
replacement of the unit, and does not cover the cost of disconnection, transport, installation, and component
replacement. Any damages or failures caused by abuse, misuse, abnormal usage, faulty installation, or
improper maintenance (other than that provided by Stelpro) will not be covered by this warranty. Stelpro De-
sign disclaims any responsibility for bodily injuries, losses of income and material damages caused directly
or indirectly by the product. Some States and provinces do not allow the exclusion or limitation of incidental
or consequential damages and some States do not allow limitations on how long an implied warranty lasts,
so these exclusions or limitations may not apply to you. This warranty gives you specic legal rights and you
may have other rights which vary from State to State and province to province.
