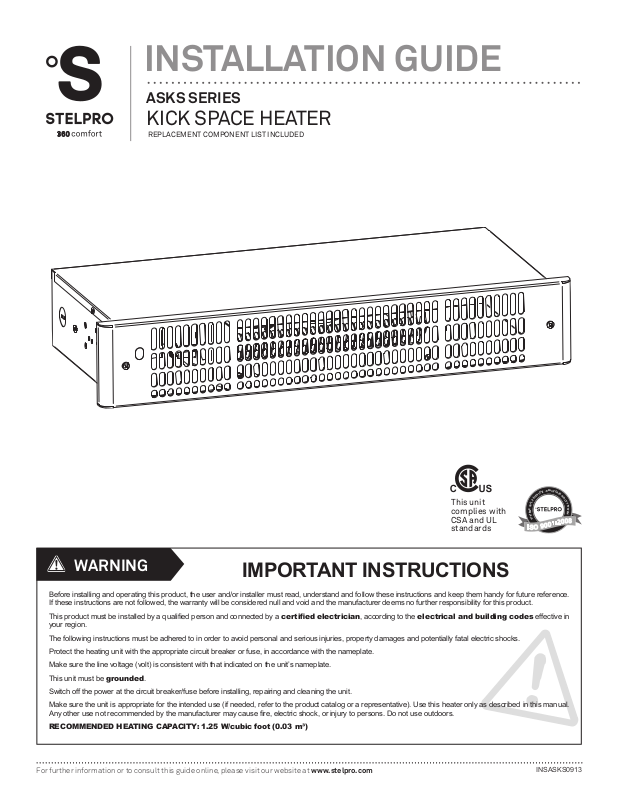

Page 1
INSTALLATION GUIDE
ASKS SERIES
KICK SPACE HEATER
REPLACEMENT COMPONENT LIST INCLUDED
T
R
E
C
É
T
I
L
This unit
complies with
CSA and UL
A
U
Q
E
M
È
T
S
Y
S
standards
WARNING
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference.
If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
, according to the effective in
your region.
The following instructions must be adhered to in order to avoid personal and serious injuries, property damages and potentially fatal electric shocks.
Protect the heating unit with the appropriate circuit breaker or fuse, in accordance with the nameplate.
Make sure the line voltage (volt) is consistent with that indicated on the unit’s nameplate.
This unit must be .
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative). Use this heater only as described in this manual.
For further information or to consult this guide online, please visit our website at www.stelpro.com
IMPORTANT INSTRUCTIONS
INSASKS0913
G
E
I
R
S
-
T
E
É
I
R
F
E
I
D
Q
U
A
L
I
T
Y
S
Y
S
T
E
M
Page 2
TECHNICAL DRAWINGS
WARNING
It corresponds to
heat a room. If needed, refer to a specialist (industrial and commercial buildings) who will be able to calculate these heat losses and optimize the required capacity
indicated in the installation section.
Moreover, do not turn it on or off when standing in water or if your hands are wet.
Because this unit is hot when in use, it may pose risks even in normal operation. Therefore, be careful and responsible when using it. To avoid burns, do not touch
hot surfaces with bare skin. Allow the unit to cool down for a few minutes since it stays warm for some time after shut-down. Extreme caution is necessary when any
heater is used by or near children or invalids and whenever the heater is left operating and unattended.
Never block air vents (with objects or other items). You risk damaging the heater and the obstruction could lead to electric shock or overheating, which could result
cleaning products.
Some areas are dustier than others. Thus, it is the user’s responsibility to evaluate if the unit must be cleaned based on the amount of dirt accumulated on and inside
with these instructions.
The thermal protection activation indicates that the unit has been subjected to abnormal operating conditions. If the thermal protection remains activated or activates
to the limited warranty)
Before unplugging the unit, all controls must be in the “OFF” position and the current from the main breaker panel should be cut. (The general switch may be used
TECHNICAL DRAWINGS
20 1/8"
510mm
21 3/4"
552mm
TOP
FRONT
A
1 3/4"
44mm
A
2 1/8"
53mm
KO
7/8"
[22mm]
SAVE THESE INSTRUCTIONS
9 15/16"
253mm
3 3/4"
95mm
g
g
3/4"
19mm
SIDE A-A
g
1 9/16"
40mm
1 3/4"
44mm
3 1/2"
89mm
2
INSASKS0913
Page 3
SPECIFICATIONS, OPERATION & INSTALLATION
SPECIFICATIONS
INSTALLATION
Keep the front and and upper sides of the unit at least 3 feet (91 cm)
from any adjacent surfaces. Moreover, make sure objects or pieces
of furniture such as, but not limited to, blankets, towels, beds, laundry
not come into contact with the unit and keep them at least 3 feet (91 cm)
Some materials are more heat-sensitive than others, so make sure those
near the unit can withstand heat.
1 - Cut the required opening according to the dimensions shown below.
3 - Make the required electrical connections. Make sure to properly ground
the unit and to choose the desired power, according to the image below.
6 - Secure the unit to the wall with wood screws (not supplied).
7 - Align the grill holes and secure it with the supplied screws.
VOLTS 120, 240
WATTS
WEIGHT 10 LB / 4.5 KG
21 3/4" / 552 mm
HEIGHT 3 3/4" / 95.3 mm
9 15/16" / 253 mm
FIGURE 1
3 5/8"
92mm
20 3/8"
517mm
FIGURE 2
10"
254mm
MIN.
OPERATION
3
FIGURE 3
LINE : 1000W
CABINET
MAXIMUM
DISTANCE
4"
[102 mm]
INSASKS0913
Page 4
MAINTENANCE & TROUBLESHOOTING
MAINTENANCE
Use a soft rag for dusting. When cleaning, use only a damp rag and
location, use a vacuum brush to remove dust and other foreign objects
from the grilles. Note that cigarette smoke could yellow the discharge
grille and that the best way to prevent it is to clean the unit on a regular
basis.
TROUBLESHOOTING
em
The unit does not work
The unit runs continuously
The enclosure is extremely hot
Open circuit breaker or fuse
The thermal protection has been activated
Faulty connections
Heat losses higher than the unit capacity
Blocked air vents
One or more elements are defective
The desired room temperature cannot be reached
The unit cycles under control of the thermal protection
The breaker trips when the heater is turned on
Voltage lower than that written on the nameplate
Heat losses higher than the unit capacity
Blocked air vents
Faulty connections
Voltage higher than that written on the nameplate
4
INSASKS0913
Page 5
D
B
C
A
REPLACEMENT COMPONENT LIST
REPLACEMENT COMPONENT LIST
1 BLA-002
2 ECH150
2 ECH250
3
3 M-SKS14ZSS
4 MO-001
4 MO-012
5
6 SWI-006 SWITCH
for almond, for white, BK for black
OPTIONAL
5
4
6
1
3
2
A
B SKST1
C SKST2
BOUT-015
BOUT-016
BOUT-017
for almond, for white, BK for black, for stainless steel
5
INSASKS0913
Page 6
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY
Subject to the terms of this warranty, Stelpro warrants its products and their components against defects in
workmanship and/or materials for the following periods from the date of purchase: . This warranty
applies only to the original purchaser; it is non-transferable and cannot be extended.
If at any time during the warranty period the unit becomes defective, you must cut off the power supply at the main electrical panel and contact 1)
your installer or distributor, 2) your service center or 3) Stelpro customer service department. In all cases, you must have a
and provide the. Stelpro reserves the right to examine or to ask one of its representatives to
examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or
repair a defective part. Please note that repairs made within the warranty period must be authorized in advance in writing by Stelpro and carried out by
persons authorized by Stelpro.
at: (electricians and distributors - French), (electricians and distributors - English), or
(consumers). The authorization number must be clearly written on the parcel or it will be refused.
This warranty is exclusive and in lieu of all other representations and warranties (except of title), expressed or implied, and Stelpro expressly disclaims
Stelpro liability with respect to products is limited as provided above. Stelpro shall not be subject to any other obligations or liabilities whatsoever, whether
based on contract, tort or other theories of law, with respect to goods or services furnished by it, or any undertakings, acts or omissions relating thereto.
Without limiting the generality of the foregoing, Stelpro expressly disclaims any liability for property or personal injury damages, penalties, special
consequential, incidental and contingent damages whatsoever.
This warranty does not cover any damages or failures resulting from: 1) a faulty installation or improper storage; 2) an abusive or abnormal use, lack of
maintenance, improper maintenance (other than that prescribed by Stelpro) or a use other than that for which the unit was designed; 3) a natural disaster
water damages, etc. This warranty does not cover any accidental or intentional losses or damages nor does it cover damages caused by negligence of
the user or owner of the product. Moreover, it does not cover the cost of disconnection, transport, and installation.
The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, . Any parts
replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty
period. This warranty will be considered null and void and Stelpro will have the right to refuse any claims if without the
or discoloration caused by excessive heat, chemical cleaning products and abrasive agents. It does not cover any damage that occurred during the
shipping.
Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some of them do not allow limitations on
have other rights which vary from state to state or from province to province.
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY LIMITED WARRANTY
STELPRO DESIGN INC. | Saint-Bruno-de-Montarville | Québec | J3V 6L7
6
INSASKS0913
