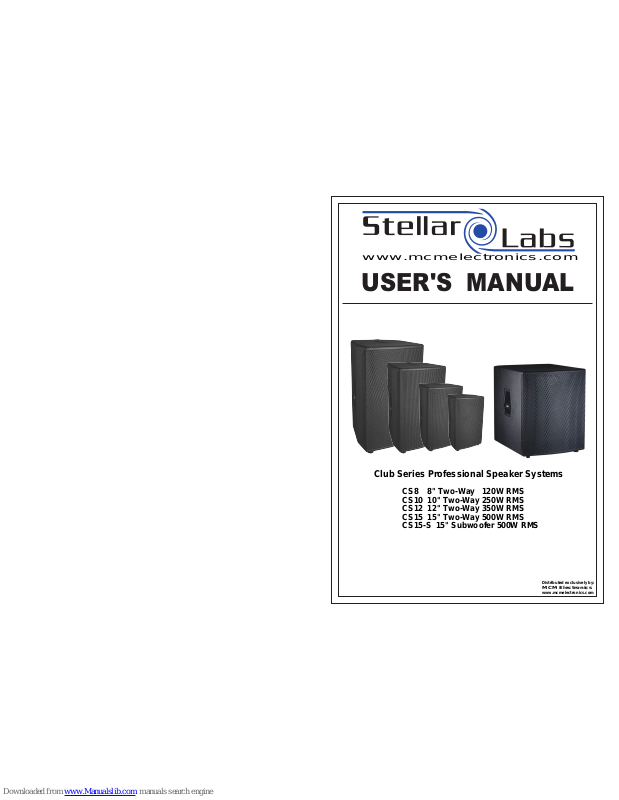

Page 1
USER'S MANUAL
www.mcmelectronics.com
Club Series Professional Speaker Systems
Distributed exclusively by:
MCM Electronics
www.mcmelectronics.com
CS8 8" Two-Way 120W RMS
CS10 10" Two-Way 250W RMS
CS12 12" Two-Way 350W RMS
CS15 15" Two-Way 500W RMS
CS15-S 15" Subwoofer 500W RMS
Page 2
The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even
under the normal operating conditions, which may be sufficient to constitute the risk of electric shock or
death.
The symbol is used in the service documentation to indicate that specific component shall be replaced
only by the component specified in that documentation for safety reasons.
Protective grounding terminal
Alternating current/voltage
Hazardous live terminal
ON: Denotes the apparatus is turned on
OFF: Denotes the apparatus is turned off.
WARNING: Describes precautions that should be observed to prevent the danger of injury or death to the operator.
CAUTION: Describes precautions that should be observed to prevent danger of the apparatus.
·Read these instructions.
·Keep these instructions.
·Heed all warning.
·Follow all instructions.
Water & Moisture·
The apparatus should be protected from moisture and
rain, can not used near water, for example: near bathtub, kitchen sink or a swimming pool, etc.
·Heat
The apparatus should be located away from the heat
source such as radiators, stoves or other appliances
that produce heat.
·Ventilation
Do not block areas of ventilation opening. Failure to
do could result in fire. Always install accordance with
the manufacturer's instructions.
·Object and Liquid Entry
Objects do not fall into and liquids are not spilled into
the inside of the apparatus for safety.
·Power Cord and Plug
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
Do not defeat the safe ty purpose of the polariz ed or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety.
If the provided plug does not fit into your outlet, refer to
electrician for replacement.
CAU TION
RISK OF E LECTR IC SHOC K
DO NOT OP EN
°
·Power Supply
The apparatus should be connecte d to the power supply
only of the type as marked on the apparatus or described
in the manual. Failure to do could result in damage to the
product and possibly the user.
Unplug this app aratus durin g lightn ing stor ms or when
unused for long periods of time.
·Fuse
To prevent the risk of fire and d amaging the unit, pl ease
use only of th e recommended fuse type as des cribed in
the manual. Before replacing the fuse, make sure the unit
turned off and disconnected from the AC outlet.
·Electrical Connection
Improper electrical wiring may invalidate the product warranty.
·Cleaning
Clean only with a dry cloth. Do not use any solvents such
as benzol or alcohol.
·Servicing
Do not implement an y servicing other than those means
describe d in the manu al. Refer a ll servicin g to qualif ied
service personnel only.
·Only use accessories/attachments or parts recommended
by the manufacturer.
·Warning
Please remember the high sound pressure do not only
temporarily damage your sense of hearing, but can also
cause permanent damage. Be careful to select a suitable
volume.
2
These speakers are intended for stationary use on flat, solid, level surfaces. When mounting or otherwise
installing, it is the responsibility of the user to be certain the location is secure and safe. Care should be
taken to ensure speakers are not placed close to edge of stage or other surfaces, or similar locations where
they may fall.
When using with speaker stands it is the responsibility of the user to be certain the stand is capable of
supporting the weight of the speaker. This should be carefully checked, regardless of the weight of the
speaker or stated capacity of the stand.
WARRANTY
MCM Electronics warrants to the original purchaser that these speakers will be free from defects in
materials and workmanship for a period of one year. In the event that warranty replacement is required,
the unit will be replaced or repaired at the sole discretion of MCM Electronics. Warranty claims must be
processed through the MCM Electronics customer service department.
This warranty does not include service or parts to repair damage caused by accident, disaster, misuse,
abuse, or improper installation. This warranty is in lieu of all other expressed warranties. If the product
is defective in materials or workmanship as warranted above, the purchaser’s sole remedy shall be
repair or replacement as provided above. In no event will MCM Electronics be liable for any incidental or
consequential damages arising from the use of this product.
Distributed Exclusively by:
MCM Electronics
www.mcmelectronics.com
3
IMPORTANT
IMPORTANT
Page 3
4
5
1+
1-2+2-
Connector
Specifications
Frequency Range (-10dB)
Power Capacity
(Continous Pink Noise)
Nominal Impedance
Sensitivity (1W@1m)
Nominal Dispersion
Crossover Frequency
LF Driver
HF Driver
Maximum SPL
Input Connectors
Dimensions (H W D)× ×
Net Weight
Model
55Hz ~ 20KHz
150W
8 ohms
89dB
2.5KHz
F0803B(aluminum)
F3408(1.35")
117dB
2 Speakon×
120 H x 80 V
45Hz ~ 20KHz
350W
8 ohms
95dB
2.5KHz
124dB
2 Speakon×
8" 2-WAY
12" 2-WAY
50Hz ~ 20KHz
250W
8 ohms
94dB
2.5KHz
120dB
2 Speakon×
10" 2-WAY
Specifications
Frequency Range (-10dB)
Power Capacity
(Continous Pink Noise)
Nominal Impedance
Sensitivity (1W@1m)
Nominal Dispersion
Crossover Frequency
LF Driver
HF Driver
Maximum SPL
Input Connectors
Dimensions (H W D)× ×
Net Weight
Model
40Hz ~ 20KHz
500W
8 ohms
96dB
2.5KHz
127dB
2 Speakon×
15" 2-WAY
15" SUB WOOFER
97dB
-----
40Hz ~ 2KHz
500W
4 ohms
127dB
2 Speakon×
-----
-----
120 H x 80 V
F1003B(aluminum) F1203B(aluminum)
F3408(1.35") F4408(1.75")
120 H x 60 V
120 H x 60 V
F1503B(aluminum)
F4408(1.75")
F1503A(aluminum)
CS8
INPUT
LINK OUT
Power
(RMS)
150W
Freq.Response
60Hz-20kHz
Impedance
8Ω
Sensitivity (1W/1m) 92dB
CLUB Series
Pin 1+
Pin 1-
Pin 2+
Pin 2-
Full Range
Through
www.mcmelectronics.com
MADE IN CHINA
Speakon
TM
18.2" x 10.8" x 11.4"
27.5 lbs
19.7" x 12.2" x 12.9"
35.7 lbs
24.0" x 14.6" x 15.5"
53.3 lbs
66.6 lbs 57.3 lbs
24.6" x 16.9" x 17.8"
20.9" x 17.3" x 20.5"
OVERVIEW
Thank you for your purchase of this high quality Stellar Labs speaker system. Each speaker is
carefully designed and constructed to provide the highest performance possible, from a rugged
compact enclosure. The components utilized in each model were carefully selected and
matched to each other, and when used properly will provide years of reliable service.
Each cabinet is equipped with twist-lock connectors compatible with industry standard Speakon™
connectors. There are two connectors provided, enabling easy paralleling of two cabinets. Note
that each speaker is 8 , two connected together are 4 . It is not recommended that more than two
cabinets are connected together in this manner unless you are certain your amplifier is capable
of driving loads below 4 .

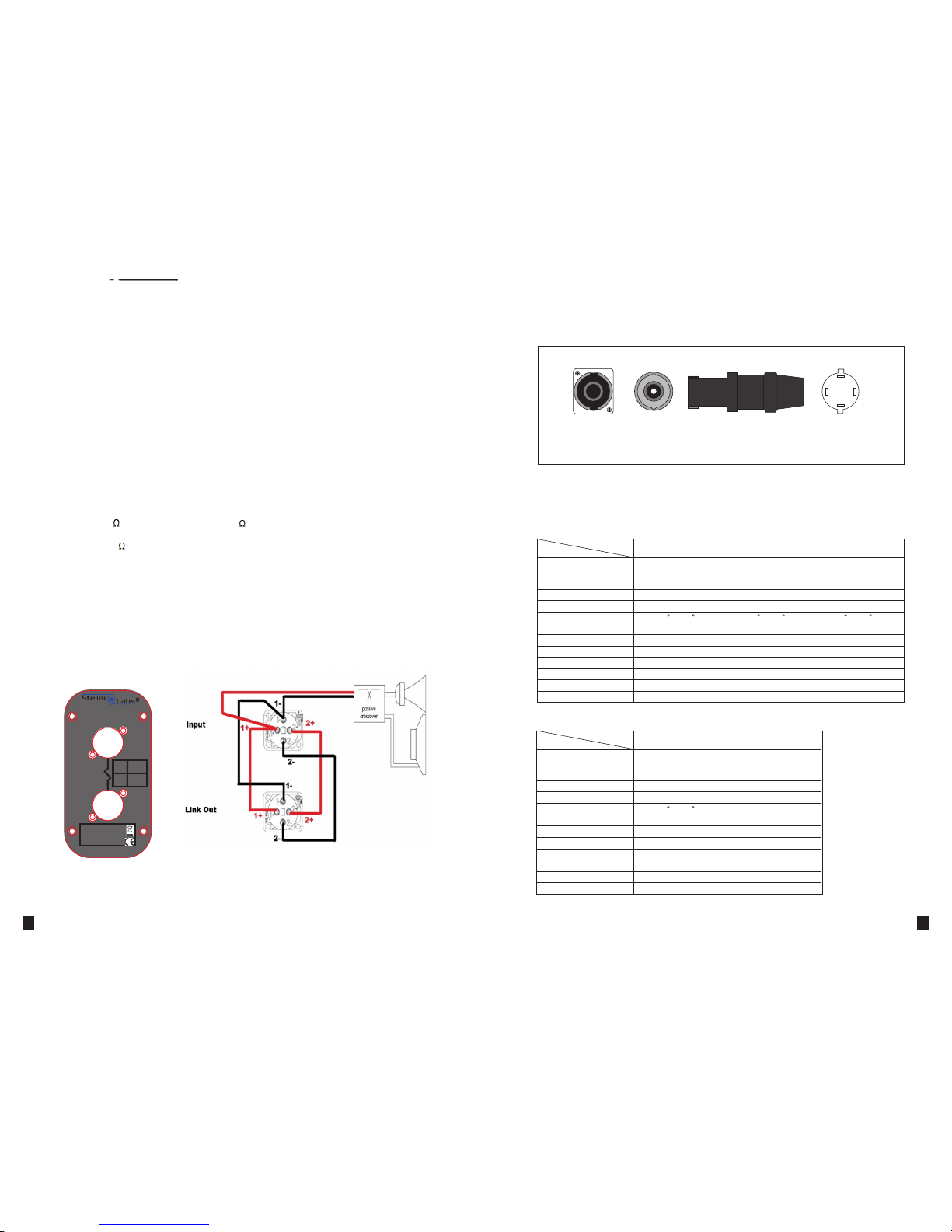

These connections utilize all four pins of the Speakon™ connector.
PIN 1+ and PIN 1– on the INPUT connector feed via the internal crossover to the speaker, plus
parallel to the same pins on the LINK OUT connector.
PIN 2+ and PIN 2– on the INPUT connector feed only to the same pins on the LINK OUT connector.
See the illustration below for clarification.
FEATURES
-Solid construction
-Attractive design and finish
-Rugged perforated steel grill
-Waterproof textured black paint
-Tuned ¾” MDF cabinets
CONNECTION
SPECIFICATIONS
