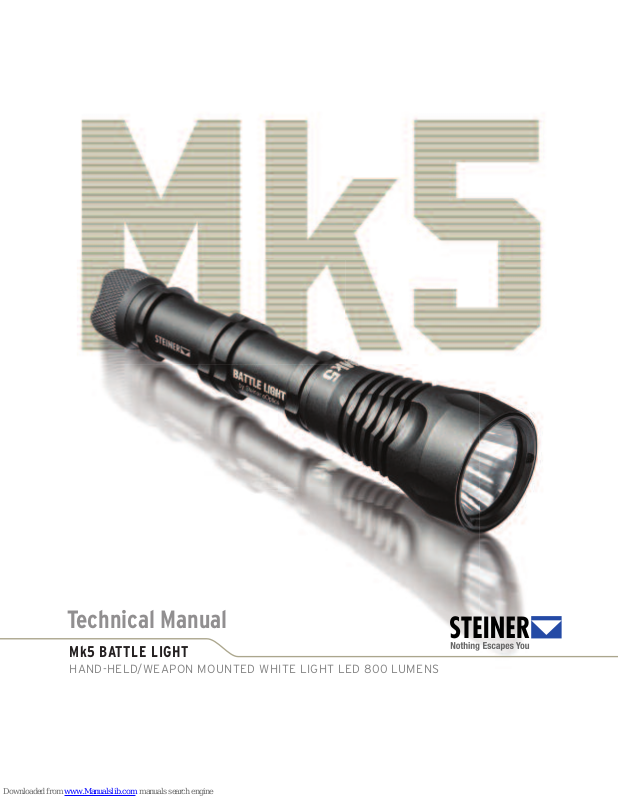

Steiner Mk5 Technical Manual

Mk5 BATTLE LIGHT

HAND-HELD/WEAPON MOUNTED WHITE LIGHT LED 800 LUMENS

Technical Manual

STEINER HERITAGE™ WARRANTY

We are committed to building optics that never need service. However,
should one become damaged or defective, for any reason other than theft
or deliberate misuse, we will repair or replace it at no charge – no questions
asked. That’s our promise to not only you, but to all those who will own your
Steiner optic after you.

• No warranty card needed

• No receipt required

• Fully transferable – from generation to generation

The Mk5 Hand-held Tactical Light features a stunning 650 lumen LED in a
sleek, compact package. The Mk5 offers an 8° hot-spot with a 50° flood
illuminator to point out targets at far distances while maintaining peripheral
vision awareness.

BATTERY INSTALLATION:

1. Rotate flashlight head counter clock wise and remove from battery housing.

2. Install batteries in correct orientation as marked on housing.

3. Install flashlight head by turning clock wise onto battery tube.

4. Do not use any tools to turn flashlight head.

MAINTENANCE:

• Never use strong cleaners or solvents on housing.

• Use soft towel and soapy water to clean external housing.

• Use damp towel to clean internal battery compartment. Excess moisture
inside battery compartment may damage unit.

• Use alcohol and soft towel to clean front window.

OPTIONAL ACCESSORIES (not included)

• Mk5 Dual Tailcap (Push Button/Remote Cable) - Black (Item # 9161)

• Mk5 Low Profile Offset Mount - Black (Item # 9165)

• 7” Y-Remote cable pressure pad switch. Connects Mk4 Battle Light and OTAL-A,
OTAL-Classic, CQBL-1, DBAL-A2, DBAL-D2, DBAL-I2 (Item # 9145)

SPECIFICATIONS:

• Push-button operation

• Momentary / Constant On

• Hand-held or weapon-mounted with optional accessories

• Type: White Light LED

• Lamp: Light Emitting Diode

• Lumens: 800

• Divergence: 8°

• Range: 400 m

• Weight: 4.2 oz.

• Length: 6.41 in.

• Diameter: 1.56 in.

• Battery: 2 x CR 123A or 1 x 18650 rechargeable

• Battery Life: 1.25 hours

• Material: Anodized Aircraft Aluminum 6061-T6,
MIL-SPEC Type III Hardcoat Anodized

• Environment: Waterproof to 20 m

• Warranty: Heritage Warranty™
