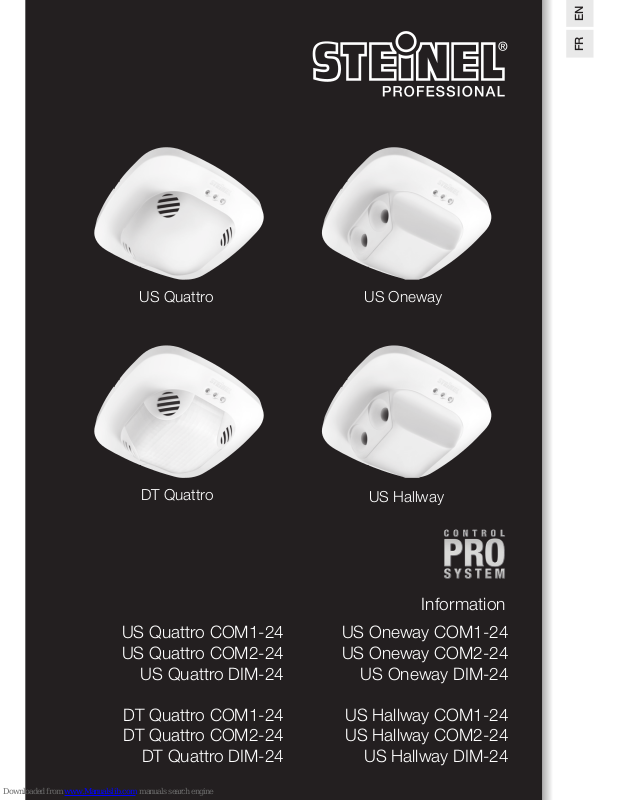

Page 1

US Quattro COM1-24 US Quattro COM2-24

US Quattro DIM-24

DT Quattro COM1-24 DT Quattro COM2-24

DT Quattro DIM-24

US Quattro US Oneway

DT Quattro

US Hallway

US Oneway COM1-24 US Oneway COM2-24

US Oneway DIM-24

US Hallway COM1-24 US Hallway COM2-24

US Hallway DIM-24

Information

FR EN

Page 2

- 2 -

Assembly / Installation / Dimensional Drawings

Load module

Sensor module

Mounts to a 4" Square box, 4" Octagon box or Round 3.0 Mud-Ring

120

US Quattro / DT Quattro

US Oneway / US Hallway

120

Mounts directly to ceiling with quick mount spring tabs

120

Ø min. 68 mm (2 11/16 in)

max. 76 mm (3 in)

120

Page 3

- 3 -

US Quattro COM2-24 / DT Quattro COM2-24 / US Oneway COM2-24 / US Hallway COM2-24

Light level setting See page 18

Occupancy time delay setting See page 18

HVAC stay-'ON' time See page 19

HVAC switch-'ON' delay See page 19

e f g

Reach setting See page 19, 20

Page 4

- 4 -

US Quattro DIM-24 / DT Quattro DIM-24 / US Oneway DIM-24 / US Hallway DIM-24

e f m

Light level setting See page 18

Occupancy time delay setting See page 18

Stay 'ON' time DIM before 'OFF' See page 19

Reach setting See page 19, 20

Page 5

- 5 -

US Quattro COM1-24 / DT Quattro COM1-24 / US Oneway COM1-24 / US Hallway COM1-24

Light level setting See page 18

Occupancy time delay setting See page 18

Reach setting See page 19, 20

e f i

Page 6

- 6 -

Disconnect the power supply

before attempting any work on the sensor!

Before installation, make sure

that power has been switched off at the breaker and check that the circuit is dead with a voltage tester.

Installing the sensor involves

work on the line voltage power supply. This work must there

fore be carried out professionally in accordance with the applicable Nation Electrical Codes and electrical operating conditions.

Control output DIM-24

(1-10 V) must only be used for connecting electronic ballasts with an electrically isolated 10V dimming control input.

System Components

Load module

Sensor module

Sensor control plate

Sensor DIP switch settings

(1) Normal / Test mode

(2) Manual 'ON' / Automatic

'ON' mode

(3) Momentary / Maintained

switch option

(4) 'ON' only / 'ON'&'OFF'

manual switching

(5) Constant light level DIM

control option (6)(7)(8) Trigger mode

(DT Quattro only)

Light level setting

Occupancy time delay setting

Switching output 1

HVAC stay-'ON' time Switching output 2

HVAC switch-'ON' delay Switching output 2

Reach setting



10.1

COM1-24 Wiring



10.2

COM2-24 Wiring



10.3

COM2-24 Multiple Sensor Wiring



10.4

DIM-24 Wiring



10.5

DIM-24 Multiple Sensor Wiring

Locking mechanism

Assembly / Installation /

Dimensional Drawings

Stay 'ON' time DIM before

'OFF' option

Trigger mode options

Assembly/Installation (see chart on page 2)

For indoor use only.

Sensor and load modules come preassembled and must be separated for access to the commissioning settings on the backside of sensor module by opening the locking tabs k on the sides.

Reconnect and seat the sensor to the load module and secure the locking tabs

for normal

operation.

Accessories:

- WGC Wire Guard Cage

- RC 3 Service Remote

- RC 4 User Remote

Operating Instructions

Installer:

This product has been manufactured and 100% quality tested.

Please read all of the instructions before installation. This will help you to be familiarized with all the features and options available to you with these devices.

This will also assist you to mini

mize installation time and provide maximum energy savings and trouble-free operation.

Safety Warnings

Page 7

- 7 -

How it Works / Basic Function

The Control Pro DT Quattro and Ultrasonic presence detector product familiy is intended to control lighting and HVAC in commercial buildings, schools, public building, etc.

Lighting is controlled in relation to both the presence of motion and ambient light levels. The HVAC output on the (COM2-24) is signaled in relation to only the presence of motion.

Commissioning adjustments are made by potentiometer or dip switch settings on the sensor or by the optional (RC3 service remote) commissioning tool.

US Quattro COM1-24 DT Quattro COM1-24

US Oneway COM1-24 US Hallway COM1-24

1 switching output (COM1-24 Low Voltage) operating in relation to the detection of motion and ambient light level.

Settings:

- Light level setting

- Occupancy time delay, Pulse mode, IQ mode

US Quattro COM2-24 DT Quattro COM2-24

US Oneway COM2-24 US Hallway COM2-24

1 low voltage switching output operating in relation to the detection of motion and ambient light level. An additional isolated normally open and normally closed set of dry contact closures for signaling HVAC (heating/venti

lation/airconditioning) in relation only to the presence of persons.

Settings:

- Light level setting

- Occupancy time delay,

Pulse mode, IQ mode

- HVAC stay-'ON' time

- HVAC switch-'ON' delay,

Auto-HVAC mode

US Quattro DIM-24 DT Quattro DIM-24

US Oneway DIM-24 US Hallway DIM-24

1 low voltage switching output operating in relation to the detection of motion and ambient light level. An additional isolated 1-10 volt dimming output operat

ing in relation to the amount of daylight present.

Settings:

- Light level setting

- Occupancy time delay, IQ mode

- Stay 'ON' time DIM before 'OFF'

- Constant light level DIM

control option

Page 8

- 8 -

Note:

1.) Tangential

- motion perpendicular to the sensor

2.) Radial

- motion either directly toward or away from the sensor

3.) Presence

- minor motion as described by NEMA WD7 with the additional requirement of both radial and tangential detection

Ultrasonic signal can be increased by hard surfaces and decreased by soft surfaces.

US Oneway / US Hallway Ultrasonic Detection

14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14

45.5

42.5 39 36

32.5

29.5 26 23

19.5

16.5 13 10

6.5

3.3 0

3.3

6.5 10 13

16.5

19.5 23 26

29.5

32.5 36 39

42.5

45.5

Coverage diagram at 9 ft mounting height.

One grid line = 1 m / 3.3 ft

US ONEWAY US HALLWAY

Detection Zone

m 6 5 4 3 2 1 0 1 2 3 4 5 6

19.7 16 13

9.5

6.5

3.3 0

3.3

6.5

9.5 13 16

19.7

6 5 4 3 2 1 0 1 2 3 4 5 6

US Quattro / DT Quattro Ultrasonic Detection / DT Quattro Infrared Detection

Coverage diagram at 9 ft mounting height.

One grid line = 1 m / 3.3 ft

PIR RADIAL & PRESENCE DETECTION

PIR TANGENTIAL DETECTION

US TANGENTIAL & PRESENCE DETECTION

US RADIAL MAJOR MOTION DETECTION

Page 9

- 9 -

COM1-24 Wiring



10.

Note: Power Pack must be in Auto mode.

US Quattro COM1-24 DT Quattro COM1-24 US Oneway COM1-24 US Hallway COM1-24

18 AWG wire is recommended for low voltage sensor & power pack connection.

The leads consist of five wires:

1. 24V Input (RED)

2. Control Return (BLUE)

3. Communication (BROWN)

4. Switch Input (GREEN)

5. 24V Common (BLACK)

Load

Control Pro

COM1-24

Presence Detector

Control Pro

COM1-24

(Master)

Presence Detector

Control Pro

COM1-24

(Slave)

Presence Detector

Power Pack

Neutral

Hot

Neutral

Hot

White (Neutral)

Black (Hot)

Red (Relay)

Red (Load)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

White (Neutral)

Black (Hot)

Red (Relay)

Red (Load)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

Blue (Control) Black (-24 VDC) Red (+24 VDC) Gray (Momentary Switch)

(Optional Line Voltage

Maintained Contact Switch)

(Optional Line Voltage

Maintained Contact Switch)

Blue (Control) Black (-24 VDC) Red (+24 VDC) Gray (Momentary Switch)

Page 10

- 10 -

COM2-24 Wiring



10.

Note: Power Pack must be in Auto mode.

US Quattro COM2-24 DT Quattro COM2-24 US Oneway COM2-24 US Hallway COM2-24

18 AWG wire is recommended for low voltage sensor & power pack connection.

The leads consist of eight wires:

1. 24V Input (RED)

2. Control Return (BLUE)

3. Communication (BROWN)

4. Switch Input (GREEN)

5. 24V Common (BLACK)

6. HVAC Relay Normally Open (YELLOW WITH RED STRIPES)

7. HVAC Relay Normally Common (YELLOW)

8. HVAC Relay Normally Closed (YELLOW WITH BLACK STRIPES)

Neutral

Hot

White (Neutral)

Black (Hot)

Red (Relay)

Red (Load)

Load

(Optional Line Voltage

Maintained Contact Switch)

Blue (Control) Black (-24 VDC) Red (+24 VDC) Gray (Momentary Switch)

Power Pack

Control Pro

COM2-24

Presence Detector

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

HVAC Yellow/Red (Normally Open)

HVAC Yellow (Relay Common)

HVAC Yellow/Black (Normally Closed)

Isolated HVAC

Relay Contacts

max. 1 A Resistive load

Page 11

- 11 -

COM2-24 Multiple Sensor Wiring



10.

Note: Power Pack must be in Auto mode.

US Quattro COM2-24 DT Quattro COM2-24 US Oneway COM2-24 US Hallway COM2-24

18 AWG wire is recommended for low voltage sensor & power pack connection.

The leads consist of five wires:

1. 24V Input (RED)

2. Control Return (BLUE)

3. Communication (BROWN)

4. Switch Input (GREEN)

5. 24V Common (BLACK)

6. HVAC Relay Normally Open (YELLOW WITH RED STRIPES)

7. HVAC Relay Normally Common (YELLOW)

8. HVAC Relay Normally Closed (YELLOW WITH BLACK STRIPES)

(Optional Line Voltage

Maintained Contact Switch)

Neutral

Hot

Blue (Control) Black (-24 VDC) Red (+24 VDC) Gray (Momentary Switch)

Power Pack

Control Pro

COM2-24

(Master)

Presence Detector

Control Pro

COM2-24

(Slave)

Presence Detector

White (Neutral)

Black (Hot)

Red (Relay)

Red (Load)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

HVAC Yellow/Red (Normally Open)

HVAC Yellow (Relay Common)

HVAC Yellow/Black (Normally Closed)

HVAC Yellow/Red (Normally Open)

HVAC Yellow (Relay Common)

HVAC Yellow/Black (Normally Closed)

Load

Isolated HVAC

Relay Contacts

max. 1 A Resistive load

Page 12

- 12 -

DIM-24 Wiring



10.

US Quattro DIM-24 DT Quattro DIM-24 US Oneway DIM-24 US Hallway DIM-24

18 AWG wire is recommended for low voltage sensor & power pack connection.

The leads consist of seven wires:

1. 24V Input (RED)

2. Control Return (BLUE)

3. Communication (BROWN)

4. Switch Input (GREEN)

5. 24V Common (BLACK)

6. +10V dimming ballast input (VIOLET)

7. -10V dimming ballast input (GRAY)

Note: Power Pack must be in Auto mode.

Neutral

Hot

0-10 V Dimming

Ballast

Power Pack

(Optional Line Voltage

Maintained Contact Switch)

Control Pro

DIM-24

Presence Detector

Blue (Control) Black (-24 VDC) Red (+24 VDC) Gray (Momentary Switch)

White (Neutral)

Black (Hot)

Red (Relay)

Red (Load)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

-10 V Dimming Ballast (Gray)

+10 V Dimming Ballast (Violet)

-10 V Dimming Ballast (Gray)

Page 13

- 13 -

DIM-24 Multiple Sensor Wiring



10.

US Quattro DIM-24 DT Quattro DIM-24 US Oneway DIM-24 US Hallway DIM-24

18 AWG wire is recommended for low voltage sensor & power pack connection.

The leads consist of seven wires:

1. 24V Input (RED)

2. Control Return (BLUE)

3. Communication (BROWN)

4. Switch Input (GREEN)

5. 24V Common (BLACK)

6. +10V dimming ballast input (VIOLET)

7. -10V dimming ballast input (GRAY)

Note: Power Pack must be in Auto mode.

Neutral

Hot

Load

Power Pack

(Optional Line Voltage

Maintained Contact Switch)

Control Pro

DIM-24

(Master)

Presence Detector

Control Pro

DIM-24

(Slave)

Presence Detector

Blue (Control) Black (-24 VDC) Red (+24 VDC) Gray (Momentary Switch)

White (Neutral)

Black (Hot)

Red (Relay)

Red (Load)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

Blue (Control)

Black (-24 VDC)

Red (+24 VDC)

Green (Switch Input)

Brown (Communication)

+10 V Dimming Ballast (Violet)

-10 V Dimming Ballast (Gray)

+10 V Dimming Ballast (Violet)

-10 V Dimming Ballast (Gray)

Page 14

- 14 -

Technical Specifications

Dimensions (L x W x D) US Quattro / DT Quattro COM1-24 / COM2-24 / DIM-24 120 x 120 x 68 mm / 4.72 x 4.72 x 2.68 inches

US Oneway / US Hallway COM1-24 / COM2-24 / DIM-24 120 x 120 x 73 mm / 4.72 x 4.72 x 2.87 inches

Power supply: US / DT Quattro COM1-24 18 - 24 VDC/VAC (30 mA) 50/60 Hz US / DT Quattro COM2-24 18 - 24 VDC/VAC (34 mA) 50/60 Hz US / DT Quattro DIM-24 18 - 24 VDC/VAC (46 mA) 50/60 Hz US Oneway / US Hallway COM1-24 18 - 24 VDC/VAC (30 mA) 50/60 Hz US Oneway / US Hallway COM2-24 18 - 24 VDC/VAC (34 mA) 50/60 Hz US Oneway / US Hallway DIM-24 18 - 24 VDC/VAC (46 mA) 50/60 Hz Maximum load: US Oneway / US Hallway COM1-24 / COM2-24 / DIM-24

Control output (Blue) 1 A @ 30 VAC/VDC 50/60 Hz US Quattro / DT Quattro COM2-24 / US Oneway /

US Hallway COM2-24

Control output (Blue) 1 A @ 30 VAC/VDC 50/60 Hz HVAC dry contacts: Common (Yellow)

- Normally open (Yellow/Red)

- Normally closed (Yellow/Black) 1 A @ 30 VAC/VDC 50/60 Hz US Quattro/ DT Quattro DIM-24 / US Oneway /

US Hallway DIM-24 Control output (Blue) 1 A @ 30 VAC/VDC 50/60 Hz

1 - 10 volt dimming output (Purple & Gray) 100 mA, max. 50 (1 - 10 V electronic dimming ballasts)z

Ultrasonic detection zones: US Quattro / DT Quattro

(Coverage at 2.5 m / Presence (m): max. of 6 x 6 m (36 sq.m.) 9 ft installation height) min. of 2 x 2 m (4 sq.m.)

Presence (ft): max. of 20 x 20 ft (400 sq.ft.) min. of 6.5 x 6.5 ft (42.25 sq.ft.) Radial / Tangential (m): max. of up to 10x10 m (100 sq.m.)

(ft): max. of up to 32 x 32 ft (1000 sq.ft.) US Oneway

max. of 2 x 10 m (20 sq.m.) min. of 2 x 2.5 m (5 sq.m.) max. of 6.5 x 33 ft (214.5 sq.ft.) min. of 6.5 x 10 ft (65 sq.ft.)

US Hallway max. of 2 x 20 m (40 sq.m.) min. of 2 x 5 m (10 sq.m.) max. of 6.5 x 65 ft (422.5 sq.ft.) min. of 6.5 x 20 ft (130 sq.ft.)

PIR detection zones: DT Quattro COM1-24 / COM2-24 / DIM-24 Presence (m) max. of 3x3 m (9 sqm) Presence (ft) max. of 10x10 ft (100 sqft) Radially (m) max. of 4 x 4 m Radially (ft) max. of 13 x 13 ft Tangentially (m): max. of 8 x 8 m Tangentially (ft): max. of 26 x 26 ft

Page 15

- 15 -

Technical Specifications

Time setting: Control output 30 sec. - 30 min.

Pulse mode (approx. 2 sec. 'ON' 8 sec. 'OFF') - for time delay relay IQ mode (automatic adjustment to the usage profile) HVAC dry contacts (only in COM2-24) 0 sec. - 10 min. switch 'ON' delay 1 min. - 2 hrs. stay 'ON' time Auto-HVAC mode Installation height: US Quattro / DT Quattro COM1-24 / COM2-24 / DIM-24

2.5 - 3,5 m / 8 - 12 ft US Oneway / US Hallway COM1-24 / COM2-24 / DIM-24

2.5 - 3,5 m / 8 - 12 ft

Environment: IP 20 - For indoor use only Sensor technology: DT Quattro COM1-24 / COM2-24 / DIM-24

PIR (Passive Infrared), Single pyro, 11 detection levels, 520 switching zones Ultrasonic 40 kHz

US Quattro / US Oneway / US Hallway COM1-24 / COM2-24 / DIM-24 Ultrasonic 40 kHz

Protection class: Class 2 Temperature range: 0° F to +40° C / 32° F to 104° F Certifications: UL & CUL Listed,

RoHS & California Compliant, UL 2043 plenum rated

Page 16

- 16 -

DIP 4

In the 'ON'-'OFF' setting, the light can be switched 'ON' and 'OFF' manually at any time (except in

pulse mode: no manual 'OFF'). In the 'ON' setting, light can not be switched 'OFF' manually.

The stay-'ON' time starts from the beginning again each time the button is pressed.

'ON' only / 'ON'&'OFF' manual switching

DIP 1

Sensor DIP Switch Settings

Test mode has priority over all other settings on the presence detector and serves the purpose of checking for proper working order as well for testing the detection zone. Irrespective

of ambient light level, the presence detector activates the light to stay 'ON' for approx. 8 sec. in response to movement in the room (blue LED flashes when movement is detected). All user-

selected potentiometer settings apply in normal mode. The pres

ence detector can also be set by means of the blue LED without any load connected.

Normal mode / Test mode (NORM / TEST)

DIP 2

The light automatically switches 'ON' and 'OFF' in relation to occupancy and daylight contribution. Light can be switched 'ON' and 'OFF' manually at any time.

When switched 'OFF' manually this temporarily interrupts the automatic 'ON' function as long as the room is occupied. Once the room is no longer occupied

and the time delay of the sensor has elapsed the sensor will return to the automatic 'ON' function.

Manual ON mode (MAN) / Automatic mode (AUTO)

Automatic mode: (AUTO)

Manual ON mode: (MAN)

The load will only switch 'OFF' automatically. Light is switched 'ON'

manually by the occupant and stays 'ON' for the time

setting of the sensor.

DIP 3

Tells the sensor how to interpret the incoming maintained or momentary switching signal. Assigning external (momentary) buttons / (maintained) switches allows you to operate the detector

as a manual on unit or override it manually at any time. When using the DIM-24 power module and a momentary switch, light can be dimmed manually by pressing and holding the momentary switch

until the desired light level is achieved. Maximum wire lenght between sensor and switch <50 m / 164 ft.

Momentary / Maintained switch option

COM1-24 / COM2-24 / DIM-24

DIP 5

Provides constant light level. Detector measures the level of daylight and activates sufficient artificial light to achieve the

required level of light intensity. As daylight changes, the electric light is adjusted accordingly. In addition to the daylight

component, electric light is also switched 'ON' and 'OFF' in relation to whether or not persons are present.

Constant light level DIM control option

DIM-24

Page 17

- 17 -

DIP 6 / 7 / 8 Trigger mode

The trigger mode enables the user to choose which sensing technologies should be used to initially turn the load on and which technologies are required to keep it on. The following settings are possible:

DT Quattro COM1-24 / COM2-24 / DIM-24

Both: Requires movement recognition by PIR and US Either: Requires movement recognition by PIR or US PIR: Requires movement recognition by PIR US: Requires movement recognition by US

Inital occupancy:

Sensor technology used to turn the load on (PIR, US, Both, Either)

Maintain Occupancy:

Sensor technology used to keep the load on after initial occupancy (PIR, US, Both, Either)

The trigger mode is selected by DIP switches 6, 7 & 8.

1 2 3 4 5 6 7 8

TEST

MODE

MANUAL

ON / OFF

CONST. OFF

NORMAL

MODE

AUTO

CONST.ONTRIGGER MODE

Trigger mode options n Initial Occupancy Maintain Occupancy

DIP

Option 1 Both Either OFF OFF OFF Option 2 Both Both OFF OFF ON Option 3 PIR Either OFF ON OFF Option 4 US Either OFF ON ON Option 5 (factory setting) Either Either ON OFF OFF Option 6 US US ON OFF ON Option 7 PIR PIR ON ON OFF Option 8 Either Both ON ON ON

Page 18

- 18 -

Functions – Settings by Potentiometer

Application Examples Light level settings

Night-time mode, minimum setting approx. 10 lux / 1 fc min Corridors, foyers 1 Stairs, escalators, moving walkways 2 Restrooms, dining areas 3 Classrooms, sales oors, gymnasiums 4 Individual oces, conference and meeting rooms 5 Laboratories, precision work areas >=6 Daylight mode max

The occupancy time delay setting for switching output 1 is adjustable from a minimum

of 30 seconds to a maximum of 30 minutes.

Occupancy time delay setting

If the dial is set to (fully counterclockwise), the unit is in pulse mode, i.e. the output is switched 'ON' for approx. 2 sec. Afterwards,

the sensor does not respond to movement for approx. 8 sec. For use with a time delay relay.

Turned fully clockwise: The stay'ON' time is self-learning and adjusts dynamically to user

behaviour. The optimum time cycle is determined by means of a learning algorithm.

The shortest time is 5 min., the longest 20 min.

Pulse mode (except DIM)

IQ mode

The chosen response threshold can be adjusted from approx. 10 – 1000 lux / 1 – 100 fc.

Control dial turned fully clockwise: MAX daylight mode

Control dial turned fully counterclockwise: MIN night-time operation

Light level setting

Potentiometer e

Potentiometer f

DT Quattro COM1-24 / COM2-24 / DIM-24

Note: Depending on the site of installation, the setting may need to be corrected by 1 – 2 marks on the scale.

Brightness is measured directly at the sensor.

Page 19

- 19 -

Setting 1 sec. – 2 hr • Turned fully clockwise: max • Turned fully counterclockwise: min

• Setting 0 sec. – 10 min.

• Turned fully clockwise: Auto-HVAC mode

• Turned fully counterclockwise: 0 sec. (OFF)

Turning the potentiometer to the "Auto-HVAC mode" setting reduces the sensitivity of the "Presence" switching output. The contact only closes after surveying the activity of the space and then, signaling

with a high degree of certainty that multiple persons are present. The stay-'ON'- time remains active. The switch-'ON' delay is inactivated.

Switch-'ON' delay for switching output 2 HVAC

Reach Adjustment

Adjusts ultrasonic reach to specific requirements. Reach can be adjusted by using the RC3 remote control commissioning tool.

COM2-24

Potentiometer g

Potentiometer h

Potentiometer i

Provides basic illumination for the selected stay-'ON' time when am

bient light falls below the selected brightness threshold that is set. This can be dimmed to 10% of maximum light intensity. As soon as a person is detected, the sensor switches either to 100% light intensity (constant-lighting

controller 'OFF') or adjusts to the preselected brightness level (constant-lighting controller 'ON'). When no movement is detected and the occupancy time setting

has elapsed , the sensor dims

light levels back to basic bright

ness after the stay 'ON' time (1 min. - 30 min.) has expired or

the daylight level exceeds the selected level of brightness. If the occupancy time delay setting

is greater than the stay on time

DIM before 'OFF' setting

the light will not dim before turning 'OFF'.

Stay 'ON' time DIM before 'OFF' option

Potentiometer m

Stay-'ON' time for switching output 2 HVAC

DIM-24

Page 20

- 20 -

Using the remote control, functions can be conveniently activated from the floor.

Note: The pulse mode cannot be overridden by the remote control. Switch pulse mode 'OFF' manually.

Presence Control remote control unit:

- RC 3 Service Remote

- RC 4 User Remote

RC 3 Service Remote

Description

The RC 3 service remote (commissioning tool) gives the installer the ability to set basic functions of the entire line of Control Pro sensors via remote control. Each valid press of a button is indicated by a blue LED flash on the sensor.

Functions Reach setting (Control Pro Ultrasonic and DT Quattro sensors only)

Ultrasonic coverage can be selected from mini

mum, 1/3, 2/3, or maximum by pressing these buttons. Use this setting to increase or decrease the coverage (detection range) of the sensor.

Time setting CH 1

Stay 'ON' time for switching contact 1 The period of time you want the light to stay 'ON'

for after last detecting movement can be set from between 30 sec., 2 min., 5 min., 15 min. and 30 min. by pressing these buttons.

Setting the light to stay 'ON' for a time of your

own choice. Each press of the button increments the chosen time setting by 1 minute.

IQ mode. Stay 'ON' time is self-learning and

adjusts dynamically to user behaviour. The optimum time is determined by means of a learning algorithm. The shortest time is 2 min., the longest time 20 min.

Test mode. The test mode has the purpose of

checking for proper working order as well as testing the detection zone. The presence detec

tor switches 'ON' for approx. 8 sec. regardless of brightness and movement. The test mode has priority over all other settings. All user-selected potentiometer settings apply in normal mode. The test mode ends automatically after 10 min.

Time setting CH 2 Stay 'ON' time for switching contact 2 (HVAC) The period of time you want the HVAC contacts

to signal the HVAC controller (stay 'ON') after last detecting movement can be set from 1 min., 5 min., 30 min., or 2 hours by pressing these buttons.

Light level setting

The chosen response threshold can be varied

from approx. 10 – 1000 lux / 1 - 100 fc.

Night-time mode (minimum setting

approx. 10 lux. , 1 fc.)

Daylight mode (maximum - light level function

overridden)

Teach-IN. Twilight setting at the memory but

ton/Teach mode. This button must be pressed at the level of light at which you want the sensor to respond to movement. The current light level is saved.

No function

Reset Resets all settings to the values selected on the

detector manually or to the factory settings.

Remote Control

Page 21

- 21 -

RC 4 - User Remote

Functions Dimming function

The RC 4 remote enables the user to dim up or down to desired levels when used with the Control Pro DIM-24 sensors and 0-10 volt dimming ballasts. The last light level adjustment setting is saved and will return after being switched 'OFF' and then back 'ON' again by the RC 4, switch or presence detection.

Light 'ON'/ 'OFF'

The ON/OFF remote feature allows the occupant to conveniently turn lighting OFF and ON again such as needed dur

ing video or presentation viewing. Controls only lighting and does not effect HVAC outputs of the COM2-24. The ON/OFF function works with all of the Control Pro sensors.

Reset

Returns settings to those selected manually on the detector or to the factory setting (only applies to settings that can be changed by remote control)

Description

The RC 4 user remote control gives the occupant the ability to turn lighting 'ON' or 'OFF' with the entire line of Control Pro sensors via remote control. The dimming functions are only available with the DIM-24 sensors. Each valid press of a button is indicated by a blue LED flash on the sensor.

Page 22

- 22 -

Troubleshooting

Light does not switch 'ON'

Light does not switch 'OFF'

Sensor switches 'OFF' when occupied

Sensor does not switch 'OFF' quickly enough

Sensor detects initial occupancy but turns off in 2 seconds

No supply voltage

Light level setting too low

No motion detection

Light level setting too high

Stay-'ON' time running out

Interference from unintended

sources of motion, e.g.: ceiling fan, heater, HVAC, open doors and windows

Stay-'ON' time too short

Light-level threshold too low

Stay-'ON' time too long

Sensor is in pulse mode but

is not connected to a time delay relay

Check supply voltage

Slowly increase light level set-

ting until light switches 'ON'

Ensure unobstructed view of

detection area

Adjust detection zone

Reduce light level setting

Wait until stay-'ON' time

elapses; reduce stay-'ON' time if necessary

Readjust coverage zone or

apply masking material

Increase stay-'ON' time

Change light threshold

Reduce stay-'ON' time

Adjust sensor’s time delay or

use with a time delay relay

Malfunction Cause Remedy

Warranty

STEINEL America warrants its products against defects in material or workmanship for a period of five years.

STEINEL will replace or repair the item provided that it has not been altered or subjected to abuse, accident, improper installation or improper use. There are no obligations or liabili

ties on the part of STEINEL for consequential damages arising out of or in connection with the use or performance of this product

or other indirect damages with respect to loss of property, revenue, or profit, or cost of removal, installation or reinstallation.

DAN

PLK

DEU

ENG

ARANTIE

FUNKTIONS

5 Jahre

GWARANCJI

5 Letnia

GARANTI

FUNKTIONS

5 Års

GARANTI

FUNKTIONS

5 Års

WARRANTY

FUNCTIONAL

5 Year

SVE

ГAPAHTИИ

Page 23

110031888 09/2014 Technical changes subject to no prior notiﬁcation.

STEINEL America, Inc.

9051 Lyndale Avenue South

USA - Bloomington, MN 55420

Tel: +1-800-852-4343

Fax: +1-952-888-5132

www.steinel.net

M-11127-3
