TR 100
TR 150
Installation Instructions
Power Pack
Consignes d'installation
Pack d'alimentation
English
Français
Made in
Romania
RoHS
Compliant
110011487 12/2011 Technical changes subject to no prior notifi cation.
STEINEL America Inc.
9O51 Lyndale Avenue South
USA - Bloomington, MN 55420
Tel: +1-952-888-5950
Fax: +1-952-888-5132
www.steinel.net
www.steinel.net (800) 852-4343
www.steinel.net (800) 852-4343
2
Package Contents
WARNING
• Turn power off at the circuit breaker before
installing the power pack
• Power Pack must be installed and used in
accordance with appropriate electrical codes and
regulations
• Installation by a qualified electrician is
recommended
• One TR 100 or TR 150
power pack
• Two lock nuts
• Installation instructions
3
Installation Overview
Intended uses
• For indoor use only
• The power pack can
used as a stand alone
unit, low voltage
switch, or can be
wired to a sensor for
automated control.
Needed for installation
• Power packs
should be installed
according to state,
local and national
electrical codes and
requirements.
• Low voltage wiring: at
least 22-gauge High
voltage wiring: at least
14-gauge
• For plenum return
ceilings, use UL listed
plenum-approved
cables.
www.steinel.net (800) 852-4343
www.steinel.net (800) 852-4343
4
Product Overview
Product description
The TR 100 and TR 150
are full-featured power
packs that provide power
to STEINEL low voltage
occupancy sensors and
other control devices.
The power packs switch
the load(s) on and off in
response to signals from
the controls.
The TR 150 contains an
isolated relay for use with
HVAC controls and other
low voltage devices.
The TR 100 and TR 150
are Class 2 Output Power
Supplies, suitable for
parallel interconnection.
5
Product Overview
Voltage
Output
Load
Environment
Isolated relay
(TR 150)
Power Pack
Dimensions
Threaded Nipple
Dimensions
5 year warranty
UL 2043 Plenum Rated
UL and CUL Listed, RoHS Compliant
120, 230, 277 VAC, 50/60 Hz
24 VDC +/-5% 250 mA (class 2)
20 A @120/230/277 VAC
1 hp @ 120-250 VAC
-4°F to 130°F, -20°C to +55°C
Rated IP20
Single pole, double-throw with
NO, NC and common outputs;
rated 1 A @ 30 VAC/VDC
3.2 x 2.4 x 1.5 in
81 x 60 x 39 mm
83 x .83 in
21 x 21 mm
Specifications
www.steinel.net (800) 852-4343
www.steinel.net (800) 852-4343
6

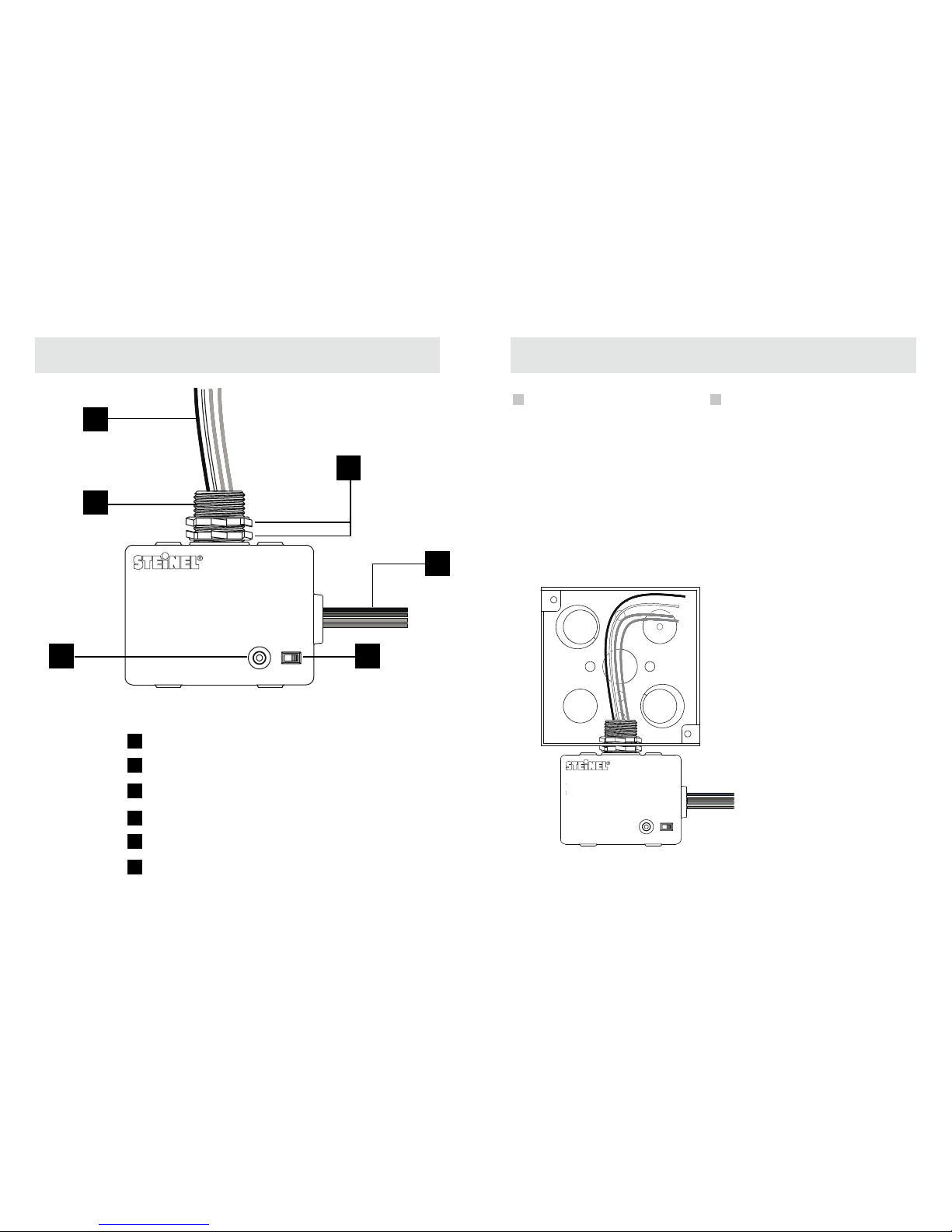

Product Overview
Model#
TR100
Power Pack
Line voltage wires
1/2 inch threaded chase nipple
Two lock nuts
Low voltage wires
Manual/automatic mode switch
LED status indicator
2
3
5
4
6
2
1
3
4
5
6
1
7
Mounting
Mounting guidelines
• The TR 100 and TR
150 power packs
mount to a junction
box with 1/2 inch
knockouts.
Mounting instructions
• Remove the top lock
nut from the 1/2”
chase nipple.
• Place line voltage
wires and 1/2” chase
nipple through 1/2”
knockout.
• Reinstall the lock nut
and tighten.
Model#
TR100
Power Pack
Model#
TR100
Power Pack
www.steinel.net (800) 852-4343
www.steinel.net (800) 852-4343
8
Wiring
• Before installation, make
sure that power has
been switched off at the
breaker and check that
the circuit is dead with a
voltage tester.
• After installation, verify
wiring is correct to
avoid damage to the
power pack, lighting,
and control devices.
TR 100 wiring
WHITE (NEUTRAL)
BLACK (HOT)
RED (RELAY)
RED (RELAY)
LOAD
NEUTRAL
HOT
Model#
TR100
Power Pack
24VDC
Sensor
LINE VOLTAGE
SWITCH
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
GRAY (MOMENTARY SWITCH)
Momentary switch
9
Wiring
TR 100 wiring with
momentary switch
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
GRAY (MOMENTARY SWITCH)
Momentary switch
WHITE (NEUTRAL)
BLACK (HOT)
RED (RELAY)
RED (RELAY)
NEUTRAL
HOT
Model#
TR100
Power Pack
Manual/auto
LOAD
www.steinel.net (800) 852-4343
www.steinel.net (800) 852-4343
10

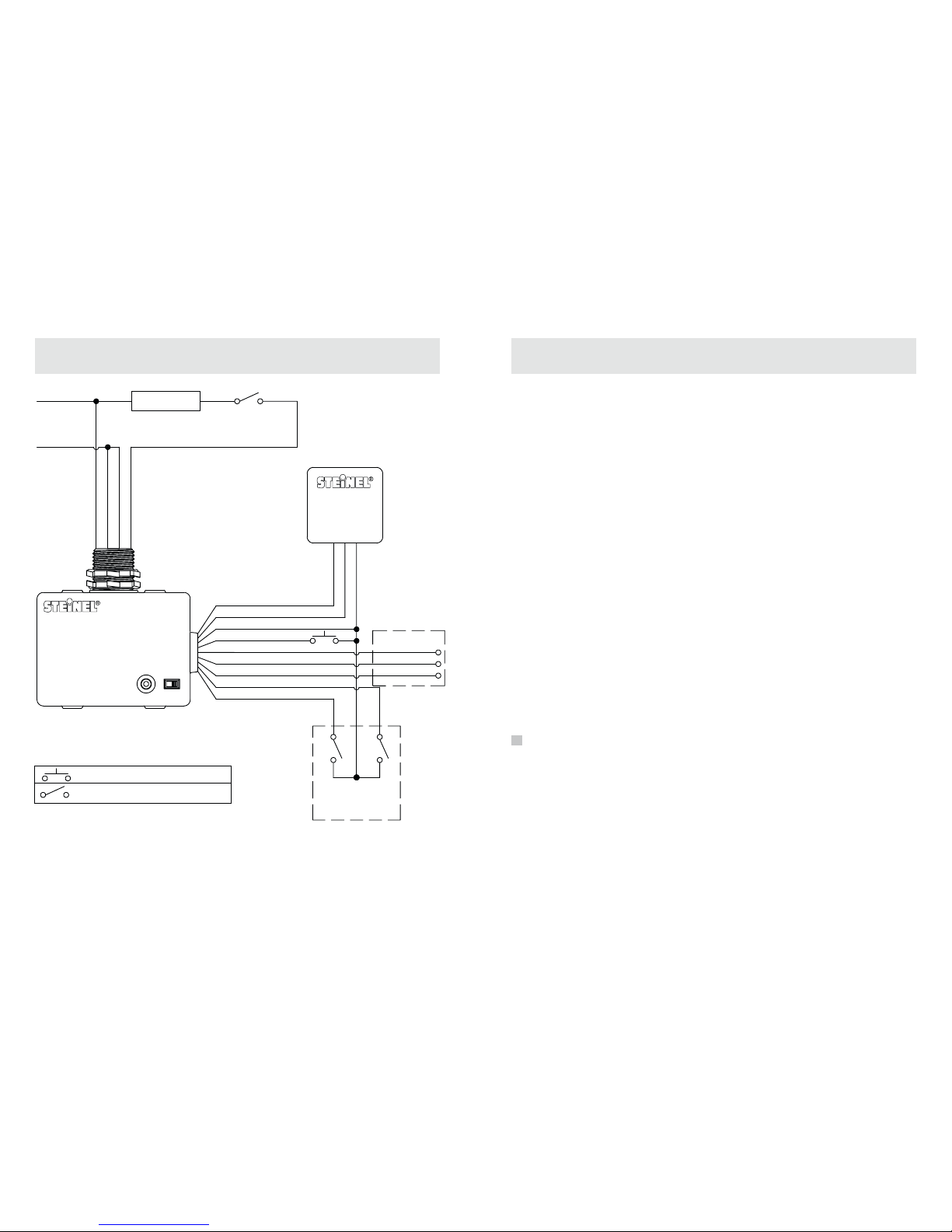

TR 150 wiring
Wiring
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
GRAY (MOMENTARY SWITCH)
YELLOW/RED (NORMALLY OPEN)
YELLOW (RELAY COMMON)
YELLOW/BLACK (NORMALLY CLOSED)
ORANGE (OVERRIDE ON)
BROWN (OVERRIDE OFF)
Normally open momentary contact switch
Maintained contact switch
WHITE (NEUTRAL)
BLACK (HOT)
RED (RELAY)
RED (RELAY)
BLUE (CONTROL)
BLACK (-24VDC)
RED (+24VDC)
Model#
TR150
Power Pack
LINE VOLTAGE
SWITCH
24VDC
Sensor
Isolated Relay
NORMALLY OPEN
RELAY COMMON
NORMALLY CLOSED
Building Management
System
LOAD
NEUTRAL
HOT
Symbol List
11
Operation
The TR 100 and TR 150
power packs work with
STEINEL low voltage
occupancy sensors and
other control devices.
The power packs switch
loads ON or OFF in
response to signals from
the control devices.
Each power pack
contains a Mode Switch
(see page 6) to select
either manual ON or
automatic ON operation.
Automatic ON Mode
To select automatic ON,
adjust the mode switch
to the right (default
setting). Loads turn ON
and OFF automatically
using an occupancy
sensor, timer, control
panel or BAS input.
With an occupancy
sensor, when a
momentary switch is
used to turn lights OFF,
automatic ON mode
will resume only after
the sensor’s time delay
elapses (space has
been unoccupied for
the duration of the time
delay). Pressing the
momentary switch before
the time delay elapses,
turns the load ON.
