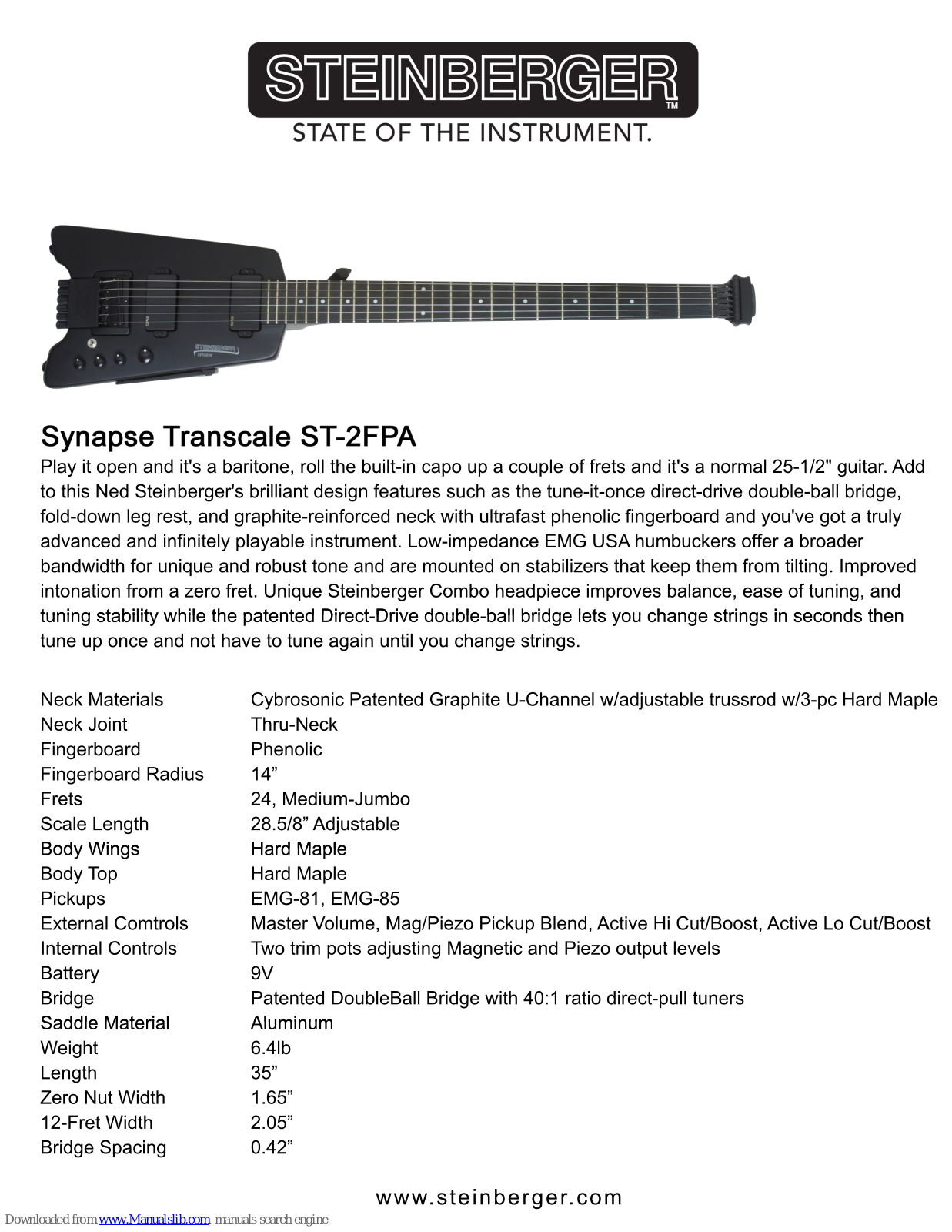

Steinberger Synapse Transcale ST-2FPA Specifications

Play it open and it's a baritone, roll the built-in capo up a couple of frets and it's a normal 25-1/2" guitar. Add
to this Ned Steinberger's brilliant design features such as the tune-it-once direct-drive double-ball bridge,
fold-down leg rest, and graphite-reinforced neck with ultrafast phenolic fingerboard and you've got a truly
advanced and infinitely playable instrument. Low-impedance EMG USA humbuckers offer a broader
bandwidth for unique and robust tone and are mounted on stabilizers that keep them from tilting. Improved
intonation from a zero fret. Unique Steinberger Combo headpiece improves balance, ease of tuning, and
tuning stability while the patented Direct-Drive double-ball bridge lets you change strings in seconds thentuning stability while the patented Direct-Drive double-ball bridge lets you change strings in seconds then
tune up once and not have to tune again until you change strings.

Neck Materials
Neck Joint
Fingerboard
Fingerboard Radius
Frets
Scale Length
Body WingsBody Wings
Body Top
Pickups
External Comtrols
Internal Controls
Battery
Bridge
Saddle MaterialSaddle Material
Weight
Length
Zero Nut Width
12-Fret Width
Bridge Spacing

Cybrosonic Patented Graphite U-Channel w/adjustable trussrod w/3-pc Hard Maple
Thru-Neck
Phenolic
14”
24, Medium-Jumbo

28.5/8” Adjustable
Hard MapleHard Maple
Hard Maple
EMG-81, EMG-85
Master Volume, Mag/Piezo Pickup Blend, Active Hi Cut/Boost, Active Lo Cut/Boost
Two trim pots adjusting Magnetic and Piezo output levels
9V
Patented DoubleBall Bridge with 40:1 ratio direct-pull tuners
AluminumAluminum

6.4lb
35”

1.65”

2.05”

0.42”
