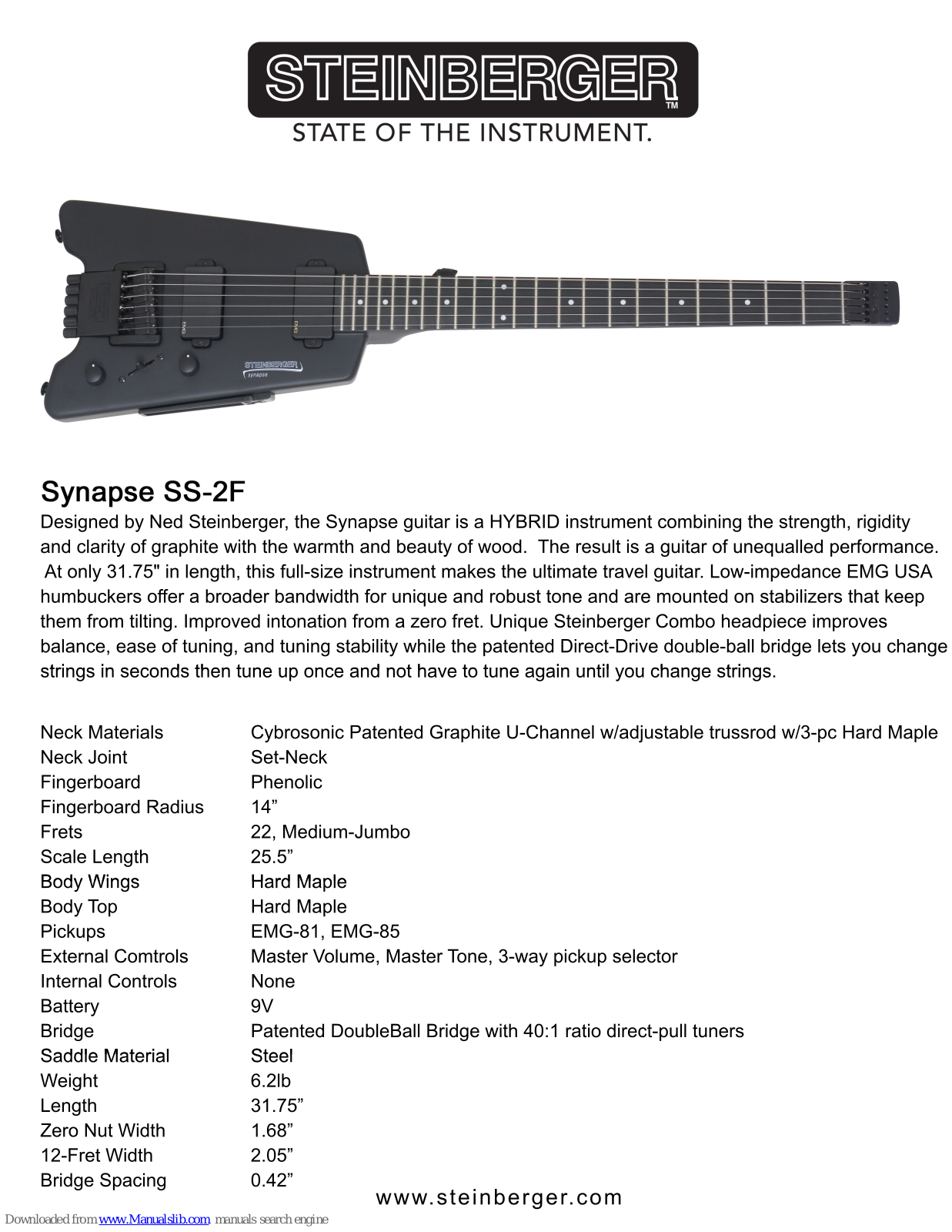

Steinberger Synapse SS-2F Specifications

Designed by Ned Steinberger, the Synapse guitar is a HYBRID instrument combining the strength, rigidity
and clarity of graphite with the warmth and beauty of wood. The result is a guitar of unequalled performance.
At only 31.75" in length, this full-size instrument makes the ultimate travel guitar. Low-impedance EMG USA
humbuckers offer a broader bandwidth for unique and robust tone and are mounted on stabilizers that keep
them from tilting. Improved intonation from a zero fret. Unique Steinberger Combo headpiece improves
balance, ease of tuning, and tuning stability while the patented Direct-Drive double-ball bridge lets you change
strings in seconds then tune up once and not have to tune again until you change strings.strings in seconds then tune up once and not have to tune again until you change strings.

Neck Materials
Neck Joint
Fingerboard
Fingerboard Radius
Frets
Scale Length
Body WingsBody Wings
Body Top
Pickups
External Comtrols
Internal Controls
Battery
Bridge
Saddle MaterialSaddle Material
Weight
Length
Zero Nut Width
12-Fret Width
Bridge Spacing

Cybrosonic Patented Graphite U-Channel w/adjustable trussrod w/3-pc Hard Maple
Set-Neck
Phenolic
14”
22, Medium-Jumbo

25.5”
Hard MapleHard Maple
Hard Maple
EMG-81, EMG-85
Master Volume, Master Tone, 3-way pickup selector
None
9V
Patented DoubleBall Bridge with 40:1 ratio direct-pull tuners
SteelSteel

6.2lb

31.75”

1.68”

2.05”

0.42”

www.steinberger.com
