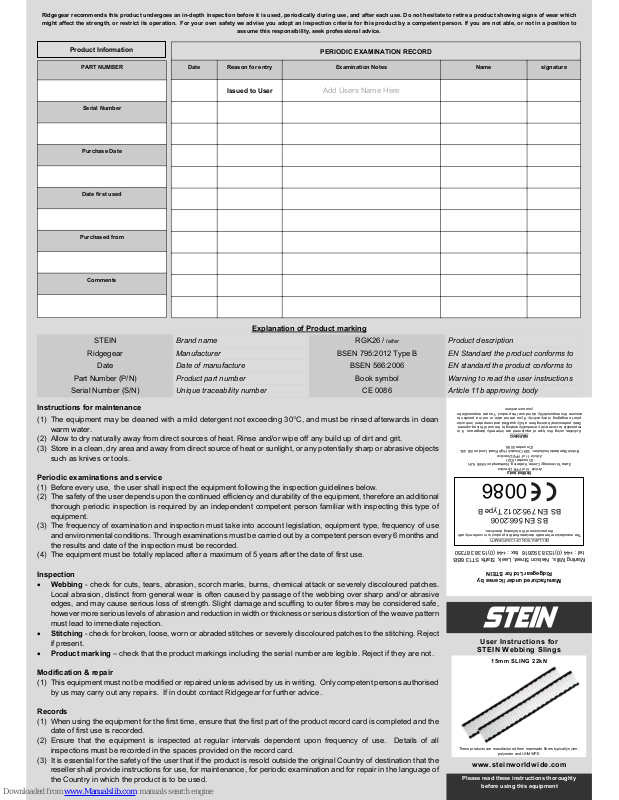

STEIN RGK26 Series User Instructions

PERIODIC EXAMINATION RECORD

Date Reason for entry Examination Notes Name signature

Issued to User

Add Users Name Here

PART NUMBER

Serial Number

Purchase Date

Date first used

Purchased from

Comments

Ridgegear recommends this product undergoes an in-depth inspection before it is used, periodically during use, and after each use. Do not hesitate to retire a product showing signs of wear which

might affect the strength, or restrict its operation. For your own safety we advise you adopt an inspection criteria for this product by a competent person. If you are not able, or not in a position to

assume this responsibility, seek professional advice.

Product Information

Instructions for maintenance

(1) The equipment may be cleaned with a mild detergent not exceeding 30°C, and must be rinsed afterwards in clean

warm water.
(2) Allow to dry naturally away from direct sources of heat. Rinse and/or wipe off any build up of dirt and grit.
(3) Store in a clean, dry area and away from direct source of heat or sunlight, or any potentially sharp or abrasive objects

such as knives or tools.

Periodic examinations and service

(1) Before every use, the user shall inspect the equipment following the inspection guidelines below.
(2) The safety of the user depends upon the continued efficiency and durability of the equipment, therefore an additional

thorough periodic inspection is required by an independent competent person familiar with inspecting this type of

equipment.
(3) The frequency of examination and inspection must take into account legislation, equipment type, frequency of use

and environmental conditions. Through examinations must be carried out by a competent person every 6 months and

the results and date of the inspection must be recorded.
(4) The equipment must be totally replaced after a maximum of 5 years after the date of first use.

Inspection

· Webbing - check for cuts, tears, abrasion, scorch marks, burns, chemical attack or severely discoloured patches.

Local abrasion, distinct from general wear is often caused by passage of the webbing over sharp and/or abrasive

edges, and may cause serious loss of strength. Slight damage and scuffing to outer fibres may be considered safe,

however more serious levels of abrasion and reduction in width or thickness or serious distortion of the weave pattern

must lead to immediate rejection.

· Stitching - check for broken, loose, worn or abraded stitches or severely discoloured patches to the stitching. Reject

if present.

· Product marking – check that the product markings including the serial number are legible. Reject if they are not.

Modification & repair

(1) This equipment must not be modified or repaired unless advised by us in writing. Only competent persons authorised

by us may carry out any repairs. If in doubt contact Ridgegear for further advice.

Records

(1) When using the equipment for the first time, ensure that the first part of the product record card is completed and the

date of first use is recorded.
(2) Ensure that the equipment is inspected at regular intervals dependent upon frequency of use. Details of all

inspections must be recorded in the spaces provided on the record card.
(3) It is essential for the safety of the user that if the product is resold outside the original Country of destination that the

reseller shall provide instructions for use, for maintenance, for periodic examination and for repair in the language of

the Country in which the product is to be used.

Explanation of Product marking

STEIN Brand name RGK26 / letter Product description

Ridgegear Manufacturer BSEN 795:2012 Type B EN Standard the product conforms to

Date Date of manufacture BSEN 566:2006 EN standard the product conforms to

Part Number (P/N) Product part number Book symbol Warning to read the user instructions

Serial Number (S/N) Unique traceability number CE 0086 Article 11b approving body

Marling Mills, Nelson Street, Leek, Staffs ST13 6BB

tel : [phone] fax : [phone]

WARNING

Activities using this type of equipment are inherently dangerous. It is

impossible to cover every eventuality relating to the use of this equipment.

Seek professional training from a fully qualified and competent instructor

prior to engaging in any activity. If you are not able, or not in a position to

assume this responsibility, do not use this product. You are responsible for

your own actions

Notified body

Article 10 of PPE Directive.

Satra Technology Centre, Kettering, Northampton NN16 9JH.

ID number 0321

Article 11 of PPE Directive

British Standards Institution, 389 Chiswick High Road, London W4 4AL

ID number 0086.

0086

BS EN 566:2006

BS EN 795:2012 Type B

DECLARATION OF CONFORMITY

The manufacturer herewith declares that this product is in conformity with

the provisions of the following directives:

User I ns tr uc tions f or

STEIN We bb in g Slings

Please read these instructions thoroughly

before using this equipment

www.st ei nw or ldwide. co m

15 mm S LI NG 22k N

Manufactured under license by

Ridgegear Ltd for STEIN

These products are manufactured from manmade fibres typically nylon,

polyester and UHMWPE

Instructions for use for Ridgegear Endless Sling (RGK26 Series) complying (where applicable) with the

requirements of EN795:2012 Type B and EN566:2006 (See product marking for applicable approval)

Read these instructions carefully before use.

Before use, a detailed risk assessment must be carried out by a competent person to establish that this is the correct product suitable for the type of

work to be carried out, taking into account anchor points, potential fall distance, obstructions, rescue system, etc.

The RGK26 series is designed to be used as either a climbing safety sling (EN566) or a fall arrest anchor device (EN795 Type B).

Maximum rated load assembled in accordance with these instructions is 100kg or a single user. The manufacturers minimum straight breaking load is 22kN.

These products are manufactured from manmade fibres typically nylon, polyester and UHMWPE

Attaching the RGK26 series

· Ensure that a suitable anchor point is selected and is compatible with the RGK26.

· Ensure there are no sharp edges.

· Ensure the RGK26 is securely fixed to the anchor point

· Ensure that it is not possible for the RGK26 to slide down a structure such as a vertical beam

· The RGK26 may also be attached to a suitable anchor point with the addition of a compatible connector (EN362)

· Typical methods of correctly forming the loop of the anchor device are: (1) Choke (2) Basket (see diagrams)

(1) Users are warned that certain medical conditions such as heart disease, high blood pressure, vertigo, epilepsy, drug or alcohol dependence, could affect the

safety of the user in normal and emergency use.
(2) This equipment must only be used by suitably trained personnel who are competent in its safe use.
(3) Ensure before use that there is a suitable rescue plan to enable the retrieval of the user to a place of safety in the event of a fall.
(4) Never attempt to modify or repair this product.
(5) Tying a knot will have a negative affect on this products strength. How much the strength is affected depends on a number of factors such as type of knot

used and the material the product is made from. It is for the user to assess whether the knot(s) tied still leave this product series within safe working limits.
(6) The intended purpose of this product is to use as a mobile attachment point on a working rope (or as an anchor point see instructions on EN795). Never use

for any other purpose other than that for which it is intended.
(7) This product is recommended for personal issue.
(8) Ensure that any harness (EN358, 361, 813) and safety lines used with this equipment are suitably CE approved and compatible with this product.
(9) Also be aware of any possible dangers, which may arise through use of combinations of items of equipment in which the safe function of any one item is

affected by or interferes with the safe function of another.
(10) Before every use, the user must be suitably qualified to carry out a pre-use check (see section on inspection)
(11) It is essential for safety that the equipment is withdrawn from use immediately should:

· any doubt arise about its condition for safe use or if the equipment shows excessive wear or damage to any part or

· if it has been used to arrest a fall

(12) Ensure that all anchor points and devices are compatible with this equipment and they have a strength of at least 10kN.
(13) In order to reduce the potential fall distance, ensure that the equipment anchor point is as high as possible above the user.
(14) A full body harness is the only acceptable device that may be used to arrest a fall.
(15) Either the rear or front harness D ring are acceptable attachment points. Never use work positioning D rings as attachment points for fall arrest
(16) Ensure there is sufficient clearance below the user, so that in the event of a fall, there will be no collision with the ground or other obstacle in the fall path. In

particular, allow for elongation of energy absorbers.
(17) The RGK26 series is suitable for use in normal atmospheric conditions (-20°C to +50°C). Do not use in icy conditions as this will affect the stability of the yarns

used to manufacture the product. Also be aware of wet webbing freezing as this affects the webbings strengths performance.
(18) To prolong the life of the product it is essential to keep the product clean and away for dirt. Avoid impact, sharp edges or abrasive surfaces, contact with

strong acids or alkali, solvents, chemicals, excessive heat and/or sparks, UV exposure.

General Guide

(1)

(2)

0086

BS EN 795:2012 Type B
BS EN 566:2006 (where applicable)

The CE on this product is only applicable when manufactured by Ridgegear.

Article 10 of PPE Directive. Satra Technology Centre, Kettering, Northampton NN16 9JH. ID number 0321.
Article 11 of PPE Directive. British Standards Institution, 389 Chiswick High Road, London W4 4AL ID number 0086.

Notified Body

STEIN is a registered Trade Mark of

Fletcher Stewart (Stockport) Limited

It is recommended that the sling is fixed to a shackle or area with limited
movement, which prevents the sling from moving away from its position
in the event of a fall. A sling which is able to slide whilst under load is
potentially dangerous as the fibres could cut due to friction and abrasion.

Edition APRIL 2015
