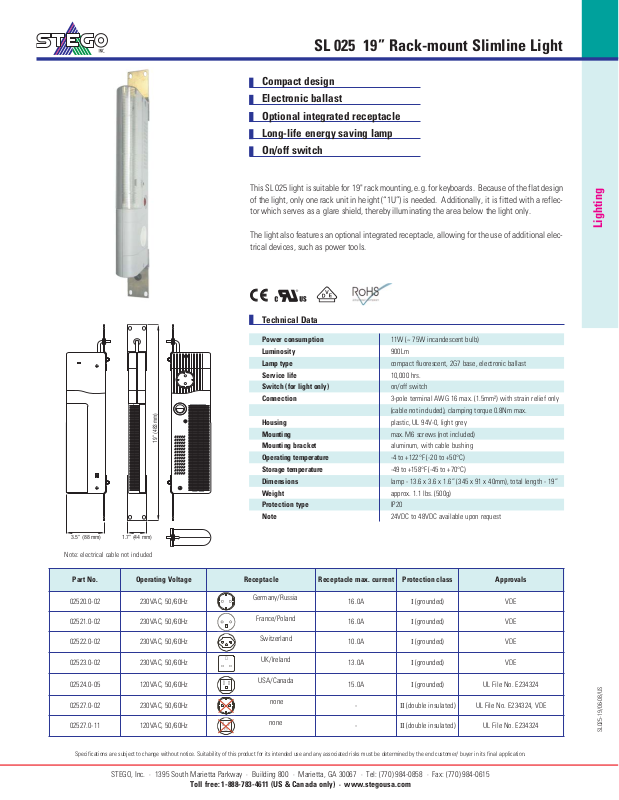

Stego SL 025 Data Sheet

Technical Data

Lighting

||

SL025-19/06-08/US

STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: [phone] · Fax: [phone]

Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com

SL 025 19” Rack-mount Slimline Light

Compact design

Electronic ballast

Optional integrated receptacle

Long-life energy saving lamp

On/off switch

This SL 025 light is suitable for 19" rack mounting, e.g. for keyboards. Because of the flat design
of the light, only one rack unit in height (“1U”) is needed. Additionally, it is fitted with a reflec­tor which serves as a glare shield, thereby illuminating the area below the light only.

The light also features an optional integrated receptacle, allowing for the use of additional elec­trical devices, such as power tools.

Power consumption 11W (~ 75W incandescent bulb)

Luminosity 900Lm

Lamp type compact fluorescent, 2G7 base, electronic ballast

Service life 10,000 hrs.

Switch (for light only) on/off switch

Connection 3-pole terminal AWG 16 max. (1.5mm²) with strain relief only

(cable not included), clamping torque 0.8Nm max.

Housing plastic, UL 94V-0, light grey

Mounting max. M6 screws (not included)

Mounting bracket aluminum, with cable bushing

Operating temperature -4 to +122°F (-20 to +50°C)

Storage temperature -49 to +158°F (-45 to +70°C)

Dimensions lamp - 13.6 x 3.6 x 1.6” (345 x 91 x 40mm), total length - 19”

Weight approx. 1.1 lbs. (500g)

Protection type IP20

Note 24VDC to 48VDC available upon request

1.7” (44 mm)

19” (483 mm)

3.5” (88 mm)

Note: electrical cable not included

Part No. Operating Voltage Receptacle Receptacle max. current Protection class Approvals

02520.0-02 230VAC, 50/60Hz

Germany/Russia

16.0A I (grounded) VDE

02521.0-02 230VAC, 50/60Hz

France/Poland

16.0A I (grounded) VDE

02522.0-02 230VAC, 50/60Hz

Switzerland

10.0A I (grounded) VDE

02523.0-02 230VAC, 50/60Hz

UK/Ireland

13.0A I (grounded) VDE

02524.0-05 120VAC, 50/60Hz

USA/Canada

15.0A I (grounded) UL File No. E234324

02527.0-02 230VAC, 50/60Hz

none

- II (double insulated) UL File No. E234324, VDE

02527.0-11 120VAC, 50/60Hz

none

- II (double insulated) UL File No. E234324

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.
