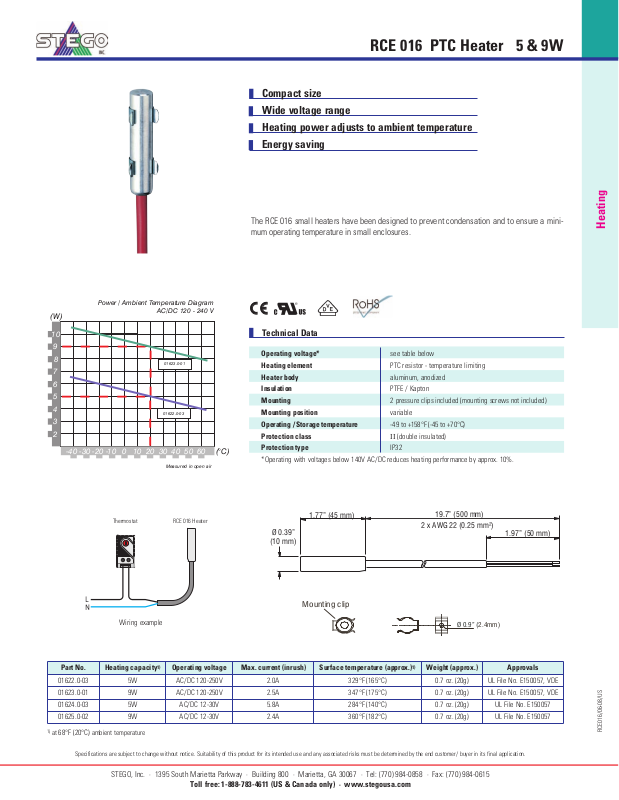

Stego RCE 016 Data Sheet

Technical Data

||

RCE016/06-08/US

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.

STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: [phone] · Fax: [phone]

Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com

Compact size

Wide voltage range

Heating power adjusts to ambient temperature

Energy saving

The RCE 016 small heaters have been designed to prevent condensation and to ensure a mini­mum operating temperature in small enclosures.

Heating

Operating voltage* see table below

Heating element PTC resistor - temperature limiting

Heater body aluminum, anodized

Insulation PTFE / Kapton

Mounting 2 pressure clips included (mounting screws not included)

Mounting position variable

Operating / Storage temperature -49 to +158°F (-45 to +70°C)

Protection class II (double insulated)

Protection type IP32

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

L
N

19.7” (500 mm)

1.97” (50 mm)

1.77” (45 mm)
2 x AWG 22 (0.25 mm²)

Ø 0.39”

(10 mm)

Part No. Heating capacity1)Operating voltage Max. current (inrush) Surface temperature (approx.)1)Weight (approx.) Approvals

01622.0-03 5W AC/DC 120-250V 2.0A 329°F (165°C) 0.7 oz. (20g) UL File No. E150057, VDE

01623.0-01 9W AC/DC 120-250V 2.5A 347°F (175°C) 0.7 oz. (20g) UL File No. E150057, VDE

01624.0-03 5W AC/DC 12-30V 5.8A 284°F (140°C) 0.7 oz. (20g) UL File No. E150057

01625.0-02 9W AC/DC 12-30V 2.4A 360°F (182°C) 0.7 oz. (20g) UL File No. E150057

1)

at 68°F (20°C) ambient temperature

RCE 016 PTC Heater 5 & 9W

Mounting clip

Measured in open air

(W)

2

3

4

5

6

7

8

9

10

-20-30-40

-100 102030405060

(°C)

01622.0-03

01623.0-01

Power / Ambient Temperature Diagram

AC/DC 120 - 240 V

Wiring example

Ø 0.9” (2.4mm)

Thermostat RCE 016 Heater
