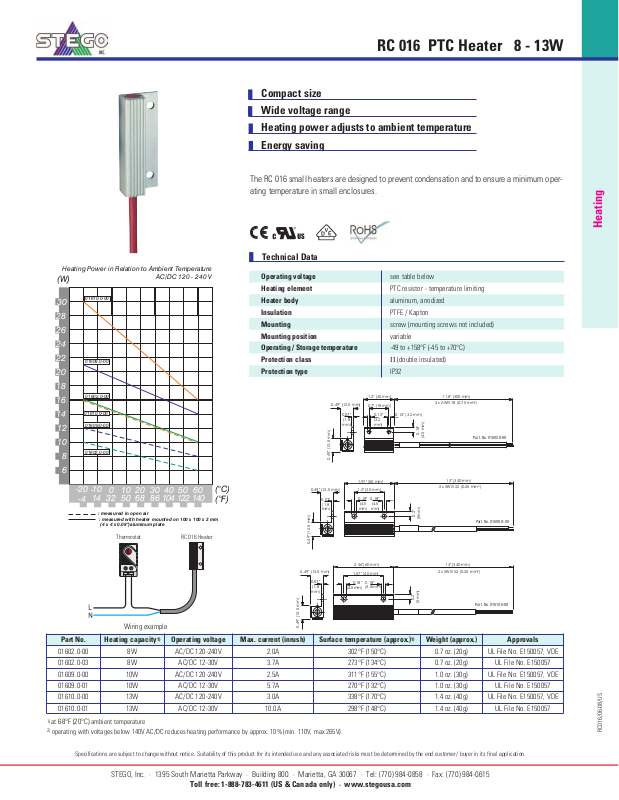

Stego RC 016 Data Sheet
Technical Data
Heating
||
RC016/06-08/US
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.
STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: (770) 984-0858 · Fax: (770) 984-0615
Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com
RC 016 PTC Heater 8 - 13W
Compact size
Wide voltage range
Heating power adjusts to ambient temperature
Energy saving
The RC 016 small heaters are designed to prevent condensation and to ensure a minimum operating temperature in small enclosures.
Operating voltage see table below
Heating element PTC resistor - temperature limiting
Heater body aluminum, anodized
Insulation PTFE / Kapton
Mounting screw (mounting screws not included)
Mounting position variable
Operating / Storage temperature -49 to +158°F (-45 to +70°C)
Protection class II (double insulated)
Protection type IP32
Part No. Heating capacity1)Operating voltage Max. current (inrush) Surface temperature (approx.)1)Weight (approx.) Approvals
01602.0-00 8W AC/DC 120-240V 2.0A 302°F (150°C) 0.7 oz. (20g) UL File No. E150057, VDE
01602.0-03 8W AC/DC 12-30V 3.7A 273°F (134°C) 0.7 oz. (20g) UL File No. E150057
01609.0-00 10W AC/DC 120-240V 2.5A 311°F (155°C) 1.0 oz. (30g) UL File No. E150057, VDE
01609.0-01 10W AC/DC 12-30V 5.7A 270°F (132°C) 1.0 oz. (30g) UL File No. E150057
01610.0-00 13W AC/DC 120-240V 3.0A 338°F (170°C) 1.4 oz. (40g) UL File No. E150057, VDE
01610.0-01 13W AC/DC 12-30V 10.0A 298°F (148°C) 1.4 oz. (40g) UL File No. E150057
L
N
Part. No. 01610.0-00
1.57” (40 mm)
2.36”(60 mm)
0.49” (12.5 mm)
0.07”
(1.8
mm)
0.49” (12.5 mm)
0.18”
(4.5mm)
0.18”
(4.5mm)
0.2”
(5mm)
13” (340 mm)
2 x AWG 22 (0.25 mm²)
Part. No. 01609.0-00
1.2" (30 mm)
1.97" (50 mm)
13” (340 mm)
2 x AWG 22 (0.25 mm²)
0.18”
(4.5
mm)
0.2”
(5mm)
0.18”
(4.5
mm)
0.07”
(1.8
mm)
0.49” (12.5 mm)
0.49” (12.5 mm)
Part. No. 01602.0-00
0.12”
(3.2
mm)
0.7" (18 mm)
1.2" (30 mm)
11.8" (300 mm)
2 x AWG 18 (0.75 mm²)
0.12" (3.2 mm)
0.18"
(4.5 mm)
0.07”
(1.8
mm)
0.49” (12.5 mm)
0.49” (12.5 mm)
: measured in open air
: measured with heater mounted on 100 x 100 x 2 mm
(4 x 4 x 0.08")aluminum plate
Heating Power in Relation to Ambient Temperature
AC/DC 120 - 240 V
(W)
(°F)
(°C)
-20
-4
14 32 50 68 86 104 122 140
-100 102030405060
14
6
8
10
12
16
18
20
22
24
26
28
30
01610.0-00
01610.0-00
01609.0-00
01609.0-00
01602.0-00
01602.0-00
Wiring example
1)
at 68°F (20°C) ambient temperature
2)
operating with voltages below 140V AC/DC reduces heating performance by approx. 10% (min. 110V, max 265V).
Thermostat RC 016 Heater
