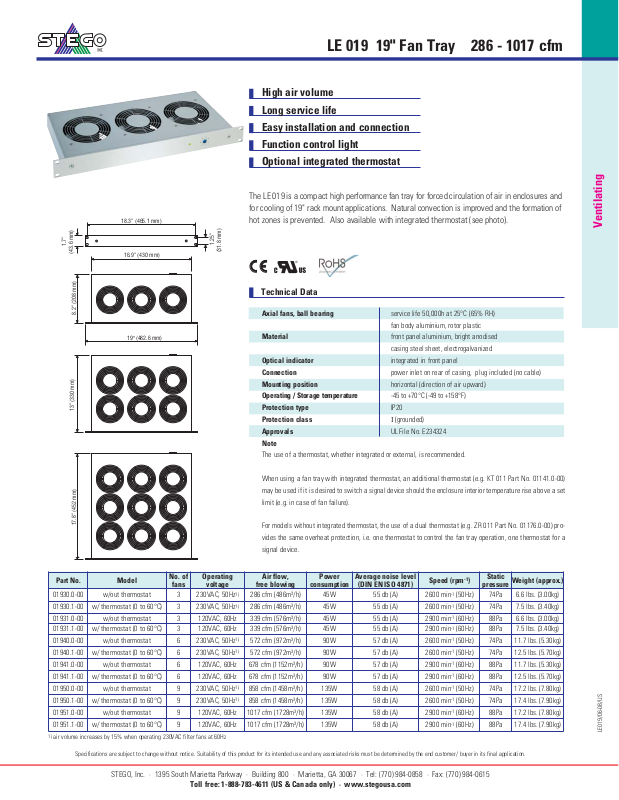

Stego LE 019 Data Sheet
Technical Data
13” (330 mm)
17.8” (452 mm)
16.9” (430 mm)
19" (482.6 mm)
8.2” (208 mm)
1.7”
(43.6 mm)
1.25”
(31.8 mm)
18.3” (465.1 mm)
Ventilating
||
LE019/06-08/US
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.
STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: (770) 984-0858 · Fax: (770) 984-0615
Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com
LE 019 19" Fan Tray 286 - 1017 cfm
High air volume
Long service life
Easy installation and connection
Function control light
Optional integrated thermostat
The LE 019 is a compact high performance fan tray for forced circulation of air in enclosures and
for cooling of 19" rack mount applications. Natural convection is improved and the formation of
hot zones is prevented. Also available with integrated thermostat (see photo).
Axial fans, ball bearing service life 50,000h at 25°C (65% RH)
fan body aluminium, rotor plastic
Material front panel aluminium, bright anodised
casing steel sheet, electrogalvanized
Optical indicator integrated in front panel
Connection power inlet on rear of casing, plug included (no cable)
Mounting position horizontal (direction of air upward)
Operating / Storage temperature -45 to +70°C (-49 to +158°F)
Protection type IP20
Protection class I (grounded)
Approvals UL File No. E234324
Note
The use of a thermostat, whether integrated or external, is recommended.
When using a fan tray with integrated thermostat, an additional thermostat (e.g. KT 011 Part No. 01141.0-00)
may be used if it is desired to switch a signal device should the enclosure interior temperature rise above a set
limit (e.g. in case of fan failure).
For models without integrated thermostat, the use of a dual thermostat (e.g. ZR 011 Part No. 01176.0-00) pro-
vides the same overheat protection, i.e. one thermostat to control the fan tray operation, one thermostat for a
signal device.
Part No. Model
No. of
fans
Operating
voltage
Air flow,
free blowing
Power
consumption
Average noise level
(DIN EN ISO 4871)
Speed (rpm-1)
Static
pressure
Weight (approx.)
01930.0-00 w/out thermostat 3 230VAC, 50Hz1)286 cfm (486m³/h) 45W 55 db (A) 2600 min-1(50Hz) 74Pa 6.6 lbs. (3.00kg)
01930.1-00 w/ thermostat (0 to 60°C) 3 230VAC, 50Hz1)286 cfm (486m³/h) 45W 55 db (A) 2600 min-1(50Hz) 74Pa 7.5 lbs. (3.40kg)
01931.0-00 w/out thermostat 3 120VAC, 60Hz 339 cfm (576m³/h) 45W 55 db (A) 2900 min-1(60Hz) 88Pa 6.6 lbs. (3.00kg)
01931.1-00 w/ thermostat (0 to 60°C) 3 120VAC, 60Hz 339 cfm (576m³/h) 45W 55 db (A) 2900 min-1(60Hz) 88Pa 7.5 lbs. (3.40kg)
01940.0-00 w/out thermostat 6 230VAC, 50Hz1)572 cfm (972m³/h) 90W 57 db (A) 2600 min-1(50Hz) 74Pa 11.7 lbs. (5.30kg)
01940.1-00 w/ thermostat (0 to 60°C) 6 230VAC, 50Hz1)572 cfm (972m³/h) 90W 57 db (A) 2600 min-1(50Hz) 74Pa 12.5 lbs. (5.70kg)
01941.0-00 w/out thermostat 6 120VAC, 60Hz 678 cfm (1152m³/h) 90W 57 db (A) 2900 min-1(60Hz) 88Pa 11.7 lbs. (5.30kg)
01941.1-00 w/ thermostat (0 to 60°C) 6 120VAC, 60Hz 678 cfm (1152m³/h) 90W 57 db (A) 2900 min-1(60Hz) 88Pa 12.5 lbs. (5.70kg)
01950.0-00 w/out thermostat 9 230VAC, 50Hz1)858 cfm (1458m³/h) 135W 58 db (A) 2600 min-1(50Hz) 74Pa 17.2 lbs. (7.80kg)
01950.1-00 w/ thermostat (0 to 60°C) 9 230VAC, 50Hz1)858 cfm (1458m³/h) 135W 58 db (A) 2600 min-1(50Hz) 74Pa 17.4 lbs. (7.90kg)
01951.0-00 w/out thermostat 9 120VAC, 60Hz 1017 cfm (1728m³/h) 135W 58 db (A) 2900 min-1(60Hz) 88Pa 17.2 lbs. (7.80kg)
01951.1-00 w/ thermostat (0 to 60°C) 9 120VAC, 60Hz 1017 cfm (1728m³/h) 135W 58 db (A) 2900 min-1(60Hz) 88Pa 17.4 lbs. (7.90kg)
1)
air volume increases by 15% when operating 230VAC filter fans at 60Hz
