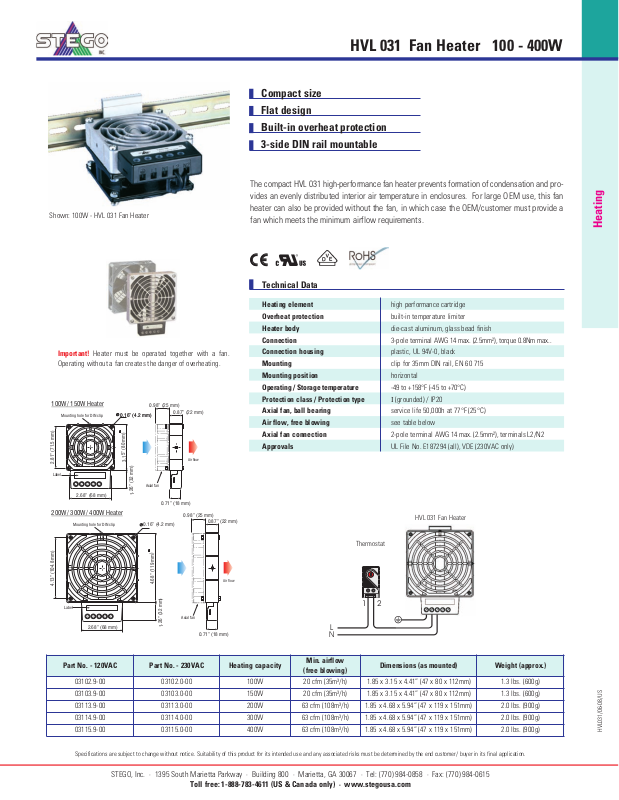

Stego HVL 031 Data Sheet

Technical Data

Heating

||

HVL031/06-08/US

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.

STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: [phone] · Fax: [phone]

Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com

The compact HVL 031 high-performance fan heater prevents formation of condensation and pro­vides an evenly distributed interior air temperature in enclosures. For large OEM use, this fan
heater can also be provided without the fan, in which case the OEM/customer must provide a
fan which meets the minimum airflow requirements.

Compact size

Flat design

Built-in overheat protection

3-side DIN rail mountable

HVL 031 Fan Heater 100 - 400W

Heating element high performance cartridge

Overheat protection built-in temperature limiter

Heater body die-cast aluminum, glass bead finish

Connection 3-pole terminal AWG 14 max. (2.5mm²), torque 0.8Nm max..

Connection housing plastic, UL 94V-0, black

Mounting clip for 35mm DIN rail, EN 60 715

Mounting position horizontal

Operating / Storage temperature -49 to +158°F (-45 to +70°C)

Protection class / Protection type I (grounded) / IP20

Axial fan, ball bearing service life 50,000h at 77°F (25°C)

Air flow, free blowing see table below

Axial fan connection 2-pole terminal AWG 14 max. (2.5mm²), terminals L2/N2

Approvals UL File No. E187294 (all), VDE (230VAC only)

Part No. - 120VAC Part No. - 230VAC Heating capacity

Min. airflow

(free blowing)

Dimensions (as mounted) Weight (approx.)

03102.9-00 03102.0-00 100W 20 cfm (35m³/h) 1.85 x 3.15 x 4.41” (47 x 80 x 112mm) 1.3 lbs. (600g)

03103.9-00 03103.0-00 150W 20 cfm (35m³/h) 1.85 x 3.15 x 4.41” (47 x 80 x 112mm) 1.3 lbs. (600g)

03113.9-00 03113.0-00 200W 63 cfm (108m³/h) 1.85 x 4.68 x 5.94” (47 x 119 x 151mm) 2.0 lbs. (900g)

03114.9-00 03114.0-00 300W 63 cfm (108m³/h) 1.85 x 4.68 x 5.94” (47 x 119 x 151mm) 2.0 lbs. (900g)

03115.9-00 03115.0-00 400W 63 cfm (108m³/h) 1.85 x 4.68 x 5.94” (47 x 119 x 151mm) 2.0 lbs. (900g)

Important! Heater must be operated together with a fan.

Operating without a fan creates the danger of overheating.

Mounting hole for DIN clip

Air flow

Axial fan

Label

100W/ 150W Heater

200W/ 300W/ 400W Heater

0.16” (4.2 mm)

4.68” (119 mm)

3.15” (80 mm)

1.26” (32 mm)

2.68” (68 mm)

0.71” (18 mm)

0.98” (25 mm)

0.87” (22 mm)

0.16” (4.2 mm)

0.16” (4.2 mm)

2.81” (71.5 mm)

4.13” (104.8 mm)

1.26” (32 mm)

2.68” (68 mm)

0.71” (18 mm)

0.98” (25 mm)

0.87” (22 mm)

Mounting hole for DIN clip

Axial fan

Label

Air flow

Shown: 100W - HVL 031 Fan Heater

L

N

1

2

HVL 031 Fan Heater

Thermostat
