Stego HGL 046 Data Sheet
Technical Data
Heating
||
HGL046/06-08/US
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.
STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: (770) 984-0858 · Fax: (770) 984-0615
Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com

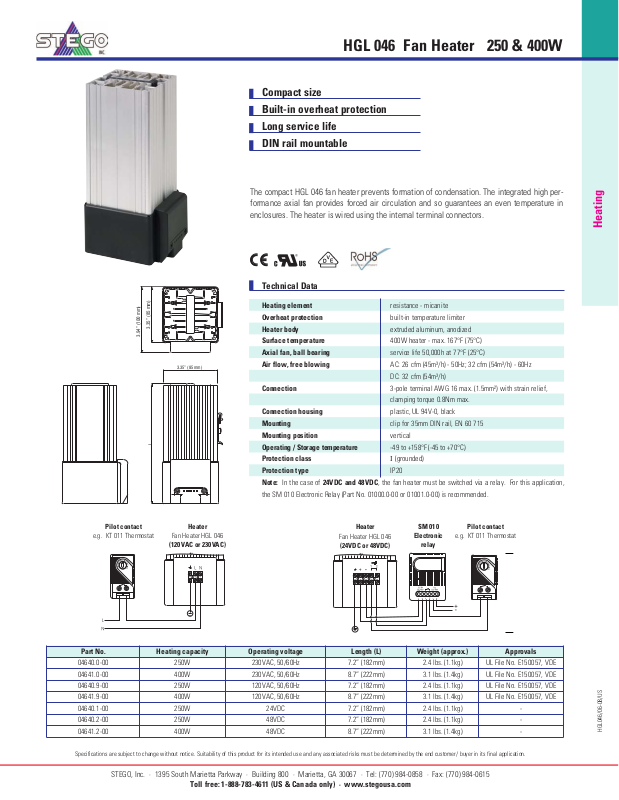

HGL 046 Fan Heater 250 & 400W
Compact size
Built-in overheat protection
Long service life
DIN rail mountable
The compact HGL 046 fan heater prevents formation of condensation. The integrated high performance axial fan provides forced air circulation and so guarantees an even temperature in
enclosures. The heater is wired using the internal terminal connectors.
Heating element resistance - micanite
Overheat protection built-in temperature limiter
Heater body extruded aluminum, anodized
Surface temperature 400W heater - max. 167°F (75°C)
Axial fan, ball bearing service life 50,000h at 77°F (25°C)
Air flow, free blowing AC: 26 cfm (45m³/h) - 50Hz; 32 cfm (54m³/h) - 60Hz
DC: 32 cfm (54m³/h)
Connection 3-pole terminal AWG 16 max. (1.5mm²) with strain relief,
clamping torque 0.8Nm max.
Connection housing plastic, UL 94V-0, black
Mounting clip for 35mm DIN rail, EN 60 715
Mounting position vertical
Operating / Storage temperature -49 to +158°F (-45 to +70°C)
Protection class I (grounded)
Protection type IP20
Note: In the case of 24VDC and 48VDC, the fan heater must be switched via a relay. For this application,
the SM 010 Electronic Relay (Part No. 01000.0-00 or 01001.0-00) is recommended.
3.35” (85 mm)
L
3.35” (85 mm)
3.94” (100 mm)
Part No. Heating capacity Operating voltage Length (L) Weight (approx.) Approvals
04640.0-00 250W 230VAC, 50/60Hz 7.2” (182mm) 2.4 lbs. (1.1kg) UL File No. E150057, VDE
04641.0-00 400W 230VAC, 50/60Hz 8.7” (222mm) 3.1 lbs. (1.4kg) UL File No. E150057, VDE
04640.9-00 250W 120VAC, 50/60Hz 7.2” (182mm) 2.4 lbs. (1.1kg) UL File No. E150057, VDE
04641.9-00 400W 120VAC, 50/60Hz 8.7” (222mm) 3.1 lbs. (1.4kg) UL File No. E150057, VDE
04640.1-00 250W 24VDC 7.2” (182mm) 2.4 lbs. (1.1kg) -
04640.2-00 250W 48VDC 7.2” (182mm) 2.4 lbs. (1.1kg) -
04641.2-00 400W 48VDC 8.7” (222mm) 3.1 lbs. (1.4kg) -
Pilot contact
e.g. KT 011 Thermostat
Pilot contact
e.g. KT 011 Thermostat
Heater
Fan Heater HGL 046
(120VAC or 230VAC)
Heater
Fan Heater HGL 046
(24VDC or 48VDC)
SM 010
Electronic
relay
