Stego ET 011 Data Sheet

Technical Data

Regulating and Monitoring

||

ET011/06-08/US

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.

STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: [phone] · Fax: [phone]

Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com

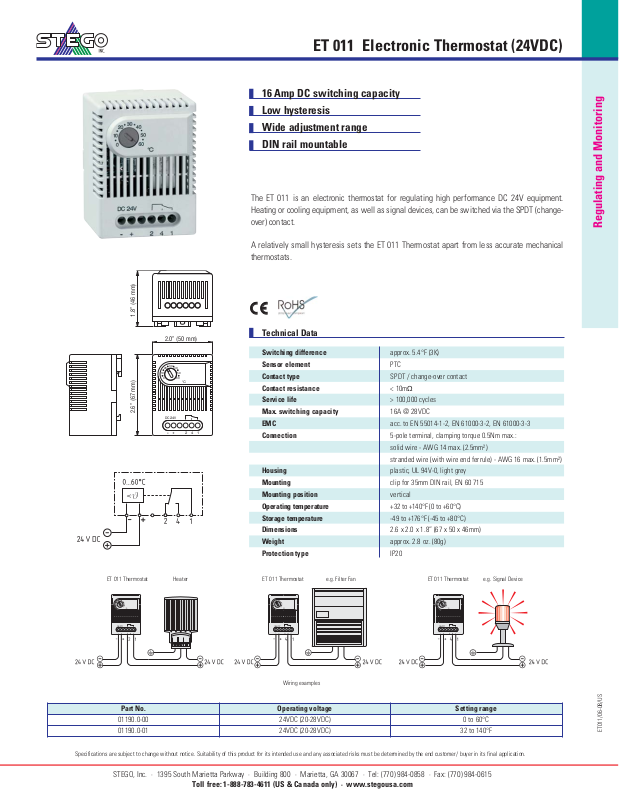

ET 011 Electronic Thermostat (24VDC)

16 Amp DC switching capacity

Low hysteresis

Wide adjustment range

DIN rail mountable

The ET 011 is an electronic thermostat for regulating high performance DC 24V equipment.
Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (change­over) contact.

A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical
thermostats.

Switching difference approx. 5.4°F (3K)

Sensor element PTC

Contact type SPDT / change-over contact

Contact resistance < 10m

˜

Service life > 100,000 cycles

Max. switching capacity 16A @ 28VDC

EMC acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3

Connection 5-pole terminal, clamping torque 0.5Nm max.:

solid wire - AWG 14 max. (2.5mm²)

stranded wire (with wire end ferrule) - AWG 16 max. (1.5mm²)

Housing plastic, UL 94V-0, light grey

Mounting clip for 35mm DIN rail, EN 60 715

Mounting position vertical

Operating temperature +32 to +140°F (0 to +60°C)

Storage temperature -49 to +176°F (-45 to +80°C)

Dimensions 2.6 x 2.0 x 1.8” (67 x 50 x 46mm)

Weight approx. 2.8 oz. (80g)

Protection type IP20

Part No. Operating voltage Setting range

01190.0-00 24VDC (20-28VDC) 0 to 60°C

01190.0-01 24VDC (20-28VDC) 32 to 140°F

1.8” (46 mm)

-+ 241

DC 24V

10

0

20

50

60

30

40

°C

2.6” (67 mm)

2.0” (50 mm)

Wiring examples

ET 011 Thermostat Heater ET 011 Thermostat

e.g. Filter Fan ET 011 Thermostat e.g. Signal Device
