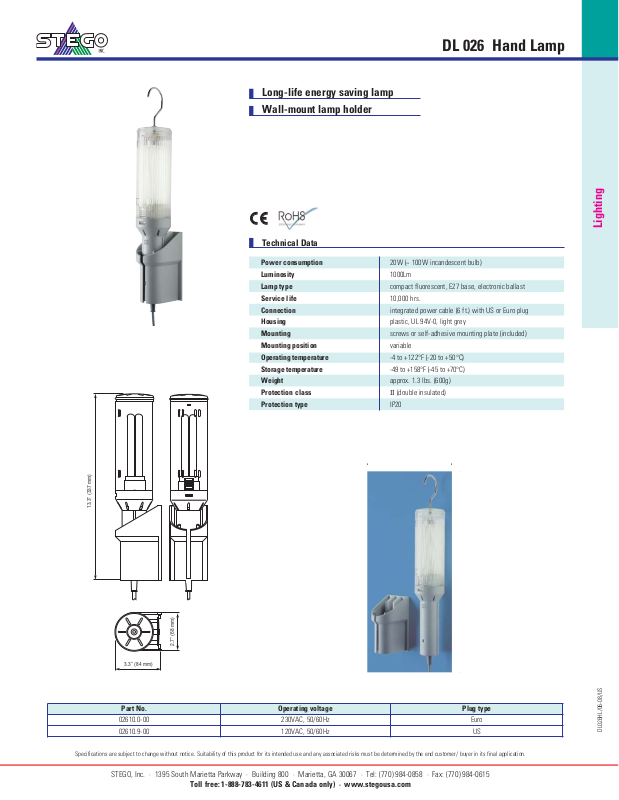

Stego DL 026 Data Sheet
Technical Data
Lighting
||
DL026HL/06-08/US
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.
STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: (770) 984-0858 · Fax: (770) 984-0615
Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com
DL 026 Hand Lamp
Long-life energy saving lamp
Wall-mount lamp holder
Power consumption 20W (~ 100W incandescent bulb)
Luminosity 1000Lm
Lamp type compact fluorescent, E27 base, electronic ballast
Service life 10,000 hrs.
Connection integrated power cable (6 ft.) with US or Euro plug
Housing plastic, UL 94V-0, light grey
Mounting screws or self-adhesive mounting plate (included)
Mounting position variable
Operating temperature -4 to +122°F (-20 to +50°C)
Storage temperature -49 to +158°F (-45 to +70°C)
Weight approx. 1.3 lbs. (600g)
Protection class II (double insulated)
Protection type IP20
Part No. Operating voltage Plug type
02610.0-00 230VAC, 50/60Hz Euro
02610.9-00 120VAC, 50/60Hz US
41
3.3” (84 mm)
2.7” (68 mm)
13.3” (337 mm)
