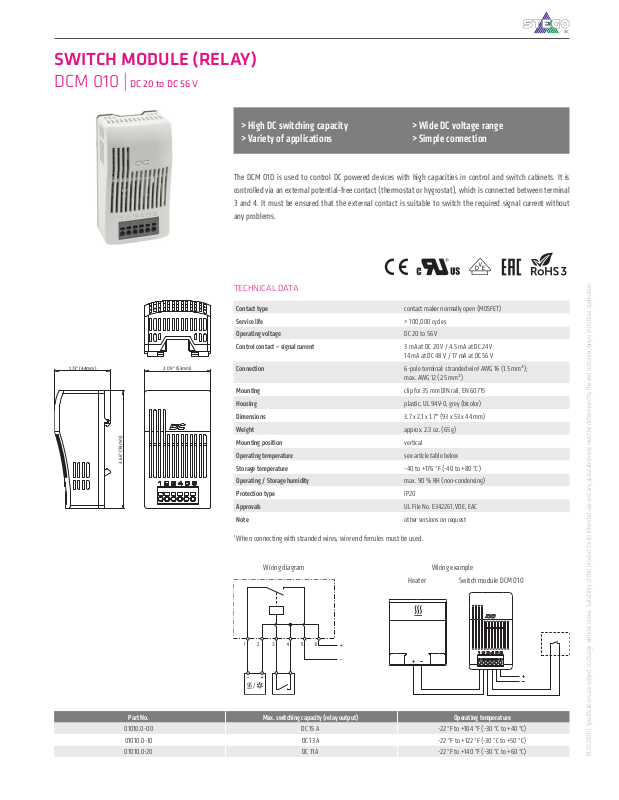

Stego DCM 010 Catalog Page

SWITCH MODULE (RELAY)

18.02.2020 | Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.

PRODUCT CATALOG - STEGO, Inc.

DCM 010 |

1.73" (44mm)

DC 20 to DC 56 V

2.09" (53mm)

3.66" (93mm)

> High DC switching capacity
> Variety of applications

> Wide DC voltage range
> Simple connection

The DCM 010 is used to control DC powered devices with high capacities in control and switch cabinets. It is
controlled via an external potential-free contact (thermostat or hygrostat), which is connected between terminal
3 and 4. It must be ensured that the external contact is suitable to switch the required signal current without
any problems.

TECHNICAL DATA

Contact type contact maker normally open (MOSFET)

Service life > 100,000 cycles

Operating voltage DC 20 to 56 V

Control contact – signal current 3 mA at DC 20 V / 4.5 mA at DC 24 V

Connection 6-pole terminal: stranded wire

Mounting clip for 35 mm DIN rail, EN 60715

Housing plastic, UL 94V-0, grey (bicolor)

Dimensions 3.7 x 2.1 x 1.7" (93 x 53 x 44 mm)

Weight approx. 2.3 oz. (65 g)

Mounting position vertical

Operating temperature see article table below

Storage temperature -40 to +176 °F (-40 to +80 °C)

Operating / Storage humidity max. 90 % RH (non-condensing)

Protection type IP20

Approvals UL File No. E342261, VDE, EAC

Note other versions on request

1

When connecting with stranded wires, wire end ferrules must be used.

14 mA at DC 48 V / 17 mA at DC 56 V

1

max. AWG 12 (2.5 mm²)

AWG 16 (1.5 mm²);

Wiring diagram

Part No. Max. switching capacity (relay output) Operating temperature

01010.0-00 DC 15 A -22 °F to +104 °F (-30 °C to +40 °C)

01010.0-10 DC 13 A -22 °F to +122 °F (-30 °C to +50 °C)

01010.0-20 DC 11 A -22 °F to +140 °F (-30 °C to +60 °C)

Wiring example

Heater Switch module DCM 010
