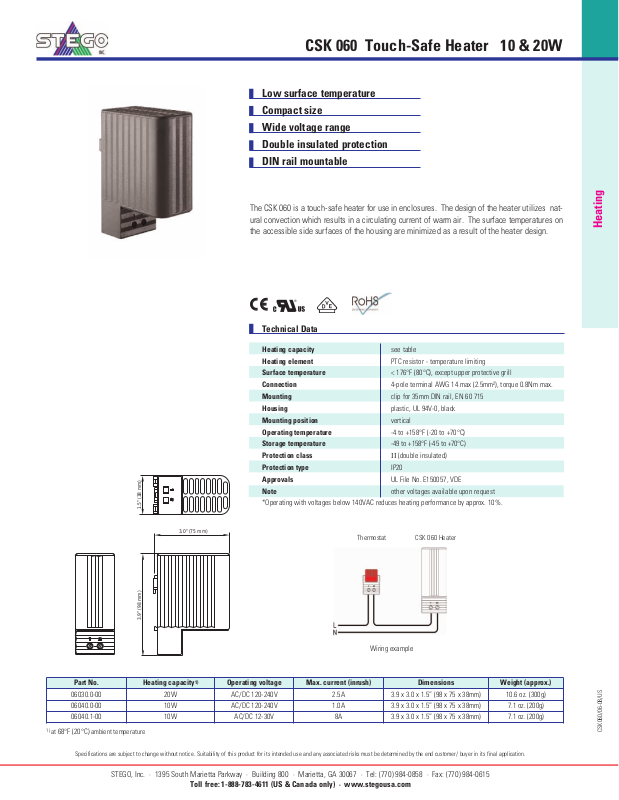

Stego CSK 060 Data Sheet

Technical Data

Heating

||

CSK060/06-08/US

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ buyer in its final application.

STEGO, Inc. · 1395 South Marietta Parkway · Building 800 · Marietta, GA 30067 · Tel: [phone] · Fax: [phone]

Toll free: 1-888-783-4611 (US & Canada only) · www.stegousa.com

CSK 060 Touch-Safe Heater 10 & 20W

Low surface temperature

Compact size

Wide voltage range

Double insulated protection

DIN rail mountable

Heating capacity see table

Heating element PTC resistor - temperature limiting

Surface temperature < 176°F (80°C), except upper protective grill

Connection 4-pole terminal AWG 14 max (2.5mm²), torque 0.8Nm max.

Mounting clip for 35mm DIN rail, EN 60 715

Housing plastic, UL 94V-0, black

Mounting position vertical

Operating temperature -4 to +158°F (-20 to +70°C)

Storage temperature -49 to +158°F (-45 to +70°C)

Protection class II (double insulated)

Protection type IP20

Approvals UL File No. E150057, VDE

Note other voltages available upon request

*Operating with voltages below 140VAC reduces heating performance by approx. 10%.

The CSK 060 is a touch-safe heater for use in enclosures. The design of the heater utilizes nat­ural convection which results in a circulating current of warm air. The surface temperatures on
the accessible side surfaces of the housing are minimized as a result of the heater design.

1.5” (38 mm)

3.0” (75 mm)

3.9” (98 mm)

Part No. Heating capacity

1)

Operating voltage Max. current (inrush) Dimensions Weight (approx.)

06030.0-00 20W AC/DC 120-240V 2.5A 3.9 x 3.0 x 1.5” (98 x 75 x 38mm) 10.6 oz. (300g)

06040.0-00 10W AC/DC 120-240V 1.0A 3.9 x 3.0 x 1.5” (98 x 75 x 38mm) 7.1 oz. (200g)

06040.1-00 10W AC/DC 12-30V 8A 3.9 x 3.0 x 1.5” (98 x 75 x 38mm) 7.1 oz. (200g)

Wiring example

Thermostat CSK 060 Heater

1)

at 68°F (20°C) ambient temperature
