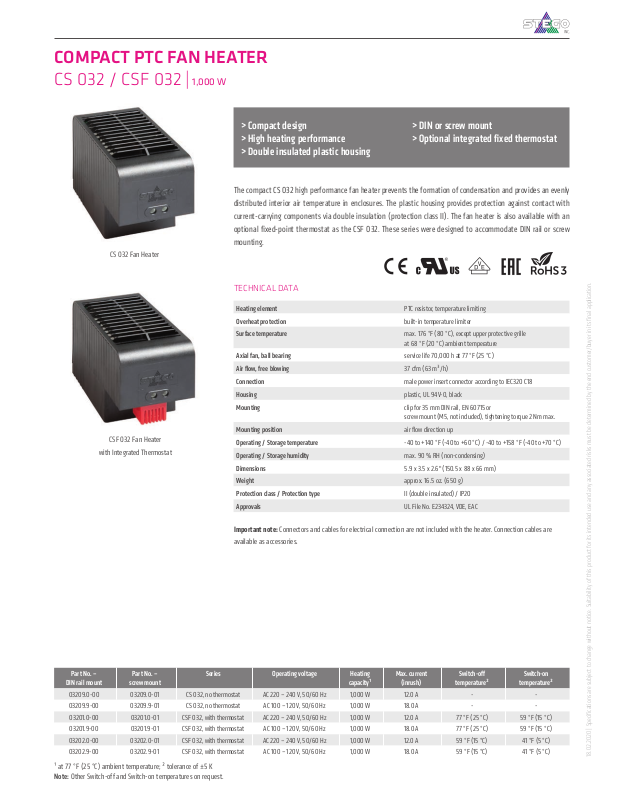

COMPACT PTC FAN HEATER

18.02.2020 | Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.

PRODUCT CATALOG - STEGO, Inc.

CS 032 / CSF 032 |

CS 032 Fan Heater

CSF 032 Fan Heater

with Integrated Thermostat

1,000 W

> Compact design
> High heating performance

> DIN or screw mount
> Optional integrated fixed thermostat

> Double insulated plastic housing

The compact CS 032 high performance fan heater prevents the formation of condensation and provides an evenly
distributed interior air temperature in enclosures. The plastic housing provides protection against contact with
current-carrying components via double insulation (protection class II). The fan heater is also available with an
optional fixed-point thermostat as the CSF 032. These series were designed to accommodate DIN rail or screw
mounting.

TECHNICAL DATA

Heating element PTC resistor, temperature limiting

Overheat protection built-in temperature limiter

Surface temperature max. 176 °F (80 °C), except upper protective grille

Axial fan, ball bearing service life 70,000 h at 77 °F (25 °C)

Air flow, free blowing 37 cfm (63 m³/h)

Connection male power insert connector according to IEC320 C18

Housing plastic, UL 94V-0, black

Mounting clip for 35 mm DIN rail, EN 60715 or

Mounting position air flow direction up

Operating / Storage temperature -40 to +140 °F (-40 to +60 °C) / -40 to +158 °F (-40 to +70 °C)

Operating / Storage humidity max. 90 % RH (non-condensing)

Dimensions 5.9 x 3.5 x 2.6" (150.5 x 88 x 66 mm)

Weight approx. 16.5 oz. (650 g)

Protection class / Protection type II (double insulated) / IP20

Approvals UL File No. E234324, VDE, EAC

at 68 °F (20 °C) ambient temperature

screw mount (M5, not included), tightening torque 2 Nm max.

Important note: Connectors and cables for electrical connection are not included with the heater. Connection cables are
available as accessories.

Part No. –

DIN rail mount

03209.0-00 03209.0-01 CS 032, no thermostat AC 220 – 240 V, 50/60 Hz 1,000 W 12.0 A - -

03209.9-00 03209.9-01 CS 032, no thermostat AC 100 – 120 V, 50/60 Hz 1,000 W 18.0 A - -

03201.0-00 03201.0-01 CSF 032, with thermostat AC 220 – 240 V, 50/60 Hz 1,000 W 12.0 A 77 °F (25 °C) 59 °F (15 °C)

03201.9-00 03201.9-01 CSF 032, with thermostat AC 100 – 120 V, 50/60 Hz 1,000 W 18.0 A 77 °F (25 °C) 59 °F (15 °C)

03202.0-00 03202.0-01 CSF 032, with thermostat AC 220 – 240 V, 50/60 Hz 1,000 W 12.0 A 59 °F (15 °C) 41 °F (5 °C)

03202.9-00 03202.9-01 CSF 032, with thermostat AC 100 – 120 V, 50/60 Hz 1,000 W 18.0 A 59 °F (15 °C) 41 °F (5 °C)

¹ at 77 °F (25 °C) ambient temperature; ² tolerance of ±5 K

Note: Other Switch-off and Switch-on temperatures on request.

Part No. –

screw mount

Series Operating voltage Heating

capacity¹

Max. current

(inrush)

Switch-off

temperature²

Switch-on

temperature²

DIMENSIONAL DRAWING

18.02.2020 | Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.

HEATING

35

35

CS 032 Fan Heater

Heating Power (W)

Ambient Temperature

ACCESSORIES

Connection cable with female power insert connector according IEC320 C17

CSF 032 Fan Heater with Integrated Thermostat

View: back side

Screw mount DIN rail mount

Part No. Length (L)

244379 3.2 ft (1.0 m)

244380 6.5 ft (2.0 m)

Retaining Clip

Photo: Retaining clip, Part No. 237009

Part No. Note

237009 Suitable for female power insert connector on connection cable 244379 and 244380
