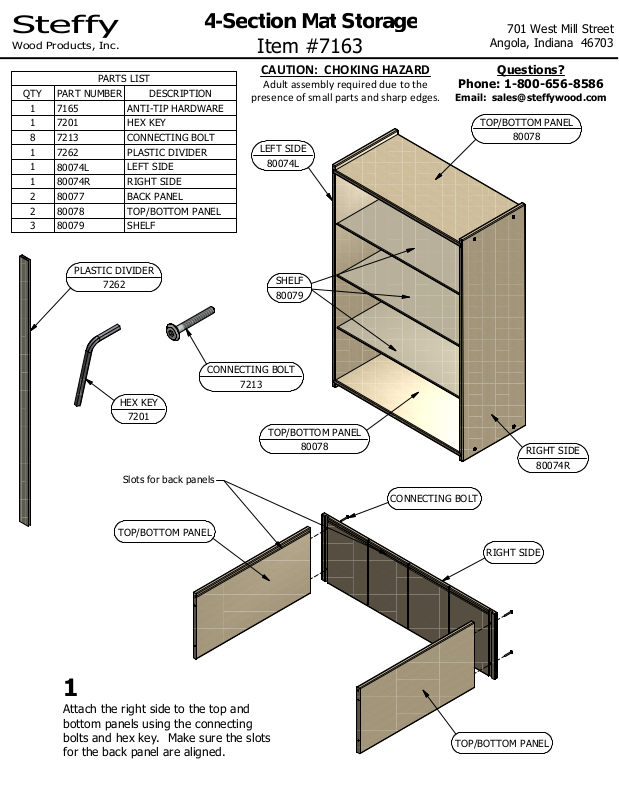

PARTSLISTDESCRIPTIONPARTNUMBERQTYANTI-TIPHARDWARE71651HEXKEY72011CONNECTINGBOLT72138PLASTICDIVIDER72621LEFTSIDE80074L1RIGHTSIDE80074R1BACKPANEL800772TOP/BOTTOMPANEL800782SHELF800793
701WestMillStreetAngola,Indiana4670
3
CAUTION:CHOKINGHAZARD
Adultassemblyrequiredduetothepresenceofsmallpartsandsharpedges.
Questions?Phone:1-800-656-858
6
Email:[email protected]
m
Steff
y
WoodProducts,Inc.
Item#7163
4-SectionMatStorage
TOP/BOTTOMPANEL80078LEFTSIDE80074LRIGHTSIDE80074RTOP/BOTTOMPANEL80078SHELF80079PLASTICDIVIDER7262HEXKEY7201TOP/BOTTOMPANELRIGHTSIDETOP/BOTTOMPANELCONNECTINGBOLTSlotsforbackpanel
s
1
Attachtherightsidetothetopandbottompanelsusingtheconnectingboltsandhexkey.Makesuretheslotsforthebackpanelarealigned
.
CONNECTINGBOLT7213SHELFRoundededgeSlotsforshelvesSlotsforbackpanelsPLASTICDIVIDERBACKPANELLEFTSIDECONNECTINGBOL
Page 2
T
CHECKALLBOLTSPERIODICALLYTOMAKESURETHEYARETIGHT
!
2
(refertosketchatright
)
Slidetheshelvesintotheslotsinthesidepanel.Besuretheroundededgeiffacingfront
.
3
(refertosketchatleft)
Slideonebackpanelintotheslotsinthetopandbottomandintotheassembledsidepanel.Nextslidetheplasticdividerintotheedgeofthebackpanelfollowedbytheremainingbackpanel
.
4
(refertosketchatright
)
Attachtheremainingsidepanelusingtheconnectingboltsandhexkey.Besuretheshelvesandbackpanelareintheappropriateslots.
WARNING!!
Seriousorfatalcrushinginjuriescanoccurfromfurnituretip-over.Tohelppreventtip-over:Placeheaviestitemsonbottomofcabinet.Neverallowchildrentoclimborhangondoorsorshelves.Useoftip-overrestraintsmayonlyreduce,butnoteliminate,theriskoftip-over.5Furnituretippingrestrainthardwareisincludedinwiththehardwarepackageforthisunit.Followtheinstallationinstructionsprintedontherestrainthardwarebag.
