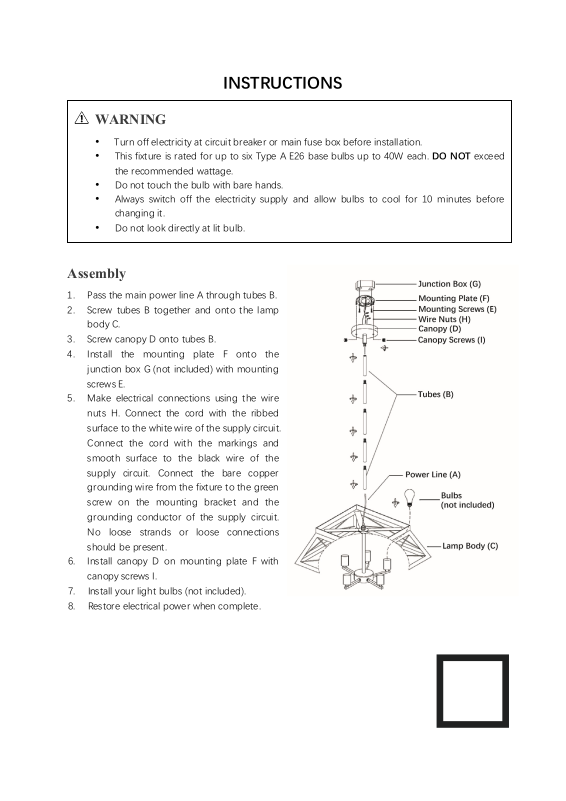

INSTRUCTIONS
WARNING
Turn off electricity at circuit breaker or main fuse box before installation.
This fixture is rated for up to six Type A E26 base bulbs up to 40W each. DO NOT exceed
the recommended wattage.
Do not touch the bulb with bare hands.
Always switch off the electricity supply and allow bulbs to cool for 10 minutes before
changing it.
Do not look directly at lit bulb.
Assembly
1. Pass the main power line A through tubes B.
2. Screw tubes B together and onto the lamp
body C.
3. Screw canopy D onto tubes B.
4. Install the mounting plate F onto the
junction box G (not included) with mounting
screws E.
5. Make electrical connections using the wire
nuts H. Connect the cord with the ribbed
surface to the white wire of the supply circuit.
Connect the cord with the markings and
smooth surface to the black wire of t
supply circuit. Connect the bare copper
grounding wire from the fixture to the green
screw on the mounting bracket and the
grounding conductor of the supply circuit.
No loose strands or loose connections
should be present.
6. Install canopy D on mounting plate F with
canopy screws I.
7. Install your light bulbs (not included).
8. Restore electrical power when complete.
