Steelside W003537352 Installation & Assembly

Page 1
ASSEMBLY INSTRUCTIONS
PAGE 1 OF 7
King Bed
Page 2
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME 30 MINUTES

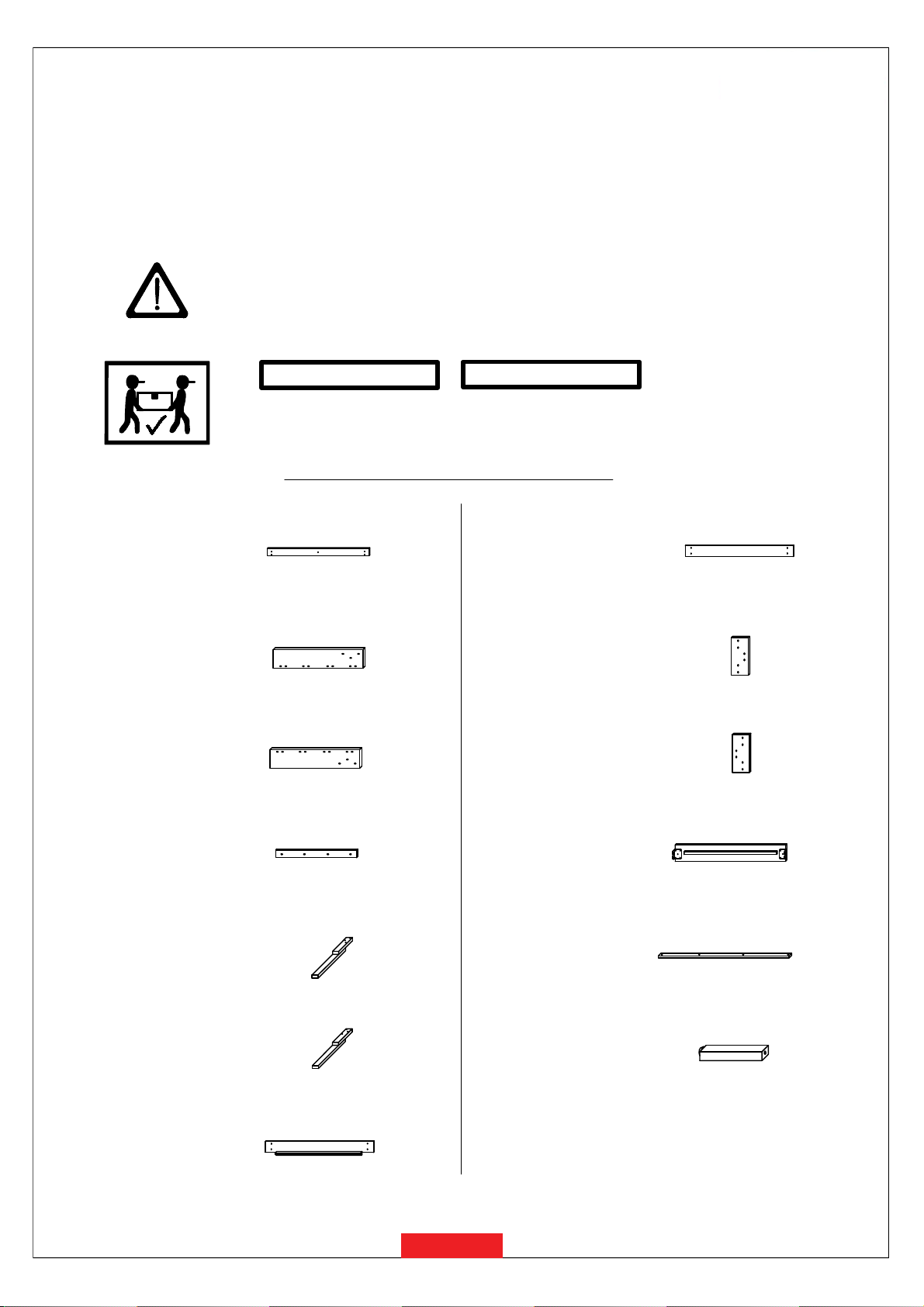

PARTS IDENTIFICATION
A
B
C
D
E
HEADBOARD PANEL
LEFT HEADBOARD SUPPORT(WITH "L" LABEL)
RIGHT HEADBOARD SUPPORT(WITH "R" LABEL)
CENTRE HEADBOARD SUPPORT
LEFT HEADBOARD LEG (WITH "L" LABEL)
4 PCS
1 PC
1 PC
1 PC
1 PC
LOWER FOOTBOARD PANEL
H
(WITH "H" LABEL)
LEFT FOOTBOARD
I
SUPPORT (WITH "L"
LABEL)
RIGHT FOOTBOARD
SUPPORT (WITH "R"
J
LABEL)
BED RAIL
K
BED SLAT
L
1 PC
1 PC
1 PC
2 PCS
4 PCS
M
BED SLAT SUPPORT WITH LEVELER
8 PCS
RIGHT HEADBOARD
F
G
LEG (WITH "R" LABEL)
UPPER FOOTBOARD PANEL (WITH "G" LABEL)
1 PC
1 PC
PAGE 2 OF 7
Page 3
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
WARNING!
1. Don’t attempt to repair or modify parts that are broken or defective. Please contact the store immediately.
2. This product is for home use only and not intended for commercial establishments.

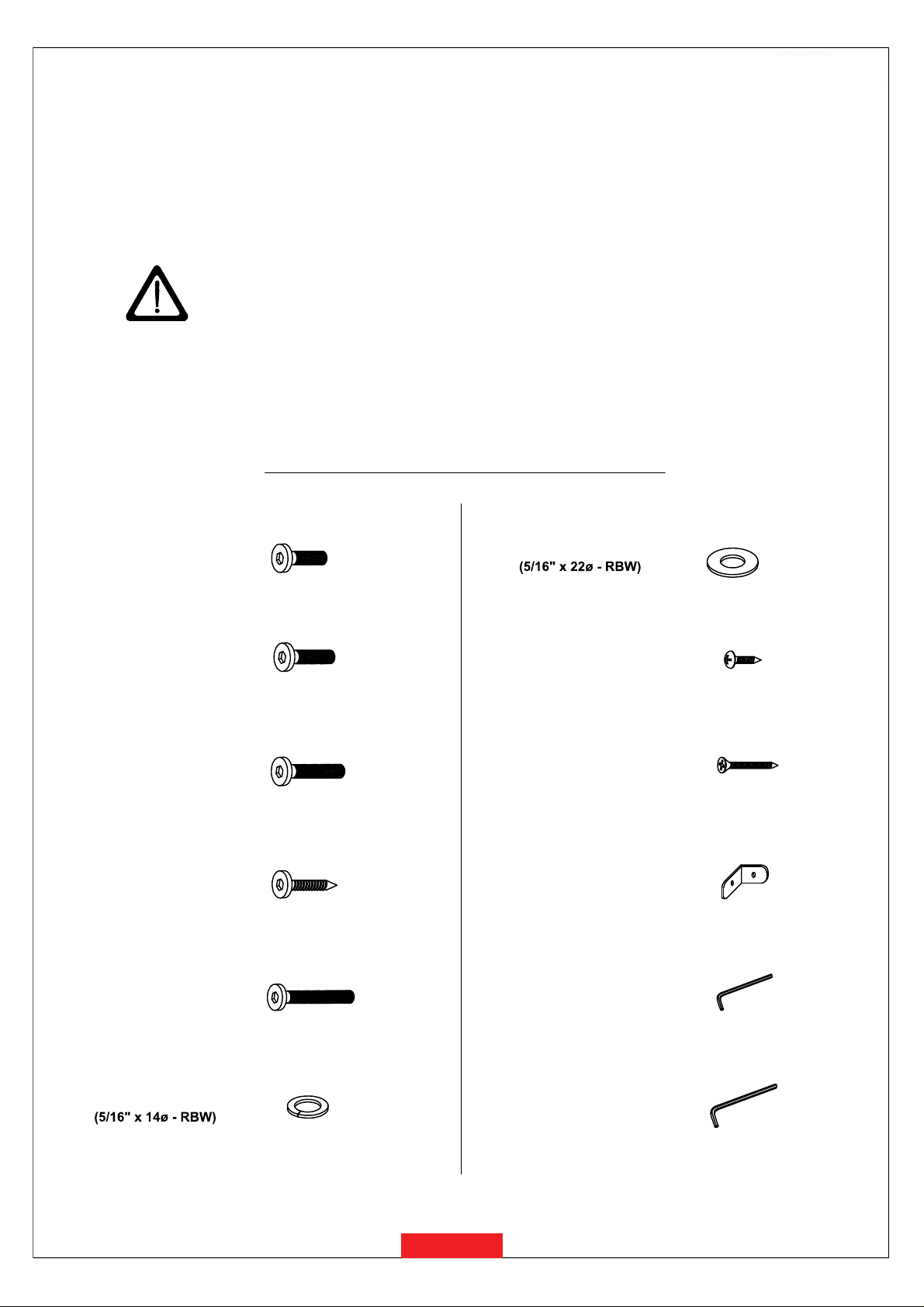

HARDWARE IDENTIFICATION
BOLT 1
1
(M8 x 20mm - RBW)
BOLT 2
2
(M8 x 25mm - RBW)
BOLT 3
3
(M8 x 35mm - RBW)
BOLT 4
4
(M6 x 25mm - RBW)
BOLT 5
5
(M6 x 35mm - RBW)
8 PCS
8 PCS
22 PCS
4 PCS
8 PCS
FLAT WASHER
7
PAN HEAD SCREW
8
(M4 x 16MM - BLK)
FLAT HEAD SCREW
9
(M4 x 32MM - RBW)
METAL BRACKET
10
(1 x 18 x 20mm - BLK)
SMALL ALLEN
11
WRENCH
(M4 x 65MM - BLK)
30 PCS
4 PCS
8 PCS
2 PCS
1 PC
LOCK WASHER
6
30 PCS
WRENCH
12
(M5 x 65MM - BLK)
NOTE:
Phillips head screw driver is required in the assembly process; however, manufacturer does not provided this item.
PAGE 3 OF 7
BIG ALLEN
1 PC
Page 4
ASSEMBLY INSTRUCTIONS

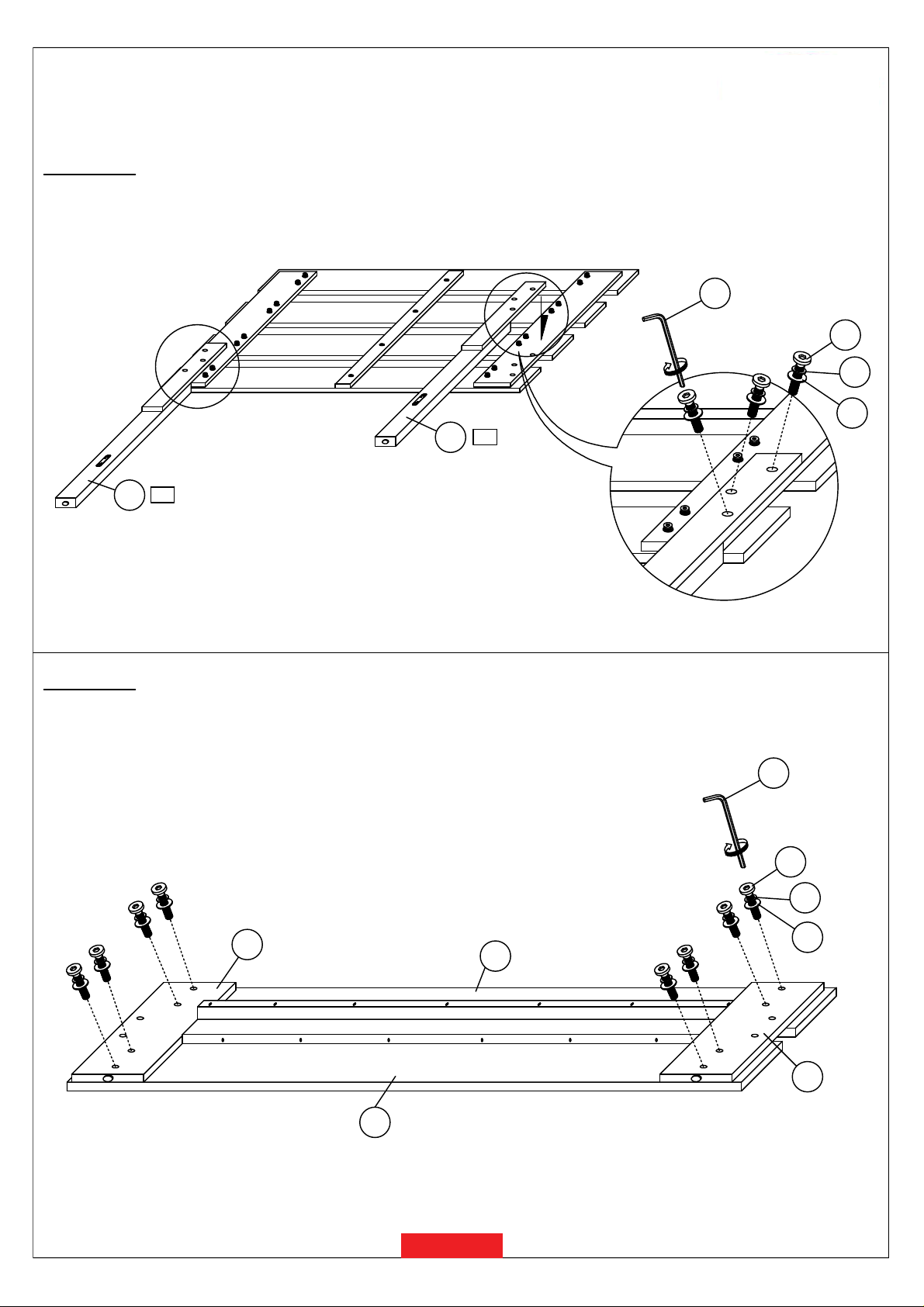

STEP 1
12
C
3
6
7
BACK
B
STEP 2
11
4
D
PAGE 4 OF 7
Page 5
ASSEMBLY INSTRUCTIONS

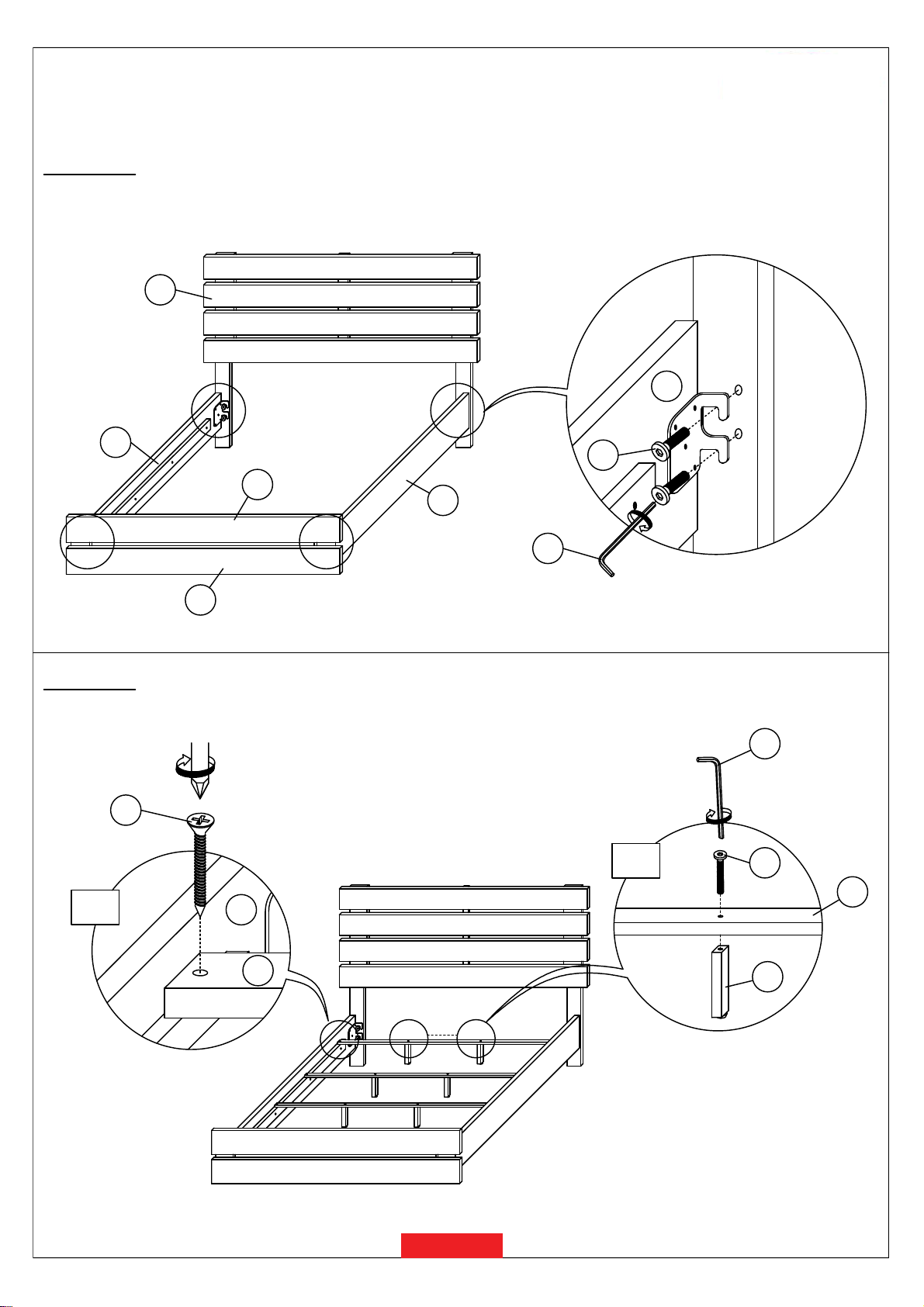

STEP 3
R
F
E
12
3
6
7
L
STEP 4
12
2
6
J
G
7
BACK
I
H
PAGE 5 OF 7
Page 6
ASSEMBLY INSTRUCTIONS

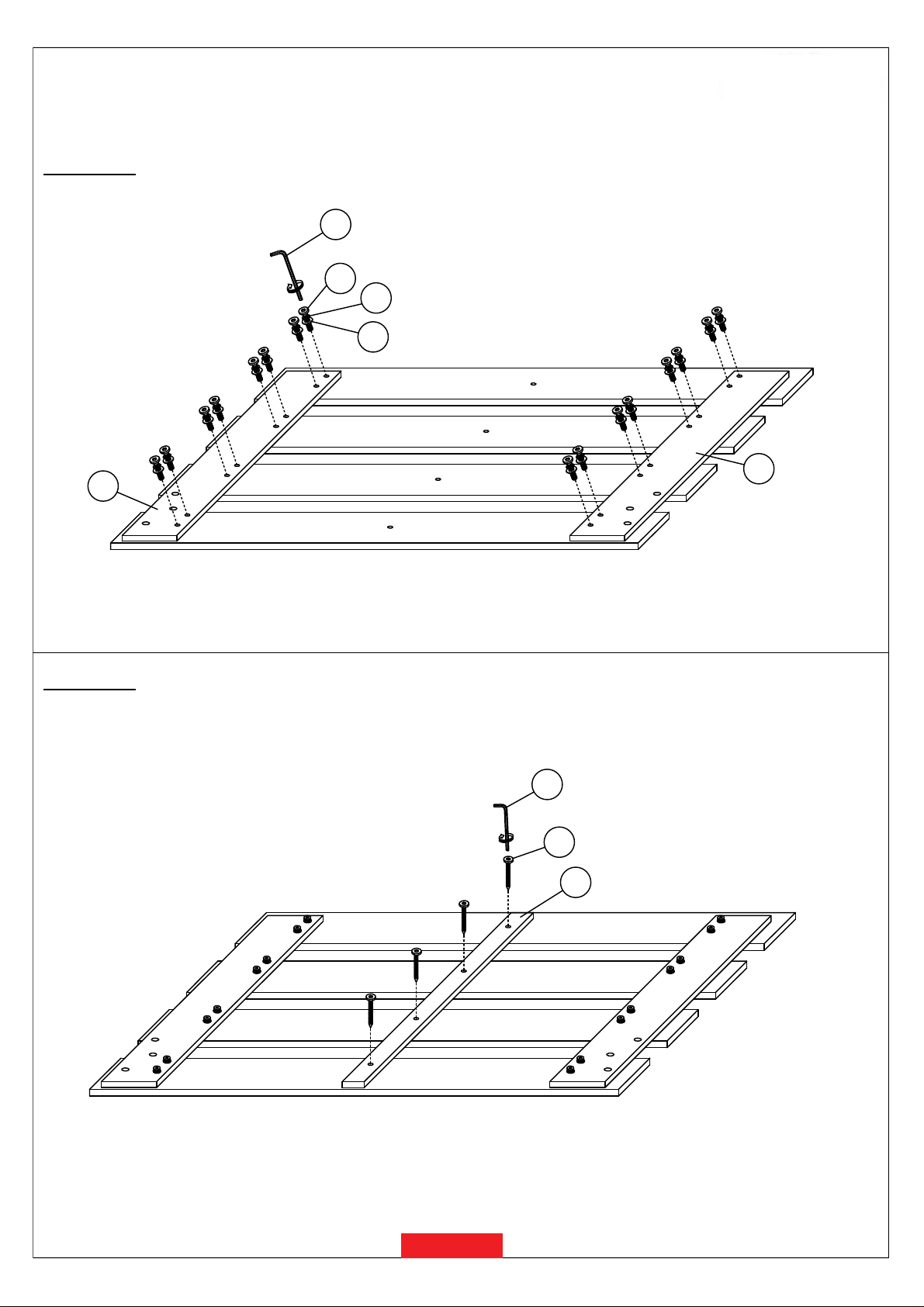

STEP 5
A
K
K
STEP 6
9
6.1
H
K
G
K
11
1
11
6.2
5
L
L
M
PAGE 6 OF 7
Page 7
ASSEMBLY INSTRUCTIONS

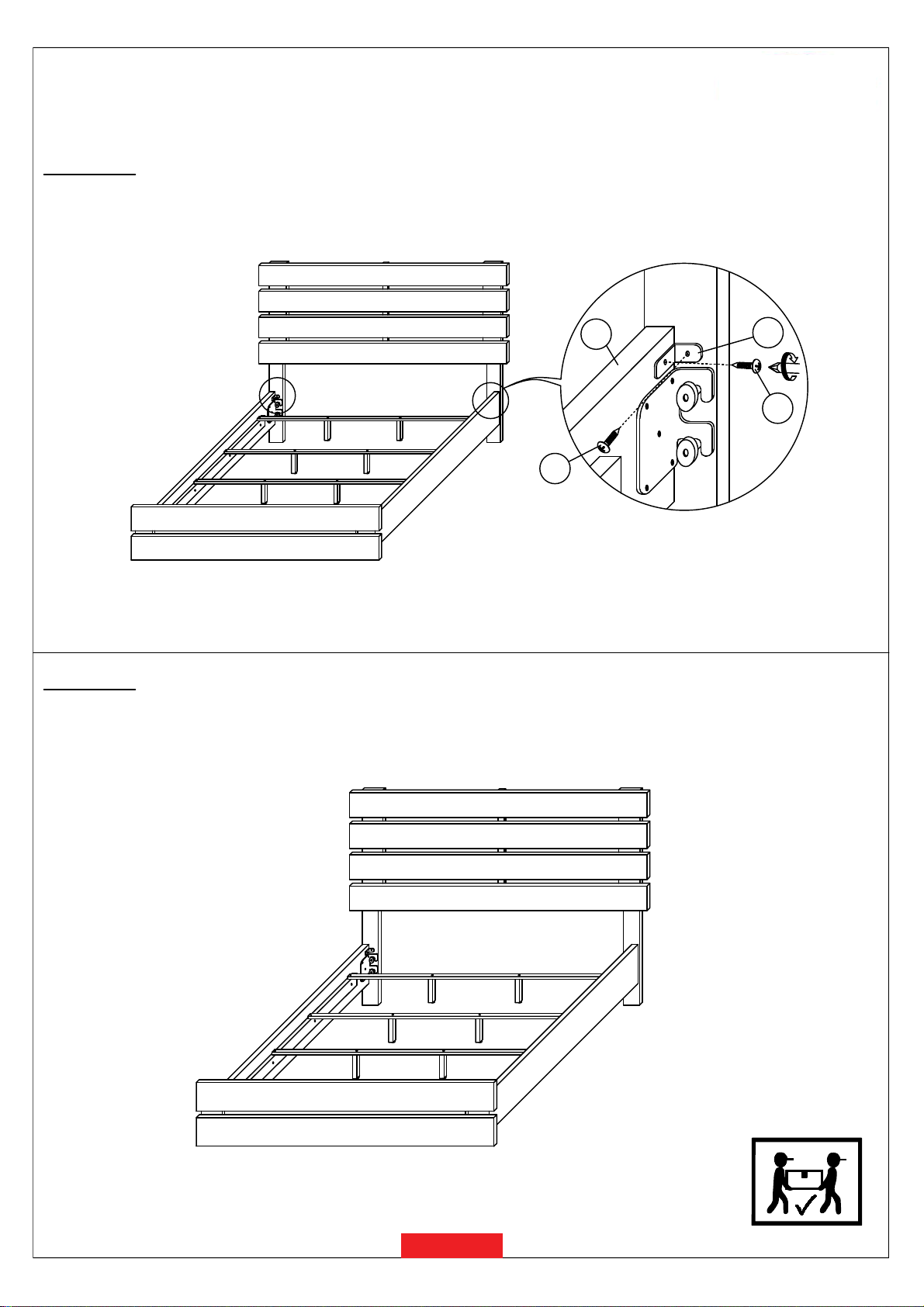

STEP 7
STEP 8
COMPLETE
K
8
10
8
PAGE 7 OF 7
Page 8

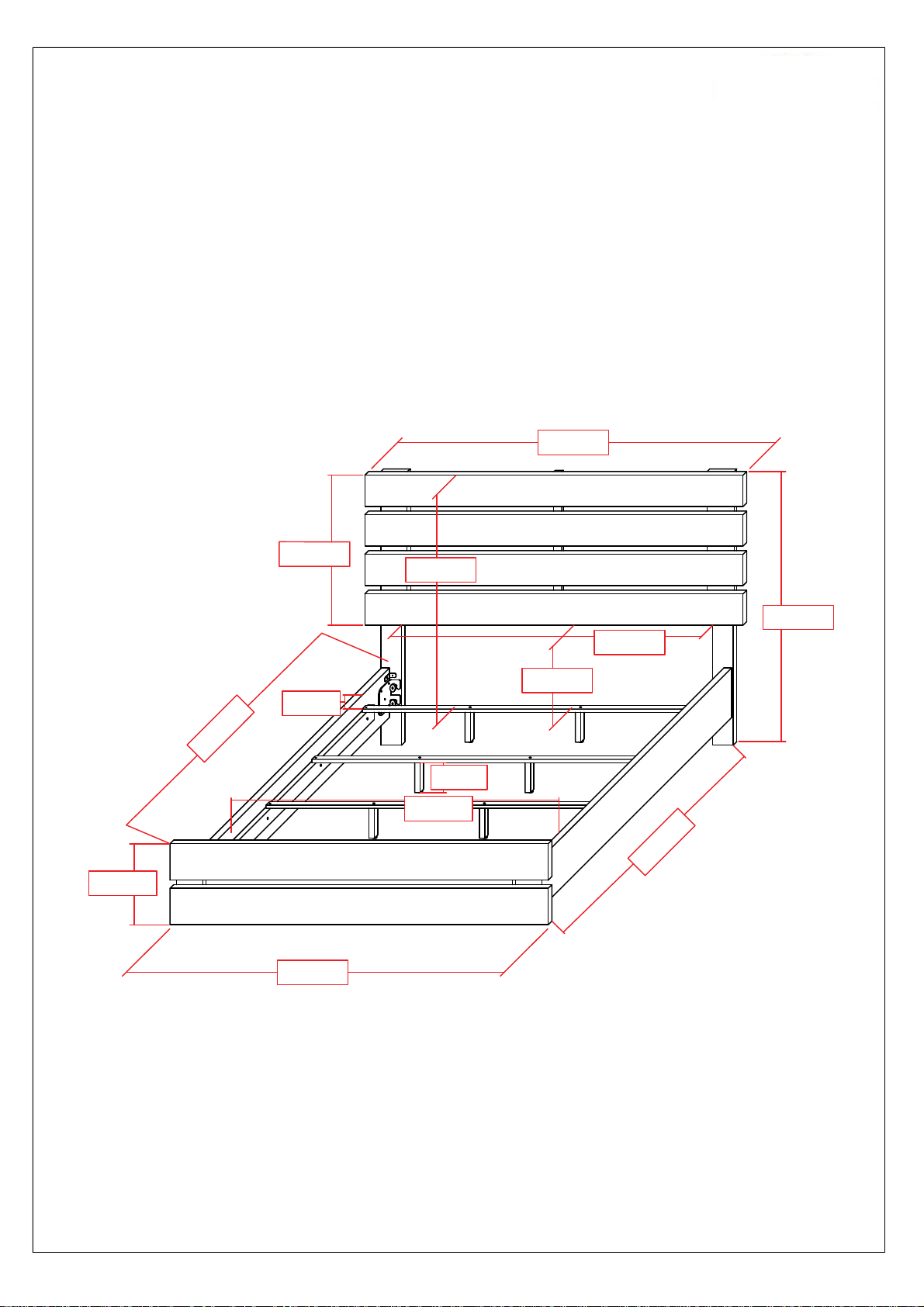

85.83”
INNER SIZE : 76.58” x 81.90”
78.86”
25.98”
43.70”
52.17”
71.06”
17.13”
2.76”
15.95”
8.66”
76.57”
82.09”
78.86”
Note : Dimension tolerance ±5%Note : Dimension tolerance ±5%
