Page 1
No. Drawing Qty.
Extra Qty.
1 16 1
2 1 0
3 16 1
4 16 1
Step:- 1 Spread a rug on floor & put the table
parts. As shown in drawing
Step:-2 Place the Iron Leg to the wooden part after screw the Allen
bolt 16(0.19/0.75 inch), along with flat and spring washer help of allen
key 1(0.11 Inch). As shown in drawing
READY TO USE
HARDWARE PARTS
DINING TABLE PARTS
ALLEN
BOLT 16 PCS.
ALLEN KEY 1 PC.
0.19/0.75 INCHES
0.11 INCH
DINING TABLE
TOP
TABLE LEG
FLAT WAHSER
0.19/0.75 INCH ALLEN BOLT
0.11 INCH ALLEN KEY
FLAT WASHER
ASSEMBLING OF TOP
ASSEMBLE TOP WITH HELP OF ALLEN
BOLT, FLAT, SPRING WASHER AND
ALLEN KEY
0.31
/ 0.43 INCH
SPRING WASHER
A
A
B
B
C
C
D
D
0.31
/ 0.43 INCH SPRING
WASHERS
Tip for leveling of product: When the product rests on an uneven
floor surface it will appear to be unbalanced. To aid in leveling, try adjusting
the levelers located on the bottom of each foot.

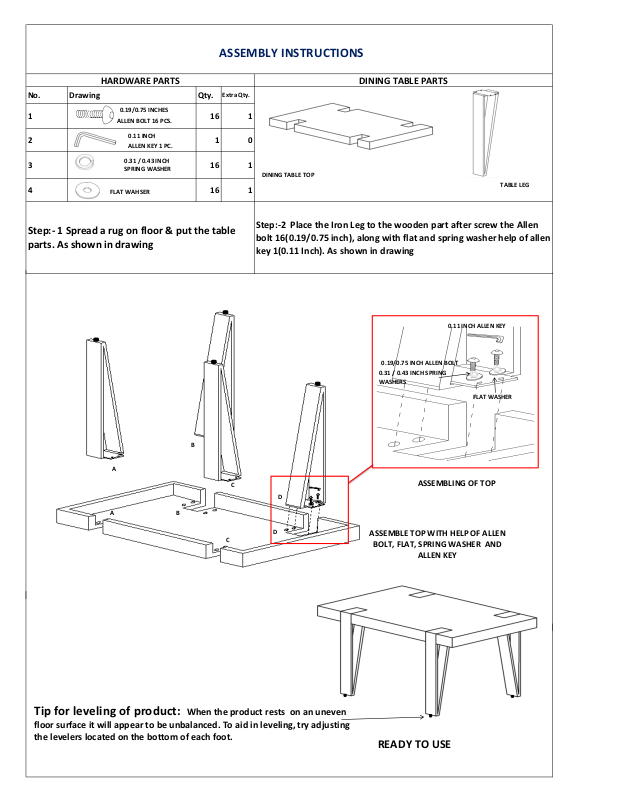

ASSEMBLY INSTRUCTIONS
