ASSEMBLY AND INSTALLATION
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
WARNING:
2. READ AND SAVE THESE INSTRUCTIONS.

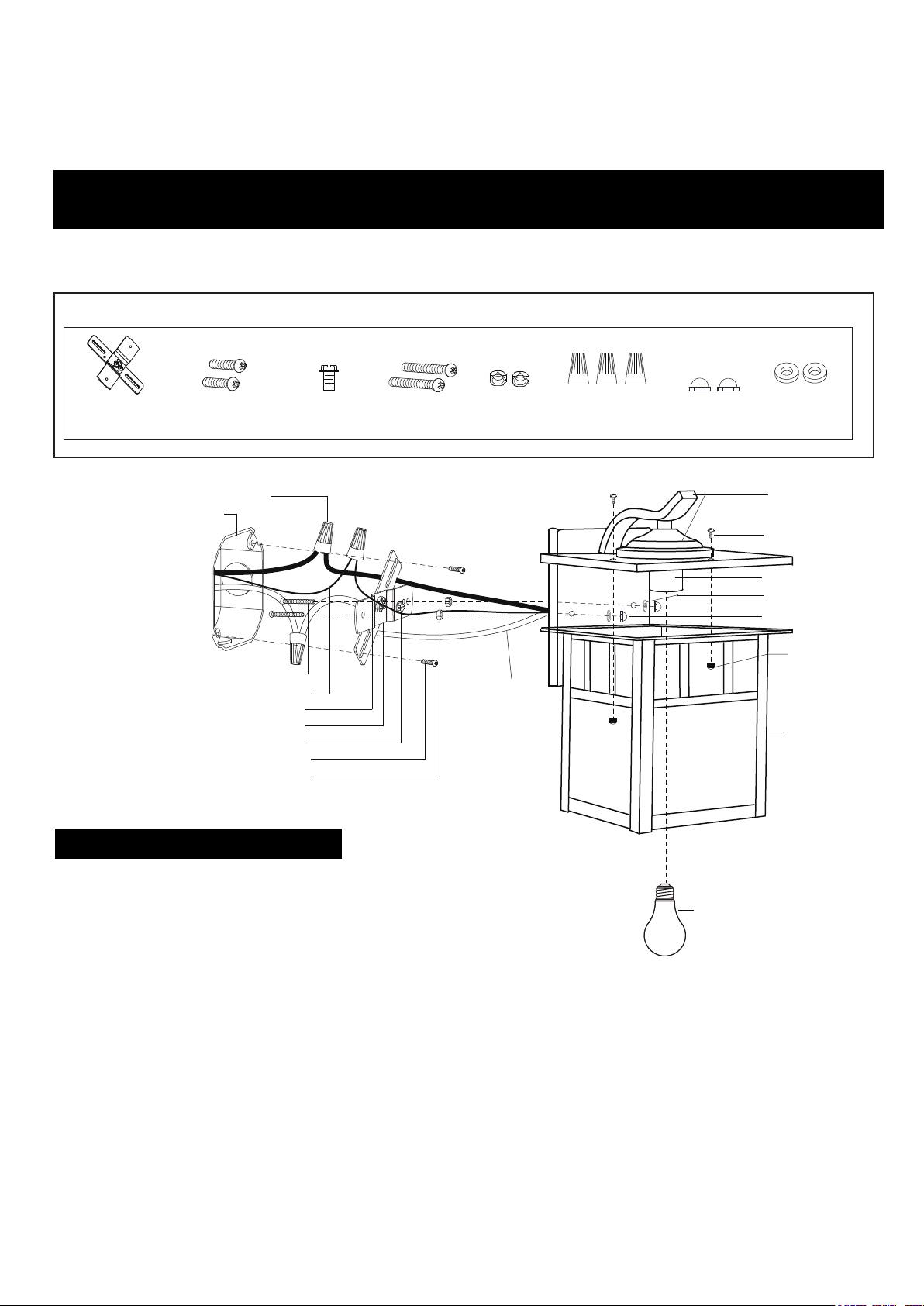

Hardware Package (included):
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
.stnemeriuqer gnidnuorg dna gniriw rof sedoc lacirtcele lacol tlusnoc ,gnillatsni erofeB .1 :SETON
Cross Bar (A)
Green Grounding Screw (C)
Mounting Screw (B)
Wire Connector (F)
Outlet Box
Fixture Mounting Screw (D)
House Grounding Wire
Fixture Grounding Wire
Cross Bar (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Lock Nut (E)
Fixture Mounting
Screw (D)
Lock Nut (E)
Fixture Wire
Wire Connector (F)
Installation Steps
Turn off the power at fuse or circuit box
1. Unscrew the set screws and ball nuts to separate the frame from the fixture.
2. Thread two fixture mounting screws (D) through the cross bar (A), then
secure them with two lock nuts (E).
Adjust the length of the screws if necessary.
Ball Nut (G)
Bulb Type A Max.60W
(not included)
Rubber Pad (H)
Fixture
Set Screw
Socket
Rubber Pad (H)
Ball Nut (G)
Ball Nut
Frame
3. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
4. Pull out the outlet wires and house grounding wire from the outlet box.
Make wire connections using the wire connectors (F):
---The black wire from the light to the black wire from the power source.
---The white wire from the light to the white wire from the power source.
---Attach the fixture grounding wire to the cross bar (A) with the green grounding
screw (C). Then connect it to the house grounding wire with a wire connector (F).
Carefully tuck the wires back into the outlet box.
5. Attach the back plate to the cross bar (A) by inserting the fixture mounting screws (D),
then secure it with the two rubber pads (H) and ball nuts (G).
Frame
Pull the clip upright
Clip
Flat Glass
Clip
Frame
Flat Glass
Clip
Clip
Fig.1
6. Gently pull the clips upright to place the flat glasses into the frame, and then press them back to secure the flat
glasses (See Fig.1 & Fig.2).
Note: The flat glass should be fastened into position as shown in Fig.3.
7. Install a bulb (not included). See relamping label at socket area or packaging for maximum allowed wattage.
8. Restore the frame back to the fixture, and then secure it with two set screws and two ball nuts.
Turn on the power at fuse or circuit box
The following parts are available for re-order if damaged or missing.
Fig.2 Fig.3
Spare Parts List:
Assembly Kit
(1SET)
Cross Bar (A)
Mounting Screw (B)
Green Grounding
Screw (C)
Fixture Mounting
Screw (D)
Lock Nut (E)
Wire Connector (F)
A
Ball Nut (G)
C
Rubber Pad (H)
B
A:9"
B:12-1/2"
C:11"
Glass (4 PCS) Glass (4 PCS)
A:7-1/4"
B:9-1/2"
C:9"
