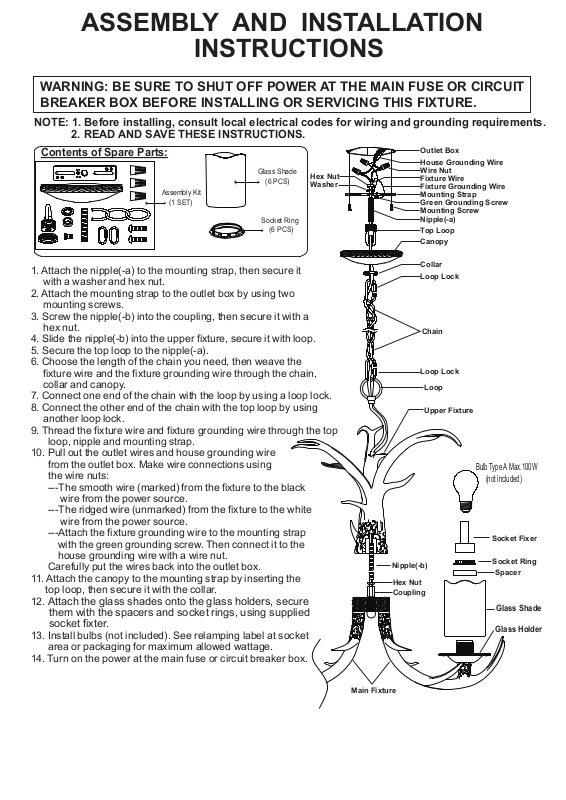

ASSEMBLY AND INSTALLATION
INSTRUCTIONS
WARNING: BE SURE TO SHUT OFF POWER AT THE MAIN FUSE OR CIRCUIT
BREAKER BOX BEFORE INSTALLING OR SERVICING THIS FIXTURE.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Contents of Spare Parts:
Assembly Kit
(1 SET)
Glass Shade
(6 PCS)
Socket Ring
(6 PCS)
Hex Nut
Washer
Outlet Box
House Grounding Wire
Wire Nut
Fixture Wire
Fixture Grounding Wire
Mounting Strap
Green Grounding Screw
Mounting Screw
Nipple(-a)
Top Loop
Canopy
1. Attach the nipple(-a) to the mounting strap, then secure it
with a washer and hex nut.
2. Attach the mounting strap to the outlet box by using two
mounting screws.
3. Screw the nipple(-b) into the coupling, then secure it with a
hex nut.
4. Slide the nipple(-b) into the upper fixture, secure it with loop.
5. Secure the top loop to the nipple(-a).
6. Choose the length of the chain you need, then weave the
fixture wire and the fixture grounding wire through the chain,
collar and canopy.
7. Connect one end of the chain with the loop by using a loop lock.
8. Connect the other end of the chain with the top loop by using
another loop lock.
9. Thread the fixture wire and fixture grounding wire through the top
loop, nipple and mounting strap.
10. Pull out the outlet wires and house grounding wire
from the outlet box. Make wire connections using
the wire nuts:
---The smooth wire (marked) from the fixture to the black
wire from the power source.
---The ridged wire (unmarked) from the fixture to the white
wire from the power source.
---Attach the fixture grounding wire to the mounting strap
with the green grounding screw. Then connect it to the
house grounding wire with a wire nut.
Carefully put the wires back into the outlet box.
11. Attach the canopy to the mounting strap by inserting the
top loop, then secure it with the collar.
Attach the glass shades onto the glass holders, secure
12.
them with the spacers and socket rings, using supplied
socket fixter.
13. Install bulbs (not included). See relamping label at socket
area or packaging for maximum allowed wattage.
14. Turn on the power at the main fuse or circuit breaker box.
Collar
Loop Lock
Chain
Loop Lock
Nipple(-b)
Hex Nut
Coupling
Loop
Upper Fixture
Bulb Type A Max.100W
(not included)
Socket Fixer
Socket Ring
Spacer
Glass Shade
Glass Holder
Main Fixture
