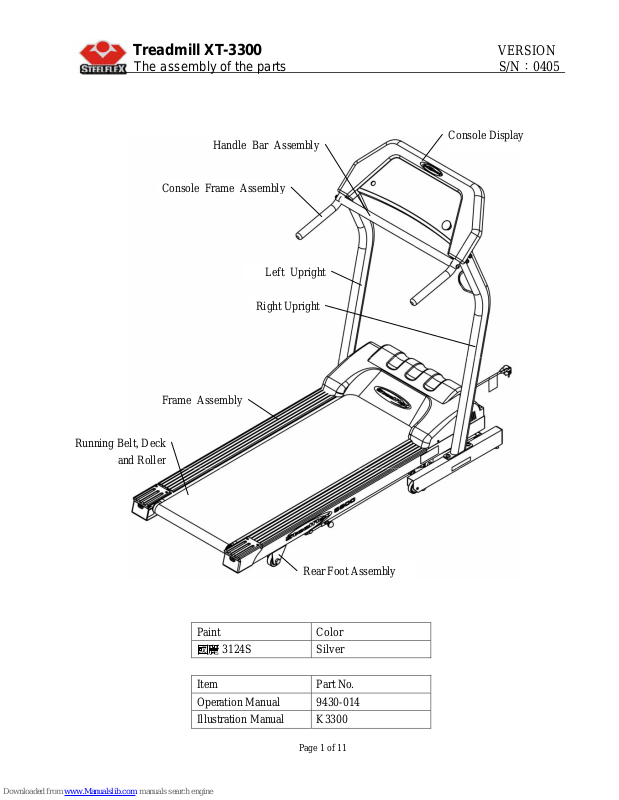

Page 1
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 1 of 11
Paint Color
國麗 3124S
Silver
Item Part No.
Operation Manual 9430-014
Illustration Manual K3300
Console Display
Left Upright
Frame Assembl
y
Right Uprigh
t
Console Frame Assembl
y
Rear Foot Assembly
Handle Bar Assembl
y
Running Belt, Dec
k
and Rolle
r
Page 2
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 2 of 11
Rectangular Cap
9211-067
M4 Screw Clamp
Motor Cover
9264-007
M4×15 Round
Cross T ap Screw
Side Railing (aluminum)
8910-017
One-Faced Adhesive
9190-028
M4×15 T aper Cross
Tap Screw
Rear End Cap
(Right) 9261-020
Rear End Cap
(Left) 9261-021
LOGO Sticke
r
9441-066
Page 3
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 3 of 11
Running Dec
k
9710-010
Rear Roller Se
t
9812-010
Front Roller Se
t
9812-009
Driving Bel
t
9252-022
M6×25 T ape
r
Inner Hex Screw
M8×70 Socket Head Cap Screw
Running Belt
9251-021
M8×40 Socke
t
Head Cap Screw
M5×6 Round
Cross Screw
M5 Washer
M8×25 Socket Head Cap Screw
M5 T oothed Lock Washer
M4×15 Round Cross Screw
M4 T oothed Lock Washe
r
M4 Washe
r
Grounding Wire
9543-003
Adjusting Clasp
8292-007
M10×110 Hex
Screw
M10 Nut lock washer
5-16 UNC Nut
5-16 Spring Washer
M10 Washer
Page 4
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 4 of 11
Plastic Part
9260-040
Power Switch
9545-010
Lift Motor
9510-022 (110V)
9510-020 (220V)
M10×45 Hex Screw
M4×8 Round Cross Tap Screw
M4 Washer
M10 Nut loc
k
washe
r
Current Protector
9546-067 (110V)
9546-026 (220V)
ψ18 Disc Washer
ψ4 Pulling Nail
Power Cord Socke
t
9546-025
MCB Driving Boar
d
9520-012 (110V)
9520-011 (220V)
Fastener
9260-014
Cushion
9214-019
Adjusting Bolt Spring
8840-023
O-T ype Term inal
9546-056
Anti-Static Electricity
Device 8890-032
M4×15 Round Cross Screw
M4 Washer
Hall Sensor
Assembly
Rear Wheel
9266-002
1/2” Nut Loc
k
Washe
r
1/2” 2Hex Screw
M4×12 Round Cross Tap Screw
M4×15 Round
Cross Screw
M4 Washe
r
Page 5
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 5 of 11
M6 Nut lock washer
3/8” Pull Nu
t
Base Frame
20XT3300B
Adjustable Foot
9214-010
Fixed Bracket
9260-028
M3×8 Round Cross Screw
Hall Senso
r
9545-009
Fastener
9260-030
M3 Nut
Sticker for adjustable foot
9441-063
Rectangular Cap
9211-010S1
Wheel
9213-014
Adjusting Washer
8381-035
M6×50 Round Inner Hex Screw ψ11×ψ20 Plastic Bush
9260-038
Page 6
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 6 of 11
End Cap
9211-001
M10 Washe
r
M10 Nut lock washe
r
M10×45 Hex
Screw
Adjusting Set
8250-036
M10×30 Round
Inner Hex Screw
M10 Nut lock washe
r
Oil Pressure
Rod with Air
8830-005
1/2” 2-UNC Screw
M10×50 Hex
Screw
1/2” Nut lock Washe
r
M10×60 Hex Screw
Rectangular Cap
9211-008
Electroplated Tube
260510
Adjustable Tube
20XT3300H
Page 7
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 7 of 11
Console Display
9471-013 (XT3300)
9471-014 (XT3300H)
Nameplate Sticke
r
9441-065
M2.6×15 Round Cross Screw
M2.6 Nut
Sensor Switch
9545-011
Stop Switch Assembly
9545-005
Top Console
9263-006
Printing Circuit
9472-001
M4×10 Round Cross
Tap Screw
Console Plate
9263-008
Page 8
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 8 of 11
M3×8 Round Cross Tap
Screw
PC Board
9530-048
ψ14×ψ25×2t Rubber W asher
M3 Bakelite Washer
Stop Switch Assembly
Heart Rate PC Boar
d
9530-022
Hall Sensor
9545-006
Wire Holde
r
9260-016
PC Board Wire
9542-063
Hand Pulse Connector
Wiring 9542-013
Hand Pulse Connecto
r
Wiring 9542-013
Page 9
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 9 of 11
M5×16 Roun
d
Cross T ap Screw
Bottom Console
9263-007S1
M4 Washer
M4×16 Round Cross Screw
M4 Toothed
Lock Washe
r
Grounding Wire
9543-005
Grounding Wire of Hear
t
Rate PC Boar
d
Console Frame Wel
d
20XT3300-F
Handle Bar Assembly
22XT3300-2
Rubber Sleeve
9163-013
3/8” Spring Washer
M10×50 Roun
d
Inner Hex Screw
Rubber Sleeve
9163-012
Handle Bar Wel
d
20XT3300-G
Page 10
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 10 of 11
【22XT3300H】
DC Motor Set
9510-050 (110V)
9510-053 (220V)
M8 Washer
M8 Spring Washe
r
Adjusting Spring
8840-013
M8 Nut
M8×20 Hex
Screw
M8×15 Hex Screw
M8 Spring Washer
Fixed Bracke
t
8410-028
M3×30 Round
Cross Screw
Rubber Sleeve
9163-021
Hand Pulse (Plastic)
9260-035
M3 Nut
Rubber Sleeve
9163-015
Hand Pulse (Iron)
8387-031
Hand Pulse Connector
Wiring 9542-013
Handle Bar Weld
20XT3300H-G
Page 11
Treadmill XT-3300 VERSION
The assembly of the parts S/N：0405
Page 11 of 11
M10×90 Roun
d
Inner Hex Screw
Safety Key
9260-025
Right Uprigh
t
20XT3300-D
Label
9441-009
AC Power Cord (110V)
9541-013
AC Power Cord (220V)
9541-011
N
ameplate Sticker
9441-068
Left Upright
20XT3300-E
Sticker 9441-073
Note label
9441-008
M8 Washer
M8×16 Round
Inner Hex Screw
M4×10 Round
Cross Screw
Cup Holder
8291-015
M10 Washer
M8 Washer (Arc)
