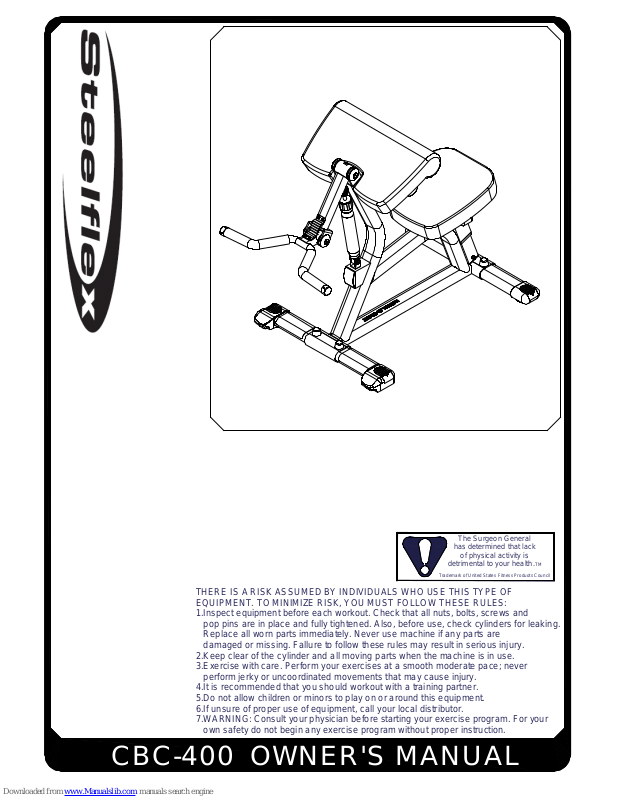

OWNER'S MANUAL
CBC-400
THERE IS A RISK ASSUMED BY INDIVIDUALS WHO USE THIS TYPE OF
EQUIPMENT. TO MINIMIZE RISK, YOU MUST FOLLOW THESE RULES:
1.Inspect equipment before each workout. Check that all nuts, bolts, screws and
pop pins are in place and fully tigh tened. Also, before use, check cylinders for leaking.
Replace all worn parts immediately. Never use machine if any parts are
damaged or missing. Fallure to fol lo w these rules may result in serious injury.
2.Keep clear of the cylinder and all moving parts when the machine is in use.
3.Exercise with care. Perfor m your exercises at a smooth moderat e pace; ne ver
perform jerky or uncoordi nated movements that may cause injury.
4.It is recommended that you s hould workout with a training partne r .
5.Do not allow children or minors to play on or around this equipment.
6.If unsure of proper use of equipment, call your local distributor.
7.WARNING: Consult your physician before starting your exercise program. For your
own safety do not begin any exercise program without proper instruction.
The Surgeon General
has determined that lack
of physical activity is
detrimental to your health.
TM
Trademark of United States Fitness Produots Council
ASSEMBLY INSTRUCTIONS
Page
CBC-400
HARDWARE ILLUSTRATION
1.1
(A2)ROUND INNER HEX SCREW M8X40L PARTIAL QTY.2
CBC400-032008
2
1
3
4
5
6
(A1)HEX BOLT M8X25L PARTIAL QTY.4
(A3)HEX BOLT M8X70L PARTIAL QTY.2
(A4)HEX BOLT M10X60L PARTIAL QTY.4
(A5)HEX BOLT M10X75L PARTIAL QTY.2
ASSEMBLY INSTRUCTIONS
Page
CBC-400
HARDWARE ILLUSTRATION
1.2
(B1) M8 NYLON LOCK NUT QTY.2
CBC400-032008
(B2)M10 NYLON LOCK NUT QTY.6
(C1)M8(I.D.)FLAT WASHER Ø18 QTY.4
2
1
3
4
5
6
(C2)M8(I.D.)FLAT WASHER Ø24 QTY.6
(C3)M10(I.D.)FLAT WASHER Ø27 QTY.8
(C4)3/8" ROUND END CAP WASHER QTY.4
(C5)M8 SPRING WASHER QTY.6
(A6)BOLT CAP(9212-024) QTY.4
(A7)M10X25L SOCKER FLAT SCREW QTY.4
ASSEMBLY INSTRUCTIONS
Page
CBC-400
HARDWARE ILLUSTRATION
2CBC400-032008
D1. D2.
D6.
D7.
D9. D10. D11.
(D1)Ø50X10 END COVER(8130-131)
(D2)50X1.8t FLAT END CAP(9211-005)
(D3)50X75 ROUND END CAP(9211-084)
(D4)60X50 PLASTIC BUSHING(9211-033)
(D5)50X50X1.8t ROUND END CAP(9211-087)
(D6)Ø60X42H DECK BUFFER(9214-037)
(D7)40X80 ROUND END COVER(9261-070)
(D8)40X80 FOOT CAP(9261-071)
(D9)40X80 FOOT CAP(9261-072)
(D10)50X1tX180L RUBBER PAD(9311-020)
(D11)95X140L RUBBER PAD(9630-003)
(D12)Ø16 x Ø8 x 22.5L STEEL BUSHING(8110-087)
------------------------------------------[4PCS]
----------------------------------------[1PCS]
--------------------------------------[1PCS]
-------------------------------------[2PCS]
-------------------------------[2PCS]
------------------------------------[2PCS]
---------------------------------[2PCS]
------------------------------------------------[1PCS]
------------------------------------------------[1PCS]
-----------------------------------[1PCS]
---------------------------------------[2PCS]
----------------------[1PCS]
D3. D4.
D5.
D8.
D12.
ASSEMBLY INSTRUCTIONS
Page
CBC-400
3CBC400-032008
PARTS ILLUSTRATION SHEET
A[1SET] B[1SET]
G[1PCS]
5584-K007
40X80X2tX600L
H[1PCS]
5584-K008
40X80X2tX600L
I[2SET]
8220-148
Ø25.4X73.5L
J[2PCS]
8386-101
K[1PCS]
8830-020
M[1PCS]
9121-063
C[1SET] D[1SET]
E[1SET]
8312-090
50X5tX140L
110
5
0
140
400
110
350
F[1SET]
10CBC400-01
L[1PCS]
9131-020
o50X2.5tX400L
ASSEMBLY INSTRUCTIONS
Page
CBC-400
4CBC400-032008
Above shows STEP1
assembled and completed
A
D11
D11
D9
D8
A6X2
B2X2
C4X2
J
H
C3X2
A4X2
C3X2
A4X2
D6
D6
G
A6X2
B2X2
C4X2
D7
D7
D3
ASSEMBLY INSTRUCTIONS
Page
CBC-400
5
CBC400-032008
Above shows STEP2
assembled and completed
L
D5
E
D5
A5
C3
A5
C3
F
C2X2
C5X2
A3X2
D1
C1
A2
D1
I
B1
C1
K
C3X2
D
I
D1
C1
A2
M5X10 ROUND
INNER BOLTX2
B2X2
C1
B1
M5 WASHER-n10X2
D10
M5X10 ROUND
INNER BOLTX2
M5 WASHER-n10X2
8311-105X2
C
D1
A7
A7
A7
A7
ASSEMBLY INSTRUCTIONS
Page
CBC-400
6CBC400-032008
Above shows STEP3
assembled and completed
M
B
C2X4
C5X4
A1X4
M8 SPRING WASHER
M8X10L ROUND INNER HEAD
D2
D4
D4
