Steelex ST1014, ST1007, ST1012 User Manual

MODELS ST1007, ST1012, ST1014

15" & 20" PLANERS

OWNER'S MANUAL

(For models manufactured since 03/16)

#17978MC

Phone: [phone] • Online Technical Support: [e-mail]

COPYRIGHT © APRIL, 2016 BY WOODSTOCK INTERNATIONAL, INC.

V2.03.17

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Printed in China

This manual provides critical safety instructions on the proper setup, operation, maintenance
and service of this machine/equipment.

Failure to read, understand and follow the instructions given in this manual may result in
serious personal injury, including amputation, electrocution or death.

The owner of this machine/equipment is solely responsible for its safe use. This responsibility
includes but is not limited to proper installation in a safe environment, personnel training and
usage authorization, proper inspection and maintenance, manual availability and
comprehension, application of safety devices, blade/cutter integrity, and the usage of
personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence,
improper training, machine modications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: Work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to lter out
microscopic particles.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] or send e-mail to:
[e-mail]. Our knowledgeable sta will help you troubleshoot problems and
process warranty claims.

If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

[e-mail]

Table of Contents

INTRODUCTION .................................................... 2

Contact Info .................................................................... 2

Machine Descriptions ................................................. 2

Manual Accuracy .......................................................... 2

Machine Data Sheet .................................................... 3

MACHINE FEATURES ............................................. 5

CONTROLS & COMPONENTS ................................ 6

SAFETY .................................................................. 8

Safety Instructions for Machinery .......................... 8

Additional Safety for Planers ..................................10

ELECTRICAL ......................................................... 11

Circuit Requirements ................................................11

Grounding Requirements .......................................12

Extension Cords ..........................................................12

SETUP .................................................................. 13

Unpacking .....................................................................13

Items Needed for Setup ........................................... 13

Inventory .......................................................................14

Hardware Recognition Chart .................................15

Lifting & Moving ......................................................... 18

Assembly .......................................................................19

OPERATIONS ....................................................... 23

Overview .......................................................................23

Workpiece Inspection ............................................... 24

Wood Types .................................................................. 24

Planing Tips ..................................................................25

Cutting Problems .......................................................25

Depth of Cut ................................................................. 26

Setting Feed Rate .......................................................28

Adjusting/Replacing Knives (ST1007) ................. 28

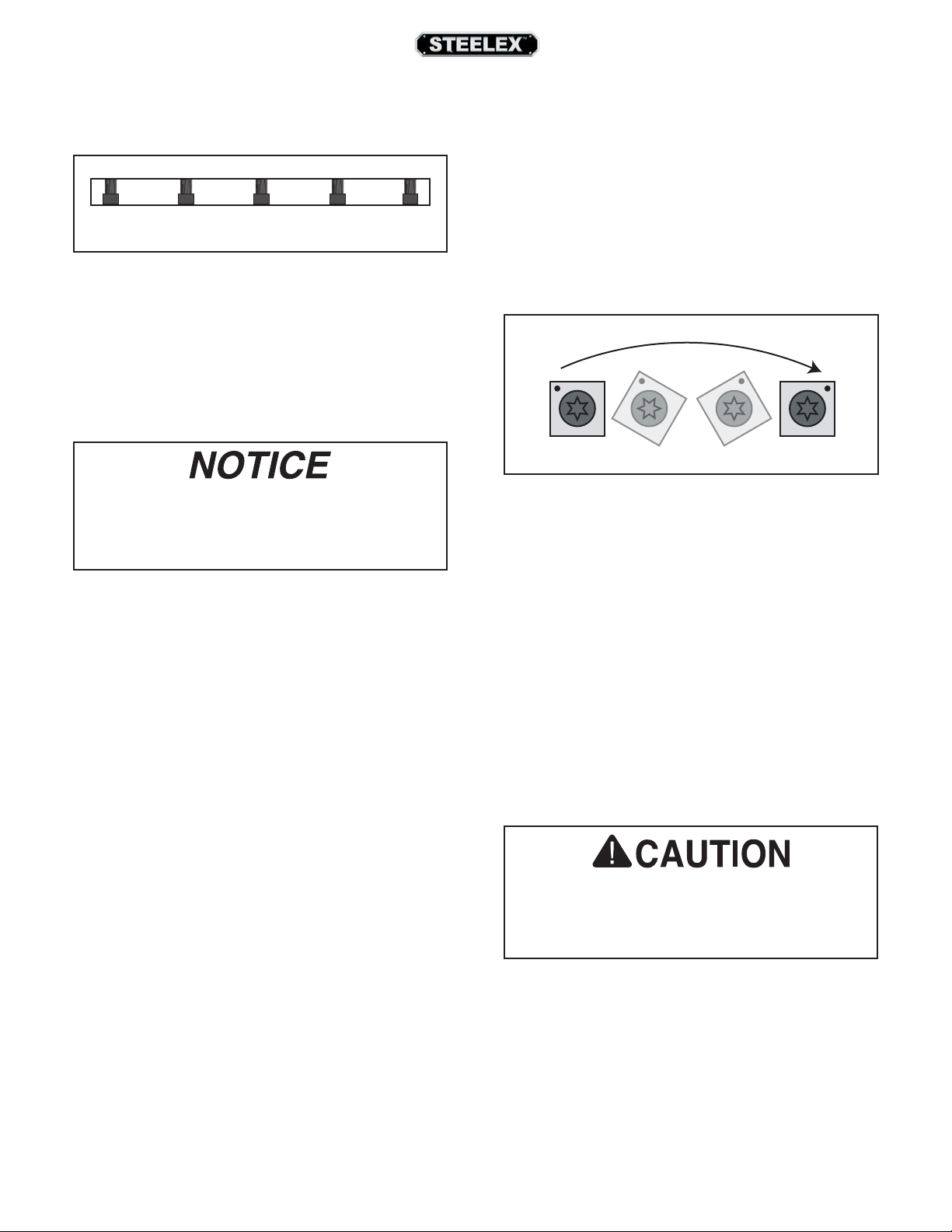

Rotating/Replacing .................................................... 30

Cutterhead Inserts .....................................................30

(ST1012/ST1014) ......................................................... 30

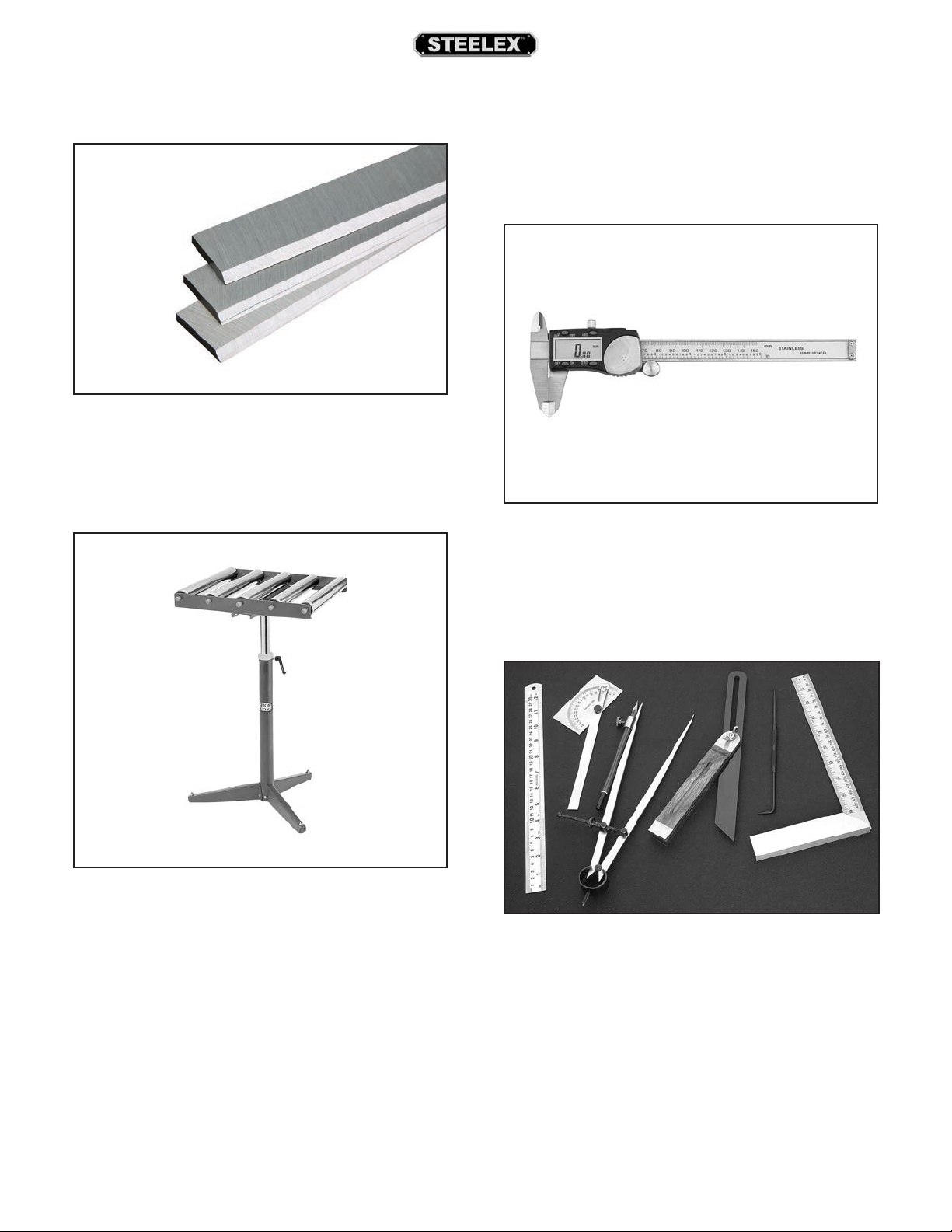

ACCESSORIES ...................................................... 32

MAINTENANCE .................................................... 35

General ........................................................................... 35

Schedule ........................................................................ 35

Cleaning/Protecting .................................................. 35

Basic Adjustment Tools ............................................36

Optional Adjustment Tools .....................................36

Lubrication .................................................................... 37

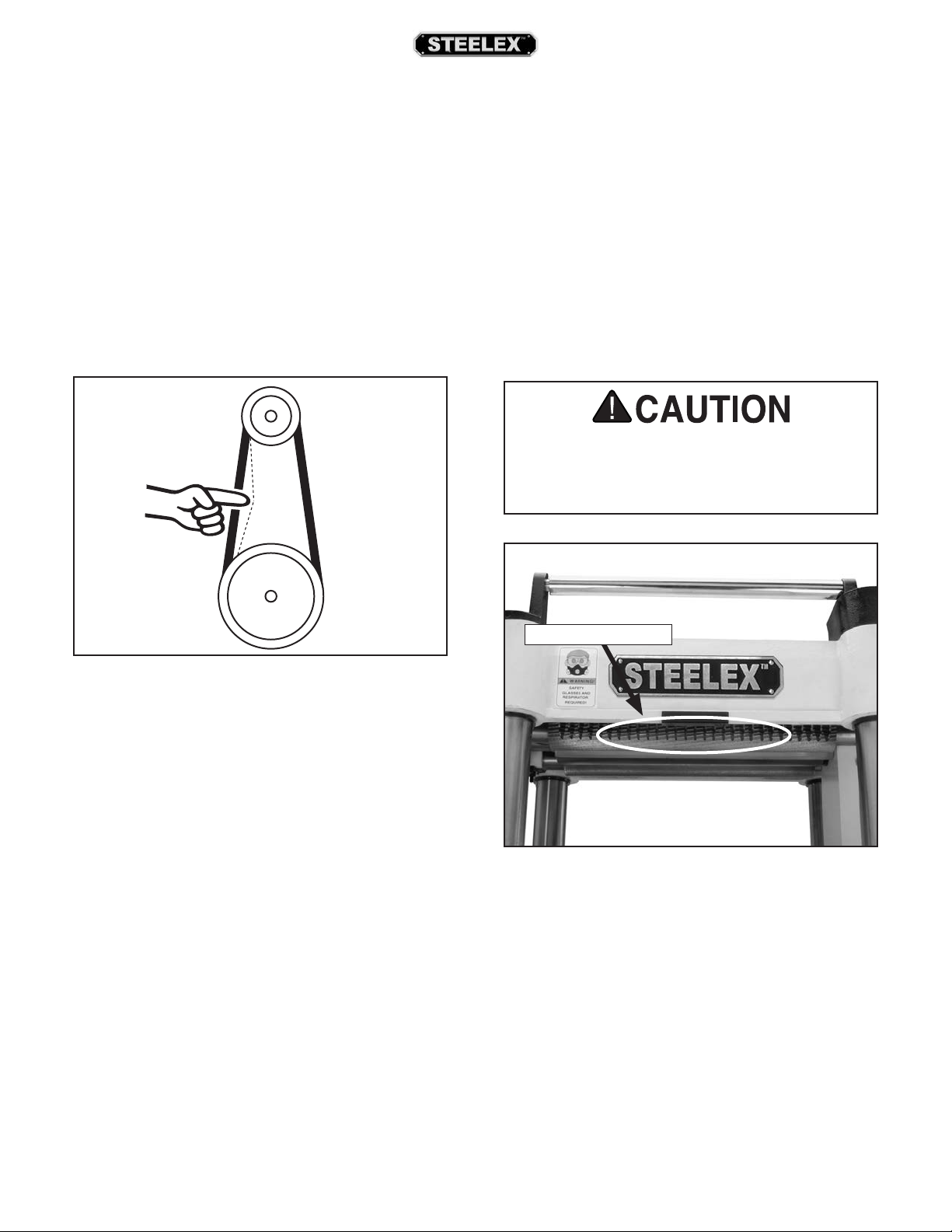

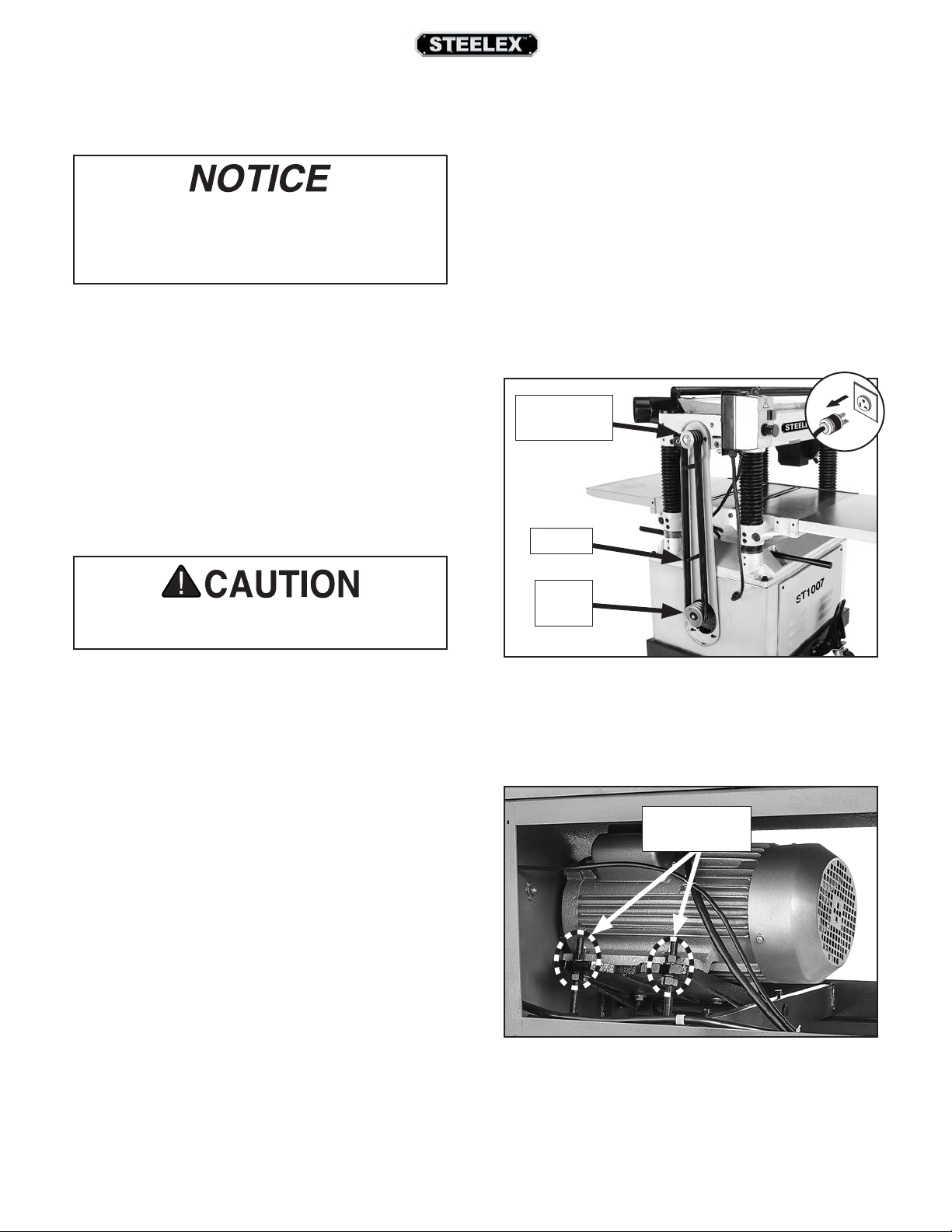

Tensioning/Replacing V-Belts ................................38

Anti-Kickback Pawls...................................................39

SERVICE ............................................................... 40

Troubleshooting .........................................................40

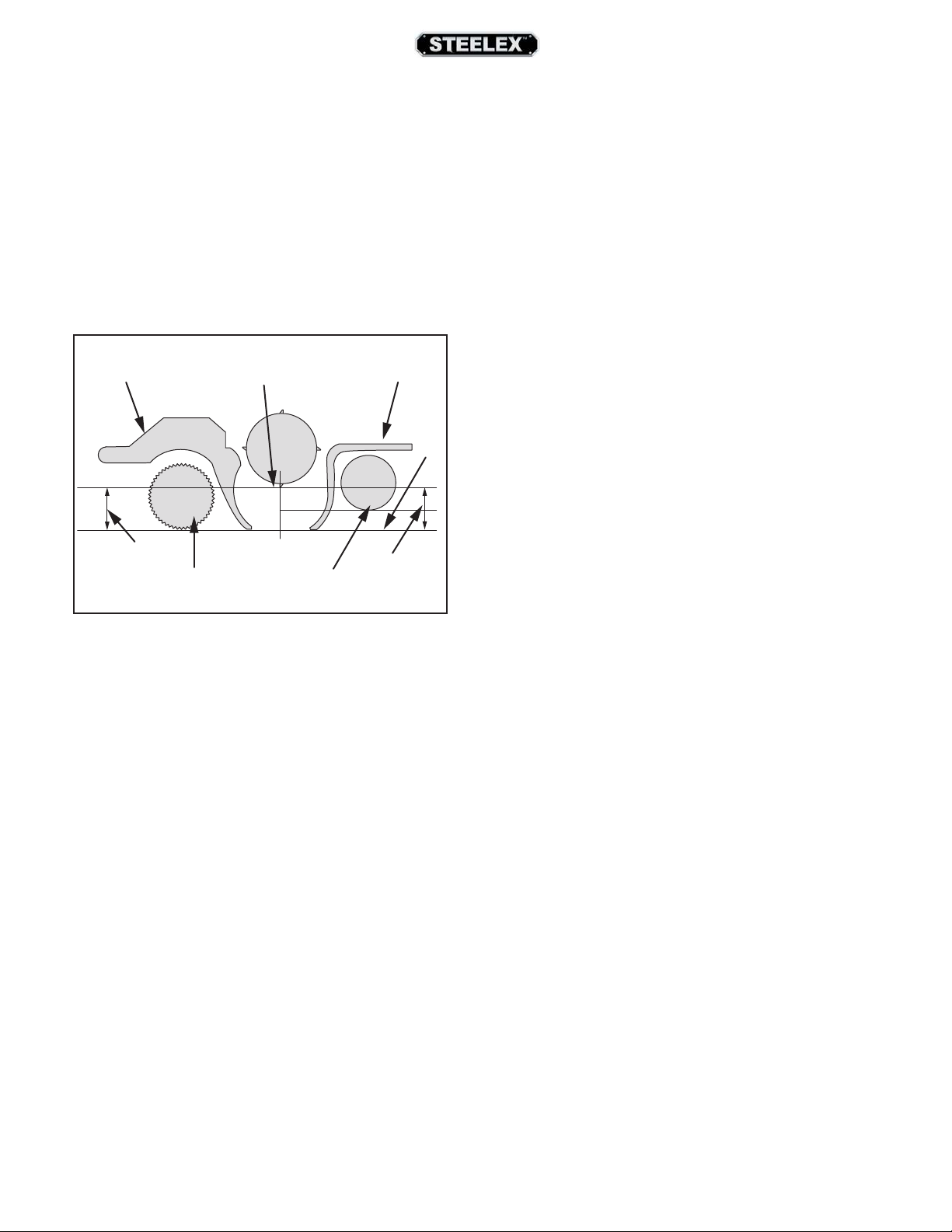

Adjusting Feed Rollers, Chip Breaker

& Pressure Bar ..............................................................42

Adjusting Roller Spring Tension ............................46

Positioning Chip Deflector ...................................... 47

Adjusting Table Parallelism ..................................... 47

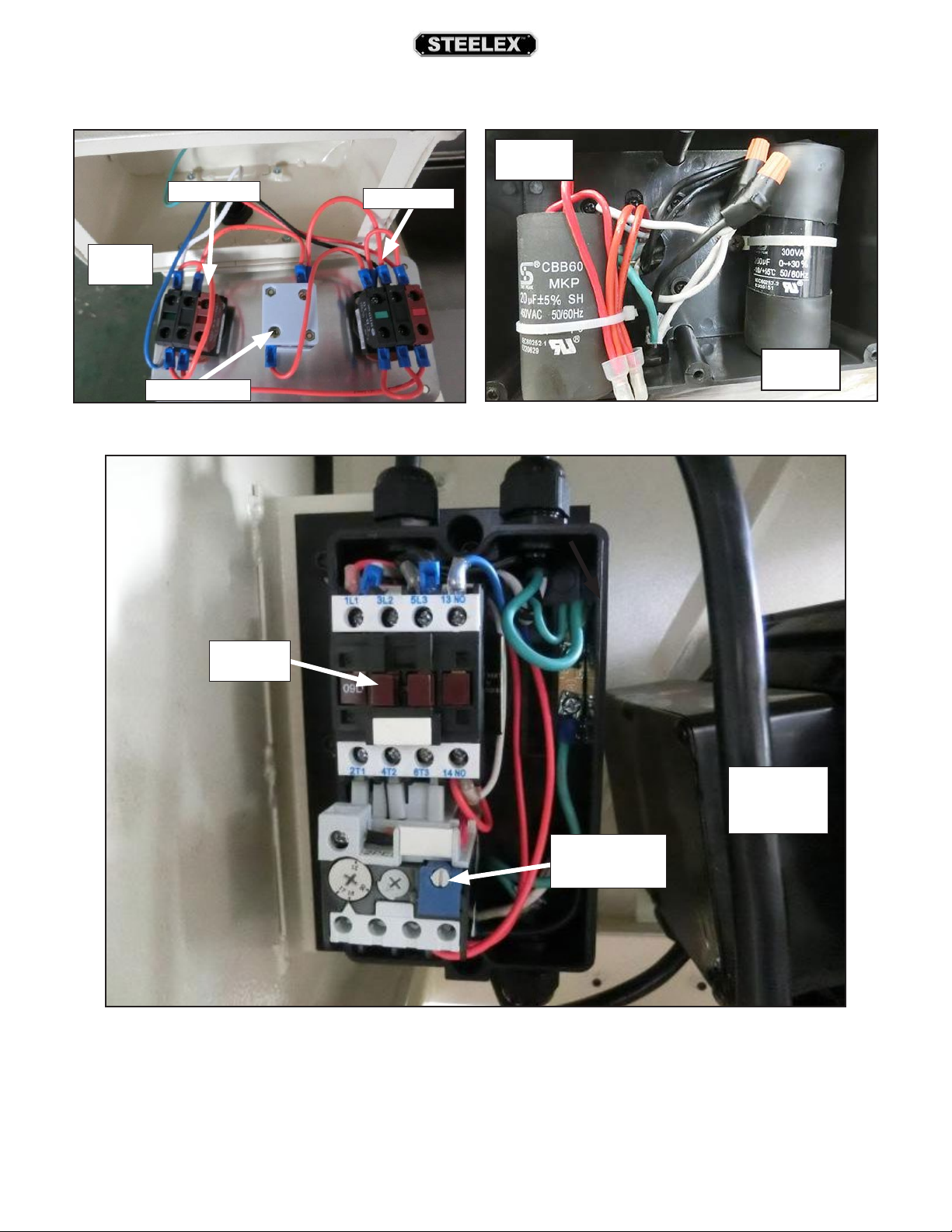

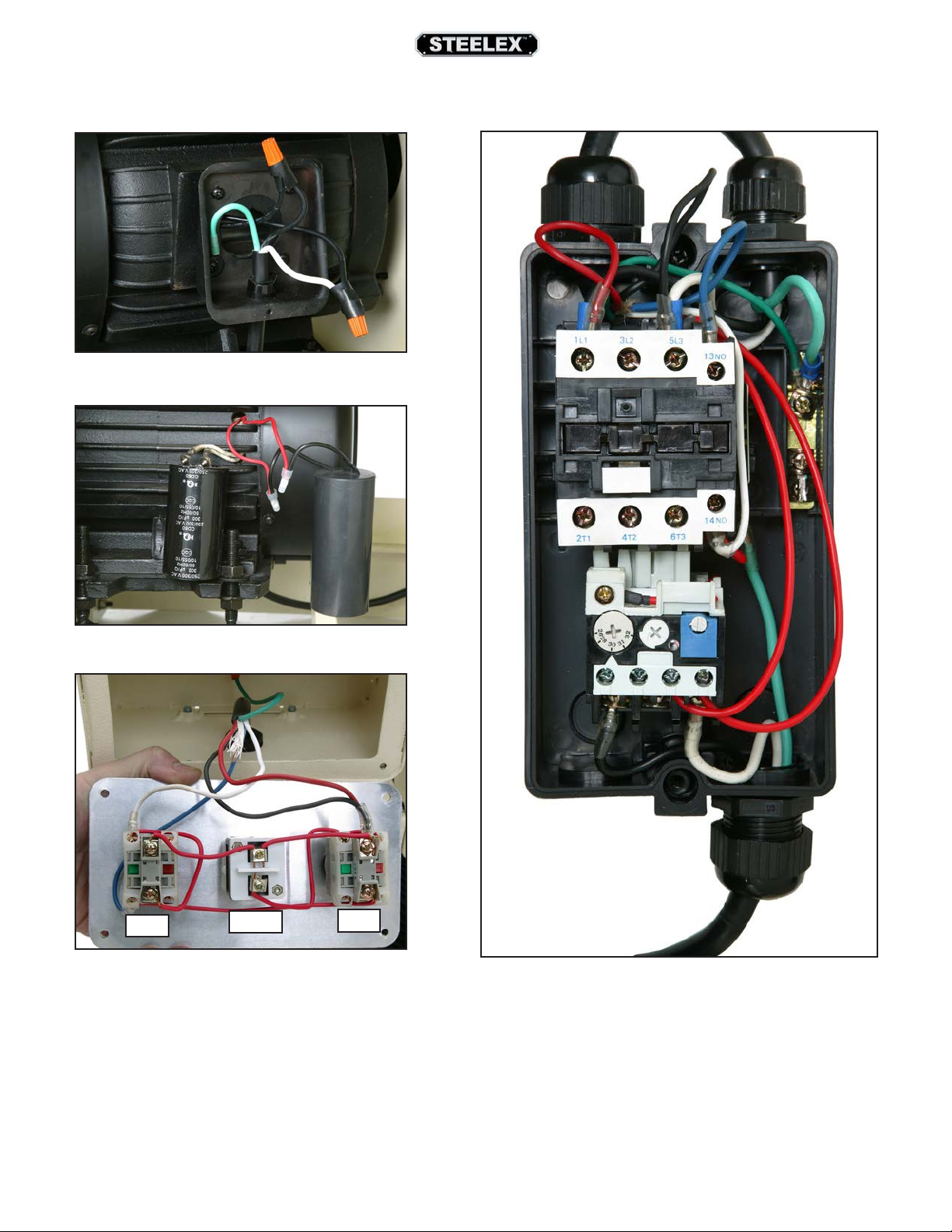

ST1007 & ST1012 Electrical Components ..........51

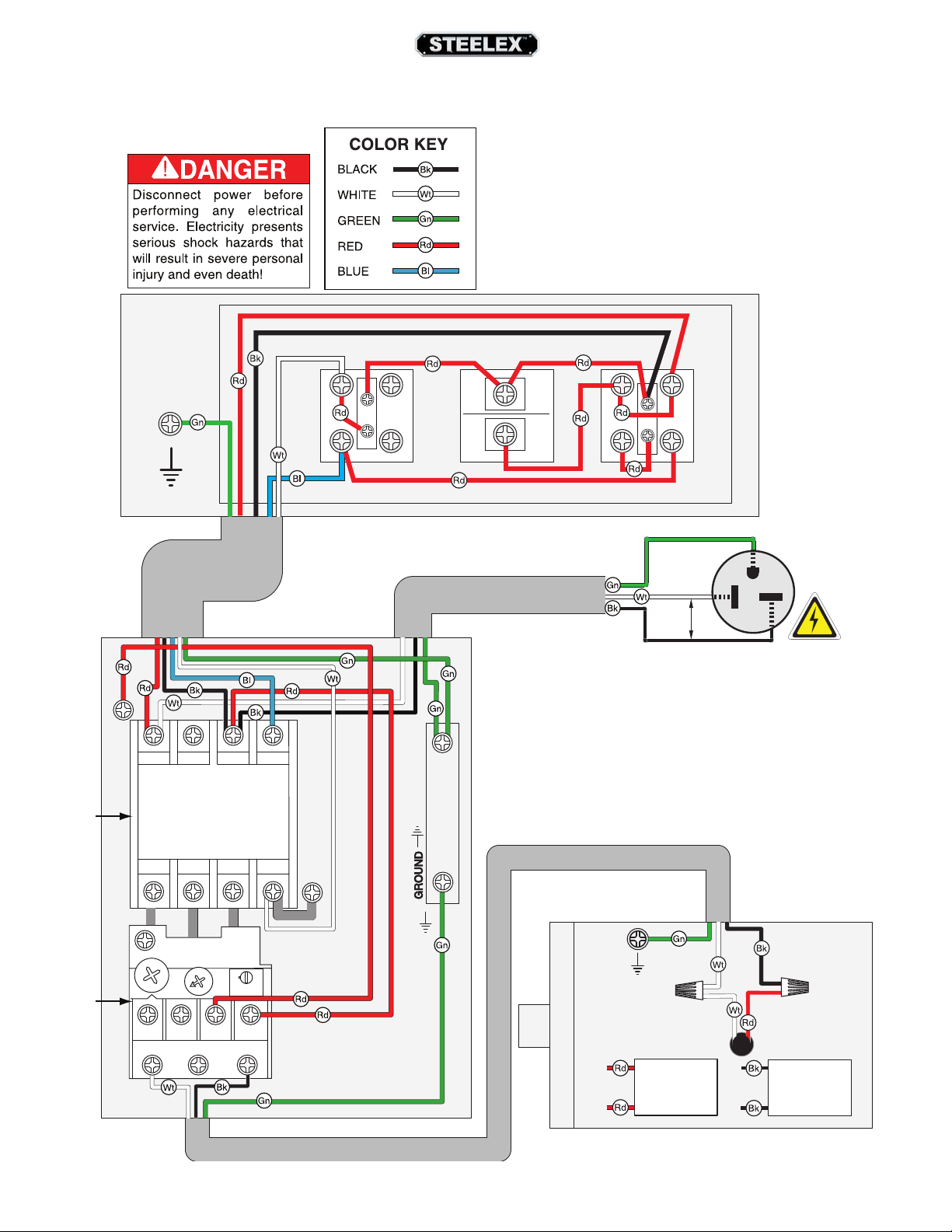

ST1007 Wiring Diagram ...........................................52

ST1012 Wiring Diagram ...........................................53

ST1014 Electrical Components .............................54

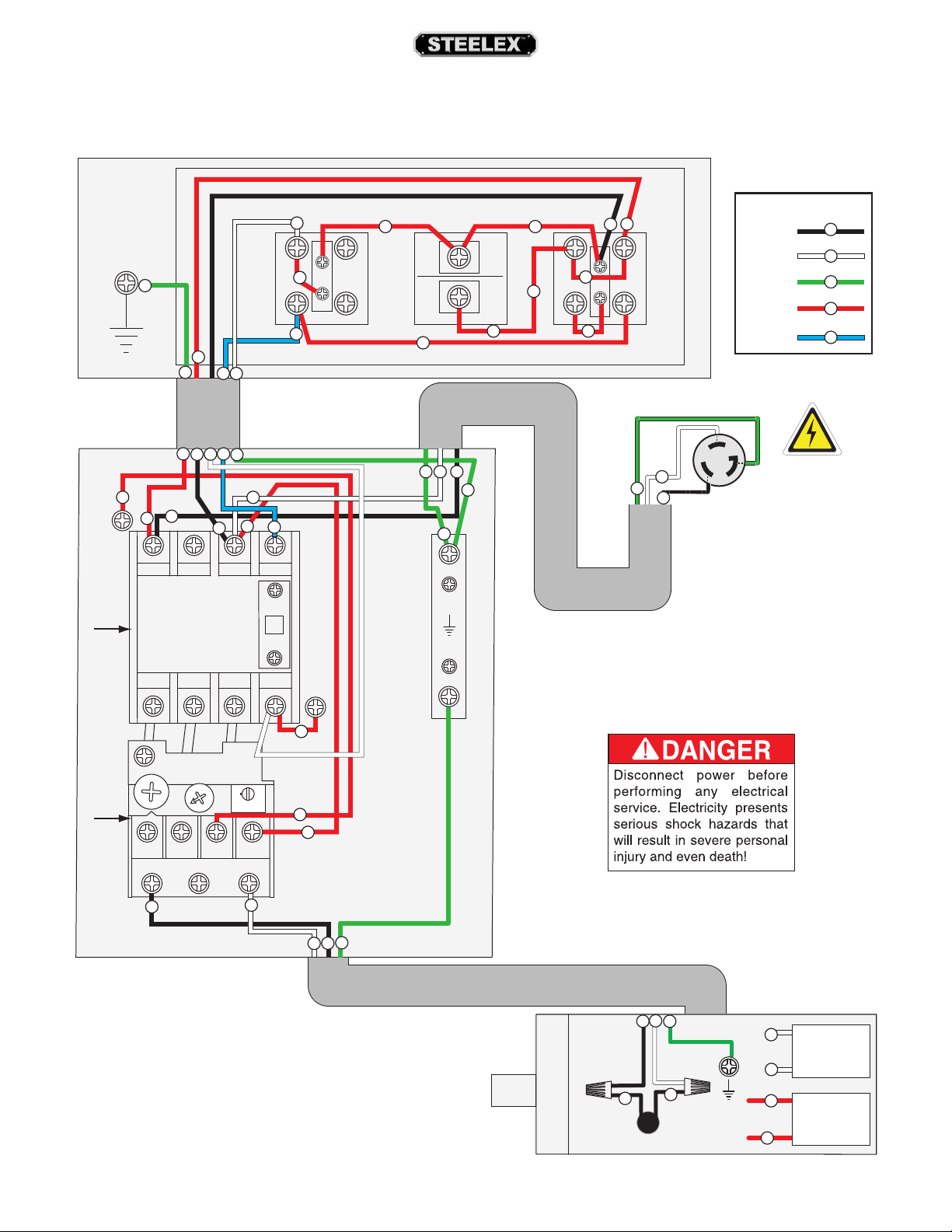

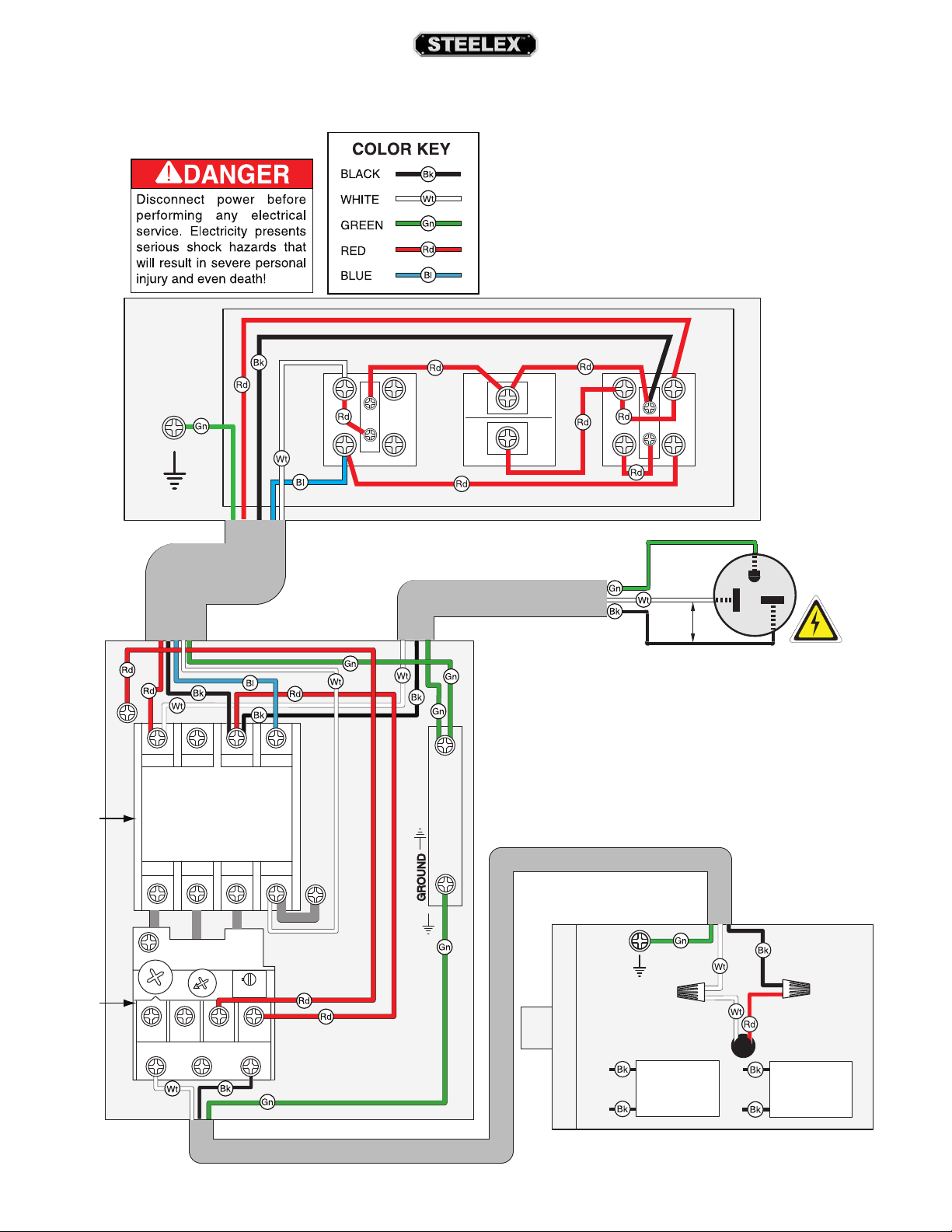

ST1014 Wiring Diagram ...........................................55

ST1007/ST1012 PARTS ....................................... 56

ST1007 Main Breakdown ......................................... 56

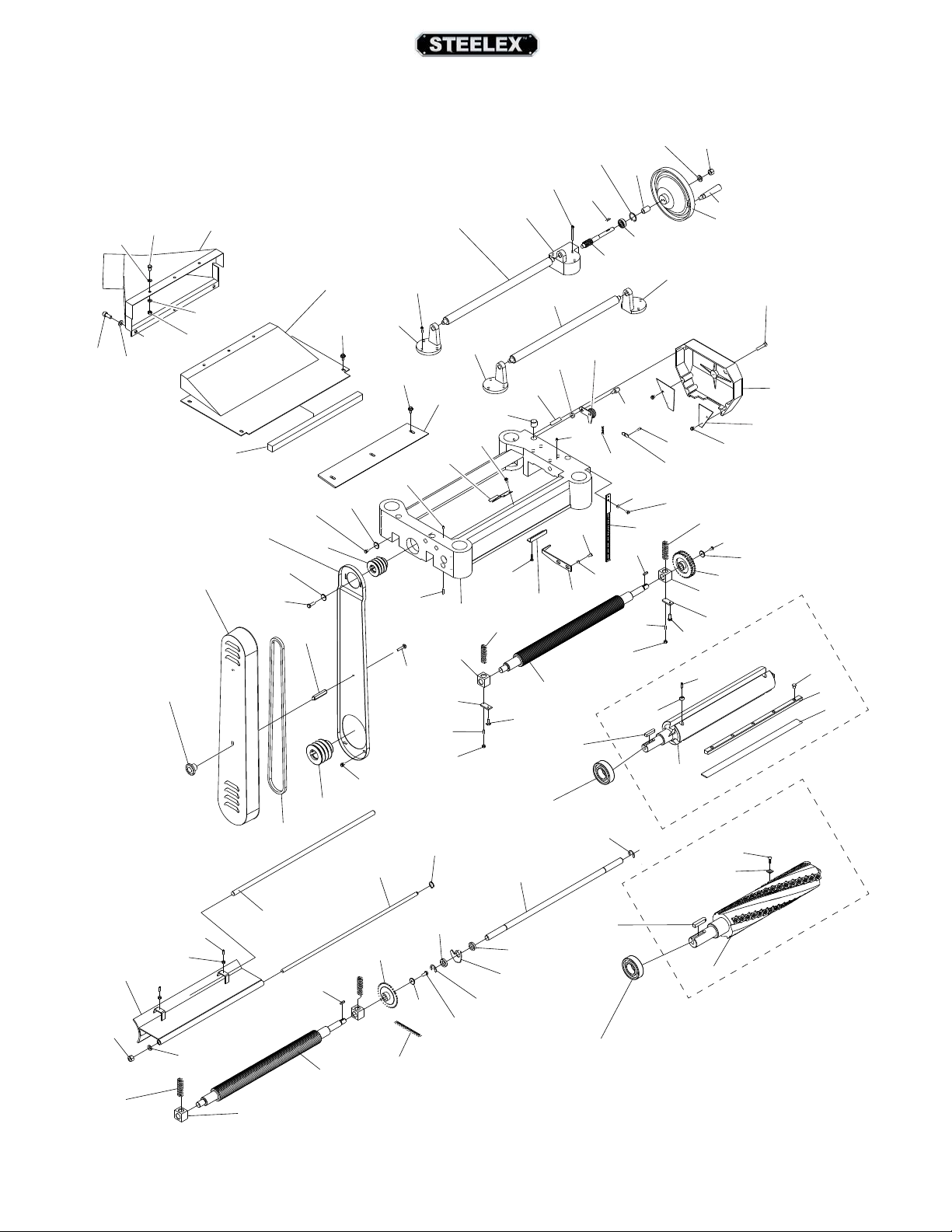

ST1007/ST1012 Headstock Parts Diagram ....... 58

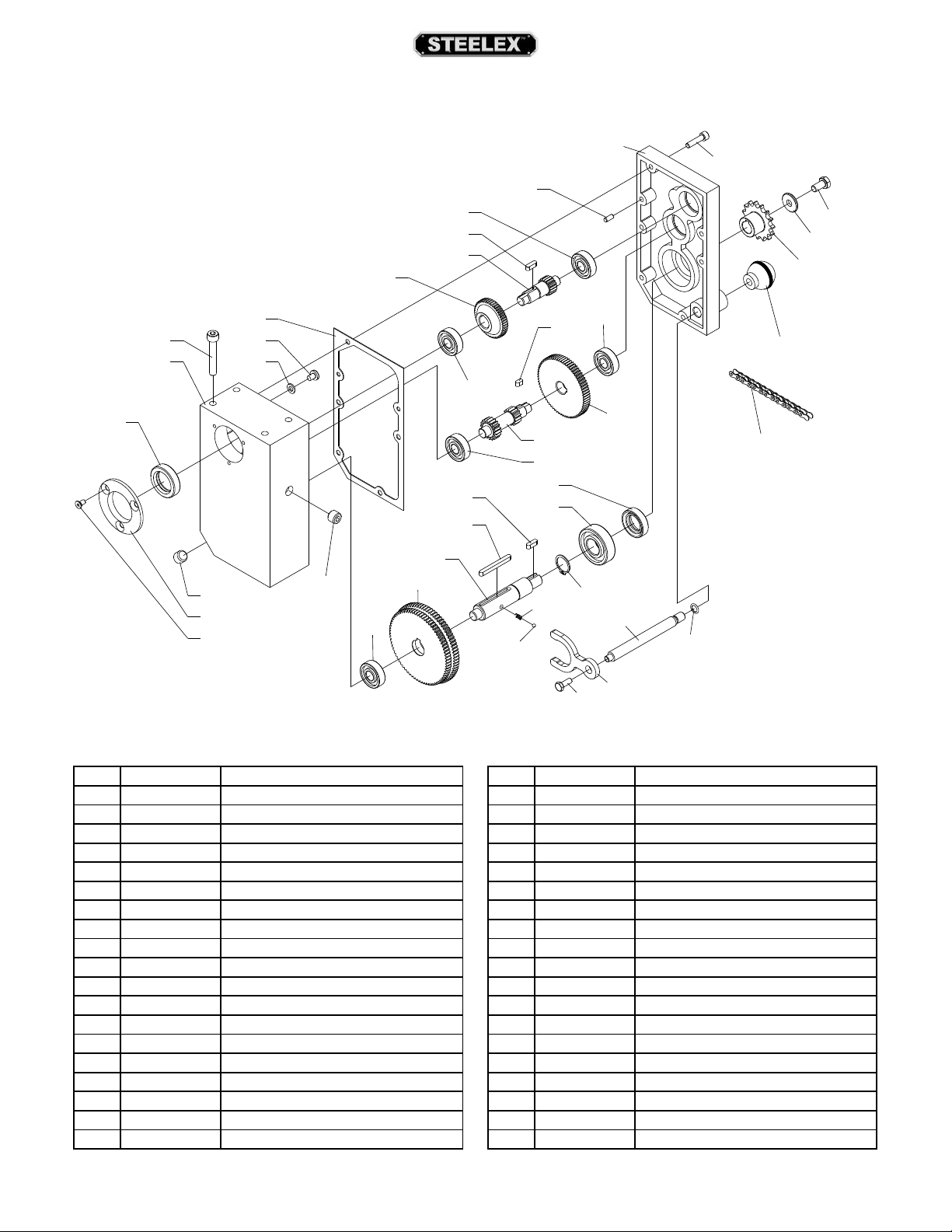

ST1007/ST1012 Gearbox Diagram

& Parts List .....................................................................60

ST1007/ST1012 Lower Table Diagram

& Parts List .....................................................................61

ST1007/ST1012 Upper Table Diagram

& Parts List .....................................................................62

ST007/ST1012 Label Placement ............................ 63

ST1014 PARTS ..................................................... 64

ST1014 Headstock Breakdown ..............................64

ST1014 Gearbox Breakdown and Parts List ......67

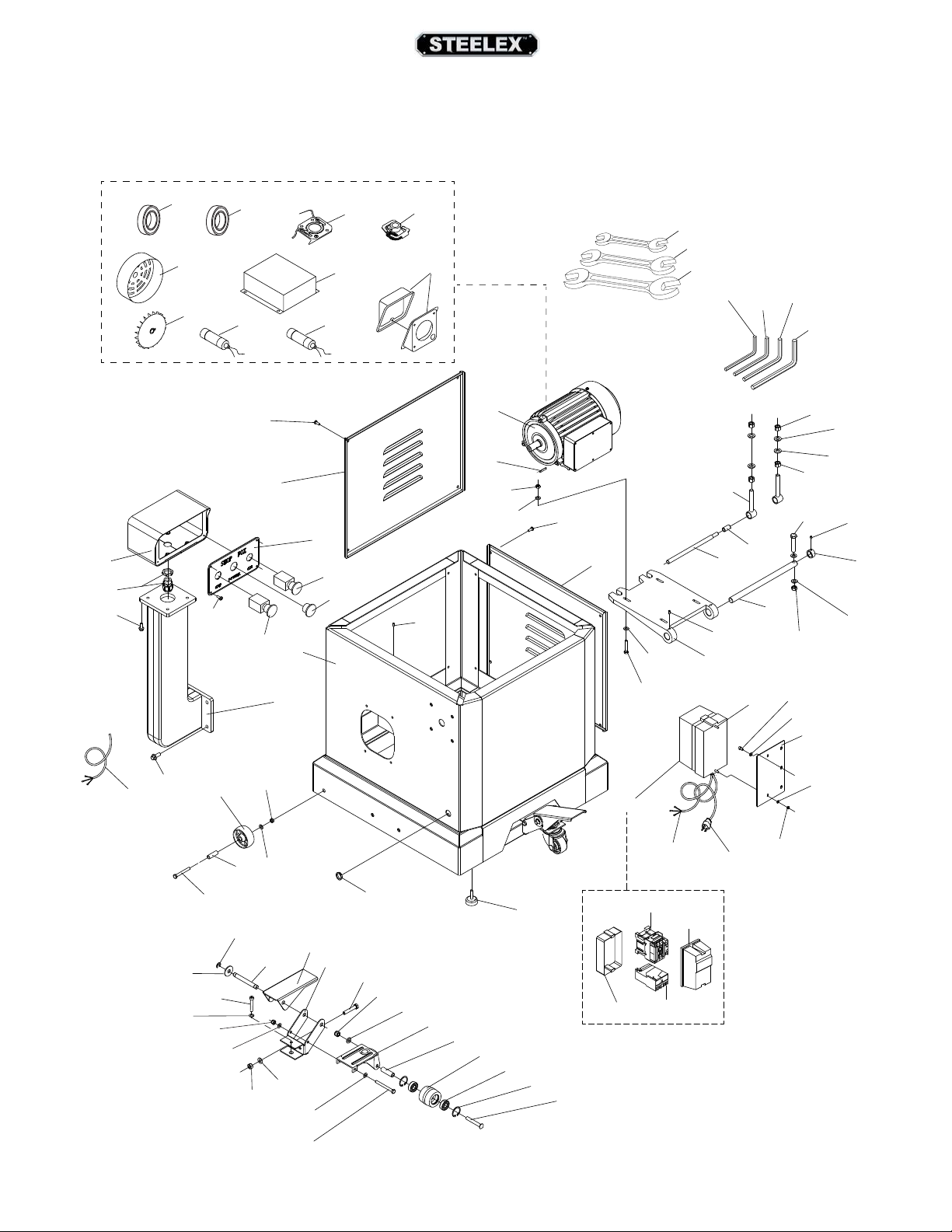

ST1014 Cabinet Breakdown ..................................68

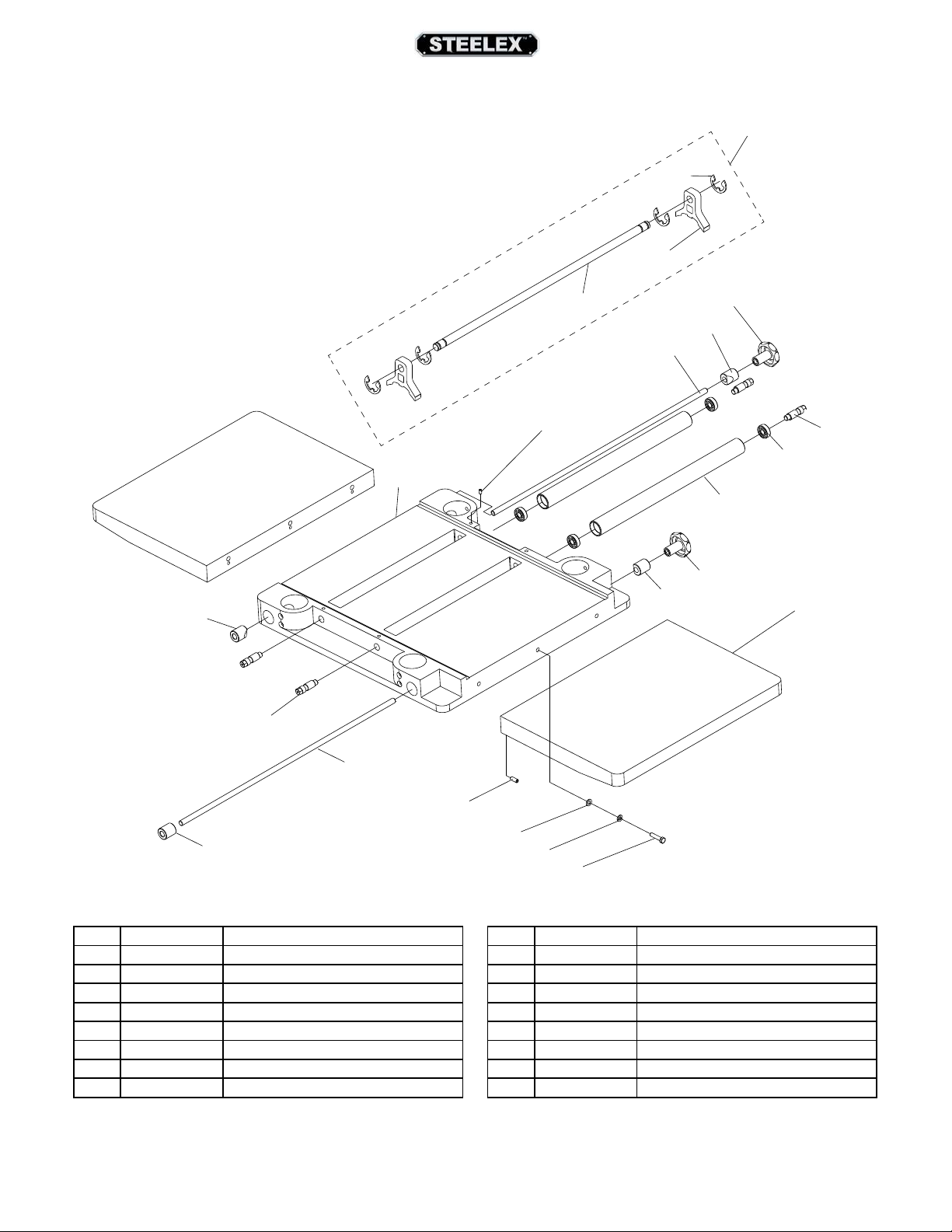

ST1014 Table Breakdown and Parts List ............70

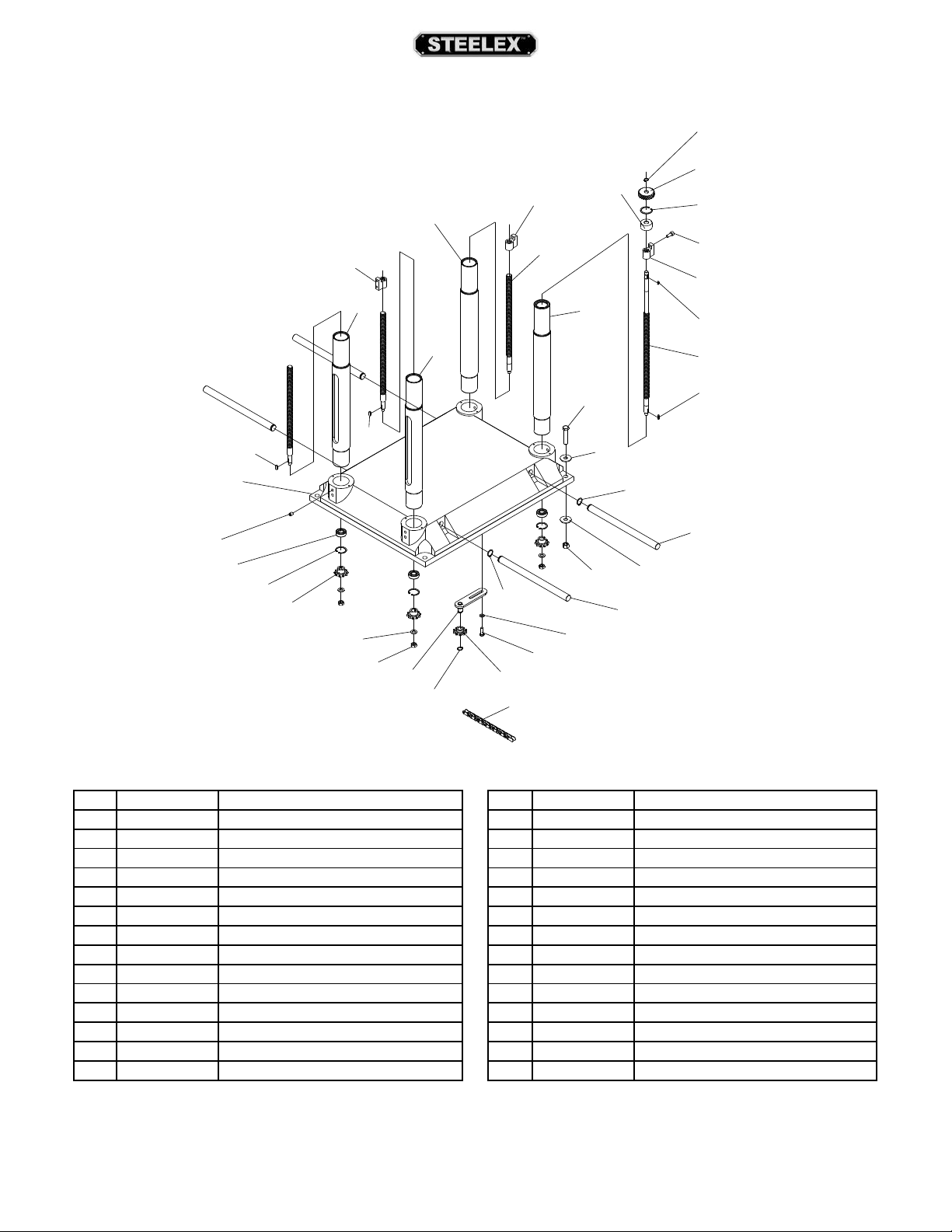

ST1014 Columns Breakdown and Parts List .....71

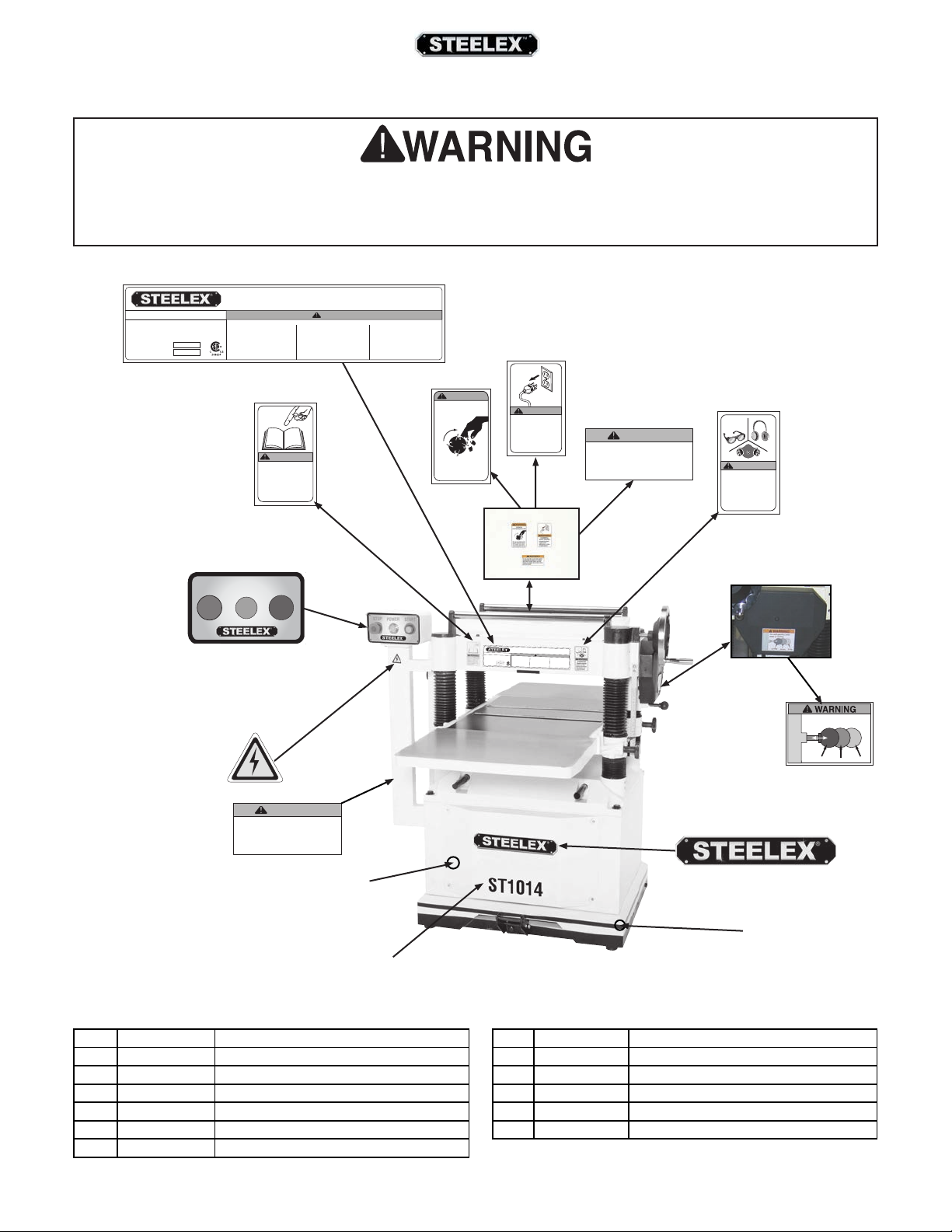

ST1014 Label Placement .........................................72

WARRANTY .......................................................... 74

Warranty Registration ...............................................75

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive will be
slightly different than what is shown in the man­ual

If you find this to be the case, and the difference
between the manual and machine leaves you con­fused about a procedure

check our website for

an updated version. W

manuals and

manual

www.

woodstockint

Alternatively, you can call our Technical Support for
help. Before calling, make sure you write down the

Manufacture Date

from the
machine ID label (see below). Also, if available, have
a copy of your

on hand.

This information is required for all Tech Support calls.

MODEL XXXX

MACHINE NAME

Motor:

Specification:

Specification:

Specification:

Specification:

Weight:

Specifications

To reduce risk of serious personal injury when using this
machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Only use this machine to collect wood dust/chips—never
use to collect glass, metal, liquids, asbestos, silica,
animal parts, biohazards, burning material/ashes, etc.

5. Always disconnect power before servicing or cleaning.

6. Do not expose to rain or wet areas.

7. Keep hands, long hair, and loose clothing away from
inlet.

8. Never leave machine unattended while it is running.

9. Do not use if cord/plug becomes damaged—promptly
repair and protect cord from future damage.

10. Do not use without dust bag or filters in place.

11. Always wear a respirator when emptying bags.

12. Prevent unauthorized use by children or untrained users.

Date

Serial Number

Manufactured for Woodstock in Taiwan

WARNING!

We are committed to customer satisfaction. If you
have any questions or need help, use the information
below to contact us.

IMPORTANT: Before contacting, please get the
original purchase receipt, serial number, and
manufacture date of your machine. This informa­tion is required for all Technical Support calls and
it will help us help you faster.

Email: [e-mail]

INTRODUCTION

Contact Info

Woodstock International Technical Support

Phone: [phone]

Email: [e-mail]

We want your feedback on this manual. What did

you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post current

updates for free on our website at

.com.

and Serial Number

original purchase receipt

Machine Descriptions

Following are the differences between the models
covered in this manual:

• ST1007 = 15", 3 HP, with 3-Knife Cutterhead

• ST1012 = 15", 3 HP, with Helical Cutterhead

• ST1014 = 20", 5 HP, with Helical Cutterhead

-2-

Manufacture

Date

Serial Number

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Machine Data Sheet

MACHINE

SPECIFICATIONS

© Woodstock International, Inc. • Phone: [phone] • Web: www.woodstockint.com

MODEL ST1007, ST1012, & ST1014 PLANERS

Model Number ST1007 ST1012 ST1014

Product Dimensions

Weight

Width (side-to-side) x Depth (front­to-back) x Height

Foot Print (Length x Width) 22-1/2 x 22 in. 23-1/2 x 23-1/2 in.

Shipping Dimensions

Type Wood Crate

Weight 660 lbs. 683 lbs. 874 lbs.

Width (side-to-side) x Depth (front­to-back) x Height

Electrical

Power Requirement 240V, Single-Phase, 60 Hz

Full-Load Current Rating 15A 19A

Minimum Circuit Size 20A 30A

Connection Type Cord & Plug

Power Cord Included Yes

Power Cord Length 6 ft. 6-1/2 ft.

Power Cord Gauge 12 AWG

Plug Included Yes

Included Plug Type 6-20 L6-30

Switch Type Magnetic Switch w/Overload Protection

Motor

Type TEFC Capacitor-Start Induction

Horsepower 3 HP 5 HP

Phase Single-Phase

Amps 15A 19A

Speed 3450 RPM

Power Transfer Belt Drive

Bearings Sealed & Permanently Lubricated

Manufacturer Specifications

Country of Origin China

Warranty 2 Years

Approx. Assembly & Setup Time 30 Minutes

Serial Number Location ID Label

ISO 9001 Factory No

Certified by NRTL No

640 lbs. 660 lbs. 771 lbs.

42 x 32-1/2 x 46 in. 55-1/2 x 43-1/2 x 46 in.

30 x 36 x 47 in. 43 x 29 x 48 in.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-3-

Model Number ST1007 ST1012 ST1014

Main Specifications

Planer Size 15 in. 20 in.

Max. Cut Width 15 in. 20 in.

Max. Stock Thickness 8 in.

Min. Stock Thickness 3/16 in.

Min. Stock Length 8 in. 8 in. 8 in.

Number of Cuts Per Inch 42, 63 56, 104 104, 83

Number of Cuts Per Minute 15,000 24,000

Cutterhead Speed 4800 RPM

Planing Feed Rate 16, 30 RPM

Max. Cut Depth Planing Full Width 3/32 in. 1/8 in.

Max. Cut Depth Planing 6-Inch Wide
Board

Dust Port Size 4 in. 5 in.

Cutterhead Info

Cutterhead Type 3-Knife Helical Helical

Cutterhead Diameter 3 in. 3

Number of Knives 3 N/A N/A

Knife Type HSS, Single-Sided, Solid N/A N/A

Knife Length 15 in. N/A N/A

Knife Width 1 in. N/A N/A

1

Knife Thickness

⁄8 in. N/A N/A

Knife Adjustment Springs or Jack Screws N/A N/A

Number of Cutter Rows N/A 5 5

Number of Indexable Cutters N/A 75 100

Cutter Insert Type N/A Indexable Carbide Indexable Carbide

Cutter Insert Length N/A 15 mm 15 mm

Cutter Insert Width N/A 15 mm 15 mm

Cutter Insert Thickness N/A 2.5 mm 2.5 mm

Table Info

Table Movement 8 in.

Table Bed Length 20 in. 25

Table Bed Width 15 in. 20 in.

Table Bed Thickness 1-3/4 in.

Floor-to-Table Height 27 – 35 in. 26

Construction

Table Precision-Ground Cast Iron

Body Cast Iron

Stand Steel

Cutterhead Assembly Steel

Infeed Roller Serrated Steel

Outfeed Roller Rubber

Paint Type/Finish Powder Coated

1/8 in.

1

⁄8 in.

3

⁄4 in.

1

⁄2–341⁄2 in.

-4-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

MACHINE FEATURES

risk of

serious injury, read this

The instructions in this manual will be easier to understand if you become familiar with the location and names
of the basic features of your new machine. Use the list below with the letters to identify the external features of
the planer.

BA

C

D

M

E

F

G

H

P

N

O

J

K

I

L

A. Control Panel
B. Table Height Handwheel
C. Feed Roller Gearbox
D. Table Lock Knob
E. Feed Rate Selector
F. Table Height Scale
G. Retractable Lifting Rods
H. Caster Wheel and Lock

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

I. Headstock
J. Return Roller
K. Table Roller
L. Cast Iron Wing
M. Emergency STOP Button
N. Power Lamp
O. START Button
P. Drive Belt Cover

To reduce your

entire manual BEFORE using
machine.

-5-

To reduce your risk of
serious injury, read this
entire manual BEFORE using
machine.

CONTROLS & COMPONENTS

Refer to the Figures 1-3 and the following descrip­tions to become familiar with the basic controls and
components of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and stay safe when operating
this machine.

A. Control Panel for Magnetic Switch: Green

START button turns motor ON when pressed.
Red Emergency STOP button turns motor OFF
when pressed; for safety purposes, this button
will remain depressed and prevent restarting
until reset. Reset by rotating clockwise until it
pops out.

B. Table Height Handwheel: Raises and lowers

table to accommodate different workpiece
thicknesses. One complete revolution moves
the table approximately

1

⁄16".

F. Return Rollers: Assist sliding workpiece back to

operator following planing operation.

G. Dust Port: Connects to a dust collection system

to extract shavings and dust during operation.

F

Figure 2. Return rollers and dust port.

H. Mobile-Base Foot Pedal: When engaged, lifts

machine onto casters for repositioning. When
disengaged, allows machine to rest firmly on
floor during operations.

G

C. Feed Rate Control Knob: Selects 30 FPM feed

rate when pushed in, and 16 FPM feed rate
when pulled out.

D. Table Locks: Secure table height position when

tightened.

E. Depth-of-Cut Limiter: Limits depth of cut to a

maximum of

Figure 1. Table elevation and feed controls.

-6-

1

⁄8" at full width.

A

E

B

C

D

H

Figure 3. Mobile-base foot pedal.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Internal Components

FRONT

A

A. Anti-Kickback Fingers: Provide additional safe-

ty for the operator.

B. Serrated Infeed Roller: Pulls the workpiece

toward the cutterhead.

C. Chip Breaker: Breaks off chips created by the

cutterhead to prevent tear out and diverts the
chips to the dust hood.

D. Chip Deflector: Directs chips into the dust

hood.

E. Cutterhead: Holds the knives/indexable car-

bide inserts that remove material from the
workpiece.

C

B

Workpiece

H H

Figure 4. Workpiece path and major planing components (side cutaway view).

D

E

I

F. Pressure Bar: Stabilizes the workpiece as it

leaves the cutterhead and assists in deflecting
wood particles toward the dust hood (ST1014
only).

G. Outfeed Roller: Pulls the workpiece through

the planer.

H. Table Rollers: Provide upward pressure on the

workpiece, enabling the feed rollers to pull the
workpiece along.

I. Planer Table: Provides a smooth and level path

for the workpiece as it moves through the
planer.

F

REAR

G

Like all machinery there is potential danger when operating this machine. Accidents are frequently
caused by lack of familiarity or failure to pay attention. Use this machine with respect and caution to
decrease the risk of operator injury. If normal safety precautions are overlooked or ignored, serious
personal injury may occur.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-7-

SAFETY

For Your Own Safety, Read Instruction Manual

Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages
by themselves do not eliminate danger and are not a substitute for proper accident prevention mea­sures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL
result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD
result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY
result in minor or moderate injury. It may also be used to alert against
unsafe practices.

This symbol is used to alert the user to useful information about proper

NOTICE

operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this own-

er’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this machine.
When machine is not being used, disconnect power,
remove switch keys, or lock-out machine to prevent
unauthorized use—especially around children. Make
workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machin­ery in areas that are wet, cluttered, or have poor
lighting. Operating machinery in these areas greatly
increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alert­ness is required for safe operation of machinery.
Never operate under the influence of drugs or alco­hol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can
be shocked, burned, or killed by touching live elec­trical components or improperly grounded machin­ery. To reduce this risk, only allow qualified service
personnel to do electrical installation or repair work,
and always disconnect power before accessing or
exposing electrical equipment.

DISCONNECT POWER FIRST.
machine from power supply BEFORE making adjust­ments, changing tooling, or servicing machine. This
pr

events an injury risk from unintended startup or

contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safe­ty glasses or a face shield when operating or observ­ing machinery to reduce the risk of eye injury or
blindness from flying particles. Everyday eyeglasses
are NOT approved safety glasses.

Always disconnect

-8-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

WEARING PROPER APPAREL. Do not wear cloth­ing, apparel or jewelry that can become entangled
in moving parts. Always tie back or cover long hair.
Wear non-slip footwear to reduce risk of slipping and
losing control or accidentally contacting cutting tool
or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or long­term respiratory damage. Be aware of dust hazards
associated with each workpiece material. Always
wear a NIOSH-approved respirator to reduce your
risk.

HEARING PROTECTION. Always wear hearing pro­tection when operating or observing loud machin­ery. Extended exposure to this noise without hearing
protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machin­ery can become dangerous projectiles upon startup.
Never leave chuck keys, wrenches, or any other tools
on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this
tool for its intended purpose—do not force it or an
attachment to do a job for which it was not designed.
Never make unapproved modifications—modifying
tool or using it differently than intended may result
in malfunction or mechanical failure that can lead to
personal injury or death!

AWKWARD POSITIONS. Keep proper footing and
balance at all times when operating machine. Do
not overreach! Avoid awkward hand positions that
make workpiece control difficult or increase the risk
of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce acci­dental contact with moving parts or flying debris.
Make sure they are properly installed, undamaged,
and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will
do the job safer and better at the rate for which it was
designed.

NEVER STAND ON MACHINE. Serious injury may
occur if machine is tipped or if the cutting tool is
unintentionally contacted.

STABLE MACHINE. Unexpected movement during
operation greatly increases risk of injury or loss of
control. Before starting, verify machine is stable and
mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this
owner’s manual or the manufacturer for recom­mended accessories. Using improper accessories will
increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of
accidental injury, turn machine OFF and ensure all
moving parts completely stop before walking away.
Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine that
is improperly maintained could malfunction, leading
to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for
damaged, loose, or mis-adjusted parts—or any con­dition that could affect safe operation. Immediately
repair/replace BEFORE operating machine. For your
own safety, DO NOT operate machine with damaged
parts!

MAINTAIN POWER CORDS. When disconnecting
cord-connected machines from power, grab and
pull the plug—NOT the cord. Pulling the cord may
damage the wires inside. Do not handle cord/plug
with wet hands. Avoid cord damage by keeping it
away from heated surfaces, high traffic areas, harsh
chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you
experience difficulties performing the intended oper­ation, stop using the machine! Contact our Technical
Support at [phone].

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-9-

Additional Safety for Planers

Amputation, serious cuts, entanglement, or death can occur from contact with rotating cutterhead
or other moving parts! Flying chips can cause blindness or eye injuries. Workpieces or knives thrown
by cutterhead can strike nearby operator or bystanders with deadly force. To reduce the risk of these
hazards, operator and bystanders MUST completely heed hazards and warnings below.

KICKBACK. Know how to reduce the risk of kickback

and kickback-related injuries. “Kickback” occurs dur­ing the operation when the workpiece is ejected
from the machine at a high rate of speed. Kickback
is commonly caused by poor workpiece selection,
unsafe feeding techniques, or improper machine
setup/maintenance. Kickback injuries typically occur
as follows: (1) operator/bystanders are struck by the
workpiece, resulting in impact injuries (i.e., blindness,
broken bones, bruises, death); (2) operator’s hands
are pulled into blade, resulting in amputation or
severe lacerations.

AVOID CONTACT WITH MOVING PARTS. Never
remove guards/covers or reach inside the planer
during operation or while connected to power. You
could be seriously injured if you accidentally touch
the spinning cutterhead or get entangled in mov­ing parts. If a workpiece becomes stuck or sawdust
removal is necessary, turn planer OFF and disconnect
power before clearing.

DULL/DAMAGED KNIVES/INSERTS. Only use sharp,
undamaged knives/inserts. Dull or damaged knives/
inserts increase the risk of kickback.

INSPECTING STOCK. To reduce the risk of kickback
injuries or machine damage, thoroughly inspect and
prepare the workpiece before cutting. Verify work­piece is free of nails, staples, loose knots or foreign
material. Workpieces with minor warping should be
jointed first or planed with the cupped side facing
the table.

PLANING CORRECT MATERIAL. Only plane natural
wood stock with this planer. DO NOT plane MDF,
OSB, plywood, laminates or other synthetic materials
that can break up inside the planer and be ejected
towards the operator.

LOOKING INSIDE PLANER. Wood chips fly around
inside the planer at a high rate of speed during
operation. To avoid injury from flying material, DO
NOT look inside planer during operation.

CUTTING LIMITATIONS. To reduce the risk of kick­back hazards or damage to the machine, do not
exceed the maximum depth of cut or minimum
board length and thickness found in the Data Sheet.
Only feed one board at a time.

INFEED ROLLER CLEARANCE. The infeed roller is
designed to pull material into the spinning cut­terhead. To reduce the risk of entanglement, keep
hands, clothing, jewelry, and long hair away from the
infeed roller during operation.

FEED WORKPIECE PROPERLY. To reduce the risk of
kickback, never start planer with workpiece touch­ing cutterhead. Allow cutterhead to reach full speed
before feeding, and do not change feed speed dur­ing cutting operation.

WORKPIECE SUPPORT. To reduce the risk of kick­back, always make sure workpiece can move com­pletely across table without rocking or tipping. Use
auxiliary support stands for long stock.

BODY PLACEMENT. Stand to one side of planer
during the entire operation to avoid getting hit if
kickback occurs.

GRAIN DIRECTION. Planing across the grain is hard
on the planer and may cause kickback. Plane in the
same direction or at a slight angle with the wood
grain.

-10-

SECURE KNIVES/INSERTS. Loose knives or improp­erly set inserts can become dangerous projectiles or
cause machine damage. Always verify knives/inserts
are secure and properly adjusted before operation.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ELECTRICAL

Circuit Requirements

Serious personal injury could occur if you con­nect the machine to the power source before
you have completed the set up process. DO
NOT connect the machine to the power source
until instructed to do so.

This machine must be connected to the correct size
and type of power supply circuit, or fire or electrical
damage may occur. Read through this section to
determine if an adequate power supply circuit is
available. If a correct circuit is not available, an electri­cian or qualified service personnel MUST install one
before you can connect the machine to power.

A power supply circuit includes all electrical equip­ment between the breaker box or fuse panel in the
building and the machine. The power supply circuit
used for this machine must be sized to safely handle
the full-load current drawn from the machine for an
extended period of time. (If this machine is connect­ed to a circuit protected by fuses, use a time delay
fuse marked D.)

Incorrectly wiring or
grounding this machine can
cause electrocution, fire, or
machine damage. To reduce
this risk, only an electrician
or qualified service person­nel should do any required
electrical work on this
machine.

Full-Load Current Rating

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the amper­age drawn by the largest motor or sum of all motors
and electrical devices that might operate at one time
during normal operations.

ST1007/ST1012

Full-Load Current Rating.......................... 15 Amps

ST1014

Full-Load Current Rating.......................... 19 Amps

This machine is prewired to operate on a power sup­ply circuit that has a verified ground and meets the
following requirements:

ST1007/ST1012
Circuit Requirements

Nominal Voltage ..............208V, 220V, 230V, 240V

Cycle ............................................................... 60 Hz

Phase ................................................. Single-Phase

Power Supply Circuit ................................20 Amps

Plug/Receptacle ....................................NEMA 6-20

ST1014
Circuit Requirements

Nominal Voltage ..............208V, 220V, 230V, 240V

Cycle ............................................................... 60 Hz

Phase ................................................. Single-Phase

Power Supply Circuit ................................30 Amps

Plug/Receptacle ..................................NEMA L6-30

The circuit requirements listed in this manual
apply to a dedicated circuit—where only
one machine will be running at a time. If this
machine will be connected to a shared circuit
where multiple machines will be running at the
same time, consult a qualified electrician to
ensure that the circuit is properly sized for safe
operation.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-11-

an electrician or qualified service personnel,
and it must comply with all local codes and

Grounding

Requirements

This machine MUST be grounded. In the event of cer­tain types of malfunctions or breakdowns, grounding
provides a path of least resistance for electric current
to travel—in order to reduce the risk of electric shock.

L6-30 GROUNDED

LOCKING

RECEPTACLE

Grounding Prong

is Hooked

L6-30

LOCKING

PLUG

Improper connection of the equipment-grounding
wire will increase the risk of electric shock. The wire
with green insulation (with/without yellow stripes) is
the equipment-grounding wire. If repair or replace­ment of the power cord or plug is necessary, do not
connect the equipment-grounding wire to a live
(current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice that
a cord or plug is damaged or worn, disconnect it
from power, and immediately replace it with a new
one.

This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances. DO
NOT modify the provided plug!

Current Carrying Prongs

Figure 6. Typical L6-30 plug and receptacle.

No adapter should be used with plug. If plug
does not fit available receptacle, or if machine
must be reconnected for use on a different type
of circuit, reconnection must be performed by

ordinances.

GROUNDED

6-20 RECEPTACLE

Current Carrying Prongs

6-20 PLUG

Grounding Prong

Figure 5. Typical 6-20 plug and receptacle.

The machine must be properly set up before
it is safe to operate. DO NOT connect this
machine to the power source until instructed
to do later in this manual.

-12-

Extension Cords

We do not recommend using an extension cord
with this machine. Extension cords cause voltage
drop, which may damage electrical components and
shorten motor life. Voltage drop increases with lon­ger extension cords and smaller gauge sizes (higher
gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
contain a ground wire, match the required plug and
receptacle, and meet the following requirements:

Minimum Gauge Size ................................ 12 AWG

Maximum Length (Shorter is Better) ............50 ft.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

SETUP

Items Needed for

This machine presents
serious injury hazards
to untrained users. Read
through this entire manu­al to become familiar with
the controls and opera­tions before starting the
machine!

UNPLUG-power cord before
you do any assembly or
adjustment tasks! Otherwise,
serious personal injury to
you or others may occur!.

Unpacking

The Models ST1007/ST1012/ST1014 were carefully
packed when they left our warehouse. If you discov­er your machine is damaged immediately call your

dealer.

Setup

The following items are needed, but not included, to
set up your machine.

Description Qty

• Additional People ....................................................... 1

• Safety Glasses ......................................... 1 Per Person

• Forklift (rated for at least 1000 lbs.) ..................... 1

• Cleaner/Degreaser...................................As Needed

• Disposable Shop Rags............................As Needed

• Phillips Screwdriver #2 .............................................. 1

• Open-End Wrench or Socket 12mm .................... 1

• Open-End Wrench or Socket 14mm .................... 1

• Hex Wrenches 3, 4, 5, 6, 8mm ..........................1 Ea.

• Straightedge 4' ............................................................ 1

• Dust Collection System ............................................ 1

• 4" Dust Hose w/Clamps ............................................ 1

Save the containers and all packing materials for pos­sible inspection by the carrier or its agent. Otherwise,

filing a freight claim can be difficult.

When you are completely satisfied with the condition
of your shipment, you should inventory the contents.

SUFFOCATION HAZARD!
Immediately discard all plas­tic bags and packing materi­als to eliminate choking/suf­focation hazards for children
and animals.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-13-

Inventory

The following is a list of items shipped with your
machine. Before beginning setup, lay these items out
and inventory them.

Note: If you cannot find an item on this list, carefully
check around/inside the machine and packaging mate­rials. Often, these items get lost in packaging materials
while unpacking or they are pre-installed at the factory.

Component Inventory (Figure 7) Qty

A. Planer .............................................................................. 1

B. Dust Hood ..................................................................... 1

C. Caster Assembly .......................................................... 1

D. Foot Lifting Lever and Pin........................................ 1

E. Handwheel and Handle............................................ 1

F. Extension Wings .......................................................... 2

A

F

B

C

E

Figure 7. Component inventory.

D

Tools (Figure 8)

G. Hex Wrenches 2.5, 3, 4, 6mm............................1 Ea.

H. Wrenches 8/10, 14/17, 17/19mm ....................1 Ea.

Hardware (See Hardware Recognition Chart)

I. Knife-Setting Gauge (Not shown) ........................ 1

J. Flat Washers 8mm (Wing) ........................................ 6

K. Lock Washers 8mm (Wing) ...................................... 6

L. Hex Bolts M8-1.25 x 30 (Wing) ............................... 6

M. Set Screws M8-1.25 x 20 (Wing) ............................ 4

N. Cap Screws M8-1.25 x 20 (Dust Hood) ................ 3

O. Hex Bolts M6-1 x 10 (Dust Hood) .......................... 3

P. Flat Washers 6mm (Dust Hood) ............................ 3

Q. Hex Nuts M6-1 (Dust Hood) .................................... 3

R. Key 4 x 4 x 20 (Handwheel) ..................................... 1

S. Bushing (Handwheel) ................................................ 1

T. Hex Nut M12-1.75 (Handwheel) ............................ 1

U. Flat Washer 12mm (Handwheel) ........................... 1

G H

Figure 8. Tool inventory.

-14-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Hardware Recognition Chart

USE THIS CHART TO IDENTIFY
HARDWARE DURING THE
INVENTORY/ASSEMBLY
PROCESS.

1

⁄4"

3

⁄8"

1

⁄2"

5

⁄8"

⁄16" INCH APART

1

LINES ARE

5

7

9

3

7

1

1

1

1

2

2

2

2

3

⁄16"
⁄16"
⁄16"
⁄4"
⁄8"

1

⁄4"

1

⁄2"

3

⁄4"

1

⁄4"

1

⁄2"

3

⁄4"

#10

1

⁄4"

5

⁄16"

3

⁄8"

7

⁄16"

1

⁄2"

WASHERS ARE MEASURED BY THE INSIDE DIAMETER

S

A

W

A

W

H

S

E

H

H

S

E

H

S

D

R

E

8mm

A

W

D

R

7

⁄16"

D

R

E

A

W

#10

D

I

A

R

M

E

T

E

5

⁄8"

I

A

I

A

I

A

M

E

T

E

R

R

M

E

T

E

R

M

E

T

E

R

E

H

S

10mm

A

D

R

E

H

3

S

⁄8"

A

W

D

I

A

R

M

E

H

E

S

T

E

A

R

W

4mm

R

W

D

I

A

R

E

H

S

A

W

D

I

I

A

M

E

R

M

E

T

⁄16"

E

T

E

E

R

H

S

A

A

I

D

M

R

E

E

H

S

D

I

R

E

H

S

A

W

T

5

E

⁄16"

R

A

W

A

M

E

T

E

R

9

A

M

R

E

T

5mm

H

S

A

W

R

E

12mm

W

D

I

R

A

E

M

E

⁄2"

I

A

E

H

S

T

E

R

M

E

T

E

R

D

I

A

R

M

E

E

H

1

T

S

⁄4"

E

A

R

W

D

I

A

R

M

E

T

E

A

R

W

1

D

6mm

MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE

LINES ARE 1MM APART

5mm
10mm
15mm
20mm
25mm
30mm
35mm
40mm
45mm
50mm

55mm
60mm
65mm
70mm
75mm

4mm

5mm

6mm

8mm

10mm

12mm

16mm

Cap
Screw

Hex
Bolt

External
Retaining
Ring

Key

Carriage
Bolt

Flat
Head
Screw

Internal
Retaining
Ring

Flat Washer

Flange
Bolt

Tap
Screw

E-Clip

Lock
Washer

Button
Head
Screw

Set
Screw

Lock
Nut

Hex
Nut

Phillips
Head
Screw

Wing
Nut

Hex
Wrench

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-15-

Cleanup

The unpainted surfaces of your machine are coated
with a heavy-duty rust preventative that prevents
corrosion during shipment and storage. This rust pre­ventative works extremely well, but it will take a little
time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will give
you a better appreciation for the proper care of your
machine's unpainted surfaces.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

machinery. Avoid using

There are many ways to remove this rust preven-

tative, but the following steps work well in a
wide variety of situations. Always follow the
manufacturer’s instructions with any clean­ing product you use and make sure you
work in a well-ventilated area to minimize
exposure to toxic fumes.

Gasoline and petroleum
products have low flash
points and can explode or
cause fire if used to clean

these products to clean
machinery.

Many cleaning solvents are
toxic if inhaled. Only work
in a well-ventilated area.

NOTICE

Avoid chlorine-based solvents, such as ace­tone or brake parts cleaner, that may damage
painted surfaces.

Put on safety glasses.

Coat the rust preventative with a liberal amount

of cleaner/degreaser, then let it soak for 5–10
minutes.

Wipe off the surfaces. If your cleaner/degreaser

is effective, the rust preventative will wipe off
easily. If you have a plastic paint scraper, scrape
off as much as you can first, then wipe off the
rest with the rag.

Repeat Steps 2–3 as necessary until clean, then

coat all unpainted surfaces with a quality metal
protectant to prevent rust.

-16-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Site Considerations

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest workpiece
that will be used. Additionally, consider the weight
of the operator and any dynamic loading that may
occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

below for required space allocation.

Physical Environment

The physical environment where the machine is
operated is important for safe operation and longev­ity of machine components. For best results, operate
this machine in a dry environment that is free from
excessive moisture, hazardous chemicals, airborne
abrasives, or extreme conditions. Extreme conditions
for this type of machinery are generally those where
the ambient temperature range exceeds 41°–104°F;
the relative humidity range exceeds 20%–95% (non­condensing); or the environment is subject to vibra-

Place this machine near an existing power source.
Make sure all power cords are protected from traf­fic, material handling, moisture, chemicals, or other
hazards. Make sure to leave enough space around
machine to disconnect power supply or apply a lock-

Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract or

Machine Specifications for the weight

tion, shocks, or bumps.

Electrical Installation

Children or untrained people
may be seriously injured by this
machine. Only install in an access
restricted location.

28"

Port

See

out/tagout device, if required.

Lighting

42"

impede the operator must be eliminated.

Wall

Min. 30"

for Maintenance

Feed DirectionDust

= Electrical Connection Illustration Not To Scale

Figure 9. Minimum working clearances.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-17-

Lifting & Moving

The planer is equipped with four lifting bars that
extend in order to lift and place the planer, as shown
in Figure 10.

2. Remove the pin and hex bolt that are already
mounted in the foot pedal bracket.

3. Align the caster assembly with the mounting
holes in the foot pedal bracket.

The rear wheels and front feet mount to the bottom
of the machine. Therefore, the best time to assemble
these components is while the machine is elevated
safely by the forklift.

HEAVY LIFT!
Straining or crushing injury may occur from
improperly lifting machine or some of its parts.
To reduce this risk, get help from other people
and use a forklift (or other lifting equipment)
rated for weight of this machine.

4. Insert the hex bolt into the hole in the back side

of the caster assembly, and tighten the bolt just
enough for it to be snug without hampering the
pivot action of the caster.

5. Attach the foot pedal to the caster and secure
together by inserting the pin between the two
parts.

6. Lock the caster and pedal (see Figure 11) in
place with the E-clip and washers.

To lift and place machine:

1. Use forklift to lift machine off pallet (see Figure

10).

Tip: When positioning lift forks, place shop rags

or cardboard between forks and cabinet stand to
avoid scratching paint.

Lifting Bar

(1 of 4)

Caster Assembly

Installed

Figure 11. Caster installed.

-18-

Figure 10. Lifting planer with forklift.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Assembly

The cast-iron extension wings are identical for both
the infeed and the outfeed ends of the table.

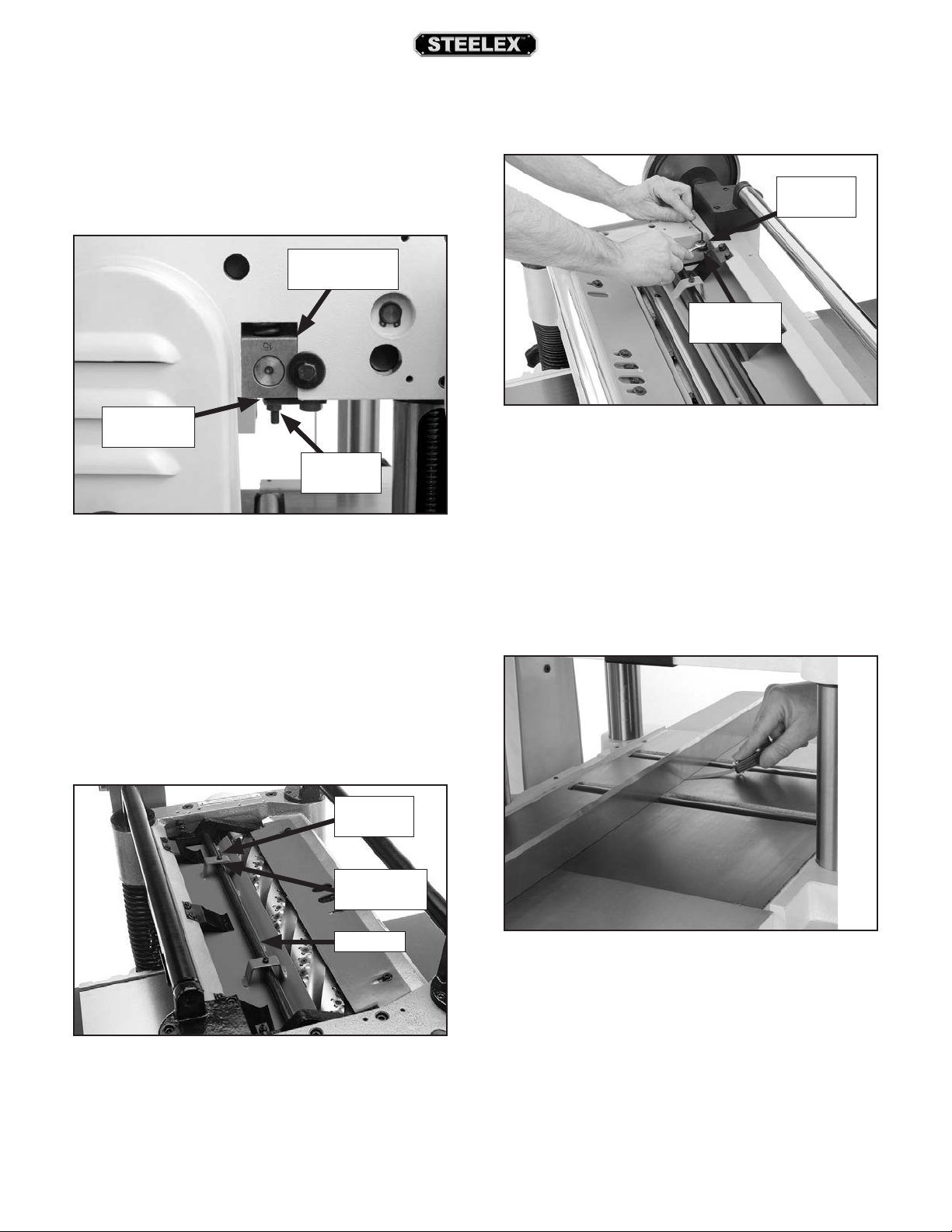

To assemble planer:

4. With a helper, match the tapped holes on the

side of the table to the cast iron wings and
lightly secure the wings in place with the (3)
M8-1.25 x 30 hex bolts and the 8mm lock and
flat washers (for the ST1014 use (3) M8-1.25 x 35
hex bolts).

1. Clean the wing, table, wing mating surfaces, and
wipe a thin film of oil on the surfaces.

2. Loosen the table-roller set screws and turn the
eccentrics until the table rollers fall below the
table surface. Refer to Figure 12 for locations.

Table Roller

Set Screw

Eccentric

Figure 12. Table roller adjustment locations.

3. Install (2) M8-1.25 x 20 set screws into each

wing. Refer to Figure 13 for location.

Set Screw

Hex Bolt

5. Place a straightedge flat across the table and
across the wings, as shown in Figure 14.

Figure 14. Setting wing height.

6. Adjust the M8-1.25 x 20 set screws so the wings

are flush with the table.

7. Tighten the hex bolts to secure the wings in
place. The top of the wings should now be
completely even with the top of the table, but
double-check to make sure that the wings did
not move during the tightening process.

8. Treat the wing and table top surface with an
anti-rust compound or light machine oil to pre­vent rust.

Figure 13. Extension wing installed.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Note: If this is a first-time setup, DO NOT adjust the

table rollers yet, you will do this adjustment later.

-19-

9. Place the bushing on the handwheel shaft and

This machine creates substantial amounts of
dust during operation. Breathing airborne dust
on a regular basis can result in permanent
respiratory illness. Reduce your risk by wearing
a respirator and capturing the dust with a dust

Do not confuse this CFM recommendation with the
rating of the dust collector. To determine the CFM at
the dust port, you must consider these variables: (1)
CFM rating of the dust collector, (2) hose type and
length between the dust collector and the machine,
(3) number of branches or wyes, and (4) amount of
other open lines throughout the system. Explaining
how to calculate these variables is beyond the scope
of this manual. Consult an expert or purchase a good

insert the key into the shaft keyway.

10. Screw the handle into the handwheel, place the
handwheel on the shaft and secure it with the
hex nut and flat washer, as shown in Figure 15.

Figure 15. Handwheel installation.

11. Match the holes in the dust hood to the tapped

holes in the planer casting on the outfeed end
and install the three M8-1.25 x 20 cap screws.

collection system.

Recommended CFM at Dust Port

• ST1007 & ST1012 ......................................... 400 CFM

• ST1014 ............................................................. 625 CFM

12. Secure the top of the dust hood with the M6-1.0
x 12 hex bolts flat and lock washers (see Figure

16).

Figure 16. Dust hood installed.

To connect the machine to a dust collection system,
fit a 4" dust hose (ST1007 & ST1012) or a 5" dust hose
(ST1014) over the dust port, and secure in place with
a hose clamp (see Figure 17). Tug the hose to make
sure it does not come off.

Note: A tight fit is necessary for proper performance.

Figure 17. Dust hose connected to dust port.

-20 -

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

18. Loosen the eccentric set screws; as shown in
Figure 18.

Set Screw

Eccentric

Figure 18. Roller set screws.

19. Using a straightedge and wrench, raise the

rollers on their eccentric shafts 0.002" to 0.020"
above the table surface (see Figure 19).

21. Wipe dirt from the gearbox fill plug and remove
it (see Figure 20).

—If the oil runs out, the gearbox is full, and

re-install the plug.

—If the oil does not run out, fill the gearbox

until it does, and re-install the plug.

Note: Replace the gearbox oil after the first 20

hours of operation. This is a normal break-in
procedure.

Fill Plug

Figure 19. Checking roller height.

20. Tighten the eccentric set screws and recheck the

roller height, and re-adjust if required.

Note: For quick and easy table roller setup, consid-

er purchasing a Rotacator. This handy tool allows
you to watch the height of the table rollers you
adjust it, giving you accuracy within 0.001" every
time.

Figure 20. Gearbox fill plug.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-21-

Test Run

Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem

operating the

machine again. The Troubleshooting table in the

SERVICE section of this manual can help.

an improperly set up machine may result in
malfunction or unexpected results that can

Serious injury or death can result from
using this machine BEFORE understanding
its controls and related safety information.

BEFORE

DO NOT operate, or allow others to operate,
machine until the information is understood.

5. Press START button to turn machine ON. Verify

motor starts up and runs smoothly without any
unusual problems or noises.

6. Press STOP button to turn machine OFF.

7. WITHOUT resetting STOP button, try to start

machine by pressing the START button. The
machine should not start.

—If the machine does not start, the STOP

button safety feature is working correctly.
Congratulations! The Test Run is complete.

—If the machine does start (with the STOP

button pushed in), immediately disconnect
power to the machine. The STOP button safe­ty feature is not working correctly and must
be replaced before further using the machine.
Call Tech Support for help.

DO NOT start machine until all preceding setup
instructions have been performed. Operating

lead to serious injury, death, or machine/prop­erty damage.

To test run machine:

1. Clear all setup tools and loose objects away from

machine.

2. Push STOP button in.

3. Connect machine to power supply.

4. Twist STOP button clockwise until it springs out

(see Figure 21). This resets the switch so the
machine can start.

After approximately 16 hours of operation,
V-belts will stretch and seat into pulley grooves
and need to be properly tensioned to avoid
severely reducing life of V-belts. Refer to
Tensioning/Replacing V-Belts on Page 36 for
detailed instructions.

Recommended

Adjustments

For your convenience, the adjustments listed below
have been performed at the factory.

However, because of the many variables involved
with shipping, we recommend that you at least verify
the following adjustments to ensure the best possi­ble results from your new machine.

Step-by-step instructions for these adjustments can
be found in the SERVICE section starting on Page

39.

-22-

Figure 21. Resetting the switch.

Factory adjustments that should be verified:

• Check V-belt tension (Page 37).

• Adjusting table height (Page 42).

• Pulley alignment (Page 49).

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

OPERATIONS

Eye injuries or respiratory problems can occur
while operating this tool. Wear personal pro­tective equipment to reduce your risk from
these hazards.

Loose hair/clothing could
get caught in machinery
and cause serious person­al injury. Keep clothing and
long hair away from moving
machinery.

DO NOT investigate prob­lems or adjust the lathe
while it is running. Wait
until the machine is turne d
OFF, unplugged and all
working parts have come
to a complete stop before
proceeding!

The overview below provides the novice machine
operator with a basic understanding of how the
machine is used during operation, so the machine
controls/components discussed later in this manual
are easier to understand. Due to its generic nature,
this overview is NOT intended to be an instructional
guide.

To complete a typical operation, the operator
does the following:

1. Examines workpiece to make sure it is suitable

for planing.

2. Puts on safety glasses or face shield, a respirator,
and ear protection.

3. Places workpiece on table with flat side down
and correctly adjusts table height for workpiece
thickness and depth of cut.

—If workpiece is bowed, operator surface planes

workpiece on a jointer until one side is flat.
Doing so ensures that it sits solidly on planer
table during operation.

4. When all safety precautions have been taken,
turns planer ON.

5. Stands to one side of planer path to reduce risk
of kickback injuries, then feeds workpiece into
planer until infeed roller grabs it.

Overview

This machine will perform many types of operations
beyond the scope of this manual. Many of these can
be dangerous or deadly if performed incorrectly.

The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at
any time you are experiencing difficulties performing
any operation, stop using the machine!

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Note: Infeed and outfeed rollers control feed rate

of workpiece as it passes through planer. Operator
does not push or pull on workpiece.

—If cut is too deep and bogs down planer, oper-

ator immediately reduces depth of cut.

6. Once workpiece is clear of outfeed roller and
stops moving, operator removes workpiece
from outfeed table and measures workpiece
thickness. If further planing is required, operator
raises table slightly (approximately
of the handwheel), then feeds workpiece into
front of planer again.

7. Operator repeats this process until desired thick-
ness is achieved, then turns machine OFF.

1

⁄4 to 1⁄2 turn

-23-

Workpiece Inspection

Wood Types

Some workpieces are not safe to use or may require
modification before they are. Before cutting, inspect

all workpieces for the following:

• Material Type: This machine is only intended
for workpieces of natural wood fiber Attempting
to use workpieces of any other material that
may break apart during operation could lead to
serious personal injury and property damage.

• Foreign Objects: Inspect lumber for defects and
foreign objects (nails, staples, embedded gravel,
etc,). If you have any question about the quality
of your lumber, DO NOT use it. Remember, wood
stacked on a concrete floor can have small piec­es of stone or concrete pressed into the surface.

• Large/Loose Knots: Loose knots can become
dislodged during operation. Large knots can
cause kickback and machine damage. Always
use workpieces that do not have large/loose
knots.

• Wet or "Green" Stock: Avoid using wood with a
high water content. Wood with more than 20%
moisture content or wood exposed to excessive
moisture (such as rain or snow), will cut poorly
and cause excessive wear to the machine. Excess
moisture can also hasten rust and corrosion of
the machine and/or individual components.

• Excessive Warping: Workpieces with excessive
cupping, bowing, or twisting are dangerous
to cut because they are unstable and often
unpredictable when being cut. DO NOT use
workpieces with these characteristics!

• Minor Cupping: Workpieces with slight cup­ping can be safely supported if the cupped side
is facing the table. On the contrary, a workpiece
supported on the bowed side will rock during
operation and could cause severe injury from
kickback.

The species of wood, as well as its condition, greatly
affects the depth of cut the planer can effectively
take with each pass.

The chart in the figure below shows the Janka
Hardness Rating for a number of commonly used
species. The larger the number, the harder the
workpiece, and the less material should be removed
in any one pass for good results.

Note: The Janka Hardness Rating is expressed in
pounds of force required to embed a 0.444" steel ball
into the surface of the wood to a depth equal to half the
ball's diameter.

Janka

Species

Ebony 3220

Red Mahogany 2697

Rosewood 1780

Red Pine 1630

Sugar Maple 1450

White Oak 1360

White Ash 1320

American Beech 1300

Red Oak 1290

Black Walnut 1010

Teak 1000

Black Cherry 950

Cedar 900

Sycamore 770

Douglas Fir 660

Chestnut 540

Hemlock 500

White Pine 420

Basswood 410

Eastern White Pine 380

Balsa 100

Figure 22. Janka Hardness Rating for some

common wood species.

Hardness

-24-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Planing Tips

Cutting Problems

• Inspect your lumber for twisting or cupping, and

surface one face on a jointer if necessary before
planing workpiece.

• Scrape off all glue when planing glued-up pan-
els. Dried glue can quickly dull knives/inserts.

• DO NOT plane more than one piece at a time.

• Never remove more than the recommended

amount of material on each pass. Only remove
a small amount of material on each pass when
planing wide or dense stock.

• Support the workpiece on both ends. Get assis-
tance from another person if you are planing
long lumber, or use roller stands to support the
workpiece.

• Measure the workpiece thickness with calipers
to get exact results.

• Carefully inspect all stock to make sure it is free
of large knots or foreign objects that may dam­age your knives/inserts, cause kickback, or be
ejected from the planer.

• When possible, plane equal amounts on each
side of the board to reduce the chance of twist­ing or cupping.

• Use the entire width of the planer to wear
knives/inserts evenly. With narrow workpieces,
alternate between far left, far right, and the mid­dle of the table. Your knives/inserts will remain
sharp much longer.

• To avoid "chip marks," always plane WITH the
grain direction of the wood. Never plain cross­grain or end-grain.

Below is a list of wood characteristics you may
encounter when planing. The following descriptions
of defects will give you some possible answers to
problems you may encounter while planing different
materials. Possible solutions follow the descriptions.

Chipped Grain

Problem: Usually a result of cutting against the grain,

planing lumber with knots or excessive amount of
cross grain, or using dull knives/inserts.

Note: Some amount of chipping is normal with highly
figured wood.

Solution: Decrease the depth of cut. Reduce the feed
rate. Inspect your lumber and determine if its grain
pattern is causing the problem. If the lumber does
not show substantial crossgrain, inspect your knives/

inserts.

Fuzzy Grain

Problem: Usually caused by surfacing lumber with

too high of a moisture content. Sometimes fuzzy
grain is an unavoidable characteristic of some woods,
such as basswood. Fuzzy grain can also be caused by
dull knives/inserts.

Solution: Check the lumber with a moisture meter. If
moisture is greater than 20%, sticker the lumber and
allow it to dry. Otherwise, inspect the knife/insert
condition.

Snipe

Problem: Occurs when board ends have more mate-

rial removed than the rest of the board. Usually
caused when the workpiece is not properly support­ed as it goes through the machine. In many cases,
however, a small amount of snipe is inevitable.

• Plane ONLY natural wood fiber. Do not plane
wood composites or other materials that could
break up in the planer and cause operator injury
or damage to planer.

• Always true cupped or warped stock on a jointer
before planing.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Solution: Hold workpiece up slightly as it leaves the
outfeed end of the planer. The best way to deal with
snipe is by planing lumber longer than your intend­ed work length and then cutting off the excess after
planing is completed.

-25-

Pitch & Glue Build-up

Problem: Glue and resin buildup on the rollers and

cutterhead will cause overheating by decreasing
cutting sharpness while increasing drag in the feed
mechanism. The result can include scorched lumber,
uneven knife/insert marks, and chatter.

Solution: Clean the rollers and cutterhead.

Depth of Cut

Table Movement per Handwheel Revolution

One Full Revolution .........................................................

The depth of cut on a planer means the amount
of material that is removed from the top of the
workpiece as it passes underneath the cutterhead.

1

⁄16"

Chip Marks or Indentations

Problem: Chip indentation or chip bruising is the

result of wood chips not being thrown away from
the cutterhead and out of the machine. Instead they
are carried around the cutterhead, deposited on the
planed surface and crushed by the outfeed roller.
Some of the causes of chip indentation are:

• Wood chips/sawdust not being properly
expelled from the cutterhead.

• The type of lumber being planed. Certain spe-
cies have a tendency to chip bruise.

• A high moisture content (over 20%) or surface
moisture (refer to Page 25).

• Dull knives.

• Excessive depth of cut.

Solution:

The depth of cut is set by adjusting the distance
of the table below the cutterhead. This distance is
the thickness of the workpiece minus the depth of
cut. The planing depth of cut is controlled by using
the table height handwheel on the right side of the
machine. Rotating the handwheel clockwise raises
the table.

Although the correct depth of cut varies according
to wood hardness and workpiece width, we recom­mend the maximum depth of cut (per pass) be no

1

more than

⁄16". A series of light cuts will give better
end results and put less stress on the planer than
trying to take off too much material in a single pass.

The depth of cut can be referenced directly from the
inch/millimeter scale on the front of the planer, as
shown in Figure 23. The range of material thickness

3

that can be planed is

⁄16"–8".

Note: The scale functions as a general guide only, and is
not intended for low-tolerance, precision results.

• Use a proper dust collection system; adjust chip
deflector in or out as necessary.

• Lumber must be completely dry, preferably kiln-
dried (KD). Air-dried (AD) lumber must be sea­soned properly and have no surface moisture.
DO NOT surface partially-air-dried (PAD) lumber.

• Make sure planer knives/inserts are sharp.

• Reduce depth of cut.

Rippled Cut

Problem: Regularly spaced indentations across face

of workpiece are caused by excessive outfeed roller
pressure or excessive feed rate.

Solution: Reduce outfeed roller pressure; reduce
feed rate.

-26-

Table

Height

Handwheel

Depth of Cut

Indicator &

Scale

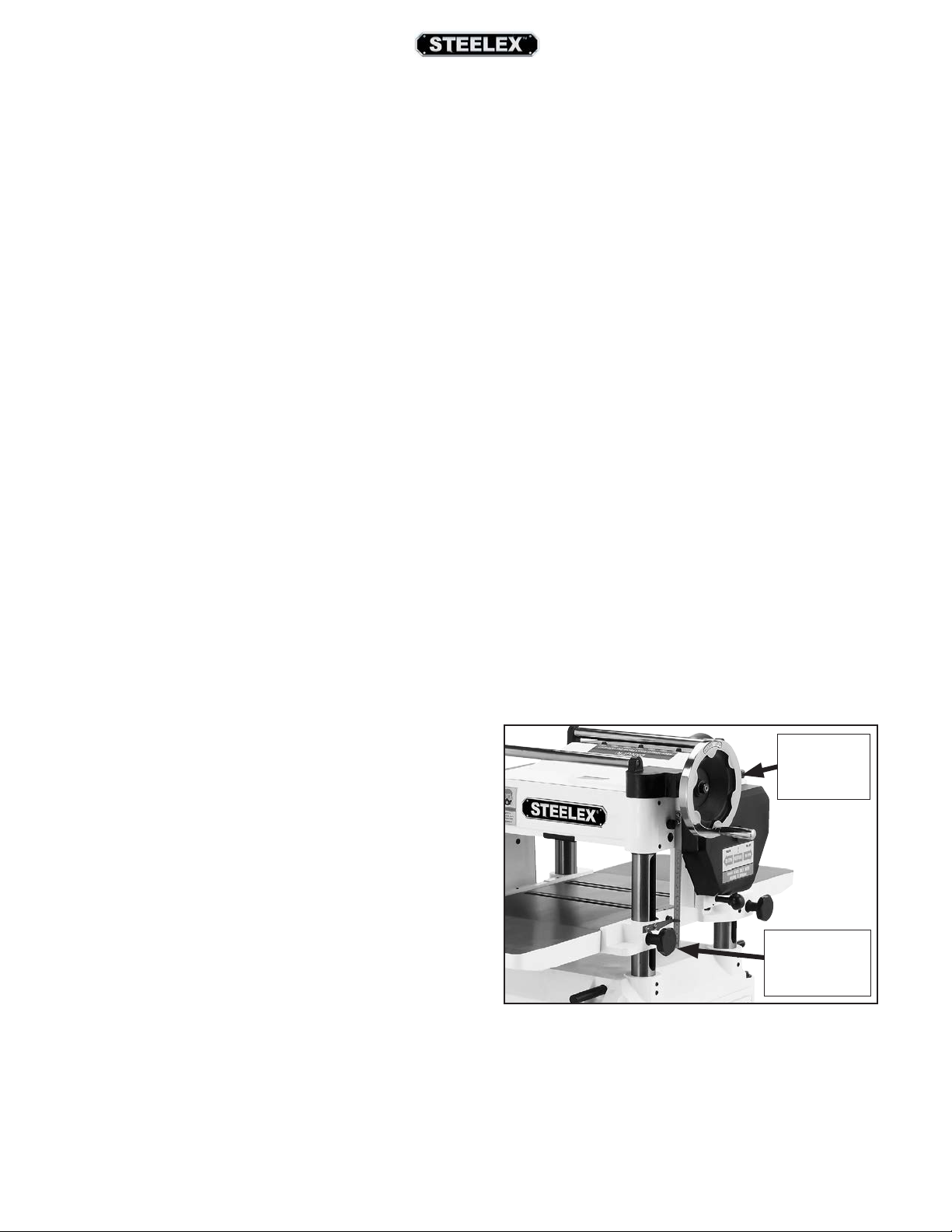

Figure 23. Depth of cut indicator and scale.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Bed Roller Height

Bed Roller Height Range .......................... 0.002"–0.020"

The correct height of the bed rollers will vary,
depending on the type of material you intend to
plane. However, as a general rule, keep the bed roller
height within 0.002"–0.020" above the table surface,
as illustrated in Figure 24.

Table

0.002"–0.020"

Tools Needed Qty

Hex Wrench 4mm (ST1007, ST1012) ............................. 1

Hex Wrench 3mm (ST1014) .............................................. 1

Hex Wrench 6mm ................................................................. 1

Rotacator ................................................................................. 1

To adjust bed rollers:

1. DISCONNECT MACHINE FROM POWER!

2. Completely lower table to give yourself enough

room to work.

3. Loosen set screws (see Figure 25) above each
of four roller adjustment cams (there are two on
each side of planer).

Roller

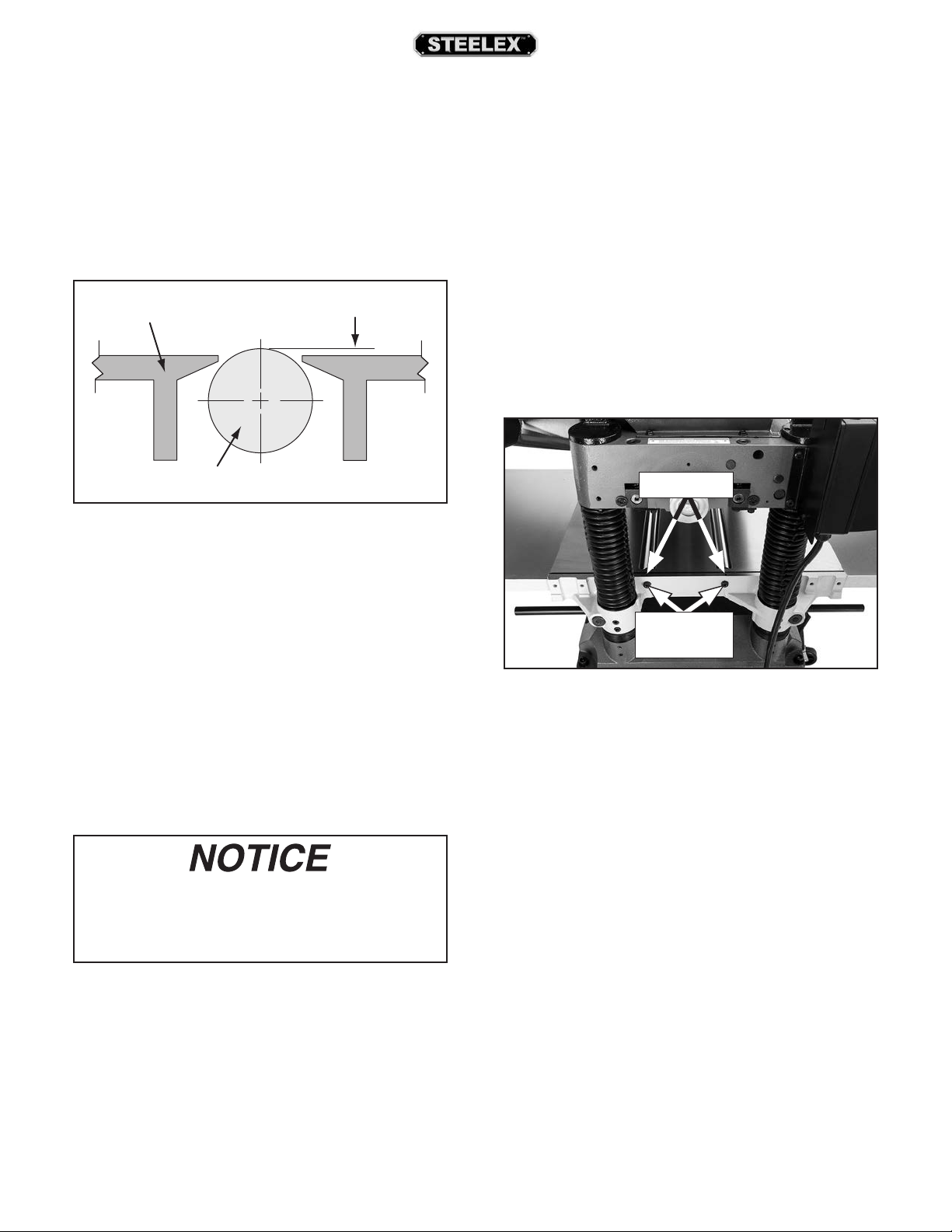

Figure 24. Recommended bed roller height above

the table surface.

When planing rough stock, set the rollers high to
keep the lumber from dragging along the bed. When
planing milled lumber, set the rollers low to help
minimize snipe.

To ensure accurate results and make the adjustment
process quicker and easier, we recommend using a
Rotacator (refer to Page 32) to gauge the bed roller
height from the table surface. If a Rotacator is not
available, a straightedge and feeler gauges can be
used, but care must be taken to achieve accurate
results.

Bed rollers that are not adjusted to the correct
height or out of alignment with each other can
cause poor finishes, inconsistent planing thick­ness, and other undesirable results.

Set Screws

Adjustment

Cams

Figure 25. Bed roller height controls.

4. Rotate eccentric adjustment cams to raise or

lower bed rollers to desired height above table
surface.

5. Verify both sides of each roller are at the same
height, then re-tighten set screws to secure in
place.

6. Re-check roller heights to make sure they did
not change while being secured.

— If roller heights are not correct, repeat this

procedure until they are.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-27-

Setting Feed Rate

Adjusting/Replacing

The infeed and outfeed rollers move the workpiece
through the planer while keeping it flat and provid­ing a consistent rate of movement. The speed that
these rollers move the workpiece through the planer
is the feed rate.

Generally, low feed rates are used for dimensioning
passes, while higher feed rates are used for finishing
passes.

Figure 26 illustrates the three different positions of
the feed rate control knob:

• Push knob in to use high feed rate of 30 FPM.

• Pull the knob out to use the low feed rate of 16
FPM.

• Move knob to center position to place gearbox
in neutral.

20 FPM (ST1014)
30 FPM (ST1007/ST1012)

16 FPM

Knives (ST1007)

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,
maintenance, or service.

Cutterhead knives are extremely sharp.
Accidental contact with knives can result in
severe cuts. Take great caution whenever work­ing with or around cutterhead knives. Wear
heavy leather gloves to reduce risk of severe
cuts.

To maintain accurate and consistent planing
results, we do not recommend sharpening
knives yourself. Instead, just replace dull knives
or have them professionally sharpened.

Neutral

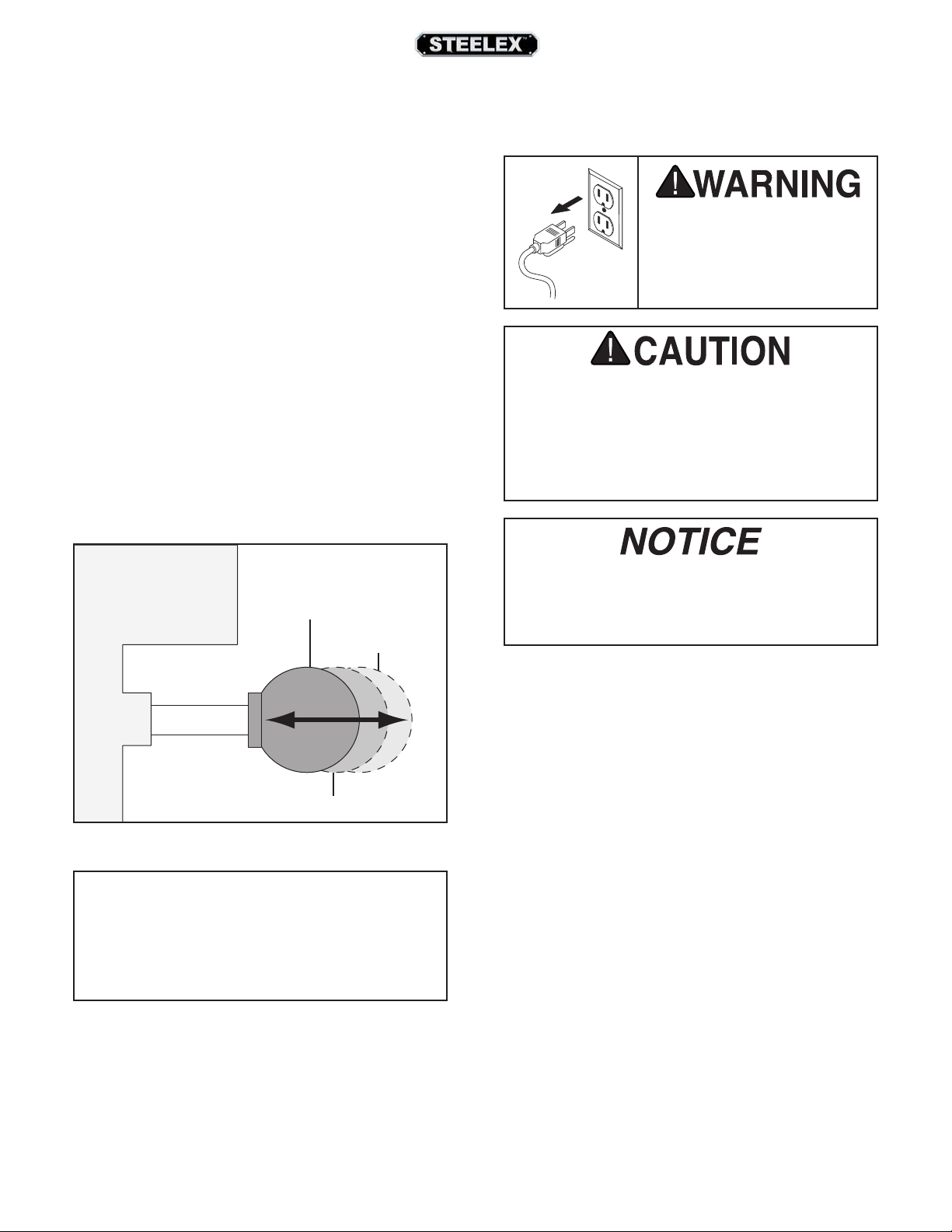

Figure 26. Feed rate control knob positions.

NOTICE

Only change the feed rate when the planer is
running, but DO NOT attempt to change the
feed rate during any cutting operations or
damage to the gearbox will result.

Setting the height of the knives correctly is crucial
to the proper operation of your planer and is very
important in keeping the knives sharp. If one knife
protrudes higher than the others, it will do the major­ity of the work, dull much faster, and produce poor
cutting results.

The knife-setting jig that is included with the Model
ST1007 is designed to set the knives 0.059" higher
than the cutterhead surface.

Note: If you need to replace or sharpen a knife, you
can remove the knife from the cutterhead during Step
5 of the following procedure. Thoroughly clean out any
debris from the knife slots before replacing the knives.

Tools Needed Qty

Phillips Screwdriver ............................................................. 1

Open-End Wrench 12, 13mm ....................................1 Ea.

Hex Wrench 3mm ................................................................. 1

Knife-Setting Jig ................................................................... 1

-28-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

The cutterhead for the Model ST1007 ships with both
springs and jack screws for adjusting the knife height
(see Figure 27). Which one you use is a matter of
personal preference. Springs exert upward pressure
from underneath the knives and allow adjustments
to be made very quickly. Jack screws support the
knives from underneath, and by threading the screws
in or out, you can precisely control the knife height.
In both instances, wedge-type gibs and gib bolts lock
the knives in place. Choose whichever method meets
your needs, but understand that the screws and
springs cannot be used together—you must choose
one and remove the other.

To adjust height of knives:

1. DISCONNECT MACHINE FROM POWER!

2. Put on heavy leather gloves to protect your

hands.

3. Remove rear dust hood and top cover to expose
cutterhead.

4. Remove belt cover, then rotate cutterhead pul­ley to give you good access to one of the knives.

5. Loosen cutterhead gib bolts until knife is com­pletely loose, then position knife-setting jig over
knife so that knife edge is directly under center
pad, as shown in Figure 28.

Center

Pad

Gib

Bolt

Knife

Gauge

Knife

Figure 28. Knife-setting jig correctly positioned

over knife.

6. Springs: Push down on knife gauge until all
legs of the gauge are firmly on the cutterhead
and the knife just touches the centerpad of the
gauge. Then tighten the gib bolts enough to
hold the knife in place.

Loosen

Tighten

Knife

Spring

Gib Bolt

Gib

Jack
Screw

Figure 27. ST1007 cutterhead components (springs

and jack screws both shown).

Jack Screws: Insert hex wrench into jack screws

through access holes in cutterhead (see Figure

29). Rotate jack screws to raise or lower knife
until it barely touches center pad of knife gauge
with all legs of gauge still firmly on cutterhead.
Then snug gib bolts enough to hold knife in
place.

Jack Screw

Access Holes

Figure 29. ST1007 & ST1012 jack screw access hole

in cutterhead.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-29-

7. Slightly tighten gib bolts, starting at middle and
working your way to ends by alternating left and
right, as illustrated in Figure 30.

5

Figure 30. Gib bolt tightening sequence.

7. Repeat Step 6, tightening gib bolts a little more.

8. Repeat Steps 4–8 for remaining knives.

9. Fully tighten all gib bolts in sequence shown in
Figure 30 for each knife.

3

1

2

4

Rotating/Replacing

Cutterhead Inserts

(ST1012/ST1014)

The helical cutterhead is equipped with indexable
carbide inserts that can be rotated to reveal any one
of their four cutting edges. If one edge of the insert
becomes dull or damaged, simply rotate it 90° to
reveal a fresh cutting edge, as shown in Figure 31.

Uneven tightening or over-tightening the gib
bolts may warp the cutterhead, causing it to
become unbalanced, which will lead to prema­ture knife and bearing wear from vibration.

Figure 31. Insert rotating sequence.

Tools Needed Qty

Phillips Screwdriver #2 ....................................................... 1

Hex Wrench 5mm ................................................................. 1

Torque Wrench ...................................................................... 1

T-20 Torx Bit ............................................................................ 1

To rotate or replace a helical cutterhead insert:

1. DISCONNECT MACHINE FROM POWER!

2. Remove dust hood, top cover, and belt cover.

3. Put on heavy leather gloves to protect your fin-

gers and hands.

The carbide inserts are very sharp and can
quickly cut your hands. ALWAYS use caution
and heavy leather gloves when handling these
parts to reduce the risk of personal injury.

-30-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

4. Remove any sawdust or debris from head of
insert, Torx screw, and surrounding area (see
Figure 32).

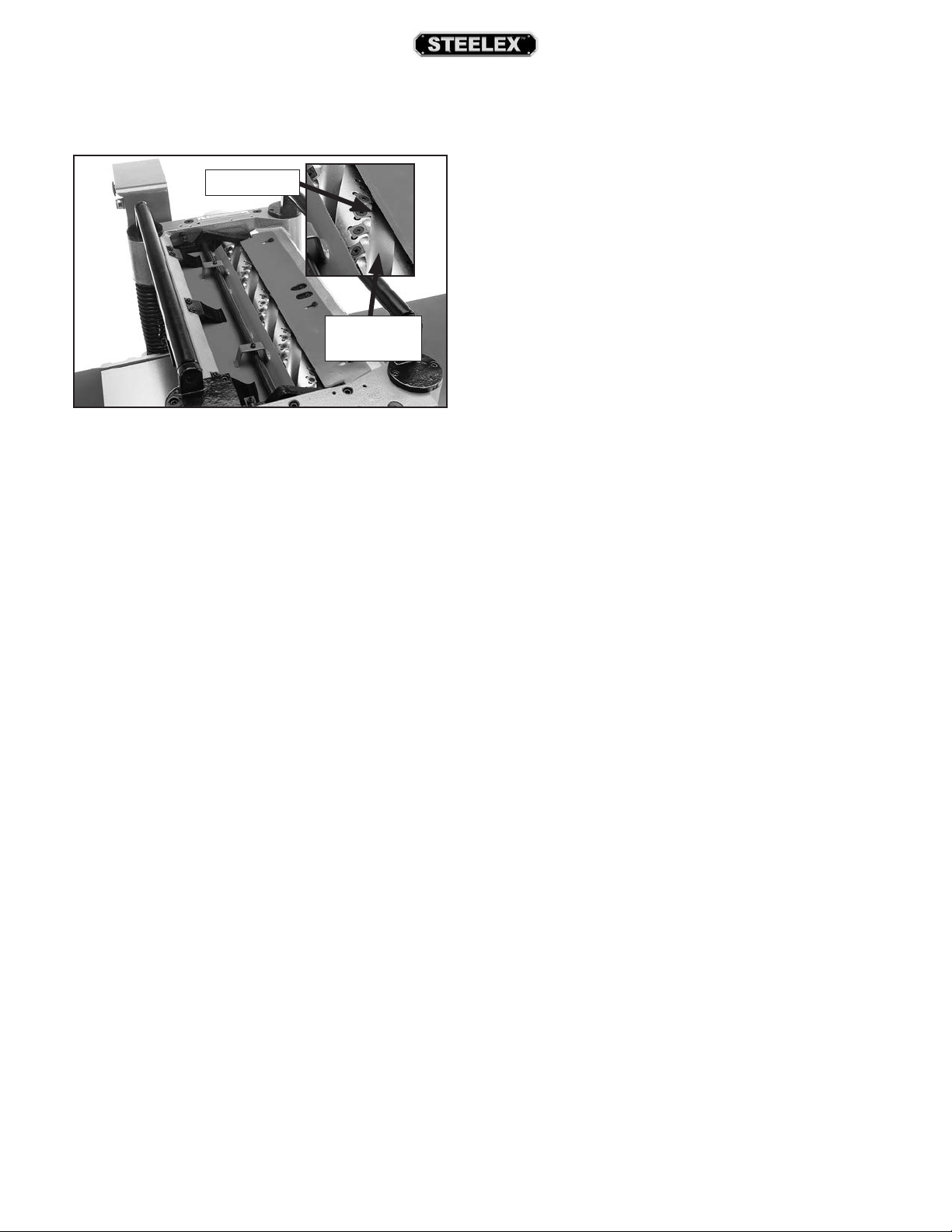

Torx Screw

Cutterhead

Insert

Figure 32. Example of cutterhead inserts and Torx

screws (actual machine not shown).

5. Remove Torx screw and insert, then clean all
dust and debris from both parts and pocket they
were removed from.

6. Replace insert so that a fresh cutting edge faces
outward.

— If all four insert cutting edges have been used,

replace insert with a new one. Always position
insert reference dot in same position when
installing a new insert to aid in rotational
sequencing.

7. Lubricate Torx screw threads with a very small
amount of light machine oil, wipe excess off, and
torque screw to 50–55 inch/pounds.

Note: If too much oil is applied to the threads,

excess oil will attempt to squeeze out of the thread­ed hole and raise insert during installation, bring­ing it out of height alignment.

Note: Proper cleaning of insert, Torx screw, and

cutterhead pocket is critical to achieving a smooth
finish. Dirt or dust trapped between insert and
cutterhead will raise insert, and make marks on
your workpiece when planing.

Tip: Use low-pressure compressed air or a vacuum

nozzle to clean out cutterhead pocket.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-31-

ACCESSORIES

The following lathe accessories may be available through your local Woodstock International Inc. Dealer. If you
do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail
Woodstock International Inc. Customer Service to get a current listing of dealers at: 1-800-545-8420 or at sales@

woodstockint.com.

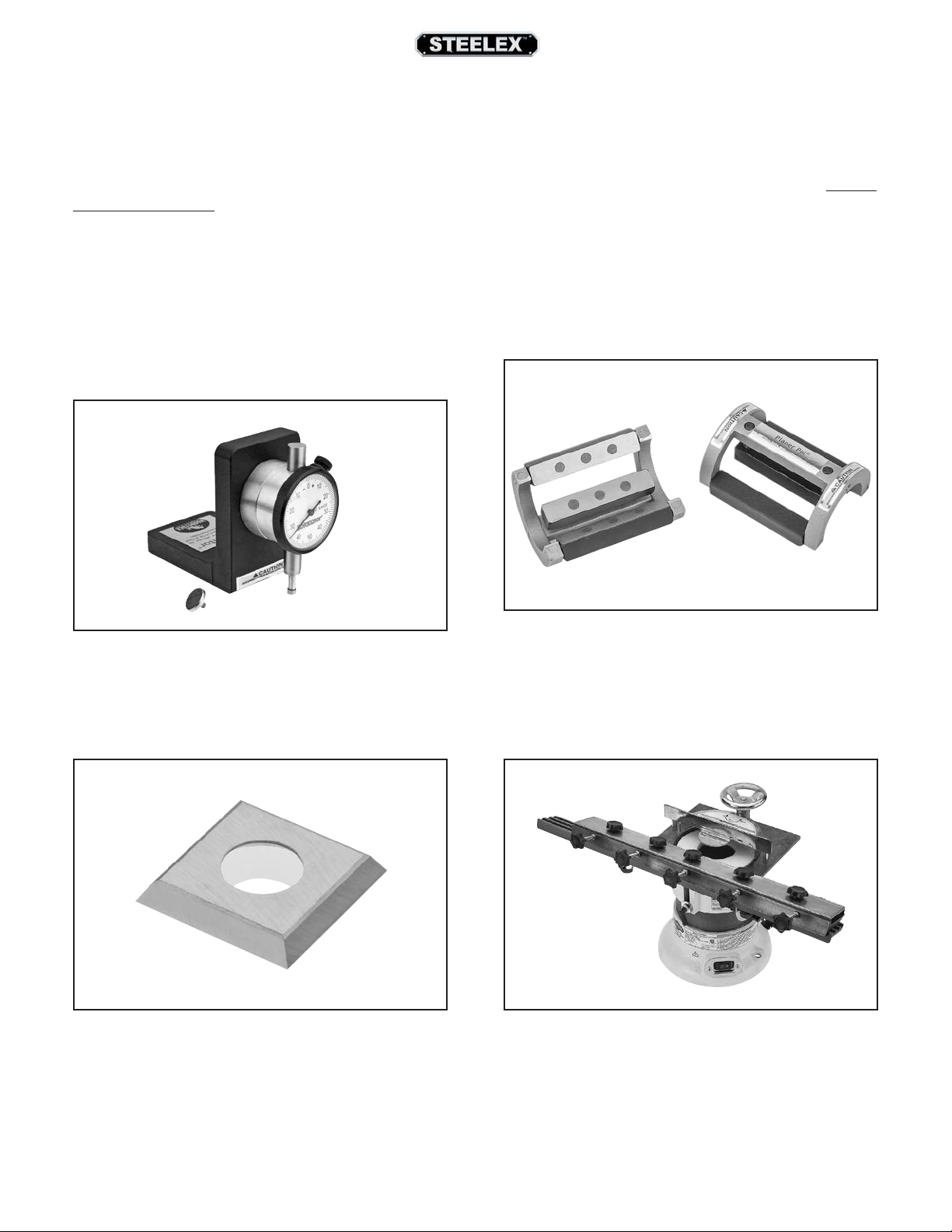

The W1218A Rotacator is a dial indicator on a
magnetic base, designed for quickly and accurately
setting the critical tolerances needed when making
planer adjustments. Perfect for adjusting infeed/
outfeed rollers, pressure bars, chip breakers, and bed
rollers. Also a great setup tool for other machines!
Accurate to 0.001". Indicator rotates 360°.

Figure 33. Model W1218A Rotacator.

The D3379 Carbide Inserts for Spiral Cutterheads
measure 15mm x 15mm x 2.5mm and are sold in a
10-pack.

The W1216A Planer Pal is a knife-setting system
that lets you set planer knives in perfect alignment.
It also allows you to shift nicked knives on 2-1/2" to
4" diameter cutterheads to get a perfect cut to an
accuracy of + or - .002".

Figure 35. Model W1216A Planer Pal.

The W1834 20" Blade Grinder is ideal for sharpen-
ing planer and jointer knives. High-quality cast iron
construction, together with large capacity makes this
grinder an excellent investment.

Figure 34. Carbide insert for Spiral Cutterhead.

-32-

Figure 36. 20" Blade Grinder.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

The D3635 15" Planer Blades fit our Steelex ST1007
planer. Made from high-speed steel, these knives are
sold as a set of 3.

Figure 37. Model D3635 15" Planer Blades.

The Model D2274 5-Roller Stand is great for work
stability and support. It features large diameter, ball
bearing rollers mounted on a sturdy, adjustable ped­estal base.

The Model D4042 6" Digital Caliper lets you switch
between decimal and fractional inches and millime­ters. Large digital readout makes precision measure­ments easy with a resolution of 0.0005". Features
include hardened stainless-steel jaws and beam,
thumb roll, lock knob, zero reset button, and an abso­lute and relative measurement function.

Figure 39. Model D4042 6" Digital Caliper.

Figure 38. Model D2274 5-Roller Stand.

The D4091 7-pc. Woodworking Kit includes a 9"
graduated steel square, 10-1/2" sliding bevel gauge,
rectangular protractor, 10" divider with pencil holder
and pencil, 12" double ended steel ruler, and double
ended scriber.

Figure 40. Model D4091 7-Pc. Woodworking Kit.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-33-

The D4028 8" Digital Scale provides precise relative
distance measurements between fixed and moving
parts within an 8" and 12" range. Ideal for mount­ing to woodworking and metalworking machines
for table height adjustments, cutter heights, depth
adjustments and more. Resolution is 0.01mm and
maximum measuring speed is 1.5m/s. Features
inches and millimeters conversion button, plus and
minus preset buttons and zero setting on button.
Each Digital Scale includes an extra long life battery.
Mounting screws are not included.

The Model D2273 Single Roller Stand features
large-diameter ball bearings for smooth operation
with a variety of processing and work-support appli­cations. Heavy pedestal base is stable and secure.

Figure 42. Model D2273 Single Roller Stand.

Figure 41. Model D4028 8" Digital Scale.

-34-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

Schedule

For optimum performance from your machine, follow
this maintenance schedule and refer to any specific
instructions given in this section.

maintenance, or service.

General

Regular periodic maintenance on your STEELEX
Model ST1007/ST1012/ST1014 will ensure its opti­mum performance. Make a habit of inspecting your
machine each time you use it.

Check for the following conditions and repair or
replace when necessary:

• Loose mounting bolts.

• Worn switch.

• Worn or damaged cords and plugs.

• Damaged V-belt.

• Any other condition that could hamper the safe

operation of this machine.

Daily Check:

• Clean unpainted cast iron parts of the table

• Lubricate feed rollers

®

Weekly Check:

• Clean cutterhead

• Lubricate the four columns

• Change gear box oil (should be performed after
the first 20 hours when planer is new).

Monthly Check:

• Inspect V-belt tension, damage, or wear

• Clean/vacuum dust buildup from inside cabinet
and off motor

• Lubricate worm gear

• Lubricate chain

• Lubricate drive chain

Cleaning/Protecting

Vacuum excess wood chips and sawdust, and wipe
off the remaining dust with a dry cloth. If any resin
has built up, use a resin dissolving cleaner to remove
it.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Protect the unpainted cast iron table by wiping it
clean after every use—this ensures moisture from
wood dust does not remain on bare metal surfaces.
Keep the table rust-free with regular applications of a
high-quality metal protectant.

-35-

Basic Adjustment Tools

Optional Adjustment

We have provided a jig to make the knife setting pro­cess easy and quick. Please refer to Figure 43 for jig
component identification while assembling.

To assemble the knife setting jig:

1. Snap one of the E-clips over the notch on one

end of the knife setting rod.

2. Slide the aluminum knife setting jig saddles
onto the rod.

3. Snap the other E-clip on the other end of the
knife setting rod.

Tools

To make the setup process easier and more accurate,
many woodworkers purchase optional aftermarket
products like the Rotacator® and the Planer Pal®.

• Rotacator — A rotating dial indicator on a mag­netic base. This handy device allows you to set
your table within 0.001" from being parallel with
the cutterhead. The Rotacator is indispensable
when adjusting the chip breaker, table rollers,
feed rollers, and measuring table roller protru­sion shown in Figure 44.

Figure 43. Provided knife setting gauge.

Figure 44. Rotacator measuring table roller

protrusion.

• Planer Pal — Using powerful neodymium mag­nets, Planer Pal (see Figure 45) holds knives in
place while freeing both hands to tighten the
gib. Place one of these jigs on each end of the
cutterhead, and you can set the knives in perfect
alignment every time.

-36-

Figure 45. Planer Pal jigs holding knives for superior

adjustment.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Lubrication

Since all bearings are sealed and permanently
lubricated, leave them alone until they need to be
replaced. Do not lubricate them.

The Model ST1007/ST1012/ST1014 does need
lubrication in other places.

• Columns and Leadscrews: Lubricate columns
weekly with light oil, and lubricate the four
leadscrews once a month with general purpose
grease.

• Worm Gear: Inspect the worm gear monthly
and lubricate when needed. The worm gear box
will need to be removed to perform the inspec­tion (see Figure 46).

Grease

Grease

Oil

Fill Plug

Drain

Plug

Figure 47. Gear box lubrication.

• Drive Chain: Inspect and lubricate the drive

chain monthly. Check the sprockets, the chain,
and the master links during inspection. Use a
general purpose grease to lubricate the chain.

• Feed Rollers: Lubricate feed rollers daily before
start-up. Figure 48 shows the lubrication points
for the feed rollers. These are screws that have
holes drilled through them to allow oiling. Make
sure that dust is not trapped in these screws and
apply two drops of light oil in each to penetrate
the bearings. Do not lubricate more than this or
the excess will end up on the floor.

Figure 46. Worm gear lubrication.

• Chain: Inspect the table height adjustment

chain monthly and lubricate as needed. Use
high quality chain lubricant for best results.

• Gear Box: Drain the gear box after the first 20
hours of operation. Figure 47 shows the gear
box drain and fill plugs. Refill with 80-90W gear
oil. The oil level should reach the top of the filler
plug port. After the initial change, inspect fluid
levels periodically and change yearly. If your

planer receives heavy use, change the gear oil
more frequently.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Oil

Oil

Figure 48. Feed roller lubrication.

-37-

Tensioning/Replacing

V-Belts

Tools Needed Qty

Phillips Screwdriver ............................................................. 1

Open-End Wrench 19mm.................................................. 1

To tension/replace V-belts:

After approximately 16 hours of operation,
V-belts will stretch and seat into pulley grooves
and need to be properly tensioned to avoid
severely reducing life of V-belts.

Three V-belts transfer power from the motor to the
cutterhead, and then to the infeed and outfeed roll­ers with the use of the drive chain system. To ensure
efficient transfer of power to these systems, make
sure the V-belts are always properly tensioned and in
good condition.

If the V-belts are worn, cracked, or damaged, replace
them. Always replace the V-belts with a matched set
of three, or belt tension may not be even among the
belts, causing premature belt failure.

V-belts and pulleys will be hot after operation.
Allow them to cool before handling.

1. DISCONNECT MACHINE FROM POWER!

2. Remove V-belt cover from left side of machine to

expose belts, as shown in Figure 49.

Note: A collection of black belt dust at the bottom

of the belt cover is normal during the life of the
belts.

Cutterhead

Pulley

V-Belts

Motor
Pulley

Figure 49. Belt cover removed to expose V-belts

and pulleys.

3. Remove front cabinet cover to access motor, as
shown in Figure 50.

Motor Mount

Hex Nuts

Figure 50. Front cabinet cover removed to access

motor.

-38-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

4. If V-belts need to be replaced, raise motor to
release belt tension (see next step for instruc­tions), roll them off pulleys, then replace with a
matched set of 3.

5. To adjust V-belt tension, loosen both top motor
mount hex nuts (see Figure 50 on Page 38),
then adjust bottom hex nuts to raise or lower
motor.

Anti-Kickback Pawls

The Model ST1007/ST1012/ST1014 features anti-kick­back pawls (shown in Figure 52) as an import­ant safety feature. These safety devices allow the
workpiece to enter the planer without affecting
the proper operation, but are designed to stop the
workpiece from coming back out of the entrance in
the event of a kickback.

Note: V-belts are correctly tensioned when there is

approximately
sure is applied to them midway between pulleys,
as illustrated in Figure 51.

3

⁄4" deflection when moderate pres-

Cutterhead

Pulley

Approximately

3

⁄4" Deflection

Motor
Pulley

Figure 51. Belt deflection when V-belts are correctly

tensioned.

6. After V-belts are correctly tensioned, tighten top
motor mount hex nuts, then re-install cabinet
cover and belt cover.

The anti-kickback pawls should be frequently checked
to ensure that they swing free and easy. Do not try to
lubricate the pawls. Lubrication may cause dust to
build-up, which will restrict movement.

Proper operation of the anti-kickback pawls is
essential to the safe operation of the planer. If
they aren’t working properly, they will not pro­tect you if a kickback occurs.

Anti-Kickback Pawls

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Figure 52. Anti-kickback pawls.

-39-

SERVICE

Troubleshooting

The following troubleshooting tables cover common problems that may occur with this machine.
If you need replacement parts or additional troubleshooting help, contact our Technical Support.

Note: Before contacting Tech Support, find the machine serial number and manufacture date, and if
available, your original purchase receipt. This information is required to properly assist you.

Motor & Electrical

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Machine does not
start or a breaker
trips.

Machine stalls or is
underpowered.

1. Emergency stop button depressed/at fault.

2. Incorrect power supply voltage or circuit size.

3. Motor overheated, causing thermal overload to
trip.

4. Power supply circuit breaker tripped or fuse
blown.

5. Motor wires connected incorrectly.

6. Wiring open/has high resistance.

7. Power switch at fault.

8. Centrifugal switch at fault.

9. Start capacitor at fault.

10. Thermal overload relay at fault.

11. Contactor not energized/has poor contacts.

12. Motor at fault.

1. Machine undersized for task.

2. Workpiece not suitable for machine.

3. Motor overheated, causing thermal overload to
trip.

4. Belt(s) slipping; oil/grease on belt(s).

5. Dull knives/inserts.

6. Dust collection problem causing internal compo­nents to clog up with shavings.

7. Motor wired incorrectly.

8. Centrifugal switch at fault.

9. Run capacitor at fault.

10. Pulley slipping on shaft.

1. Rotate button head to reset. Replace.

2. Ensure correct power supply voltage and circuit size.

3. Allow motor to cool, reset overload if necessary, and
reduce depth of cut. Contact Tech Support if relay
frequently trips.

4. Ensure circuit is sized correctly and free of shorts. Reset
circuit breaker or replace fuse.

5. Correct motor wiring connections.

6. Check/fix broken, disconnected, or corroded wires.

7. Replace switch.

8. Adjust/replace centrifugal switch if available.

9. Test/replace.

10. Replace.

11. Test all legs for power/replace.

12. Test/repair/replace.

1. Reduce feed rate/depth of cut.

2. Only cut wood/ensure moisture is below 20%.

3. Allow motor to cool, reset overload if necessary, and
reduce depth of cut. Contact Tech Support if relay
frequently trips.

4. Clean/tension/replace belt(s); align pulleys (Page 38).

5. Sharpen/replace knives, or replace inserts (Page 28).

6. Clear blockages in dust chute/ducting, ensure dust col­lector is operating efficiently.

7. Wire motor correctly.

8. Adjust/replace centrifugal switch if available.

9. Test/repair/replace.

10. Tighten loose pulley; replace pulley/shaft if damaged.

Machine has
vibration or noisy
operation.

-40-

11. Contactor not energized/has poor contacts.

12. Motor bearings at fault.

1. Motor or component loose.

2. V-belt(s) worn or loose; belts slapping cover.

3. Pulley loose.

4. Bed rollers protruding unevenly.

5. Plastic chip deflector hitting knives.

6. Motor fan rubbing on fan cover.

7. Knives/gibs at fault.

8. Motor bearings at fault.

9. Cutterhead bearings at fault.

11. Test all legs for power/replace.

12. Test/repair/replace.

1. Inspect/tighten loose bolts/nuts; replace damaged com­ponents.

2. Tension/replace belts as a matched set (Page 38).

3. Re-align/replace shaft, pulley set screw, and key.

4. Adjust bed rollers (Page 27).

5. Adjust chip deflector; replace if necessary.

6. Fix/replace fan cover; replace loose/damaged fan.

7. Sharpen/replace knives; set knife alignment/height cor­rectly (Page 28).

8. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

9. Replace bearing(s).

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Machine Operation

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Excessive snipe
(gouge in end
of board that is
uneven with rest
of cut).

Note: A small
amount of snipe is
inevitable with all
types of planers.
The key is minimiz­ing it as much as
possible.

Workpiece stops/
slows in middle
of cut.

Chipping (consis­tent pattern).

Chipping/indenta­tion in workpiece
surface (inconsis­tent pattern).

Fuzzy grain. 1. Wood may have high moisture content or surface

Long lines or ridg­es that run along
length of board.

1. One or both of bed rollers are set too high.

2. Outfeed extension slopes down or is not level
with main table.

3. Chipbreaker/pressure bar set too low.

4. Workpiece is not supported as it leaves planer.

5. Some snipe is inevitable.

1. Taking too heavy of a cut.

2. One or both of bed rollers are set too low or too
high.

3. Chipbreaker or pressure bar set too low.

4. Feed rollers set too low or too high.

5. Pitch and glue build up on planer components.

1. Knots or conflicting grain direction in wood.

2. Taking too deep of a cut.

3. Feeding workpiece too fast.

4. Mis-adjusted chipbreaker.

5. Nicked or chipped knife/insert.

1. Chips aren't being properly expelled from
cutterhead.

2. Chip breaker not set correctly.

wetness.

2. Dull knives/inserts.

1. Nicked or chipped knife/inserts. 1. Replace knives (Page 28) or have them professionally

1. Lower bed rollers (Page 27).

2. Shim outfeed extension wing level with main table.

3. Raise height of chipbreaker or pressure bar (Page 42).

4. Hold workpiece up slightly as it leaves outfeed end of
planer.

5. Plane lumber longer than your intended workpiece
length, then cut off excess after planing complete.

1. Take a lighter cut.

2. Lower/raise bed rollers (Page 27).

3. Raise height of chipbreaker or pressure bar (Page 42).

4. Lower/raise feed rollers (Page 42).

5. Clean internal cutterhead components with a pitch/
resin dissolving solvent.

1. Inspect workpiece for knots and grain direction; only
use clean stock, and cut WITH the grain.

2. Take a smaller depth of cut. (Reduce cutting depth when
planing hard woods.)

3. Slow down feed rate.

4. Adjust both sides of chipbreaker to correct height.

5. Replace affected knife (Page 28), or have it sharpened;
rotate/replace insert (Page 30).

1. Use a proper dust collection system.

2. Correctly adjust chip breaker (Page 42).

1. Check moisture content is below 20% and allow to dry if
moisture is too high.

2. Replace knives (Page 28) or have them professionally
sharpened; rotate/replace inserts (Page 30).

sharpened; rotate/replace inserts (Page 30).

Uneven cutting`
marks, wavy sur­face, or chatter
marks across face
of board.

Glossy surface. 1. Knives/inserts are dull.

If workpiece twists
in machine.

1. Feeding workpiece too fast.

2. Chipbreaker or pressure bar set unevenly or not
low enough.

3. Knives not installed evenly/inserts not properly
installed.

4. Worn cutterhead bearings.

2. Feeding workpiece too slow.

3. Cutting depth too shallow.

1. Pressure bar set unevenly.

2. Feed rollers not parallel with table.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

1. Slow down feed rate.

2. Adjust height of chipbreaker or pressure bar (Page 42).

3. Adjust knives with knife gauge (Page 28); remove
inserts, properly clean mounting pocket and re-install
(Page 30).

4. Replace cutterhead bearings.

1. Replace knives (Page 28) or have them professionally
sharpened; rotate/replace inserts (Page 30).

2. Increase feed rate.

3. Increase depth of cut.

1. Adjust height of pressure bar (Page 42).

2. Adjust feed rollers (Page 42).

-41-

Adjusting Feed

Rollers, Chip Breaker

& Pressure Bar

It is essential that the feed rollers, chip breaker, and
pressure bar (see Figure 53) are set at the correct
distance below the cutterhead knives/inserts at BDC
(bottom dead center) to ensure that the workpiece
moves through the planer evenly and the correct
distance from the cutterhead knives/inserts.

Chip

Breaker

A & B

Figure 53. Planer component recommended

clearances. Illustration is not to scale.

(Bottom Dead Center)

Infeed

Roller

BDC

Outfeed

Roller

Pressure

Bar

C

D

Using a Rotacator

Tools Needed Qty

Phillip's Screwdriver #2 ...................................................... 1

Hex Wrench 3mm ................................................................. 1

Open-End Wrench or Socket 10mm.............................. 1

Rotacator (see Page 36) .................................................... 1

To use a rotacator:

1. DISCONNECT MACHINE FROM POWER!

2. Make sure knives are set to correct height (refer

to Adjusting/Replacing Knives on Page 28
for detailed instructions). If machine is spiral
cutterhead, make sure all inserts are proper­ly installed (refer to Rotating/Replacing
Cutterhead Inserts on Page 30 for detailed
instructions).

3. Lower table at least 4" below head casting, then
lock it in place.

4. Remove dust hood, top cover, belt cover, and
drive chain cover.

5. Lower bed rollers below table surface (refer
to Bed Roller Height on Page 27 for detailed
instructions).

To ensure accurate results and make the adjustment
process quicker and easier, we recommend using a
Rotacator for these adjustments (refer to Page 36).

If a Rotacator is not available, a 6-foot-long 2x4 cut
into two even sized pieces and a feeler gauge set can
be used, but care must be taken when jointing the
wood to achieve accurate results.

Distance Below Knife/Insert at BDC (Figure 53)

A. Infeed Roller ........................................................ 0.040"

B. Chip Breaker ....................................................... 0.040"

C. Pressure Bar.........................................................0.040"

D. Outfeed Roller .................................................... 0.020"

Note: Only Model ST1014 has a pressure bar.

-42-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

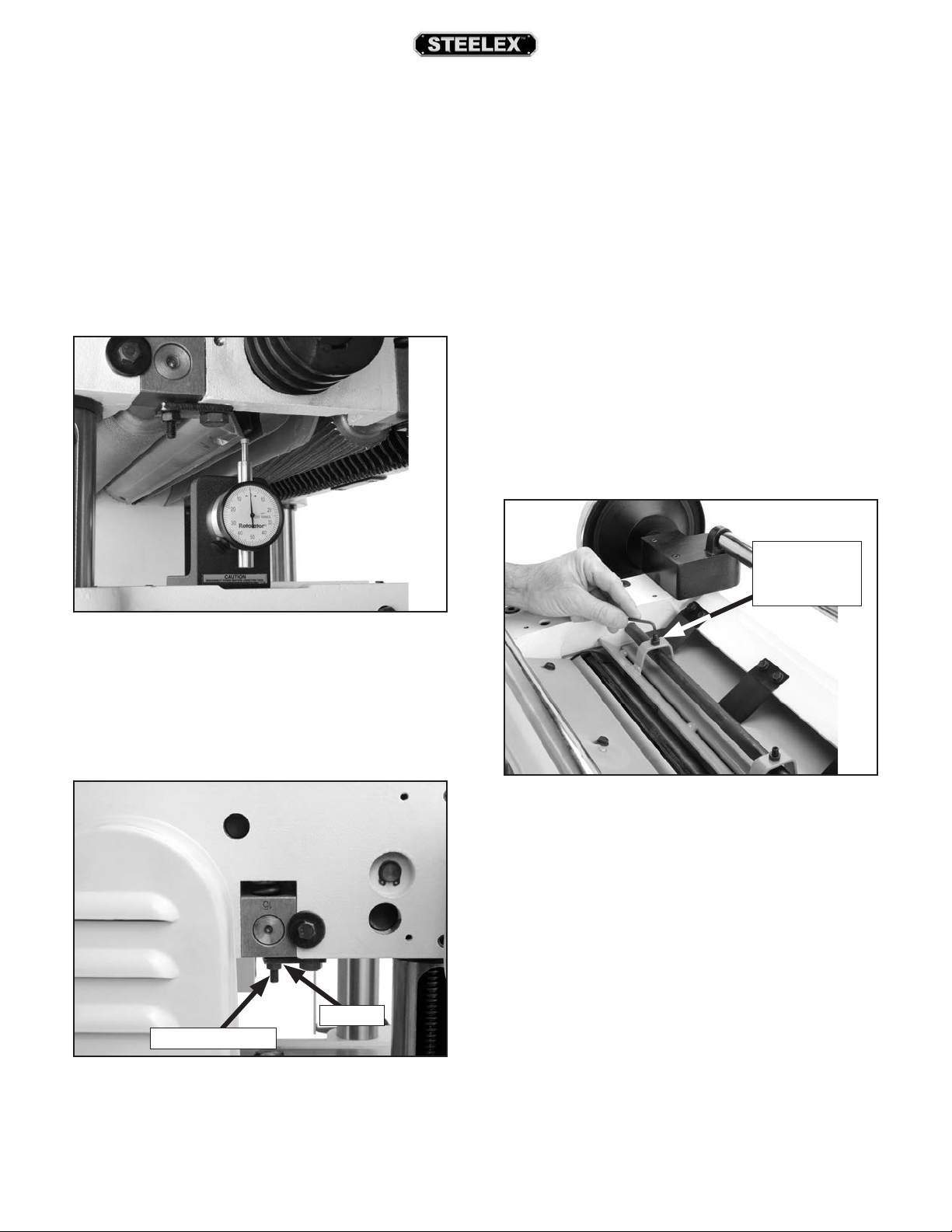

6. Rotate the cutterhead with the V-belt pulley so
one of the knives is at BDC as shown in Figure

54.

7. Use your Rotacator to find bottom dead center

(BDC) of any knife/insert edge by slowly rock­ing cutterhead pulley back and forth, then set
Rotacator dial to "0" (see Figure 54).

10. Repeat Steps 8–9 on left-hand side of infeed
roller.

11. Re-check both sides of infeed roller and, if nec­essary, make further adjustments until infeed
roller height from side-to-side is 0.040" below
BDC of cutterhead knife/insert, then re-tighten
both jam nuts.

8. Keeping Rotacator dial at "0", position it under
right-hand side of infeed roller (see Figure 54)
and find BDC of a serrated edge.

Figure 54. Finding BDC of cutterhead.

9. Loosen jam nuts and use set screws on each side

of feed roller (see Figure 55) to adjust height of
infeed roller bushing block until Rotacator dial
shows 0.040", which is the recommended dis­tance for infeed roller below cutterhead.

12. Keeping same "0" reference on Rotacator dial
from Step 7, repeat Steps 8–9 for outfeed roll­er, but adjust it until it is 0.020" below BDC of
cutterhead knife/insert.

13. Using same "0" reference on Rotacator dial from
Step 7, perform similar steps as described above

to adjust height of chip breaker to its recom­mended specification given at beginning of this
subsection. The adjustment controls are shown
in Figure 56.

Jam Nut and

Adjustment

Set Screw

Jam Nut

Adjustment Stud

Figure 55. Feed roller height adjustment.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Figure 56. Chip breaker height adjustment.

-43-

14. Repeat Step 12 for pressure bar height adjust-
ment. The adjustment controls are shown in

Figure 57.

15. Re-install belt cover, top cover, drive chain cover,

and dust hood.

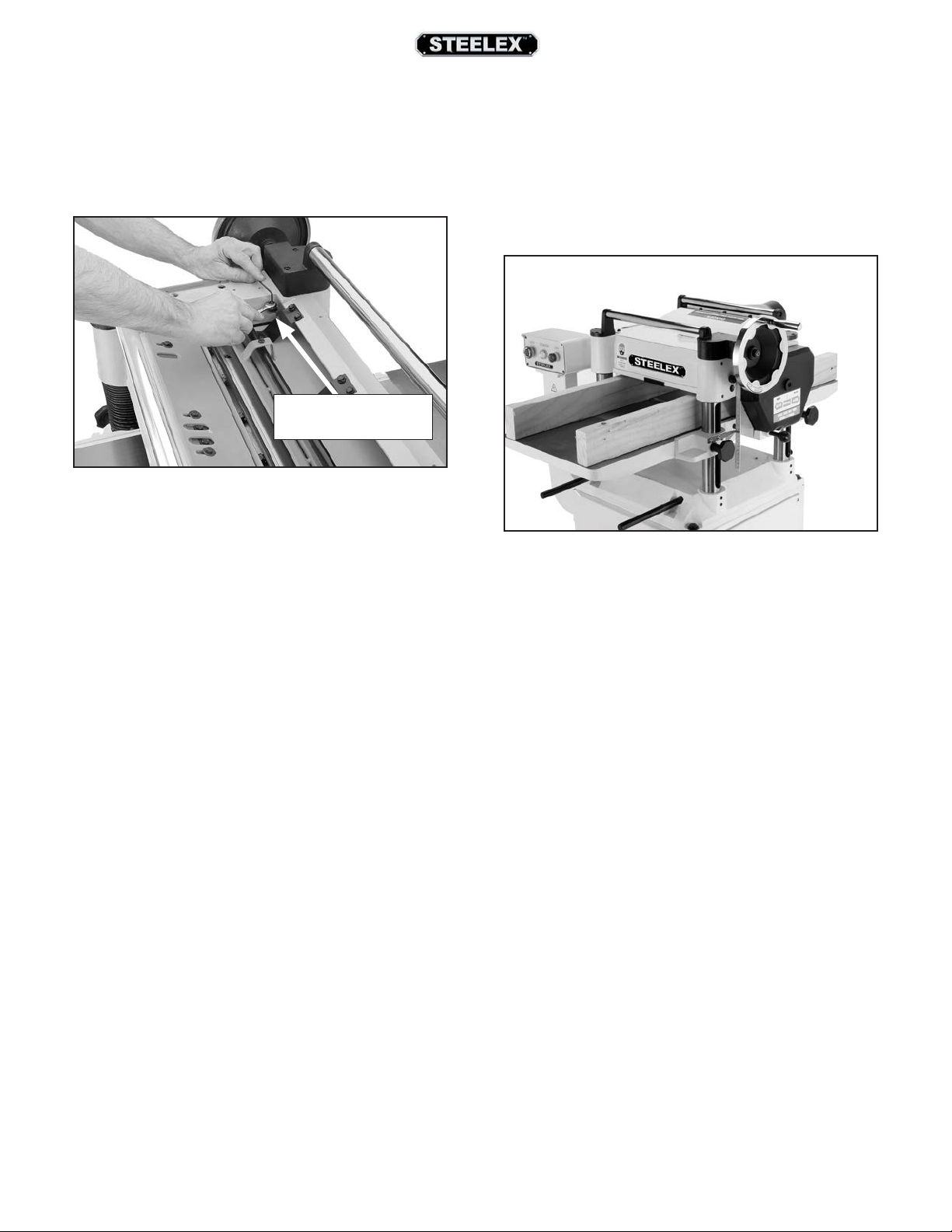

Adjustment Jam Nut

& Set Screw

Figure 57. Example of adjusting the pressure bar

height.

3. DISCONNECT MACHINE FROM POWER!

4. Lower bed rollers below table surface (refer

to Bed Roller Height on Page 27 for detailed
instructions).

5. Place wood blocks along sides of table, as illus­trated in Figure 58.

Using Wood Blocks

Tools Needed Qty

Phillips Screwdriver #2 ....................................................... 1

Hex Wrench 3mm ................................................................. 1

Open-End Wrench or Socket 10mm.............................. 1

2x4 6' Long ............................................................................. 1

Feeler Gauge Set .................................................................. 1

To use wood blocks: To use wood blocks:

1. Build wood blocks by cutting a straight 6-foot-

long 2x4 in half.

Note: Having the wood blocks at an even height is

critical to the accuracy of your overall adjustments.
For best results, make the 2x4 square with a jointer
and table saw before cutting it in half.

2. Make sure knives are set to correct height (refer
to Adjusting/Replacing Knives on Page 28 for
detailed instructions).

Figure 58. Gauge boards installed.

6. Remove dust hood, top cover, belt cover, and

drive chain cover.

7. Raise table until wood blocks get close to
cutterhead.

8. Use belt to rotate cutterhead and continue
raising table until blocks just barely touch
cutterhead knife/insert at its lowest point of
rotation (BDC).

9. Lock table in place. Upward pressure of wood
blocks will be holding infeed and outfeed rollers,
chip breaker, and pressure bar at same level as
knife/insert at BDC.

-44-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

10. Loosen jam nuts and set screws on each side of
infeed roller (see Figure 59).

11. Using a feeler gauge, adjust set screw so it is

0.040" from roller bushing block (see Figure 59),
then tighten jam nut. Repeat on other side of
infeed roller.

Roller Bushing

Block

15. Repeat Steps 13–14 for pressure bar height
adjustment, but adjust the gap to 0.040" (see
Figure 61).

Jam Nut &

Set Screw

Insert Feeler

Gauge Here

Insert Feeler

Gauge Here

Jam Nut &

Set Screw

Figure 59. Feeler gauge location for adjusting roller

height using wood blocks.

12. Repeat Steps 10–11 with outfeed roller, only
adjust the gaps to 0.020".

13. Loosen jam nuts and set screws on each side of
chip breaker (see Figure 60).

14. Using a feeler gauge, adjust set screw so it is

0.040" from cross bar (see Figure 60), then tight-
en jam nut. Repeat on other side of chip breaker.

Jam Nut &

Set Screw

Figure 61. Feeler gauge location for adjuting
pressure bar height when using wood blocks.

16. Re-install belt cover, top cover, drive chain cover,
and dust hood.

To re-adjust bed roller height:

1. Use a straightedge and feeler gauge (see Figure

62) to check roller height, and re-adjust as

required between 0.0020" and 0.020".

Insert Feeler

Gauge Here

Cross Bar

Figure 60. Feeler gauge location for adjusting chip

breaker height using wood blocks.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Figure 62. Setting table roller height.

-45-

Adjusting Roller

Tools Needed Qty

Hex Wrench 6mm ................................................................. 1

Spring Tension

The infeed and outfeed rollers keep the workpiece
moving through the planer. There are springs that
exert downward pressure on the rollers while still
allowing them to raise with an uneven workpiece
surface. Proper roller spring tension is crucial to keep
the workpiece moving through the planer during
operation.

Roller spring tension will vary depending upon the
type of wood you are planing. When adjusting the
roller spring tension keep the following in mind:

• If you are planing milled lumber with a relatively
consistent surface, use less spring tension.

• If you are planing rough lumber with inconsis­tent surfaces, use greater spring tension to keep
the stock moving through the planer.

• If the workpiece consistently stops feeding
during operation, the roller spring tension may
need to be increased.

To adjust roller spring tension:

1. DISCONNECT MACHINE FROM POWER!

2. Rotate tension screws clockwise to increase

tension, and counterclockwise to decrease ten­sion until they protrude to the values shown in
Figure 63.

Note: The rear-right spring typically requires less

tension because of forces applied from the feed
drive system. The values shown in Figure 63 are
a starting point for further adjustment using trial
and error.

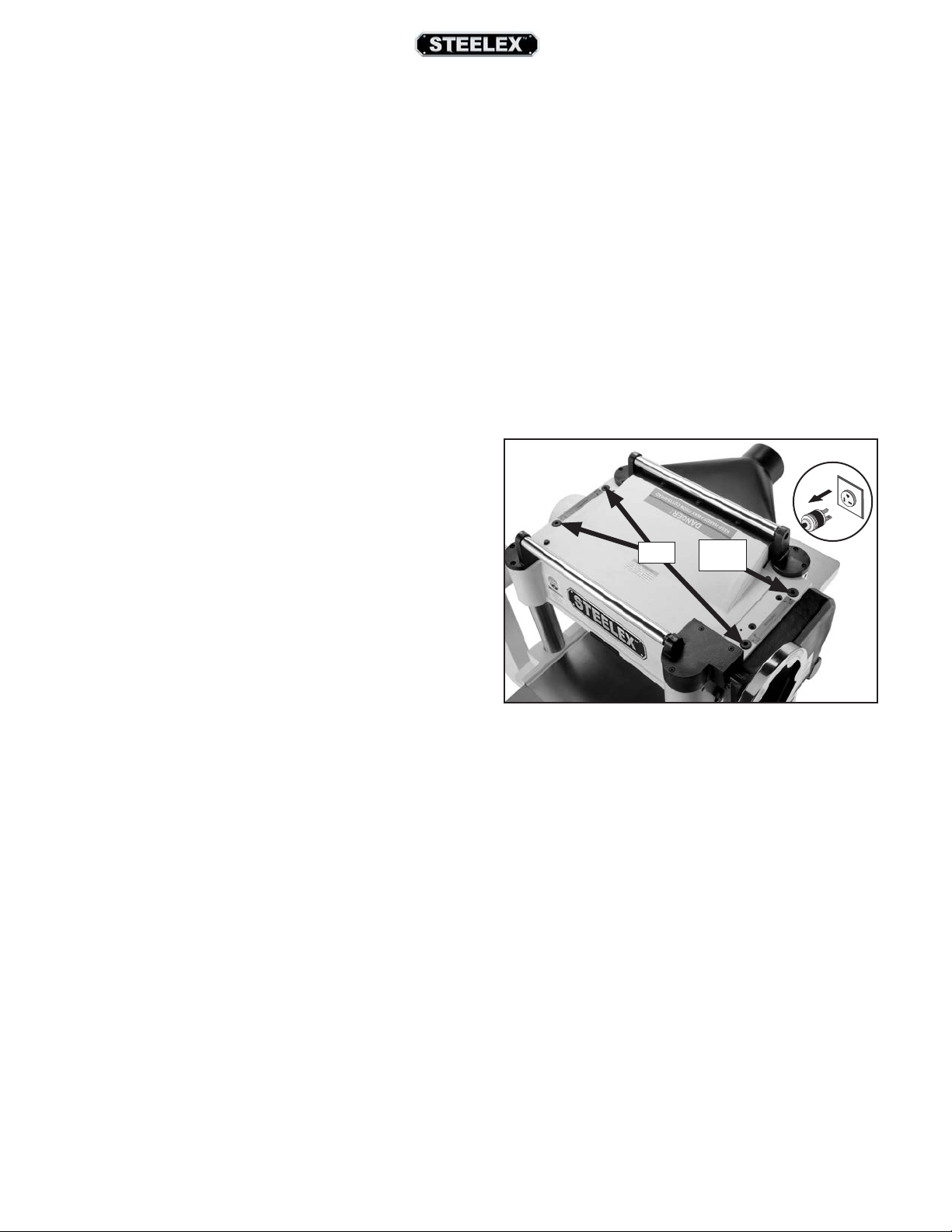

1

⁄8"

5

⁄16"

Figure 63. Roller spring tension adjustment screws.

-46-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Positioning Chip

Adjusting Table

Deflector

When properly distanced from the cutterhead, the
chip deflector directs the chips into the dust hood,
and keeps them from falling onto the outfeed roller
and being pressed into the workpiece.

1

Chip Deflector Gap Setting ............................................

Tools Needed Qty

Phillips Screwdriver #2 ....................................................... 1

Fine Ruler or Calipers .......................................................... 1

To adjust chip deflector gap:

1. DISCONNECT MACHINE FROM POWER!

2. Remove dust hood, top cover, and belt cover.

3. Use cutterhead pulley to rotate cutterhead until

a knife/insert reaches closest distance to chip
deflector (see Figure 64), then measure dis­tance between knife/insert and chip deflector.

⁄4"

Parallelism

Tools Needed Qty

Phillips Screwdriver #2 ....................................................... 1

Hex Wrench 6mm ................................................................. 1

The table has been pre-set at the factory, but it is a
good idea to check any machine thoroughly before
use.

There are two directions you should be concerned
about. When checking/adjusting the table, the table
should be parallel with the head casting from front­to-back, and the table should be parallel with the
cutterhead body from side-to-side.

To adjust table parallelism:

1. MAKE SURE MACHINE IS UNPLUGGED!

2. Use the plans shown in Figure 65 to make a

wooden gauge block.

Chip

Deflector

Figure 64. Chip deflector.

4. If distance measured in Step 3 is not equal to

1

⁄4", then loosen flange screws that secure chip

deflector and adjust gap to

5. Re-tighten flange screws, then replace belt
cover, top cover, and dust hood.

Bolts

1

⁄4".

Figure 65. Gauge block plans.

3. Place the block on one end of the table, directly

under the cutterhead body. Raise the table up
so the block only touches the cutterhead body
(keep knives rotated out of the way for this step).

4. Without moving the table, slide the block of
wood to the other end of the cutterhead. If the
block of wood will not fit, or if the block is below
the cutterhead body, measure this gap with
a feeler gauge. If the difference is more than

0.002", then the table needs to be adjusted from
left to right.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-47-

5. Place the block under the front of the head cast-
ing, to either side of the depth limiter tab. Raise
the table up so the block barely touches the
head casting as shown in Figure 66.

Figure 66. Block position.

6. Remove the block and place it between the

middle-rear of the head casting and the table.
If there is a gap or it will not fit under the head
casting, measure the difference with a feeler
gauge. If this measurement is more than 0.002",
then the table needs to be adjusted from front
to back.

To adjust table more than 0.016":

1. Remove the side cabinet plate.

2. On the underside of the table there is a chain
drive and five sprockets as shown in Figure

67. The four sprockets in the corners control

the movement of the table columns. The fifth
sprocket is the idler sprocket that controls the
chain tension. Loosen the two bolts on the idler
sprocket bracket (see Figure 67) to loosen the
chain so that each sprocket can be rotated on its
own. Make sure to hold the chain away from the
sprocket while you adjust it.

Idler Sprocket Bracket

7. There are two methods to adjust the table on
the Model ST1007/ST1012/ST1014. The first is
for adjustments smaller than 0.016" and the sec­ond is for adjustments larger than 0.016".

Figure 67. Chain drive system.

3. Moving the sprockets clockwise lowers the table

and moving them counterclockwise raises the
table. Each tooth on the corner sprockets equals

0.016" of vertical movement when the cogs are
turned (See illustration in Figure 68). Make sure,
as you adjust each sprocket, that you count the
number of teeth that pass a fixed point.

Figure 68. Sprocket ratio.

-48-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

To adjust table less than 0.016":

1. Use the table mounting screws shown in Figure

69. Loosen the screws and lift/lower the table

until the table and the cutterhead body are
parallel with each other and the table is parallel
with the head casting from front to back. This
may require some trial and error.

Calibrating Table

Height Scale

Although correctly set at the factory, the table height
scale can be adjusted for accuracy if it becomes nec­essar y.

Tools Needed ..................................................................... Qty

Hex Wrench 4mm ................................................................. 1

Scrap Piece of Stock ............................................................ 1

Calipers..................................................................................... 1

Table Mounting

Set Screws

Figure 69. Table mounting screws.

2. Adjust each column on both sides until the table

is properly set. While adjusting the columns,
tighten each screw after each step to ensure
accurate results.

3. After you have the table adjusted to within

0.016" from front-to-back and from side-to-side,
tighten the chain so all of the slack is removed.

4. Now follow the next instructions for adjusting
the table when it is less than 0.016" from its
proper position.

To reposition scale:

1. Plane a scrap piece of stock until it is flat and of

even thickness along its length.

Note: Turn board over between each pass.

2. Use calipers to measure board thickness board
thickness and table height scale reading should
be identical.

— If there is a discrepancy between board thick-

ness and reading on table height scale, loosen
both screws shown in Figure 70, adjust scale
in relation to pointer, then re-tighten screws.

Screws

NOTICE

DO NOT let chain fall off sprockets. It can
be very difficult to return chain to its proper
location on sprockets without changing table
adjustments.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Scale

& Pointer

Figure 70. Location of table height scale.

-49-

Aligning Pulleys

Proper pulley alignment prevents premature V-belt
wear and unnecessary load on the motor. It also
ensures efficient and effective transfer of power. The
pulleys are properly aligned when they are parallel
and in the same plane as each other.

Tools Needed Qty

Straightedge 3' ...................................................................... 1

Hex Wrench 6mm ................................................................. 1

Open-End Wrench or Socket 13mm.............................. 1

To check/re-align pulleys:

1. DISCONNECT MACHINE FROM POWER!

2. Remove both cabinet covers and belt cover,

then use straightedge to check pulley align­ment, as shown in Figure 71.

— If pulleys are not parallel, loosen four motor

mount hex nuts (see Figure 72), shift motor
on its mount until pulleys are parallel, then
re-tighten motor mount hex nuts.

Figure 72. Location of motor mount hex nuts.

— If pulleys are not in same plane, loosen cap

screw or hex bolt that secures pulley to shaft,
adjust pulleys in or out until they are in plane,
then re-tighten cap screws.

Figure 71. Checking pulley alignment.

3. Re-check pulleys and repeat Step 2 if necessary.

4. Once pulleys are properly aligned, re-tighten all

fasteners, then replace belt cover and cabinet
covers.

-50-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1007 & ST1012 Electrical Components

Start Button

Control

Box

Power Lamp

Figure 73. ST1007 & ST1012 control panel.

Start

Capacitor

Stop Button

Run

Capacitor

Figure 74. ST1007 & ST1012 capacitors.

Motor

Contactor

Motor

Capacitors

Inside

Motor Thermal

Relay

Figure 75. ST1007 & ST1012 magnetic switch assembly.

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-51-

Hot

Ground

Control Box

Ground

ST1007 Wiring Diagram

CONTROL PANEL

(from Behind)

START

POWER

STOP

G

Hot

240

VAC

6-20 Plug

240V

A1

1L1 5L3 13NO

3L2

NHD C-09D

ContactorThermal Overload Relay

2T1 6T3

4T2

14NO

A2

NHD NTH-21

21

17

20

18

R

O

MAGNETIC

SWITCH ASSY

Ground

-52-

98

97

2T1 6T34T2

96 95

Run

Capacitor

20MFD

450VAC

Start

Capacitor

200MFD

250VAC

MOTOR (240V, Single-Phase)

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Hot

Ground

Control Box

Ground

ST1012 Wiring Diagram

CONTROL PANEL

(from Behind)

START

POWER

STOP

G

Hot

240

VAC

6-20 Plug

240V

A1

1L1 5L3 13NO

3L2

NHD C-09D

ContactorThermal Overload Relay

2T1 6T3

4T2

14NO

A2

NHD NTH-21

21

17

20

18

R

O

MAGNETIC

SWITCH ASSY

Ground

98

97

96 95

2T1 6T34T2

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Run

Capacitor

40MFD

450VAC

Start

Capacitor

250MFD

250VAC

MOTOR (240V, Single-Phase)

-53-

ST1014 Electrical Components

Figure 76. Motor junction box.

Figure 77. Capacitors.

Start

Figure 78. ST1014 control panel (viewed from

Power

behind).

Stop

Figure 79. ST1014 magnetic switch assembly.

-54-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Control Box

Ground

240 VAC

L6-30 PLUG

Ground

Gn

Rd

A1

ST1014 Wiring Diagram

CONTROL PANEL (viewed from behind)

COLOR KEY

BLACK

WHITE

GREEN

RED

BLUE

G

Bk

Wt

Gn

Rd

Bl

Rd

Gn

POWER

Bk

Wt

Gn

Gn

STOP

Rd

Rd

Rd

Rd

Bk

Rd

Rd

Hot

Gn

X

Wt

Bk

Y

Hot

START

Wt

Rd

Bl

Rd

Gn

Bl

Wt

Rd

Bl

Bk

Gn

Wt

Wt

Bk

Rd

Rd

Bk

Bl

Rd

1L1 5L3 13NO

3L2

17

NHD C-35D

ContactorThermal Overload Relay

2T1 6T3

4T2

18

14NO

GROUND

A2

Rd

NHD NTH-32

26

32

28

31

30

98

97

2T1 6T34T2

Bk

96 95

R

O

Wt

Rd

Rd

Gn

Bk

Wt

240V

MOTOR

Bk

Wt

Gn

Ground

Bk

Bk

Wt

Wt

Rd

Rd

Start

Capacitor

300MFD
300VAC

Run

Capacitor

60MFD

450VAC

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-55-

ST1007/ST1012 PARTS

ST1007/ST1012 Main Breakdown

60

59
58

30-7

30-1

30-2

62

30-8

30-4

44

64

45

46

63

30-10

30-3

30-5

66

65

30-9

30-6

55

56

30

26

27

44

45

27

81

82

83

43

77

37

41

42

50

78

51

79

53

54

80

36

35

35

36

38

39

52

76

57

14

73

70

71

69

68

67

72-3

72

25

72-1

75

72-2

74

72-4

61

14

4

5

7

2

8

49

10

11

16

47

21

22

24

20

48

14

1

19

18

17

23

3

6

9

15

12

-56-

13

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1007/ST1012 Main Parts List

30 XST1007030 MOTOR 3HP 240V 1-PH
30-1 XST1007030-1 MOTOR FAN COVER
30-2 XST1007030-2 MOTOR FAN
30-3 XST1007030-3 CAPACITOR COVER
30-4 XST1007030-4 R CAPACITOR 20M 450V
30-5 XST1007030-5 S CAPACITOR 200M 250V
30-6 XST1007030-6 MOTOR JUNCTION BOX
30-7 XST1007030-7 BALL BEARING 6204ZZ
30-8 XST1007030-8 BALL BEARING 6203ZZ
30-9 XST1007030-9 CENTRIFUGAL SWITCH 16MM 3450 RPM
30-10 XST1007030-10 CONTACT PLATE 16MM

30 XST1012030 MOTOR 3HP 240V 1-PH
30-1 XST1012030-1 MOTOR FAN COVER
30-2 XST1012030-2 MOTOR FAN
30-3 XST1012030-3 CAPACITOR COVER
30-4 XST1012030-4 R CAPACITOR 40M 450V
30-5 XST1012030-5 S CAPACITOR 250M 300V
30-6 XST1012030-6 MOTOR JUNCTION BOX
30-7 XST1012030-7 BALL BEARING 6204ZZ
30-8 XST1012030-8 BALL BEARING 6203ZZ
30-9 XST1012030-9 CENTRIFUGAL SWITCH 16MM 3450 RPM
30-10 XST1012030-10 CONTACT PLATE 16MM

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 XST1007001 RUBBER FOOT 49 XST1007049 HEX NUT M10-1.5
2 XST1007002 RELIEF BUSHING 50 XST1007050 BUSHING
3 XST1007003 UNIVERSAL WHEEL 51 XST1007051 MOTOR PLATE PIVOT SHAFT
4 XST1007004 HEX NUT M8-1.25 52 XST1007052 FLAT WASHER 10MM
5 XST1007005 FLAT WASHER 8MM 53 XST1007053 HEX NUT M10-1.5
6 XST1007006 HEX BOLT M8-1.25 X 65 54 XST1007054 HEX BOLT M10-1.5 X 75
7 XST1007007 REAR WHEEL SLEEVE 55 XST1007055 SET SCREW M8-1.25 X 12
8 XST1007008 EXT RETAINING RING 9MM 56 XST1007056 KEY 5 X 5 X 30
9 XST1007009 FLAT WASHER 12MM 57 XST1007057 HEX BOLT M8-1.25 X 20
10 XST1007010 SHAFT 12MM 58 XST1007058 HEX BOLT M6-1 X 16
11 XST1007011 FOOT PEDAL 59 XST1007059 STRAIN RELIEF
12 XST1007012 HEX NUT M8-1.25 60 XST1007060 CONTROL BOX
13 XST1007013 HEX BOLT M8-1.25 X 100 61 XST1007061 CONTROL BOX PEDESTAL
14 XST1007014 FLAT WASHER 8MM 62 XST1007062 TAP SCREW #10 X 3/8
15 XST1007015 HEX BOLT M8-1.25 X 50 63 XST1007063 CONTROL PANEL
16 XST1007016 FOOT PEDAL BRACKET 64 XST1007064 EMERGENCY STOP BUTTON
17 XST1007017 INT RETAINING RING 35MM 65 XST1007065 POWER LAMP
18 XST1007018 BALL BEARING 6202ZZ 66 XST1007066 ON BUTTON
19 XST1007019 LOCKING WHEEL 67 XST1007067 HEX NUT M5-.8
20 XST1007020 LOCKING WHEEL SLEEVE 68 XST1007068 FLAT WASHER 5MM
21 XST1007021 LOCK NUT M12-1.75 69 XST1007069 SWITCH PLATE
22 XST1007022 FLAT WASHER 12MM 70 XST1007070 HEX BOLT M6-1 X 10
23 XST1007023 LOCK NUT M12-1.75 71 XST1007071 FLAT WASHER 6MM
24 XST1007024 FOOT PEDAL CASTER BASE 72 XST1007072 MAGNETIC SWITCH ASSEMBLY
25 XST1007025 HEX BOLT M8-1.25 X 45 72-1 XST1007072-1 CONTACTOR NHD C-09D 230V
26 XST1007026 HEX NUT M8-1.25 72-2 XST1007072-2 OL RELAY NHD NTH-21 17-21A
27 XST1007027 FLAT WASHER 8MM 72-3 XST1007072-3 REAR MAG SW. COVER
35 XST1007035 FLAT WASHER 12MM 72-4 XST1007072-4 FRONT MAG SW. COVER
36 XST1007036 HEX NUT M12-1.75 73 XST1007073 PHLP HD SCR M5-.8 X 25
37 XST1007037 ADJUST BOLT 74 XST1007074 POWER CORD 12G 3W 72" 6-20P
38 XST1007038 SET SCREW M6-1 X 8 75 XST1007075 MOTOR CORD
39 XST1007039 COLLAR 76 XST1007076 SWITCH CORD
41 XST1007041 PLATE CONNECTING ROD 77 XST1007077 HEX WRENCH 2.5MM
42 XST1007042 SET SCREW M6-1 X 12 78 XST1007078 HEX WRENCH 3MM
43 XST1007043 MOTOR PLATE 79 XST1007079 HEX WRENCH 4MM
44 XST1007044 PHLP HD SCR M6-1 X 20 80 XST1007080 HEX WRENCH 6MM
45 XST1007045 COVER 81 XST1007081 WRENCH 8 X 10MM OPEN-ENDS
46 XST1007046 STAND 82 XST1007082 WRENCH 14 X 17MM OPEN-ENDS
47 XST1007047 HEX BOLT M10-1.5 X 55 83 XST1007083 WRENCH 17 X 19MM OPEN-ENDS
48 XST1007048 FLAT WASHER 10MM

ST1007 3HP Motor

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1012 3HP Motor

-57-

ST1007/ST1012 Headstock Parts Diagram

120

123

104

121

117

123

122

116

119

126

199

197

198

128

194

195

177

124

196

125

193

132

178

114

140

173

186

115

118

141

168

170

171

179

113

139

167

114

162

142

166

161

111

165

130

169

185

160

150

112

113

135

163

159

157

149

107

109

133

173

182

110

136

158

106

164

170

171

134

155

146

103

108

154

114

138

137

156

169

148

102

101
105

132

165

151

153

167

168

ST1007 Parts

147

200-1

200-2

129

127

131

152

145

144

143

ST1012 Parts

-58-

181

165

174

176

175

180

167

172

191

192

189

190

188

183

187

182

149

183

184

150

200

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1007/ST1012 Headstock Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 XST1007101 HANDLE 152 XST1007152 FLAT WASHER 6MM
102 XST1007102 HEX NUT M12-1.75 153 XST1007153 OUTFEED ROLLER SPROCKET
103 XST1007103 FLAT WASHER 12MM 154 XST1007154 DEPTH SCALE
104 XST1007104 FLAT WASHER 8MM 155 XST1007155 FLAT WASHER 6MM
105 XST1007105 HANDWHEEL 156 XST1007156 PHLP HD SCR M6-1 X 12
106 XST1007106 COLLAR 157 XST1007157 DEPTH SCALE POINTER
107 XST1007107 INT RETAINING RING 32MM 158 XST1007158 FLAT WASHER 6MM
108 XST1007108 BALL BEARING 6201ZZ 159 XST1007159 PHLP HD SCR M6-1 X 12
109 XST1007109 KEY 4 X 4 X 20 160 XST1007160 CUT LIMIT PLATE
110 XST1007110 WORM GEAR 161 XST1007161 PHLP HD SCR M6-1 X 8
111 XST1007111 WORM HOUSING 162 XST1007162 HEAD CASTING
112 XST1007112 CAP SCREW M5-.8 X 55 163 XST1007163 OUTFEED ROLLER
113 XST1007113 RETURN ROLLER 164 XST1007164 KEY 5 X 5 X 16
114 XST1007114 RETURN ROLLER BRACKET 165 XST1007165 COMPRESSION SPRING
115 XST1007115 CAP SCREW M8-1.25 X 14 166 XST1007166 OIL PORT
116 XST1007116 BELT COVER 167 XST1007167 BUSHING BLOCK
117 XST1007117 FEMALE KNOB M8-1.25 168 XST1007168 BUSHING BLOCK PLATE
118 XST1007118 FLANGE BOLT M6-1 X 12 169 XST1007169 HEX BOLT M8-1.25 X 16
119 XST1007119 DUST HOOD 170 XST1007170 SET SCREW M5-.8 X 12
120 XST1007120 CAP SCREW M8-1.25 X 20 171 XST1007171 HEX NUT M5-.8
121 XST1007121 HEX BOLT M6-1 X 10 172 XST1007172 CHIP BREAKER ADJUSTMENT ROD
122 XST1007122 HEX NUT M6-1 173 XST1007173 SET SCREW M6-1 X 20
123 XST1007123 FLAT WASHER 6MM 174 XST1007174 CHIP BREAKER
124 XST1007124 UPPER COVER 175 XST1007175 SET SCREW M6-1 X 18
125 XST1007125 FLANGE BOLT M6-1 X 12 176 XST1007176 HEX NUT M6-1
126 XST1007126 FOAM GASKET 177 XST1007177 STANDOFF HEX
127 XST1007127 GEAR BOX COVER 178 XST1007178 COLUMN LOCK ROD
128 XST1007128 V-BELT MX60 179 XST1007179 EXT RETAINING RING 12MM
129 XST1007129 CAP SCREW M8-1.25 X 45 180 XST1007180 LOCK WASHER 12MM
130 XST1007130 ROLL PIN 6 X 20 181 XST1007181 HEX NUT M12-1.75
131 XST1007131 GEARBOX COVER SHIELD 182 XST1007182 E-CLIP 15MM
132 XST1007132 FLANGE BOLT M6-1 X 10 183 XST1007183 SPACER
133 XST1007133 IDLE BRACKET 184 XST1007184 ANTI-KICKBACK FINGER
134 XST1007134 IDLE BRACKET SHAFT 185 XST1007185 ANTI-KICKBACK SHAFT
135 XST1007135 COLLAR 186 XST1007186 SET SCREW M8-1.25 X 16
136 XST1007136 EXTENSION SPRING 187 XST1007187 HEX BOLT M6-1 X 16
137 XST1007137 SPRING RETAINER 188 XST1007188 FLAT WASHER 6MM
138 XST1007138 CAP SCREW M6-1 X 8 189 XST1007189 SPROCKET
139 XST1007139 CHIP DEFLECTOR PLATE 190 XST1007190 CHAIN 06B-1 X 63
140 XST1007140 FLANGE BOLT M6-1 X 12 191 XST1007191 KEY 5 X 5 X 16
141 XST1007141 PLATE SPRING 192 XST1007192 INFEED ROLLER
142 XST1007142 FLANGE BOLT M6-1 X 12 193 XST1007193 FLAT WASHER 6MM
143 XST1007143 PLANER KNIVES 15" X 1" X 1/8" 3-PK 194 XST1007194 HEX BOLT M6-1 X 12
144 XST1007144 GIB (ST1007) 195 XST1007195 CUTTERHEAD PULLEY
145 XST1007145 GIB SCREW (ST1007) 196 XST1007196 MOTOR PULLEY
146 XST1007146 JACK SCREW NUT M5-.8 (ST1007) 197 XST1007197 COLLAR
147 XST1007147 JACK SCREW M5-.8 X 16 (ST1007) 198 XST1007198 HEX BOLT M8-1.25 X 20
148 XST1007148 CUTTERHEAD 15" 3-KNIFE (ST1007) 199 XST1007199 BELT GUARD
149 XST1007149 KEY 8 X 8 X 36 200 XST1012200 CUT TERHEAD 15" HELICAL (ST1012)
150 XST1007150 BALL BEARING 6205ZZ 200-1 XST1012200-1 FLAT HD TORX T20 M6-1 X 15 (ST1012)
151 XST1007151 HEX BOLT M6-1 X 16 200-2 XST1012200-2 CARBIDE INSERT 15 X 15 X 2.5 (ST1012)

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-59-

ST1007/ST1012 Gearbox Diagram & Parts List

220

201
242
241

240

234

209

211

202

205

233

232

229

228

231

230

227

221
222

243

209

210

217

208

226

225

213

239

235

238

215

212

219

213

223

216

224

204

203

206

207

214

218

237

236

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 XST1007201 GEARBOX COVER 223 XST1007223 COMPRESSION SPRING
202 XST1007202 HEX BOLT M6-1 X 25 224 XST1007224 STEEL BALL 4MM
203 XST1007203 SPROCKET 225 XST1007225 COMBO GEAR
204 XST1007204 FLAT WASHER 8MM 226 XST1007226 KEY 5 X 5 X 50
205 XST1007205 HEX BOLT M8-1.25 X 16 227 XST1007227 GEARBOX GASKET
206 XST1007206 CHAIN 06B-1 X 51 228 XST1007228 GEARBOX
207 XST1007207 ROUND KNOB M8-1.25 229 XST1007229 HEX BOLT M8-1.25 X 50
208 XST1007208 GEARED SHAFT 230 XST1007230 OIL DRAIN PLUG
209 XST1007209 BALL BEARING 6201-OPEN 231 XST1007231 FLANGE COVER
210 XST1007210 GEAR 232 XST1007232 CAP SCREW M5-.8 X 12
211 XST1007211 KEY 5 X 5 X 14 233 XST1007233 OIL SEAL 25 X 40 X 10
212 XST1007212 GEARED SHAFT 234 XST1007234 PIN 5 X 10
213 XST1007213 BALL BEARING 6201-OPEN 235 XST1007235 SHIFTER FORK
214 XST1007214 GEAR 236 XST1007236 SHIFTER SHAFT
215 XST1007215 KEY 5 X 5 X 10 237 XST1007237 O-RING 16 X 2.4
216 XST1007216 OIL SEAL 25 X 32 X 7 238 XST1007238 FLANGE BOLT M6-1 X 12
217 XST1007217 GEAR SHAFT 239 XST1007239 KEY 5 X 5 X 16
218 XST1007218 BALL BEARING 6204ZZ 240 XST1007240 BALL BEARING 6204-OPEN
219 XST1007219 EXT RETAINING RING 20MM 241 XST1007241 GEAR
220 XST1007220 BALL BEARING 6201ZZ 242 XST1007242 SET SCREW M6-1 X 20
221 XST1007221 PHLP HD SCR M6-1 X 8 243 XST1007243 FILL PLUG
222 XST1007222 FLAT WASHER 6MM

-60-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1007/ST1012 Lower Table Diagram & Parts List

318

316

313

305

315

327

310

333

306

320

307

319

313

321

305

320

322

323

305

324

329

309

301

311

326

325

308

302

328

314

313

317

312

320

303

329

304

303

304

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 XST1007301 CHAIN 12.7A X 134 316 XST1007316 GEAR
302 XST1007302 HEX BOLT M12-.175 X 45 317 XST1007317 KEY 4 X 4 X 12
303 XST1007303 FLAT WASHER 12MM 318 XST1007318 EXT RETAINING RING 12MM
304 XST1007304 LIFTING BAR 319 XST1007319 SPROCKET
305 XST1007305 COLUMN 320 XST1007320 KEY 5 X 5 X 16
306 XST1007306 BALL BEARING 6302ZZ 321 XST1007321 FLAT WASHER 10MM
307 XST1007307 INT RETAINING RING 42MM 322 XST1007322 HEX NUT M10-1.5
308 XST1007308 DRIVE COLUMN 323 XST1007323 CHAIN TENSION BRACKET
309 XST1007309 SPROCKET 324 XST1007324 EXT RETAINING RING 15MM
310 XST1007310 SET SCREW M10-1.5 X 12 325 XST1007325 FLAT WASHER 8MM
311 XST1007311 LEADSCREW 326 XST1007326 HEX BOLT M8-1.25 X 20
312 XST1007312 DRIVE LEADSCREW 327 XST1007327 INT RETAINING RING 40MM
313 XST1007313 LEADSCREW NUT 328 XST1007328 HEX NUT M12-1.75
314 XST1007314 CAP SCREW M6-1 X 20 329 XST1007329 EXT RETAINING RING 15MM
315 XST1007315 BUSHING 333 XST1007333 BASE

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-61-

ST1007/ST1012 Upper Table Diagram & Parts List

417

417-1

417-2

410

413

416

412

417-3

411

409

408

409

413

414

415

408

407

411

401

410

405

406

404

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 XST1007401 SET SCREW M8-1.25 X 20 412 XST1007412 SET SCREW M6-1 X 16
404 XST1007404 HEX BOLT M8-1.25 X 30 413 XST1007413 ECCENTRIC SHAFT
405 XST1007405 FLAT WASHER 8MM 414 XST1007414 BALL BEARING 6203ZZ
406 XST1007406 LOCK WASHER 8MM 415 XST1007415 BED ROLLER
407 XST1007407 EXTENSION WING 416 XST1007416 MAIN TABLE
408 XST1007408 KNOB M12-1.75 FEMALE 417 XST1007417 KNIFE-SETTING JIG (ST1007)
409 XST1007409 WEDGE DOG 417-1 XST1007417-1 EXT RETAINING RING 8MM (ST1007)
410 XST1007410 GIB 417-2 XST1007417-2 KNIFE-SETTING JIG FOOT (ST1007)
411 XST1007411 LOCK BAR 417-3 XST1007417-3 KNIFE-SETTING JIG SHAFT (ST1007)

-62-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST007/ST1012 Label Placement

ST1007 Machine Labels A

(02/23/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

***IMPORTANT***: This label must have individual letters/numbers. Do not print with clear background.

(02/17/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call

(

360) 734-3482.

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

(02/17/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COLOR CODES

PANTONE 151 C or RAL 2005WARNING

PANTONE YELLOW C

CAUTION

Only shift gearbox when
planer is running.

Neutral

30 FPM

16 FPM

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call

(

360) 734-3482.

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

ST1007 Machine Labels B

(02/17/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COLOR CODES

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call

(

360) 734-3482.

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
(

360) 734-3482.

WARNING!

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

)

734-3482.

WARNING!

ST1007 Machine Labels C

(02/22/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

(02/17/16)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

COLOR CODES

PANTONE 151 C or RAL 2005

WARNING

PANTONE YELLOW C

CAUTION

Only shift gearbox when
planer is running.

Neutral

30 FPM

16 FPM

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call

(

360) 734-3482.

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

ST1007

ST1014 Machine Labels A

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COLOR CODES

DANGER

PANTONE 485 C or RAL 3001

PANTONE 151 C or RAL 2005

WARNING

***IMPORTANT***: This label must have individual letters/numbers. Do not print with clear background.

MODEL ST1014

20" PLANER WITH HELICAL CUTTERHEAD

1. Read and understand owner’s manual before
operating.

2. Always wear approved eye protection, hearing
protection, and respirator.

3. Disconnect power before setup, adjustments, or

service.

4. Keep all guards in place and in proper operating

condition.

5. Be aware of "kickback" hazards and how to

prevent them.

6. Plug power cord into grounded outlet only.

7. Make sure machine is correctly set up, adjusted, and
rests securely on flat, level ground before operating.

8. Do not wear loose clothing, gloves, jewelry, or other
items that can get entangled. Tie back long hair and
roll up sleeves.

9. Do not plane boards with cracks, loose knots, or any
other defects.

10. Never make adjustments to the table during cutting
operation.

Specifications

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 100

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Weight: 771 lbs.

Date

Serial Number

Manufactured for Woodstock in China

To reduce the risk of serious injury when using this machine:

11. Do not reach into the cutting area while machine is
running.

12. Stand clear of board ends while planing.

13. Only operate in dry environment free of rain or
dampness.

14. Do not operate under the influence of drugs or
alchohol.

15. Prevent unauthorized use by children or untrained
users; restrict access or disable machine when
unattended.

WARNING!

ST1012

ST1014 Machine Labels A

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COLOR CODES

DANGER

PANTONE 485 C or RAL 3001

PANTONE 151 C or RAL 2005

WARNING

***IMPORTANT***: This label must have individual letters/numbers. Do not print with clear background.

MODEL ST1014

20" PLANER WITH HELICAL CUTTERHEAD

1. Read and understand owner’s manual before

operating.

2. Always wear approved eye protection, hearing
protection, and respirator.

3. Disconnect power before setup, adjustments, or

service.

4. Keep all guards in place and in proper operating

condition.

5. Be aware of "kickback" hazards and how to

prevent them.

6. Plug power cord into grounded outlet only.

7. Make sure machine is correctly set up, adjusted, and
rests securely on flat, level ground before operating.

8. Do not wear loose clothing, gloves, jewelry, or other
items that can get entangled. Tie back long hair and
roll up sleeves.

9. Do not plane boards with cracks, loose knots, or any
other defects.

10. Never make adjustments to the table during cutting
operation.

Specifications

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 100

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Weight: 771 lbs.

Date

Serial Number

Manufactured for Woodstock in China

To reduce the risk of serious injury when using this machine:

11. Do not reach into the cutting area while machine is
running.

12. Stand clear of board ends while planing.

13. Only operate in dry environment free of rain or
dampness.

14. Do not operate under the influence of drugs or
alchohol.

15. Prevent unauthorized use by children or untrained
users; restrict access or disable machine when
unattended.

WARNING!

REF PART # DESCRIPTION REF PART # DESCRIPTION

Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine MUST
maintain the original location and readability of the labels on the machine. If any label is removed
or becomes unreadable, REPLACE that label before using the machine again. Contact Woodstock
International, Inc. at [phone] or www.shopfoxtools.com to order new labels.

508

501

STOP

WARNING!

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call

(

360) 734-3482.

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

510

POWER

509

START

Specifications

Motor: 3 HP, 240V, 1-Ph, 60 Hz

Full-Load Current: 15A

Maximum Depth of Cut: 1/8"

Minimum Stock Thickness: 3/16"

Minimum Stock Length: 8"

Maximum Cutting Height: 8"

Maximum Cutting Width: 15"

Feed Rates: 16 & 30 FPM

Replacement Knives: D3635

Do not open this cover while machine
is connected to power or is running.
Disconnect power before servicing.
Failure to comply will result in serious
personal injury.

Cutterhead Speed: 4800 RPM

Cutterhead: 3" Dia., 3-Knife

Knife Size: 15" x 1" x 1/8"

Weight: 640 Lbs.

Mfd. for Woodstock in China

Manufactured for Woodstock in China

WARNING!

To reduce the risk of serious injury when using this machine:

1. Read & understand owner’s manual before
operating.

2. Always wear approved eye and hearing protection
and respirator.

3. Disconnect power before setup, adjustments, or
service.

Date

Date

4. Keep all guards in place and in proper operating
condition.

Serial Number

S/N

5. Be aware of "kickback" hazards and how to
prevent them.

503

MODEL ST1007

15" PLANER WITH MOBILE BASE

WARNING!

6. Plug power cord into grounded outlet only.

7. Make sure machine is correctly set up, adjusted, and
rests securely on flat, level ground before operating.

8. Do not wear loose clothing, gloves, jewelry, or other
items that can get entangled. Tie back long hair and
roll up sleeves.

9. Do not plane boards with cracks, loose knots, or any
other defects.

10. Never make adjustments to the table during cutting
operation.

11. Do not reach into the cutting area while machine is
running.

12. Stand clear of board ends while planing.

13. Only operate in dry environment free of rain or
dampness.

14. Do not operate under the influence of drugs or
alchohol.

15. Prevent unauthorized use by children or untrained
users; restrict access or disable machine when
unattended.

Do not open this cover while machine
is connected to power or is running.
Disconnect power before servicing.
Failure to comply will result in serious
personal injury.

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

Only shift gearbox when
planer is running.

WARNING!

511

502V2

505

30 FPM

504

Neutral

16 FPM

503

507

501 XST1007501 EYE/EAR/LUNG HAZARD LABEL 507 XST1007507 STEELEX LOGO PLATE
502V2 XST1007502V2 MACHINE ID LABEL W/CSA (ST1007) V2.01.17 508 XST1007508 READ MANUAL LABEL
502V2 XST1012502V2 MACHINE ID LABEL W/CSA (ST1012) V2.01.17 509 XST1007509 ELECTRICITY LABEL
503 XST1007503 DO NOT OPEN COVER LABEL 510 XST1007510 CONTROL PANEL LABEL
504 XST1007504 DISCONNECT POWER LABEL 511 XST1007511 TOUCH-UP PAINT, STEELEX TAN
505 XST1007505 SHIFT GEARBOX LABEL 512 XST1007512 PINSTRIPE TAPE
506 XST1007506 MODEL NUMBER LABEL (ST1007) 513 XST1007513 TOUCH-UP PAINT, STEELEX BLACK
506 XST1012506 MODEL NUMBER LABEL (ST1012)

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

512

513

506

-63-

20

114

112

23

19

ST1014 PARTS

ST1014 Headstock Breakdown

3

2

6

12

9

8

11

104

105

102

106

21

108

20

37

100

22

101

44

14

107

38

39

15

46

47

45
93

109

40

110

72

75

76

14

67

15

41

13

42

70

71

73

74

31-1

27

43

66

68

13

65

33

87

62

88

79

78

63

31-2

32

86

31

34

64

10

14

31-3

30

36

35

60

61

59

69

75

76

82

81

7

5

24

28

30

56

70

72

73

74

80

29

58

1

26

51

50

48

52

54

53

55

57

77

82

84

83

89

-64-

72

75

76

111

70

103

73

74

99

98

75

76

70

96

94

74

72

85

73

115

95

91

90

90

89

97

92

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1014 Headstock Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 XST1014001 HANDLE 53 XST1014053 CUTTERHEAD 20" HELICAL
2 XST1014002 HEX NUT M12-1.75 54 XST1014054 KEY 8 X 8 X 36
3 XST1014003 FLAT WASHER 12MM 55 XST1014055 BALL BEARING 6206ZZ
5 XST1014005 HANDWHEEL 56 XST1014056 HEX BOLT M6-1 X 16
6 XST1014006 COLLAR 57 XST1014057 FLAT WASHER 6MM
7 XST1014007 INT RETAINING RING 32MM 58 XST1014058 SPROCKET
8 XST1014008 BALL BEARING 6201-2RS 59 XST1014059 DEPTH-OF-CUT SCALE
9 XST1014009 KEY 4 X 4 X 20 60 XST1014060 FLAT WASHER 6MM
10 XST1014010 WORM GEAR 61 XST1014061 PHLP HD SCR M6-1 X 12
11 XST1014011 WORM HOUSING 62 XST1014062 DEPTH-OF-CUT POINTER
12 XST1014012 CAP SCREW M6-1 X 55 63 XST1014063 FLAT WASHER 6MM
13 XST1014013 RETURN ROLLER 64 XST1014064 PHLP HD SCR M6-1 X 12
14 XST1014014 RETURN ROLLER BRACKET 65 XST1014065 DEPTH LIMITER
15 XST1014015 CAP SCREW M6-1 X 16 66 XST1014066 HEX BOLT M5-.8 X 12
19 XST1014019 DUST HOOD 67 XST1014067 HEAD CASTING
20 XST1014020 FLANGE BOLT M6-1 X 12 68 XST1014068 OUTFEED ROLLER
21 XST1014021 UPPER COVER 69 XST1014069 KEY 5 X 5 X 22
22 XST1014022 FLANGE BOLT M6-1 X 12 70 XST1014070 COMPRESSION SPRING
23 XST1014023 GASKET 71 XST1014071 OIL PORT
24 XST1014024 GEARBOX COVER 72 XST1014072 BUSHING BLOCK
26 XST1014026 CAP SCREW M8-1.25 X 40 73 XST1014073 BUSHING BLOCK PLATE
27 XST1014027 ROLL PIN 6 X 20 74 XST1014074 HEX BOLT M8-1.25 X 20
28 XST1014028 GEARBOX COVER PLATE (R) 75 XST1014075 SET SCREW M6-1 X 20
29 XST1014029 GEARBOX COVER PLATE (L) 76 XST1014076 HEX NUT M6-1
30 XST1014030 FLANGE BOLT M6-1 X 10 77 XST1014077 LOCKING ROD
31 XST1014031 CHAIN TENSIONER BRACKET ASSEMBLY 78 XST1014078 SET SCREW M6-1 X 16
31-1 XST1014031-1 BRACKET 79 XST1014079 CHIP BREAKER
31-2 XST1014031-2 IDLER PULLEY 80 XST1014080 SET SCREW M6-1 X 20
31-3 XST1014031-3 IDLER SHAFT 81 XST1014081 HEX NUT M6-1
32 XST1014032 SHAFT 82 XST1014082 LOCKING ROD BRACKET
33 XST1014033 COLLAR 83 XST1014083 CHIP BREAKER SHAFT
34 XST1014034 EXTENSION SPRING 84 XST1014084 EXT RETAINING RING 12MM
35 XST1014035 SPRING BRACKET 85 XST1014085 HEX NUT M12-1.75
36 XST1014036 CAP SCREW M6-1 X 10 86 XST1014086 PRESSURE PLATE
37 XST1014037 CHIP DEFLECTOR PLATE 87 XST1014087 HEX BOLT M8-1.25 X 20
38 XST1014038 FLANGE BOLT M6-1 X 15 88 XST1014088 LOCK WASHER 8MM
39 XST1014039 FLAT WASHER 6MM 89 XST1014089 E-CLIP 15MM
40 XST1014040 PLATE SPRING (FRONT ) 90 XST1014090 SPACER
41 XST1014041 FLANGE BOLT M6-1 X 12 91 XST1014091 ANTI-KICKBACK FINGER
42 XST1014042 PLATE SPRING (REAR) 92 XST1014092 ANTI-KICKBACK SHAFT
43 XST1014043 FLANGE BOLT M6-1 X 12 93 XST1014093 SET SCREW M8-1.25 X 12
44 XST1014044 ADJUSTING SHAFT 94 XST1014094 HEX BOLT M6-1 X 16
45 XST1014045 SET SCREW M6-1 X 12 95 XST1014095 FLAT WASHER 6MM
46 XST1014046 SET SCREW M6-1 X 20 96 XST1014096 SPROCKET
47 XST1014047 HEX NUT M6-1 97 XST1014097 CHAIN 06B-1 X 67
48 XST1014048 INDEXABLE INSERT 15 X 15 X 2.5MM 98 XST1014098 KEY 5 X 5 X 22
50 XST1014050 FLAT HD TORX SCR T20 M6-1 X 15 99 XST1014099 INFEED ROLLER
51 XST1014051 L-WRENCH TORX T20 100 XST1014100 HEX BOLT M6-1 X 12
52 XST1014052 DRIVER BIT TORX T20 101 XST1014101 FLAT WASHER 6MM

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-65-

ST1014 Headstock Parts List Continued

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 XST1014101 FLAT WASHER 6MM 108 XST1014108 BELT COVER STAND-OFF
102 XST1014102 CUTTERHEAD PULLEY 109 XST1014109 FLAT WASHER 8MM
103 XST1014103 MOTOR PULLEY 110 XST1014110 HEX NUT M8-1.25
104 XST1014104 FLAT WASHER 8MM 111 XST1014111 COGGED V-BELT MX-60
105 XST1014105 HEX BOLT M8-1.25 X 25 112 XST1014112 BELT COVER
106 XST1014106 BELT GUARD 114 XST1014114 STAR KNOB M8-1.25
107 XST1014107 FLANGE BOLT M6-1 X 10 115 XST1014115 LOCK WASHER 12MM

-66-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1014 Gearbox Breakdown and Parts List

201

202

234

209

211

208

210

204

203

205

215

219

238

213

207

214

206

236

237

235

233

229

228

230

231

232

227
221
222

240

220

217

225

239

226

209

212

213

216
218

223

224

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 XST1014201 GEAR BOX COVER 221 XST1014221 PHLP HD SCR M6-1 X 8
202 XST1014202 CAP SCREW M6-1 X 25 222 XST1014222 FLAT WASHER 6MM
203 XST1014203 SPROCKET 223 XST1014223 COMPRESSION SPRING
204 XST1014204 FLAT WASHER 8MM 224 XST1014224 STEEL BALL 4MM
205 XST1014205 HEX BOLT M8-1.25 X 16 225 XST1014225 COMBO GEAR
206 XST1014206 CHAIN 06B-1 X 51 226 XST1014226 KEY 5 X 5 X 50
207 XST1014207 BALL KNOB M10-1.5 227 XST1014227 GASKET
208 XST1014208 GEARED SHAFT 228 XST1014228 GEARBOX
209 XST1014209 BALL BEARING 6201ZZ 229 XST1014229 CAP SCREW M8-1.25 X 50
210 XST1014210 GEAR 230 XST1014230 DRAIN PLUG
211 XST1014211 KEY 5 X 5 X 14 231 XST1014231 FLANGE COVER
212 XST1014212 GEARED SHAFT 232 XST1014232 FLAT HD CAP SCR M5-.8 X 12
213 XST1014213 BALL BEARING 6201ZZ 233 XST1014233 OIL SEAL 25 X 40 X 10
214 XST1014214 GEAR 234 XST1014234 PIN 5 X 10
215 XST1014215 KEY 5 X 5 X 10 235 XST1014235 SHIFTING FORK
216 XST1014216 OIL SEAL 20 X 35 X 7 236 XST1014236 HANDLE SHAFT
217 XST1014217 SHAFT 237 XST1014237 O-RING 16 X 2.4
218 XST1014218 BALL BEARING 6204ZZ 238 XST1014238 HEX LOCTITE SCREW
219 XST1014219 EXT RETAINING RING 20MM 239 XST1014239 KEY 5 X 5 X 16
220 XST1014220 BALL BEARING 6201ZZ 240 XST1014240 FILL PLUG

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-67-

ST1014 Cabinet Breakdown

303

368

369

302

326

361

359

324

370

358

371

360

323

350-2

366

372

373

362

374

365

350-3

350-4

363

364

350-1

310

322

317-2

309

317-1

317-9

307

317-3

317-4

350

351

317-10

318
320
319

305

317-5

317-7

313

301

319

321

306

312

317-6

317-8

317

304

308

315

316

316

315

314

354

324

-68-

325

327

357

367

356

336

329

333

311

332

338

330

334

335

331

336

352

328

349

353

338

348

337

347

346

345

344

343

342

341

340

339

355

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1014 Cabinet Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 XST1014301 ENCLOSED STAND 335 XST1014335 HEX NUT M10-1.5
302 XST1014302 COVER 336 XST1014336 FLAT WASHER 10MM
303 XST1014303 FLAT HD SCR M6-1 X 20 337 XST1014337 HEX BOLT M8-1.25 X 100
304 XST1014304 MOTOR PLATE 338 XST1014338 FLAT WASHER 8MM
305 XST1014305 SET SCREW M6-1 X 12 339 XST1014339 LOCKING WHEEL AXLE BOLT
306 XST1014306 PLATE PIVOT ROD 340 XST1014340 INT RETAINING RING 35MM
307 XST1014307 SET SCREW M6-1 X 12 341 XST1014341 BALL BEARING 6202ZZ
308 XST1014308 PLATE CONNECTING ROD 342 XST1014342 LOCKING WHEEL
309 XST1014309 HEX BOLT M10-1.5 X 70 343 XST1014343 SLEEVE
310 XST1014310 FLAT WASHER 10MM 344 XST1014344 FOOT PEDAL CASTER BASE
311 XST1014311 HEX NUT M10-1.5 345 XST1014345 FLAT WASHER 12MM
312 XST1014312 COLLAR 346 XST1014346 LOCK NUT M12-1.75
313 XST1014313 SET SCREW M6-1 X 8 347 XST1014347 HEX BOLT M10-1.5 X 55
314 XST1014314 ADJUST BOLT 348 XST1014348 FOOT PEDAL BRACKET
315 XST1014315 HEX NUT M12-1.75 349 XST1014349 FOOT
316 XST1014316 FLAT WASHER 12MM 350 XST1014350 MAGNETIC SWITCH ASSY
317 XST1014317 MOTOR 5HP 240V 1-PH 350-1 XST1014350-1 MAG SWITCH FRONT COVER
317-1 XST1014317-1 MOTOR FAN COVER 350-2 XST1014350-2 MAG SWITCH BOX
317-2 XST1014317-2 MOTOR FAN 350-3 XST1014350-3 CONTACTOR NHD C-35D 220V
317-3 XST1014317-3 R CAPACITOR 60M 450V 350-4 XST1014350-4 OL RELAY NHD NTH-32 26-32A
317-4 XST1014317-4 S CAPACITOR 300M 300V 351 XST1014351 BUTTON HD CAP SCR M5-.8 X 20
317-5 XST1014317-5 MOTOR JUNCTION BOX 352 XST1014352 FLAT WASHER 5MM
317-6 XST1014317-6 MOTOR LABEL 353 XST1014353 HEX NUT M5-.8
317-7 XST1014317-7 CENTRIFUGAL SWITCH 20MM 3450 354 XST1014354 FRONT COVER
317-8 XST1014317-8 CONTACT PLATE 3/4 355 XST1014355 BUTTON HD CAP SCR M6-1 X 20
317-9 XST1014317-9 BALL BEARING 6206ZZ (FRONT) 356 XST1014356 FLANGE BOLT M8-1.25 X 20
317-10 XST1014317-10 BALL BEARING 6204ZZ (REAR) 357 XST1014357 CONTROL PANEL PEDESTAL ARM
318 XST1014318 KEY 5 X 5 X 30 358 XST1014358 FLANGE BOLT M6-1 X 16
319 XST1014319 FLAT WASHER 8MM 359 XST1014359 FLANGE BOLT M6-1 X 16
320 XST1014320 HEX NUT M8-1.25 360 XST1014360 STRAIN RELIEF
321 XST1014321 HEX BOLT M8-1.25 X 45 361 XST1014361 CONTROL PANEL BOX
322 XST1014322 STRAIN RELIEF 362 XST1014362 CONTROL PANEL
323 XST1014323 HEX NUT M8-1.25 363 XST1014363 START BUTTON
324 XST1014324 FLAT WASHER 8MM 364 XST1014364 INDICATOR LIGHT
325 XST1014325 SLEEVE 365 XST1014365 STOP BUTTON
326 XST1014326 REAR WHEEL 366 XST1014366 TAP SCREW M4 X 8
327 XST1014327 HEX BOLT M8-1.25 X 65 367 XST1014367 POWER CORD 12G 3W 72" L6-30P
328 XST1014328 RUBBER FOOT 368 XST1014368 HEX WRENCH 2.5MM
329 XST1014329 EXT RETAINING RING 9MM 369 XST1014369 HEX WRENCH 3MM
330 XST1014330 FLAT WASHER 12MM 370 XST1014370 HEX WRENCH 4MM
331 XST1014331 SHAFT 12MM 371 XST1014371 HEX WRENCH 6MM
332 XST1014332 CAP SCREW M8-1.25 X 50 372 XST1014372 WRENCH 8 X 10MM OPEN-ENDS
333 XST1014333 FLAT WASHER 8MM 373 XST1014373 WRENCH 14 X 17MM OPEN-ENDS
334 XST1014334 HEX NUT M8-1.25 374 XST1014374 WRENCH 17 X 19MM OPEN-ENDS

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-69-

413

ST1014 Table Breakdown and Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

406

404

404

405

403

403

408

402

407

407

409

404

403

404

403

402

409

410

408

406

401 XST1014401 MAIN TABLE 408 XST1014408 LOCKING ROD
402 XST1014402 BED ROLLER 409 XST1014409 STAR KNOB M12-1.75
403 XST1014403 BALL BEARING 6201ZZ 410 XST1014410 EXTENSION WING
404 XST1014404 ECCENTRIC SHAFT 411 XST1014411 LOCK WASHER 8MM
405 XST1014405 SET SCREW M6-1 X 12 412 XST1014412 FLAT WASHER 8MM
406 XST1014406 LOCK BAR 413 XST1014413 HEX BOLT M8-1.25 X 35
407 XST1014407 GIB 414 XST1014414 SET SCREW M8-1.25 X 20

401

414

412

411

-70 -

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

ST1014 Columns Breakdown and Parts List

517 XST1014517 KEY 4 X 4 X 12

528

501

510

511

520

528

506

507

519

533

513

505

511

520

521

522

505

505

526

524

523

511

529

527

525

513

508

528

518

515

504

503

516

509

514

513

517

512

520

532

531

502

530

504

528

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 XST1014501 BASE 518 XST1014518 EXT RETAINING RING 12MM
502 XST1014502 HEX BOLT M12-1.75 X 60 519 XST1014519 SPROCKET
503 XST1014503 HEX NUT M12-1.75 520 XST1014520 KEY 5 X 5 X 16
504 XST1014504 FLAT WASHER 12MM 521 XST1014521 FLAT WASHER 10MM
505 XST1014505 COLUMN 522 XST1014522 HEX NUT M10-1.5
506 XST1014506 BALL BEARING 6202ZZ 523 XST1014523 CHAIN TENSION BRACKET
507 XST1014507 INT RETAINING RING 35MM 524 XST1014524 EXT RETAINING RING 15MM
508 XST1014508 DRIVE COLUMN 525 XST1014525 HEX BOLT M8-1.25 X 25
509 XST1014509 INT RETAINING RING 38MM 526 XST1014526 SPROCKET
510 XST1014510 SET SCREW M10-1.5 X 12 527 XST1014527 FLAT WASHER 8MM
511 XST1014511 LEAD SCREW 528 XST1014528 LIFTING BAR
512 XST1014512 DRIVE LEAD SCREW 529 XST1014529 EXT RETAINING RING 21MM
513 XST1014513 LEADSCREW NUT 530 XST1014530 DUST BOOT FLANGE CUFF
514 XST1014514 CAP SCREW M8-1.25 X 20 531 XST1014531 PHLP HD SCR M5-.8 X 10
515 XST1014515 BUSHING 532 XST1014532 DUST BOOT
516 XST1014516 WORM GEAR 533 XST1014533 CHAIN 08A-1 X 66

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-71-

ST1014

ST1014 Machine Labels A

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COLOR CODES

DANGER

PANTONE 485 C or RAL 3001

PANTONE 151 C or RAL 2005

WARNING

***IMPORTANT***: This label must have individual letters/numbers. Do not print with clear background.

MODEL ST1014

20" PLANER WITH HELICAL CUTTERHEAD

1. Read and understand owner’s manual before
operating.

2. Always wear approved eye protection, hearing
protection, and respirator.

3. Disconnect power before setup, adjustments, or

service.

4. Keep all guards in place and in proper operating

condition.

5. Be aware of "kickback" hazards and how to

prevent them.

6. Plug power cord into grounded outlet only.

7. Make sure machine is correctly set up, adjusted, and
rests securely on flat, level ground before operating.

8. Do not wear loose clothing, gloves, jewelry, or other
items that can get entangled. Tie back long hair and
roll up sleeves.

9. Do not plane boards with cracks, loose knots, or any
other defects.

10. Never make adjustments to the table during cutting
operation.

Specifications

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 100

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Weight: 771 lbs.

Date

Serial Number

Manufactured for Woodstock in China

To reduce the risk of serious injury when using this machine:

11. Do not reach into the cutting area while machine is
running.

12. Stand clear of board ends while planing.

13. Only operate in dry environment free of rain or
dampness.

14. Do not operate under the influence of drugs or
alchohol.

15. Prevent unauthorized use by children or untrained
users; restrict access or disable machine when
unattended.

WARNING!

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

360) 734-3482.

WARNING!

(03/04/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

STOP

START

POWER

(03/03/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

ST1014 Machine Labels B

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to

www.shopfox.biz

[phone].

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

ROTATING

CUTTERHEAD BELOW!

WARNING!

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval. If artwork changes are required, contact us immediately at

[e-mail].

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

PANTONE 151 C or RAL 2005

WARNING

CAUTION

PANTONE 109 C

COLOR CODES

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval.

If artwork changes are required, contact us immediately at

[e-mail].

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

Only shift gearbox when
planer is running.

Neutral

20 FPM

16 FPM

Do not operate with this
guard removed. Failure
to comply may result in

ROTATING

CUTTERHEAD BELOW!

PANTONE 151 C or RAL 2005

WARNING

CAUTION

PANTONE 109 C

COLOR CODES

WARNING!

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

COPYRIGHT © WOODSTOCK INTERNATIONAL, INC.

FOR SHOP FOX MACHINES ONLY! DO NOT REPRODUCE OR CHANGE THIS ARTWORK

WITHOUT WRITTEN APPROVAL!

Woodstock will not accept labels changed without

approval.

If artwork changes are required, contact us immediately at

[e-mail].

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

Only shift gearbox when
planer is running.

Neutral

20 FPM

16 FPM

Do not operate with this
guard removed. Failure
to comply may result in

ROTATING

CUTTERHEAD BELOW!

PANTONE 151 C or RAL 2005

WARNING

CAUTION

PANTONE 109 C

COLOR CODES

WARNING!

ST1014 Label Placement

Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine MUST
maintain the original location and readability of the labels on the machine. If any label is removed
or becomes unreadable, REPLACE that label before using the machine again. Contact Woodstock
International, Inc. at [phone] or www.shopfoxtools.com to order new labels.

601V2

Motor: 5 HP, 240V, 1-Ph, 60 Hz

Full-Load Current: 19A

Maximum Depth of Cut: 1/8"

Minimum Stock Thickness: 3/16"

Minimum Stock Length: 8"

Maximum Cutting Height: 8"

Maximum Cutting Width: 20"

Feed Rates: 16 & 20 FPM

Cutterhead Speed: 4800 RPM

Specifications

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 100

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Weight: 771 lbs.

Mfd. for Woodstock in China

20" PLANER WITH HELICAL CUTTERHEAD

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before
operating.

2. Always wear approved eye protection, hearing
protection, and respirator.

3. Disconnect power before setup, adjustments, or

service.

Date

4. Keep all guards in place and in proper operating

condition.

S/N

5. Be aware of "kickback" hazards and how to

prevent them.

6. Plug power cord into grounded outlet only.

7. Make sure machine is correctly set up, adjusted, and
rests securely on flat, level ground before operating.

8. Do not wear loose clothing, gloves, jewelry, or other
items that can get entangled. Tie back long hair and
roll up sleeves.

9. Do not plane boards with cracks, loose knots, or any
other defects.

10. Never make adjustments to the table during cutting
operation.

613

WARNING!

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

MODEL ST1014

WARNING!

11. Do not reach into the cutting area while machine is
running.

12. Stand clear of board ends while planing.

13. Only operate in dry environment free of rain or
dampness.

14. Do not operate under the influence of drugs or
alchohol.

15. Prevent unauthorized use by children or untrained
users; restrict access or disable machine when
unattended.

602

WARNING!

ROTATING

CUTTERHEAD BELOW!

Do not operate with this
guard removed. Failure
to comply may result in
serious personal injury!

603

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

604

WARNING!

Do not open this cover while machine
is connected to power or is running.
Disconnect power before servicing.
Failure to comply will result in serious
personal injury.

605

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

REF PART # DESCRIPTION REF PART # DESCRIPTION

601V2 XST1014601V2 MACHINE ID LABEL V2.01.17 608 XST1014608 PIN STRIPE TAPE
602 XST1014602 ROTATING CUTTERHEAD LABEL 609 XST1014609 MODEL NUMBER LABEL
603 XST1014603 DISCONNECT POWER LABEL 610 XST1014610 TOUCH-UP PAINT, STEELEX TAN
604 XST1014604 DO NOT OPEN COVER LABEL 611 XST1014611 ELECTRICITY LABEL
605 XST1014605 EYE/EAR/LUNG INJURY HAZARD LABEL 612 XST1014612 CONTROL PANEL LABEL
606 XST1014606 SHIFT GEARBOX LABEL 613 XST1014613 READ MANUAL LABEL
607 XST1014607 STEELEX LOGO PLATE

-72-

612

611

WARNING!

Do not open this cover while machine
is connected to power or is running.

604

Disconnect power before servicing.
Failure to comply will result in serious
personal injury.

609

610

Motor: 5 HP, 240V, 1-Ph, 60 Hz

Full-Load Current: 19A

Maximum Depth of Cut: 1/8"

Minimum Stock Thickness: 3/16"

Minimum Stock Length: 8"

Maximum Cutting Height: 8"

Maximum Cutting Width: 20"

Feed Rates: 16 & 20 FPM

Cutterhead Speed: 4800 RPM

Specifications

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 100

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Weight: 771 lbs.

Date

S/N

Mfd. for Woodstock in China

606

MODEL ST1014

20" PLANER WITH HELICAL CUTTERHEAD

WARNING!

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before

6. Plug power cord into grounded outlet only.

operating.

11. Do not reach into the cutting area while machine is

7. Make sure machine is correctly set up, adjusted, and

2. Always wear approved eye protection, hearing
running.

rests securely on flat, level ground before operating.

protection, and respirator.

12. Stand clear of board ends while planing.

8. Do not wear loose clothing, gloves, jewelry, or other

3. Disconnect power before setup, adjustments, or

13. Only operate in dry environment free of rain or

items that can get entangled. Tie back long hair and

service.

dampness.

roll up sleeves.

4. Keep all guards in place and in proper operating

14. Do not operate under the influence of drugs or

9. Do not plane boards with cracks, loose knots, or any

condition.

alchohol.

other defects.

5. Be aware of "kickback" hazards and how to

15. Prevent unauthorized use by children or untrained

10. Never make adjustments to the table during cutting

prevent them.

users; restrict access or disable machine when

operation.

unattended.

Only shift gearbox when
planer is running.

607

608

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

20 FPM

Neutral

16 FPM

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

-73-

WARRANTY

Woodstock International, Inc. warrants all STEELEX® machinery to be free of defects from workmanship and materi­als for a period of two years from the date of original purchase by the original owner. This warranty does not apply
to defects due directly or indirectly to misuse, abuse, negligence or accidents, lack of maintenance, or reimburse­ment of third party expenses incurred.

®

Woodstock International, Inc. will repair or replace, at its expense and at its option, the STEELEX
machine part which in normal use has proven to be defective, provided that the original owner returns the prod­uct prepaid to the STEELEX
office, with proof of their purchase of the product within two years, and provides Woodstock International, Inc.
reasonable opportunity to verify the alleged defect through inspection. If it is determined there is no defect, or that
the defect resulted from causes not within the scope of Woodstock International Inc.'s warranty, then the original
owner must bear the cost of storing and returning the product.

This is Woodstock International, Inc.'s sole written warranty and any and all warranties that may be implied by law,
including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this writ­ten warranty. We do not warrant that STEELEX
event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid for the prod­uct, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of Washington,
County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for incidental, con­tingent, special or consequential damages arising from the use of our products.

®

factory service center or authorized repair facility designated by our Bellingham, WA

®

machinery complies with the provisions of any law or acts. In no

machine or

®

Every effort has been made to ensure that all STEELEX
We reserve the right to change specifications at any time because of our commitment to continuously improve the
quality of our products.

machinery meets high quality and durability standards.

-74-

ST1007/12/14 15" & 20" Planers (Mfd. Since 3/16)

Warranty Registration

Name _______________________________________________________________________________________

Street _______________________________________________________________________________________

City __________________________ State _____________________________Zip _________________________

Phone # _______________________ Email ____________________________Invoice # ____________________

Model #_________Serial #______________Dealer Name__________________Purchase Date___________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products
and services. Of course, all information is strictly confidential.

1. How did you learn about us?
_____ Advertisement _____Friend _____ Local Store
_____ Mail Order Catalog _____ Website _____ Other:

2. How long have you been a woodworker/metalworker?
_____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

®

3. How many of your machines or tools are STEELEX

_____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

4. Do you think your machine represents a good value? _____ Yes _____ No

?

CUT ALONG DOTTED LINE

®

5. Would you recommend STEELEX

products to a friend? _____ Yes _____ No

6. What is your age group?
_____ 20-29 _____ 30-39 _____ 40-49
_____ 50-59 _____ 60-69 _____ 70+

7. What is your annual household income?
_____ $20,000-$29,000 _____ $30,000-$39,000 _____ $40,000-$49,000
_____ $50,000-$59,000 _____ $60,000-$69,000 _____ $70,000+

8. Which of the following magazines do you subscribe to?

____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal

____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News

____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

9. Comments: _____________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

WOODSTOCK INTERNATIONAL INC.
P.O. BOX 2309
BELLINGHAM, WA 982272309

TAPE ALONG EDGESPLEASE DO NOT STAPLE
