Steelex ST1013 User Manual

MODEL ST1013

12" JOINTER

OWNER'S MANUAL

(For Models Manufactured Since 03/16)

Phone: [phone] • Online Technical Support: [e-mail]

COPYRIGHT © MAY, 2016 BY WOODSTOCK INTERNATIONAL, INC.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

#18223MN

V2.08.16

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

Printed in China

This manual provides critical safety instructions on the proper setup, operation, maintenance
and service of this machine/equipment.

Failure to read, understand and follow the instructions given in this manual may result in
serious personal injury, including amputation, electrocution or death.

The owner of this machine/equipment is solely responsible for its safe use. This responsibility
includes but is not limited to proper installation in a safe environment, personnel training and
usage authorization, proper inspection and maintenance, manual availability and
comprehension, application of safety devices, blade/cutter integrity, and the usage of
personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence,
improper training, machine modications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: Work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to lter out
microscopic particles.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at [phone] or send e-mail to:
[e-mail]. Our knowledgeable sta will help you troubleshoot problems and
process warranty claims.

If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

[e-mail]

Table of Contents

INTRODUCTION .................................................... 2

Contact Info .................................................................... 2

Manual Accuracy .......................................................... 2

Machine Specifications .............................................. 3

Machine Features ......................................................... 5

Controls & Components ............................................ 6

SAFETY .................................................................. 7

Safety Instructions for Machinery .......................... 7

Additional Safety for Jointers................................... 9

ELECTRICAL ......................................................... 10

Circuit Requirements ................................................10

Grounding Requirements .......................................11

Extension Cords ..........................................................11

SETUP .................................................................. 12

Unpacking .....................................................................12

Items Needed for Setup ........................................... 12

Inventory .......................................................................13

Cleanup .......................................................................... 14

Site Considerations ....................................................15

Lifting & Moving ......................................................... 16

Anchoring to Floor .....................................................16

Assembly .......................................................................17

Dust Collection ............................................................ 19

Test Run ..........................................................................19

Recommended Adjustments ................................. 20

Tighten Belt ..................................................................20

OPERATIONS ....................................................... 21

Overview .......................................................................21

Stock Inspection & Requirements ........................ 22

Squaring Stock ............................................................23

Surface Planing ........................................................... 24

Edge Jointing ............................................................... 25

Bevel Cutting................................................................26

Rabbet Cutting ............................................................ 27

ACCESSORIES ...................................................... 28

MAINTENANCE .................................................... 29

General ........................................................................... 29

Schedule ........................................................................ 29

Cleaning/Protecting .................................................. 29

Lubrication .................................................................... 29

V-Belts ............................................................................. 29

SERVICE ............................................................... 30

Troubleshooting .........................................................30

Rotating/Replacing Cutterhead Inserts ............. 32

Checking/Adjusting Table Parallelism ................33

Setting Outfeed Table Height ................................ 36

Setting Infeed Table Height ....................................37

Calibrating Depth Scale ........................................... 37

Setting Fence Stops ...................................................38

Tensioning/Replacing V-Belt .................................. 39

Pulley Alignment ........................................................40

ELECTRICAL COMPONENTS ............................... 41

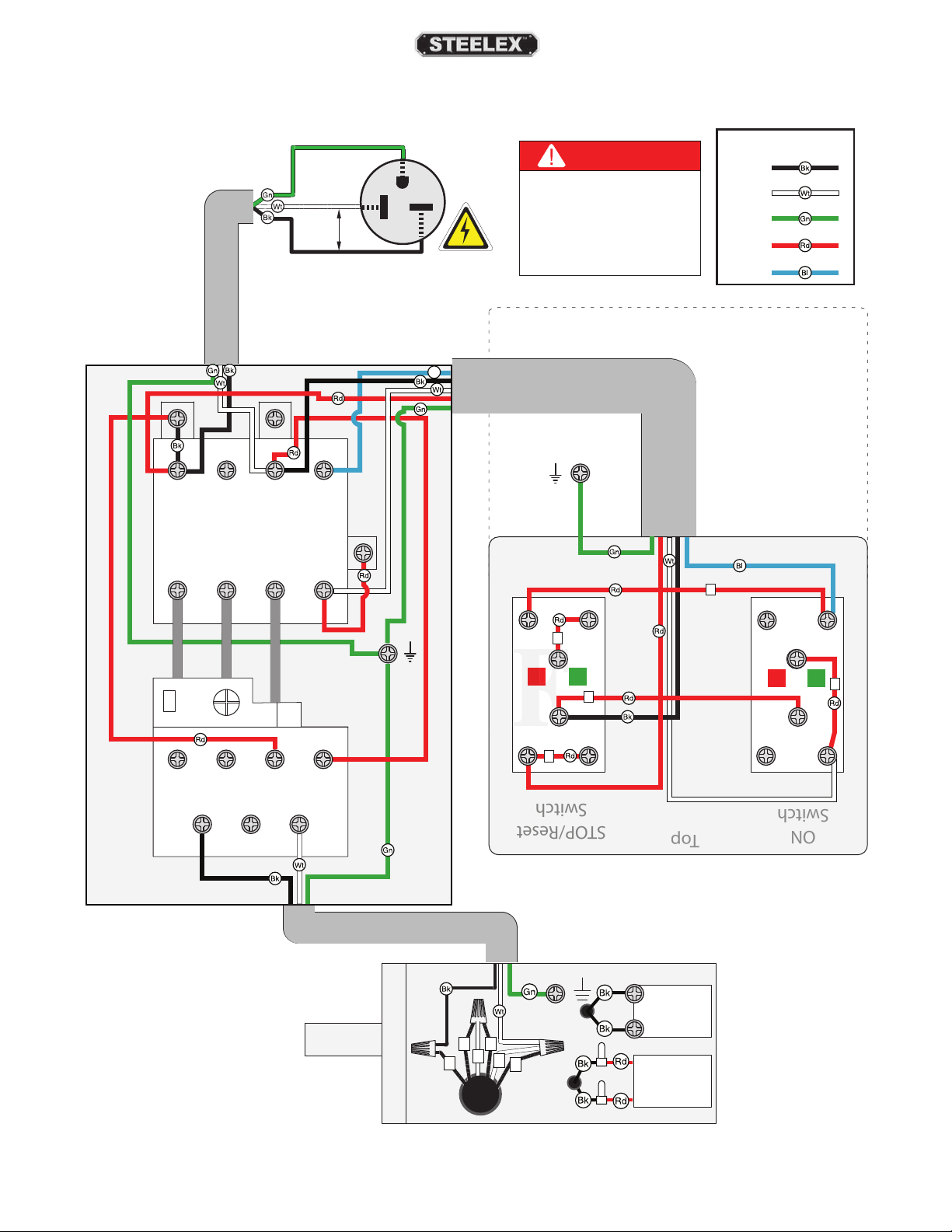

Wiring Diagram ...........................................................42

PARTS ................................................................... 43

Base .................................................................................43

Tables .............................................................................. 45

Fence ...............................................................................46

Stand ............................................................................... 47

Labels & Cosmetics .................................................... 49

WARRANTY .......................................................... 50

Warranty Registration ...............................................51

ST1013 12" Jointer (Mfd. Since 3/16)

We are proud to provide a high-quality owner’s
manual with your new machine!

We

instruc­tions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes, but
our policy of continuous improvement also means
that

you receive will be
slightly different than what is shown in the man­ual

If you find this to be the case, and the difference
between the manual and machine leaves you con­fused about a procedure

check our website for

an updated version. W

manuals and

manual

www.

woodstockint

Alternatively, you can call our Technical Support for
help. Before calling, make sure you write down the

Manufacture Date

from the
machine ID label (see below). Also, if available, have
a copy of your

on hand.

This information is required for all Tech Support calls.

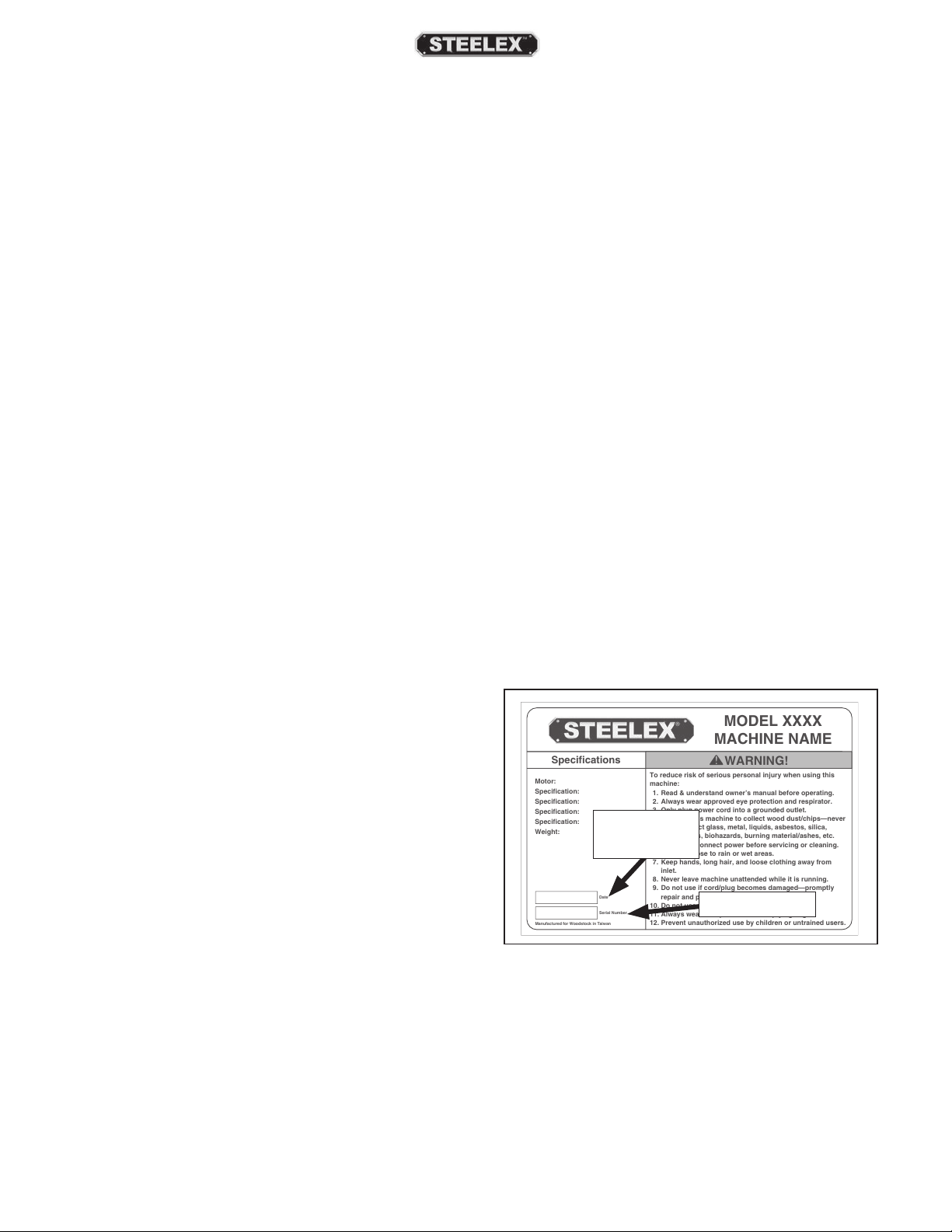

MODEL XXXX

MACHINE NAME

Motor:

Specification:

Specification:

Specification:

Specification:

Weight:

Specifications

To reduce risk of serious personal injury when using this
machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Only use this machine to collect wood dust/chips—never
use to collect glass, metal, liquids, asbestos, silica,
animal parts, biohazards, burning material/ashes, etc.

5. Always disconnect power before servicing or cleaning.

6. Do not expose to rain or wet areas.

7. Keep hands, long hair, and loose clothing away from
inlet.

8. Never leave machine unattended while it is running.

9. Do not use if cord/plug becomes damaged—promptly
repair and protect cord from future damage.

10. Do not use without dust bag or filters in place.

11. Always wear a respirator when emptying bags.

12. Prevent unauthorized use by children or untrained users.

Date

Serial Number

Manufactured for Woodstock in Taiwan

WARNING!

We are committed to customer satisfaction. If you
have any questions or need help, use the information
below to contact us.

IMPORTANT: Before contacting, please get the
original purchase receipt, serial number, and
manufacture date of your machine. This informa­tion is required for all Technical Support calls and
it will help us help you faster.

Email: [e-mail]

INTRODUCTION

Contact Info

Woodstock International Technical Support

Phone: [phone]

Email: [e-mail]

We want your feedback on this manual. What did

you like about it? Where could it be improved?
Please take a few minutes to give us feedback.

Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Manual Accuracy

made every effort to be exact with the

sometimes the machine

.

,

e post current

updates for free on our website at

.com.

and Serial Number

original purchase receipt

-2-

Manufacture

Date

Serial Number

ST1013 12" Jointer (Mfd. Since 3/16)

MACHINE

SPECIFICATIONS

© Woodstock International, Inc. • Phone: [phone] • Web: www.woodstockint.com

MODEL ST1013

12" JOINTER WITH HELICAL CUTTERHEAD

Product Dimensions:

Weight .....................................................................................................................................................................................................................884 lbs.

Length x Width x Height .............................................................................................................................................................84 x 33 x 43-1/2 in.

Footprint (Length x Width) ..................................................................................................................................................................44-1/2 x 18 in.

Shipping Dimensions:

Type ..................................................................................................................................................................................................................Wood Crate

Content ................................................................................................................................................................................................................ Machine

Weight .....................................................................................................................................................................................................................970 lbs.

Length x Width x Height ......................................................................................................................................................................89 x 29 x 41 in.

Electrical:

Power Requirement.................................................................................................................. ........................................ 230V, Single-Phase, 60Hz

Full-Load Current Rating ............................................................................................................................................................................................15A

Minimum Circuit Size ..................................................................................................................................................................................................20A

Connection Type ...........................................................................................................................................................................................Cord & Plug

Power Cord Included ...................................................................................................................................................................................................Yes

Power Cord Length ...................................................................................................................................................................................................... 6 ft.

Power Cord Gauge ...............................................................................................................................................................................................12 AWG

Plug Included ..................................................................................................................................................................................................................Yes

Included Plug Type .....................................................................................................................................................................................................6-20

Switch Type ............................................................................................................................................ Magnetic Switch w/Overload Protection

Motor:

Type.................................................................................................................. .......................................................... TEFC Capacitor-Start Induction

Horsepower ..................................................................................................................................................................................................................3 HP

Phase ...............................................................................................................................................................................................................Single-Phase

Amps .................................................................................................................................................................................................................................15A

Speed ................................................................................................................................................................................................................... 3450 RPM

Power Transfer ...............................................................................................................................................................................................V-Belt Drive

Bearings ...........................................................................................................................................................Shielded & Permanently Lubricated

Main Specifications:

Operation

Bevel Jointing .............................................................................................................................................................................0 – 45 deg. L/R

Maximum Width of Cut .............................................................................................................................................................................12 in.

Maximum Depth of Cut ...........................................................................................................................................................................1/8 in.

Minimum Workpiece Length ...................................................................................................................................................................14 in.

Minimum Workpiece Thickness ............................................................................................................................................................1/2 in.

Maximum Rabbeting Depth ..................................................................................................................................................................3/4 in.

Number of Cuts Per Minute ................................................................................................................................................................ 39,600

-3-

ST1013 12" Jointer (Mfd. Since 3/16)

Fence Information

Fence Length .........................................................................................................................................................................................46-3/4 in.

Fence Width .............................................................................................................................................................................................1-1/2 in.

Fence Height............................................................................................................................................................................................5-3/8 in.

Fence Stops ...............................................................................................................................................................................45, 90, 135 deg.

Cutterhead Information

Cutterhead Type .......................................................................................................................................................................................... Spiral

Cutterhead Diameter ............................................................................................................................................................................ 3-7/8 in.

Number of Cutter Spirals ..................................................................................................................................................................................8

Number of Indexable Inserts ........................................................................................................................................................................96

Cutterhead Speed .............................................................................................................................................................................. 4950 RPM

Cutter Insert Information

Cutter Insert Type ..............................................................................................................................................Curved Indexable Carbide

Cutter Insert Length................................................................................................................................................................................ 15 mm

Cutter Insert Width .................................................................................................................................................................................. 15 mm

Cutter Insert Thickness ......................................................................................................................................................................... 2.5 mm

Table Information

Table Length ..........................................................................................................................................................................................83-1/2 in.

Table Width ............................................................................................................................................................................................12-3/4 in.

Table Thickness ........................................................................................................................................................................1-7/8 – 3-1/4 in.

Floor-to-Table Height .........................................................................................................................................................................31-5/8 in.

Table Adjustment Type ................................................................................................................................................................. Handwheel

Table Movement Type ...............................................................................................................................................................Parallelogram

Construction

Body Assembly ......................................................................................................................................................................................Cast Iron

Cabinet .....................................................................................................................................................................................................Cast Iron

Fence Assembly .................................................................................................................................................Precision-Ground Cast Iron

Guard ........................................................................................................................................................................................... Cast Aluminum

Table ......................................................................................................................................................................Precision-Ground Cast Iron

Paint Type/Finish ......................................................................................................................................................................Powder Coated

Other Information

Number of Dust Ports ........................................................................................................................................................................................1

Dust Port Size ..................................................................................................................................................................................................5 in.

Other

Country of Origin ........................................................................................................................................................................................China

Warranty .......................................................................................................................................................................................................2 Years

Approximate Assembly & Setup Time ...................................................................................................................................... 45 Minutes

Serial Number Location .......................................................................................................................................................................ID Label

ISO 9001 Factory ...............................................................................................................................................................................................No

Certified by a Nationally Recognized Testing Laboratory (NRTL) ...................................................................................................No

Features

5-3/8” Tall Fence
Included Push Blocks
Spiral Cutterhead with German-Made Indexable Carbide Inserts
3 HP Motor
Easy-to-Reach Pedestal-Mounted Control Panel
Parallelogram Table Design Allows for Full Adjustability and Calibration
Sturdy Cabinet Stand
Handwheel-Controlled Table Movement

-4-

ST1013 12" Jointer (Mfd. Since 3/16)

Machine Features

The instructions in this manual will be easier to understand if you become familiar with the location and names of
the basic features of your new machine. Use the list below with the letters in Figure 1 to identify the 12" jointer
feature locations.

C

B

E

D

F

G

A

H

I

M

K

J

L

Figure 1. Front view of machine.

A. Outfeed Table
B. Fence
C. Fence Tilt Handle
D. Fence Tilt Lock
E. Cutterhead Guard
F. Control Panel

H. Cutting Depth Scale
I. Infeed Table Lock
J. Infeed Table Adjustment Handwheel
K. Outfeed Table Lock
L. Dust Port
M. Outfeed Table Adjustment Handwheel

G. Infeed Table

For Your Own Safety Read Instruction Manual Before Operating Jointer

a) Wear eye protection.
b) Always keep cutterhead and drive guards in place and in proper operating condition. ALWAYS replace

cutterhead guard after rabbeting operations.
c) Never make jointing or rabbeting cuts deeper than
d) Always use hold-down or push blocks when jointing material narrower than 3" or surface planing

material thinner than 3".
e) Never perform jointing, planing, or rabbeting cuts on pieces shorter than 8" in length.

1

⁄8" or planing cuts deeper than 1⁄16".

-5-

ST1013 12" Jointer (Mfd. Since 3/16)

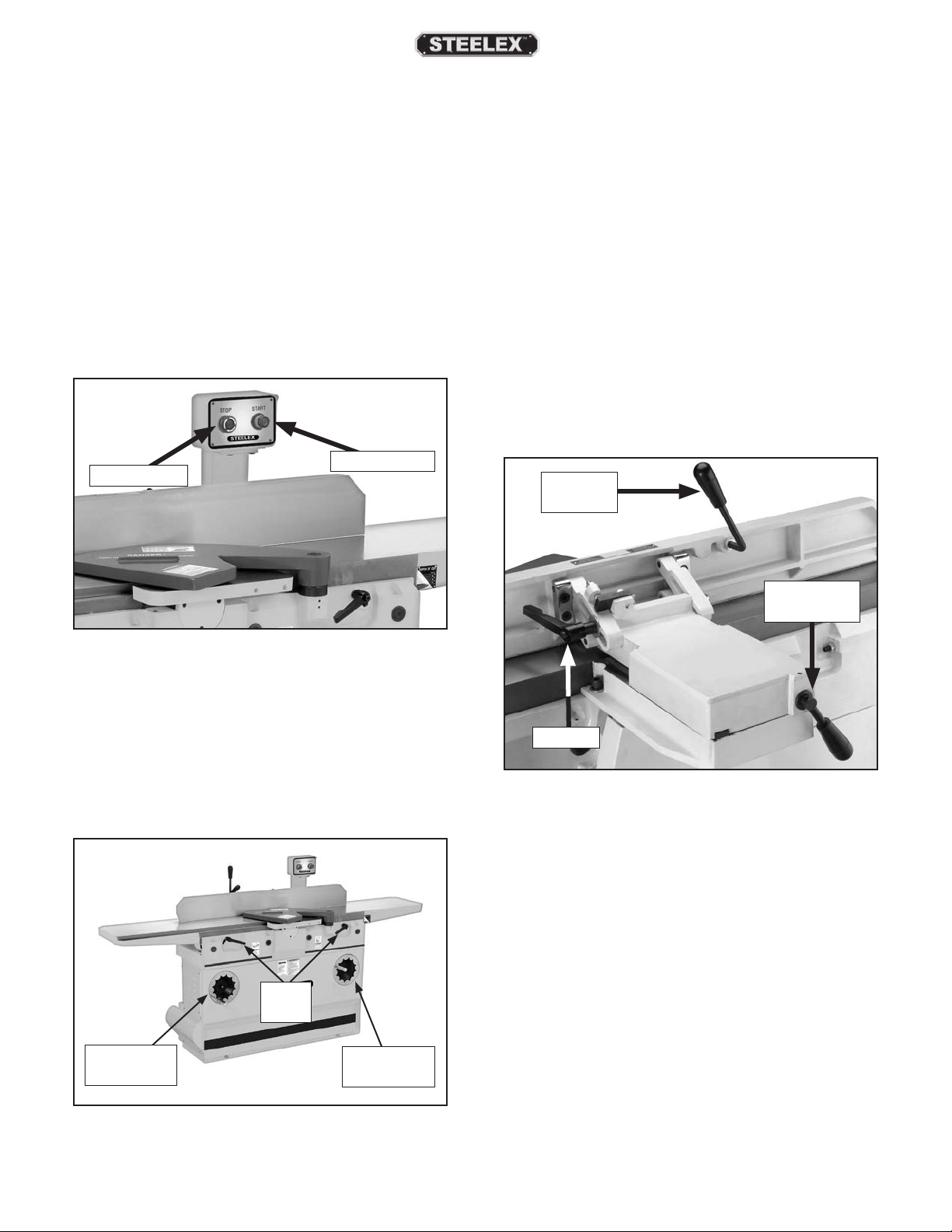

Controls &

Components

This section covers the basic controls used during
routine operations.

STOP Button: Stops motor when pushed in and dis­ables the START button. Enable the START button by
twisting the STOP button until it springs forward in
the out position.

START Button: Starts motor only if the STOP button
is in the out position (see Figure 2).

The outfeed table is preset with positive stops, so no
range of movement is allowed (if it gets accidentally
unlocked it will not move). To adjust the outfeed
table positive stops refer to Setting Outfeed Table

Height on Page 36.

Fence Movement: The fence has a lock handle that

keeps it in position (see Figure 4). To move the fence,
loosen the lock handle and slide the fence where
needed.

Fence Tilting: The tilt lock (see Figure 4) secures
the fence at any position in the available range. The
plunger locks into an indexing ring to easily set the
fence tilt to 90°. Positive stops stop the fence at 45°
inward and 45° outward, for common 45° bevel cuts.
Even when the fence is resting against the positive
stops, the tilt lock must be tightened before cutting.

STOP Button

START Button

Figure 2. STOP/START button locations.

Table Movement: To move the infeed table, loosen

the table lock (see Figure 3), move the table with the
table lever, then tighten the table lock. The infeed
table will only move through the preset range of
the positive stops. To adjust the infeed table posi­tive stops, refer to Setting Infeed Table Height on
Page 37.

Fence Tilt

Lever

Fence

Lock Handle

Tilt Lock

Figure 4. Fence lock, tilt lock and stop block

locations.

Table

Handwheel

-6-

Table

Locks

Table

Handwheel

Figure 3. Table control locations.

ST1013 12" Jointer (Mfd. Since 3/16)

For Your Own Safety, Read Instruction Manual

SAFETY

Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL
result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD
result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY
result in minor or moderate injury. It may also be used to alert against
unsafe practices.

NOTICE

This symbol is used to alert the user to useful information about proper
operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this

owner’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this machine.
When machine is not being used, disconnect power,
remove switch keys, or lock-out machine to prevent
unauthorized use—especially around children. Make
workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machin­ery in areas that are wet, cluttered, or have poor
lighting. Operating machinery in these areas greatly
increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alert­ness is required for safe operation of machinery.
Never operate under the influence of drugs or alco­hol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can
be shocked, burned, or killed by touching live electri­cal components or improperly grounded machinery.
To reduce this risk, only allow qualified service per­sonnel to do electrical installation or repair work, and
always disconnect power before accessing or expos­ing electrical equipment.

DISCONNECT POWER FIRST. Always disconnect
machine from power supply BEFORE making adjust­ments, changing tooling, or servicing machine. This
prevents an injury risk from unintended startup or
contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safe­ty glasses or a face shield when operating or observ­ing machinery to reduce the risk of eye injury or
blindness from flying particles. Everyday eyeglasses
are NOT approved safety glasses.

-7-

ST1013 12" Jointer (Mfd. Since 3/16)

WEARING PROPER APPAREL. Do not wear cloth­ing, apparel or jewelry that can become entangled
in moving parts. Always tie back or cover long hair.
Wear non-slip footwear to reduce risk of slipping and
losing control or accidentally contacting cutting tool
or moving parts.

HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or long­term respiratory damage. Be aware of dust hazards
associated with each workpiece material. Always
wear a NIOSH-approved respirator to reduce your
risk.

HEARING PROTECTION. Always wear hearing pro­tection when operating or observing loud machin­ery. Extended exposure to this noise without hearing
protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machin­ery can become dangerous projectiles upon startup.
Never leave chuck keys, wrenches, or any other tools
on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this
tool for its intended purpose—do not force it or an
attachment to do a job for which it was not designed.
Never make unapproved modifications—modifying
tool or using it differently than intended may result
in malfunction or mechanical failure that can lead to
personal injury or death!

AWKWARD POSITIONS. Keep proper footing and
balance at all times when operating machine. Do
not overreach! Avoid awkward hand positions that
make workpiece control difficult or increase the risk
of accidental injury.

CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.
Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce acci­dental contact with moving parts or flying debris.
Make sure they are properly installed, undamaged,
and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will
do the job safer and better at the rate for which it was
designed.

NEVER STAND ON MACHINE. Serious injury may
occur if machine is tipped or if the cutting tool is
unintentionally contacted.

STABLE MACHINE. Unexpected movement during
operation greatly increases risk of injury or loss of
control. Before starting, verify machine is stable and
mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this
owner’s manual or the manufacturer for recom­mended accessories. Using improper accessories will
increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of
accidental injury, turn machine OFF and ensure all
moving parts completely stop before walking away.
Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine that
is improperly maintained could malfunction, leading
to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for
damaged, loose, or mis-adjusted parts—or any con­dition that could affect safe operation. Immediately
repair/replace BEFORE operating machine. For your
own safety, DO NOT operate machine with damaged
parts!

MAINTAIN POWER CORDS. When disconnecting
cord-connected machines from power, grab and pull
the plug—NOT the cord. Pulling the cord may dam­age the wires inside. Do not handle cord/plug with
wet hands. Avoid cord damage by keeping it away
from heated surfaces, high traffic areas, harsh chemi­cals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you
experience difficulties performing the intended oper­ation, stop using the machine! Contact our Technical
Support at [phone].

-8-

ST1013 12" Jointer (Mfd. Since 3/16)

Additional Safety for Jointers

Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutterhead
or other moving components! Flying chips can cause blindness or eye injuries. Workpieces or inserts/
knives thrown by cutterhead can strike nearby operator or bystanders with deadly force. To reduce
the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings
below.

KICKBACK. Occurs when workpiece is ejected from

machine at a high rate of speed. To reduce the risk
of kickback-related injuries, use quality workpieces,
safe feeding techniques, and proper machine setup
or maintenance.

GUARD REMOVAL. Operating jointer without guard
exposes operator to knives/inserts. Except when rab­beting, never remove guards for regular operations
or while connected to power. Turn jointer OFF and
disconnect power before clearing any shavings or
sawdust from around cutterhead. After rabbeting
or maintenance is complete, immediately replace all
guards and ensure they are properly adjusted before
resuming regular operations.

DULL/DAMAGED KNIVES/INSERTS. Dull knives/
inserts can increase risk of kickback and cause poor
workpiece finish. Only use sharp, undamaged knives/
inserts.

OUTFEED TABLE ALIGNMENT. Setting outfeed
table too high can cause workpiece to hit table and
get stuck, increasing risk of kickback. Setting out­feed table too low may cause workpiece to become
tapered from front to back. Always keep outfeed
table even with knives/inserts at top dead center
(highest point during rotation).

INSPECTING STOCK. Impact injuries or fire may
result from using poor workpieces. Thoroughly
inspect and prepare workpiece before cutting. Verify
workpiece is free of nails, staples, loose knots or other
foreign material. Workpieces with minor warping
should be surface planed first with cupped side fac­ing infeed table.

GRAIN DIRECTION. Jointing against the grain or end
grain can increase the risk of kickback. It also requires
more cutting force, which produces chatter or exces­sive chip out. Always joint or surface plane WITH the
grain.

MAXIMUM CUTTING DEPTH. To reduce risk of kick-

1

back, never cut deeper than

⁄8 " per pass.

CUTTING LIMITATIONS. Cutting a workpiece that
does not meet the minimum dimension require­ments can result in breakup, kickback, or accidental
contact with cutterhead during operation. Never
perform jointing, planing, or rabbeting cuts on pieces

3

smaller than 8" long,

⁄4" wide, or 1⁄4" thick.

PUSH BLOCKS. Not using push blocks when surface
planing may result in accidental cutterhead contact.
Always use push blocks when planing materials less
than 3" high or wide. Never pass your hands directly
over cutterhead without a push block.

WORKPIECE SUPPORT. Loss of workpiece control
while feeding can increase risk of kickback or acci­dental contact with cutterhead. Support workpiece
continuously during operation. Position and guide
workpiece with fence. Support long or wide stock
with auxiliary stands.

FEED WORKPIECE PROPERLY. Kickback or acciden­tal cutterhead contact may result if workpiece is fed
into cutterhead the wrong way. Allow cutterhead to
reach full speed before feeding. Never start jointer
with workpiece touching cutterhead. Always feed
workpiece from infeed side to outfeed side without
stopping until cut is complete. Never back work
toward infeed table.

SECURE KNIVES/INSERTS. Loose knives or improp­erly set inserts can become dangerous projectiles or
cause machine damage. Always verify knives/inserts
are secure and properly adjusted before operation.

1

Straight knives should never project more than

⁄8 "

(0 .125") from cutterhead body.

-9-

ST1013 12" Jointer (Mfd. Since 3/16)

ELECTRICAL

Circuit Requirements

Serious personal injury could occur if you con­nect the machine to the power source before
you have completed the set up process. DO
NOT connect the machine to the power source
until instructed to do so.

This machine must be connected to the correct size
and type of power supply circuit, or fire or electrical
damage may occur. Read through this section to
determine if an adequate power supply circuit is
available. If a correct circuit is not available, an electri­cian or qualified service personnel MUST install one
before you can connect the machine to power.

A power supply circuit includes all electrical equip­ment between the breaker box or fuse panel in the
building and the machine. The power supply circuit
used for this machine must be sized to safely handle
the full-load current drawn from the machine for an
extended period of time. (If this machine is connect­ed to a circuit protected by fuses, use a time delay
fuse marked D.)

Incorrectly wiring or
grounding this machine can
cause electrocution, fire, or
machine damage. To reduce
this risk, only an electrician
or qualified service person­nel should do any required
electrical work on this
machine.

Full-Load Current Rating

The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the amper­age drawn by the largest motor or sum of all motors
and electrical devices that might operate at one time
during normal operations.

Full-Load Current Rating.......................... 15 Amps

This machine is prewired to operate on a power sup­ply circuit that has a verified ground and meets the
following requirements:

Circuit Requirements

Nominal Voltage .............................................230V

Cycle ............................................................... 60 Hz

Phase ................................................. Single-Phase

Power Supply Circuit ................................20 Amps

Plug/Receptacle ....................................NEMA 6-20

The circuit requirements listed in this manu­al apply to a dedicated circuit—where only
one machine will be running at a time. If this
machine will be connected to a shared circuit
where multiple machines will be running at the
same time, consult a qualified electrician to
ensure that the circuit is properly sized for safe
operation.

-10-

ST1013 12" Jointer (Mfd. Since 3/16)

an electrician or qualified service personnel,
and it must comply with all local codes and

This machine is equipped with a power cord that
has

and a grounding

plug.

receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances

DO

NOT modify the provided plug!

Grounding

Requirements

This machine MUST be grounded. In the event of cer­tain types of malfunctions or breakdowns, grounding
provides a path of least resistance for electric current
to travel—in order to reduce the risk of electric shock.

Improper connection of the equipment-grounding
wire will increase the risk of electric shock. The wire
with green insulation (with/without yellow stripes) is
the equipment-grounding wire. If repair or replace­ment of the power cord or plug is necessary, do not
connect the equipment-grounding wire to a live
(current carrying) terminal.

Check with a qualified electrician or service per­sonnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice that
a cord or plug is damaged or worn, disconnect it
from power, and immediately replace it with a new
one.

an equipment-grounding wire

Only insert plug into a matching

.

GROUNDED

6-20 RECEPTACLE

No adapter should be used with plug. If plug
does not fit available receptacle, or if machine
must be reconnected for use on a different type
of circuit, reconnection must be performed by

ordinances.

Extension Cords

We do not recommend using an extension cord
with this machine. Extension cords cause voltage
drop, which may damage electrical components and
shorten motor life. Voltage drop increases with lon­ger extension cords and smaller gauge sizes (higher
gauge numbers indicate smaller sizes).

Any extension cord used with this machine must
contain a ground wire, match the required plug and
receptacle, and meet the following requirements:

Minimum Gauge Size ................................ 12 AWG

Maximum Length (Shorter is Better) ............50 ft.

Current Carrying Prongs

6-20 PLUG

Grounding Prong

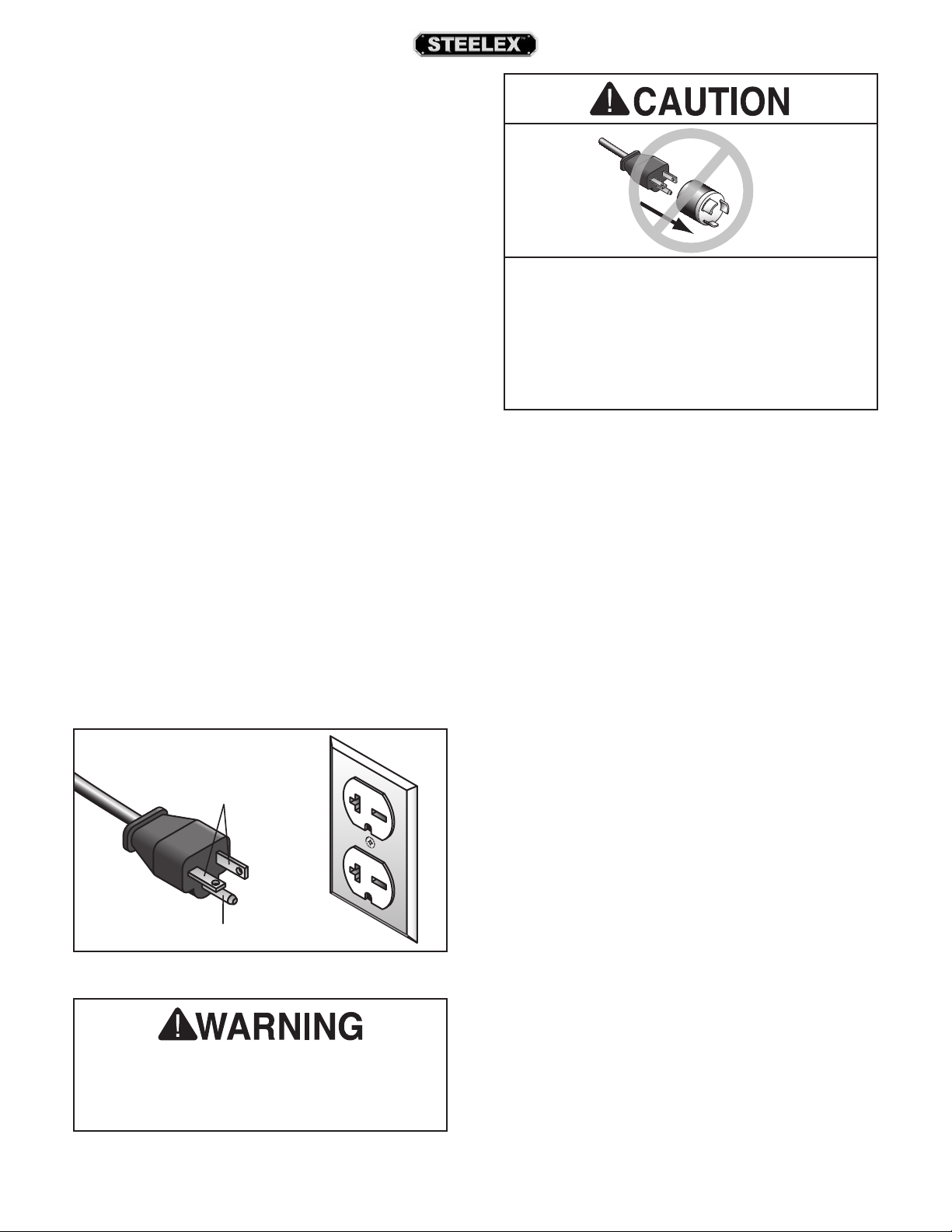

Figure 5. Typical 6-20 plug and receptacle.

The machine must be properly set up before
it is safe to operate. DO NOT connect this
machine to the power source until instructed
to do later in this manual.

-11-

ST1013 12" Jointer (Mfd. Since 3/16)

SETUP

Unpacking

The Model ST1013 was carefully packed when it left
our warehouse. If you discover your machine is dam­aged immediately call your dealer.

Save the containers and all packing materials for pos­sible inspection by the carrier or its agent. Otherwise,

filing a freight claim can be difficult.

When you are completely satisfied with the condition
of your shipment, you should inventory the contents.

SUFFOCATION HAZARD!
Immediately discard all plas­tic bags and packing materi­als to eliminate choking/suf­focation hazards for children
and animals.

Items Needed for

Setup

The following items are needed to complete the set
up process, but are not included with your machine:

DESCRIPTION Qty

• Safety Glasses (for each person) ........................... 1

• Additional People ....................................................... 1

• Straightedge ................................................................. 1

• Phillips Screwdriver #2 .............................................. 1

• Degreaser....................................................As Needed

• Shop Rags ................................................... As Needed

• Fork Lift, Engine Hoist, or Boom Crane ............... 1

• Lifting Straps (900 lb. capacity) ............................. 2

READ and understand this
entire instruction manual
before using this machine.
Serious personal injury may
occur if safety and opera­tional information is not
understood and followed. DO
NOT risk your safety by not
reading!

-12-

UNPLUG power cord
before you do any assem­bly or adjustment tasks!
Otherwise, serious per­sonal injury to you or oth­ers may occur!

ST1013 12" Jointer (Mfd. Since 3/16)

Inventory

NOTICE

If you cannot find an item on this list, care­fully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or
they are pre-installed at the factory.

The following is a list of items shipped with your
machine. Before beginning setup, lay these items out
and inventory them.

Note: If you cannot find an item on this list, carefully
check around/inside the machine and packaging mate­rials. Often, these items get lost in packaging materials
while unpacking or they are pre-installed at the factory.

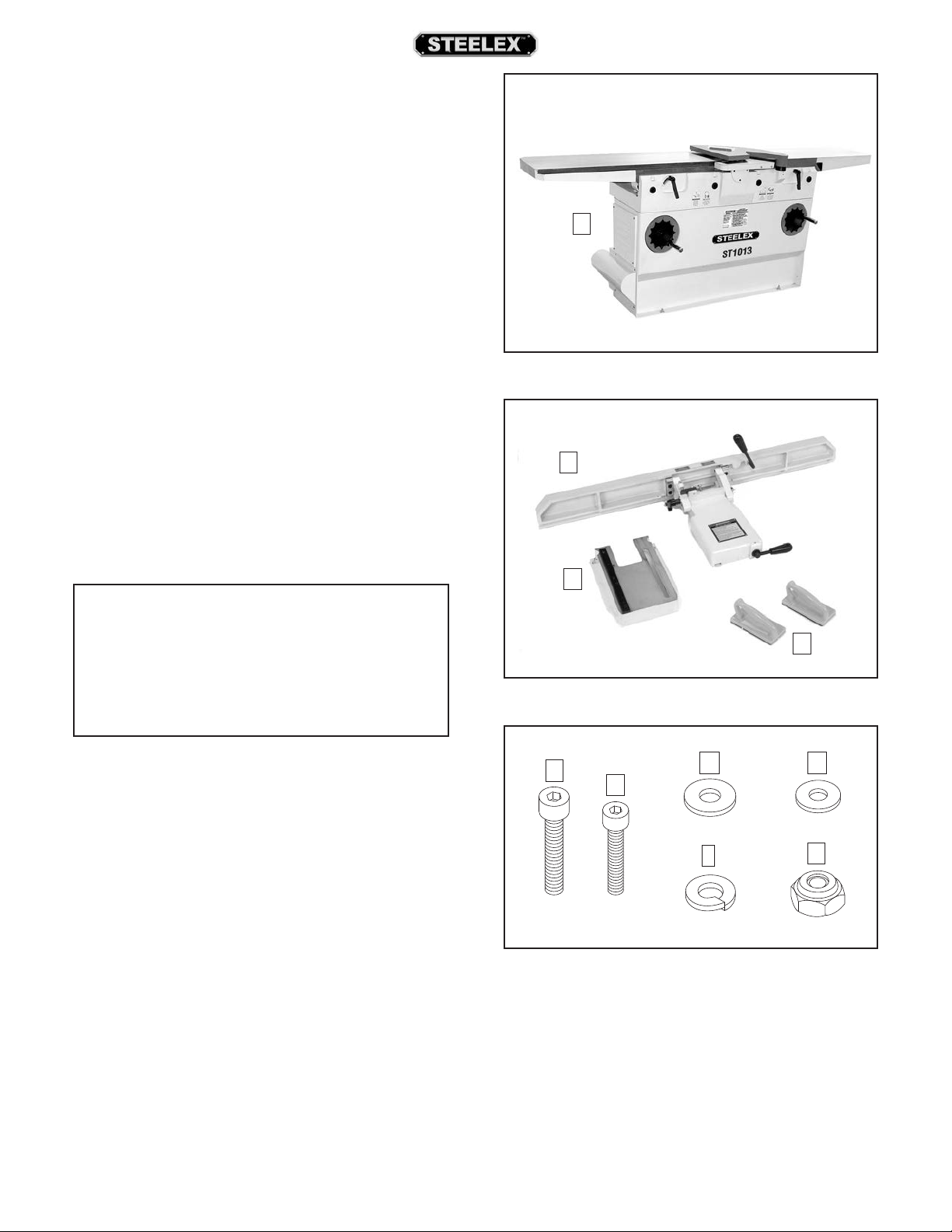

Wood Crate (Figures 6–7) Qty

A. Jointer Assembly ......................................................... 1

B. Fence Assembly ........................................................... 1

C. Fence Bracket ............................................................... 1

D. Push Blocks ................................................................... 2

Hardware (Figure 8) Qty

E. Cap Screws M12-1.75 x 30 (Fence) ....................... 2

F. Cap Screws M10-1.5 x 25 (Pedestal) .................... 2

G. Flat Washers 12mm (Fence) .................................... 3

H. Flat Washers 10mm (Pedestal) ............................... 2

I. Lock Washers 12mm (Fence) .................................. 2

J. Lock Nut M12-1.75 (Fence) ...................................... 1

A

Figure 6. Crate inventory.

B

If any parts are missing, find the part number in
the back of this manual and contact Woodstock
International, Inc. at [phone] or at
[e-mail].

C

Figure 7. Component inventory.

E

F

Figure 8. Assembly hardware.

G

I

D

H

J

-13-

ST1013 12" Jointer (Mfd. Since 3/16)

Cleanup

The unpainted surfaces of your machine are coated
with a heavy-duty rust preventative that prevents
corrosion during shipment and storage. This rust pre­ventative works extremely well, but it will take a little
time to clean.

Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will give
you a better appreciation for the proper care of your
machine's unpainted surfaces.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

1.

2.

3.

4.

machinery. Avoid using

There are many ways to remove this rust preven-

tative, but the following steps work well in a
wide variety of situations. Always follow the
manufacturer’s instructions with any clean­ing product you use and make sure you
work in a well-ventilated area to minimize
exposure to toxic fumes.

Gasoline and petroleum
products have low flash
points and can explode or
cause fire if used to clean

these products to clean
machinery.

Many cleaning solvents are
toxic if inhaled. Only work
in a well-ventilated area.

NOTICE

Avoid chlorine-based solvents, such as ace­tone or brake parts cleaner, that may damage
painted surfaces.

Put on safety glasses.

Coat the rust preventative with a liberal amount

of cleaner/degreaser, then let it soak for 5–10
minutes.

Wipe off the surfaces. If your cleaner/degreaser

is effective, the rust preventative will wipe off
easily. If you have a plastic paint scraper, scrape
off as much as you can first, then wipe off the
rest with the rag.

Repeat Steps 2–3 as necessary until clean, then

coat all unpainted surfaces with a quality metal
protectant to prevent rust.

-14-

ST1013 12" Jointer (Mfd. Since 3/16)

Weight Load

Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest workpiece
that will be used. Additionally, consider the weight
of the operator and any dynamic loading that may
occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the main­tenance and service described in this manual.

below for required space allocation.

Physical Environment

The physical environment where the machine is
operated is important for safe operation and longev­ity of machine components. For best results, operate
this machine in a dry environment that is free from
excessive moisture, hazardous chemicals, airborne
abrasives, or extreme conditions. Extreme conditions
for this type of machinery are generally those where
the ambient temperature range exceeds 41°–104°F;
the relative humidity range exceeds 20%–95% (non­condensing); or the environment is subject to vibra-

Place this machine near an existing power source.
Make sure all power cords are protected from traf­fic, material handling, moisture, chemicals, or other
hazards. Make sure to leave enough space around
machine to disconnect power supply or apply a lock-

Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract or

Site Considerations

Machine Specifications for the weight

tion, shocks, or bumps.

Electrical Installation

Children or untrained people
may be seriously injured by this
machine. Only install in an access
restricted location.

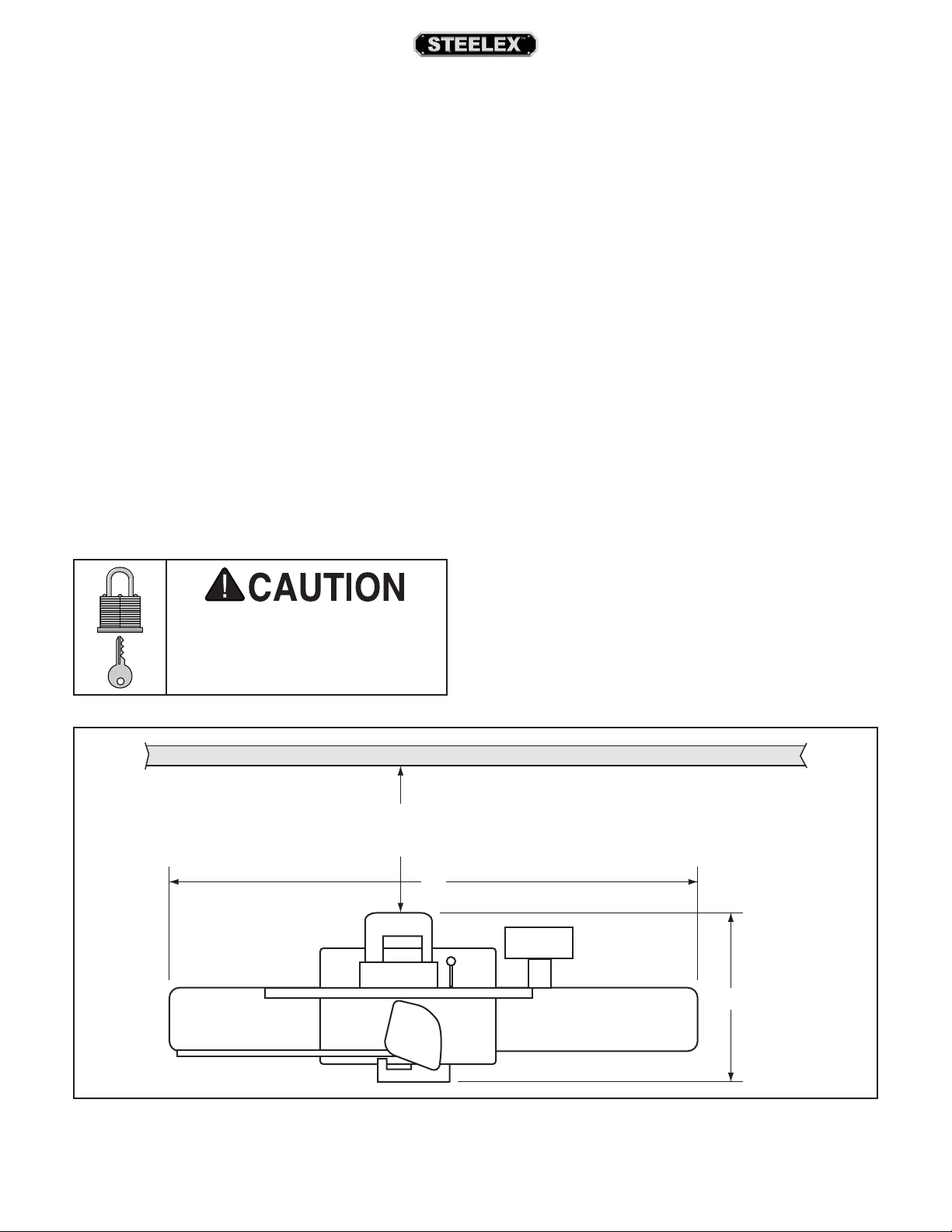

30" Minimum

Working Clearance

See

out/tagout device, if required.

Lighting

Wall

84"

impede the operator must be eliminated.

33"

Figure 9. Working clearances.

-15-

ST1013 12" Jointer (Mfd. Since 3/16)

Lifting & Moving

Anchoring to Floor

The model ST1013 requires the use of lifting equip­ment, such as a forklift, engine hoist, or boom crane.
DO NOT lift the machine by hand.

HEAVY LIFT!
Straining or crushing injury may occur from
improperly lifting machine or some of its parts.
To reduce this risk, get help from other people
and use a forklift (or other lifting equipment)
rated for weight of this machine.

To lift and place machine:

1. Remove crate from shipping pallet, then with

jointer still on pallet, move to installation
location.

Anchoring machinery to the floor prevents tipping or
shifting and reduces vibration that may occur during
operation, resulting in a machine that runs slightly
quieter and feels more solid.

If the machine will be installed in a commercial or
workplace setting, or if it is permanently connected
(hardwired) to the power supply, local codes may
require that it be anchored to the floor.

If not required by any local codes, fastening the
machine to the floor is an optional step. If you choose
not to do this with your machine, we recommend
placing it on machine mounts, as these provide an
easy method for leveling and they have vibration-ab­sorbing pads.

Anchoring to Concrete Floors

Lag shield anchors with lag screws (see below) are a
popular way to anchor machinery to a concrete floor,
because the anchors sit flush with the floor surface,
making it easy to unbolt and move the machine later,
if needed. However, anytime local codes apply, you
MUST follow the anchoring methodology specified
by the code.

2. Wrap lifting straps around infeed and outfeed
tables, as shown in Figure 10. Then attach lift­ing strap ends to forklift forks, a hoist, or other
powered lifting equipment.

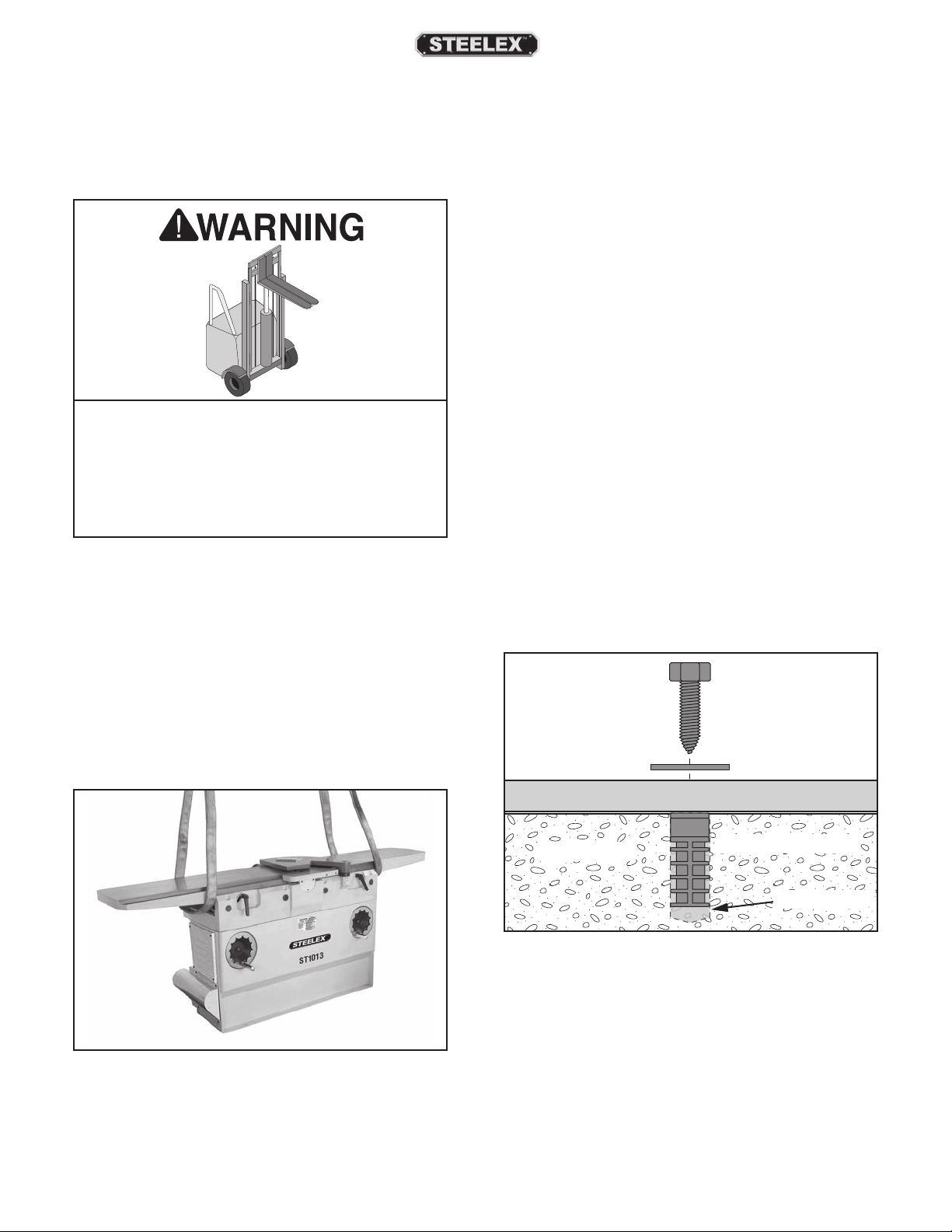

Figure 10. Correct placement of lifting straps.

3. Unbolt jointer from pallet, then lift machine off

pallet and onto suitable location.

Lag Screw

Flat Washer

Machine Base

Concrete

Lag Shield Anchor

Drilled Hole

Figure 11. Popular method for anchoring

machinery to a concrete floor.

-16-

ST1013 12" Jointer (Mfd. Since 3/16)

Assembly

Make sure the underside of the fence, the top of the
carriage, and top of the table have been thoroughly
cleaned of all the export grease before installing
the fence or the fence will not slide easily and will
get quickly gummed up when exposed to sawdust.
The fence has a keyway slot built into the underside
of it that fits over the key on the table. These keep
the fence perpendicular to the cutterhead during
adjustments.

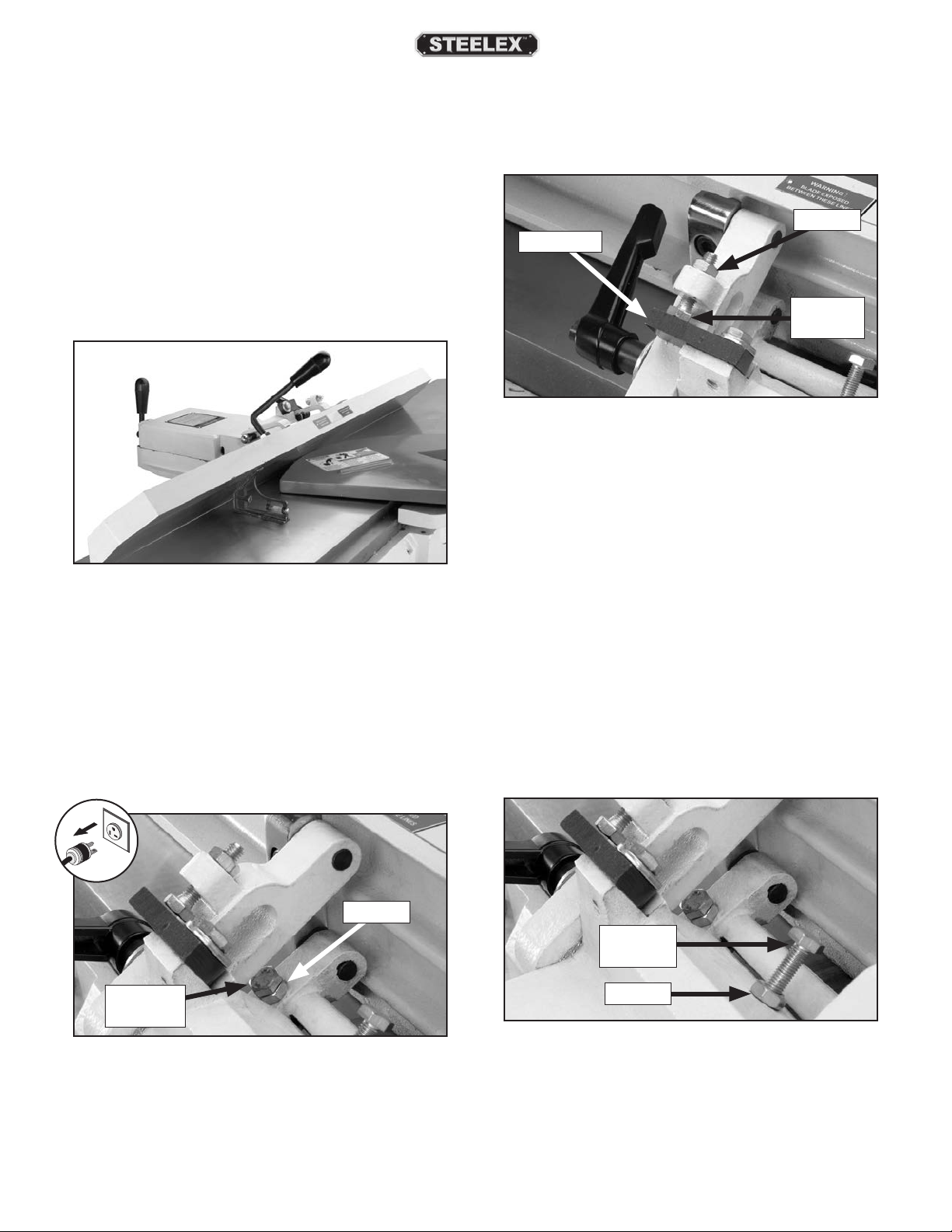

2. With the help of an assistant, lift the fence

assembly over the fence bracket, slip the sliding
bushing on the carriage into the slot on the
fence bracket, as shown in Figure 13, and make
sure the key and keyway slot fit snugly.

The fence is heavy. Seek assis­tance when lifting it onto the
jointer stand.

To assemble jointer:

1. Align mounting holes on fence bracket and joint-

er, and fasten with M12-1.75 x 30 cap screws, flat
washers, and lock washers, as shown in Figure

12.

Slot

Key

Figure 13. Installing fence assembly.

3. Secure bolt with 12mm flat washer and lock

nut.

4. Remove both M10-1.5 x 25 cap screws and flat

washers securing pedestal to jointer base (see
Figure 14).

Cap Screws

Bolt

Figure 12. Installing fence bracket.

Figure 14. Location of pedestal mounting hardware.

-17-

ST1013 12" Jointer (Mfd. Since 3/16)

5. Turn pedestal upright and fasten it to jointer
with cap screws and washers removed in Step

4, as shown in Figure 15.

Figure 15. Mounting pedestal in upright position.

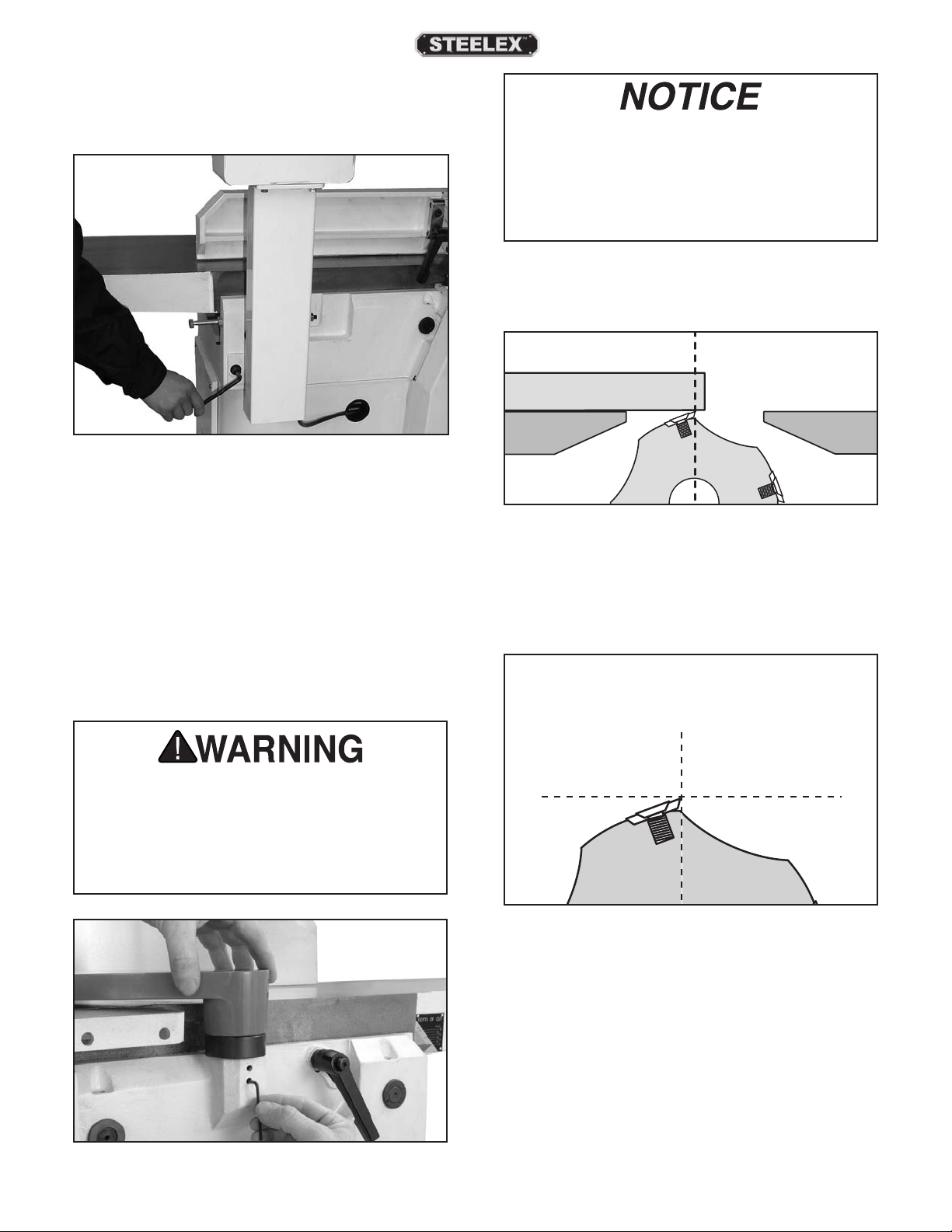

6. Pull guard back and let it go. Guard should

spring back over cutterhead.

—If guard drags across table, raise it slightly so

it won't drag.

—If guard does not spring back over cutterhead,

loosen set screws shown in Figure 16, remove
cutterhead guard, and re-install it so flat part
of guard shaft faces set screws. Check to make
sure cutterhead guard works.

The outfeed table MUST be level with the
inserts at their highest point during rotation or
the workpiece cannot be feed across the jointer
safely. The outfeed table height is factory set,
but we recommend that you check it to make
sure that it didn't change during shipping.

7. Place straightedge on outfeed table so it extends

over cutterhead (see Figure 17).

Straightedge

Outfeed Infeed

Figure 17. Using a straightedge to align outfeed

table with insert at top dead center.

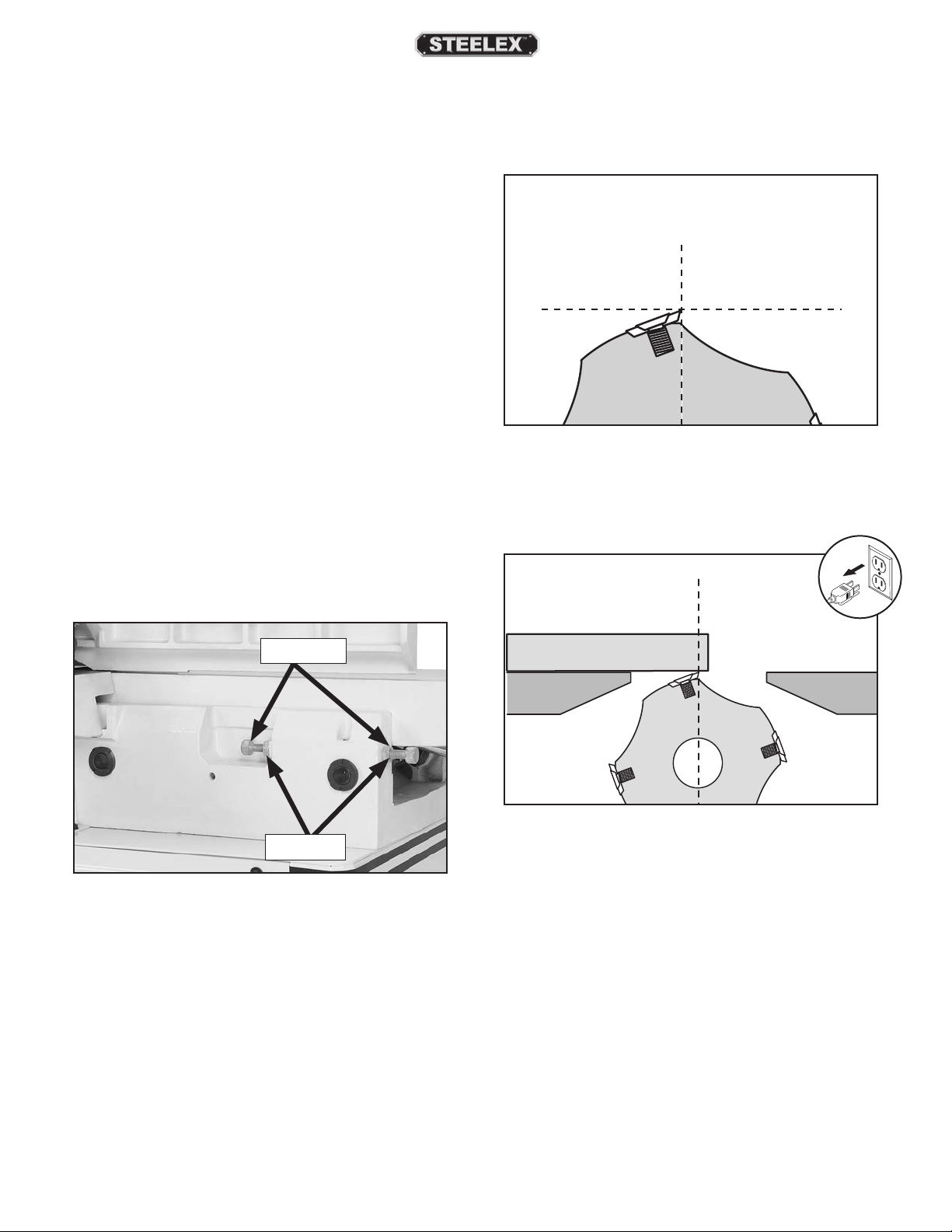

8. Rotate cutterhead pulley until one insert is at

top-dead-center (TDC), as illustrated in Figure

18.

Top Dead

Center

The cutterhead guard is a critical safety feature
on this machine—you MUST install and verify
that it is working as intended before using the
jointer! Failure to do this will greatly increase
the chances of a serious injury when operating
the jointer.

Figure 16. Adjusting cutterhead guard.

-18-

Figure 18. Insert at top dead center.

When correctly set, the insert will barely touch the
straightedge, as shown in Figure 17.

— If your outfeed table is correctly set, no adjust-

ments are necessary.

— If the insert lifts the straightedge off the

table or it is below the straightedge, then the
outfeed table must be reset. Refer to Setting
Outfeed Table Height on Page 37.

ST1013 12" Jointer (Mfd. Since 3/16)

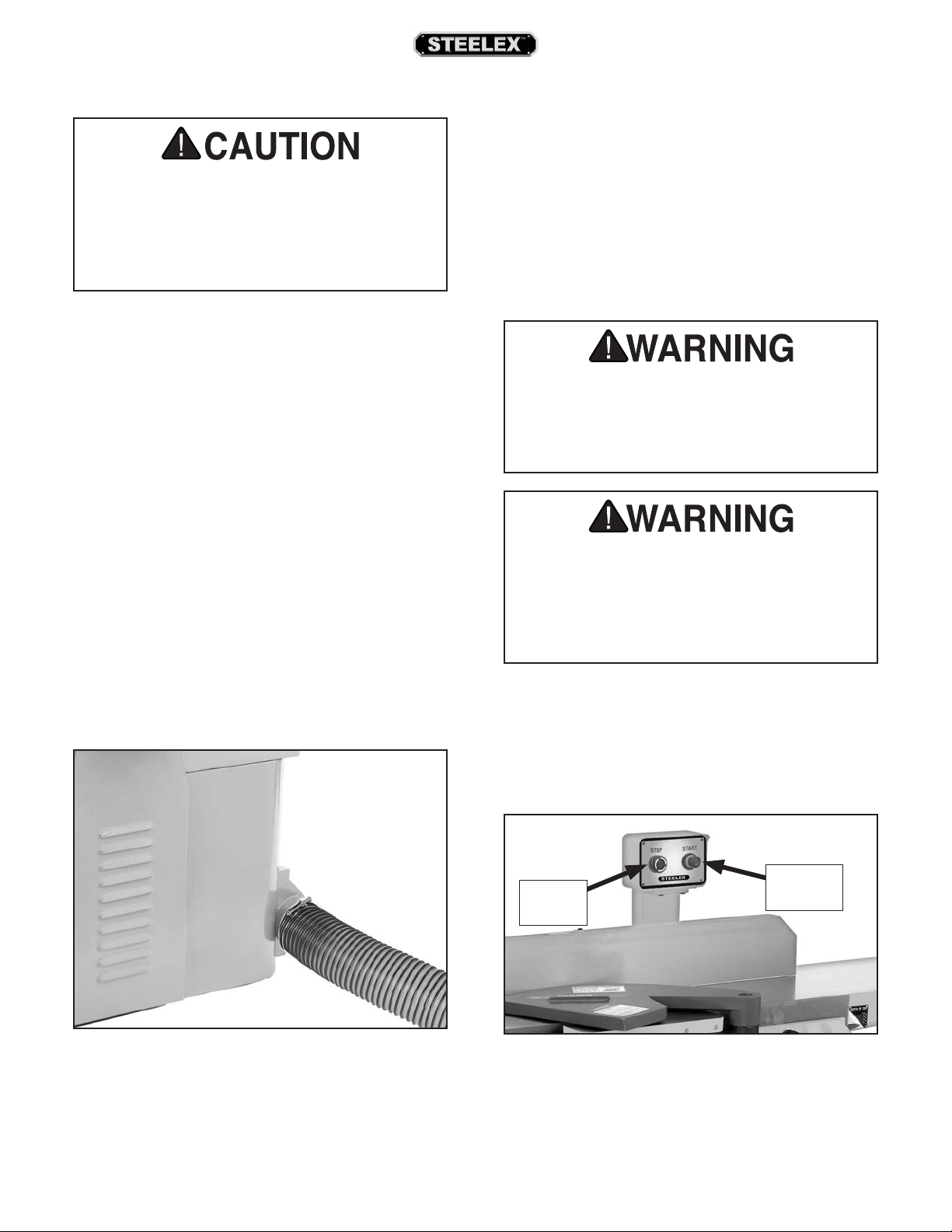

Dust Collection

Serious injury or death can result from
using this machine BEFORE understanding
malfunction or unexpected results that can

This machine creates substantial amounts of
dust during operation. Breathing airborne dust
on a regular basis can result in permanent
respiratory illness. Reduce your risk by wearing
a respirator and capturing the dust with a dust
collection system.

Items Needed Qty

Dust Collection System ...................................................... 1

Dust Hose 5" ........................................................................... 1

Hose Clamps 5" ..................................................................... 2

Test Run

Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning correctly.

If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The Troubleshooting table in the

SERVICE section of this manual can help.

Recommended CFM at Dust Port: ...........615 CFM

Do not confuse this CFM recommendation with the
rating of the dust collector. To determine the CFM at
the dust port, you must consider these variables: (1)
CFM rating of the dust collector, (2) hose type and
length between the dust collector and the machine,
(3) number of branches or wyes, and (4) amount of
other open lines throughout the system. Explaining
how to calculate these variables is beyond the scope
of this manual. Consult an expert or purchase a good
dust collection “how-to” book.

To connect a dust collection hose:

1. Fit a 5" dust hose over dust port (see Figure 19).

its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.

DO NOT start machine until all preceding setup
instructions have been performed. Operating
an improperly set up machine may result in

lead to serious injury, death, or machine/prop­erty damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Push STOP button in (see Figure 20).

Figure 19. Dust hose attached to dust port.

2. Tug hose to make sure it does not come off.

Note: A tight fit is necessary for proper

performance.

STOP

Button

Figure 20. STOP/START button locations.

START

Button

-19-

ST1013 12" Jointer (Mfd. Since 3/16)

3. Connect machine to power supply.

4. Twist STOP button clockwise until it pops out

(see Figure 21). This resets switch so machine
will start.

I

S

W

T

T

STOP Button

Recommended

Adjustments

For your convenience, the adjustments listed below
have been performed at the factory. However,
because of the many variables involved with ship­ping, it is possible some of these adjustments may
have changed during transportation and handling.

Before making any service adjustments, we recom­mend operating the machine on a trial basis. First,
check the cutting results. If the cutting results are
satisfactory, no further adjustments are necessary.

Figure 21. Resetting the STOP button.

5. Push START button to start machine. A correctly

operating machine runs smoothly with little or
no vibration or rubbing noises.

6. Press STOP button to turn machine OFF.

7. WITHOUT resetting STOP button, press START

button. Machine should not start.

— If machine does not start, the STOP but-

ton safety feature is working correctly.
Congratulations! The Test Run is complete.

— If machine does start (with STOP button

pushed in), immediately disconnect power
to machine. The STOP button safety feature is
not working correctly. This safety feature must
work properly before proceeding with regular
operations. Call Tech Support for help.

Factory adjustments that should be verified:

• Table Parallelism (refer to Page 33).

• Depth-of-Cut Scale Calibration (refer to Page

37).

• Fence Stop Accuracy (refer to Page 38).

Tighten Belt

The final step in the setup process must be done
after the first 16 hours of operation. During this time,
the belt will stretch and seat into the pulley grooves.
After this time, you must re-tension the belt to avoid
slippage and burn out, and to ensure optimal power
transmision from the motor to the cutterhead. Refer
to Page 39 when you are ready to perform this
important adjustment.

Note: Pulleys and belt can get hot. This is a nor­mal condition. Allow them to cool before making
adjustments.

-20 -

A small amount of black belt dust at the bottom
of the belt housing is normal during the life of
the machine and does not indicate a problem
with the machine or belt.

ST1013 12" Jointer (Mfd. Since 3/16)

Overview

OPERATIONS

The Model ST1013 will perform many types of opera­tions that are beyond the scope of this manual. Many
of these operations can be dangerous or deadly if
performed incorrectly.

The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at
any time you are experiencing difficulties performing
any operation, stop using the machine!

If you are an inexperienced operator, we strongly
recommend that you read books, trade articles, or
seek training from an experienced jointer operator
before performing any unfamiliar operations. Above

all, your safety should come first!

To complete a typical operation, the operator
does the following:

1. Examines workpiece to verify it is safe and suit-

able for cutting.

2. Adjusts fence for width of workpiece and locks it
in place.

3. Adjusts fence tilt, if necessary.

4. Adjusts infeed table height to set depth-of-cut

per pass.

Eye injuries or respiratory problems can occur
while operating this tool. Wear personal pro­tective equipment to reduce your risk from
these hazards.

Loose hair/clothing could
get caught in machinery
and cause serious person­al injury. Keep clothing and
long hair away from moving
machinery.

DO NOT investigate prob­lems or adjust the lathe
while it is running. Wait
until the machine is turned
OFF, unplugged and all
working parts have come
to a complete stop before
proceeding!

5. Puts on safety glasses, respirator, and ear

protection.

6. Locates push blocks.

7. Starts jointer.

8. Holds workpiece firmly against infeed table

and fence, and slides it into cutterhead at a
steady and controlled rate until entire length of
workpiece has advanced beyond cutterhead to
outfeed table.

9. Repeats cutting process until desired results are
achieved.

10. Stops jointer.

If you have never used this type of machine
or equipment before, WE STRONGLY RECOM
MEND that you read books, trade magazines,
or get formal training before beginning any
projects.

-21-

ST1013 12" Jointer (Mfd. Since 3/16)

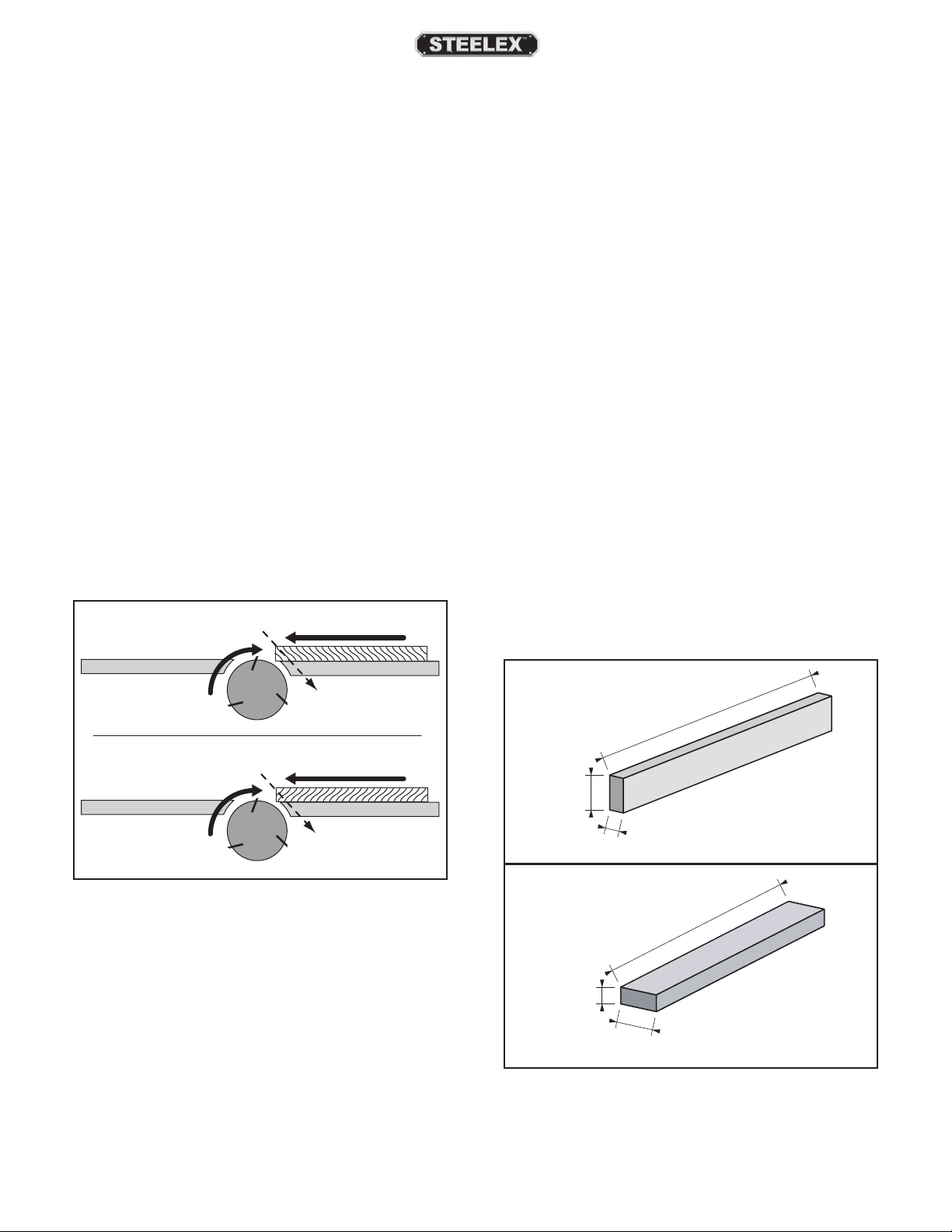

Stock Inspection &

10" Min.

1

/4" Min.

3

/4" Min.

Requirements

Follow these rules when choosing and jointing
stock:

• DO NOT joint or surface plane stock that
contains large or loose knots. Injury to the

operator or damage to the workpiece can occur
if a knot becomes dislodged during the cutting
operation.

• Scrape all glue off the workpiece before
jointing. Glue deposits on the workpiece, hard

or soft, will gum up the cutterhead and produce
poor results.

• Remove foreign objects from the workpiece.
Make sure that any stock you process with the
jointer is clean and free of dirt, nails, staples, tiny
rocks or any other foreign objects that could
damage the cutterhead. These particles could
also cause a spark as they strike the cutterhead
and create a fire hazard.

• Jointing and surface planing with the grain is
safer for the operator and produces a better
finish. Cutting against the grain increases the

likelihood of kickback and workpiece tear-out.
DO NOT cut against the grain! Cutting with the
grain is feeding the stock across the cutterhead
so the grain points down and back, as viewed
from the front edge of the stock (see Figure 22).

Note: If the grain changes direction along the

edge of the workpiece, decrease the depth of cut
and make additional passes.

CORRECT

OUTFEED TABLE

ROTATION

FEED DIRECTION

INFEED TABLE

With Grain

INCORRECT

ROTATION

OUTFEED TABLE

FEED DIRECTION

INFEED TABLE

Note: Wood stacked on a concrete or dirt surface

can have small pieces of concrete or stone pressed
into the surface.

• Make sure all stock is sufficiently dried before
jointing. Wood with a moisture content over

20% will cause unnecessary wear on the cutters
and poor cutting results. Excess moisture can
also hasten rust and corrosion.

• Make sure your workpiece exceeds the min­imum dimension requirements, as shown in
Figure 23, before processing it through the
jointer, or the workpiece may break or kick­back during the operation.

10" Min.

3

/4" Min.

Against Grain

Figure 22. Proper grain alignment with the

cutterhead.

• Only process natural wood fiber through
your jointer. Your jointer is designed to cut
only natural wood stock. This machine is NOT
designed to cut metal, glass, stone, tile, prod­ucts with lead-based paint, or products that
contain asbestos—cutting these materials with
a jointer may lead to injury.

-22-

1

/4" Min.

10" Min.

1

/2" Min.

1" Min.

Figure 23. Minimum stock dimensions for jointer.

ST1013 12" Jointer (Mfd. Since 3/16)

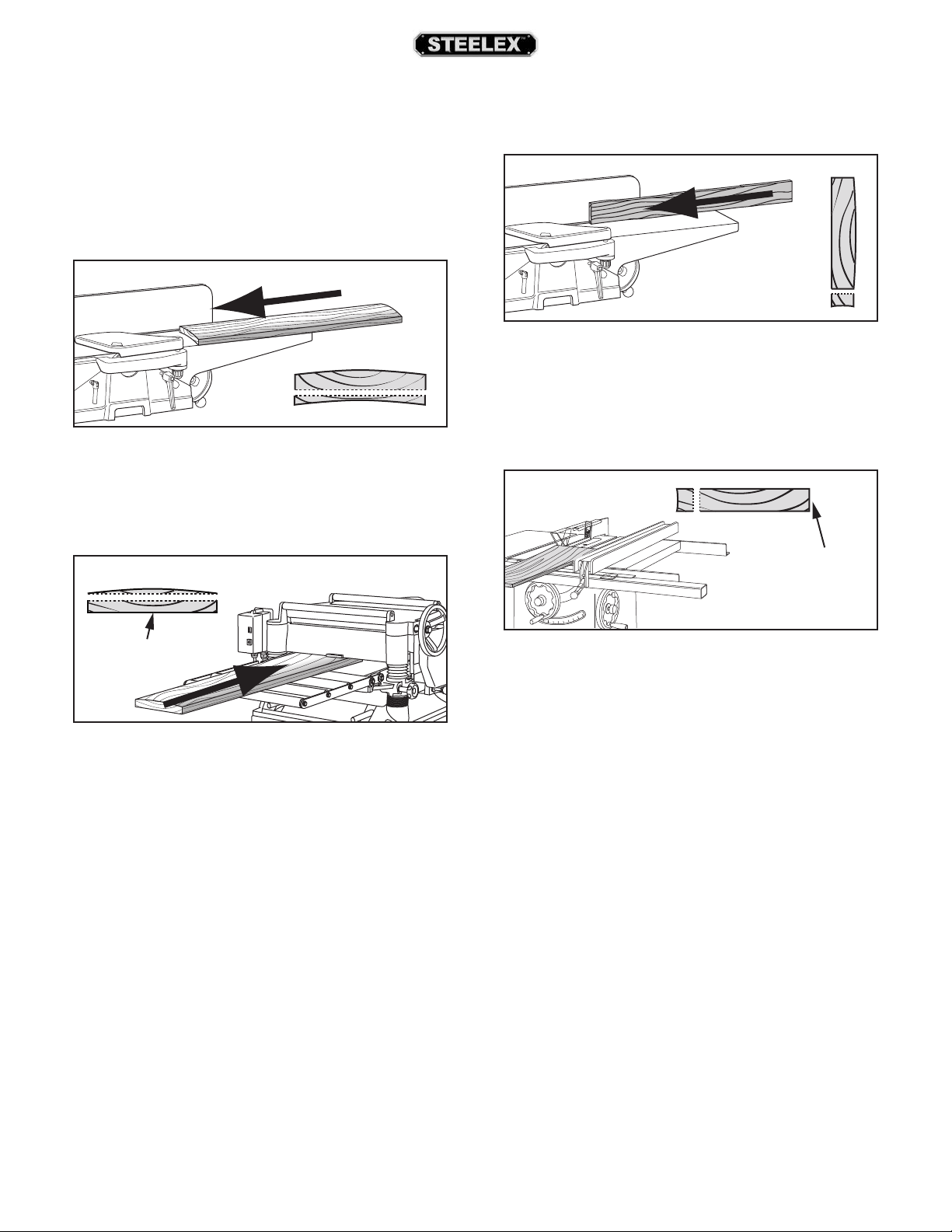

Squaring Stock

Squaring stock involves four steps performed in the
following order:

1. Surface Plane On The Jointer: The concave
face of the workpiece is surface planed flat with
the jointer (see Figure 24).

Figure 24. Surface plane on the jointer.

2. Surface Plane On a Thickness Planer: The

opposite face of the workpiece is surface planed
flat with a thickness planer (see Figure 25).

3. Edge Joint On The Jointer: The concave edge

of the workpiece is jointed flat with the jointer
(see Figure 26).

Figure 26. Edge joint on the jointer.

4. Rip-Cut On A Table Saw: The jointed edge of

the workpiece is placed against a table saw
fence and the opposite edge cut off (see Figure

27).

Previously Surface

Planed Face

Figure 25. Surface plane on a thickness planer.

45

30

15

Figure 27. Rip-cut on a table saw.

Previously

Jointed

Edge

-23-

ST1013 12" Jointer (Mfd. Since 3/16)

To surface plane on jointer:

1.

stock to ensure it is safe and suitable

Stock Inspection &

2.

infeed table height to desired cutting depth

For safety reasons, do not exceed

" per pass when surface

3

4

5

workpiece firmly against fence and infeed

To ensure workpiece remains sta-

of workpiece must

6. Feed workpiece completely across cutterhead

while keeping it firmly against fence and tables

Keep hands at least 4" away from
cutterhead during the entire cut. Instead of
allowing a hand to pass directly over cutter­head, lift it up and over cutterhead, and safely
reposition it on the outfeed side to continue
supporting workpiece. Use push blocks when­ever practical to further reduce risk of accidental

7

When squaring up stock, cut opposite side of
workpiece with a planer instead of the jointer to
ensure boths sides are parallel.

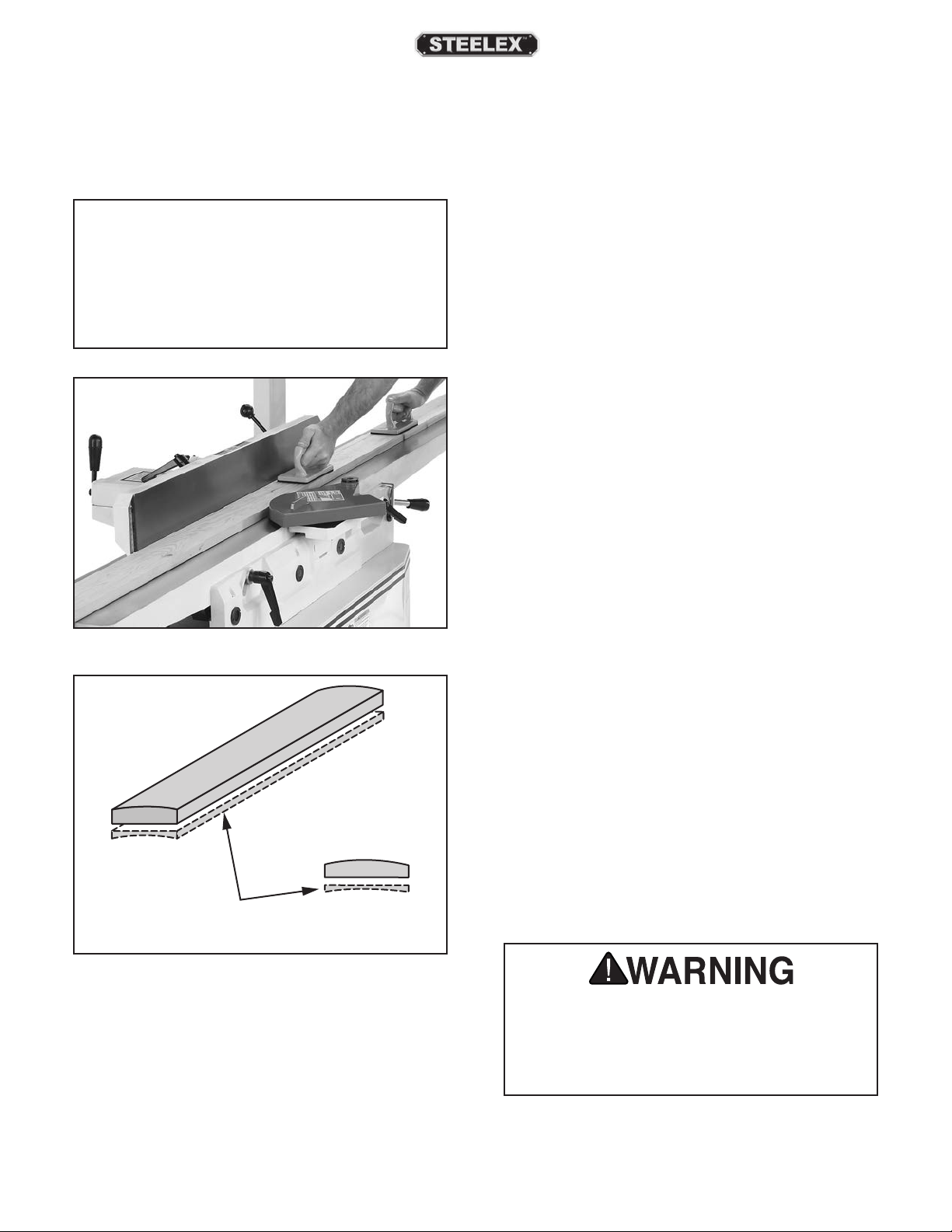

Surface Planing

The purpose of surface planing (see Figures 28–29)
on the jointer is to make one flat face on a piece of
stock to prepare it for thickness planing on a planer.

NOTICE

If you are not experienced with a jointer,
set depth of cut to "0" and practice feeding
workpiece across the tables as described for
each of the jointing procedures. This process
will better prepare you for actual operation.

Inspect

for the operation (see

Requirements section).

Set

for each pass.

IMPORTANT:

a cutting depth of 1⁄16
planing.

. Set fence to 90˚.

Figure 28. Example of surface planing operations.

. Start jointer.

. Place

table.

IMPORTANT:

ble during cut, concave sides
face toward table and fence.

during the entire cut.

IMPORTANT:

hand contact with cutterhead.

. Repeat Step 6 until entire surface is flat.

Removed

Surface

-24-

Figure 29. Illustration of surface planing results.

Tip:

Failure to use push blocks when surface planing
could result in your hands contacting rotating
cutterhead, which will cause serious personal
injury. ALWAYS use push blocks when surface
planing on jointer!

ST1013 12" Jointer (Mfd. Since 3/16)

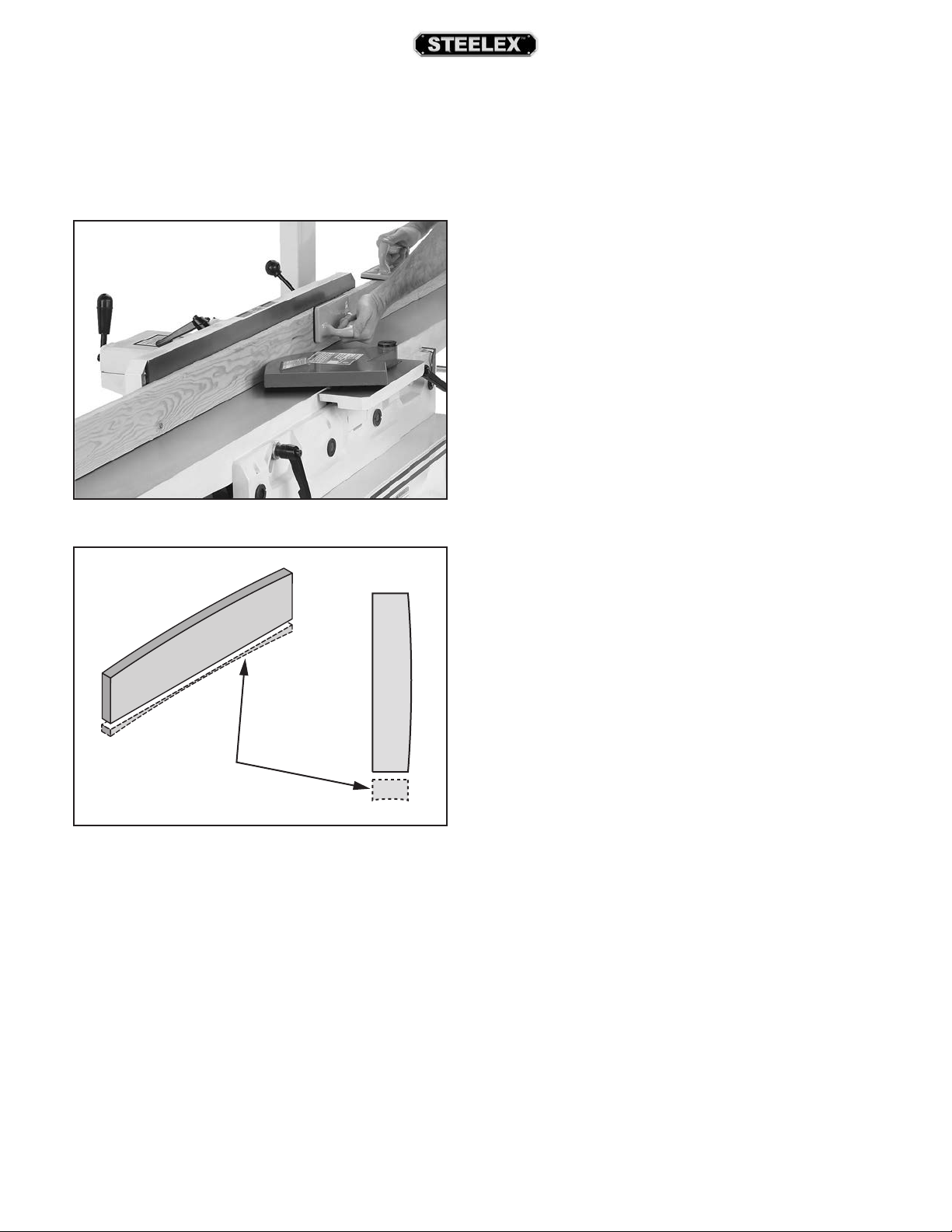

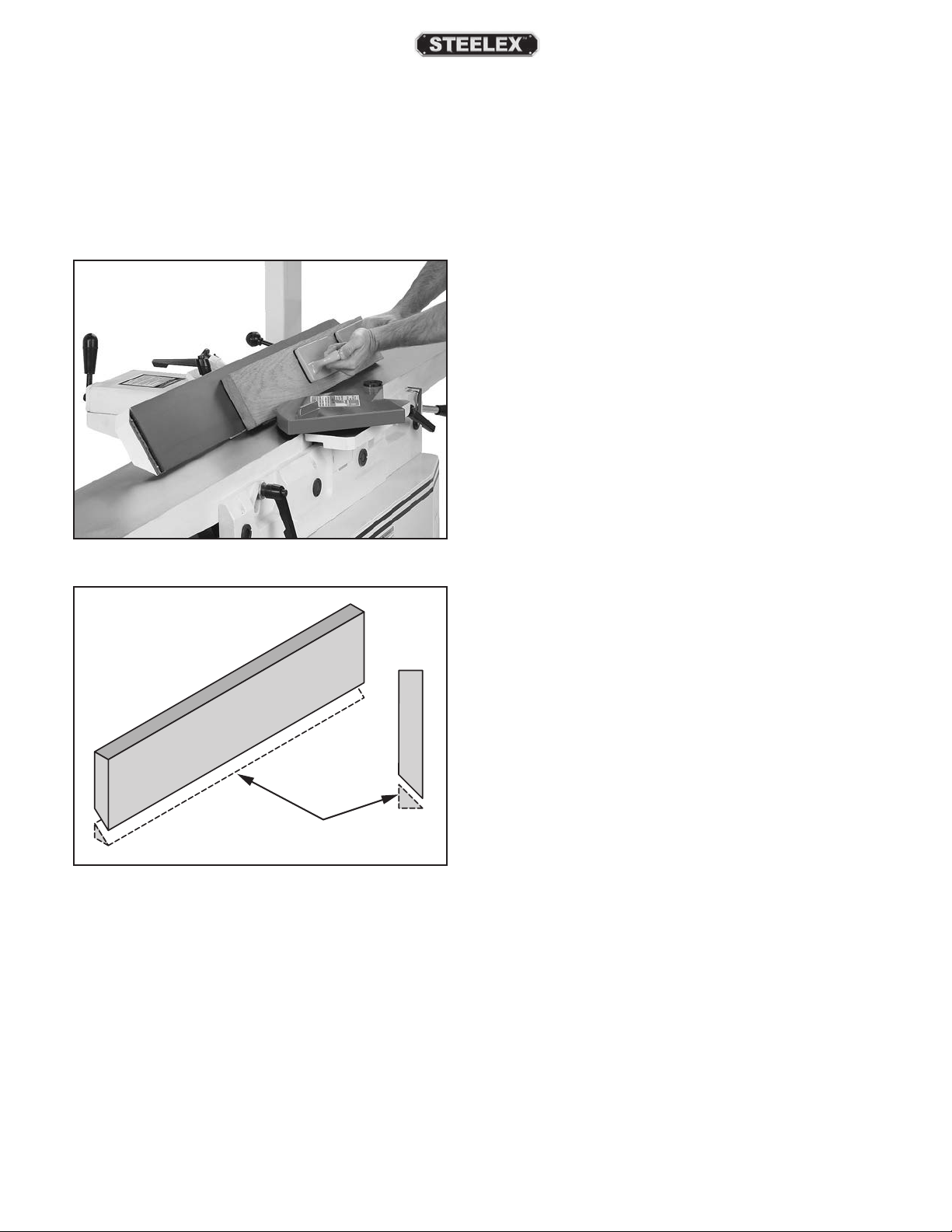

Edge Jointing

To edge joint on jointer:

1.

stock to ensure it is safe and suitable

Stock Inspection &

2.

infeed table height to desired cutting depth

For safety reasons, cutting depth

3

4

5

workpiece firmly against fence and infeed

To ensure workpiece remains sta-

of workpiece must

6. Feed workpiece completely across cutterhead

while keeping it firmly against fence and tables

Keep hands at least 4" away from
cutterhead during the entire cut. Instead of
allowing a hand to pass directly over cutter­head, lift it up and over cutterhead, and safely
reposition it on the outfeed side to continue
supporting workpiece. Use push blocks when­ever practical to further reduce risk of accidental

7

When squaring up stock, cut opposite edge
of workpiece with a table saw instead of the joint­er—otherwise, both edges of workpiece will not be
parallel with each other.

The purpose of edge jointing is to produce a finished,
flat-edged surface that is suitable for joinery or fin­ishing, as shown in Figures 30–31. It is also a neces­sary step when squaring rough or warped stock.

Inspect

for the operation (see
Requirements section).

Set

for each pass.

IMPORTANT:

should never exceed 1⁄8" per pass.

. Set fence to 90˚.

. Start jointer.

Figure 30. Example of edge jointing operation.

Removed

Figure 31. Illustration of edge jointing results.

Surface

. Place

table.

IMPORTANT:

ble during cut, concave sides
face toward table and fence.

during the entire cut.

IMPORTANT:

hand contact with cutterhead.

. Repeat Step 6 until the entire edge is flat.

Tip:

-25-

ST1013 12" Jointer (Mfd. Since 3/16)

Bevel Cutting

Surface

To bevel cut on jointer:

1.

stock to ensure it is safe and suitable

Stock Inspection &

2

infeed table height to cutting depth desired

Cutting depth for bevel cuts is typically

, depending on hardness and

3

4

workpiece against fence and infeed table

5

6

push block in your leading hand, press
workpiece against table and fence with firm
pressure, and feed workpiece over cutterhead

When your leading hand gets within 4" of
the cutterhead, lift it up and over cutterhead, and

once

. Now, focus your pressure
on outfeed end of the workpiece while feeding,
and repeat same action with your trailing hand

keep

your hands safe, DO NOT let them get closer than

at any time during

7

as necessary, until you

are satisfied with the results.

Bevel cuts (see Figures 32–33) can be made by
setting the fence at the desired angle and feeding
the workpiece firmly along the fence face, with the
bottom inside corner firmly against the table. The
cutting process typically requires multiple passes or
cuts to bevel the entire edge of a workpiece.

Inspect

for the operation (see

Requirements section).

. Set

for each pass.

Note:

between 1⁄16" and 1⁄8"
width of stock.

. Set fence tilt to desired angle of cut.

. Place

with concave side face down.

. Start jointer.

Figure 32. Fence setup for a bevel cut of 45°.

Removed

Figure 33. Illustration of bevel cutting results.

. With a

with a push block in your trailing hand.

Note:

place push block on portion of the workpiece
it is 4" past cutterhead

when it gets within 4" of cutterhead. To help

4" from moving cutterhead
operation!

. Repeat cutting process,

-26-

ST1013 12" Jointer (Mfd. Since 3/16)

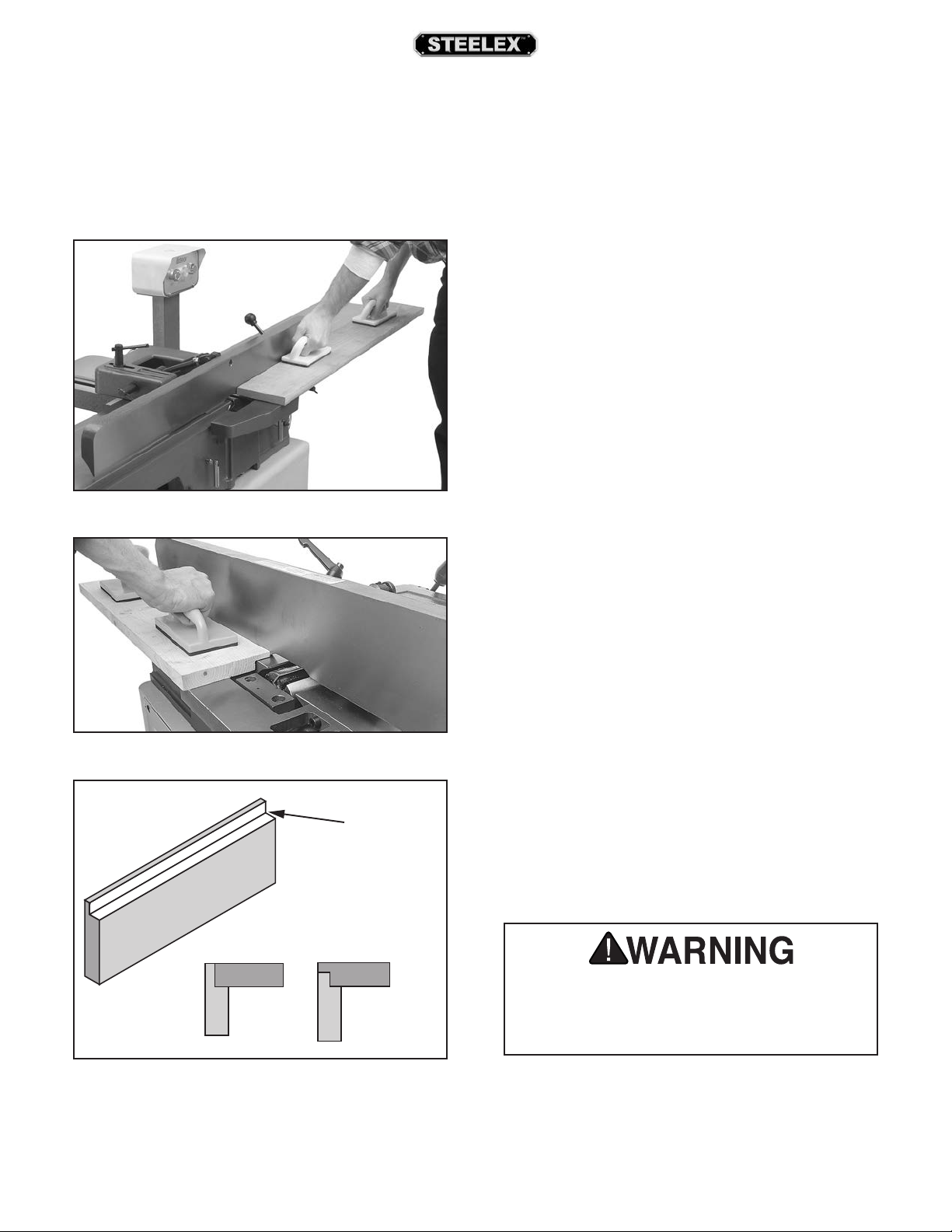

Rabbet Cutting

To rabbet cut on jointer:

1.

stock to ensure it is safe and suitable

Stock Inspection &

2.

infeed table height to desired cutting depth

For safety reasons, cutting depth

3

4

so

cutterhead in front of fence

5

6

workpiece firmly against fence and infeed

: To ensure workpiece remains sta-

of workpiece must

7. Feed workpiece completely across cutterhead

while keeping it firmly against fence and tables

Keep hands at least 4" away from
cutterhead during the entire cut. Instead of
allowing a hand to pass directly over cutter­head, lift it up and over cutterhead, and safely
reposition it on the outfeed side to continue
supporting workpiece. Use push blocks when­ever practical to further reduce risk of accidental

8. Repeat Step 7 until rabbet is cut to depth.

The purpose of rabbet cutting (see Figures 34–36)
is to remove a section of the workpiece edge, as
shown below. When combined with another rabbet
cut edge, the rabbet joints create a simple, yet strong
method of joining stock.

Inspect

for the operation (see
Requirements section).

Set

for each pass.

IMPORTANT:

should never exceed 1⁄8" per pass.

. Remove cutterhead guard.

. Set fence to 90˚ and near front of jointer,

amount of exposed
matches size of desired rabbet.

Figure 34. Typical rabbet cutting operation.

Figure 35. Completed rabbet cutting operation.

Removed

Surface

. Start jointer.

. Place

table.

IMPORTANT

ble during cut, concave sides
face toward table and fence.

during entire cut.

IMPORTANT:

hand contact with cutterhead.

Figure 36. Illustration of rabbet cutting effects and

a few sample joints.

When cutterhead guard is removed, attempting
any other cut besides a rabbet directly expos­es operator to moving cutterhead. ALWAYS
replace cutterhead guard after rabbet cutting!

-27-

ST1013 12" Jointer (Mfd. Since 3/16)

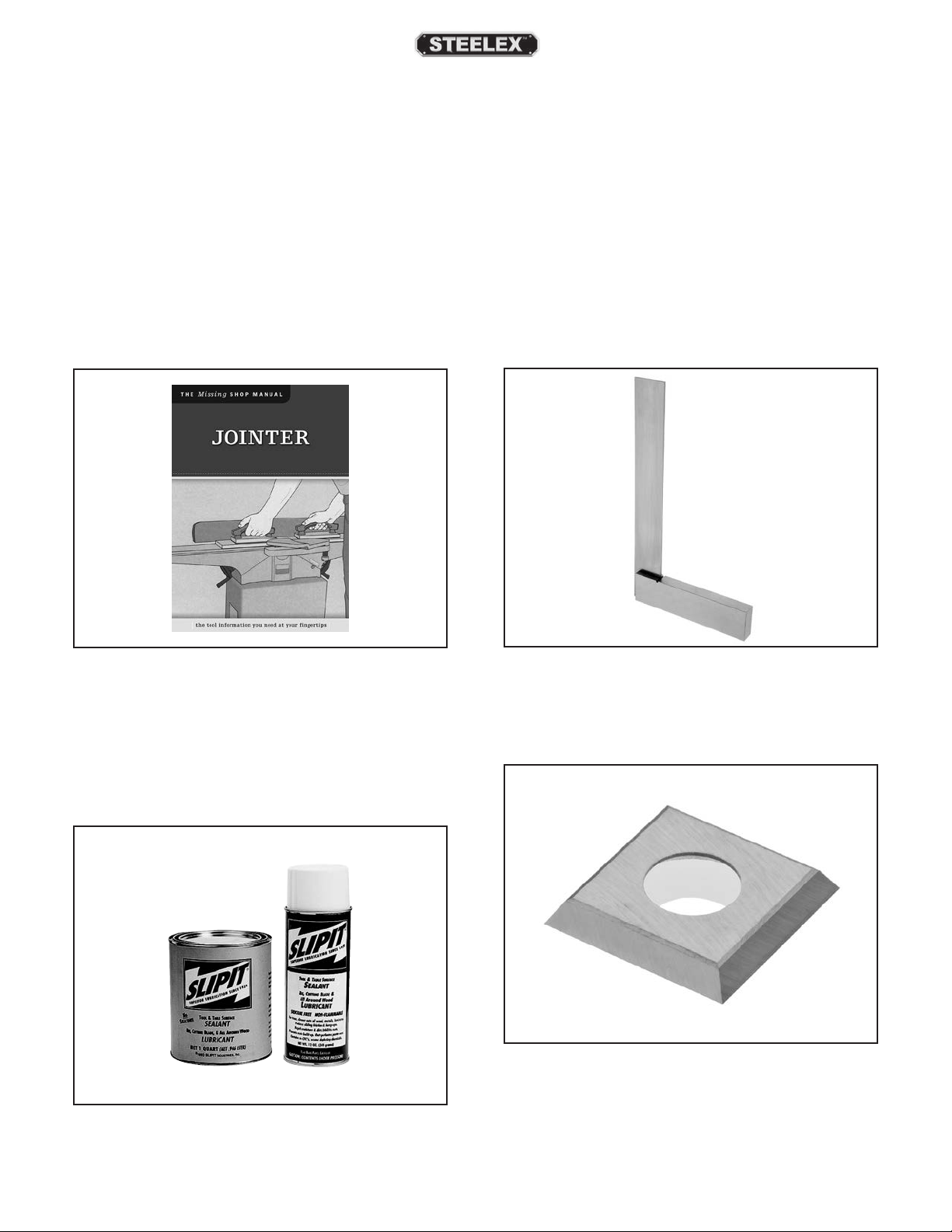

ACCESSORIES

The following lathe accessories may be available through your local Woodstock International Inc. Dealer. If you
do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail
Woodstock International Inc. Customer Service to get a current listing of dealers at: 1-800-545-8420 or at

[e-mail].

The Missing Shop Manual: Jointer is dedicated to

providing integral information about woodworking
tools and techniques that other manuals overlook.
The books in this series contain safety facts, explana­tions about basic project setup, and tips for maximiz­ing tool performance.

Figure 37. Model T23246 The Missing Shop Manual.

Our D3383 4" Precision Square is made of hard-
ened, tempered, polished steel. These 4 " precision
squares are perfect for precision 90° layout and
machine setup. The blade measures 4" and the beam
3". The blade edges and beam faces are accurate to
within ± 0.0006".

Figure 39. Model D3833 4" Precision Square.

G5562—SLIPIT® 1 Qt. Gel
G5563—SLIPIT® 12 oz Spray

Use on cast-iron table surfaces and other unpainted
metal surfaces to reduce sliding friction and hangups.
This product also reduces rust and prevents resin
buildup.

Figure 38. SLIPIT® Gel and Spray.

The D3379 Indexable Carbide Inserts (Set of 10)
measure 14mm x 14mm x 2mm and are the replace­ment inserts for the ST1013.

Figure 40. Model D3379 Indexable Carbide Inserts

for Model ST1013.

-28-

ST1013 12" Jointer (Mfd. Since 3/16)

MAINTENANCE

To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,

maintenance, or service.

General

Regular periodic maintenance on your STEELEX
Model ST1013 will ensure its optimum performance.
Make a habit of inspecting your machine each time
you use it.

Check for the following conditions and repair or
replace when necessary:

• Loose mounting bolts.

• Worn switch.

• Worn or damaged cords and plugs.

• Damaged V-belt.

• Any other condition that could hamper the safe

operation of this machine.

Schedule

For optimum performance from your machine, follow
this maintenance schedule and refer to any specific
instructions given in this section.

Cleaning/Protecting

Vacuum excess wood chips and sawdust, and wipe
off the remaining dust with a dry cloth. If any resin
has built up, use a resin dissolving cleaner to remove
it.

Protect the unpainted cast iron table by wiping it
clean after every use—this ensures moisture from
wood dust does not remain on bare metal surfaces.

®

Keep the table rust-free with regular applications of a
high-quality metal protectant.

Lubrication

NOTICE

Failure to follow reasonable lubrication prac­tices as instructed in this manual for your
machine could lead to premature failure of
components and void the warranty.

Your jointer features bearings that are lubricated
and sealed at the factory. These bearing do not
require any further attention unless they need to be
replaced. If a bearing fails, your planer will probably
develop a noticeable rumble or vibration, which will
increase when the machine is under a load. The bear­ings are standard sizes and can be replaced through
Woodstock.

Note: This maintenance schedule is based on average
daily usage. Adjust the maintenance schedule to match
your usage, to keep your planer running smoothly.

Daily:

• Vacuum all dust on and around the table.

• Clean machine and protect unpainted cast- iron.

• Tighten loose mounting bolts.

• Check/sharpen/replace damaged or worn
inserts (Page 32).

Every Month:

• Check V-belt tension, damage, and wear (Page

39).

• Clean/vacuum dust buildup from inside cabinet
and off of motor.

V-Belts

To ensure optimum power transmission from the
motor to the cutterhead, the V-belt must be in good
condition (free from cracks, fraying and wear) and
properly aligned and tensioned (refer to the instruc­tions on Page 39).

-29-

ST1013 12" Jointer (Mfd. Since 3/16)

The following troubleshooting tables cover common problems that may occur with this machine. If you need
replacement parts or additional

Note:

, and if available, your

original purchase receipt. This information is required to properly assist you.

SERVICE

Troubleshooting

troubleshooting help, contact our Technical Support.

Before contacting Tech Support, find the machine serial number and manufacture date

Motor and Electrical

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Machine does not
start or a breaker
trips immediately
after startup.

Machine stalls or is
underpowered.

Machine has
vibration or noisy
operation.

1. STOP button depressed.

2. Incorrect power supply voltage or circuit size.

3. Power supply circuit breaker tripped/fuse blown.

4. Motor wires connected incorrectly.

5. Wiring open/has high resistance.

6. START/STOP switch at fault.

7. Start capacitor at fault.

8. Thermal overload relay has tripped.

9. Contactor not energized/has poor contacts.

10. Centrifugal switch at fault.

11. Motor at fault.

1. Workpiece material not suitable.

2. Excessive feed rate.

3. Excessive depth of cut.

4. Dull inserts.

5. Dust collection problem, causing internal
components to clog up with shavings.

6. Belt slipping; oil/grease on belt.

7. Pulley loose or not properly aligned.

8. Motor overheated.

9. Plug/receptacle at fault.

10. Run capacitor at fault.

11. Contactor not energized/has poor contacts.

12. Motor at fault.

1. Motor or other component loose.

2. Belt worn or loose.

3. Motor fan rubbing on fan cover.

4. Pulley loose or not properly aligned.

5. Inserts at fault.

6. Cutterhead bearings at fault.

7. Centrifugal switch at fault.

8. Motor bearings at fault.

1. Rotate button head to reset.

2. Ensure correct power supply voltage and circuit size.

3. Ensure circuit is sized correctly and free of shorts. Reset
circuit breaker or replace fuse.

4. Correct motor wiring connections.

5. Check/x broken, disconnected, or corroded wires.

6. Replace switch.

7. Test/replace.

8. Reset; adjust trip load dial if necessary; replace.

9. Test all legs for power/replace.

10. Adjust/replace centrifugal switch if available.

11. Test/repair/replace.

1. Ensure workpiece is suitable for jointing (Page 22).

2. Reduce feed rate.

3. Reduce depth of cut.

4. Rotate/replace inserts (Page 32).

5. Clear blockages; move machine closer to dust collector;
upgrade dust collector.

6. Tension/replace belt (Page 39); clean belt; ensure
pulleys are aligned (Page 40).

7. Re-align pulleys; replace shaft key; tighten pulley set
screw.

8. Clean motor, let cool, and reduce workload.

9. Test for good contacts/correct wiring.

10. Test/repair/replace.

11. Test all legs for power/replace.

12. Test/repair/replace.

1. Inspect/replace damaged bolts/nuts, and retighten
with thread locking uid.

2. Inspect/replace belt (Page 39).

3. Fix/replace fan cover; replace loose/damaged fan.

4. Re-align pulleys; replace shaft key; tighten pulley set
screw.

5. Rotate/replace inserts; set insert alignment/height
correctly.

6. Replace bearing(s)/re-align cutterhead.

7. Replace.

8. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.

-30-

ST1013 12" Jointer (Mfd. Since 3/16)

Operations

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Tables are hard to
adjust.

Excessive snipe
(gouge in end
of board that is
uneven with rest
of cut).

Workpiece stops in
middle of cut.

Workpiece
chipping, tear-out,
indentations, or
overall rough cuts.

Fuzzy grain left in
workpiece.

Long lines or
ridges that run
along the length
of the board.

Uneven cutter
marks, wavy
surface, or chatter
marks across face
of workpiece.

Glossy surface;
scorching or
burn marks on
workpiece.

Workpiece is
concave or convex
along its length
after jointing.

1. Table lock is engaged/partially engaged.

2. Table stops blocking movement.

1. Outfeed table is set too low.

2. Operator pushing down on trailing end (infeed
side) of workpiece as it leaves cutterhead.

1. Outfeed table set too high. 1. Align outfeed table with cutterhead inserts at top dead

1. Not feeding workpiece to cut "with the grain."

2. Dull inserts.

3. Workpiece not suitable for jointing.

4. Nicked or chipped inserts.

5. Feeding workpiece too fast.

6. Excessive depth of cut.

7. Lack of proper dust collection or clogged dust
port.

1. Wood has high moisture content.

2. Dull inserts.

1. Nicked or chipped inserts.

2. Loose or incorrectly installed insert(s).

3. Dirt or debris under carbide inserts.

1. Feeding workpiece too fast.

2. Inserts not positioned at even heights in
cutterhead.

3. Dirt or debris under carbide inserts.

1. Dull inserts.

2. Feed rate too slow.

1. Workpiece not held with even pressure against
outfeed table during cut.

2. Workpiece too uneven at start of operation.

3. Outfeed table not parallel with infeed table.

1. Completely loosen table locks.

2. Loosen/reset table stop bolts.

1. Align outfeed table with cutterhead inserts at top dead

center (Page 36).

2. Focus most of the workpiece pressure against outfeed
table while cutting.

center (Page 36).

1. Turn workpiece 180° before feeding again.

2. Rotate/replace insert(s) (Page 32).

3. Ensure workpiece is suitable for jointing (Page 22).

4. Rotate/replace insert(s) (Page 32).

5. Reduce feed rate.

6. Reduce depth of cut.

7. Clear blockages, ensure dust collection is operating
eciently; upgrade dust collector.

1. Ensure wood moisture content is less than 20%. Allow
to dry if necessary.

2. Rotate/replace inserts (Page 32).

1. Rotate/replace inserts (Page 32).

2. Remove/replace insert(s) and install properly (Page 32).

3. Remove inserts, properly clean mounting pocket and
re-install (Page 32).

1. Reduce feed rate.

2. Remove, clean, and re-install any inserts that are
"raised" in cutterhead (Page 32).

3. Remove inserts, properly clean mounting pocket and
re-install (Page 32).

1. Rotate/replace insert(s) (Page 32).

2. Increase feed rate.

1. Apply even downward pressure against workpiece
throughout entire travel along outfeed side during cut.

2. Take partial cuts to remove extreme high spots before
doing a full pass.

3. Check/adjust table parallelism (Page 33).

-31-

ST1013 12" Jointer (Mfd. Since 3/16)

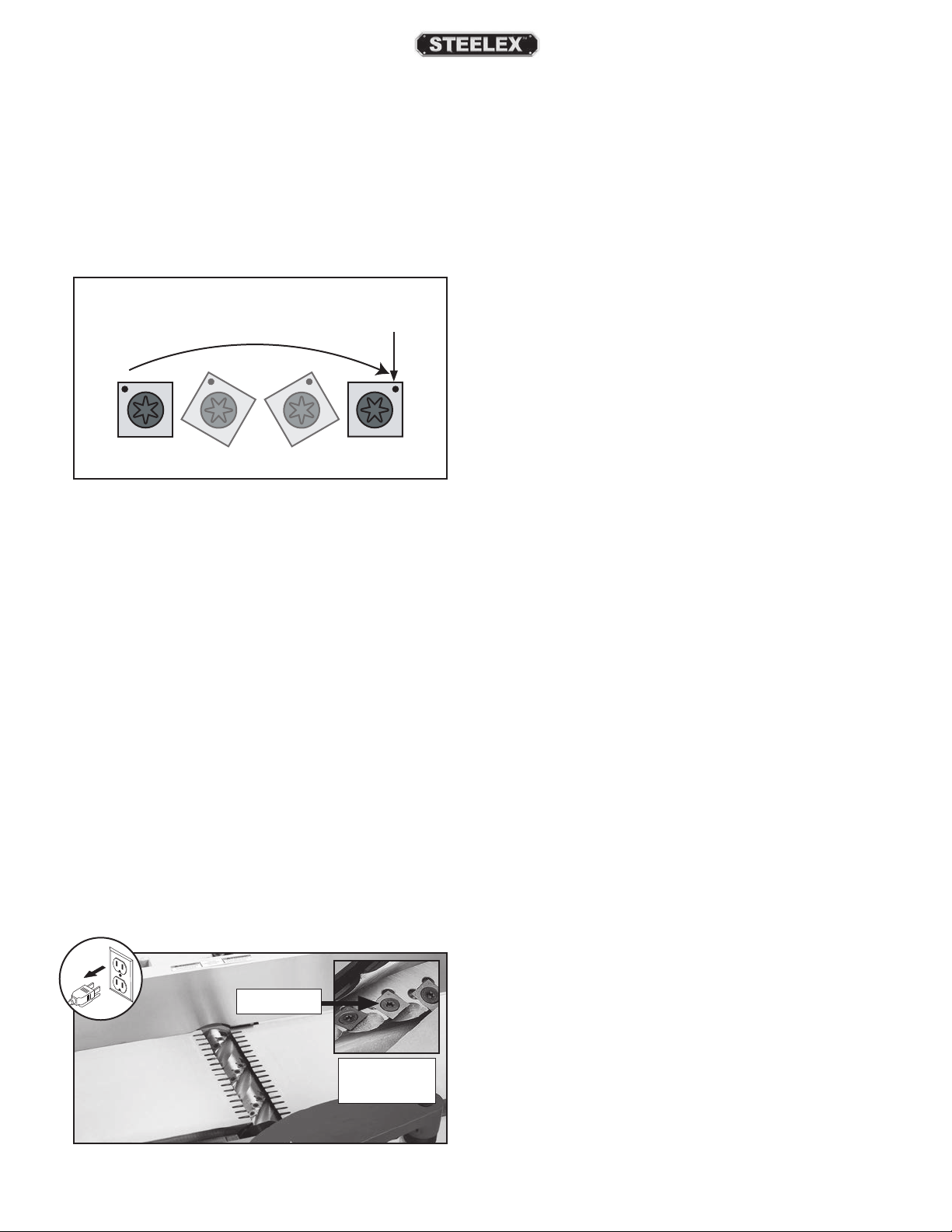

Rotating/Replacing

Cutterhead Inserts

This helical cutterhead is equipped with indexable
carbide inserts. Each insert can be rotated to reveal
any one of its four cutting edges. Therefore, if one
cutting edge becomes dull or damaged, simply rotate
it 90˚ to reveal a fresh cutting edge (see Figure 41).

Reference

Dot

3. Open pulley cover to expose cutterhead pulley.

4. Rotate cutterhead pulley to provide access to

insert(s) to be rotated/replaced.

5. Put on heavy leather gloves for protection.

6. Remove any sawdust or debris from head of

insert, Torx screw, and surrounding area.

7. Remove Torx screw and insert, then clean all

dust and debris from both parts and pocket they
were removed from.

Tip: Use low-pressure compressed air or vacuum

nozzle to clean cutterhead pocket.

8. Re-install insert so that a fresh cutting edge

faces outward, making sure it is properly seated
in cutterhead pocket.

Figure 41. Insert rotating sequence.

Each insert has a reference dot on one corner. As the
insert is rotated, the reference dot location can be
used as an indicator of which edges are used and
which are new. When the reference dot revolves back
around to its starting position, the insert should be
replaced.

Tools Needed Qty

Phillips Screwdriver ............................................................. 1

Torque Wrench ...................................................................... 1

T-20 Torx Bit ............................................................................ 1

Precision Straightedge ....................................................... 1

To rotate or replace helical cutterhead insert:

1. DISCONNECT MACHINE FROM POWER!

2. Remove cutterhead guard from table, and lower

infeed and outfeed tables as far as they go to
provide access to cutterhead (see Figure 42).

— If all four insert cutting edges have been

used, replace insert with a new one. Always
position reference dot in same position when
installing a new insert.

9. Lubricate Torx screw threads with a small

amount of light machine oil, wipe excess off,
and torque screw to 48–50 inch/pounds.

Note: If too much oil is applied to the threads,

excess will attempt to squeeze out of threaded hole
as you install insert and force it to raise slightly,
making it out of alignment.

Torx Screw

Cutterhead

Insert

Figure 42. Cutterhead inserts and Torx screws.

-32-

ST1013 12" Jointer (Mfd. Since 3/16)

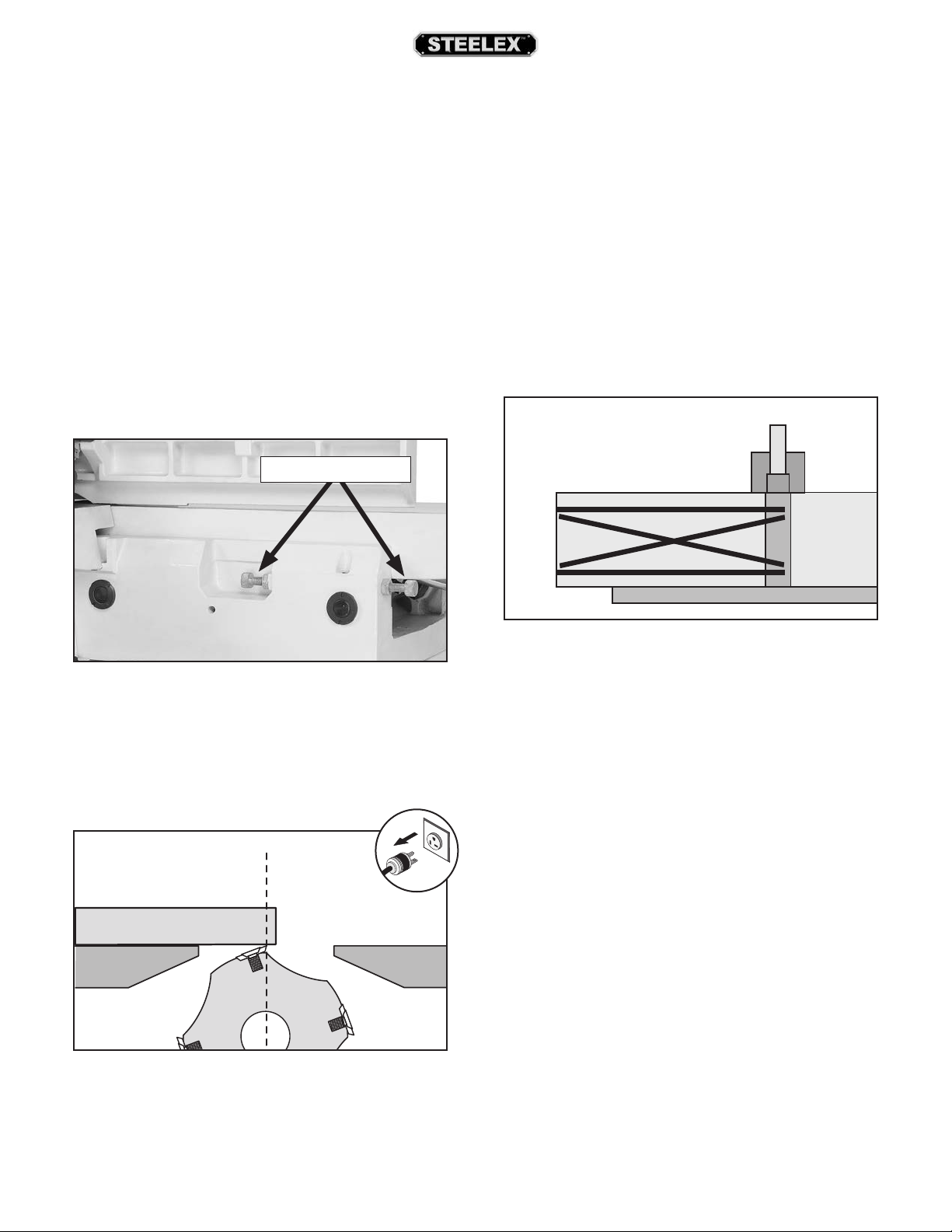

Checking/Adjusting

Table Parallelism

5. Place straightedge in positions shown in Figure

45. In each position, straightedge should touch

cutterhead and sit flat on outfeed table.

If the tables are not parallel with the cutterhead or
each other, then poor cutting results and kickback
may occur.

To check outfeed table parallelism:

1. DISCONNECT MACHINE FROM POWER!

2. Remove cutterhead guard and fence.

3. Loosen outfeed table lock located at front of

machine, and loosen jam nuts and stop bolts
located at back of machine (see Figure 43).

Positive Stop Bolts

— If straightedge touches cutterhead and sits

flat across outfeed table in each position,
then outfeed table is already parallel with
cutterhead. Check infeed table to make sure
that it is parallel with outfeed table.

— If straightedge does not touch cutterhead

and sit flat on outfeed table in any of the posi­tions, then outfeed table is not parallel with
cutterhead. Correct outfeed table parallelism,
then correct infeed table parallelism.

Black Lines Represent
Straightedge Positions
From Overhead View

Figure 43. Table positive stop bolts.

4. Place straightedge on outfeed table so it hangs

over cutterhead, and lower outfeed table until
straightedge just touches cutterhead body,
as shown in Figure 44 (rotate cutterhead if
necessary).

Straightedge

Outfeed Infeed

Figure 44. Adjusting outfeed table even with

cutterhead body.

Figure 45. Straightedge positions for verifying if

outfeed table is parallel with cutterhead.

-33-

ST1013 12" Jointer (Mfd. Since 3/16)

Straightedge

Outfeed Table Infeed Table

To check infeed table parallelism:

1. Follow steps for checking outfeed table paral-

lelism to first make sure outfeed table is parallel
with cutterhead.

2. Raise outfeed table higher than cutterhead.

Adjusting Table Parallelism

For safe and proper cutting results, the tables must
be parallel with the cutterhead. Adjusting them to
be parallel is a task of precision and patience, and
may take up to one hour to complete. Luckily, this is
considered a permanent adjustment and should not
need to be repeated for the life of the machine.

3. Place straightedge halfway across infeed table

and halfway over outfeed table, and adjust
infeed table even with outfeed table, as shown
in Figure 46.

Figure 46. Infeed and outfeed tables set evenly.

4. Place straightedge in positions shown in Figure

47. In each position, straightedge should sit flat

against both the outfeed table and infeed table.

— If straightedge sits flat against both infeed

and outfeed table, then the tables are parallel.

— If straightedge does not sit flat against both

the infeed and outfeed table in any of the
positions, then the infeed table needs to be
adjusted parallel with the outfeed.

Due to the complex nature of this task, we recom­mend that you double check the current table posi­tions to make sure that they really need to be adjust­ed before starting.

The tables have four eccentric bushings under each
corner that allow the tables to be adjusted parallel.
These eccentric bushings are locked in place by pig­gybacked set screws (one on top of the other) and
adjusted when the eccentric bushing is rotated.

The correct order for adjusting the table parallelism
is to first adjust the outfeed table parallel with the
cutterhead, then adjust the infeed table parallel with
the outfeed table.

When setting the outfeed table, all measurements
must be made from the cutterhead body—not the
inserts—or results may get skewed the next time you
change inserts.

Important: The next steps are intended to be per­formed in succession with the same steps for checking
the outfeed table. Do not continue until you have fol­lowed those steps.

Black Lines Represent
Straightedge Positions
from Overhead View

Figure 47. Straightedge positions for checking

infeed/outfeed parallelism.

-34-

ST1013 12" Jointer (Mfd. Since 3/16)

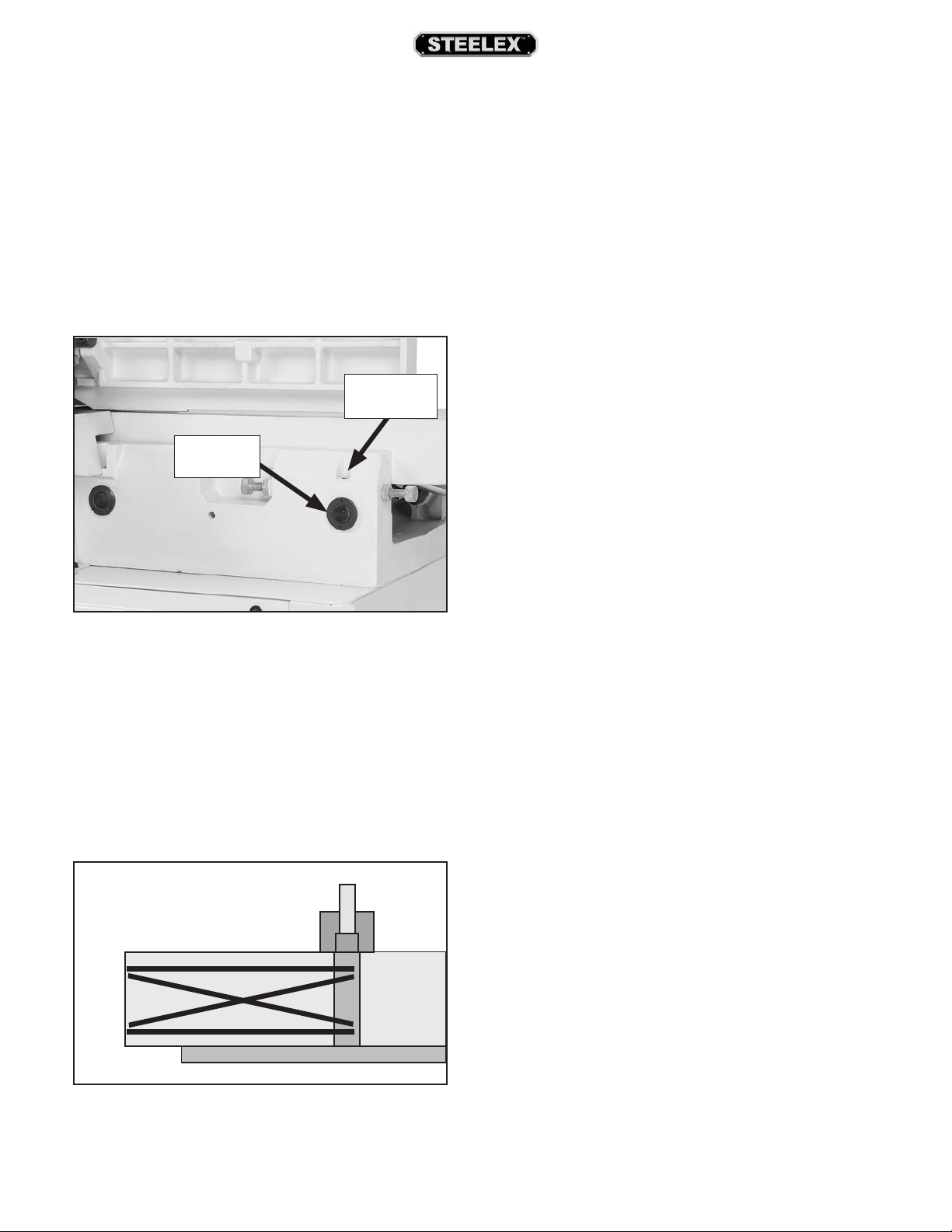

To adjust table parallelism:

1. Place straightedge on outfeed table so it hangs

over cutterhead, and lower outfeed table until
straightedge just touches cutterhead body,
as shown in Figure 44 on Page 33 (rotate
cutterhead if necessary).

4. Tighten/replace set screws in eccentric bushings

on outfeed table.

5. Remove set screw from each of the four eccen-

tric bushings under outfeed table, and loos­en set screws underneath those removed set
screws.

2. Remove set screw from each of the four eccen­tric bushings (see Figure 48) under outfeed
table, and loosen set screws underneath those
removed set screws.

Set Screw

Location

Eccentric

Bushing

Figure 48. Eccentric bushing and set screw location.

3. Place straightedge in one of the positions

shown in Figure 49, and adjust table (a small
hammer and punch or pin-type spanner wrench
may be necessary to turn eccentric bushings)
so straightedge touches cutterhead while lying
flat across outfeed table. Repeat this step with
each of the remaining straightedge positions as
many times as necessary until outfeed table is
parallel with cutterhead.

6. Place straightedge halfway across infeed table

and halfway over outfeed table, and adjust
infeed table even with outfeed table, as shown
in Figure 46 on Page 34.

7. Place straightedge in one of the positions shown
in Figure 47 on Page 34, and adjust eccentric
bushings under infeed table so straightedge lies
flat against both tables. Repeat this step with
each of the remaining straightedge positions
as many times as necessary until infeed table is
parallel with outfeed table.

8. Tighten/replace set screws in the eccentric
bushings on infeed table.

9. Set outfeed table height (see Page 36).

10. Re-install the cutterhead guard and fence.

Black Lines Represent
Straightedge Positions
From Overhead View

Figure 49. Straightedge positions for verifying if

outfeed table is parallel with cutterhead.

-35-

ST1013 12" Jointer (Mfd. Since 3/16)

Setting Outfeed Table

Height

The outfeed table height must be even with the
top of the cutterhead inserts. If the outfeed table is
set too low, there will be snipe. If the outfeed table
is set too high, the workpiece will hit the edge of
the outfeed table during operation, increasing the
chance of kickback.

Tools Needed Qty

Straightedge .......................................................................... 1

Open-End Wrench 16mm.................................................. 1

To set outfeed table height:

5. Use motor pulley to rotate cutterhead until one

of the inserts is at top dead center (its highest
point during rotation), as illustrated in Figures
51–52.

Top Dead

Center

1. DISCONNECT MACHINE FROM POWER!

2. Remove cutterhead guard, fence, and cabinet

rear access panel.

3. Loosen outfeed table lock located at front of

machine, and loosen jam nuts and positive stop
bolts located at back of machine just behind
outfeed table (see Figure 50).

Stop Bolts

Jam Nuts

Figure 51. Insert at top dead center.

6. Use outfeed table adjustment lever to set outfeed

table so that insert barely touches straightedge,
as illustrated in Figure 52.

Straightedge

Outfeed Infeed

Figure 52. Using straightedge to check outfeed

table height.

Figure 50. Outfeed table positive stop bolts.

4. Place straightedge on outfeed table so it extends

over cutterhead.

-36-

7. Tighten outfeed table lock located at front of
machine, and tighten outfeed positive stop
bolts and jam nuts located at back of machine
(see Figure 50) so that outfeed table will not
move during operation.

8. Re-install cutterhead guard, fence, and cabinet
rear access panel.

ST1013 12" Jointer (Mfd. Since 3/16)

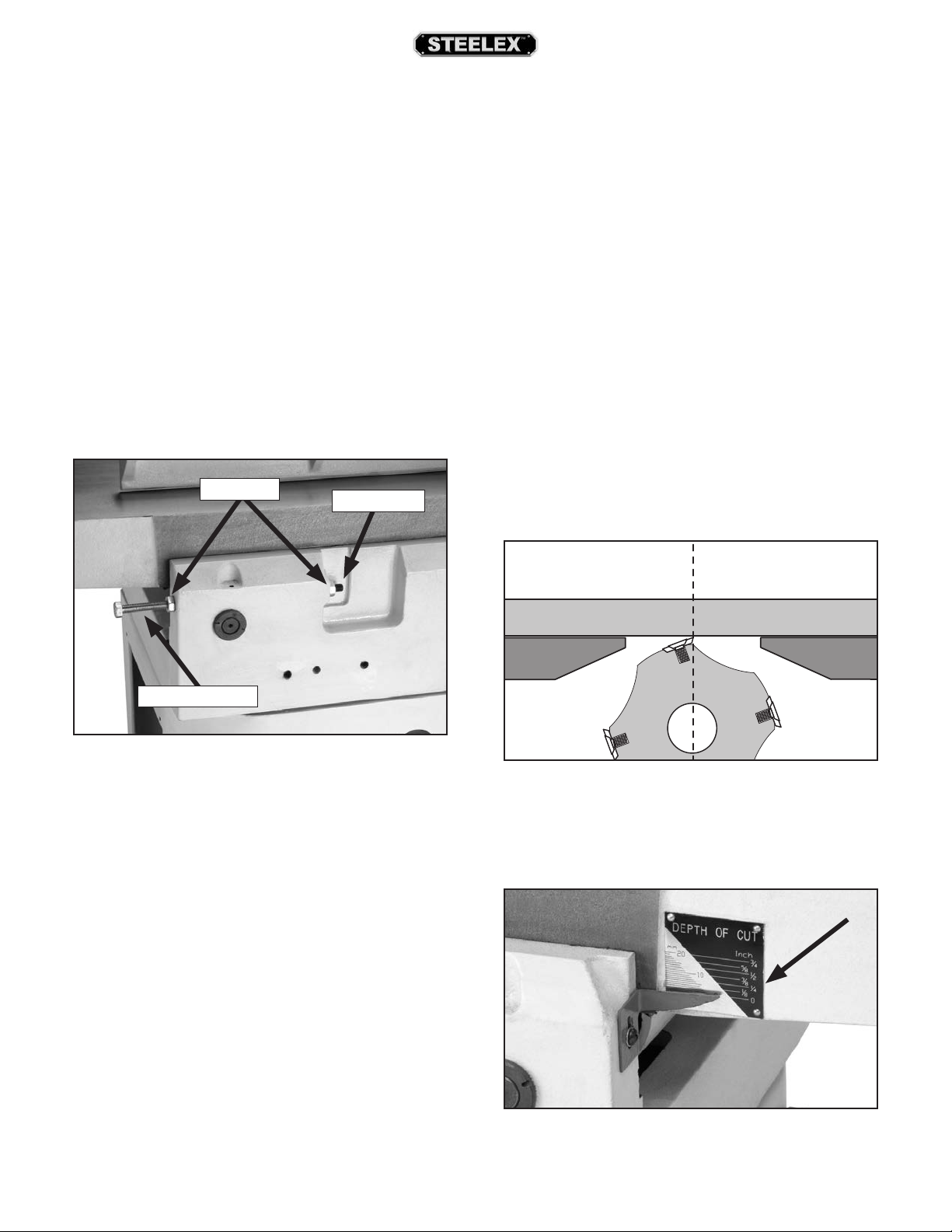

Setting Infeed Table

Calibrating Depth

Height

The infeed table on the Model ST1013 has positive
stop bolts that, when properly set up, allow the oper­ator to quickly adjust the infeed table between finish/
final cuts and shaping/heavy cuts.

We recommend setting the minimum depth of cut to

1

/32" and the maximum depth of cut to 1/8" for most
operations. DO NOT exceed
machine or kickback and serious injury may occur!

Each positive stop bolt (see Figure 53) controls the
top or bottom range of the table movement. The jam
nut locks the positive stop bolt in position so it will
not move during operation.

Jam Nuts

1

⁄8 " cut per pass on this

Top Height

Scale

The depth-of-cut scale can be calibrated or "zeroed"
to make sure the cutting depth shown on the scale
matches the actual cutting depth (per pass).

Tools Needed Qty

Straightedge .......................................................................... 1

Phillips Screwdriver #2 ....................................................... 1

To calibrate depth scale:

1. DISCONNECT MACHINE FROM POWER!

2. Loosen infeed table positive stop bolts (see
Figure 53).

3. Use straightedge to help adjust infeed table

exactly even with outfeed table, as shown in
Figure 54.

Bottom Height

Figure 53. Positive stop bolts for infeed table.

Straightedge

InfeedOutfeed

Figure 54. Infeed table even with outfeed table.

4. Using a screwdriver, adjust scale pointer to “0”

(see Figure 55), then reset infeed table positive
stops.

Figure 55. Depth scale adjusted to “0” position.

-37-

ST1013 12" Jointer (Mfd. Since 3/16)

Setting Fence Stops

The fence stops simplify the task of adjusting the
fence to 45˚ inward, 90˚, and 45˚ outward (135˚).

To set 45˚ inward fence stop:

To set 90˚ fence stop:

1. Lower stop block against fence, as shown in
Figure 58, and loosen fence tilt lock.

1. DISCONNECT MACHINE FROM POWER!

2. Tilt fence approximately 45° inward (see Figure

56) onto positive stop bolts, using a 45° square

as a gauge.

Figure 56. Fence adjusted 45˚ inward.

3. Loosen jam nut on 45° inward positive stop bolt
shown in Figure 57.

4. Adjust positive stop bolts (see Figure 57) until

fence is exactly 45° inward while resting on bolts
(verify angle with a 45° square).

5. Retighten jam nut (see Figure 57) loosened in
Step 2.

Jam Nut

Stop Block

Positive

Stop Bolt

Figure 58. Adjusting fence to 90°.

2. Tilt fence to 90° position.

3. Use a 90° square to check fence position.

4. If it is not set at exactly 90°, loosen jam nut and

adjust positive stop bolt until fence is exactly
90°, as shown above in Figure 71.

To set 45° outward fence stop:

1. Raise stop block, loosen fence tilt lock, and posi-

tion fence against 45° outward positive stop bolt
(see Figure 59).

2. If fence is not set at exactly 45˚ outward, loosen

jam nut on 45˚ outward fence positive stop bolt
(see Figure 59).

Positive

Stop

Figure 57. 45˚ inward positive stop bolt.

-38-

Jam Nut

Positive

Stop Bolt

Jam Nut

Figure 59. Adjusting fence to 45˚ outward.

3. Adjust 45˚ outward positive stop bolt until fence

is exactly 45° outward while resting on bolt
(check angle with sliding bevel set to 135°).

4. Retighten jam nut loosened in Step 2.

ST1013 12" Jointer (Mfd. Since 3/16)

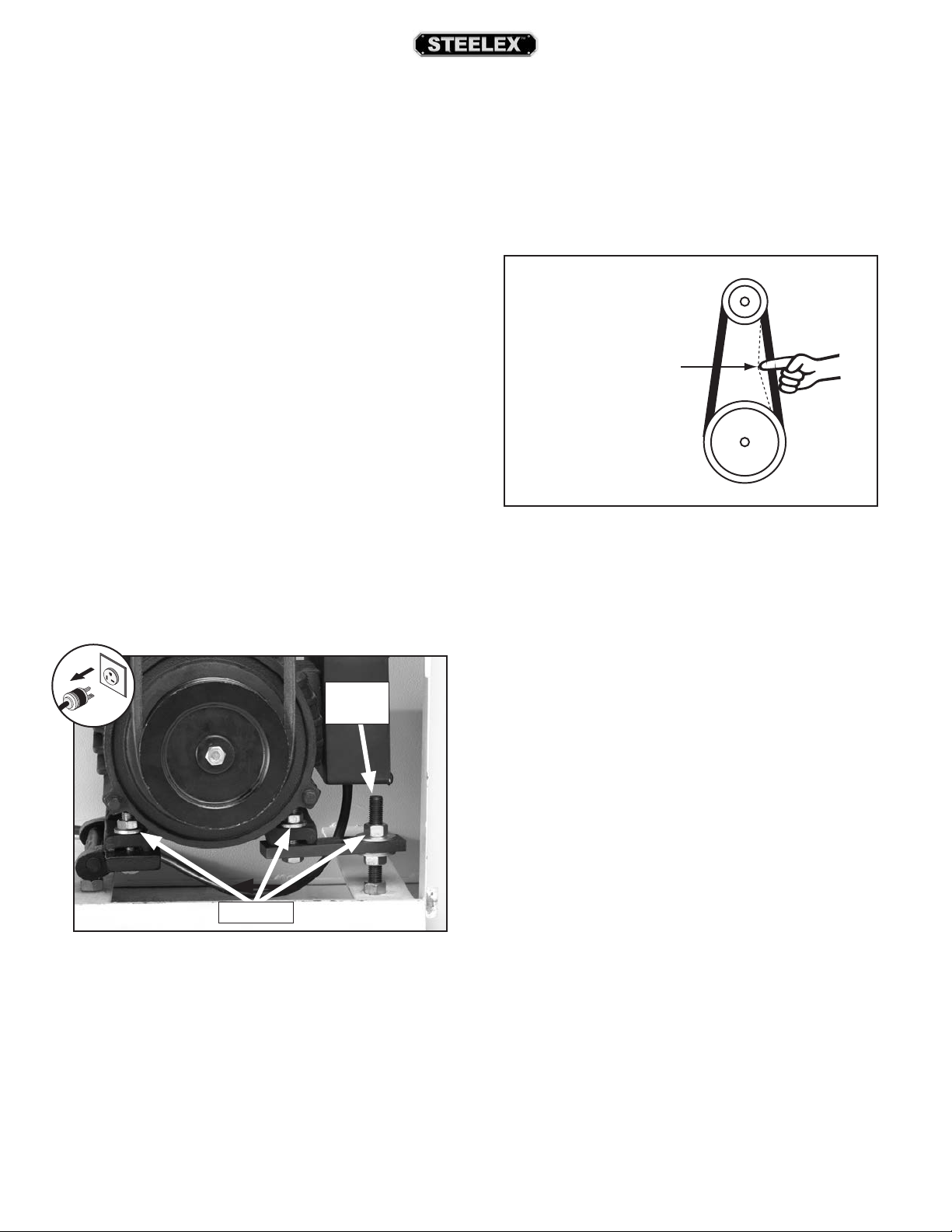

Tensioning/Replacing

V-Belt

To ensure optimum power transmission from the
motor to the cutterhead, the belt must be in good
condition (free from cracks, fraying and wear) and
properly tensioned. As the machine is used, the belts
will slightly wear and stretch, eventually losing their
efficiency of transmitted power until they can be
retensioned.

Also, a new belt typically has a break-in period, and
should be checked/retensioned after the first 16
hours of belt life, as it will stretch and seat during this
time.

6. Press belt with moderate pressure in center to

check belt tension. Belt is correctly tensioned
when there is approximately
pushed, as shown in Figure 61.

—If there is more than 1⁄4" deflection when you

check belt tension, repeat the tensioning pro­cedure until it is correct.

1

⁄4" deflection when

Cutterhead Pulley

Approximately

1

/4" Deection

Tools Needed Qty

Wrenches or Sockets 13mm ............................................. 2

Tensioning Belt

1. DISCONNECT MACHINE FROM POWER!

2. Open pulley cover.

3. Loosen fasteners on tension rod that hold motor

to bracket, as shown in Figure 60.

Tension

Rod

Motor Pulley

Figure 61. Correct belt deflection when properly

tensioned.

7. Tighten motor bracket fasteners (see Figure 60),

and close pulley cover.

Replacing Belt

1. DISCONNECT MACHINE FROM POWER!

2. Open pulley cover and loosen motor bracket
fasteners shown in Figure 60.

3. Have another person lift motor as you remove

belt and replace it with a new one. It may help
to use a 2x4 as a lever to raise motor.

4. Follow Steps 4–6 in Tensioning Belt procedure
above to set correct belt tension.

Fasteners

Figure 60. Fasteners to be loosened for V-Belt

replacement.

4. Lift motor up and slide V-belts off of motor pul-

ley and cutterhead pulley.

5. Slide new belts onto pulleys and lightly tighten

motor bracket fasteners.

5. Tighten motor bracket fasteners (see Figure 60)
and close pulley cover.

-39-

ST1013 12" Jointer (Mfd. Since 3/16)

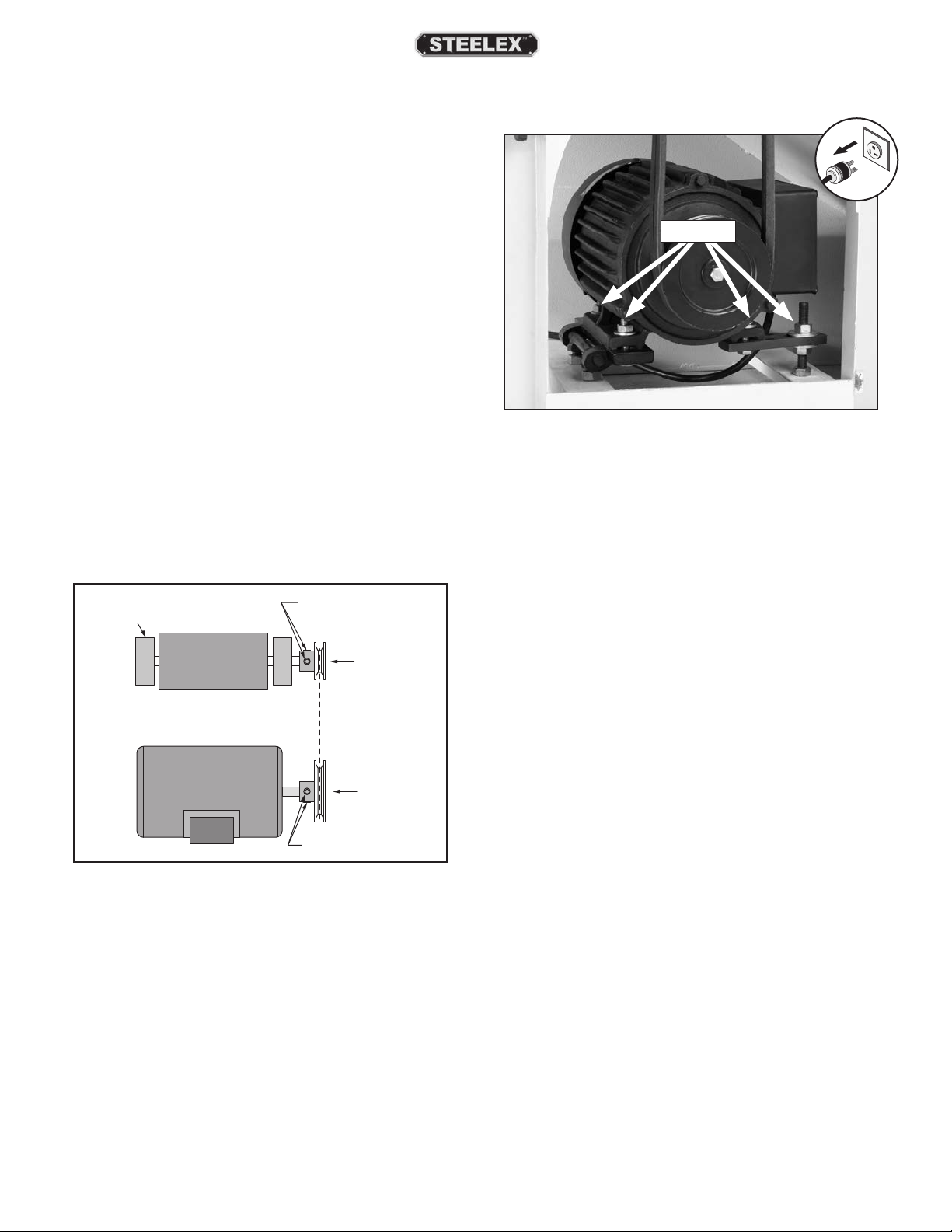

Pulley Alignment

Pulley alignment is another important factor in power
transmission and belt life. The pulleys should be par­allel to each other and in the same plane (coplanar)
for optimum performance.

4. Loosen fasteners that hold motor to brackets
(see Figure 63).

Each pulley can be adjusted by loosening the motor
mount bolts, sliding the motor in or out, and retight­ening the fasteners to lock the motor pulley in place.

To align pulleys:

1. DISCONNECT MACHINE FROM POWER!

2. Open pulley cover and remove belt guard.

3. Visually check alignment of the two pulleys to

make sure they are aligned and that V-belts are
straight up and down (see Figure 62).

— If pulleys are aligned, go to Step 7.

— If pulleys are NOT aligned, do Steps 4–6.

Bearing

Set Screws

Block

Cutterhead

Cutterhead

Pulley

Fasteners

Figure 63. Motor mount fasteners for adjusting

pulley alignment.

5. Shift motor horizontally as needed to align
motor pulley with cutterhead pulley.

6. Tighten fasteners that hold motor to brackets.
V-belts should be parallel and aligned as shown
in Figure 62.

7. Close pulley cover and re-install belt guard.

-40-

Motor
Pulley

Set Screws

Figure 62. Pulleys aligned.

ST1013 12" Jointer (Mfd. Since 3/16)

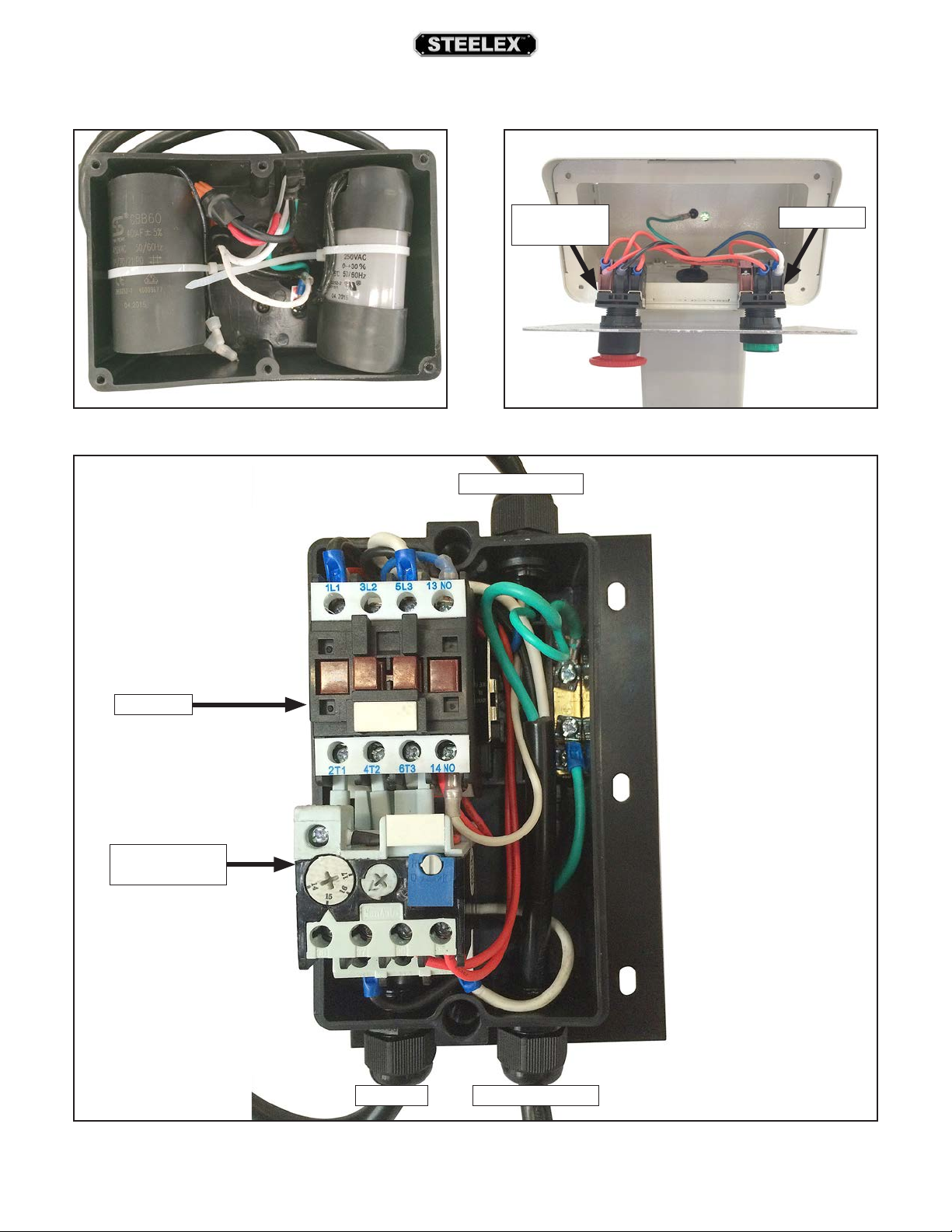

Electrical Components

Figure 64. Motor junction box.

STOP/Reset

Switch

To Control Panel

ON Switch

Figure 65. Control panel.

Contactor

Thermal

Overload Relay

To Motor To Power Source

Figure 66. Magnetic switch assembly.

-41-

ST1013 12" Jointer (Mfd. Since 3/16)

ON

Switch

Top

STOP/Reset

Switch

Wiring Diagram

A1

1L1 3L2 5L3

Contactor

2T1 4T2 6T3

Ground

Hot

220
VAC

Hot

13no

A2

14no

G

6-20 Plug

(As Recommended)

Bl

DANGER

Disconnect power before
performing any electrical
service. Electricity presents
serious shock hazards that
will result in severe personal
injury and even death!

Ground

COLOR KEY

BLACK

WHITE

GREEN

RED

BLUE

CONTROL

PANEL

(from behind)

3

98 97 96 95

Thermal Overload

MAGNETIC

SWITCH

ASSEMBLY

Hot

Hot

MOTOR

Ground

230V

1

3 2

5

1

4

2

Start

Ground

8

4

Capacitor

200MFD

250VAC

Run

Capacitor

20MFD

450VAC

5

-42-

ST1013 12" Jointer (Mfd. Since 3/16)

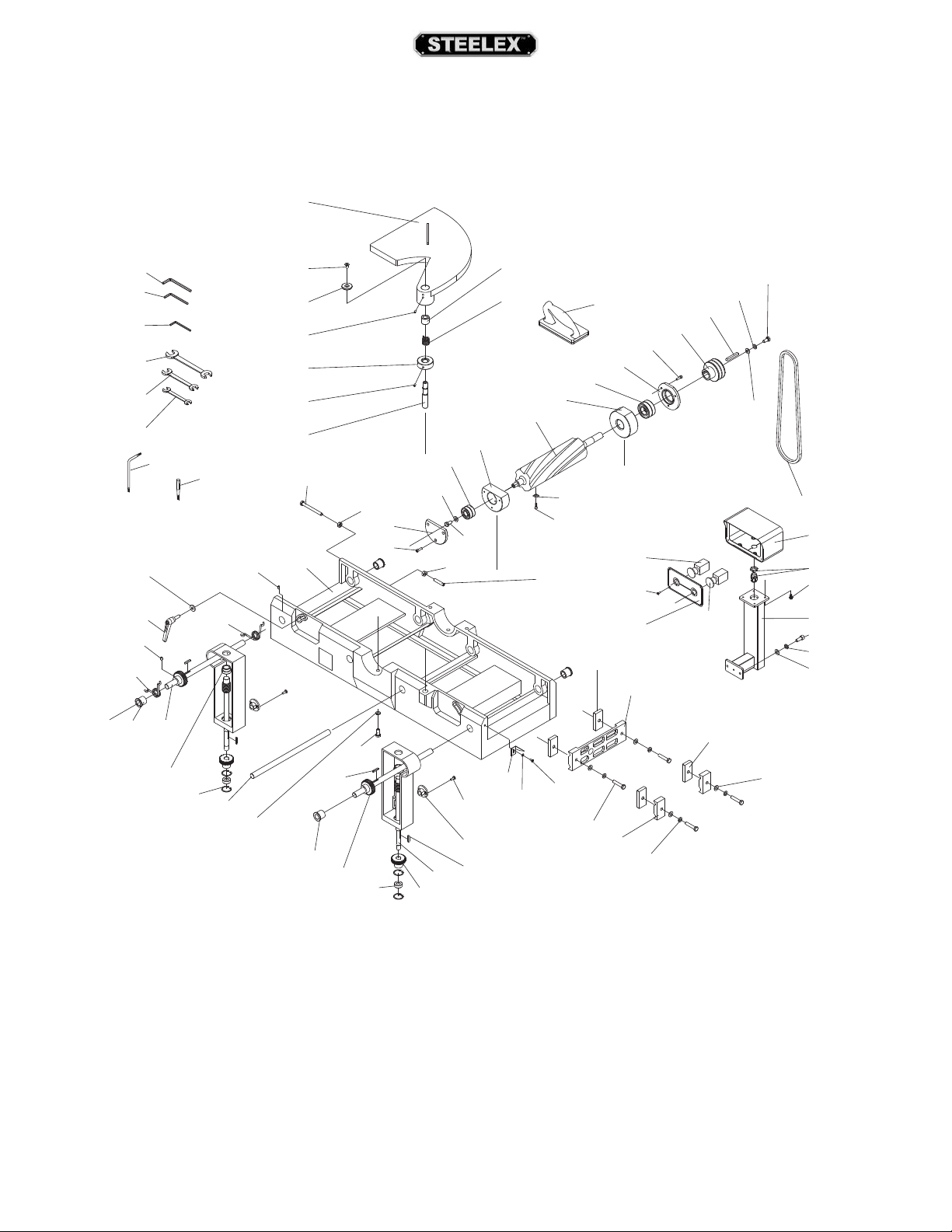

101

PARTS

Base

177

178

179

180

181

182

138

139

140

142-2

125

122

142-1

137

104

105

106

109

110

111

136

134

131

132

133

129

128

131

127

130

107

108

123

121

135

120

124

126

188

119

164

118

167

166

175

165

116

115

168

112

113

114

117

169

176

170

171
172

173
174

141

142

143

144

145

146

148

150

149

147

155

151

152

156

154
153

157

158

164

163

159

160

161

162

-43-

ST1013 12" Jointer (Mfd. Since 3/16)

Base Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 XST1013101 CUTTERHEAD GUARD 143 XST1013143 STOP BLOCK
104 XST1013104 FLAT HD SCR M8-1.25 X 16 144 XST1013144 INT RETAINING RING 35MM
105 XST1013105 FLAT WASHER 8MM OVERSIZED 145 XST1013145 SHAFT
106 XST1013106 SET SCREW M6-1 X 12 146 XST1013146 LOCK WASHER 10MM
107 XST1013107 ADAPTER 147 XST1013147 HEX BOLT M10-1.5 X 25
108 XST1013108 TORSION SPRING 28 X 26 X 2.5 148 XST1013148 BUSHING
109 XST1013109 SHAFT COLLAR 149 XST1013149 WORM GEAR
110 XST1013110 SET SCREW M6-1 X 12 150 XST1013150 KEY 5 X 5 X 30MM
111 XST1013111 SHAFT 151 XST1013151 GEAR
112 XST1013112 CUTTERHEAD SCREW 152 XST1013152 WORM SHAFT
113 XST1013113 LOCK WASHER 10MM 153 XST1013153 KEY 4 X 4 X 35
114 XST1013114 FLAT WASHER 10MM 154 XST1013154 SLIDE STOP BLOCK
115 XST1013115 KEY 8 X 8 X 60 155 XST1013155 BALL BEARING 6202-2RZ
116 XST1013116 CUTTERHEAD PULLEY 156 XST1013156 SPECIAL FLAT HD SCREW
117 XST1013117 V-BELT A-55 4L550 157 XST1013157 POINTER
118 XST1013118 CAP SCREW M6-1 X 20 158 XST1013158 FLAT WASHER 5MM
119 XST1013119 BEARING COVER 159 XST1013159 PHLP HD SCR M5-.8 X 10
120 XST1013120 BALL BEARING 6206ZZ 160 XST1013160 HEX BOLT M10-1.5 X 50
121 XST1013121 BEARING SUPPORT 161 XST1013161 CLAMP BLOCK
122 XST1013122 DRIVER BIT TORX T20 162 XST1013162 LOCK WASHER 10MM
123 XST1013123 12" HELICAL CUTTERHEAD 163 XST1013163 FLAT WASHER 10MM
124 XST1013124 INDEXABLE INSERT 14 X 14 X 2 164 XST1013164 CLAMP BLOCK
125 XST1013125 L-WRENCH TORX T20 165 XST1013165 CLAMP PLATE
126 XST1013126 FLAT HD TORX SCR T20 M6-1 X 15 166 XST1013166 TAP SCREW M4 X 8
127 XST1013127 BEARING SUPPORT 167 XST1013167 STOP BUTTON
128 XST1013128 BALL BEARING 6204-2RZ 168 XST1013168 START BUTTON
129 XST1013129 FLAT WASHER 8MM 169 XST1013169 SWITCH BOX
130 XST1013130 CUTTERHEAD SCREW 170 XST1013170 FLANGE SCREW M8-1.25 X 16
131 XST1013131 HEX NUT M10-1.5 171 XST1013171 SWITCH BOX BRACKET
132 XST1013132 BEARING COVER 172 XST1013172 HEX BOLT M10-1.5 X 25
133 XST1013133 CAP SCREW M6-1 X 20 173 XST1013173 LOCK WASHER 10MM
134 XST1013134 HEX BOLT M10-1.5 X 150 174 XST1013174 FLAT WASHER 10MM
135 XST1013135 SET SCREW M10-1.5 X 60 175 XST1013175 CONTROL PANEL FACE
136 XST1013136 BASE 176 XST1013176 STRAIN RELIEF
137 XST1013137 SET SCREW M6-1 X 12 177 XST1013177 HEX WRENCH 10MM
138 XST1013138 FLAT WASHER 10MM 178 XST1013178 HEX WRENCH 8MM
139 XST1013139 LOCK HANDLE 179 XST1013179 HEX WRENCH 3MM
140 XST1013140 SET SCREW M6-1 X 8 180 XST1013180 COMBO WRENCH 17/19MM
141 XST1013141 ECCENTRIC BUSHING 181 XST1013181 COMBO WRENCH 12/14MM
142 XST1013142 SHAFT 182 XST1013182 COMBO WRENCH 10/12MM
142-1 XST1013142-1 TORSION SPRING (LEFT) 188 XST1013188 PUSH BLOCK
142-2 XST1013142-2 TORSION SPRING (RIGHT)

-44-

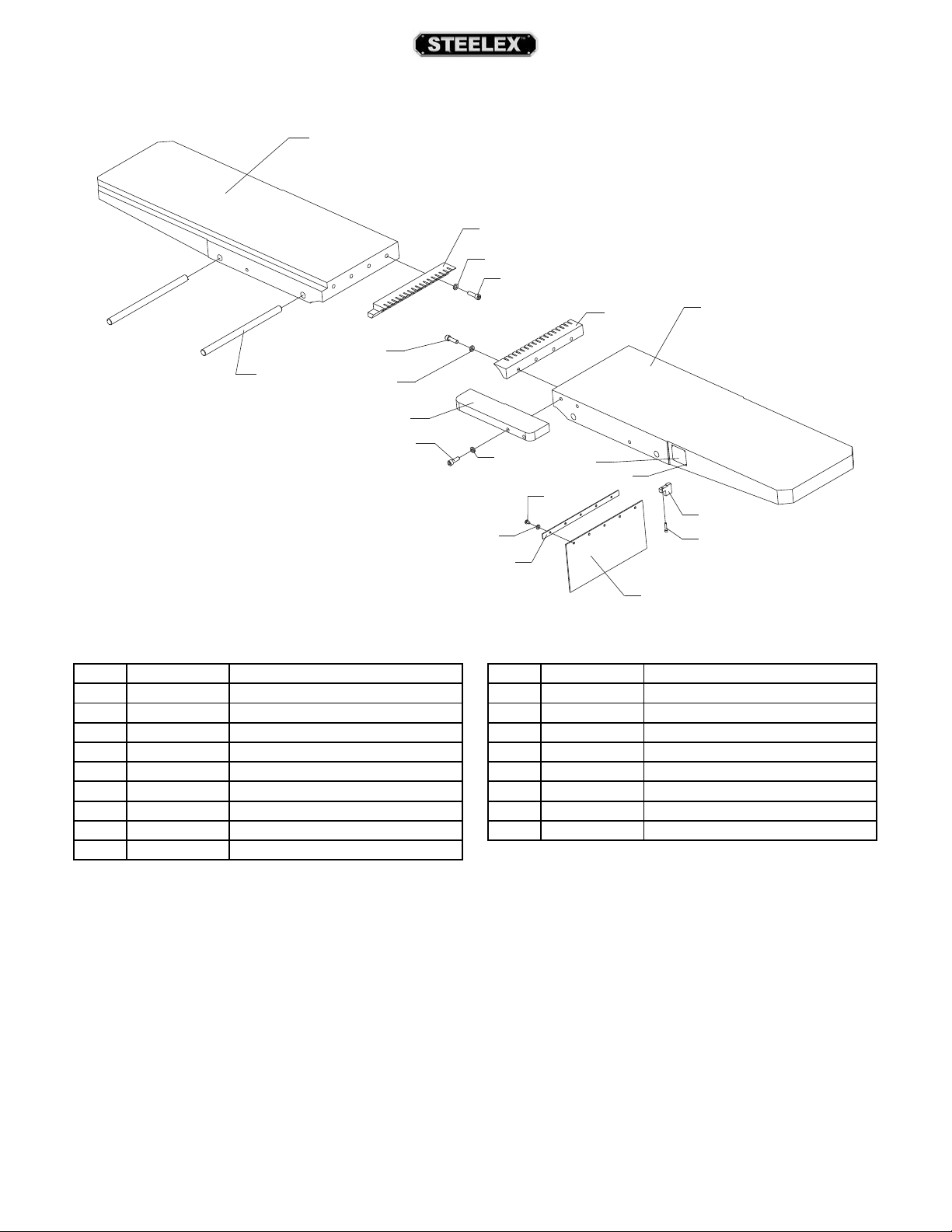

ST1013 12" Jointer (Mfd. Since 3/16)

205

201

208

209

Tables

210

211

202

215

203

212

220

204

216

213

207

214

206

219

218

217

REF PART # DESCRIPTION REF PART # DESCRIPTION

201 XST1013201 OUTFEED TABLE 211 XST1013211 CAP SCREW M10-1.5 X 30

202 XST1013202 TABLE LIP (LEFT) 212 XST1013212 LOCK WASHER 10MM

203 XST1013203 LOCK WASHER 10MM 213 XST1013213 DEPTH SCALE

204 XST1013204 CAP SCREW M10-1.5 X 35 214 XST1013214 RIVET 2 X 4

205 XST1013205 SHAFT 215 XST1013215 FLAT WASHER 6MM

206 XST1013206 INFEED TABLE 216 XST1013216 CAP SCREW M6-1.0 X 10

207 XST1013207 TABLE LIP (RIGHT) 217 XST1013217 CHIP DEFLECTOR

208 XST1013208 CAP SCREW M10-1.5 X 35 218 XST1013218 CAP SCREW M5-.8 X 25

209 XST1013209 LOCK WASHER 10MM 219 XST1013219 STOP BLOCK

210 XST1013210 RABBET TABLE EXTENSION

-45-

ST1013 12" Jointer (Mfd. Since 3/16)

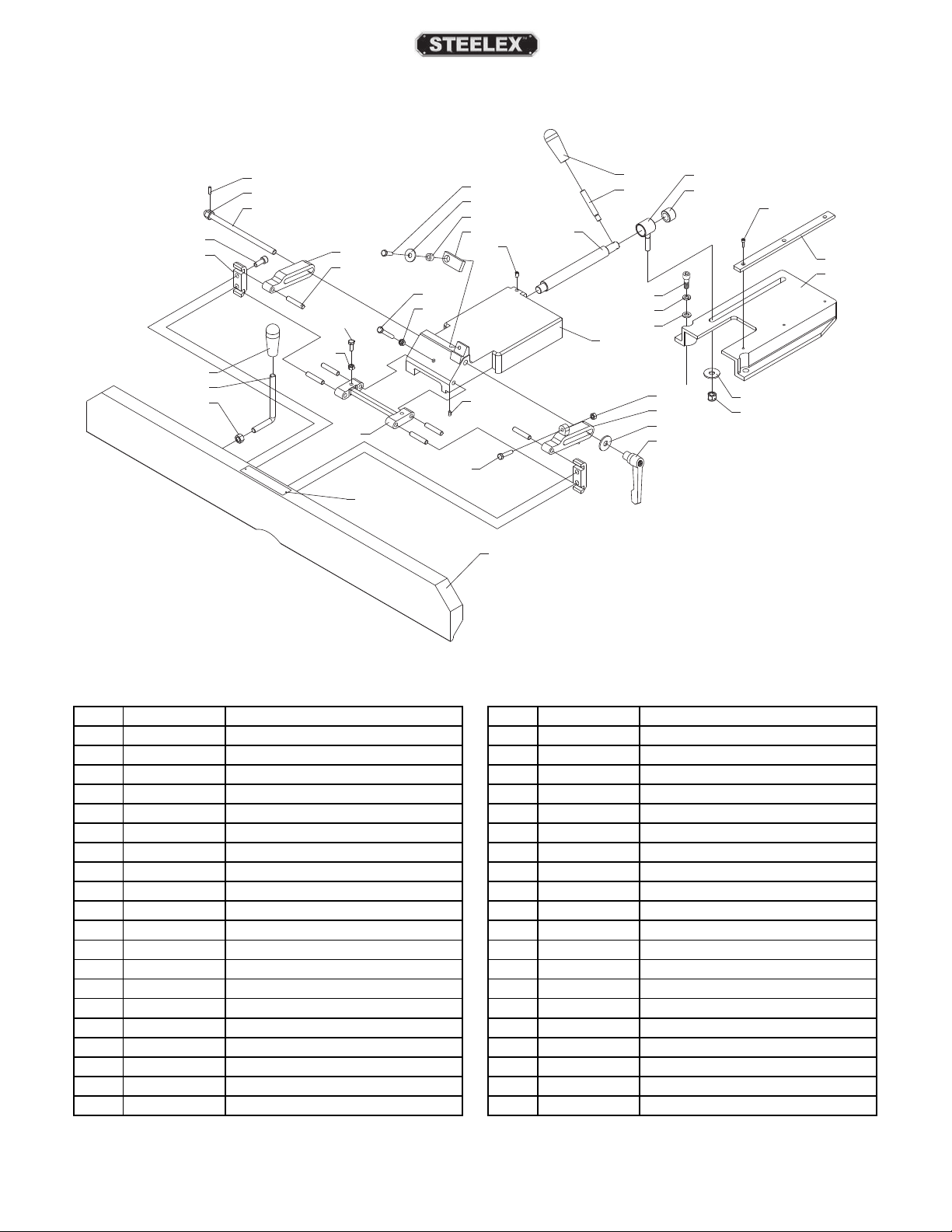

Fence

332
331

327

328
329

336
337
335

340

339

338

325
326

345

316
317

343

312
311
313
310
314

315

330

319

307

321
320

304
303
302

342
341
334
333

322
318

306

305
301

323
324

REF PART # DESCRIPTION REF PART # DESCRIPTION

301 XST1013301 FENCE BRACKET 324 XST1013324 SPECIAL HEX NUT M12

302 XST1013302 FLAT WASHER 12MM 325 XST1013325 LEFT BRACKET

303 XST1013303 LOCK WASHER 12MM 326 XST1013326 PIN

304 XST1013304 CAP SCREW M12-1.75 X 30 327 XST1013327 HANDLE KNOB

305 XST1013305 SLIDING RAIL 328 XST1013328 HANDLE STUD

306 XST1013306 CAP SCREW M5-.8 X 14 329 XST1013329 HEX NUT M12-1.75

307 XST1013307 SLIDING BRACKET 330 XST1013330 FENCE

310 XST1013310 MOUNTING BLOCK 331 XST1013331 CLAMP

311 XST1013311 FLAT WASHER 8MM 332 XST1013332 CAP SCR M10-1.5 X 25

312 XST1013312 HEX BOLT M8-1.25 X 25 333 XST1013333 ADJUSTABLE HANDLE

313 XST1013313 COLLAR 334 XST1013334 FLAT WASHER 12MM

314 XST1013314 SET SCREW M8-1.25 X 12 335 XST1013335 DOUBLE END THREADED ROD

315 XST1013315 SET SCREW M6-1 X 12 336 XST1013336 ROLL PIN 5 X 20

316 XST1013316 HEX BOLT M8-1.25 X 55 337 XST1013337 SPECIAL NUT M12-1.75

317 XST1013317 HEX NUT M8-1.25 338 XST1013338 SUPPORT BRACKET

318 XST1013318 COLLAR 339 XST1013339 HEX BOLT M8-1.25 x 20

319 XST1013319 ECCENTRIC SHAFT 340 XST1013340 HEX NUT M8-1.25

320 XST1013320 HANDLE ROD 341 XST1013341 RIGHT BRACKET

321 XST1013321 HANDLE 342 XST1013342 HEX NUT M8-1.25

322 XST1013322 SLIDING BUSHING ASSY 343 XST1013343 HEX BOLT M8-1.25 X 35

323 XST1013323 FLAT WASHER 12MM 345 XST1013345 RIVET 2 X 5

-46-

ST1013 12" Jointer (Mfd. Since 3/16)

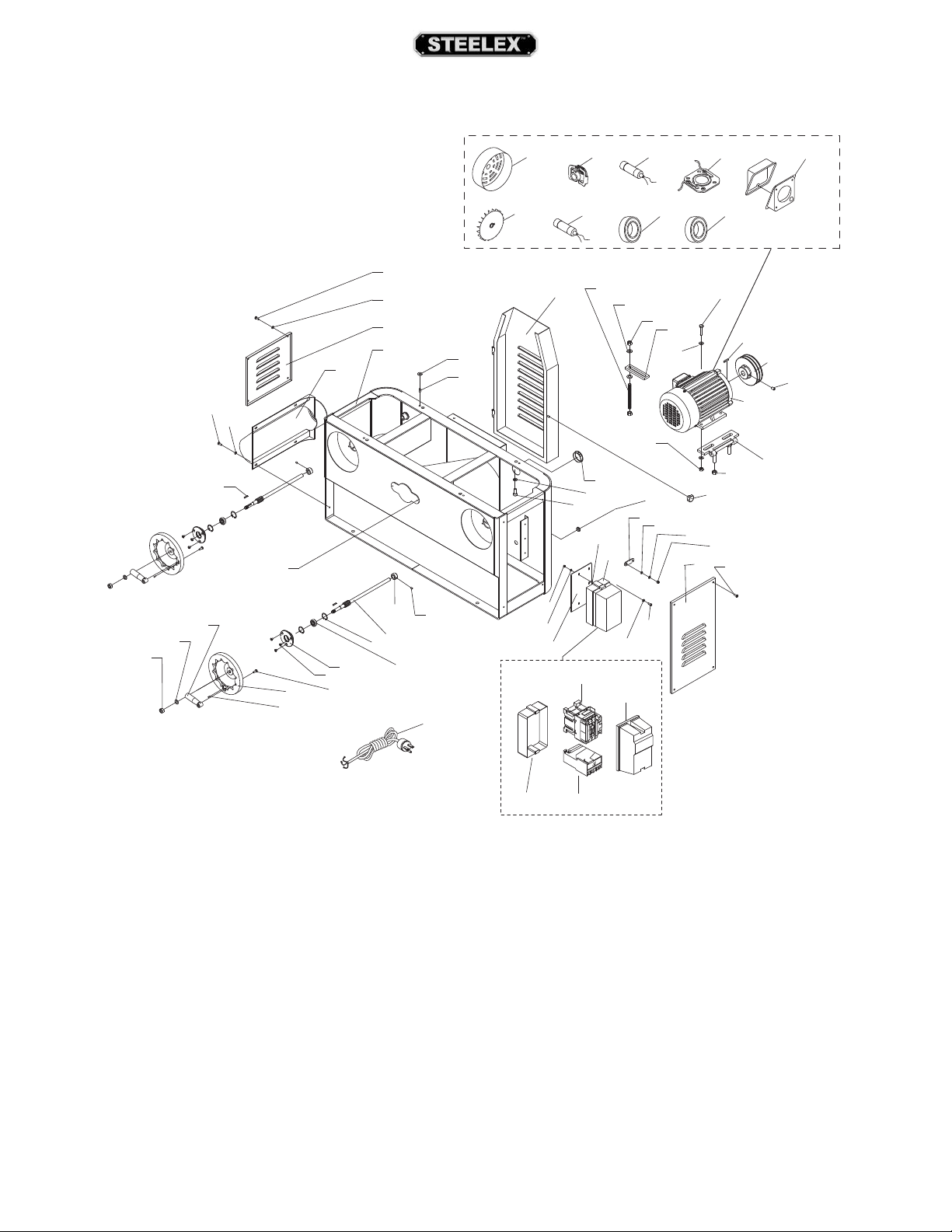

Stand

401-1

451

401-2

404

402

401-1

401-2

401

405

406
407

415-2

415-3

408

415-4

415-5

431

430

429

434-1

434

409

415-6

410

420

415-7

411

414

428

427

426

412

415-8

415-9

425

423

413

421

424

415-1

419

422

415-10

416

417

415

418

448

449

450

446

447

444

445

443

439
440

441

442

438

452

437

436

435

434-2

432

433

434-3

434-5

434-4

-47-

ST1013 12" Jointer (Mfd. Since 3/16)

Stand Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

401 XST1013401 VENTED COVER 424 XST1013424 SPECIAL HEX NUT M6-1

401-1 XST1013401-1 BUTTON HD CAP SCR M6-1 X 18 425 XST1013425 FLAT WASHER 6MM

401-2 XST1013401-2 FLAT WASHER 6MM 426 XST1013426 ADAPTOR

402 XST1013402 DUST HOOD 427 XST1013427 LATCH

404 XST1013404 TAP SCREW M4 X 8 428 XST1013428 STRAIN RELIEF

405 XST1013405 CABINET 429 XST1013429 CAP SCREW M10-1.25 X 25

406 XST1013406 FLAT WASHER 8MM, RUBBER 430 XST1013430 LOCK WASHER 10MM

407 XST1013407 SET SCREW M8-1.25 X 15 431 XST1013431 STRAIN RELIEF

408 XST1013408 PULLEY COVER 432 XST1013432 CAP SCREW M6-1 X 10

409 XST1013409 TENSION ROD 433 XST1013433 FLAT WASHER 6MM

410 XST1013410 FLAT WASHER 12MM 434 XST1013434 MAGNETIC SWITCH

411 XST1013411 HEX NUT M12-1.75 434-1 XST1013434-1 PHLP HD SCR M5-.8 x 20

412 XST1013412 TENSION PLATE 434-2 XST1013434-2 SWITCH BOX BACK COVER

413 XST1013413 HEX BOLT M10-1.5 X 45 434-3 XST1013434-3 CONTACTOR NHD C-12D 230V

414 XST1013414 FLAT WASHER 10MM 434-4 XST1013434-4 OL RELAY NHD NTH-17 14-17A

415 XST1013415 MOTOR 3HP 230V 1-PH 434-5 XST1013434-5 SWITCH BOX FRONT COVER

415-1 XST1013415-1 KEY 5 X 5 X 45 435 XST1013435 SWITCH PLATE

415-2 XST1013415-2 MOTOR FAN COVER 436 XST1013436 FLAT WASHER 5MM

415-3 XST1013415-3 MOTOR FAN 437 XST1013437 HEX NUT M5-.8

415-4 XST1013415-4 CENTRIFUGAL SWITCH 16MM 3450 438 XST1013438 SET SCREW M6-1 X 8

415-5 XST1013415-5 S CAPACITOR 200M 250V 439 XST1013439 COLLAR

415-6 XST1013415-6 R CAPACITOR 20M 450V 440 XST1013440 SPIRAL GEAR SHAFT

415-7 XST1013415-7 BALL BEARING 6204ZZ 441 XST1013441 INT RETAINING RING 32MM

415-8 XST1013415-8 CONTACT PLATE 16MM 442 XST1013442 BALL BEARING 6201

415-9 XST1013415-9 BALL BEARING 6203ZZ 443 XST1013443 BEARING SUPPORT

415-10 XST1013415-10 JUNCTION BOX 444 XST1013444 FLAT HEAD SCR M6-1 X 8

416 XST1013416 MOTOR PULLEY 445 XST1013445 FLANGE SCREW M6-1 X 16

417 XST1013417 SET SCREW M10-1.5 X 16 446 XST1013446 HANDWHEEL

418 XST1013418 MOTOR BRACKET 447 XST1013447 ROLL PIN 4 X 10

419 XST1013419 HEX NUT M12-1.75 448 XST1013448 HEX NUT M12-1.75

420 XST1013420 HEX NUT M10-1.5 449 XST1013449 FLAT WASHER 12MM

421 XST1013421 PULLEY COVER LOCK KNOB 450 XST1013450 FOLDING HANDLE

422 XST1013422 BUTTON HD CAP SCR M6-1 X 18 451 XST1013451 KEY 5 X 5 X 20

423 XST1013423 RIGHT ACCESS DOOR 452 XST1013452 POWER CORD 12G 3W 72" 6-20P

-48-

ST1013 12" Jointer (Mfd. Since 3/16)

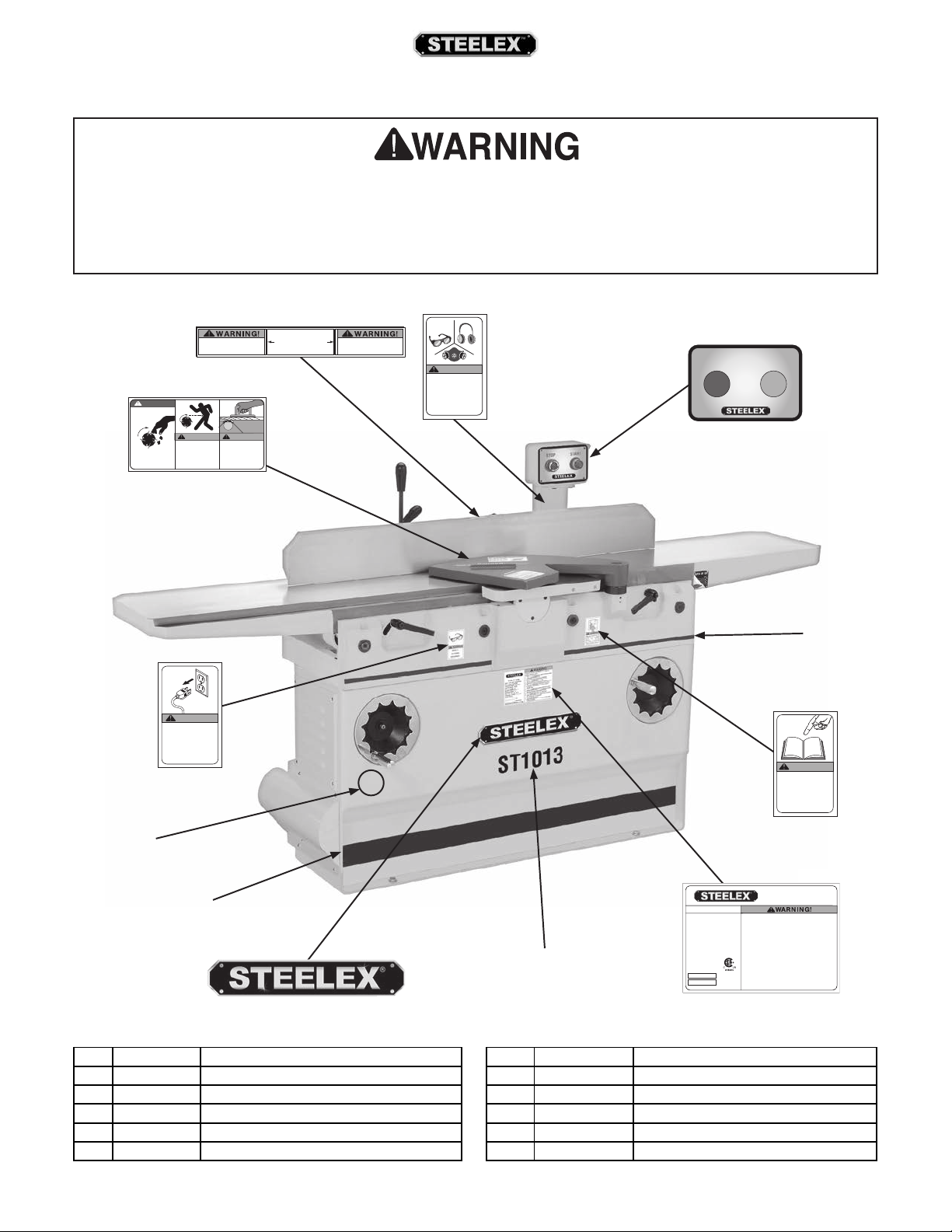

Labels & Cosmetics

(03/14/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

Motor: 3 HP, 230V, 1-Ph, 60 Hz, 15A

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 96

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Max Depth of Cut Per Pass: 1/8"

Maximum Rabbeting Depth: 3/4"

Cutterhead Speed: 4950 RPM

Cuts Per Minute: 39,600

Fence Tilt: 45º, 90º, 135º

Table Size: 12-3/4" x 83-1/2"

Weight: 884 lbs.

Specifications

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Except when rabbeting, keep all guards in place and in proper
operating condition. Always replace the guard after rabbeting.

5. Never cut workpieces smaller than 8" long, 3/4" wide, or 1/2" thick.

6. Always use push blocks when face planing.

7. Keep hands at least 12" away from cutterhead.

8. Never cut deeper than 1/8" on a single pass.

9. Tie back long hair, roll up sleeves, and DO NOT wear loose
clothing, gloves, or jewelry.

10. Turn motor OFF and disconnect power before changing inserts,
adjusting tables/fence, or servicing.

11. Be aware of "kickback" hazards and know how to prevent them.

12. Do not joint boards with cracks, loose knots, or any defects.

13. DO NOT expose to rain or use in wet locations.

14. Always support the workpiece against the fence and table. Never
attempt any operation free-handed.

15. Prevent unauthorized use by children or untrained users; restrict
access or disable machine when unattended.

Date

Serial Number

Manufactured for Woodstock in China

MODEL ST1013

12" PARALLELOGRAM JOINTER

w/HELICAL CUTTERHEAD

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Cutterhead

exposed between

these lines.

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Cutterhead

exposed between

these lines.

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Cutterhead

exposed between

these lines.

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Cutterhead

exposed between

these lines.

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

(03/14/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

(03/10/16)

• 1:1 Scale (Labels are
actual size)

• Labels must be made of
chemical-resistant material

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Cutterhead

exposed between

these lines.

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

COLOR CODES

DANGER

PANTONE 485 C or RAL 3001

PANTONE 151 C or RAL 2005

WARNING

PANTONE YELLOW C

CAUTION

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Failure to keep hands clear
of cutterhead will result in
serious personal injury.

Cutterhead

exposed between

these lines.

Safety labels warn about machine hazards and how to prevent machine damage or injury. The owner
of this machine MUST maintain the original location and readability of all labels on this machine. If any
label is removed or becomes unreadable, REPLACE that label before allowing the machine to enter ser­vice again. Contact Woodstock International, Inc. at [phone] or www.shopfoxtools.com to order
new labels.

501

DANGER!

ROTATING

CUTTERHEAD BELOW!

Use this guard for all
operations possible, and
immediately reinstall it
following operations that
require its removal.

WARNING! WARNING!

KICKBACK HAZARD!

1. Ensure outfeed table is
even with knives.

2. Never exceed the
maximum depth of cut.

3. Do not stand directly
behind workpiece.

512

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power
supply before
adjustments, setup
or maintenance!

502

Failure to keep hands clear

Failure to keep hands clear

of cutterhead will result in

of cutterhead will result in

serious personal injury.

serious personal injury.

ALWAYS USE

PUSH BLOCKS!

Push blocks minimize the
possibility of operator’s
hands contacting the
cutterhead while cutting.

Cutterhead

Cutterhead

exposed between

exposed between

these lines.

these lines.

Failure to keep hands clear

Failure to keep hands clear
of cutterhead will result in

of cutterhead will result in
serious personal injury.

serious personal injury.

503

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety
glasses, ear protection,
and respirator when
using this machine.

504

STOP

START

506

READ and UNDERSTAND
MANUAL to avoid serious
injury! If a manual is not
available, DO NOT use
machine! Instead, go to
www.shopfox.biz or call
[phone].

505

WARNING!

511

510

509

REF PART # DESCRIPTION REF PART # DESCRIPTION

501 XST1013501 CUTTERHEAD GUARD LABEL 507V2 XST1013507V2 MACHINE ID LABEL V2.08.16
502 XST1013502 FENCE WARNING LABEL 508 XST1013508 MODEL NUMBER LABEL
503 XST1013503 EYE/EAR/LUNG INJURY HAZARD LABEL 509 XST1013509 STEELEX LOGO PLATE
504 XST1013504 CONTROL PANEL LABEL 510 XST1013510 TOUCH-UP PAINT, STEELEX BLACK
505 XST1013505 DECORATIVE STRIPE 511 XST1013510 TOUCH-UP PAINT, STEELEX BEIGE
506 XST1013506 READ MANUAL LABEL 512 XST1013511 DISCONNECT POWER LABEL

508

Specifications

Specifications

Motor: 3 HP, 230V, 1-Ph, 60 Hz, 15A

Motor: 3 HP, 230V, 1-Ph, 60 Hz, 15A

Cutterhead: Helical w/Indexable Inserts

Cutterhead: Helical w/Indexable Inserts

Number of Inserts: 96

Number of Inserts: 96

Insert Size: 15 x 15 x 2.5mm (Curved)

Insert Size: 15 x 15 x 2.5mm (Curved)

Replacement Inserts: D4655

Replacement Inserts: D4655

Max Depth of Cut Per Pass: 1/8"

Max Depth of Cut Per Pass: 1/8"

Maximum Rabbeting Depth: 3/4"

Maximum Rabbeting Depth: 3/4"

Table Size: 12-3/4" x 83-1/2"

Cutterhead Speed: 4950 RPM

Cutterhead Speed: 4950 RPM

Cuts Per Minute: 39,600

Fence Tilt: 45º, 90º, 135º

Cuts Per Minute: 39,600

Table Size: 12-3/4" x 83-1/2"

Fence Tilt: 45º, 90º, 135º

Weight: 884 lbs.

Weight: 884 lbs.

Date

Date

Serial Number

Serial Number

Manufactured for Woodstock in China

Mfd. for Woodstock in China

507V2

507

MODEL ST1013

MODEL ST1013

12" PARALLELOGRAM JOINTER

12" PARALLELOGRAM JOINTER

w/HELICAL CUTTERHEAD

w/HELICAL CUTTERHEAD

To reduce the risk of serious injury when using this machine:

To reduce the risk of serious injury when using this machine:

1. Read and understand owner’s manual before operating.

1. Read and understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

3. Only plug power cord into a grounded outlet.

4. Except when rabbeting, keep all guards in place and in proper

4. Except when rabbeting, keep all guards in place and in proper

operating condition. Always replace the guard after rabbeting.

operating condition. Always replace the guard after rabbeting.

5. Never cut workpieces smaller than 8" long, 3/4" wide, or 1/2" thick.

5. Never cut workpieces smaller than 8" long, 3/4" wide, or 1/2" thick.

6. Always use push blocks when face planing.

6. Always use push blocks when face planing.

7. Keep hands at least 12" away from cutterhead.

7. Keep hands at least 12" away from cutterhead.

8. Never cut deeper than 1/8" on a single pass.

8. Never cut deeper than 1/8" on a single pass.

9. Tie back long hair, roll up sleeves, and DO NOT wear loose

9. Tie back long hair, roll up sleeves, and DO NOT wear loose
clothing, gloves, or jewelry.

clothing, gloves, or jewelry.

10. Turn motor OFF and disconnect power before changing inserts,

10. Turn motor OFF and disconnect power before changing inserts,

adjusting tables/fence, or servicing.

adjusting tables/fence, or servicing.

11. Be aware of "kickback" hazards and know how to prevent them.

11. Be aware of "kickback" hazards and know how to prevent them.

12. Do not joint boards with cracks, loose knots, or any defects.

12. Do not joint boards with cracks, loose knots, or any defects.

13. DO NOT expose to rain or use in wet locations.

13. DO NOT expose to rain or use in wet locations.

14. Always support the workpiece against the fence and table. Never

14. Always support the workpiece against the fence and table. Never

attempt any operation free-handed.

attempt any operation free-handed.

15. Prevent unauthorized use by children or untrained users; restrict

15. Prevent unauthorized use by children or untrained users; restrict

access or disable machine when unattended.

access or disable machine when unattended.

-49-

ST1013 12" Jointer (Mfd. Since 3/16)

WARRANTY

Woodstock International, Inc. warrants all STEELEX® machinery to be free of defects from workmanship and
materials for a period of two years from the date of original purchase by the original owner. This warranty does
not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, lack of maintenance, or
reimbursement of third party expenses incurred.

Woodstock International, Inc. will repair or replace, at its expense and at its option, the
or machine part which in normal use has proven to be defective, provided that the original owner returns
the product prepaid to the
Bellingham, WA office, with proof of their purchase of the product within two years, and provides Woodstock
International, Inc. reasonable opportunity to verify the alleged defect through inspection. If it is determined
there is no defect, or that the defect resulted from causes not within the scope of Woodstock International Inc.'s
warranty, then the original owner must bear the cost of storing and returning the product.

This is Woodstock International, Inc.'s sole written warranty and any and all warranties that may be implied by
law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of
this written warranty. We do not warrant that
acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid
for the product, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of
Washington, County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for
incidental, contingent, special or consequential damages arising from the use of our products.

Every effort has been made to ensure that all
We reserve the right to change specifications at any time because of our commitment to continuously improve
the quality of our products.

STEELEX

®

factory service center or authorized repair facility designated by our

STEELEX

STEELEX

®

machinery complies with the provisions of any law or

®

machinery meets high quality and durability standards.

STEELEX

®

machine

-50-

Warranty Registration

Name _______________________________________________________________________________________

Street _______________________________________________________________________________________

City __________________________ State _____________________________Zip _________________________

Phone # _______________________ Email ____________________________Invoice # ____________________

Model #_________Serial #______________Dealer Name__________________Purchase Date___________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products
and services. Of course, all information is strictly confidential.

1. How did you learn about us?
_____ Advertisement _____ Friend _____ Local Store
_____ Mail Order Catalog _____ Website _____ Other:

2. How long have you been a woodworker/metalworker?
_____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

®

3. How many of your machines or tools are STEELEX

_____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

4. Do you think your machine represents a good value? _____ Yes _____ No

?

CUT ALONG DOTTED LINE

®

5. Would you recommend STEELEX

products to a friend? _____ Yes _____ No

6. What is your age group?
_____ 20-29 _____ 30-39 _____ 40-49
_____ 50-59 _____ 60-69 _____ 70+

7. What is your annual household income?
_____ $20,000-$29,000 _____ $30,000-$39,000 _____ $40,000-$49,000
_____ $50,000-$59,000 _____ $60,000-$69,000 _____ $70,000+

8. Which of the following magazines do you subscribe to?

____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal

____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News

____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:

9. Comments: _____________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

FOLD ALONG DOTTED LINE

FOLD ALONG DOTTED LINE

Place

Stamp

Here

WOODSTOCK INTERNATIONAL INC.
P.O. BOX 2309
BELLINGHAM, WA 982272309

TAPE ALONG EDGESPLEASE DO NOT STAPLE
