MODEL ST1010

6" JOINTER W/ MOBILE BASE

OWNER'S MANUAL

For manuals manufactured since 03/16

Phone: (360) 734-3482 • Online Technical Support: techsupport@woodstockint.com

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT

Printed in China

THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.

#17980MC

V2.08.16

This manual provides critical safety instructions on the proper setup, operation, maintenance and service of this machine/equipment.

Failure to read, understand and follow the instructions given in this manual may result in serious personal injury, including amputation, electrocution or death.

The owner of this machine/equipment is solely responsible for its safe use. This responsibility includes but is not limited to proper installation in a safe environment, personnel training and usage authorization, proper inspection and maintenance, manual availability and comprehension, application of safety devices, blade/cutter integrity, and the usage of personal protective equipment.

The manufacturer will not be held liable for injury or property damage from negligence, improper training, machine modications or misuse.

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints.

• Crystalline silica from bricks, cement and other masonry products.

• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: Work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles.

Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.

We stand behind our machines! In the event that questions arise about your machine, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: tech-support@shopfox.biz. Our knowledgeable sta will help you troubleshoot problems and process warranty claims.

If you have comments about this manual, please contact us at:

Woodstock International, Inc.

Attn: Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

manuals@woodstockint.com

Table of Contents

INTRODUCTION .................................................... 2

Contact Info .................................................................... 2

Manual Accuracy .......................................................... 2

Model ST1010 Machine Specifications ................. 3

Machine Features ......................................................... 5

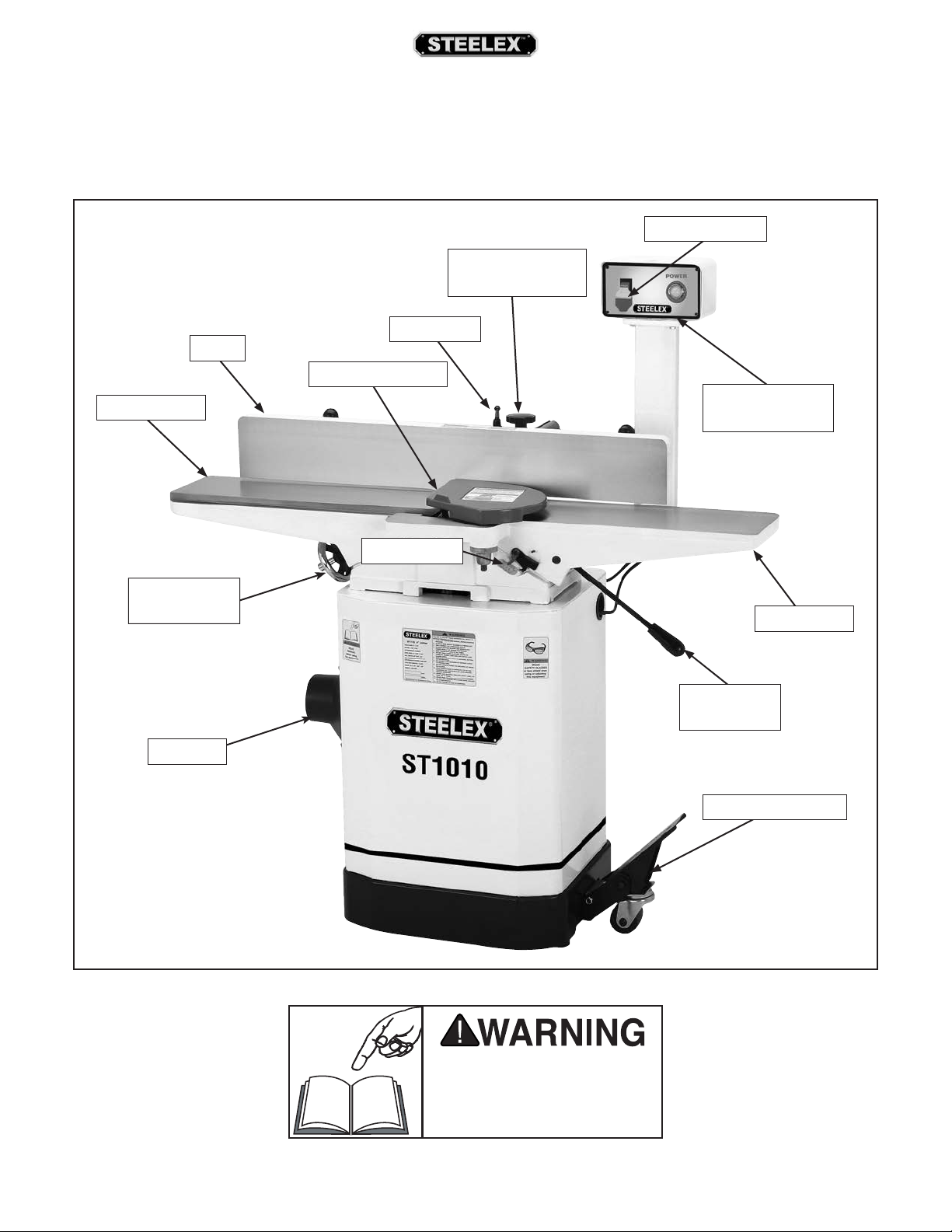

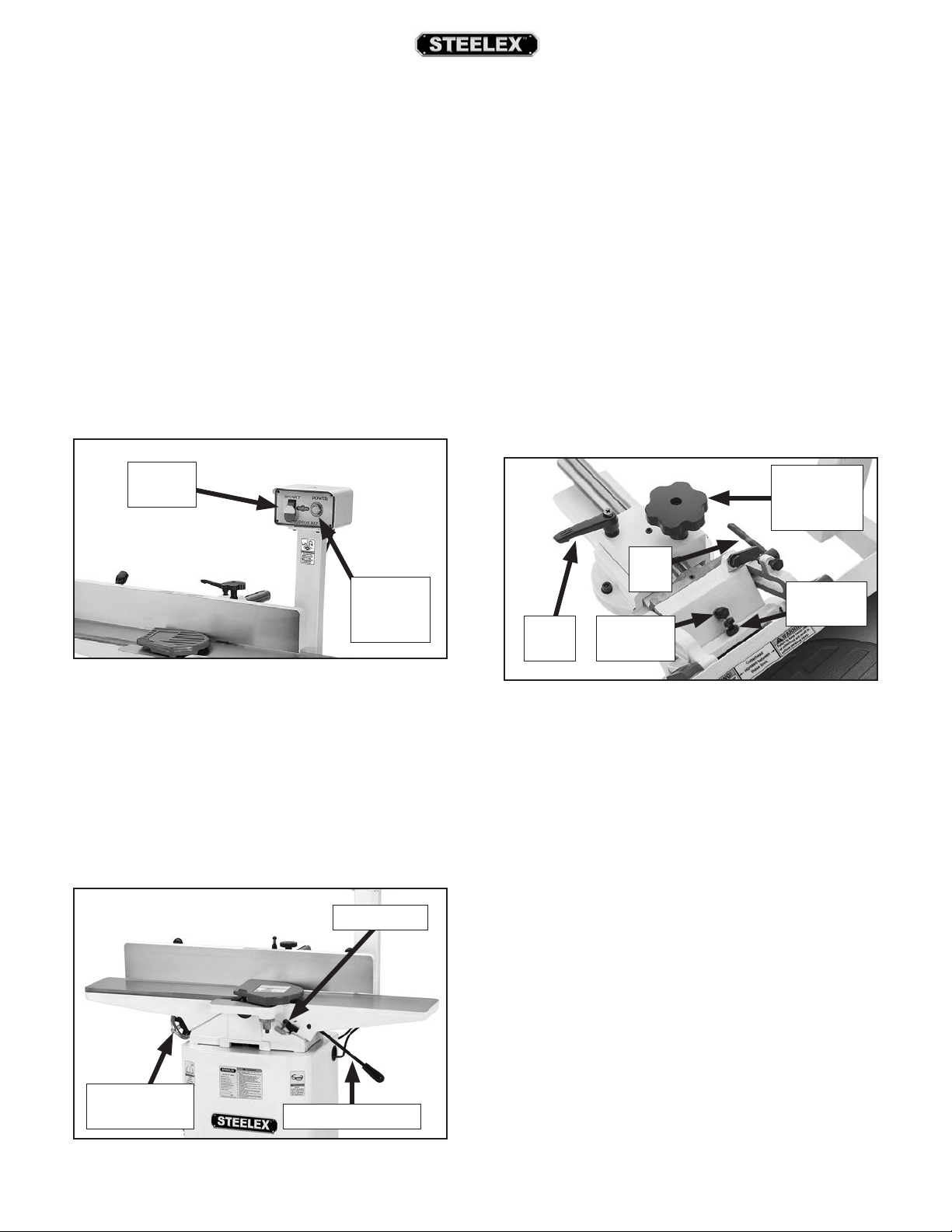

Controls & Components ............................................ 6

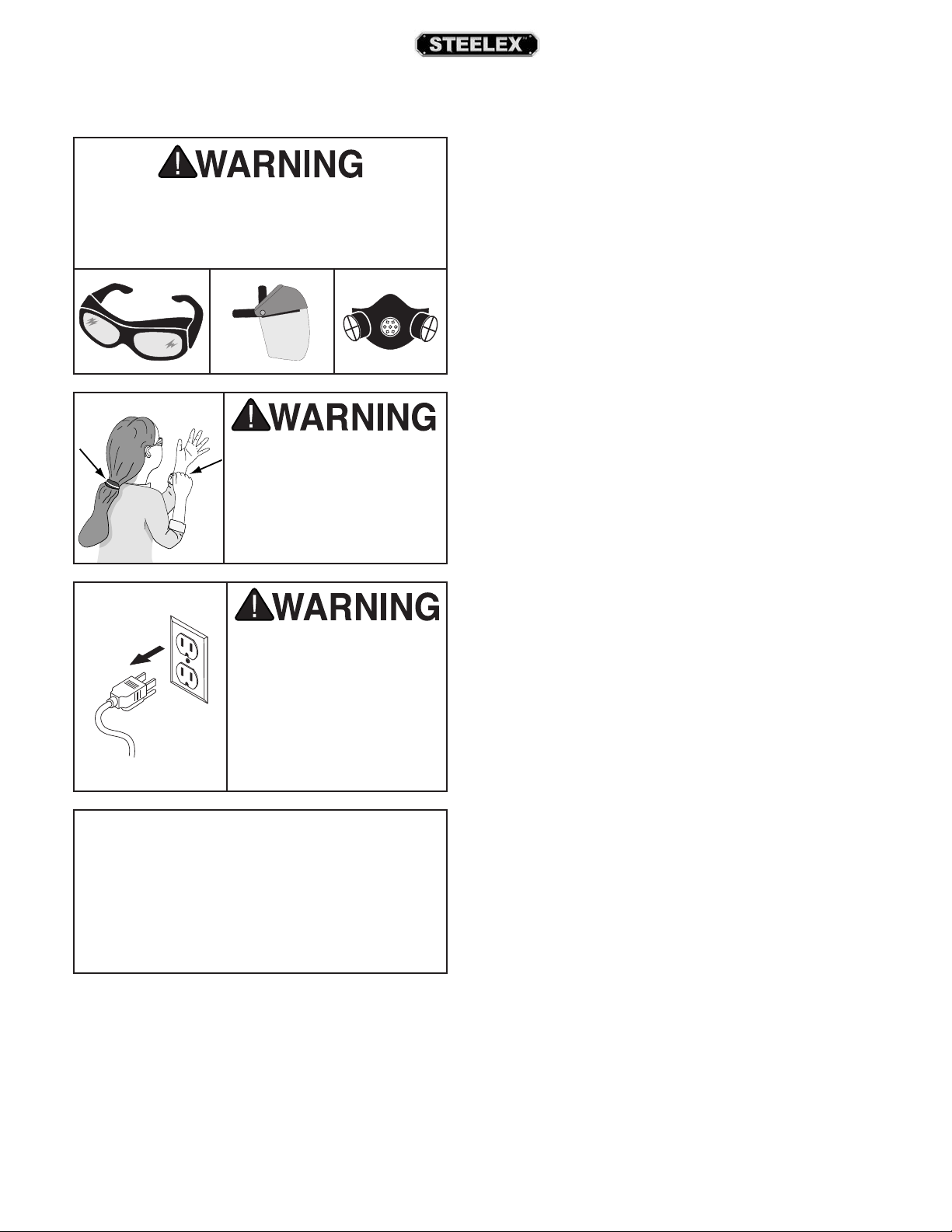

SAFETY .................................................................. 7

Safety Instructions for Machinery .......................... 7

Additional Safety for Jointers................................... 9

ELECTRICAL ......................................................... 10

Circuit Requirements ................................................10

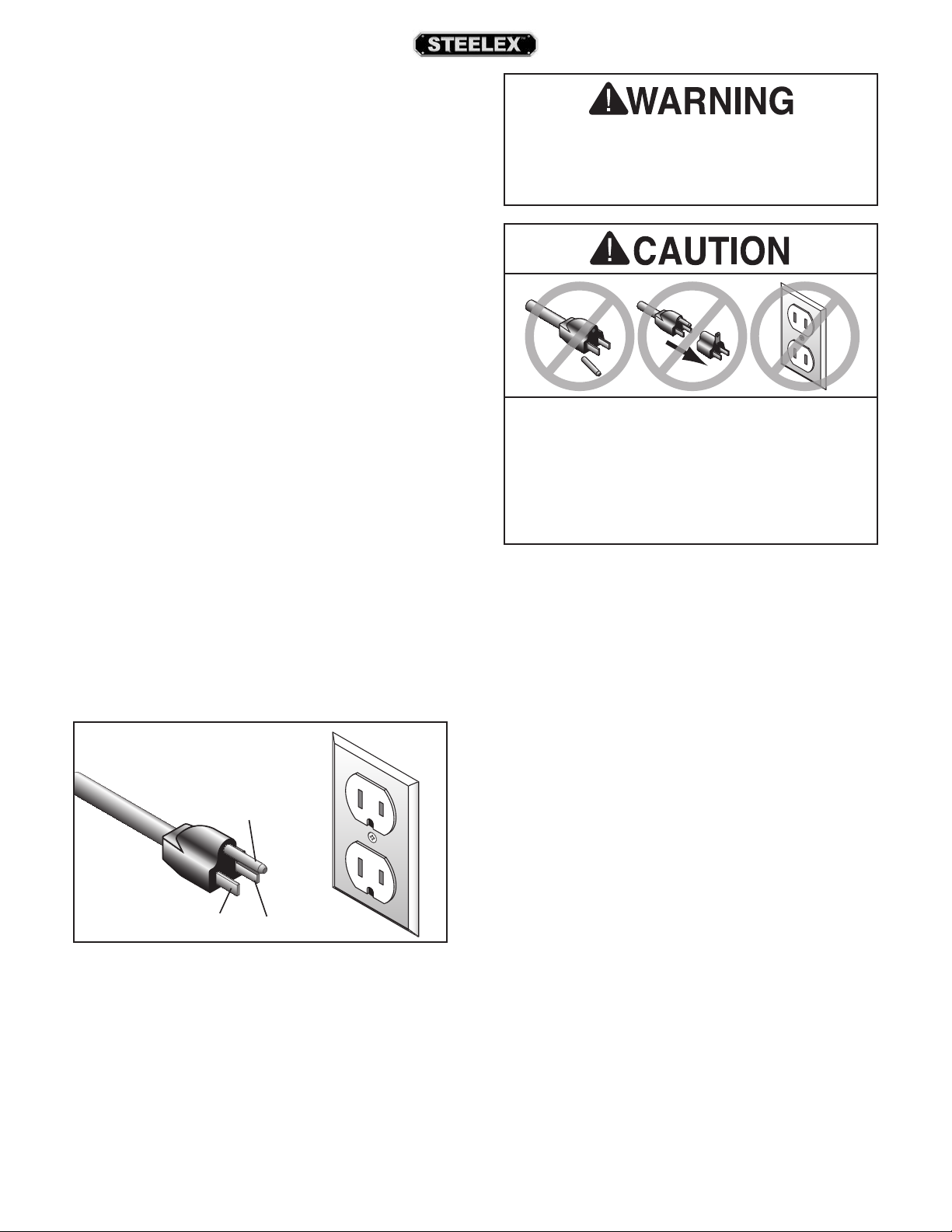

Grounding Requirements .......................................11

Extension Cords ..........................................................11

SETUP .................................................................. 12

Unpacking .....................................................................12

Items Needed for Setup ........................................... 12

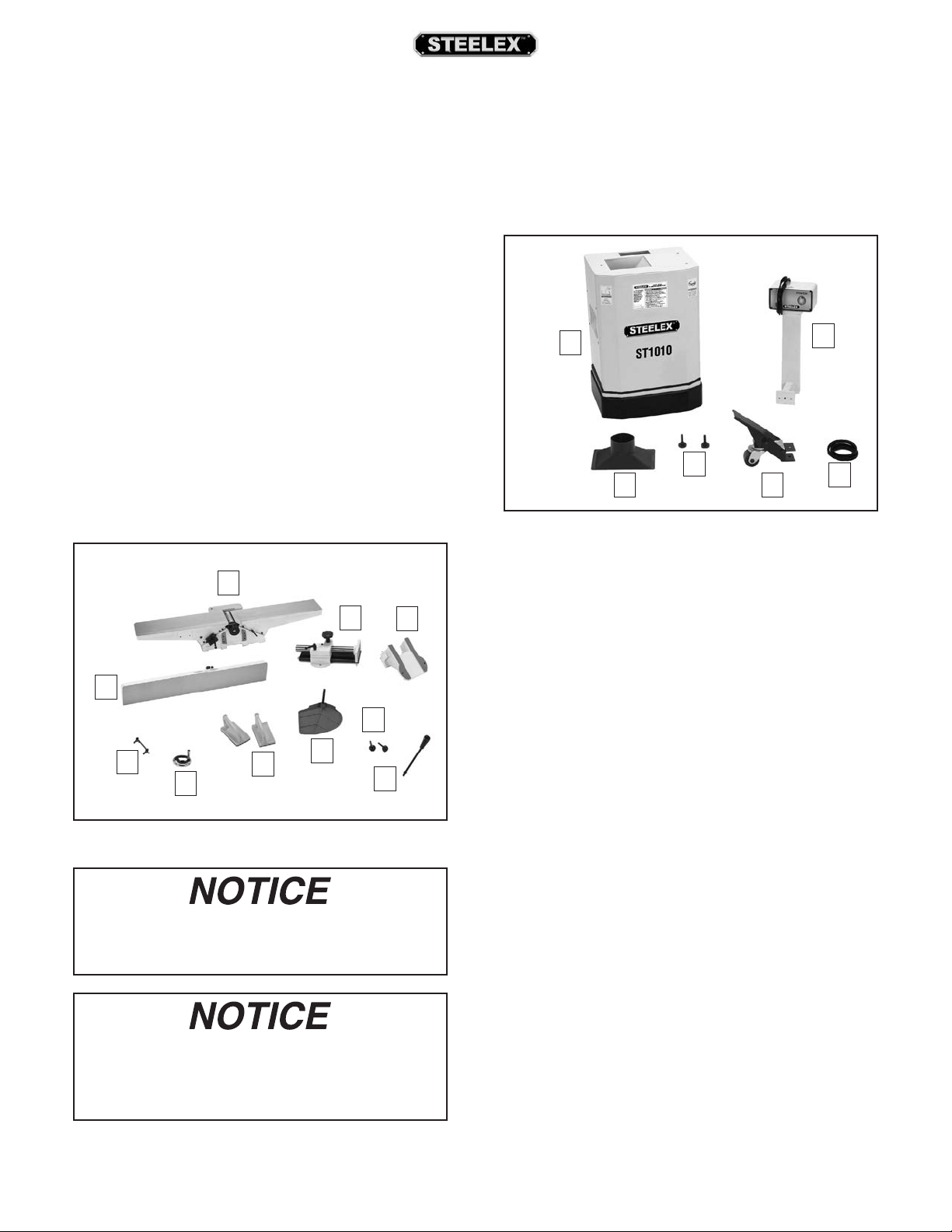

Inventory .......................................................................13

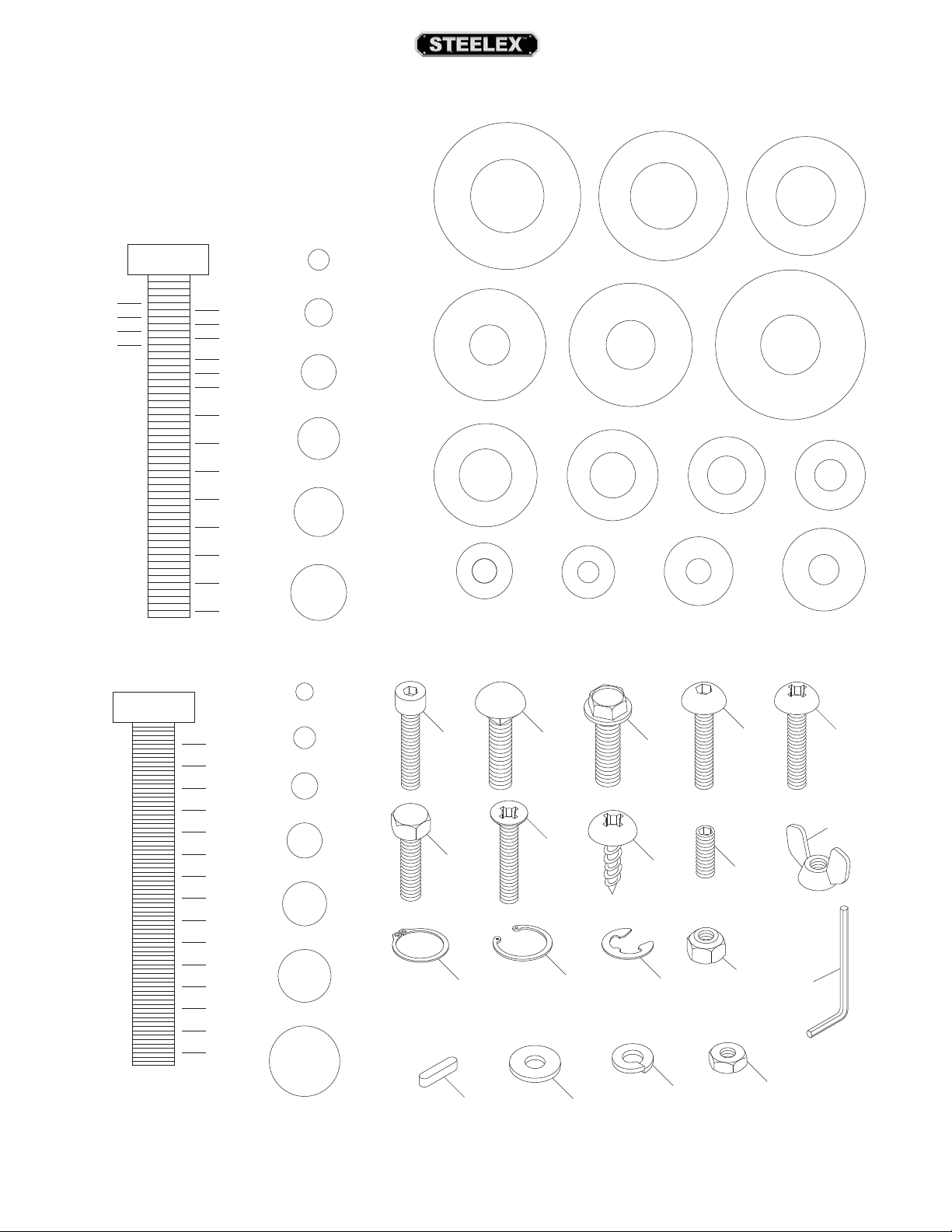

Hardware Recognition Chart .................................14

Cleanup .......................................................................... 15

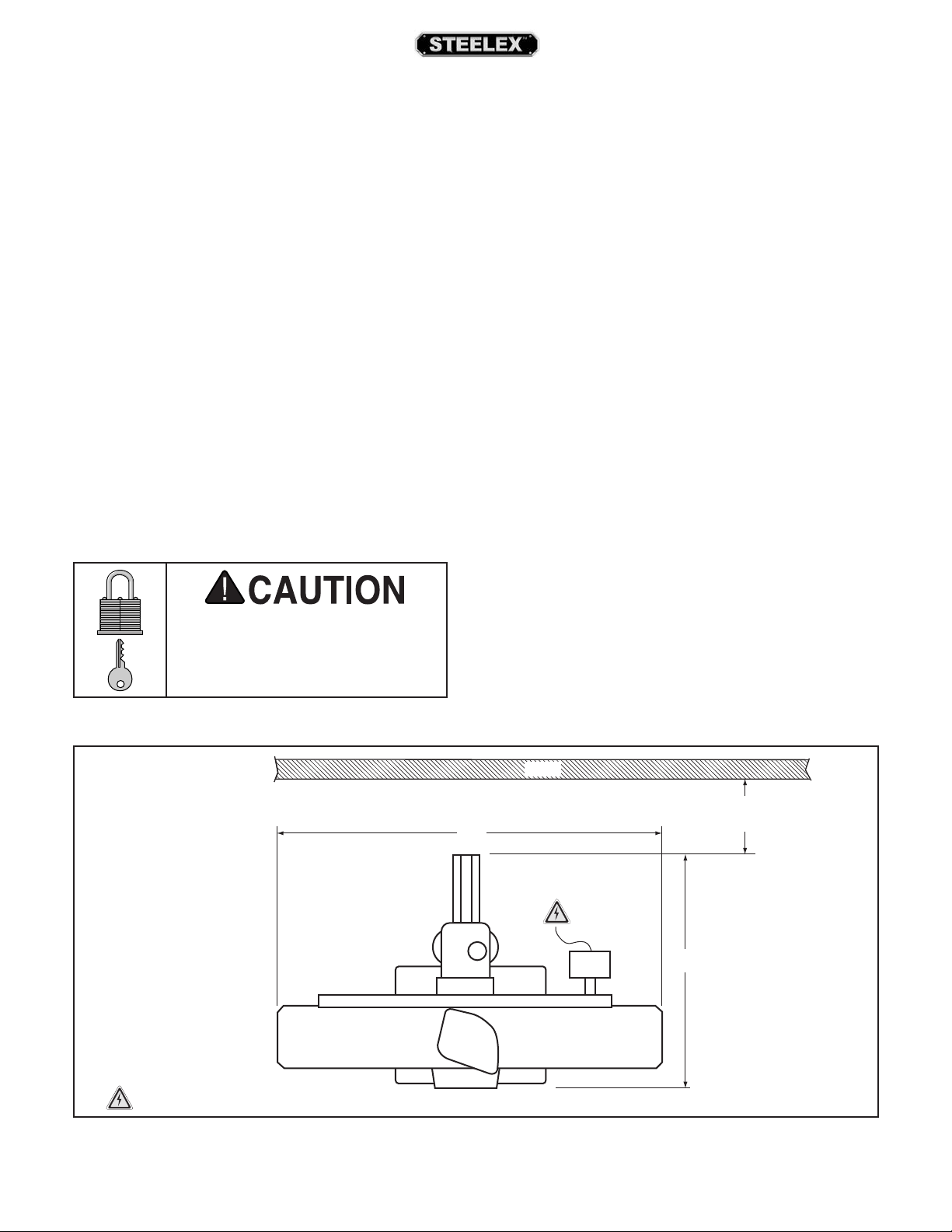

Site Considerations ....................................................16

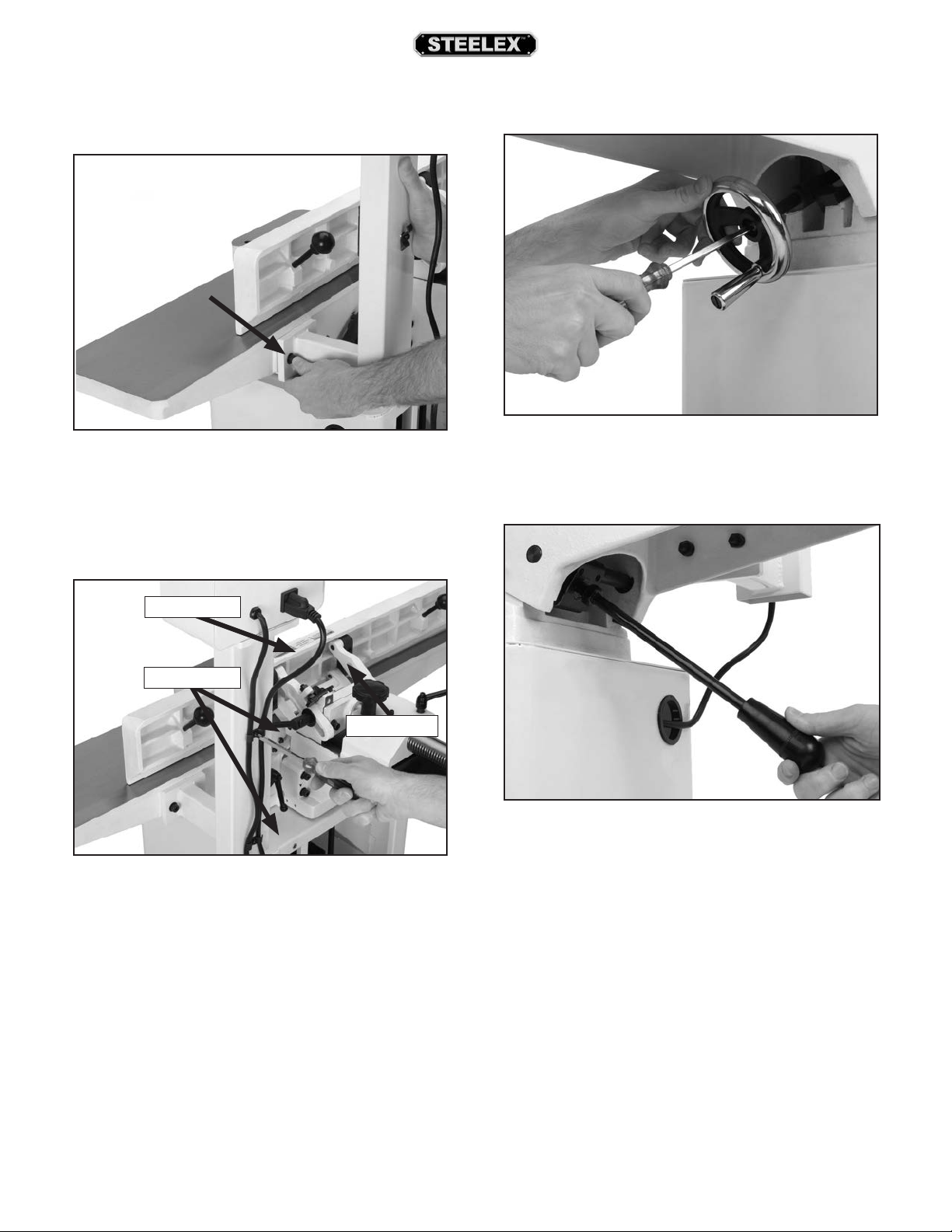

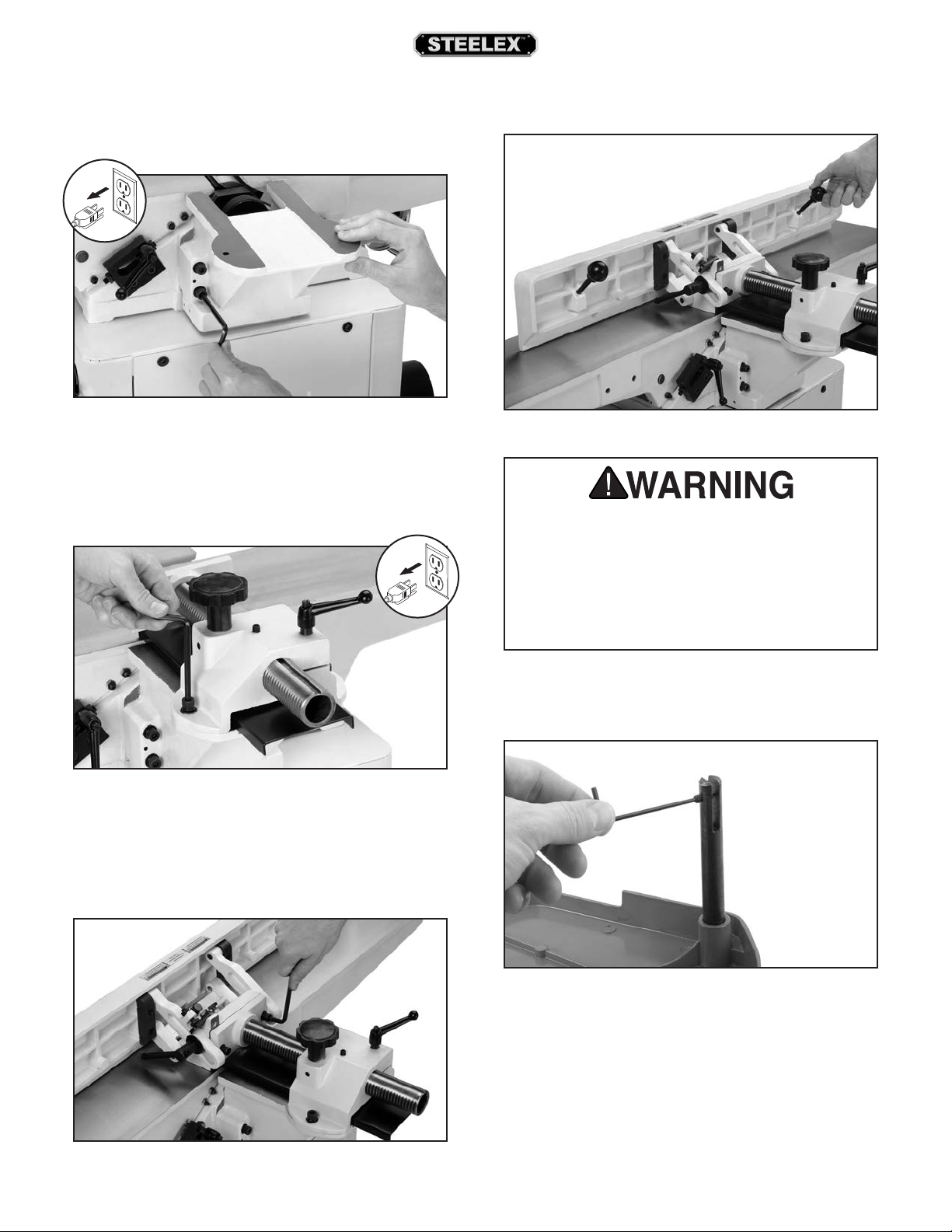

Assembly .......................................................................17

Setting Outfeed Table Height ................................ 22

Test Run ..........................................................................23

Recommended Adjustments ................................. 23

OPERATIONS ....................................................... 24

Overview .......................................................................24

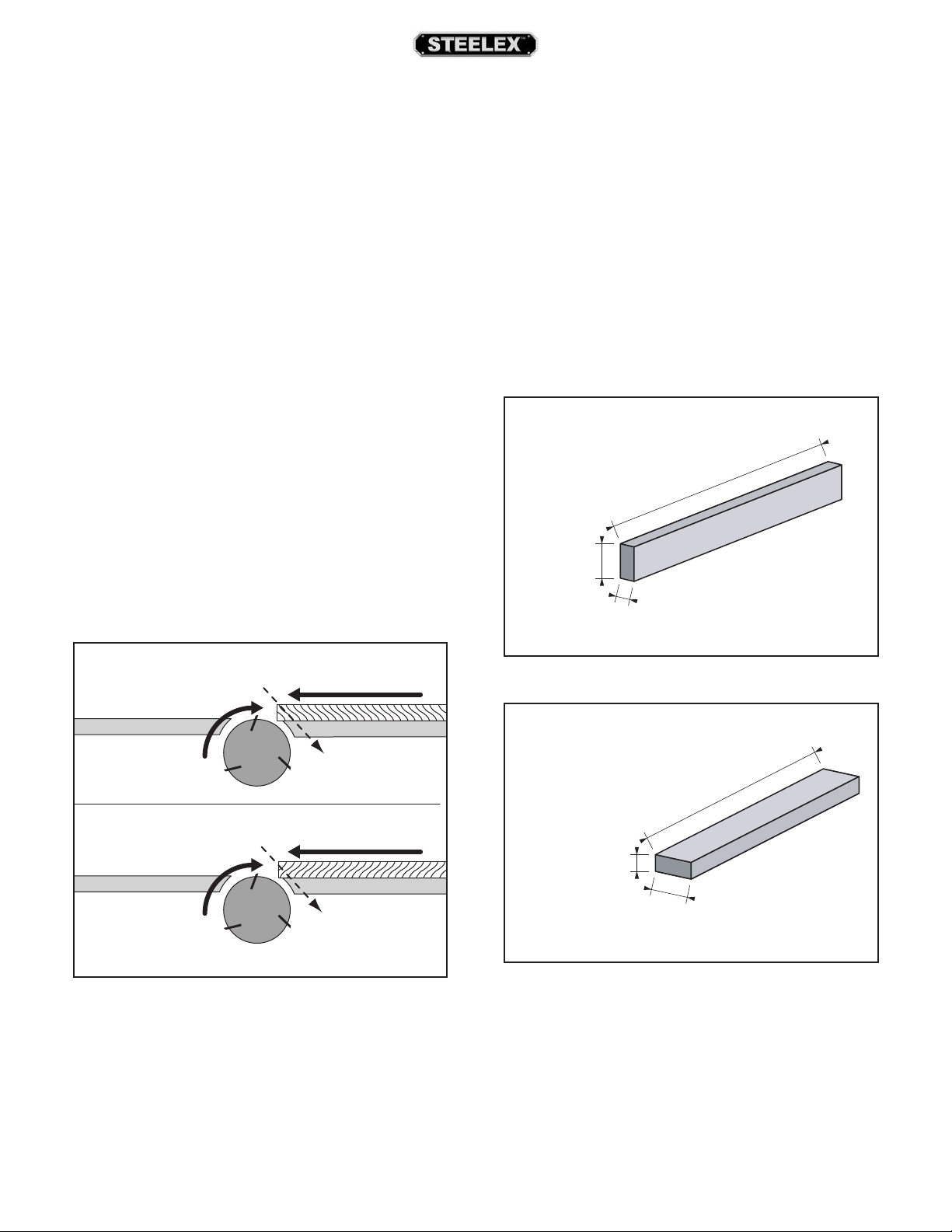

Stock Inspection and Requirements ................... 25

Infeed Table Adjustment ......................................... 26

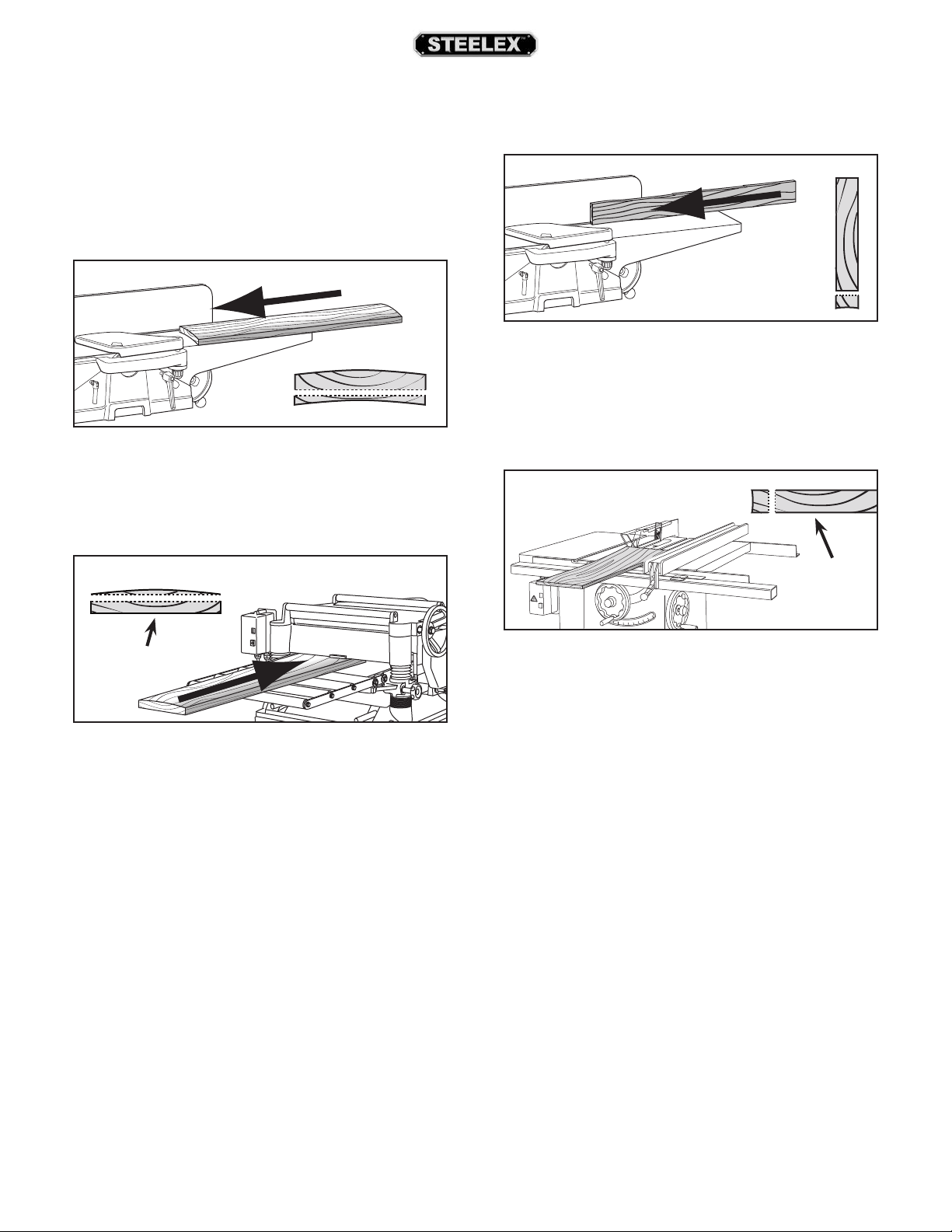

Squaring Stock ............................................................27

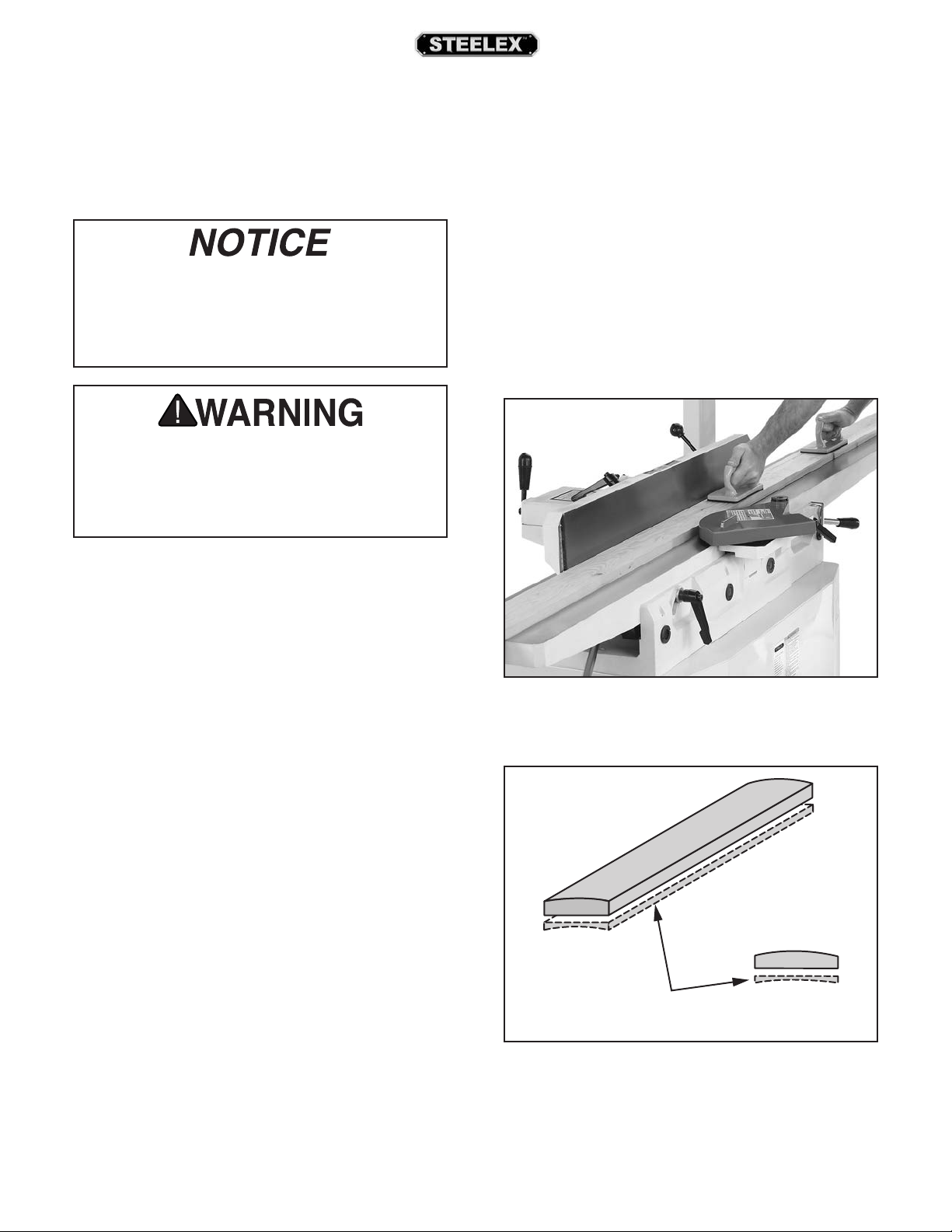

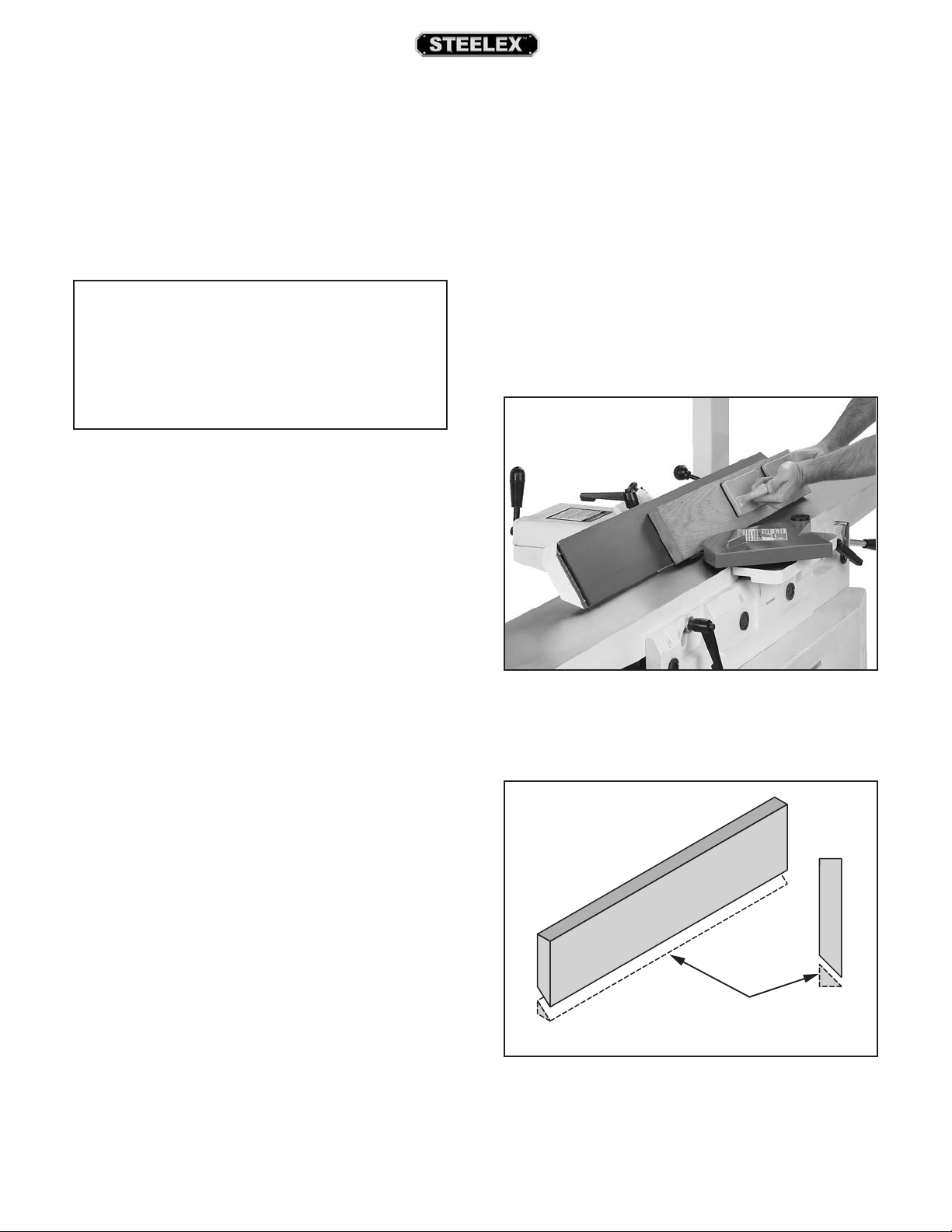

Surface Planing ........................................................... 28

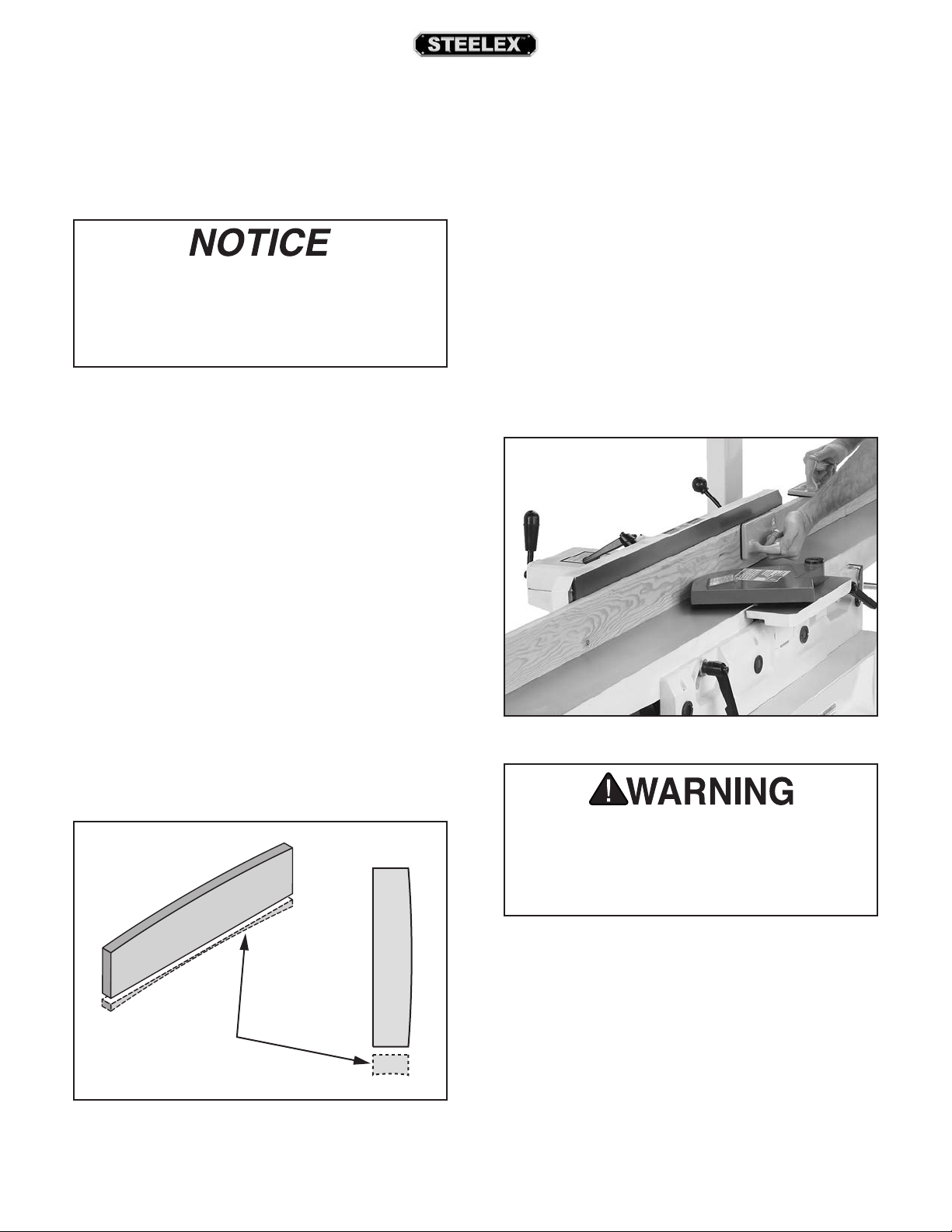

Edge Jointing ............................................................... 29

Bevel Cutting................................................................30

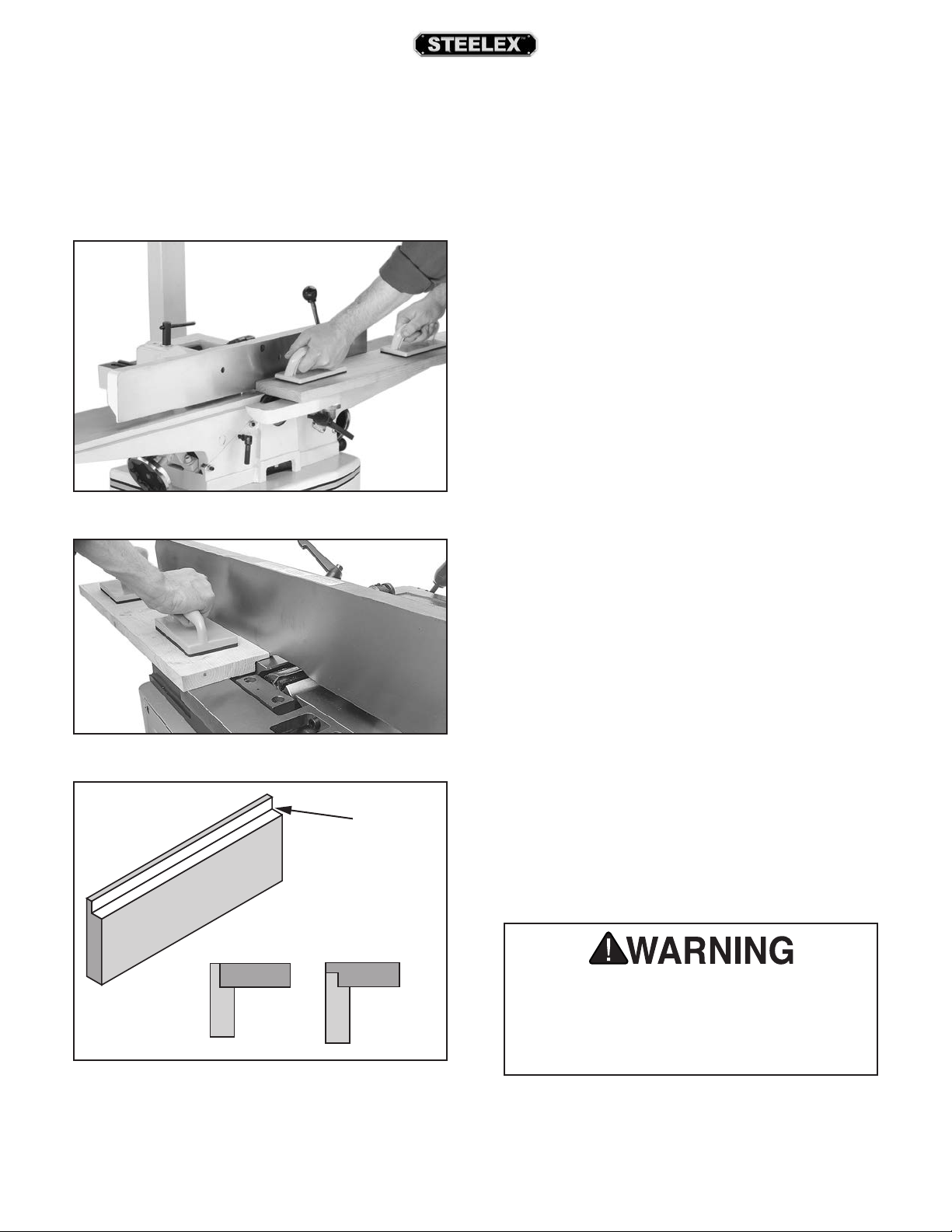

Rabbet Cutting ............................................................ 31

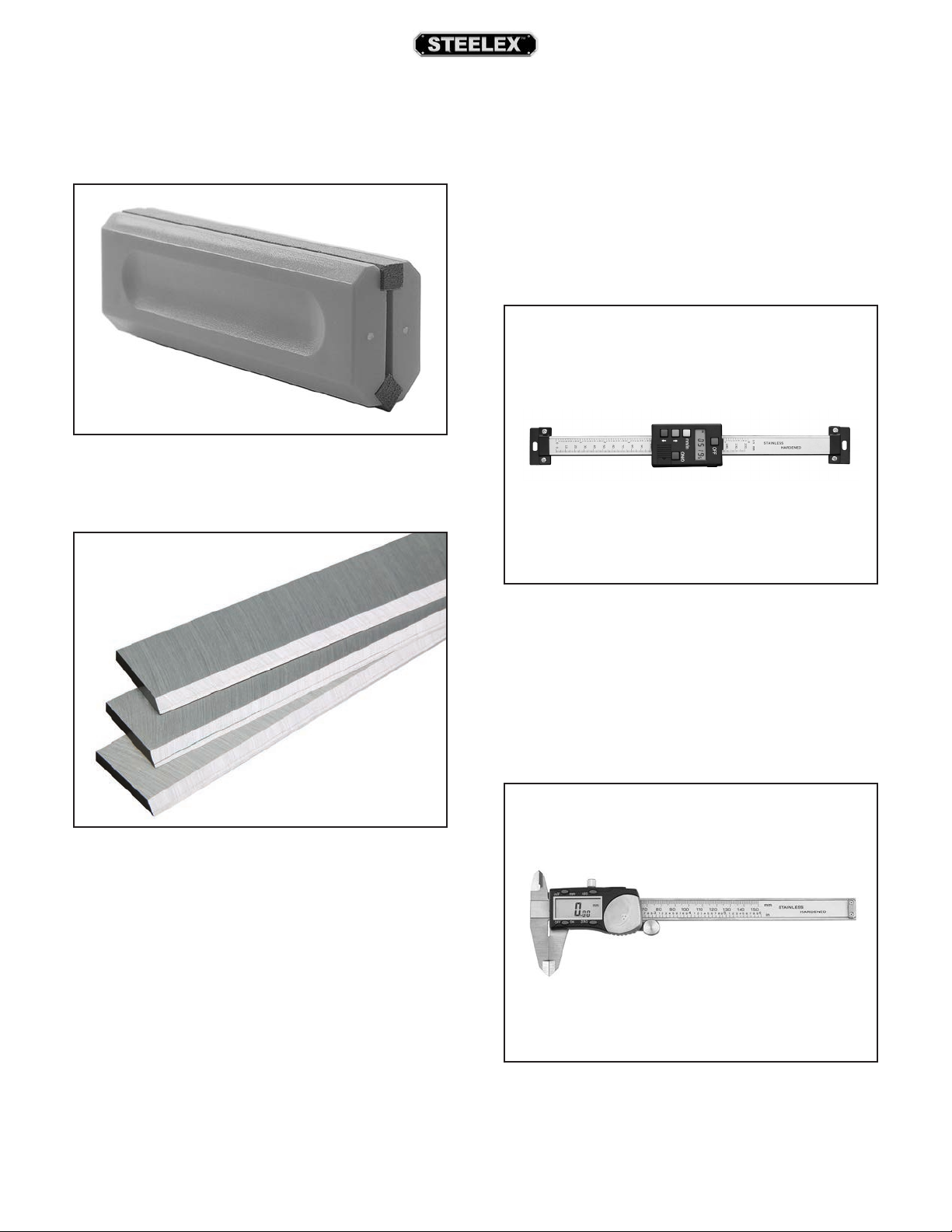

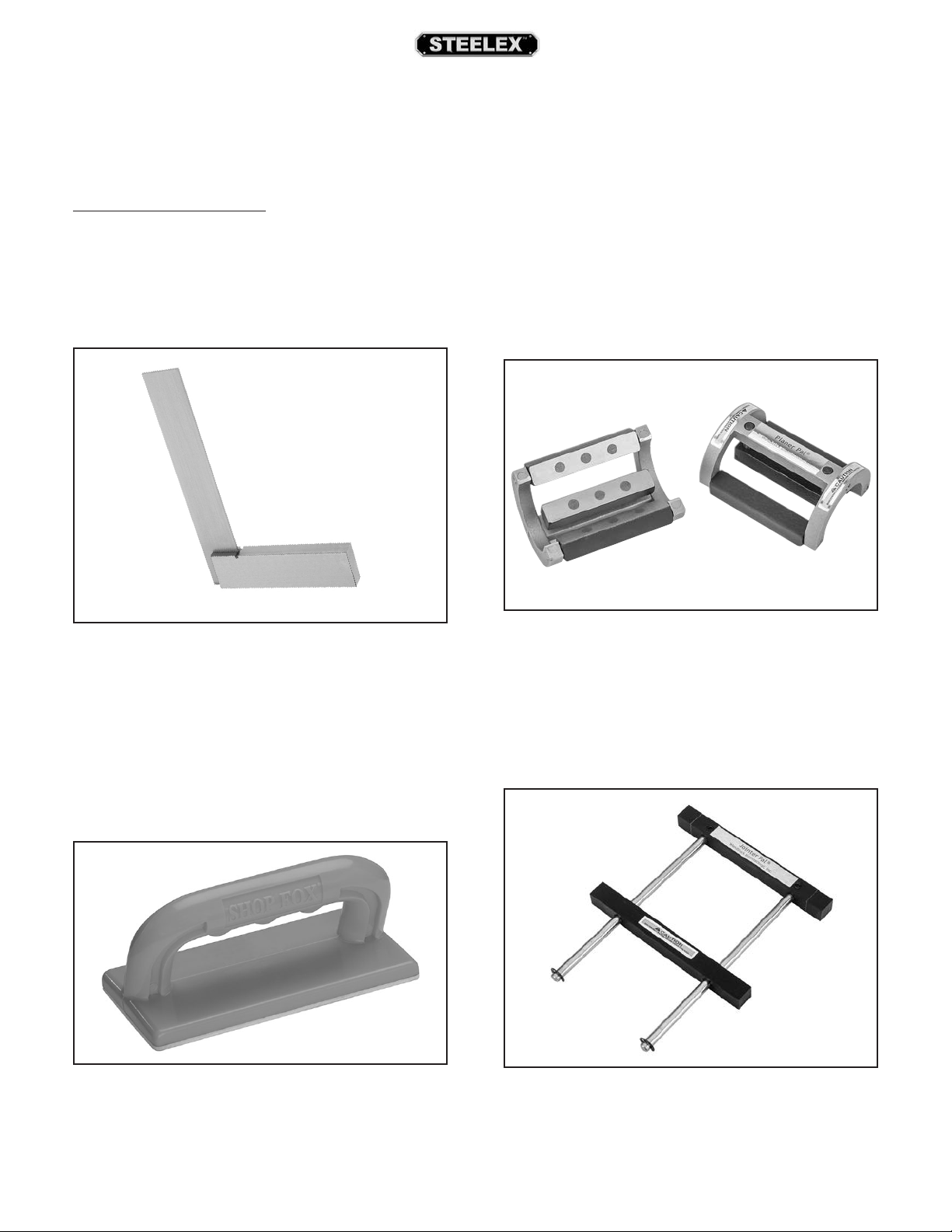

ACCESSORIES ...................................................... 32

MAINTENANCE .................................................... 34

General ........................................................................... 34

Cleaning ......................................................................... 34

Lubrication .................................................................... 34

Maintenance Schedule .............................................34

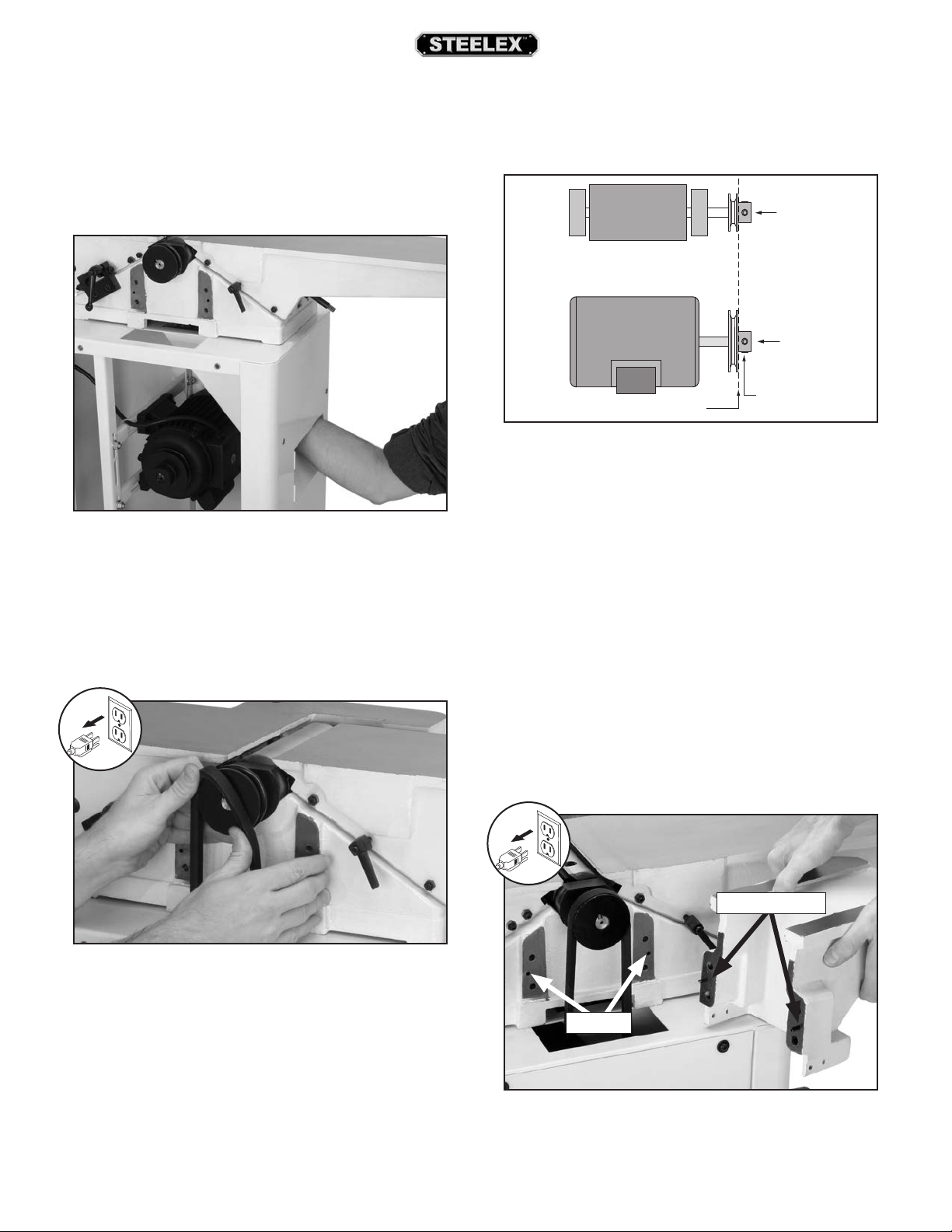

V-Belts ............................................................................. 34

SERVICE ............................................................... 35

Troubleshooting .........................................................35

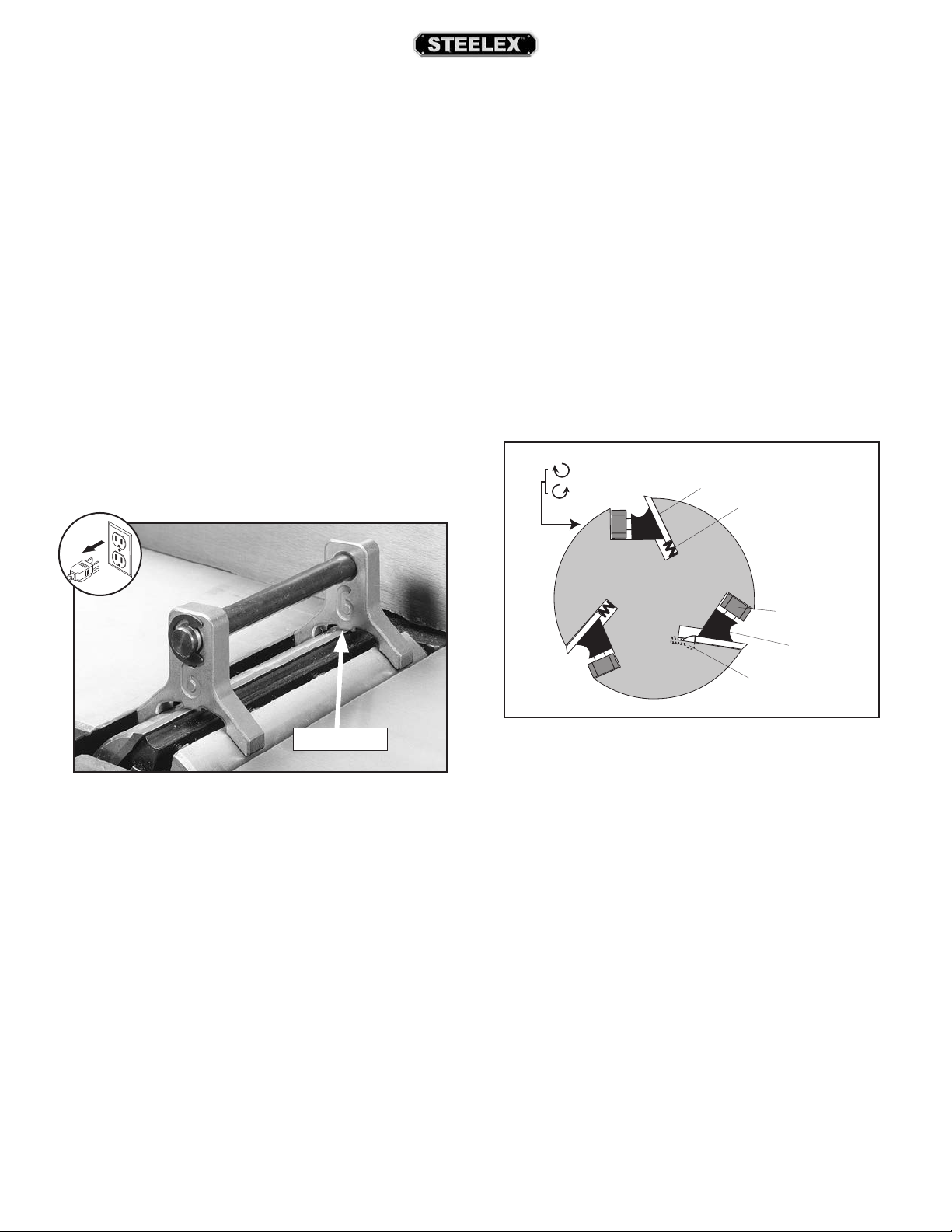

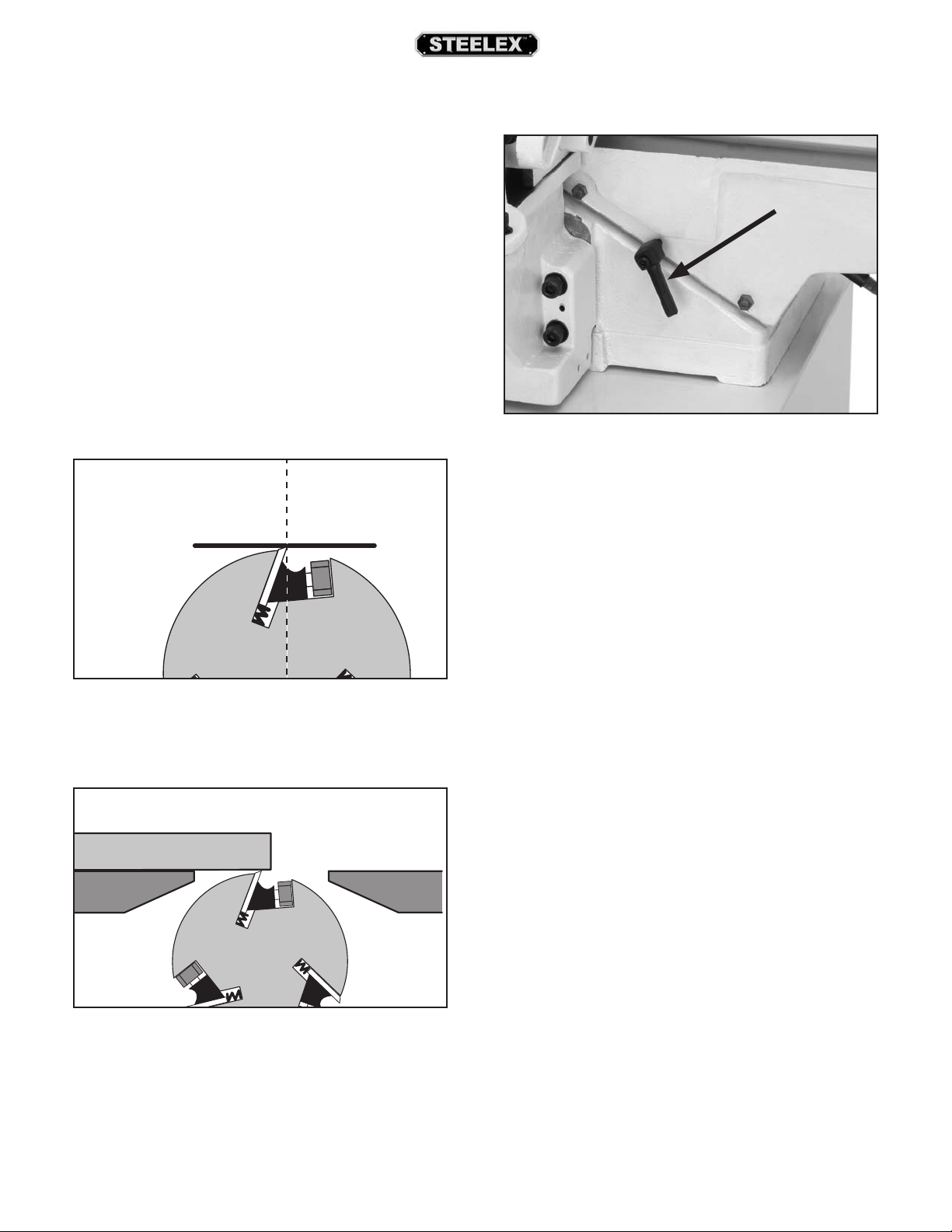

Inspecting Knives ....................................................... 37

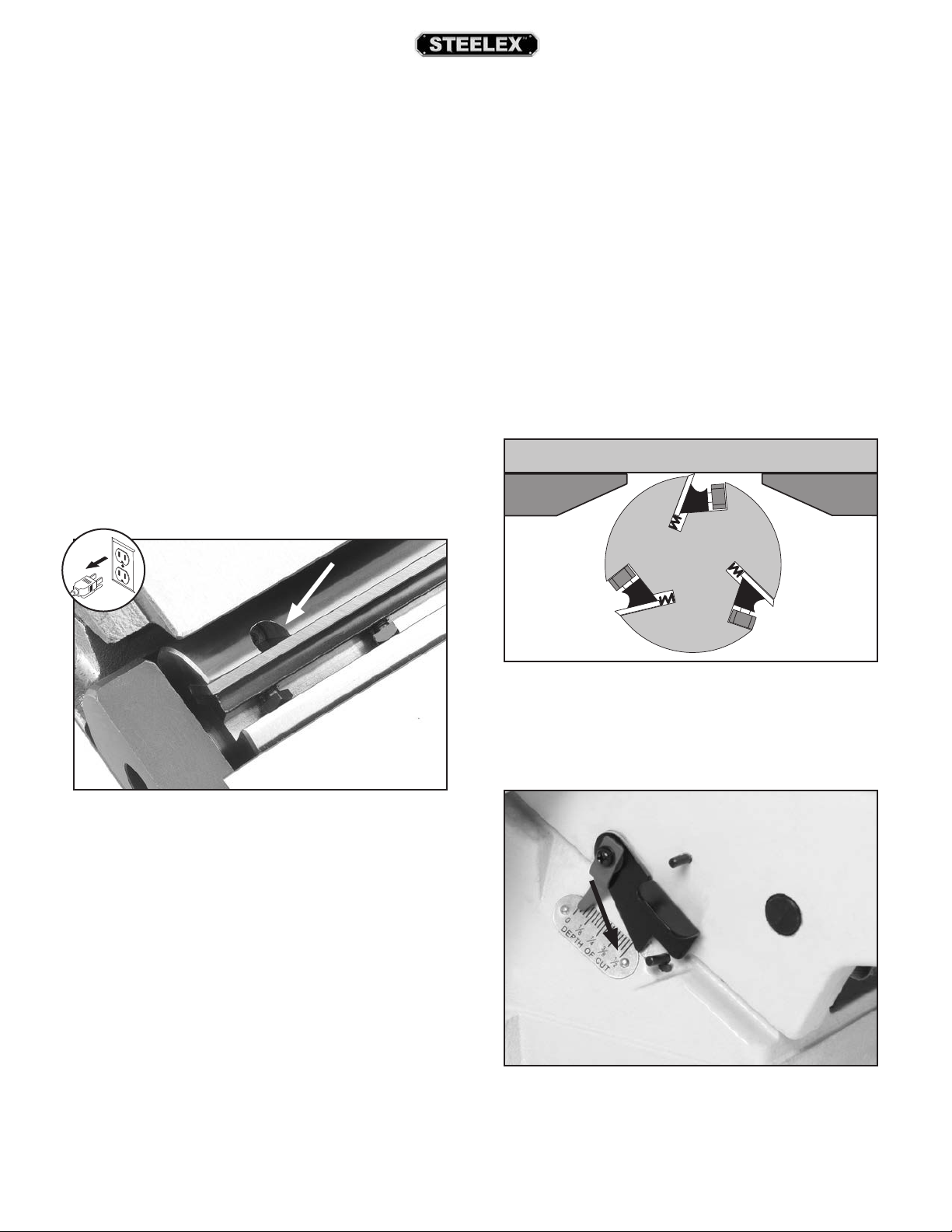

Setting Knives .............................................................. 37

Calibrating Depth Scale ........................................... 38

Setting Fence Stops ...................................................39

Adjusting Gibs ............................................................. 40

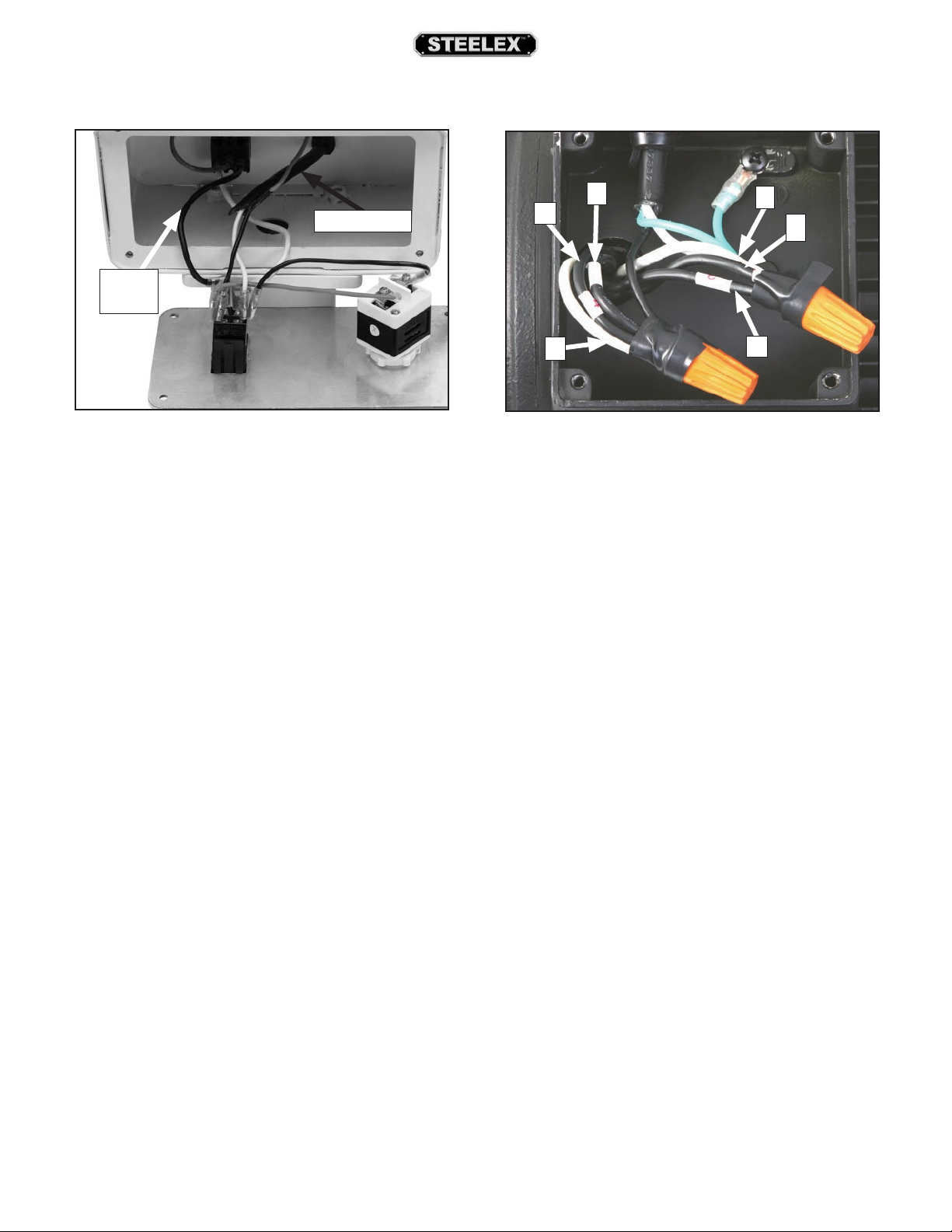

ST1010 Electrical Components .............................41

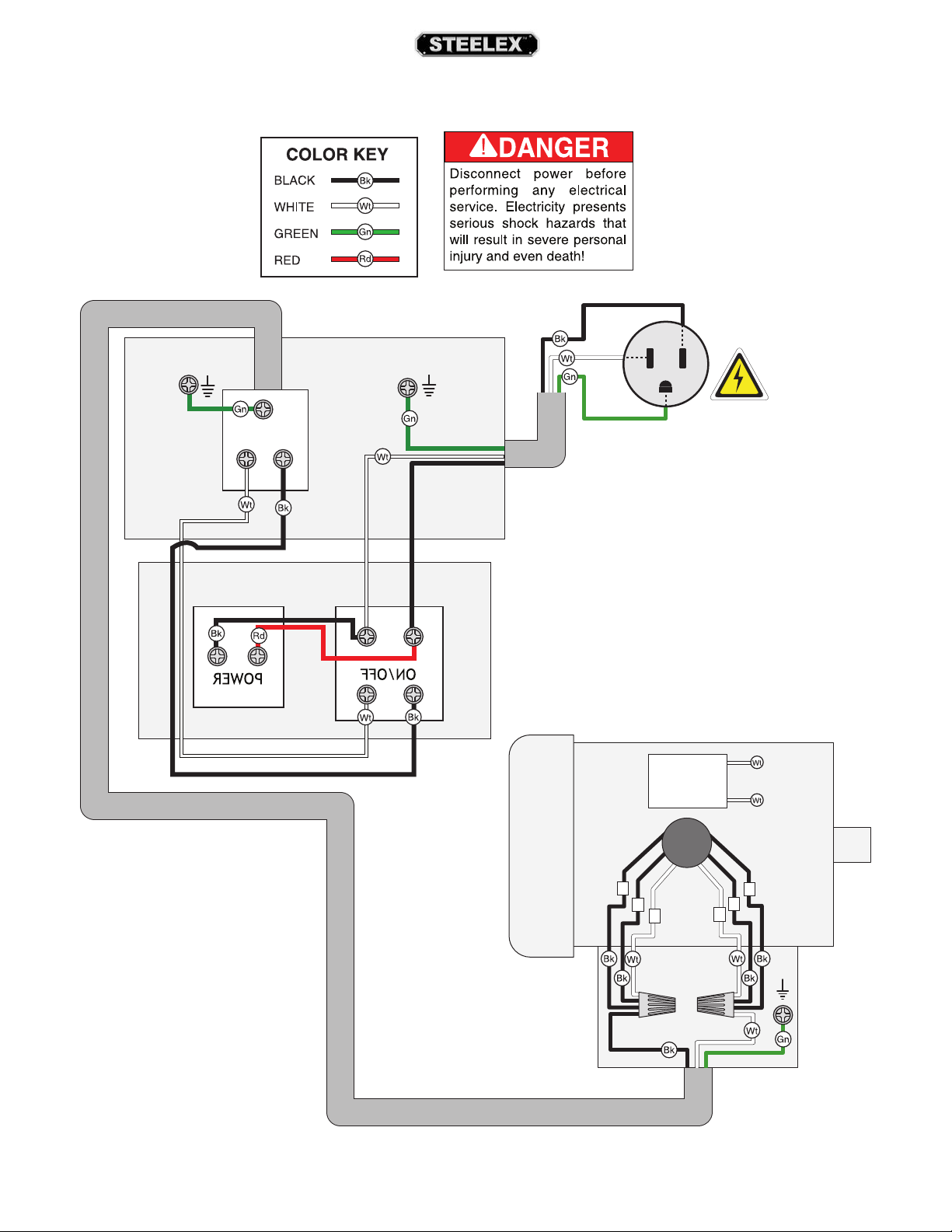

ST1010 Wiring Diagram ...........................................42

PARTS ................................................................... 43

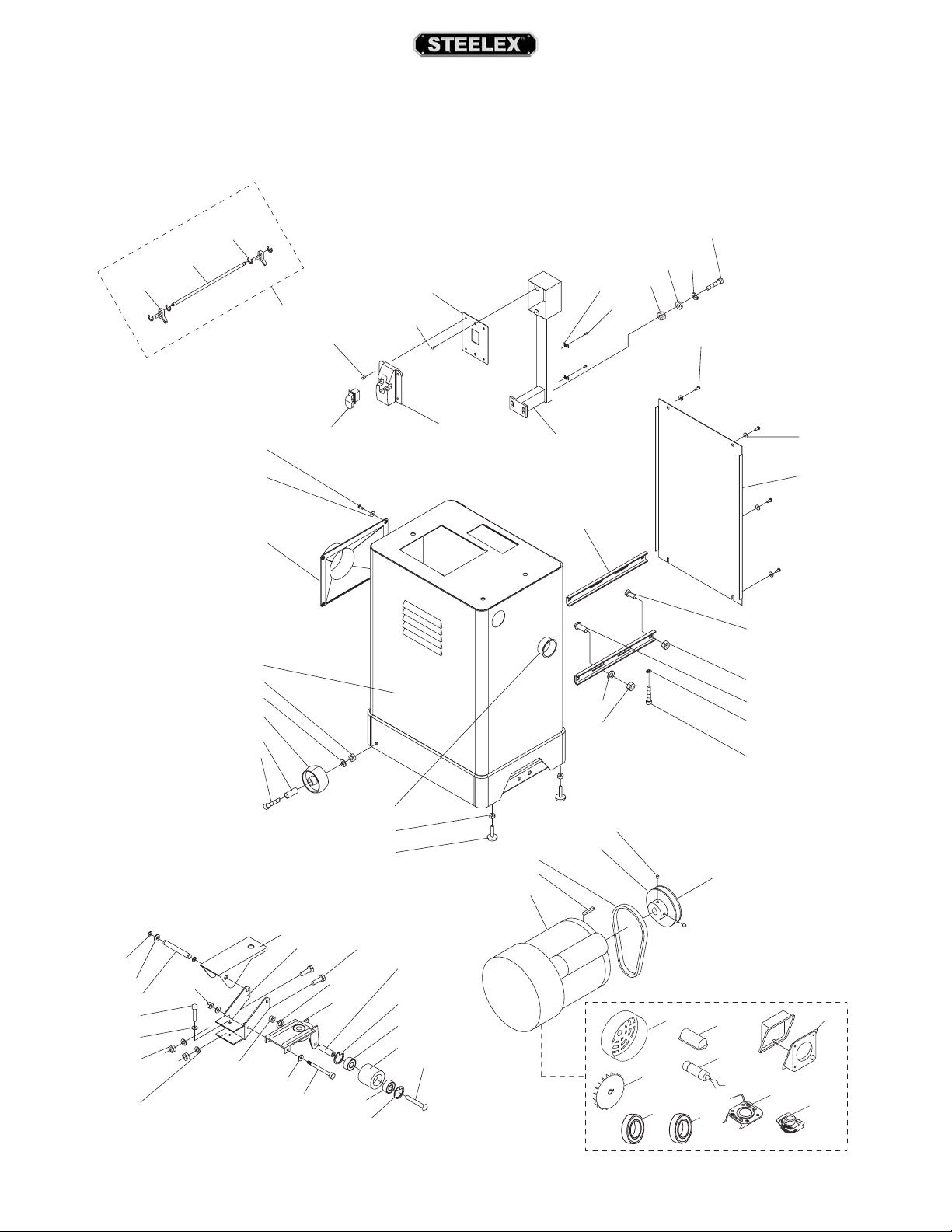

Base Assembly Breakdown .....................................43

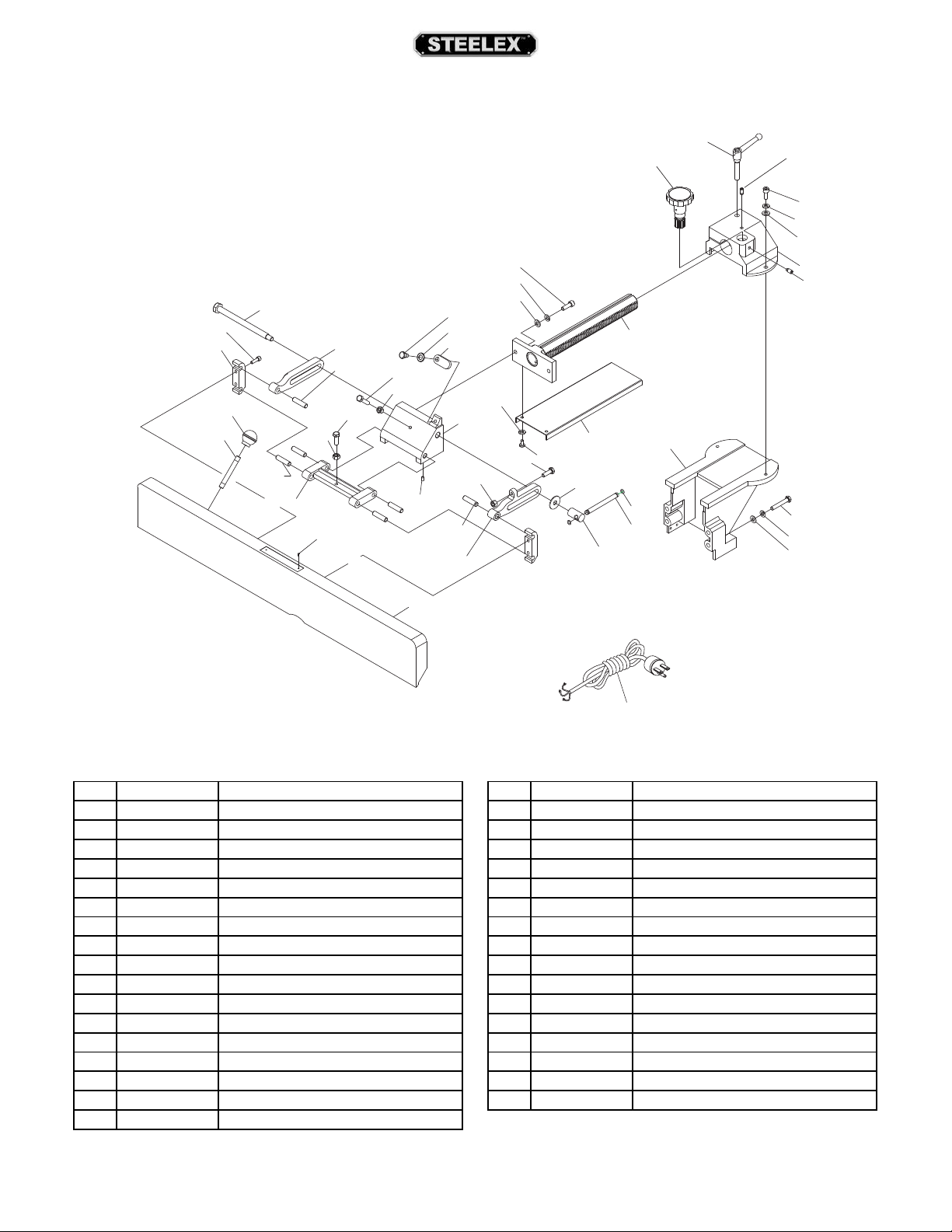

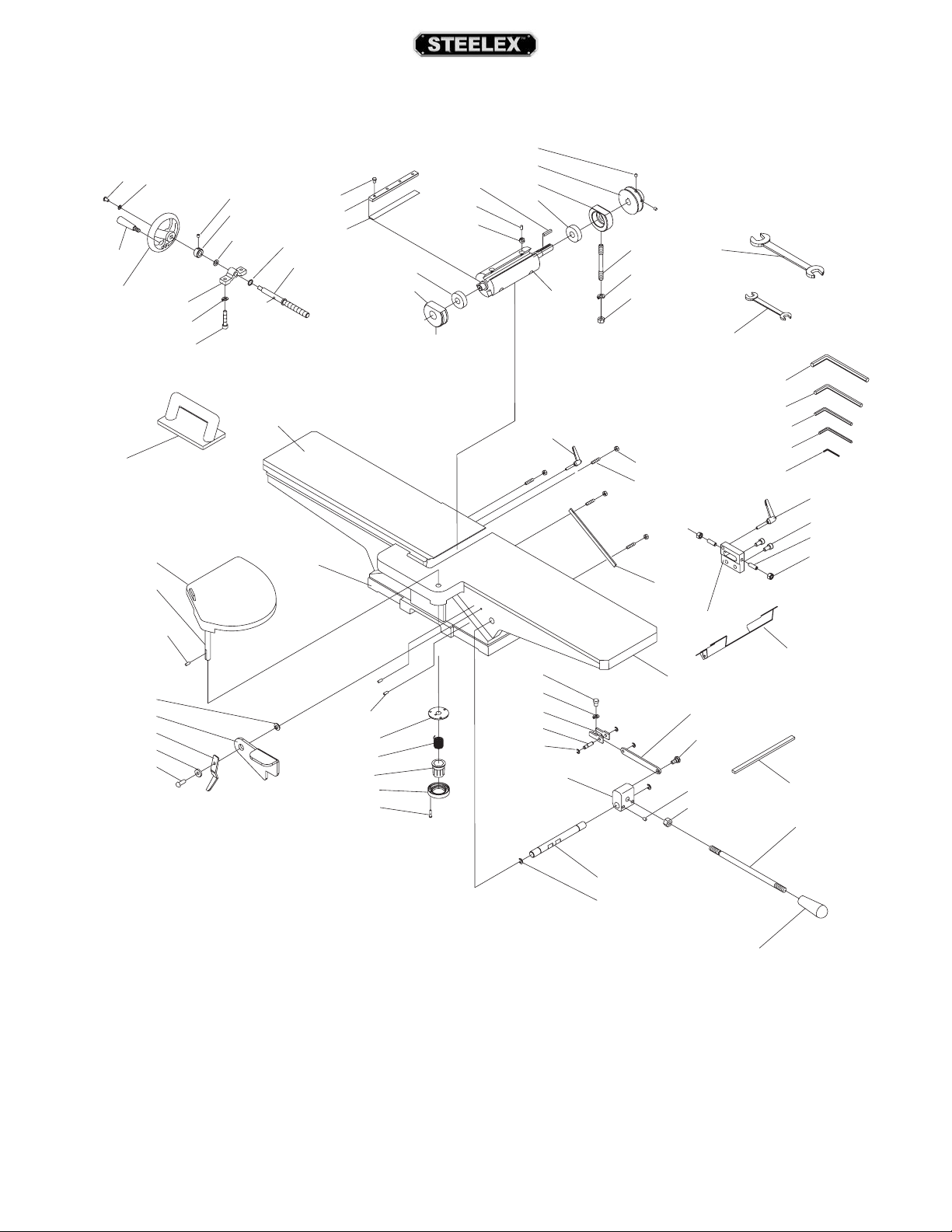

Table Assembly Breakdown....................................45

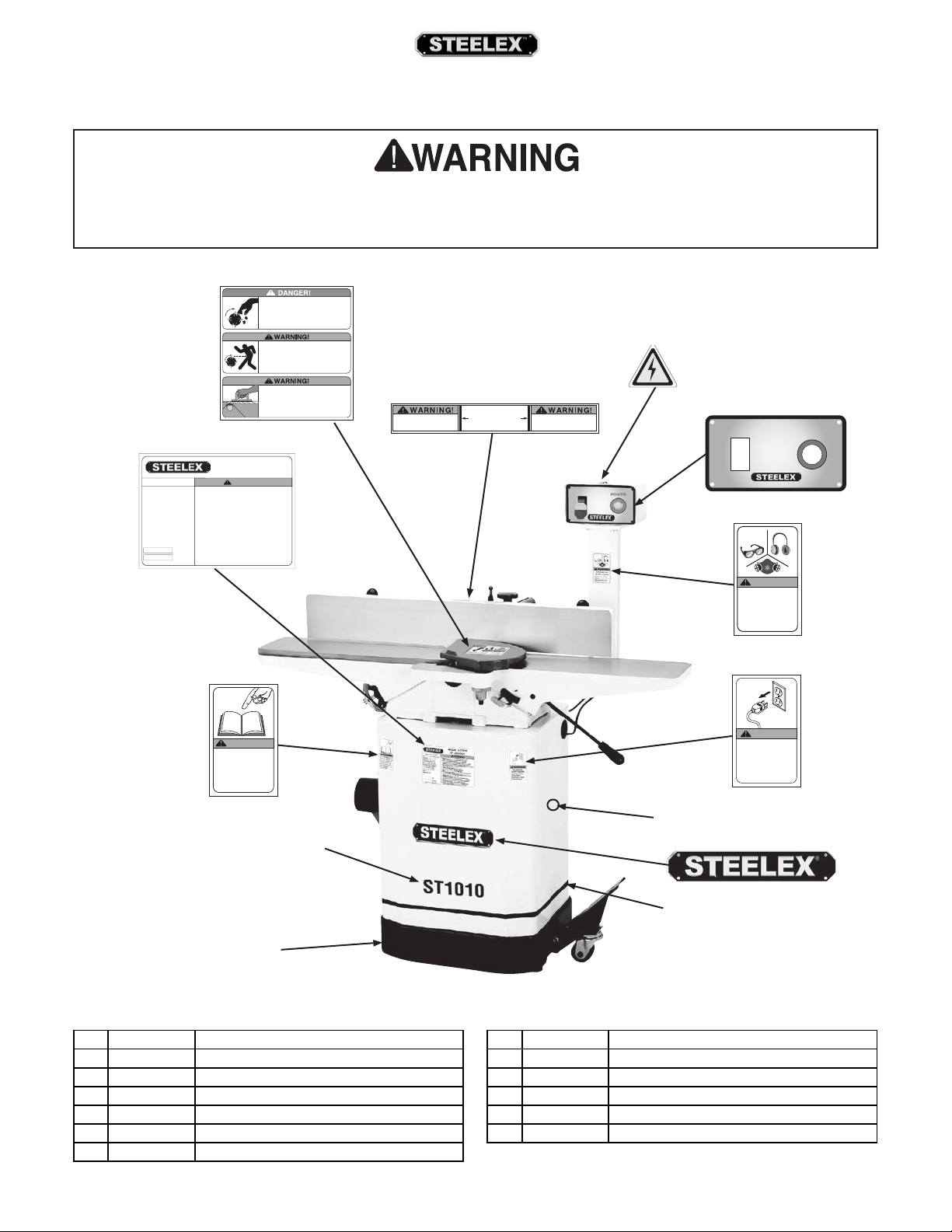

Label/Cosmetic Parts ................................................48

WARRANTY .......................................................... 49

Warranty Registration ...............................................50

We are proud to provide a high-quality owner’s manual with your new machine!

instructions, specifications, drawings, and photographs contained inside. Sometimes we make mistakes, but our policy of continuous improvement also means that

you receive will be slightly different than what is shown in the manual

If you find this to be the case, and the difference between the manual and machine leaves you confused about a procedure

check our website for

an updated version. W

manuals and

manual

www.

woodstockint

Alternatively, you can call our Technical Support for help. Before calling, make sure you write down the

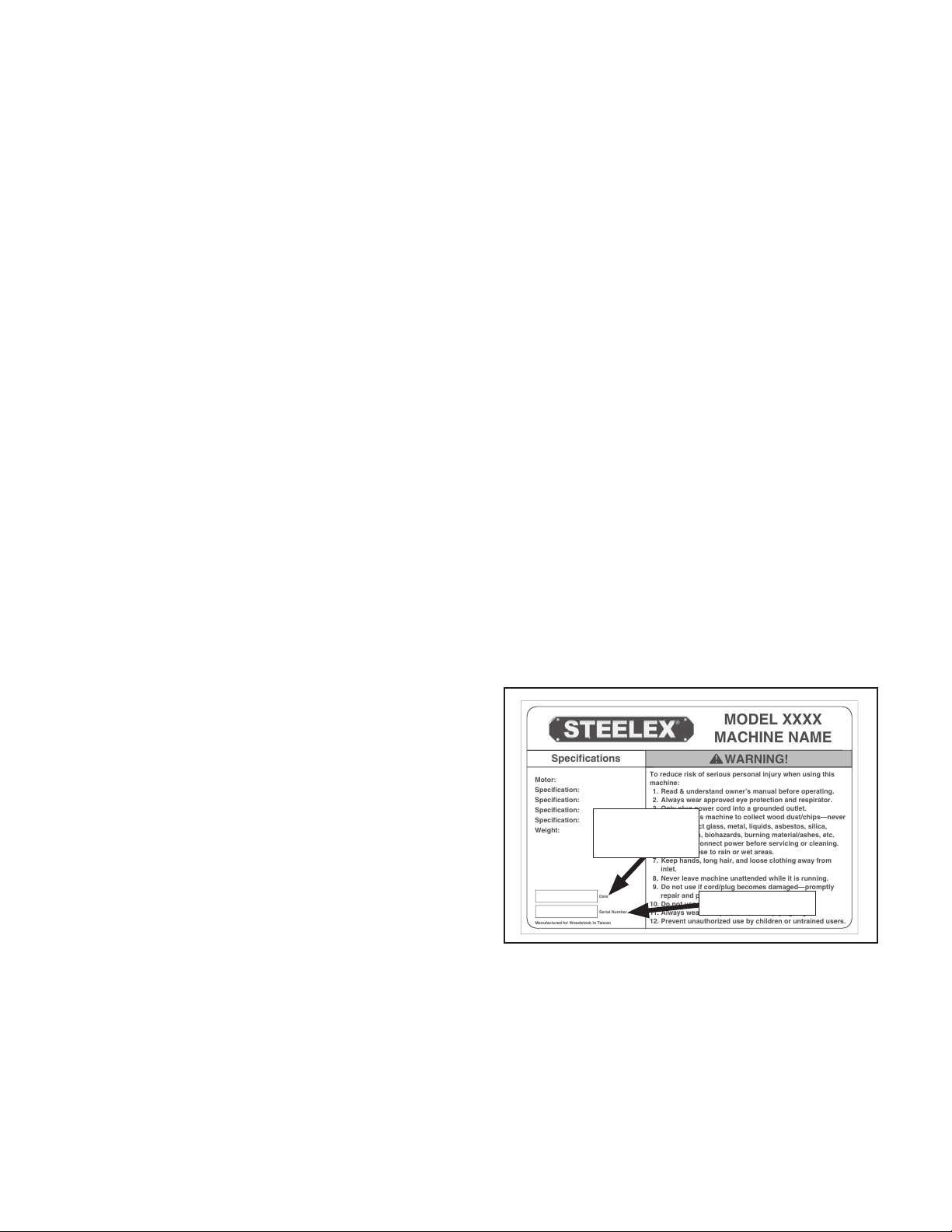

Manufacture Date

from the machine ID label (see below). Also, if available, have a copy of your

on hand.

This information is required for all Tech Support calls.

MODEL XXXX

MACHINE NAME

Motor:

Specification:

Weight:

Specifications

To reduce risk of serious personal injury when using this machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Only plug power cord into a grounded outlet.

4. Only use this machine to collect wood dust/chips—never use to collect glass, metal, liquids, asbestos, silica, animal parts, biohazards, burning material/ashes, etc.

5. Always disconnect power before servicing or cleaning.

6. Do not expose to rain or wet areas.

7. Keep hands, long hair, and loose clothing away from inlet.

8. Never leave machine unattended while it is running.

9. Do not use if cord/plug becomes damaged—promptly repair and protect cord from future damage.

10. Do not use without dust bag or filters in place.

11. Always wear a respirator when emptying bags.

12. Prevent unauthorized use by children or untrained users.

Date

Serial Number

Manufactured for Woodstock in Taiwan

WARNING!

We are committed to customer satisfaction. If you have any questions or need help, use the information below to contact us.

IMPORTANT: Before contacting, please get the original purchase receipt, serial number, and manufacture date of your machine. This information is required for all Technical Support calls and it will help us help you faster.

Email: manuals@woodstockint.com

INTRODUCTION

Contact Info

Woodstock International Technical Support

Phone: (360) 734-3482

Email: techsupport@woodstockint.com

We want your feedback on this manual. What did

you like about it? Where could it be improved? Please take a few minutes to give us feedback.

Technical Documentation Manager

P.O. Box 2309

Bellingham, WA 98227

Manual Accuracy

made every effort to be exact with the

sometimes the machine

e post current

updates for free on our website at

.com.

and Serial Number

original purchase receipt

Manufacture

Date

Serial Number

Model ST1010 Machine Specifications

MACHINE

SPECIFICATIONS

MODEL ST1010

6" JOINTER WITH MOBILE BASE

Product Dimensions:

Weight ..................................................................................................................................................................................................................... 257 lbs.

Length x Width x Height .....................................................................................................................................................46 x 27-1/2 x 32-1/2 in.

Footprint (Length x Width) ..................................................................................................................................................................18 x 13-1/2 in.

Shipping Dimensions:

Carton #1

Type ..................................................................................................................................................................................................Cardboard Box

Content........................................................................................................................................................................................................ Machine

Length x Width x Height ...........................................................................................................................................................49 x 21 x 15 in.

Carton#2

Length x Width x Height ...........................................................................................................................................................17 x 20 x 29 in.

Electrical:

Power Requirement.................................................................................................................. ....................................... 120V, Single-Phase, 60 Hz

Prewired Voltage........................................................................................................................................................................................................ 120V

Full-Load Current Rating ............................................................................................................................................................................................13A

Minimum Circuit Size ..................................................................................................................................................................................................15A

Connection Type ...........................................................................................................................................................................................Cord & Plug

Power Cord Included ...................................................................................................................................................................................................Yes

Power Cord Length ......................................................................................................................................................................................................6 ft.

Power Cord Gauge ...............................................................................................................................................................................................14 AWG

Plug Included ..................................................................................................................................................................................................................Yes

Included Plug Type .....................................................................................................................................................................................................5-15

Switch Type ............................................................................................................................................ Paddle Safety Switch w/ Removable Key

Motor:

Type.................................................................................................................. .......................................................... TEFC Capacitor-Start Induction

Horsepower .................................................................................................................................................................................................................. 1 HP

Phase ...............................................................................................................................................................................................................Single-Phase

Amps .................................................................................................................................................................................................................................13A

Speed ................................................................................................................................................................................................................... 3450 RPM

Power Transfer ............................................................................................................................................................................................... V-Belt Drive

Bearings ................................................................................................................................................................Sealed & Permanently Lubricated

ST1010 6" Jointer (Mfd. Since 3/16)

-3-

Main Specifications:

Main Information

Bevel Jointing .............................................................................................................................................................................0 – 45 deg. L/R

Maximum Width of Cut ...............................................................................................................................................................................6 in.

Maximum Depth of Cut ...........................................................................................................................................................................1/8 in.

Minimum Workpiece Length ..................................................................................................................................................................... 8 in.

Minimum Workpiece Thickness ............................................................................................................................................................1/2 in.

Maximum Rabbeting Depth .................................................................................................................................................................. 1/2 in.

Number of Cuts Per Minute ................................................................................................................................................................ 14,400

Fence Information

Fence Length .................................................................................................................................................................................................35 in.

Fence Width ............................................................................................................................................................................................. 1-1/2 in.

Fence Height....................................................................................................................................................................................................5 in.

Fence Stops ...............................................................................................................................................................................45, 90, 135 deg.

Cutterhead Information

Cutterhead Type ........................................................................................................................................................................................3 Knife

Cutterhead Diameter ............................................................................................................................................................................ 2-1/2 in.

Cutterhead Speed .............................................................................................................................................................................. 4800 RPM

Knife Information

Number of Knives ................................................................................................................................................................................................3

Knife Type ..............................................................................................................................................................................HSS, Single-Sided

Knife Length.....................................................................................................................................................................................................6 in.

Knife Width ...................................................................................................................................................................................................5/8 in.

Knife Thickness ...........................................................................................................................................................................................1/8 in.

Knife Adjustment ...................................................................................................................................................... Jack Screws or Springs

Table Information

Table Length ..................................................................................................................................................................................................46 in.

Table Width ......................................................................................................................................................................................................6 in.

Table Thickness ...............................................................................................................................................................................................1 in.

Floor-to-Table Height .........................................................................................................................................................................32-1/2 in.

Table Adjustment Type .....................................................................................................................................................Handwheel/Lever

Table Movement Type ......................................................................................................................................................... Dovetailed Ways

Construction

Body Assembly ......................................................................................................................................................................................Cast Iron

Cabinet ....................................................................................................................................................................................Pre-Formed Steel

Fence Assembly .....................................................................................................................................................................................Cast Iron

Guard ............................................................................................................................................................................................. Die Cast Metal

Table ......................................................................................................................................................................Precision-Ground Cast Iron

Paint Type/Finish ......................................................................................................................................................................Powder Coated

Other Information

Number of Dust Ports ........................................................................................................................................................................................1

Dust Port Size ..................................................................................................................................................................................................4 in.

-4-

ST1010 6" Jointer (Mfd. Since 3/16)

Machine Features

risk of

serious injury, read this

The instructions in this manual will be easier to understand if you become familiar with the location and names of the basic features of your new machine. Use the list below with the letters to identify the external features of the planer.

ON/OFF Switch

Fence Adjustment

Knob

Fence Lock

Fence

Cutterhead Guard

Outfeed Table

POWER Indicator

Light

Outfeed Table

Handwheel

Dust Port

Depth Scale

Infeed Table

Height Lever

Locking Foot Pedal

ST1010 6" Jointer (Mfd. Since 3/16)

To reduce your

entire manual BEFORE using machine.

-5-

Controls &

Fence Adjustment Knob: Rotates to adjust lateral

position of fence along width of tables.

Components

Refer to Figures 1–3 and the following descriptions to become familiar with the basic controls and components of this machine. Understanding these items and how they work will help you understand the rest of the manual and stay safe when operating this machine.

ON/OFF Switch: Starts and stops the motor. The switch can be disabled to prevent unauthorized use by removing disabling key.

Power Indicator Light: Illuminates when machine is plugged into power.

ON/OFF

Switch

Power

Indicator

Light

Figure 1. Pedestal-mounted controls.

Depth Scale: Indicates depth of cut.

Tilt Lock: Secures fence tilt setting at desire angle.

45° Fence Stop: Stops fence at 45° inward and 45°

degree outward (135°).

Note: Even when fence is resting against stops, tilt lock must be tightened before starting machine.

90° Fence Stop: Stops fence at 90° when engaged.

Note: Even when fence is resting against stops, tilt lock

must be tightened before starting machine.

Fence Lock: Tightens to secure fence position along width of tables; loosens to allow adjustment.

Fence

Adjustment

Knob

Tilt

Lock

Fence

Lock

90° Fence

Stop

Figure 3. Fence movement controls.

45° Fence

Stop

Infeed Table Adjustment Lever: Adjusts position of infeed table, which controls depth of cut.

Outfeed Table Handwheel: Adjusts position of outfeed table. Only used when setting outfeed table even with cutterhead knives.

Depth Scale

Outfeed Table

Handwheel

Figure 2. Table movement controls.

-6-

Infeed Table Lever

ST1010 6" Jointer (Mfd. Since 3/16)

SAFETY

For Your Own Safety, Read Instruction Manual

Before Operating This Machine

The purpose of safety symbols is to attract your attention to possible hazardous conditions. This manual uses a series of symbols and signal words intended to convey the level of importance of the safety messages. The progression of symbols is described below. Remember that safety messages by themselves do not eliminate danger and are not a substitute for proper accident prevention measures. Always use common sense and good judgment.

Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

Indicates a potentially hazardous situation which, if not avoided, MAY result in minor or moderate injury. It may also be used to alert against unsafe practices.

This symbol is used to alert the user to useful information about proper

NOTICE

operation of the machine.

Safety Instructions for Machinery

OWNER’S MANUAL. Read and understand this own-

er’s manual BEFORE using machine.

TRAINED OPERATORS ONLY. Untrained operators have a higher risk of being hurt or killed. Only allow trained/supervised people to use this machine. When machine is not being used, disconnect power, remove switch keys, or lock-out machine to prevent unauthorized use—especially around children. Make workshop kid proof!

DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor lighting. Operating machinery in these areas greatly increases the risk of accidents and injury.

MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery. Never operate under the influence of drugs or alcohol, when tired, or when distracted.

ELECTRICAL EQUIPMENT INJURY RISKS. You can be shocked, burned, or killed by touching live electrical components or improperly grounded machinery. To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and always disconnect power before accessing or exposing electrical equipment.

DISCONNECT POWER FIRST. machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This pr

events an injury risk from unintended startup or

contact with live electrical components.

EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or blindness from flying particles. Everyday eyeglasses are NOT approved safety glasses.

Always disconnect

ST1010 6" Jointer (Mfd. Since 3/16)

-7-

WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled in moving parts. Always tie back or cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally contacting cutting tool or moving parts.

HAZARDOUS DUST. Dust created by machinery operations may cause cancer, birth defects, or longterm respiratory damage. Be aware of dust hazards associated with each workpiece material. Always wear a NIOSH-approved respirator to reduce your risk.

HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing protection can cause permanent hearing loss.

REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup. Never leave chuck keys, wrenches, or any other tools on machine. Always verify removal before starting!

USE CORRECT TOOL FOR THE JOB. Only use this tool for its intended purpose—do not force it or an attachment to do a job for which it was not designed. Never make unapproved modifications—modifying tool or using it differently than intended may result in malfunction or mechanical failure that can lead to personal injury or death!

AWKWARD POSITIONS. Keep proper footing and balance at all times when operating machine. Do not overreach! Avoid awkward hand positions that make workpiece control difficult or increase the risk of accidental injury.

CHILDREN & BYSTANDERS. Keep children and bystanders at a safe distance from the work area. Stop using machine if they become a distraction.

GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris. Make sure they are properly installed, undamaged, and working correctly BEFORE operating machine.

FORCING MACHINERY. Do not force machine. It will do the job safer and better at the rate for which it was designed.

NEVER STAND ON MACHINE. Serious injury may occur if machine is tipped or if the cutting tool is unintentionally contacted.

STABLE MACHINE. Unexpected movement during operation greatly increases risk of injury or loss of control. Before starting, verify machine is stable and mobile base (if used) is locked.

USE RECOMMENDED ACCESSORIES. Consult this owner’s manual or the manufacturer for recommended accessories. Using improper accessories will increase the risk of serious injury.

UNATTENDED OPERATION. To reduce the risk of accidental injury, turn machine OFF and ensure all moving parts completely stop before walking away. Never leave machine running while unattended.

MAINTAIN WITH CARE. Follow all maintenance instructions and lubrication schedules to keep machine in good working condition. A machine that is improperly maintained could malfunction, leading to serious personal injury or death.

DAMAGED PARTS. Regularly inspect machine for damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately repair/replace BEFORE operating machine. For your own safety, DO NOT operate machine with damaged parts!

MAINTAIN POWER CORDS. When disconnecting cord-connected machines from power, grab and pull the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with wet hands. Avoid cord damage by keeping it away from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.

EXPERIENCING DIFFICULTIES. If at any time you experience difficulties performing the intended operation, stop using the machine! Contact our Technical Support at (570) 546-9663.

-8-

ST1010 6" Jointer (Mfd. Since 3/16)

Additional Safety for Jointers

Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutterhead or other moving components! Flying chips can cause blindness or eye injuries. Workpieces or inserts/ knives thrown by cutterhead can strike nearby operator or bystanders with deadly force. To reduce the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings

KICKBACK. Occurs when workpiece is ejected from

machine at a high rate of speed. To reduce the risk of kickback-related injuries, use quality workpieces, safe feeding techniques, and proper machine setup or maintenance.

GUARD REMOVAL. Operating jointer without guard exposes operator to knives/inserts. Except when rabbeting, never remove guards for regular operations or while connected to power. Turn jointer OFF and disconnect power before clearing any shavings or sawdust from around cutterhead. After rabbeting or maintenance is complete, immediately replace all guards and ensure they are properly adjusted before resuming regular operations.

DULL/DAMAGED KNIVES/INSERTS. Dull knives/ inserts can increase risk of kickback and cause poor workpiece finish. Only use sharp, undamaged knives/ inserts.

OUTFEED TABLE ALIGNMENT. Setting outfeed table too high can cause workpiece to hit table and get stuck, increasing risk of kickback. Setting outfeed table too low may cause workpiece to become tapered from front to back. Always keep outfeed table even with knives/inserts at top dead center (highest point during rotation).

INSPECTING STOCK. Impact injuries or fire may result from using poor workpieces. Thoroughly inspect and prepare workpiece before cutting. Verify workpiece is free of nails, staples, loose knots or other foreign material. Workpieces with minor warping should be surface planed first with cupped side facing infeed table.

GRAIN DIRECTION. Jointing against the grain or end grain can increase the risk of kickback. It also requires more cutting force, which produces chatter or excessive chip out. Always joint or surface plane WITH the grain.

MAXIMUM CUTTING DEPTH. To reduce risk of kick-

back, never cut deeper than

⁄8 " per pass.

CUTTING LIMITATIONS. Cutting a workpiece that does not meet the minimum dimension requirements can result in breakup, kickback, or accidental contact with cutterhead during operation. Never perform jointing, planing, or rabbeting cuts on pieces

smaller than 8" long,

⁄4" wide, or 1⁄4" thick.

PUSH BLOCKS. Not using push blocks when surface planing may result in accidental cutterhead contact. Always use push blocks when planing materials less than 3" high or wide. Never pass your hands directly over cutterhead without a push block.

WORKPIECE SUPPORT. Loss of workpiece control while feeding can increase risk of kickback or accidental contact with cutterhead. Support workpiece continuously during operation. Position and guide workpiece with fence. Support long or wide stock with auxiliary stands.

FEED WORKPIECE PROPERLY. Kickback or accidental cutterhead contact may result if workpiece is fed into cutterhead the wrong way. Allow cutterhead to reach full speed before feeding. Never start jointer with workpiece touching cutterhead. Always feed workpiece from infeed side to outfeed side without stopping until cut is complete. Never back work toward infeed table.

SECURE KNIVES/INSERTS. Loose knives or improperly set inserts can become dangerous projectiles or cause machine damage. Always verify knives/inserts are secure and properly adjusted before operation.

Straight knives should never project more than

⁄8 "

(0 .125") from cutterhead body.

ST1010 6" Jointer (Mfd. Since 3/16)

-9-

ELECTRICAL

Circuit Requirements

Serious personal injury could occur if you connect the machine to the power source before you have completed the set up process. DO NOT connect the machine to the power source until instructed to do so.

This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. If a correct circuit is not available, an electrician or qualified service personnel MUST install one before you can connect the machine to power.

A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the building and the machine. The power supply circuit used for this machine must be sized to safely handle the full-load current drawn from the machine for an extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay fuse marked D.)

Incorrectly wiring or grounding this machine can cause electrocution, fire, or machine damage. To reduce this risk, only an electrician or qualified service personnel should do any required electrical work on this machine.

Full-Load Current Rating

The full-load current rating is the amperage a machine draws at 100% of the rated output power. On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors and electrical devices that might operate at one time during normal operations.

Full-Load Current Rating.......................... 13 Amps

This machine is prewired to operate on a power supply circuit that has a verified ground and meets the following requirements:

ST1010 Circuit Requirements

Nominal Voltage .............................................120V

Cycle ............................................................... 60 Hz

Phase ................................................. Single-Phase

Power Supply Circuit ................................15 Amps

Plug/Receptacle ............................................... 5 -15

The circuit requirements listed in this manual apply to a dedicated circuit—where only one machine will be running at a time. If this machine will be connected to a shared circuit where multiple machines will be running at the same time, consult a qualified electrician to ensure that the circuit is properly sized for safe operation.

-10-

ST1010 6" Jointer (Mfd. Since 3/16)

Grounding

Requirements

This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides a path of least resistance for electric current to travel—in order to reduce the risk of electric shock.

Improper connection of the equipment-grounding wire will increase the risk of electric shock. The wire with green insulation (with/without yellow stripes) is the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not connect the equipment-grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel if you do not understand these grounding requirements, or if you are in doubt about whether the tool is properly grounded. If you ever notice that a cord or plug is damaged or worn, disconnect it from power, and immediately replace it with a new one.

The machine must be properly set up before it is safe to operate. DO NOT connect this machine to the power source until instructed to do later in this manual.

No adapter should be used with the required plug. If the plug does not fit the available receptacle or the machine must be reconnected for use on a different type of circuit, the reconnection must be made by an electrician or qualified service personnel and comply with all local codes and ordinances.

This machine is equipped with a power cord that has an equipment-grounding wire and NEMA 5-15 grounding plug. The plug must only be inserted into a matching receptacle (see Figure 4) that is properly installed and grounded in accordance with local codes and ordinances.

120V

5-15 PLUG

Figure 4. Typical 5-15 plug & receptacle.

GROUNDED

5-15 RECEPTACLE

Grounding Prong

Neutral Hot

Extension Cords

We do not recommend using an extension cord with this machine. Extension cords cause voltage drop, which may damage electrical components and shorten motor life. Voltage drop increases with longer extension cords and smaller gauge sizes (higher gauge numbers indicate smaller sizes).

Any extension cord used with this machine must contain a ground wire, match the required plug and receptacle, and meet the following requirements:

Minimum Gauge Size ................................ 12 AWG

Maximum Length (Shorter is Better) ............50 ft.

ST1010 6" Jointer (Mfd. Since 3/16)

-11-

SETUP

Items Needed for

This machine presents serious injury hazards to untrained users. Read through this entire manual to become familiar with the controls and operations before starting the machine!

UNPLUG-power cord before you do any assembly or adjustment tasks! Otherwise, serious personal injury to you or others may occur!.

Unpacking

This planer was carefully packed when it left our warehouse. If you discover the machine is damaged after you have signed for delivery, please immediately call Customer Service at (360) 734-3482 for advice.

Setup

The following items are needed, but not included, to set up your machine.

The following are needed to complete the setup process, but are not included with your machine.

Description Qty

• Straightedge 4' (or longer) ...................................... 1

• Safety Glasses (for each person) ........................... 1

• Dust Collection System (optional) ........................ 1

• 4" Dust Hose (optional) ............................................ 1

• 4" Hose Clamp (optional) ......................................... 1

• Phillips Head Screwdriver #2 .................................. 1

• Wrench 13mm ............................................................. 1

• Wrench 17mm ............................................................. 1

• Wrench 19mm ............................................................. 1

• Socket Wrench 17mm ............................................... 1

• Level ................................................................................. 1

Save the containers and all packing materials for possible inspection by the carrier or its agent. Otherwise,

filing a freight claim can be difficult.

When you are completely satisfied with the condition of your shipment, you should inventory the contents.

SUFFOCATION HAZARD! Immediately discard all plastic bags and packing materials to eliminate choking/suffocation hazards for children and animals.

-12-

ST1010 6" Jointer (Mfd. Since 3/16)

Inventory

The following is a list of items shipped with your machine. Before beginning setup, lay these items out and inventory them.

Note: If you cannot find an item on this list, carefully check around/inside the machine and packaging materials. Often, these items get lost in packaging materials while unpacking or they are pre-installed at the factory.

Box 1 (Figure 5) Qty

A. Table Assembly ............................................................ 1

B. Fence Carriage Assembly ......................................... 1

C. Carriage Mounting Bracket ..................................... 1

D. Infeed Table Lever ....................................................... 1

E. Fence Tilt Handles ....................................................... 2

F. Cutterhead Guard ....................................................... 1

G. Push Blocks ................................................................... 2

H. Outfeed Table Handwheel ....................................... 1

I. Knife-Setting Jig .......................................................... 1

J. Fence Assembly ........................................................... 1

Box 2: (Figure 6) Qty

K. Cabinet ........................................................................... 1

L. Power Switch and Support Arm ............................ 1

M. V-Belt ............................................................................... 1

N. Locking Foot Pedal Assembly ................................ 1

O. Leveling Feet ................................................................ 2

P. Dust Port ........................................................................ 1

Figure 6. Box 2 contents.

Figure 5. Box 1 contents.

When ordering replacement parts, refer to the parts list and diagram in the back of the manual.

Some hardware/fasteners on the inventory list may arrive pre-installed on the machine. Check these locations before assuming that any items from the inventory list are missing.

Tools (Not Shown) Qty

• Wrenches 8/10mm, 12/14mm .........................1 Ea.

• Hex Wrenches 2.5, 3, 4, 6, 8mm .......................1 Ea.

Hardware (See Hardware Recognition Chart)

• Hex Bolts M10-1.5 x 55 (Foot Pedal) .................... 2

• Hex Nuts M10-1.5 (Foot Pedal) .............................. 2

• Hex Bolt M8-1.25 x 50 (Foot Pedal) ...................... 1

• Flat Washers 8mm (Foot Pedal, CarriageBracket,

Fence Carriage, Fence, Switch) ...........................11

• Flat Washers 10mm (Foot Pedal, Jointer/

Cabinet) .......................................................................... 5

• Cap Screws M10-1.5 x 20 (Jointer/Cabinet) ...... 3

• Lock Washers 10mm (Jointer/Cabinet) ............... 3

• Cap Screws M8-1.25 x 60 (Carriage Bracket) .... 4

• Lock Washers 8mm (Carriage Bracket, Fence

Carriage, Fence, Switch) .........................................10

• Cap Screws M8-1.25 x 20 (Fence Carriage)........ 2

• Cap Screws M8-1.25 x 25 (Fence).......................... 2

• Set Screw M5-.8 x 12 (Cutterhead Guard) ......... 1

• Phillip Head Screws M5-.8 x 16 (Dust Port) ....... 4

• Flat Washers 5mm (Dust Port) ................................ 4

• Cap Screws M8-1.25x 40 (Switch) ......................... 2

• Hex Nuts M8-1.25 (Switch) ...................................... 2

• Phillips Screws M5-.8 x 12 (Switch)

• Hold Downs (Switch) ................................................. 2

• Phillips Screw M6-1 x 12 (Handwheel) ................ 1

• Flat Washer 6mm (Handwheel) ............................. 1

ST1010 6" Jointer (Mfd. Since 3/16)

-13-

Hardware Recognition Chart

USE THIS CHART TO IDENTIFY HARDWARE DURING THE INVENTORY/ASSEMBLY PROCESS.

⁄4"

⁄8"

⁄2"

⁄8"

⁄16" INCH APART

LINES ARE

⁄16" ⁄16" ⁄16" ⁄4" ⁄8"

⁄4"

⁄2"

⁄4"

⁄2"

⁄4"

#10

⁄4"

⁄16"

⁄8"

⁄16"

⁄2"

WASHERS ARE MEASURED BY THE INSIDE DIAMETER

8mm

⁄16"

#10

⁄8"

10mm

⁄8"

4mm

⁄16"

5mm

12mm

⁄2"

6mm

⁄4"

MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE

LINES ARE 1MM APART

5mm 10mm 15mm 20mm 25mm 30mm 35mm 40mm 45mm 50mm

55mm 60mm 65mm 70mm 75mm

4mm

5mm

6mm

8mm

10mm

12mm

16mm

Cap Screw

Hex Bolt

External Retaining Ring

Key

Carriage Bolt

Flat Head Screw

Internal Retaining Ring

Flat Washer

Flange Bolt

Tap Screw

E-Clip

Lock Washer

Button Head Screw

Set Screw

Lock Nut

Phillips Head Screw

Wing Nut

Hex Wrench

Hex Nut

-14-

ST1010 6" Jointer (Mfd. Since 3/16)

Cleanup

The unpainted surfaces of your machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean.

Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine's unpainted surfaces.

Before cleaning, gather the following:

• Disposable rags

• Cleaner/degreaser (WD•40 works well)

• Safety glasses & disposable gloves

• Plastic paint scraper (optional)

Basic steps for removing rust preventative:

machinery. Avoid using

There are many ways to remove this rust preven-

tative, but the following steps work well in a wide variety of situations. Always follow the manufacturer’s instructions with any cleaning product you use and make sure you work in a well-ventilated area to minimize exposure to toxic fumes.

Gasoline and petroleum products have low flash points and can explode or cause fire if used to clean

these products to clean machinery.

Many cleaning solvents are toxic if inhaled. Only work in a well-ventilated area.

NOTICE

Avoid chlorine-based solvents, such as acetone or brake parts cleaner, that may damage painted surfaces.

Put on safety glasses.

Coat the rust preventative with a liberal amount

of cleaner/degreaser, then let it soak for 5–10 minutes.

Wipe off the surfaces. If your cleaner/degreaser

is effective, the rust preventative will wipe off easily. If you have a plastic paint scraper, scrape off as much as you can first, then wipe off the rest with the rag.

Repeat Steps 2–3 as necessary until clean, then

coat all unpainted surfaces with a quality metal protectant to prevent rust.

ST1010 6" Jointer (Mfd. Since 3/16)

-15-

Site Considerations

Weight Load

Refer to the of your machine. Make sure that the surface upon which the machine is placed will bear the weight of the machine, additional equipment that may be installed on the machine, and the heaviest workpiece that will be used. Additionally, consider the weight of the operator and any dynamic loading that may occur when operating the machine.

Space Allocation

Consider the largest size of workpiece that will be processed through this machine and provide enough space around the machine for adequate operator material handling or the installation of auxiliary equipment. With permanent installations, leave enough space around the machine to open or remove doors/covers as required by the maintenance and service described in this manual.

below for required space allocation.

Physical Environment

The physical environment where the machine is operated is important for safe operation and longevity of machine components. For best results, operate this machine in a dry environment that is free from excessive moisture, hazardous chemicals, airborne abrasives, or extreme conditions. Extreme conditions for this type of machinery are generally those where the ambient temperature range exceeds 41°–104°F; the relative humidity range exceeds 20%–95% (noncondensing); or the environment is subject to vibra-

Place this machine near an existing power source. Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other hazards. Make sure to leave enough space around machine to disconnect power supply or apply a lock-

Lighting around the machine must be adequate enough that operations can be performed safely. Shadows, glare, or strobe effects that may distract or

Machine Specifications for the weight

tion, shocks, or bumps.

Electrical Installation

Children or untrained people may be seriously injured by this machine. Only install in an access restricted location.

See

out/tagout device, if required.

Lighting

impede the operator must be eliminated.

Wall

46"

120V

for Maintenance

Min. 30"

-16-

= Electrical Connection

Figure 7. Working clearances.

ST1010 6" Jointer (Mfd. Since 3/16)

Assembly

To assemble jointer:

1. Lay the cabinet on its side and install the level-

ing feet as shown in Figure 8.

Leveling

Feet

4. Use a 17mm wrench to install the two M10-1.5 x

55 hex bolts, flat washers, and hex nuts through the front of the locking foot pedal assembly as shown in Figure 10.

Figure 10. Installing locking foot pedal.

Figure 8. Installing the leveling feet.

2. Place the locking foot pedal assembly onto the

cross brace at the bottom of the cabinet.

3. Use a 14mm wrench to install the M8-1.25 x

50mm hex bolt and flat washer as shown in Figure 9.

Note: The hex bolt installs from inside motor

cabinet.

5. Raise the cabinet upright.

6. Lock the foot pedal down.

7. Level the cabinet front-to-back and side-to-side

by adjusting the leveling feet.

8. Remove the access cover on the cabinet.

9. With the help of an assistant, lift the jointer onto

the cabinet.

10. Align the three mounting bolt holes on the

jointer with the three holes on the cabinet (see

Figure 11).

Figure 9. Installing locking foot pedal.

ST1010 6" Jointer (Mfd. Since 3/16)

Mounting Holes

Figure 11. Mounting holes.

-17-

11. Secure the jointer to the cabinet with the (3)

Alignment

Setscrew

Motor Pulley

Motor

Cutterhead

Pulley

Cutterhead

M10-1.5 x 20 cap screws, (3) 10mm flat washers, and (3) M10-1.5 lock washers.

Note: To access forward mounting hole, reach

through the dust vent for access to the forward mounting hole as shown in Figure 12.

Figure 12. Installing forward mounting bolt.

12. Using a 13mm wrench, loosen the motor mount

bolts, but DO NOT remove them.

— If the pulleys are aligned, tighten the motor

mounts loosened in Step 1 and go to Step 7.

— If pulleys are NOT aligned, do Steps 5 & 6.

Figure 14. Pulleys should be parallel and aligned.

16. Remove the V-belt, loosen the set screws on the

end of the motor pulley, and use a straightedge to align the motor pulley with the cutterhead pulley. If needed, the motor can be loosened and moved in or out to bring the motor pulley into alignment with the cutterhead pulley.

13. Lift the motor upward far enough to place the

V-belt around the cutterhead pulley and the motor pulley as shown in Figure 13.

Figure 13. Installing V-belt on cutterhead pulley.

14. Carefully allow the motor to slide downward,

tensioning the V-belt with the weight of the motor.

17. Tighten the set screws, replace the V-belt, and repeat Step 4. The pulleys should be perfectly parallel and aligned, as shown in Figure 14.

18. Replace the access cover on the cabinet.

19. Align the locating pins on the back of the car-

riage mounting bracket with the sockets on the jointer table (see Figure 15).

Locating Pins

Sockets

15. Looking from the top, sight down the V-belt and

pulleys and check to see that the pulleys are parallel and aligned with each other (see Figure

14).

-18-

Figure 15. Locating pins.

ST1010 6" Jointer (Mfd. Since 3/16)

20. Tighten carriage mounting bracket to the jointer

table with (4) M8-1.25 x 60 cap screws, (4) 8mm lock washers, and (4) 8mm flat washers (see

Figure 16).

23. Thread the fence tilting handles into the fence (see Figure 19).

Figure 16. Assembled carriage mounting bracket.

21. Use two M8-1.25 x 20 cap screws, lock washers,

and flat washers to secure the fence carriage assembly to the carriage mounting bracket (see

Figure 17).

Figure 17. Fence carriage assembly.

22. Use (2) M8-1.25 x 25 cap screws, (2) 8mm lock

washers, and (2) 8mm flat washers to secure the fence assembly to the fence carriage assembly (see Figure 18).

Figure 19. Installing fence tilting handles.

The cutterhead guard is a critical safety feature on this machine. A torsion spring is mounted on the cutterhead guard shaft to help it return to its proper position over the cutterhead after a cutting operation. This torsion spring must have spring pressure during guard installation to work properly.

24. Remove the set screw in the cutterhead guard shaft (see Figure 20).

Figure 18. Installing fence assembly.

ST1010 6" Jointer (Mfd. Since 3/16)

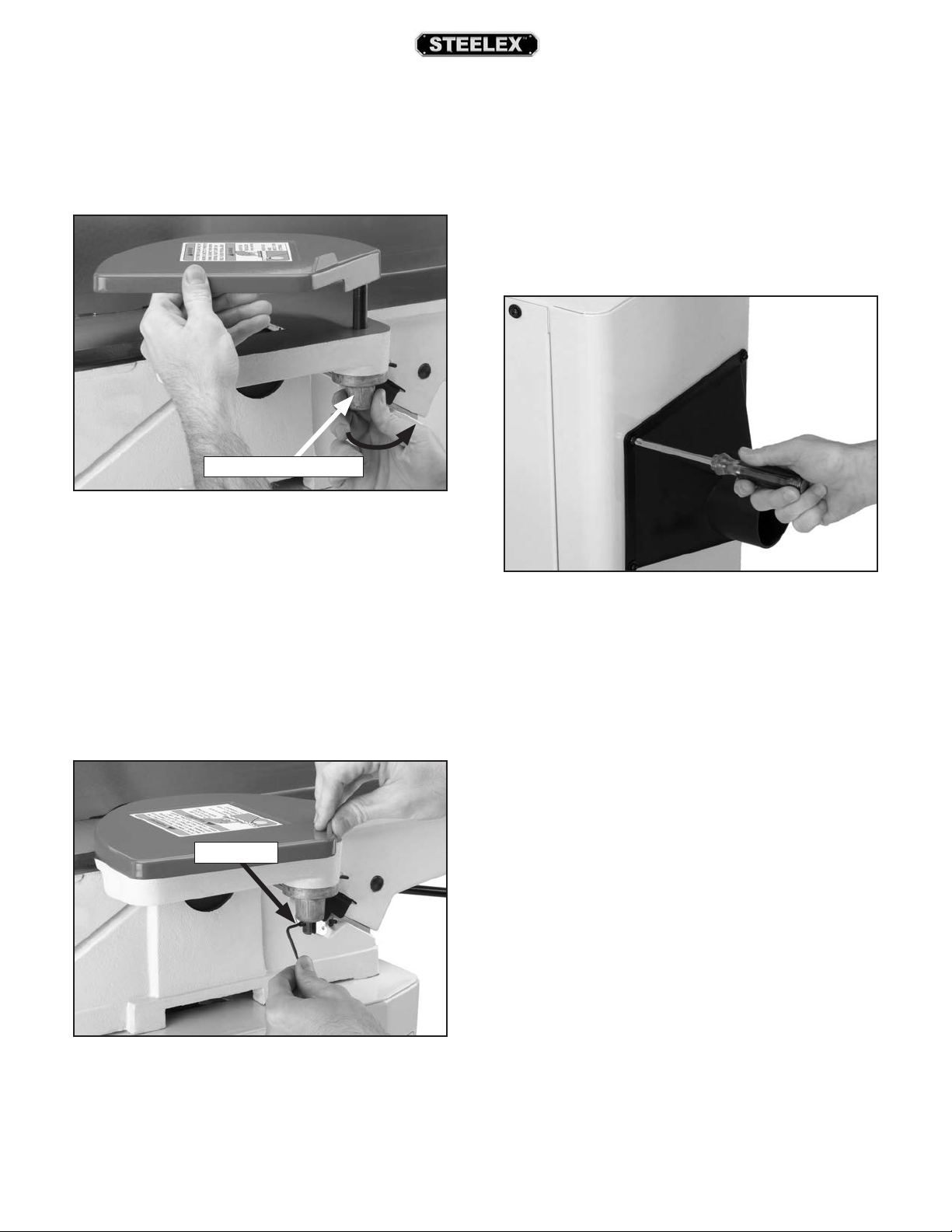

Figure 20. Cutterhead guard set screw location.

-19-

25. Wind the torsion spring knob back counter-

clockwise a half turn, and slide the guard shaft into the casting shown in Figure 21. Make sure the slot on the cutterhead guard shaft fits over the pin that sits inside the spring knob barrel (hidden from view).

Torsion Spring Knob

Figure 21. Setting torsion spring knob.

Note: If you choose to not use a dust collection system,

don't install the dust port. Chips will build up inside the cabinet and clog.

27. Place the dust port over the dust vent in the side of the cabinet.

28. Use the (4) M5-.8 x 16 Phillips head screws and flat washers to secure the dust port to the cabinet (see Figure 23).

26. Test the guard by pulling it back and letting go.

— The guard should snap back over the

cutterhead. If it does, re-insert the set screw (see Figure 22).

— If the guard is slow to return across the table,

remove the shaft, and add a half turn to the spring knob and test again. Repeat this step as necessary.

Set Screw

Figure 23. Dust port installation.

29. Attach to an adequate dust collection system.

Recommended CFM at Dust Port: 395 CFM

Do not confuse this CFM recommendation with the rating of the dust collector. To determine the CFM at the dust port, you must take into account many variables, including the CFM rating of the dust collector, the length of hose between the dust collector and the machine, the amount of branches or wyes, and the amount of other open lines throughout the system. Explaining this calculation is beyond the scope of this manual. If you are unsure of your system, consult an expert or purchase a good dust collection "how-to" book.

-20 -

Figure 22. Reinstalling set screw.

ST1010 6" Jointer (Mfd. Since 3/16)

30. Install the support arm with (2) M8-1.25 x 40 cap

screws, hex nuts, (2) 8mm flat washers, and (2) 8mm lock washers as shown in Figure 24.

33. Secure the handwheel (see Figure 26) to the shaft with the hardware removed in Step 1.

Figure 24. Installing support arm.

31. Plug the motor cord into the back of the switch

box, then secure the loose cords with two hold downs and (2) M5-.8 x 12 Phillips head screws as shown in Figure 25.

Power Cord

Hold Downs

Motor Cord

Figure 25. Cord locations.

Figure 26. Securing the handwheel.

34. Thread the infeed table lever into the hole shown in Figure 27.

Figure 27. Installing infeed table lever.

35. Tighten the locknut.

32. Remove the Phillips head screw and flat washer

already mounted to the handwheel shaft.

ST1010 6" Jointer (Mfd. Since 3/16)

-21-

Setting Outfeed Table

Height

The outfeed table must be level with the knives when they are at top-dead-center. This adjustment has been made at the factory but should be checked again before operating your jointer. This adjustment will also have to be made any time you perform maintenance on the cutterhead or knives.

To set the outfeed table height:

36. Place a straightedge on the outfeed table so it

extends over the cutterhead.

37. Rotate cutterhead pulley until one of the knives is at top-dead-center (TDC), (see Figure 28).

4. Lock the outfeed table in position (see Figure

30).

Figure 30. Outfeed table lock.

Top Dead

Center

Figure 28. Cutterhead knife at top-dead-center.

38. Raise or lower the outfeed table until the knife just touches the straightedge (see Figure 29).

Straightedge

Outfeed Infeed

Figure 29. Using a straightedge to align outfeed

table height with knife at TDC.

-22-

ST1010 6" Jointer (Mfd. Since 3/16)

Test Run

Once assembly is complete, test run the machine to ensure it is properly connected to power and safety components are functioning correctly.

If you find an unusual problem during the test run, immediately stop the machine, disconnect it from power, and fix the problem

operating the

machine again. The Troubleshooting table in the

SERVICE section of this manual can help.

an improperly set up machine may result in malfunction or unexpected results that can

Serious injury or death can result from using this machine BEFORE understanding its controls and related safety information.

BEFORE

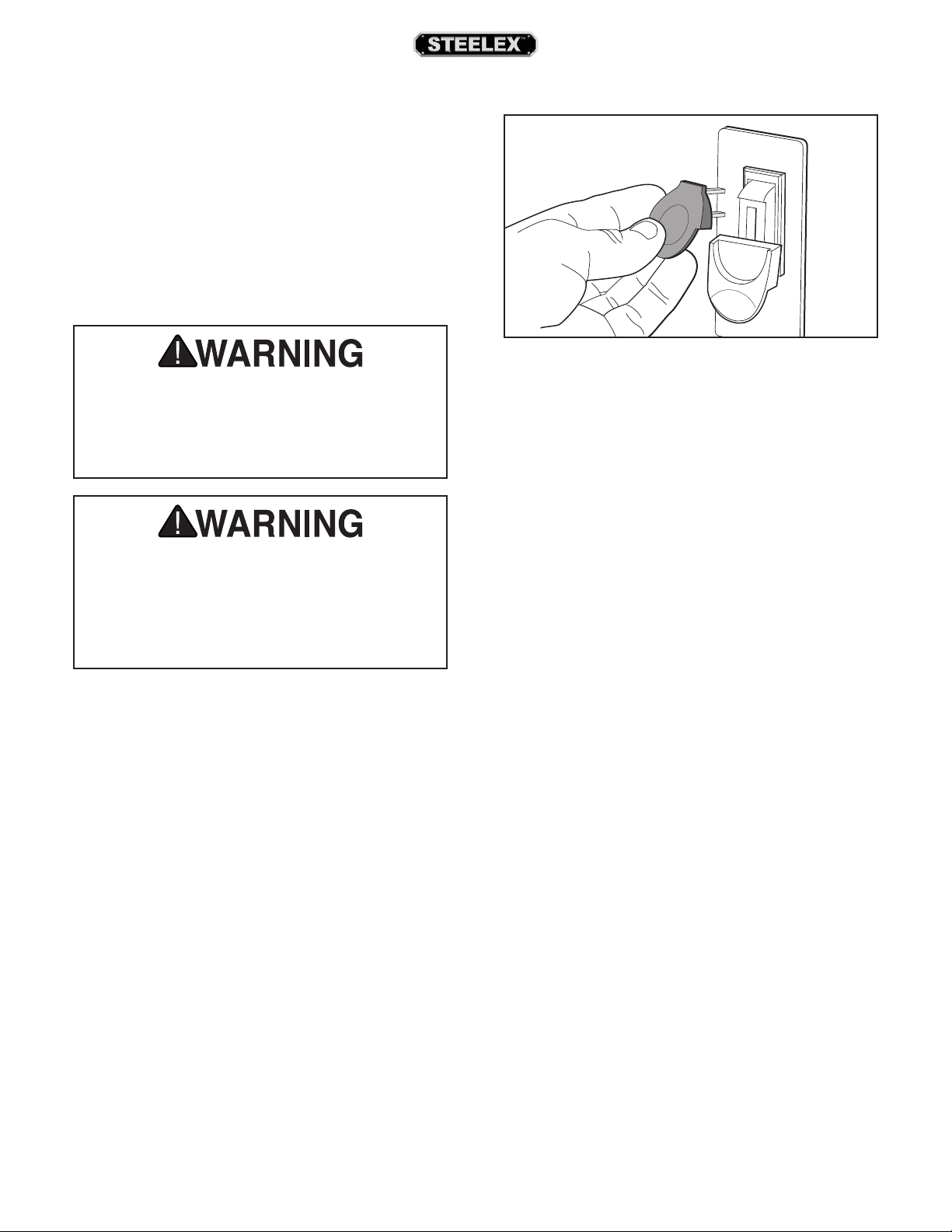

4. Remove switch disabling key (see Figure 31).

Figure 31. Removing switch key from paddle switch.

5. Try to start machine with paddle switch.

DO NOT operate, or allow others to operate, machine until the information is understood.

DO NOT start machine until all preceding setup instructions have been performed. Operating

lead to serious injury, death, or machine/property damage.

To test run machine:

1. Clear all setup tools away from machine.

2. Connect machine to power supply.

3. Turn machine ON, verify motor operation,

then turn machine OFF. The motor should run smoothly and without unusual noises.

— If machine does not start, the switch disabling

feature is working as designed.

— If machine does start, immediately stop the

machine. The switch disabling feature is not working correctly. This safety feature must work properly before proceeding with regular operations. Call Tech Support for help.

Recommended

Adjustments

For your convenience, the adjustments listed below have been performed at the factory and no further setup is required to operate your machine.

However, because of the many variables involved with shipping, we recommend that you at least verify the following adjustments to ensure the best possible results from your new machine.

ST1010 6" Jointer (Mfd. Since 3/16)

Step-by-step instructions for these adjustments can be found in SERVICE.

Factory adjustments that should be verified:

1. Knife Settings (Page 37).

2. Depth Scale Calibration (Page 38).

3. Fence Stop Accuracy (Page 39).

-23-

OPERATIONS

Overview

Eye injuries or respiratory problems can occur while operating this tool. Wear personal protective equipment to reduce your risk from these hazards.

Loose hair/clothing could get caught in machinery and cause serious personal injury. Keep clothing and long hair away from moving machinery.

DO NOT investigate problems or adjust the lathe while it is running. Wait until the machine is turne d OFF, unplugged and all working parts have come to a complete stop before proceeding!

This planer will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incorrectly.

To complete typical operation, operator does following:

1. Examines workpiece to verify it is safe and suit-

able for cutting.

2. Adjusts fence for width of workpiece and locks it

in place.

3. Adjusts fence tilt, if necessary, and tightens

fence lock lever to secure angle setting.

4. Adjusts infeed table height to set depth-of-cut

per pass.

5. Puts on safety glasses and respirator.

6. Locates push blocks.

7. Starts jointer.

8. Using push blocks, holds workpiece firmly

against both the infeed table and fence, and slides it into cutterhead at a steady and controlled rate until entire length of workpiece has advanced beyond cutterhead to outfeed table.

NOTICE

If you have never used this type of machine or equipment before, WE STRONGLY RECOM MEND that you read books, trade magazines, or get formal training before beginning any projects.

-24-

9. Repeats Steps 5–8 until satisfied with the results.

10. Stops jointer.

ST1010 6" Jointer (Mfd. Since 3/16)

Stock Inspection

and Requirements

Here are some rules to follow when choosing and jointing stock:

• DO NOT joint or surface plane stock that contains loose knots. Injury to the operator or

damage to the workpiece can occur if the knots become dislodged during the cutting operation.

• DO NOT joint or surface plane against the grain direction. Cutting against the grain increases the likelihood of stock kickback, as well as tear-out on the workpiece.

• Jointing and surface planing with the grain

produces a better finish and is safer for the operator. Cutting with the grain is described

as feeding the stock on the jointer so the grain points down and toward you as viewed on the edge of the stock (see Figure 32).

• Only process natural wood fiber through your jointer. Never joint MDF, particle board, plywood, laminates or other synthetically made materials.

• Make sure all stock is sufficiently dried before jointing. Wood with a moisture content over 20% will cause unnecessary wear on the knives and poor cutting results.

• Make sure your workpiece exceeds the min-

imum dimension requirements (see Figures 33 & 34) before edge jointing or surface planing, or it may break or kick back during the operation!

10" Min.

Note: If the grain changes direction along the

edge of the board, decrease the cutting depth and make additional passes.

CORRECT

ROTATION

OUTFEED TABLE

FEED DIRECTION

INFEED TABLE

With Grain

INCORRECT

ROTATION

OUTFEED TABLE

FEED DIRECTION

INFEED TABLE

Against Grain

Figure 32. Correct setting for grain alignment.

1" Min.

⁄2" Min.

Figure 33. Minimum dimensions for edge jointing.

⁄2" Min.

1" Min.

Figure 34. Minimum dimensions for surface

planing.

• Remove foreign objects from the stock. Make

sure that any stock you process with the jointer is clean and free of any dirt, nails, staples, tiny rocks or any other foreign objects that may damage the jointer blades.

ST1010 6" Jointer (Mfd. Since 3/16)

-25-

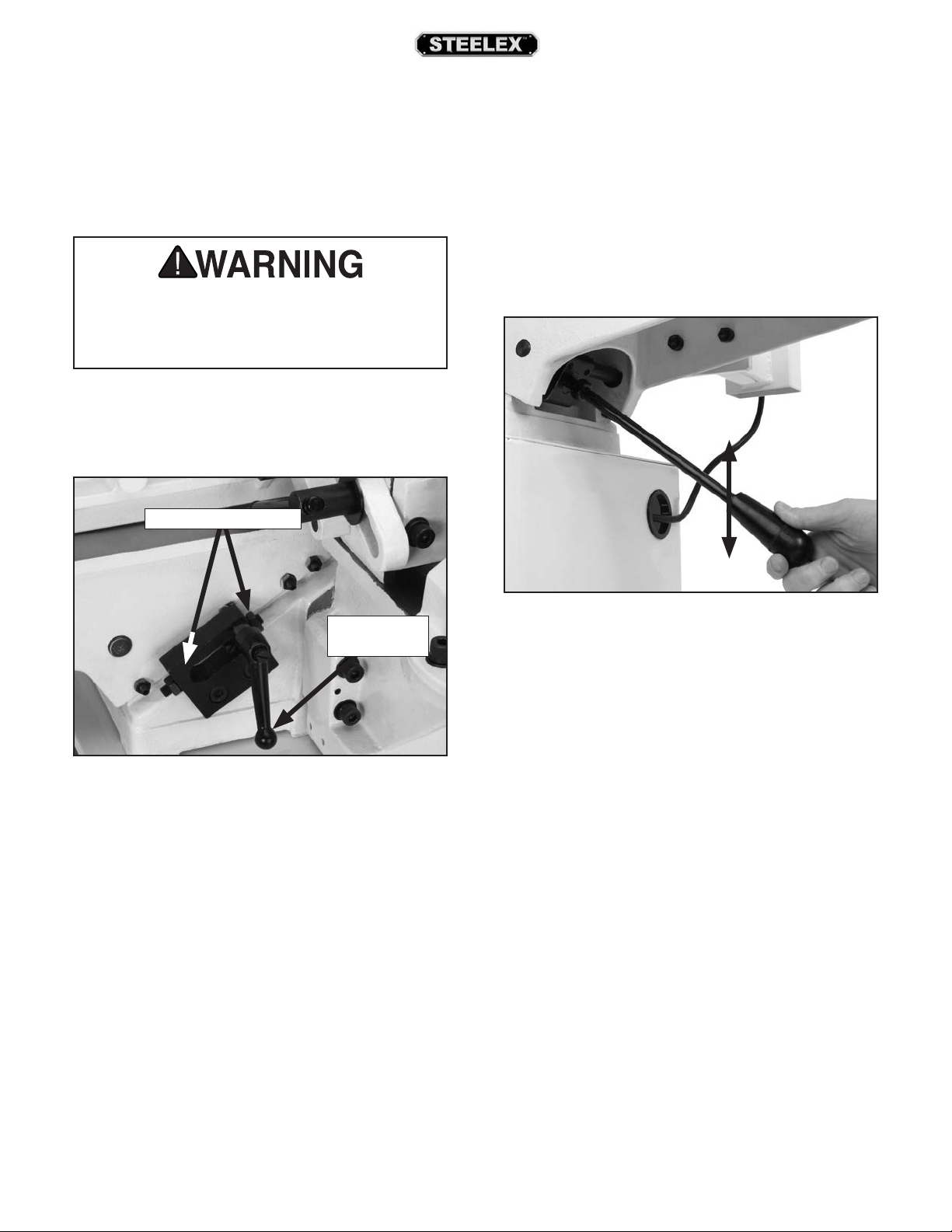

Infeed Table

2. Use the infeed table lever to raise or lower the infeed table (see Figure 36).

Adjustment

Proper infeed table adjustment must be made to safely and efficiently use the jointer. DO NOT set the infeed table depth greater than

Kickback can occur if excessive depth of cut is made. Limit a single pass to personal injury could occur in the event of a kickback.

To adjust the infeed table:

1. Loosen the infeed table lock in Figure 35.

Table Stop Lock Nuts

⁄8 ", unless rabbeting.

⁄8". Serious

3. Use the depth of cut scale to set the infeed

table to the desired depth and lock the table in position.

Note: The infeed table stops can be adjusted to

return the table height to the same height every time by loosening the lock nuts and adjusting the set screws.

Infeed Table

Figure 35. Infeed table lock.

Figure 36. Adjusting infeed table height.

Lock

-26-

ST1010 6" Jointer (Mfd. Since 3/16)

Squaring Stock

Squaring stock involves four steps performed in the order below:

1. Surface Plane On The Jointer: The concave

face of the workpiece is surface planed flat with the jointer (see Figure 37).

Figure 37. Surface plane on the jointer.

2. Surface Plane On a Thickness Planer: The

opposite face of the workpiece is surface planed flat with a thickness planer (see Figure 38).

3. Edge Joint On The Jointer: The concave edge of the workpiece is jointed flat with the jointer (see Figure 39).

Figure 39. Edge joint on the jointer.

4. Rip-Cut On A Table Saw: The jointed edge of

the workpiece is placed against a table saw fence and the opposite edge cut off (see

Figure 40).

Previously Surface

Planed Face

Figure 38. Surface plane on a thickness planer.

Previously Jointed

Figure 40. Rip-cut on a table saw.

Edge

ST1010 6" Jointer (Mfd. Since 3/16)

-27-

Surface Planing

The purpose of surface planing on the jointer is to make one flat face on a piece of stock (see Figures 41 & 42) to prepare it for surface planing on a thickness planer.

If you are not experienced with a jointer, set the depth of cut to 0", and practice feeding the workpiece across the tables as described below. This procedure will better prepare you for the actual operation.

Failure to use push blocks when surface planing may result in cutterhead contact, which will cause serious personal injury. Always use push blocks to protect your hands when surface planing on the jointer.

7. With a push block in each hand, press the

workpiece against the table and fence with firm pressure, and feed the workpiece over the cutterhead (see Figure 41).

Note: When your leading hand (with push block)

gets within 4" of the cutterhead, lift it up and over the cutterhead, and place the push block on the portion of the workpiece that is on the outfeed table. Now, focus your pressure on the outfeed end of the workpiece while feeding, and repeat the same action with your trailing hand when it gets within 4" of the cutterhead. To keep your hands safe, DO NOT let them get closer than 4" from the cutterhead when it is moving!

To surface plane on the jointer:

1. Read and understand Safety on Page 7.

2. Make sure your stock has been inspected for dangerous conditions as described in the Stock Inspection & Requirements instructions, beginning on Page 25.

3. Set the cutting depth for your operation, see Setting Infeed Table Height on Page 28. ( We

suggest shallow depth for hardwood species or for wide stock.)

4. Make sure your fence is set to 90˚.

5. If your workpiece is cupped (warped), place it so

the concave side is face down on the surface of the infeed table.

6. Turn jointer ON.

⁄32" for surface planing, using a more

Figure 41. Typical surface planing operation.

8. Repeat Step 7 until the entire surface is flat.

Removed

Surface

-28-

Figure 42. Illustration of surface planing results.

ST1010 6" Jointer (Mfd. Since 3/16)

Edge Jointing

The purpose of edge jointing is to produce a finished, flat-edged surface (see Figures 43 & 44) that is suitable for joinery or finishing. It is also a necessary step when squaring rough or warped stock.

To edge joint on the jointer:

1. Read and understand Safety, beginning on Page 7.

2. Make sure your stock has been inspected for dangerous conditions as described in the Stock Inspection instructions, beginning on Page 25.

6. Turn jointer ON.

7. Press the workpiece against the table and fence

with firm pressure. Use your trailing hand to guide the workpiece through the cut, and feed the workpiece over the cutterhead (see Figure

44).

Note: If your leading hand gets within 4" of the

cutterhead, lift it up and over the cutterhead, and place it on the portion of the workpiece that is over the outfeed table. Now, focus your pressure on the outfeed end of the workpiece while feeding, and repeat the same action with your trailing hand if it gets within 4" of the cutterhead. To keep your hands safe, DO NOT let them get closer than 4" from the cutterhead when it is moving!

3. Set the cutting depth for your operation. Note:

We suggest between using a more shallow depth for hard wood species or for wide stock.

4. Make sure the fence is set to 90˚ see Setting Fence Stop on Page 39.

5. If your workpiece is cupped (warped), place it so

the concave side is face down (see Figure 43) on the surface of the infeed table.

Removed

Surface

⁄16" and 1⁄8" for edge jointing,

Figure 44. Typical edge jointing operation.

Figure 43. Illustration of edge jointing results.

ST1010 6" Jointer (Mfd. Since 3/16)

-29-

Bevel Cutting

The purpose of bevel cutting is to cut a specific angle into the edge of a workpiece (see Figures 45 & 46).

7. With a push block in your leading hand, press

the workpiece against the table and fence with firm pressure, and feed the workpiece over the cutterhead.

The Model ST1010 has preset fence stops at 45˚ inward, 90˚, and 45˚ outward (135˚). If your situation requires a different angle, the preset fence stops can be easily adjusted for your needs.

NOTICE

If you are not experienced with a jointer, set the depth of cut to 0, and practice feeding the workpiece across the tables as described below. This procedure will better prepare you for the actual operation.

To bevel cut on the jointer:

1. Read and understand Saftey, beginning on Page 7.

2. Make sure your stock has been inspected for dangerous conditions as described in the Stock Inspection instructions, beginning on Page 25.

Note: If your leading hand gets within 4" of the

cutterhead, lift it up and over the cutterhead, and place the push block on the portion of the workpiece that is on the outfeed table. Now, focus your pressure on the outfeed end of the workpiece while feeding, and repeat the same action with your trailing hand when it gets within 4" of the cutterhead. To keep your hands safe, DO NOT let them get closer than 4" from the cutterhead when it is moving!

3. Set the cutting depth for your operation.

Note: We suggest between

cutting, using a more shallow depth for hardwood species or for wide stock.

4. Make sure your fence is set to the angle of your desired cut.

5. If your workpiece is cupped (warped), place it so the concave side is face down on the surface of the infeed table.

6. Start the jointer.

⁄16" and 1⁄8" for bevel

Figure 45. Typical bevel cutting operation.

8. Repeat Step 7 until the angled cut is satisfacto-

ry to your needs.

Removed

Surface

Figure 46. Illustration of bevel cutting results.

-30-

ST1010 6" Jointer (Mfd. Since 3/16)

Rabbet Cutting

To rabbet cut on jointer:

stock to ensure it is safe and suitable

Stock Inspection &

infeed table height to desired cutting depth

For safety reasons, cutting depth

cutterhead in front of fence

workpiece firmly against fence and infeed

: To ensure workpiece remains sta-

of workpiece must

7. Feed workpiece completely across cutterhead

while keeping it firmly against fence and tables

Keep hands at least 4" away from cutterhead during the entire cut. Instead of allowing a hand to pass directly over cutterhead, lift it up and over cutterhead, and safely reposition it on the outfeed side to continue supporting workpiece. Use push blocks whenever practical to further reduce risk of accidental

8. Repeat Step 7 until rabbet is cut to depth.

The purpose of rabbet cutting (see Figures 47–49) is to remove a section of the workpiece edge, as shown below. When combined with another rabbet cut edge, the rabbet joints create a simple, yet strong method of joining stock.

Inspect

for the operation (see Requirements section).

Set

for each pass.

IMPORTANT:

should never exceed 1⁄8" per pass.

. Remove cutterhead guard.

. Set fence to 90˚ and near front of jointer,

amount of exposed matches size of desired rabbet.

Figure 47. Typical rabbet cutting operation.

Figure 48. Completed rabbet cutting operation.

Removed

Surface

. Start jointer.

. Place

table.

IMPORTANT

ble during cut, concave sides face toward table and fence.

during entire cut.

IMPORTANT:

hand contact with cutterhead.

Figure 49. Illustration of rabbet cutting effects and

ST1010 6" Jointer (Mfd. Since 3/16)

a few sample joints.

When cutterhead guard is removed, attempting any other cut besides a rabbet directly exposes operator to moving cutterhead. ALWAYS replace cutterhead guard after rabbet cutting!

-31-

ACCESSORIES

The following lathe accessories may be available through your local Woodstock International Inc. Dealer. If you do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail Woodstock International Inc. Customer Service to get a current listing of dealers at: 1-800-545-8420 or at

sales@woodstockint.com.

These D3383 4" Precision Squares hardened tempered polished steel, these 4 " precision squares are perfect for precision 90° layout and machine set-up. The blade measures 4" and the beam 3. Blade edges and beam faces are accurate to within ± 0.0006".

Figure 50. D3833 4" Precision squares.

Our W1400 Small Push Blocks are constructed of high-impact molded plastic with natural rubber friction pads that grip the workpiece firmly. Woodworkers can work with confidence knowing that these blocks are between their fingers and the cutting tool. Bright, safety-orange color makes them easy to find and reminds woodworkers that safety comes first!

The W1216A Planer Pal is a knife-setting system

that lets you set planer knives in perfect alignment. It also allows you to shift nicked knives on 2-1/2" to 4" diameter cutterheads to get a perfect cut to an accuracy of + or - .002".

Figure 52. Model W1216A Planer Pal.

The W1211A Jointer Pal® Steel Body Jig (ST1010) is a patented jointer knife-setting jig for perfect alignment every time! Allows you to shift nicked knives to get a perfect cut to an accuracy of +/- 0.001”. We offer knife-setting jigs and extensions for almost all jointers. For 4"–8" jointers with HSS knives.

-32-

Figure 51. W1400 Small Push Block.

Figure 53. Jointer Pal® Steel Body Jig.

ST1010 6" Jointer (Mfd. Since 3/16)

The D1123 Knife Honer (ST1006) sharpens plan- er and jointer knives to a razor keen edge without removing having to remove them from cutterheads. Features two 400-grit stones, a flat stone for sharpening bevels, and a diagonal stone for flat edges.

Figure 54. D1123 Knife Honer.

The D3637 6" HSS Jointer Knives (Set of 4) are the replacement blades for the Steelex ST1010.

The D4028 8" Digital Scale provides precise relative distance measurements between fixed and moving parts within an 8" and 12" range. Ideal for mounting to woodworking and metalworking machines for table height adjustments, cutter heights, depth adjustments and more. Resolution is 0.01mm and maximum measuring speed is 1.5m/s. Features inches and millimeters conversion button, plus and minus preset buttons and zero setting on button. Each Digital Scale includes an extra long life battery. Mounting screws are not included.

Figure 55. HSS Jointer Knives for Model ST1006.

Figure 56. Model D4028 8" Digital Scale.

The Model D4042 6" Digital Caliper lets you switch between decimal and fractional inches and millimeters. Large digital readout makes precision measurements easy with a resolution of 0.0005". Features include hardened stainless-steel jaws and beam, thumb roll, lock knob, zero reset button, and an absolute and relative measurement function.

ST1010 6" Jointer (Mfd. Since 3/16)

Figure 57. Model D4042 6" Digital Caliper.

-33-

MAINTENANCE

General

Regular periodic maintenance on your STEELEX Model ST1010/ST1011 will ensure its optimum performance. Make a habit of inspecting your machine each time you use it.

Check for the following conditions and repair or replace when necessary:

• Loose mounting bolts.

• Worn ON/OFF paddle switch.

• Worn or damaged cords and plugs.

• Damaged V-belt.

• Any other condition that could hamper the safe

operation of this machine.

Always disconnect power to the machine before performing maintenance. Failure to do this may result in serious personal injury.

Lubrication

Since all bearings are sealed and permanently lubricated, simply leave them alone until they need to be replaced. DO NOT lubricate them.

Maintenance Schedule

Cleaning

Cleaning the Model ST1010 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin-dissolving cleaner to remove it.

Protect the unpainted cast-iron surfaces on the table by wiping the table clean after every use—this ensures moisture from wood dust does not remain on bare metal surfaces.

Keep tables rust-free with regular applications of a quality metal protectant.

Daily:

• Vacuum all dust on and around the machine.

• Wipe down tables and all other unpainted cast- iron with a metal protectant.

Every Month:

• V-belt tension, damage, or wear.

• Clean/vacuum dust buildup from inside cabinet and off of motor.

V-Belts

To ensure optimum power transmission from the motor to the blade, the V-belt must be in good condition (free from cracks, fraying and wear) and properly aligned and tensioned.

-34-

ST1010 6" Jointer (Mfd. Since 3/16)

SERVICE

The following troubleshooting tables cover common problems that may occur with this machine. If you need replacement parts or additional troubleshooting help, contact our Technical Support.

Note:

available, your original purchase receipt. This information is required to properly assist you.

Troubleshooting

Before contacting Tech Support, find the machine serial number and manufacture date, and if

Motor and Electrical

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Machine does not start or breaker trips immediately after startup.

Machine stalls or is underpowered.

Machine has vibration or noisy operation.

1. Switch disabling key removed.

2. Incorrect power supply voltage/circuit size.

3. Power supply circuit breaker tripped/fuse blown.

4. Motor wires connected incorrectly.

5. Wiring open/has high resistance.

6. ON switch at fault.

7. Centrifugal switch at fault.

8. Start capacitor at fault.

9. Motor at fault.

1. Workpiece material not suitable.

2. Excessive feed rate.

3. Excessive cutting depth.

4. Dull knives.

5. Dust collection problem, causing internal components to clog up with shavings.

6. Belt slipping; oil/grease on belt.

7. Pulley loose or not properly aligned.

8. Motor overheated.

9. Motor wires connected incorrectly.

10. Plug/receptacle at fault.

11. Motor at fault.

1. Motor or other component loose.

2. Belt worn/loose; belt slapping cover.

3. Pulley loose or not properly aligned.

4. Motor fan rubbing on fan cover.

5. Mobile base caster engaged.

6. Knives at fault.

7. Cutterhead bearings at fault.

8. Centrifugal switch at fault.

9. Motor bearings at fault.

1. Install switch disabling key.

2. Ensure correct power supply voltage/circuit size.

3. Ensure circuit is sized correctly and free of shorts. Reset circuit breaker or replace fuse.

4. Correct motor wiring connections (Page 42).

5. Check/x broken, disconnected, or corroded wires.

6. Test/replace switch.

7. Adjust/replace centrifugal switch if available.

8. Test/replace capacitor.

9. Test/repair/replace.

1. Ensure workpiece is suitable for jointing (Page 25).

2. Reduce feed rate.

3. Reduce cutting depth .

4. Sharpen/replace knives (Page 37).

5. Clear blockages; move machine closer to dust collector; upgrade dust collector.

6. Tension/replace belt; clean belt; ensure pulleys are aligned.

7. Re-align pulleys; replace shaft key; tighten pulley set screw.

8. Clean motor, let cool, and reduce depth of cut.

9. Correct motor wiring connections.

10. Test for good contacts/correct wiring.

11. Test/repair/replace.

1. Replace damaged bolts/nuts; retighten loose bolts/ nuts. Use thread-locking uid if condition repeats.

2. Tension/replace belt.

3. Re-align pulleys; replace shaft key; tighten pulley set screw.

4. Fix/replace fan cover; replace loose/damaged fan.

5. Release mobile base caster to stabilize machine.

6. Sharpen/replace knives; set knife alignment/height correctly (Page 37).

7. Replace bearing(s)/realign cutterhead.

8. Replace.

9. Test by rotating shaft; rotational grinding/loose shaft requires bearing replacement.

ST1010 6" Jointer (Mfd. Since 3/16)

-35-

Operations

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Table(s) difficult to adjust.

Excessive snipe (gouge in end of board that is uneven with rest of cut).

Workpiece stops in middle of cut.

Workpiece chipping, tear-out, or overall rough cut.

Fuzzy grain. 1. Wood has high moisture content.

Long lines or ridges that run along length of workpiece.

Uneven cutter marks, wavy surface, or chatter marks across face of workpiece.

Glossy surface; scorching or burn marks on workpiece.

Workpiece is concave or convex along its length after jointing.

1. Table lock(s) engaged/partially engaged.

2. Infeed table stops blocking movement.

1. Outfeed table set too low; or knives set too high.

2. Operator pushing down on trailing end of workpiece as it leaves cutterhead.

1. Outfeed table set too high. 1. Align outfeed table with cutterhead knife at top dead

1. Not feeding workpiece to cut "with the grain."

2. Dull knives.

3. Workpiece not suitable for jointing.

4. Nicked or chipped knives.

5. Feeding workpiece too fast.

6. Excessive cut depth.

7. Lack of proper dust collection or clogged dust port.

2. Dull knives.

1. Nicked or chipped knives.

2. Loose or incorrectly installed knives.

1. Feeding workpiece too fast.

2. Knives not adjusted at even heights in cutterhead.

1. Dull knives.

2. Feed rate too slow.

1. Workpiece not held with even pressure against outfeed table during cut.

2. Workpiece too uneven at start of operation.

3. Outfeed table not parallel with infeed table.

1. Completely loosen table lock(s) (Page 26).

2. Loosen/reset infeed table stops (Page 26).

1. Align outfeed table with cutterhead knife at top dead

center (Page 22); adjust height of knives evenly with outfeed table (Page 22).

2. Focus most of the workpiece pressure against outfeed table while cutting.

center (Page 22).

1. Turn the workpiece 180° before feeding again.

2. Sharpen/replace knives (Page 37).

3. Ensure workpiece is suitable for jointing (Page 25).

4. Sharpen/replace knives (Page 37).

5. Reduce feed rate.

6. Reduce cut depth.

7. Clear blockages, ensure dust collector is operating eciently; upgrade dust collector.

1. Ensure wood moisture content is less than 20%. Allow to dry if necessary.

2. Sharpen/replace knives (Page 37).

1. Sharpen/replace knives (Page 37).

2. Remove/replace knives/individual blade, and install properly (Page 37).

1. Reduce feed rate.

2. Adjust knives so they are set up evenly in cutterhead (Page 37). Remove, clean, and re-install any knife that is "raised" in cutterhead.

1. Sharpen/replace knives (Page 37).

2. Increase feed rate.

1. Apply even downward pressure against workpiece throughout entire travel along outfeed side during cut.

2. Take partial cuts to remove extreme high spots before doing a full pass.

3. Check/Adjust table parallelism.

-36-

ST1010 6" Jointer (Mfd. Since 3/16)

Inspecting Knives

Setting Knives

The height of the knives can be easily and quickly inspected with the knife setting jig. This inspection will ensure that the knives are set in the cutterhead as they should be. Usually this is done before calibrating the outfeed table or when troubleshooting.

To inspect the knives:

1. DISCONNECT THE JOINTER FROM THE POWER

SOURCE!

2. Remove the cutterhead guard or block it out of

the way.

3. Lower the infeed table to the

4. Place the knife jig on the cutterhead, directly

over a knife, as shown in Figure 58.

⁄2" scale mark.

Setting the knives correctly is crucial to the proper operation of the jointer and is very important in keeping the knives sharp. If one knife is higher than the others, it will do the majority of the work, and thus, dull much faster than the others.

The knife jig included with the jointer is designed to set the knives at the correct height.

The Model ST1010 comes with both jack screws and springs to provide you with two options for cutterhead adjustments (see Figure 59).

Note: Only one of these options is needed to set the knives—see Step 5* for clarification.

Loosen

Tighten

Knife

Spring

Middle Pad

Figure 58. Jig positioned over cutterhead knife.

5. Carefully inspect how the jig touches the

cutterhead and the knife.

— If both outside legs of the jig sit firmly on the

cutterhead and the middle pad just touches the knife, then that knife is set correctly. (Repeat this inspection with the other knives.)

— If the jig does not sit firmly on the cutterhead

and touch the knife edge as described, then reset that knife. (Repeat this inspection with the other knives before resetting.)

Gib Bolt

Gib

Jack Screw

Figure 59. Cutterhead profile diagram.

To set the knives:

1. DISCONNECT THE JOINTER FROM THE POWER

SOURCE!

2. Remove the cutterhead guard from the table

and lower the infeed and outfeed tables as far as they go. This will give you unrestricted access to the cutterhead.

3. Remove the cabinet cover to expose the V-belt.

4. Use the V-belt to rotate the cutterhead to access

the cutterhead knives.

ST1010 6" Jointer (Mfd. Since 3/16)

5. Loosen the cutterhead gib bolts, starting in the

middle, and alternating back and forth until all of the gib bolts are loose, but not falling out.

-37-

*Note: If this is the first time you are setting

the knives, remove the gib and knife from the cutterhead. Decide which adjustment option you are going to use between the jack screws and the springs. If you decide to use the jack screws, remove the springs from the cutterhead. If you decide to use the springs, you can just thread the jack screws completely into the cutterhead so they will not get lost. Replace the gib and knife.

6. Position the knife gauge over the knife as shown in Figure 58 and loosen the gib bolts until the knife is completely loose.

7. Jack Screws: Using a 3mm hex wrench, find the jack screws through the access holes in the cutterhead (see Figure 60) and rotate the jack screws to raise or lower the knife. When the knife is set correctly, it will barely touch the middle pad of the knife setting jig. Snug the gib bolts tight enough to just hold the knife in place. Repeat Steps 5-7 with the rest of the knives.

Calibrating Depth

Scale

The depth scale on the infeed table can be calibrated or "zeroed" if it is not correct.

To calibrate the depth scale:

1. Set the outfeed table height as described in the Setting Outfeed Table Height sub-section.

2. Place a straightedge across the infeed and

outfeed tables.

3. Adjust the infeed table until it is level with the outfeed table, as illustrated in Figure 61.

Straightedge

InfeedOutfeed

Figure 60. Jack screw access hole.

Springs: Push the knife down with the jig so the knife

edge is touching the middle pad of the jig. Hold the jig down and tighten the gib bolts just tight enough to hold the knife in place. Repeat Steps

5-7 with the rest of the knives.

8. Rotate the cutterhead to the first knife you start-

ed with. Slightly tighten all the gib bolts, starting at the ends and working your way to the middle by alternating left and right. Repeat this step on the rest of the knives.

9. Final tighten each gib bolt.

Figure 61. Infeed table adjusted even with outfeed

table and knife at TDC.

4. Using a screwdriver, adjust the scale pointer exactly to "0" (see Figure 62).

Figure 62. Depth-of-cut pointer

adjusted to "0" position.

10. Adjust the outfeed table to match the new knife heights (see Page 222).

-38-

ST1010 6" Jointer (Mfd. Since 3/16)

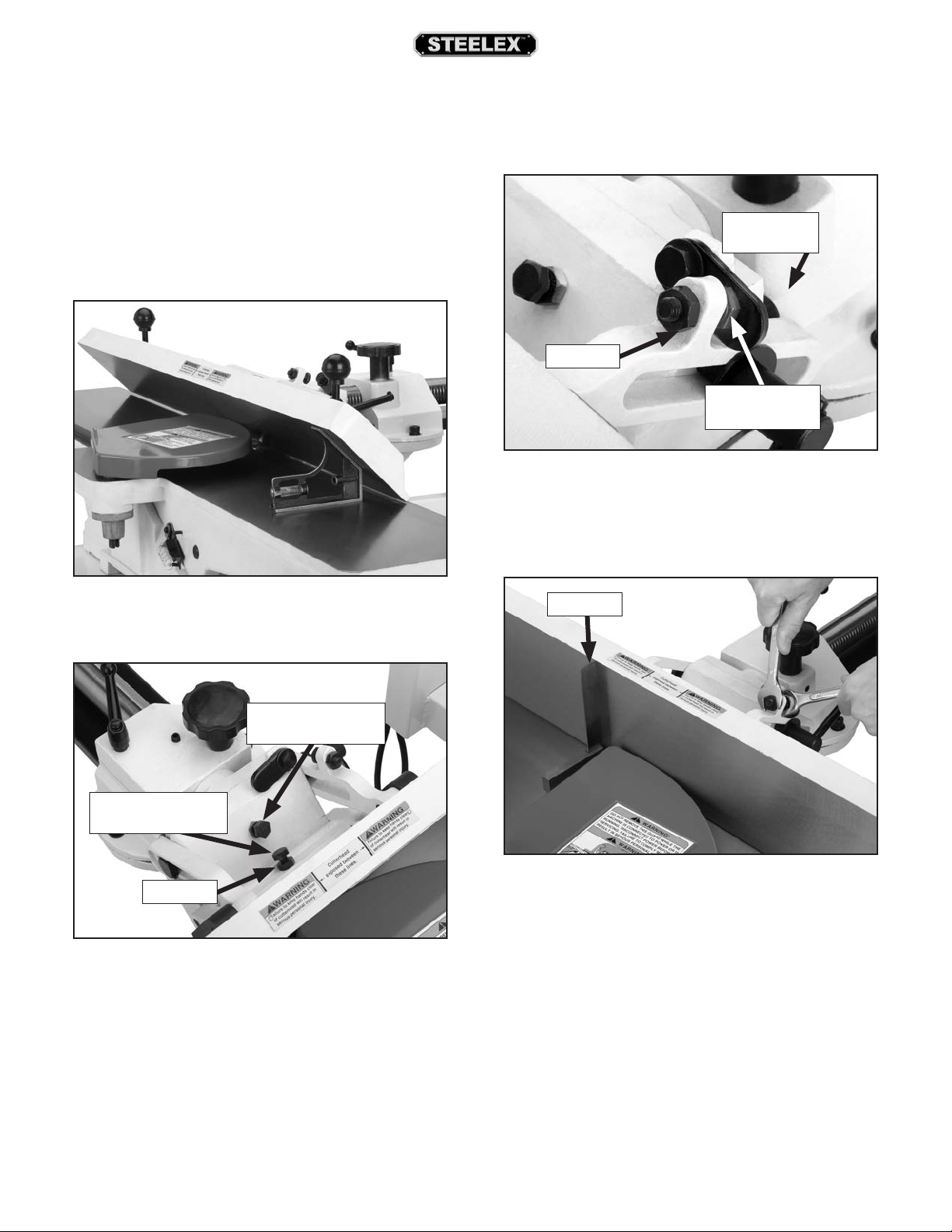

Setting Fence Stops

The fence stops are adjustable nuts and bolts that simplify the task of adjusting the fence to 45˚ inward, 90˚, and 45˚ outward (135˚).

To set the 45˚ inward fence stop:

1. Using a 45˚ square, adjust the fence to the 45˚ inward position, as shown in Figure 63.

To set the 90˚ fence stop:

1. Flip the 90˚ swing stop into the position shown

in Figure 65.

90˚Swing

Stop

Jam Nut

90˚ Fence

Stop Bolt

Figure 65. 90˚ swing stop engaged.

2. Using a 90˚ square, adjust the fence to the 90˚

position in Figure 66 using the fence stop bolt and jam nut.

Figure 63. Adjusting fence 45˚ inward.

2. Loosen the jam nut shown in Figure 64.

45˚ Outward

Fence Stop Bolt

45˚ Inward Fence

Stop Bolt

Jam Nut

Figure 64. 45˚ inward fence stop jam nut.

3. Adjust the 45˚ inward fence stop bolt until it

makes contact with the back of the fence.

4. Retighten the jam nut loosened in Step 2 and recheck.

Square

Figure 66. Adjusting fence to 90˚.

3. Loosen the jam nut on the 90˚ fence stop bolt (Figure 65).

4. Adjust the 90˚ fence stop bolt until it makes con-

tact with the 90˚ swing stop.

5. Retighten the jam nut loosened in Step 3 and recheck.

ST1010 6" Jointer (Mfd. Since 3/16)

-39-

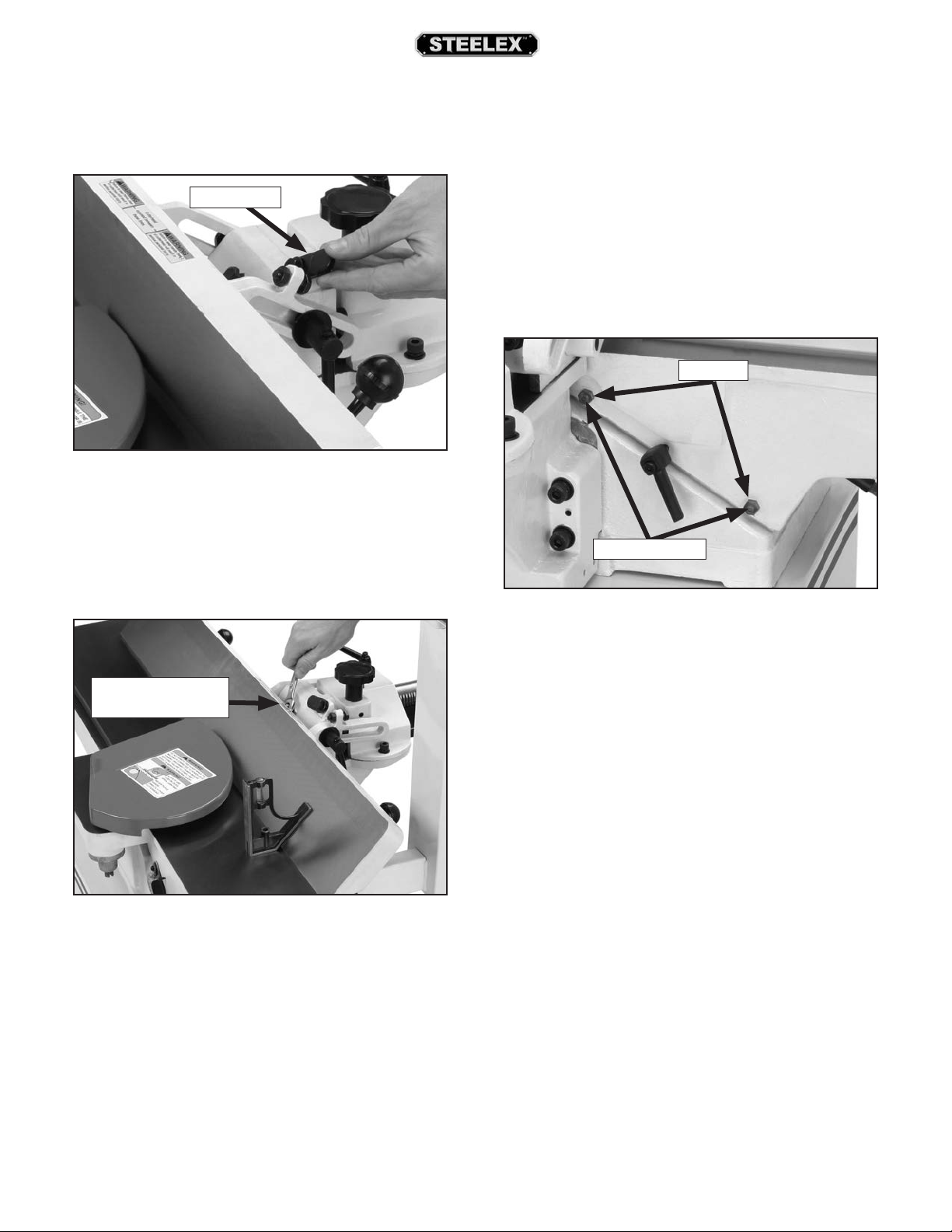

To set the 45˚ outward fence stop:

1. Flip the 90˚ swing stop out of the way as shown in Figure 67.

Adjusting Gibs

The function of the table gibs is to eliminate excessive play in the table movement. The gibs also control how easy the tables move up and down.

Swing Stop

Figure 67. Adjusting fence 45˚ outward.

2. Using a sliding bevel adjusted to 135˚, adjust the

fence to the 135˚ (45˚ outward) position.

3. Loosen the jam nut on the 45˚ outward fence stop bolt (Figure 68).

45˚ Outward

Fence Stop Bolt

To adjust the table gibs, do these steps:

1. Using a 10mm wrench, loosen the two outfeed

table gib nuts on the side of the jointer base (Figure 69).

Gib Nuts

Gib Set Screws

Figure 69. Outfeed table gib controls.

2. Using a 3mm hex wrench, evenly tighten the gib

setscrews a small amount, then check the table by moving it up and down. Adjust the setscrews as needed until the friction of the table movement is balanced between minimal play and ease of movement.

Figure 68. 45˚ outward fence stop bolt and jam nut.

4. Adjust the 45˚ outward fence stop bolt until it

makes contact with the back of the fence.

5. Retighten the jam nut loosened in Step 3 and recheck.

-40-

Note: Tighter gibs reduce play but make it harder

to adjust the tables.

3. Repeat Steps 1-2 with the other table.

4. Set the outfeed table height as described in Setting Outfeed Table Height on Page 22.

ST1010 6" Jointer (Mfd. Since 3/16)

ST1010 Electrical Components

Motor

Cord

Figure 70. W1745 switch wiring.

Power Cord

Figure 71. W1745 junction box wiring.

ST1010 6" Jointer (Mfd. Since 3/16)

-41-

SWITCH

RECEPTACLE

ST1010 Wiring Diagram

Black

Hot

White

Neutral

120 VAC

Green

5-15 Plug

(viewed from behind)

CONTROL

PANEL

Note: Control panel buttons are shown backwards to match orientation on machine.

120V

MOTOR

Start

Capacitor

200MFD

125VAC

Ground

-42-

ST1010 6" Jointer (Mfd. Since 3/16)

PARTS

Base Assembly Breakdown

62-2

62-1

62-3

178

180

179

171

175

176

177

1 2 3 4 5 6

ST1010 6" Jointer (Mfd. Since 3/16)

7 8 9

26 25

24-2

24-8

24-1

24-9

24-3

24-4

24-7

24-5

24-6

-43-

Base Assembly Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

1 XST1010001 CABINET 26 XST1010026 V-BELT A-38 4L380 2 XST1010002 HEX NUT M8-1.25 27 XST1010027 MOTOR PULLEY 3 XST1010003 FLAT WASHER 8MM 28 XST1010028 SET SCREW M6-1 X 6 4 XST1010004 WHEEL 29 XST1010029 SWITCH BOX 5 XST1010005 SLEEVE 30 XST1010030 PADDLE SWITCH 6 XST1010006 CAP SCREW M8-1.25 X 65 31 XST1010031 TAP SCREW M4 X 8 7 XST1010007 STRAIN RELIEF 32 XST1010032 TAP SCREW M4 X 8 8 XST1010008 HEX NUT 3/8-16 33 XST1010033 SWITCH PLATE 9 XST1010009 LEVELING FOOT 34 XST1010034 EXT RETAINING RING 9MM 10 XST1010010 HEX NUT 5/16-18 35 XST1010035 FLAT WASHER 12MM 11 XST1010011 FLAT WASHER 10MM 36 XST1010036 CLEVIS PIN, HEADLESS-GROOVED 12 XST1010012 MOTOR MOUNT BRACKET 37 XST1010037 HEX BOLT M8-1.25 X 50 13 XST1010013 DUST PORT 38 XST1010038 FLAT WASHER 8MM 14 XST1010014 FLAT WASHER 5MM 39 XST1010039 HEX NUT M10-1.5 15 XST1010015 PHLP HD SCR M5-.8 X 16 40 XST1010040 FLAT WASHER 10MM 16 XST1010016 PHLP HD SCR M5-.8 X 16 41 XST1010041 HEX NUT M8-1.25 17 XST1010017 FLAT WASHER 5MM 42 XST1010042 HEX NUT M10-1.5 18 XST1010018 CABINET REAR COVER 43 XST1010043 FLAT WASHER 8MM 19 XST1010019 HEX BOLT 5/16-18 X 3/4 44 XST1010044 HEX BOLT M8-1.25 X 100 20 XST1010020 HEX NUT 5/16-18 45 XST1010045 TROLLEY WHEEL BOLT M10-1.5 X 15 21 XST1010021 CARRIAGE BOLT 5/16-18 X 1 46 XST1010046 TROLLEY WHEEL 22 XST1010022 LOCK WASHER 10MM 47 XST1010047 BALL BEARING 6202ZZ 23 XST1010023 CAP SCREW M10-1.5 X 20 48 XST1010048 INT RETAINING RING 35MM 24 XST1010024 MOTOR 1HP 120V 1-PH 49 XST1010049 SLEEVE 24-1 XST1010024-1 MOTOR FAN COVER 50 XST1010050 TROLLEY BRACKET 24-2 XST1010024-2 MOTOR FAN 51 XST1010051 FLAT WASHER 10MM 24-3 XST1010024-3 CAPACITOR COVER 52 XST1010052 HEX BOLT M10-1.5 X 55 24-4 XST1010024-4 S CAPACITOR 200M 125V 53 XST1010053 PEDAL BRACKET 24-5 XST1010024-5 MOTOR JUNCTION BOX 54 XST1010054 PEDAL 24-6 XST1010024-6 CENTRIFUGAL SWITCH 62 XST1010062 KNIFE-SETTING JIG 24-7 XST1010024-7 CONTACT PLATE 20MM 62-1 XST1010062-1 ROD 24-8 XST1010024-8 BALL BEARING 6204ZZ 62-2 XST1010062-2 KNIFE JIG FOOT 24-9 XST1010024-9 BALL BEARING 6204ZZ 62-3 XST1010062-3 E-CLIP 9MM 25 XST1010025 KEY 5 X 5 X 30

-44-

ST1010 6" Jointer (Mfd. Since 3/16)

119

121

130

117

136

137

118

127

128

129

Table Assembly Breakdown

110 104

122

123 124

150

125

126

151

103

101 102

107

108

109

112

113

105 106

131

111

114

115

116

132 133

187

186

181

182

183

184

185

174

173

172 171

134

139

140 141 142 143

138

144

145

146

147

148

149

154 155 156

157

158

159

164 165

152

170

160

161

162 163

168

169

166

167

ST1010 6" Jointer (Mfd. Since 3/16)

-45-

Table Assembly Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

101 XST1010101 GIB 152 XST1010152 INFEED TABLE 102 XST1010102 CUTTERHEAD KNIFE 6" X 5/8" X 1/8" 3-PC SET 154 XST1010154 CAP SCREW M8-1.25 X 15 103 XST1010103 GIB SCREW 1/4-28 X 9/32" 155 XST1010155 LOCK WASHER 8MM 104 XST1010104 CUTTERHEAD PULLEY 156 XST1010156 BRACKET 105 XST1010105 BEARING BLOCK (RIGHT) 157 XST1010157 CAPTIVE PIN 106 XST1010106 BALL BEARING 6203ZZ 158 XST1010158 EXT RETAINING RING 5MM 107 XST1010107 KEY 5 X 5 X 30 159 XST1010159 PIVOT BLOCK 108 XST1010108 SET SCREW M5-.8 X 12 160 XST1010160 PIVOT LINK 109 XST1010109 CUTTERHEAD NUT 161 XST1010161 PIVOT LINK STEP BOLT 110 XST1010110 SET SCREW M6-1 X 10 162 XST1010162 SET SCREW M8-1.25 X 8 111 XST1010111 CUTTERHEAD 6" 3-KNIFE 163 XST1010163 HEX NUT M12-1.75 112 XST1010112 BALL BEARING 6202ZZ 164 XST1010164 INFEED PIVOT SHAFT 113 XST1010113 BEARING BLOCK (LEFT) 165 XST1010165 EXT RETAINING RING 12MM 114 XST1010114 STUD M10-1.5 X 100 166 XST1010166 LEVER ROD 115 XST1010115 LOCK WASHER 10MM 167 XST1010167 HANDLE 116 XST1010116 HEX NUT M10-1.5 168 XST1010168 DUST CHUTE 117 XST1010117 PHLP HD SCR M6-1 X 12 169 XST1010169 SEAL 118 XST1010118 FLAT WASHER 6MM 170 XST1010170 INFEED TABLE BLOCK 119 XST1010119 HAND WHEEL HANDLE 171 XST1010171 HEX NUT M8-1.25 121 XST1010121 HANDWHEEL 172 XST1010172 SET SCREW M8-1.25 X 25 122 XST1010122 SET SCREW M6-1 X 6 173 XST1010173 CAP SCREW M8-1.25 X 16 123 XST1010123 LOCK COLLAR 174 XST1010174 LOCK LEVER ASSY 124 XST1010124 FLAT WASHER 12MM 175 XST1010175 SWITCH PEDESTAL ARM 125 XST1010125 FLAT WASHER 12MM 176 XST1010176 HOLD DOWN 126 XST1010126 LEADSCREW 177 XST1010177 PHLP HD SCR M5-.8 X 12 127 XST1010127 LEADSCREW BRACKET 178 XST1010178 CAP SCREW M8-1.25 X 40 128 XST1010128 LOCK WASHER 8MM 179 XST1010179 LOCK WASHER 10MM 129 XST1010129 CAP SCREW M8-1.25 X 50 180 XST1010180 FLAT WASHER 10MM 130 XST1010130 PUSH BLOCK 181 XST1010181 HEX WRENCH 8MM 131 XST1010131 LOCK HANDLE 182 XST1010182 HEX WRENCH 6MM 132 XST1010132 HEX NUT M6-1 183 XST1010183 HEX WRENCH 4MM 133 XST1010133 SET SCREW M6-1 X 25 184 XST1010184 HEX WRENCH 3 MM 134 XST1010134 GIB 185 XST1010185 HEX WRENCH 2.5 MM 136 XST1010136 CUTTERHEAD GUARD 186 XST1010186 COMBO WRENCH 8/10MM 137 XST1010137 CUTTERHEAD GUARD POST 187 XST1010187 COMBO WRENCH 12/14MM 138 XST1010138 SET SCREW M5-.8 X 10 188 XST1010188 FENCE 139 XST1010139 SPACER 189 XST1010189 FENCE TILT LEVER ROD 140 XST1010140 INFEED TABLE STOP 190 XST1010190 BALL KNOB 141 XST1010141 DEPTH POINTER 191 XST1010191 HANDLE HUB 142 XST1010142 FLAT WASHER 4MM 192 XST1010192 FLAT WASHER 10MM 143 XST1010143 BUTTON HD CAP SCR M4-.7 X 16 193 XST1010193 FENCE PIVOT SUPPORT (RIGHT) 144 XST1010144 ROLL PIN 4 X 20 194 XST1010194 DOWEL PIN 145 XST1010145 END PLATE 195 XST1010195 HEX NUT M8-1.25 146 XST1010146 TORSION SPRING 196 XST1010196 HEX BOLT M8-1.25 X 25 147 XST1010147 SPRING TENSION KNOB 197 XST1010197 SET SCREW M6-1 X 10 148 XST1010148 GUARD MOUNT COLLAR 198 XST1010198 FENCE BRACKET 149 XST1010149 BUTTON HD CAP SCR M4.-7 X 18 199 XST1010199 ANGLE STOP 150 XST1010150 OUTFEED TABLE 200 XST1010200 FLAT WASHER 10MM 151 XST1010151 BASE

-46-

ST1010 6" Jointer (Mfd. Since 3/16)

Fence Breakdown and Parts List

REF PART # DESCRIPTION REF PART # DESCRIPTION

212

211

189

190

210

205

204

206

231

209

208

207

203

202

197

194

193

201 200 199

198

195

218 217 216

214

196

213

215

192

191

219

233

228

232

229

227

226

225

224

223

222

221

220 234 235

188

237

201 XST1010201 SHOULDER BOLT M8-1.25 X 15 219 XST1010219 FENCE RAM 202 XST1010202 HEX NUT M8-1.25 220 XST1010220 CAP SCREW M8-1.25 X 60 203 XST1010203 HEX BOLT M8-1.25 X 25 221 XST1010221 BRACKET 204 XST1010204 FENCE SUPPORT 222 XST1010222 SET SCREW M8-1.25 X 12 205 XST1010205 DOWEL PIN 223 XST1010223 FENCE CARRIAGE MOUNT 206 XST1010206 HEX NUT M8-1.25 224 XST1010224 FLAT WASHER 8MM 207 XST1010207 HEX BOLT M8-1.25 X 25 225 XST1010225 LOCK WASHER 8MM 208 XST1010208 DOWEL PIN 226 XST1010226 CAP SCREW M8-1.25 X 20 209 XST1010209 FENCE PIVOT SUPPORT (LEFT) 227 XST1010227 SET SCREW M8-1.25 X 12 210 XST1010210 FENCE BRACKET BOLT 228 XST1010228 HANDWHEEL 211 XST1010211 REAR CLAMP 229 XST1010229 LEVER ASSEMBLY 212 XST1010212 CAP SCREW M6-1 X 20 231 XST1010231 RIVET (ALUMINUM) 213 XST1010213 PHLP HD SCR M6-1 X 12 232 XST1010232 O-RING 214 XST1010214 LOCK WASHER 8MM 233 XST1010233 LOCK BAR 215 XST1010215 RAM ARM GUARD 234 XST1010234 LOCK WASHER 8MM 216 XST1010216 FLAT WASHER 8MM 235 XST1010235 FLAT WASHER 8MM 217 XST1010217 LOCK WASHER 8MM 237 XST1010237 POWER CORD 14G 3W 72" 5-15P 218 XST1010218 CAP SCREW M8-1.25 X 25

ST1010 6" Jointer (Mfd. Since 3/16)

-47-

Label/Cosmetic Parts

(02/25/16)

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

ST1010

MODEL ST1010

6" JOINTER w/MOBILE BASE

Motor: 1 HP, 120V, 1-Ph, 60 Hz, 13A

Cutterhead: 3 Knife, 2-1/2" Dia.

Knife Size: 6" x 5/8" x 1/8"

Replacement Knives: D3637

Maximum Depth of Cut: 1/8"

Maximum Rabbeting Depth: 1/2"

Cutterhead Speed: 4800 RPM

Cuts Per Minute: 14,400

Fence Tilt: 45º, 90º, 135º

Table Size: 6" x 46"

Weight: 257 lbs.

Specifications

WARNING!

To reduce the risk of serious injury when using this machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Except when rabbeting, keep all guards in place and in proper operating condition. Always replace the guard after rabbeting.

4. Never cut workpieces smaller than 8" long, 3/4" wide, or 1/2" thick.

5. Always use push blocks when face planing.

6. Keep hands at least 12" away from cutterhead.

7. Never cut deeper than 1/8" on a single pass.

8. Tie back long hair, roll up sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

9. Turn motor OFF and disconnect power before changing blades, adjusting tables/fence, or servicing.

10. Be aware of "kickback" hazards and how to prevent them.

11. Do not joint boards with cracks, loose knots, or any defects.

12. DO NOT expose to rain or use in wet locations.

13. Always feed workpiece against cutterhead rotation. Never move workpiece backward while feeding.

14. Prevent unauthorized use by children or untrained users;

restrict access or disable machine when unattended.

Manufactured for Woodstock in China

Date

Serial Number

Failure to keep hands clear of cutterhead will result in serious personal injury.

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

Failure to keep hands clear of cutterhead will result in serious personal injury.

Cutterhead

exposed between

these lines.

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

READ and UNDERSTAND MANUAL to avoid serious injury! If a manual is not available, DO NOT use machine! Instead, go to www.shopfox.biz or call (360) 734-3482.

WARNING!

Failure to keep hands clear of cutterhead will result in serious personal injury.

Cutterhead

exposed between

these lines.

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

ST1010 Labels B

(02/17/16)

READ and UNDERSTAND MANUAL to avoid serious injury! If a manual is not available, DO NOT use machine! Instead, go to

www.shopfox.biz

(

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power supply before adjustments, setup or maintenance!

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

ST1010 Labels B

(02/17/16)

ST1010 Labels A

(02/25/16)

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

ST1010 Machine Labels C

(02/22/16)

• 1:1 Scale (Labels are actual size)

• Labels must be made of chemical-resistant material

Failure to keep hands clear of cutterhead will result in serious personal injury.

READ and UNDERSTAND MANUAL to avoid serious injury! If a manual is not available, DO NOT use machine! Instead, go to www.shopfox.biz or call (360) 734-3482.

WARNING!

READ and UNDERSTAND MANUAL to avoid serious injury! If a manual is not available, DO NOT use machine! Instead, go to www.shopfox.biz or call (360) 734-3482.

WARNING!

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power supply before adjustments, setup or maintenance!

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety glasses, ear protection, and respirator when using this machine.

COLOR CODES

DANGER

PANTONE 485 C or RAL 3001

PANTONE 151 C or RAL 2005

WARNING

PANTONE YELLOW C

CAUTION

***

Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine MUST maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again.

302

ROTATING CUTTERHEAD BELOW!

Use this guard for all operations possible, and immediately re-install it following operations that require its removal.

KICKBACK HAZARD!

1. Ensure outfeed table is even with

301

Specifications

Motor: 1 HP, 120V, 1-Ph, 60 Hz, 13A

Cutterhead: 3 Knife, 2-1/2" Dia.

Knife Size: 6" x 5/8" x 1/8"

Replacement Knives: D3637

Maximum Depth of Cut: 1/8"

Maximum Rabbeting Depth: 1/2"

Cutterhead Speed: 4800 RPM

Cuts Per Minute: 14,400

Fence Tilt: 45º, 90º, 135º

Table Size: 6" x 46"

Weight: 257 lbs.

Date

Serial Number

Manufactured for Woodstock in China

knives.

2. Never exceed maximum depth of cut.

3. Do not stand directly behind workpiece.

ALWAYS USE PUSH BLOCKS!

Push blocks minimize possibility of operator’s hands contacting cutterhead while cutting.

MODEL ST1010

6" JOINTER w/MOBILE BASE

WARNING!

To reduce the risk of serious injury when using this machine:

1. Read & understand owner’s manual before operating.

2. Always wear approved eye protection and respirator.

3. Except when rabbeting, keep all guards in place and in proper operating condition. Always replace the guard after rabbeting.

4. Never cut workpieces smaller than 8" long, 3/4" wide, or 1/2" thick.

5. Always use push blocks when face planing.

6. Keep hands at least 12" away from cutterhead.

7. Never cut deeper than 1/8" on a single pass.

8. Tie back long hair, roll up sleeves, and DO NOT wear loose clothing, gloves, or jewelry.

9. Turn motor OFF and disconnect power before changing blades, adjusting tables/fence, or servicing.

10. Be aware of "kickback" hazards and how to prevent them.

11. Do not joint boards with cracks, loose knots, or any defects.

12. DO NOT expose to rain or use in wet locations.

13. Always feed workpiece against cutterhead rotation. Never move workpiece backward while feeding.

14. Prevent unauthorized use by children or untrained users;

restrict access or disable machine when unattended.

Failure to keep hands clear of cutterhead will result in serious personal injury.

303

Cutterhead

exposed between

these lines.

Failure to keep hands clear of cutterhead will result in serious personal injury.

304

305

WARNING!

EYE/EAR/LUNG

INJURY HAZARD!

Always wear safety glasses, ear protection, and respirator when using this machine.

POWER

306

301 XST1010301 MACHINE ID LABEL 308 XST1010308 TOUCH-UP PAINT, STEELEX BEIGE 302 XST1010302 CUTTERHEAD WARNING LABEL 309 XST1010309 STEELEX NAMEPLATE 303 XST1010303 CUTTERHEAD EXPOSURE WARNING LABEL 310 XST1010310 PINSTRIPE TAPE 304 XST1010304 ELECTRICITY LABEL 311 XST1010311 TOUCH-UP PAINT, SHOP FOX BLACK 305 XST1010305 CONTROL PANEL LABEL 312 XST1010312 MODEL NUMBER LABEL 306 XST1010306 EYE/EAR/LUNG HAZARD LABEL 313 XST1010313 READ MANUAL LABEL 307 XST1010307 DISCONNECT POWER LABEL

-48-

REF PART # DESCRIPTION REF PART # DESCRIPTION

313

312

WARNING!

READ and UNDERSTAND MANUAL to avoid serious injury! If a manual is not available, DO NOT use machine! Instead, go to www.shopfox.biz or call (360) 734-3482.

311

WARNING

ACCIDENTAL

INJURY HAZARD!

Disconnect power supply before adjustments, setup or maintenance!

307

308

309

310

ST1010 6" Jointer (Mfd. Since 3/16)

WARRANTY

Woodstock International, Inc. warrants all STEELEX® machinery to be free of defects from workmanship and materials for a period of two years from the date of original purchase by the original owner. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, lack of maintenance, or reimbursement of third party expenses incurred.

Woodstock International, Inc. will repair or replace, at its expense and at its option, the machine part which in normal use has proven to be defective, provided that the original owner returns the product prepaid to the WA office, with proof of their purchase of the product within two years, and provides Woodstock International, Inc. reasonable opportunity to verify the alleged defect through inspection. If it is determined there is no defect, or that the defect resulted from causes not within the scope of Woodstock International Inc.'s warranty, then the original owner must bear the cost of storing and returning the product.

This is Woodstock International, Inc.'s sole written warranty and any and all warranties that may be implied by law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of this written warranty. We do not warrant that acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid for the product, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of Washington, County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for incidental, contingent, special or consequential damages arising from the use of our products.

Every effort has been made to ensure that all We reserve the right to change specifications at any time because of our commitment to continuously improve the quality of our products.

STEELEX

factory service center or authorized repair facility designated by our Bellingham,

STEELEX

machinery complies with the provisions of any law or

machinery meets high quality and durability standards.

STEELEX

machine or

ST1010 6" Jointer (Mfd. Since 3/16)

-49-

Warranty Registration

Name _______________________________________________________________________________________

Street _______________________________________________________________________________________

City __________________________ State _____________________________Zip _________________________

Phone # _______________________ Email ____________________________Invoice # ____________________

Model #_________Serial #______________Dealer Name__________________Purchase Date___________

The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products and services. Of course, all information is strictly confidential.

1. How did you learn about us? _____ Advertisement _____ Friend _____ Local Store _____ Mail Order Catalog _____ Website _____ Other:

2. How long have you been a woodworker/metalworker? _____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years

3. How many of your machines or tools are STEELEX

_____ 0-2 ____ 3-5 ____ 6-9 ____ 10+

4. Do you think your machine represents a good value? _____ Yes _____ No

CUT ALONG DOTTED LINE

5. Would you recommend STEELEX

products to a friend? _____ Yes _____ No

6. What is your age group? _____ 20-29 _____ 30-39 _____ 40-49 _____ 50-59 _____ 60-69 _____ 70+

7. What is your annual household income? _____ $20,000-$29,000 _____ $30,000-$39,000 _____ $40,000-$49,000 _____ $50,000-$59,000 _____ $60,000-$69,000 _____ $70,000+

8. Which of the following magazines do you subscribe to?

____ Cabinet Maker ____ Family Handyman ____ Hand Loader ____ Handy ____ Home Shop Machinist ____ Journal of Light Cont. ____ Live Steam ____ Model Airplane News ____ Modeltec ____ Old House Journal

____ Popular Mechanics ____ Popular Science ____ Popular Woodworking ____ Practical Homeowner ____ Precision Shooter ____ Projects in Metal ____ RC Modeler ____ Rie ____ Shop Notes ____ Shotgun News

____ Today’s Homeowner ____ Wood ____ Wooden Boat ____ Woodshop News ____ Woodsmith ____ Woodwork ____ Woodworker West ____ Woodworker’s Journal ____ Other:

9. Comments: _____________________________________________________________________________

__________________________________________________________________________________________

FOLD ALONG DOTTED LINE

Place

Stamp

Here

WOODSTOCK INTERNATIONAL INC. P.O. BOX 2309 BELLINGHAM, WA 982272309

TAPE ALONG EDGESPLEASE DO NOT STAPLE
