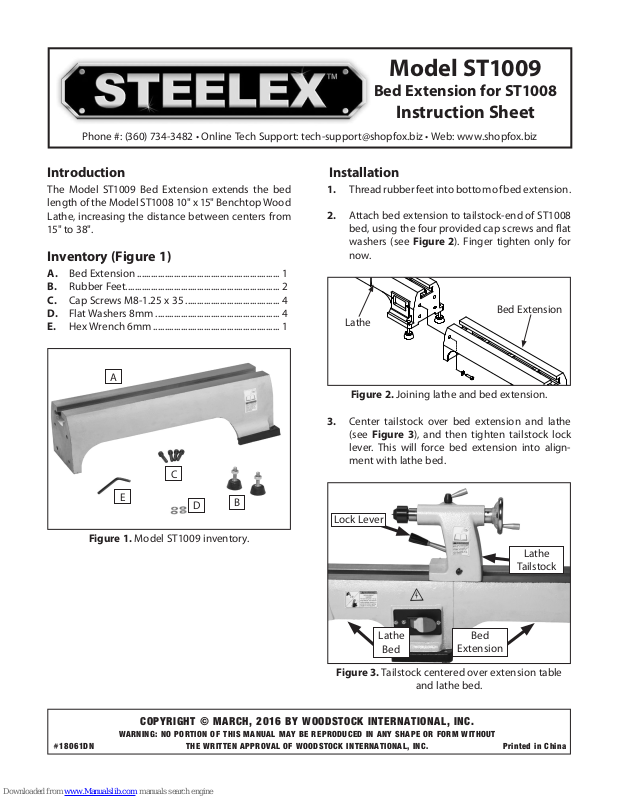

Page 1
Model ST1009
Bed Extension for ST1008
Instruction Sheet
Phone #: (360) 734-3482 • Online Tech Support: tech-support@shopfox.biz • Web: www.shopfox.biz
Introduction
The Model ST1009 Bed Extension extends the bed
length of the Model ST1008 10" x 15" Benchtop Wood
Lathe, increasing the distance between centers from
15" to 38".
Inventory (Figure 1)
A. Bed Extension .............................................................. 1
B. Rubber Feet................................................................... 2
C. Cap Screws M8-1.25 x 35 ......................................... 4
D. Flat Washers 8mm ...................................................... 4
E. Hex Wrench 6mm ....................................................... 1
A
C
Installation
1. Thread rubber feet into bottom of bed extension.
2. Attach bed extension to tailstock-end of ST1008
bed, using the four provided cap screws and flat
washers (see Figure 2). Finger tighten only for
now.
Bed Extension
Lathe
Figure 2. Joining lathe and bed extension.
3. Center tailstock over bed extension and lathe
(see Figure 3), and then tighten tailstock lock
lever. This will force bed extension into alignment with lathe bed.
#18061DN
E
D
Figure 1. Model ST1009 inventory.
B
Lock Lever
Lathe
Bed
Figure 3. Tailstock centered over extension table
and lathe bed.
COPYRIGHT © MARCH, 2016 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Lathe
Tailstock
Bed
Extension
Printed in China
Page 2
4. Use provided hex wrench to fully tighten cap
screws from Step 2.
5. Loosen tailstock clamp handle, and slide tailstock
back and forth over connection point.
—If tailstock catches where lathe and bed exten-
sion meet, loosen fasteners and repeat Steps
3-5 until it slides smoothly.
6. Place straightedge over bed extension and lathe
bed to verify they are parallel and aligned.
— If bed extension tilts down, use a strip of
masking tape along bottom edge of lathe bed
to shim bed extension up (see Figure 4), then
adjust bed extension rubber feet to level bed
surface.
—If bed extension is skewed left or right,
use a vertical strip of masking tape along
corresponding edge of lathe bed to make
bed extension parallel with lathe bed (see
Figure 6).
Masking Tape
Lathe
Bed Extension
Figure 6. Shimming bed extension left.
Refer to Model ST1008 manual for instructions on
operating lathe.
Masking Tape
Lathe
Bed Extension
Figure 4. Shimming bed extension up.
— If bed extension tilts up, use a strip of masking
tape along top edge of lathe bed to shim bed
extension down (see Figure 5), then adjust
rubber feet to level bed surface.
Masking Tape
Lathe Bed Extension
If you need help with your new bed extension, call our
Tech Support at: (360) 734-3482.
ST1009 Parts Breakdown
6
1
3
7
2
4
Figure 5. Shimming bed extension down.
-2-
5
REF PART # DESCRIPTION
1 XST1009001 HEX WRENCH 6MM
2 XST1009002 CAP SCREW M8-1.25 X 35
3 XST1009003 FLAT WASHER 8MM
4 XST1009004 HEX NUT 3/8-16
5 XST1009005 RUBBER FOOT
6 XST1009006 BED EXTENSION
7 XST1009007 SHOP FOX WHITE M1006
ST1009 Bed Extension for ST1008 Mini Wood Lathe
