MODEL ST1006/ST1011
8" JOINTER
OWNER'S MANUAL
(For Models Manufactured since 03/16)
Phone: (360) 734-3482 • Online Technical Support: tech-support@shopfox.biz
COPYRIGHT © APRIL, 2016 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
#17979MC
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in China
This manual provides critical safety instructions on the proper setup, operation, maintenance
and service of this machine/equipment.
Failure to read, understand and follow the instructions given in this manual may result in
serious personal injury, including amputation, electrocution or death.
The owner of this machine/equipment is solely responsible for its safe use. This responsibility
includes but is not limited to proper installation in a safe environment, personnel training and
usage authorization, proper inspection and maintenance, manual availability and
comprehension, application of safety devices, blade/cutter integrity, and the usage of
personal protective equipment.
The manufacturer will not be held liable for injury or property damage from negligence,
improper training, machine modications or misuse.
Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to the State of California to cause cancer, birth defects or
other reproductive harm. Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: Work in a well ventilated area, and work with
approved safety equipment, such as those dust masks that are specially designed to lter out
microscopic particles.
Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to
include the basic information for safety, setup, operation, maintenance, and service of this product.
We stand behind our machines! In the event that questions arise about your machine, please contact
Woodstock International Technical Support at (360) 734-3482 or send e-mail to:
tech-support@shopfox.biz. Our knowledgeable sta will help you troubleshoot problems and
process warranty claims.
If you have comments about this manual, please contact us at:
Woodstock International, Inc.
Attn: Technical Documentation Manager
P.O. Box 2309
Bellingham, WA 98227
manuals@woodstockint.com
Table of Contents
INTRODUCTION .................................................... 2
Contact Info .................................................................... 2
Machine Descriptions ................................................. 2
Manual Accuracy .......................................................... 2
Model ST1006 Specifcations .................................... 3
Model ST1011 Specifications ................................... 5
Identification .................................................................. 7
Controls & Components ............................................ 8
SAFETY .................................................................. 9
Safety Instructions for Machinery .......................... 9
Additional Safety for Jointers.................................11
POWER REQUIREMENTS ..................................... 12
Circuit Requirements ................................................12
Grounding Requirements .......................................13
Extension Cords ..........................................................13
SETUP .................................................................. 14
Unpacking .....................................................................14
Items Needed for Setup ........................................... 14
Inventory .......................................................................15
Hardware Recognition Chart .................................16
Cleanup .......................................................................... 17
Site Considerations ....................................................18
Assembly .......................................................................19
Knife Setting Jig .......................................................... 23
Dust Collection ............................................................ 23
Test Run ..........................................................................24
Recommended Adjustments ................................. 25
Tighten Belt ..................................................................25
OPERATIONS ....................................................... 26
Overview .......................................................................26
Stock Inspection & Requirements ........................ 27
Squaring Stock ............................................................28
Surface Planing ........................................................... 29
Edge Jointing ............................................................... 30
Bevel Cutting................................................................31
Rabbet Cutting ............................................................ 32
ACCESSORIES ...................................................... 33
MAINTENANCE .................................................... 34
General ........................................................................... 34
Schedule ........................................................................ 34
Cleaning/Protecting .................................................. 34
Lubrication .................................................................... 34
V-Belts ............................................................................. 34
SERVICE ............................................................... 35
Troubleshooting .........................................................35
General ........................................................................... 37
Inspecting Knives ....................................................... 37
Adjusting/Replacing Knives (ST1006) ................. 38
Rotating/Replacing Cutterhead
Inserts (ST1011) ...........................................................41
Checking/Adjusting Table Parallelism ................42
Setting Outfeed Table Height ................................ 45
Setting Infeed Table Height .................................... 46
Calibrating Depth Scale ........................................... 46
Setting Fence Stops ...................................................47
Tensioning/Replacing V-Belt .................................. 48
Pulley Alignment ........................................................49
ELECTRICAL COMPONENTS ............................... 50
ST1006/ST1011 Wiring Diagram ........................... 51
PARTS ................................................................... 52
Stand Breakdown ....................................................... 52
Jointer Breakdown .....................................................54
Labels/Cosmetics ........................................................57
WARRANTY .......................................................... 58
Warranty Registration ...............................................59
We are proud to provide a high-quality owner’s
manual with your new machine!
We
instructions, specifications, drawings, and photographs
contained inside. Sometimes we make mistakes, but
our policy of continuous improvement also means
that
you receive will be
slightly different than what is shown in the manual
If you find this to be the case, and the difference
between the manual and machine leaves you confused about a procedure
check our website for
an updated version. W
manuals and
manual
www.
woodstockint
Alternatively, you can call our Technical Support for
help. Before calling, make sure you write down the
Manufacture Date
from the
machine ID label (see below). Also, if available, have
a copy of your
on hand.
This information is required for all Tech Support calls.
MODEL XXXX
MACHINE NAME
Motor:
Specification:
Specification:
Specification:
Specification:
Weight:
Specifications

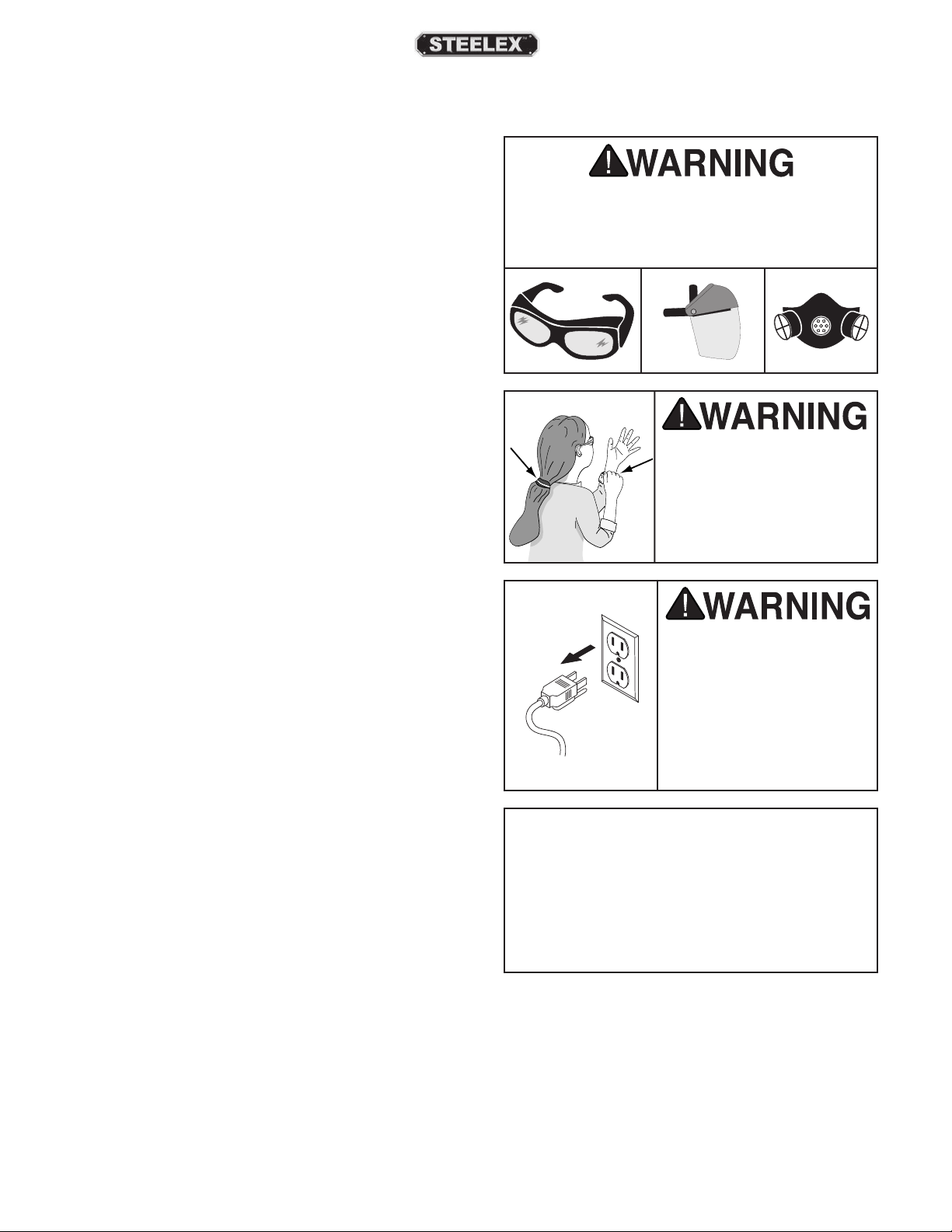

To reduce risk of serious personal injury when using this
machine:
1. Read & understand owner’s manual before operating.
2. Always wear approved eye protection and respirator.
3. Only plug power cord into a grounded outlet.
4. Only use this machine to collect wood dust/chips—never
use to collect glass, metal, liquids, asbestos, silica,
animal parts, biohazards, burning material/ashes, etc.
5. Always disconnect power before servicing or cleaning.
6. Do not expose to rain or wet areas.
7. Keep hands, long hair, and loose clothing away from
inlet.
8. Never leave machine unattended while it is running.
9. Do not use if cord/plug becomes damaged—promptly
repair and protect cord from future damage.
10. Do not use without dust bag or filters in place.
11. Always wear a respirator when emptying bags.
12. Prevent unauthorized use by children or untrained users.
Date
Serial Number
Manufactured for Woodstock in Taiwan
WARNING!
We are committed to customer satisfaction. If you
have any questions or need help, use the information
below to contact us.
IMPORTANT: Before contacting, please get the
original purchase receipt, serial number, and
manufacture date of your machine. This information is required for all Technical Support calls and
it will help us help you faster.
Email: manuals@woodstockint.com
INTRODUCTION
Contact Info
Woodstock International Technical Support
Phone: (360) 734-3482
Email: techsupport@woodstockint.com
We want your feedback on this manual. What did
you like about it? Where could it be improved?
Please take a few minutes to give us feedback.
Technical Documentation Manager
P.O. Box 2309
Bellingham, WA 98227
Manual Accuracy
made every effort to be exact with the
sometimes the machine
.
,
e post current
updates for free on our website at
.com.
and Serial Number
original purchase receipt
Machine Descriptions
Following are the differences between the models
covered in this manual:
• Model ST1006 = 8", 3 HP, with 3-Knife Cutterhead
• Model ST1011 = 8", 3 HP, with Helical Cutterhead
-2-
Manufacture
Date
Serial Number
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
MACHINE
SPECIFICATIONS
© Woodstock International, Inc. • Phone: (800) 840-8420 • Web: www.woodstockint.com
MODEL ST1006
8" JOINTER WITH ADJUSTABLE BEDS
Product Dimensions:
Weight ..................................................................................................................................................................................................................... 510 lbs.
Length x Width x Height .....................................................................................................................................................76-1/2 x 23-1/2 x 33 in.
Footprint (Length x Width) ..........................................................................................................................................................44-1/2 x 16-1/2 in.
Shipping Dimensions:
Carton #1
Type ........................................................................................................................................................................................................Wood Crate
Content .......................................................................................................................................................................................................Machine
Weight ........................................................................................................................................................................................................... 388 lbs.
Length x Width x Height ..........................................................................................................................................................81 x 24 x 11 in.
Carton#2
Type ..................................................................................................................................................................................................Cardboard Box
Content .............................................................................................................................................................................................................Stand
Weight ........................................................................................................................................................................................................... 157 lbs.
Length x Width x Height ..........................................................................................................................................................38 x 20 x 28 in.
Electrical:
Power Requirement.................................................................................................................. ....................................... 240V, Single-Phase, 60 Hz
Prewired Voltage........................................................................................................................................................................................................ 240V
Full-Load Current Rating ............................................................................................................................................................................................15A
Minimum Circuit Size ..................................................................................................................................................................................................20A
Connection Type ...........................................................................................................................................................................................Cord & Plug
Power Cord Included ...................................................................................................................................................................................................Yes
Power Cord Length ......................................................................................................................................................................................................6 ft.
Power Cord Gauge ...............................................................................................................................................................................................12 AWG
Plug Included ..................................................................................................................................................................................................................Yes
Included Plug Type .....................................................................................................................................................................................................6-20
Switch Type ............................................................................................................................................ Magnetic Switch w/Overload Protection
Motor:
Type.................................................................................................................. .......................................................... TEFC Capacitor-Start Induction
Horsepower .................................................................................................................................................................................................................. 3 HP
Phase ...............................................................................................................................................................................................................Single-Phase
Amps .................................................................................................................................................................................................................................15A
Speed ................................................................................................................................................................................................................... 3450 RPM
Power Transfer ...................................................................................................................................................................................................Belt Drive
Bearings ................................................................................................................................................................Sealed & Permanently Lubricated
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-3-
Main Specifications:
Operation
Bevel Jointing .............................................................................................................................................................................0 – 45 deg. L/R
Maximum Width of Cut ...............................................................................................................................................................................8 in.
Maximum Depth of Cut ...........................................................................................................................................................................1/8 in.
Minimum Workpiece Length ...................................................................................................................................................................10 in.
Minimum Workpiece Thickness ............................................................................................................................................................1/2 in.
Maximum Rabbeting Depth .................................................................................................................................................................. 5/8 in.
Number of Cuts Per Minute ................................................................................................................................................................ 21,400
Fence Information
Fence Length .................................................................................................................................................................................................35 in.
Fence Width ............................................................................................................................................................................................. 1-1/4 in.
Fence Height....................................................................................................................................................................................................5 in.
Fence Stops ...............................................................................................................................................................................45, 90, 135 deg.
Cutterhead Information
Cutterhead Type ........................................................................................................................................................................................4 Knife
Cutterhead Diameter ..........................................................................................................................................................................3-3/16 in.
Cutterhead Speed .............................................................................................................................................................................. 4800 RPM
Knife Information
Number of Knives ................................................................................................................................................................................................4
Knife Type ..............................................................................................................................................................................HSS, Single-Sided
Knife Length.....................................................................................................................................................................................................8 in.
Knife Width ...................................................................................................................................................................................................3/4 in.
Knife Thickness ...........................................................................................................................................................................................1/8 in.
Knife Adjustment ......................................................................................................................................................Jack Screws or Springs
Table Information
Table Length .......................................................................................................................................................................................76-5/16 in.
Table Width ......................................................................................................................................................................................................8 in.
Table Thickness .......................................................................................................................................................................................1-1/2 in.
Floor-to-Table Height .........................................................................................................................................................................32-5/8 in.
Table Adjustment Type ............................................................................................................................................................... Lever Action
Table Movement Type ...............................................................................................................................................................Parallelogram
Construction
Body Assembly ......................................................................................................................................................................................Cast Iron
Cabinet ....................................................................................................................................................................................Pre-Formed Steel
Fence Assembly .....................................................................................................................................................................................Cast Iron
Guard ............................................................................................................................................................................................. Die Cast Metal
Table ......................................................................................................................................................................Precision-Ground Cast Iron
Paint Type/Finish ......................................................................................................................................................................Powder Coated
Other Information
Number of Dust Ports ........................................................................................................................................................................................1
Dust Port Size ..................................................................................................................................................................................................4 in.
-4-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
MACHINE
SPECIFICATIONS
© Woodstock International, Inc. • Phone: (800) 840-8420 • Web: www.woodstockint.com
MODEL ST1011
8" JOINTER WITH MOBILE BASE
Product Dimensions:
Weight ..................................................................................................................................................................................................................... 508 lbs.
Length x Width x Height .....................................................................................................................................................76-1/2 x 23-1/2 x 33 in.
Footprint (Length x Width) ..........................................................................................................................................................44-1/2 x 16-1/2 in.
Shipping Dimensions:
Carton #1
Type ........................................................................................................................................................................................................Wood Crate
Content........................................................................................................................................................................................................ Machine
Weight ...........................................................................................................................................................................................................388 lbs.
Length x Width x Height ...........................................................................................................................................................81 x 24 x 11 in.
Carton#2
Type ..................................................................................................................................................................................................Cardboard Box
Content..............................................................................................................................................................................................................Stand
Weight ...........................................................................................................................................................................................................157 lbs.
Length x Width x Height ...........................................................................................................................................................38 x 20 x 28 in.
Electrical:
Power Requirement.................................................................................................................. ....................................... 240V, Single-Phase, 60 Hz
Full-Load Current Rating ............................................................................................................................................................................................15A
Minimum Circuit Size ..................................................................................................................................................................................................20A
Connection Type ...........................................................................................................................................................................................Cord & Plug
Power Cord Included ...................................................................................................................................................................................................Yes
Power Cord Length ......................................................................................................................................................................................................6 ft.
Power Cord Gauge ...............................................................................................................................................................................................12 AWG
Plug Included ..................................................................................................................................................................................................................Yes
Included Plug Type .....................................................................................................................................................................................................6-20
Switch Type ................................................................................................................. ON/OFF Push Button Switch w/Large Shut-Off Paddle
Motor:
Type.................................................................................................................. .......................................................... TEFC Capacitor-Start Induction
Horsepower .................................................................................................................................................................................................................. 3 HP
Phase ...............................................................................................................................................................................................................Single-Phase
Amps .................................................................................................................................................................................................................................15A
Speed ................................................................................................................................................................................................................... 3450 RPM
Power Transfer ...................................................................................................................................................................................................Belt Drive
Bearings ................................................................................................................................................................Sealed & Permanently Lubricated
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-5-
Main Specifications:
Operation
Bevel Jointing .............................................................................................................................................................................0 – 45 deg. L/R
Maximum Width of Cut ...............................................................................................................................................................................8 in.
Maximum Depth of Cut ...........................................................................................................................................................................1/8 in.
Minimum Workpiece Length ...................................................................................................................................................................10 in.
Minimum Workpiece Thickness ............................................................................................................................................................1/2 in.
Maximum Rabbeting Depth .................................................................................................................................................................. 5/8 in.
Number of Cuts Per Minute ................................................................................................................................................................ 21,400
Fence Information
Fence Length .................................................................................................................................................................................................36 in.
Fence Width ............................................................................................................................................................................................. 1-1/4 in.
Fence Height....................................................................................................................................................................................................5 in.
Fence Stops ...............................................................................................................................................................................45, 90, 135 deg.
Cutterhead Information
Cutterhead Type .......................................................................................................................................................................................... Spiral
Cutterhead Diameter ............................................................................................................................................................................ 3-3/8 in.
Number of Cutter Spirals ..................................................................................................................................................................................4
Number of Indexable Cutters .......................................................................................................................................................................40
Cutterhead Speed .............................................................................................................................................................................. 5350 RPM
Cutter Insert Information
Cutter Insert Type ..............................................................................................................................................Curved Indexable Carbide
Cutter Insert Length................................................................................................................................................................................ 15 mm
Cutter Insert Width .................................................................................................................................................................................. 15 mm
Cutter Insert Thickness ......................................................................................................................................................................... 2.5 mm
Table Information
Table Length ..........................................................................................................................................................................................76-3/8 in.
Table Width ......................................................................................................................................................................................................8 in.
Table Thickness ....................................................................................................................................................................................... 1-1/2 in.
Floor-to-Table Height .........................................................................................................................................................................32-5/8 in.
Table Adjustment Type ...............................................................................................................................................................Lever-Action
Table Movement Type ...............................................................................................................................................................Parallelogram
Construction
Body Assembly ......................................................................................................................................................................................Cast Iron
Cabinet ....................................................................................................................................................................................Pre-Formed Steel
Fence Assembly .....................................................................................................................................................................................Cast Iron
Guard ............................................................................................................................................................................................. Die Cast Metal
Table ......................................................................................................................................................................Precision-Ground Cast Iron
Paint Type/Finish ......................................................................................................................................................................Powder Coated
Other Information
Number of Dust Ports ........................................................................................................................................................................................1
Dust Port Size ..................................................................................................................................................................................................4 in.
Mobile Base ................................................................................................................................................................................................Built-In
-6-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Machine Features
risk of
serious injury, read this
The instructions in this manual will be easier to understand if you become familiar with the location and names
of the basic features of your new machine. Use the list below with the letters in Figure 1 and Figure 2 to identify
the 8" jointer feature locations.
B C
D
E
A
F
G
H
L
J
I
K
Figure 1. Front view of machine.
A. Outfeed Table
B. Fence
C. Cutterhead Guard
D. Control Panel
E. Infeed Table
F. Infeed Table Adjustment Lever
G. Cutting Depth Scale
H. Infeed Table Lock
I. Mobile Base Lock Pedal
J. Outfeed Table Lock
K. Dust Port
L. Outfeed Table Adjustment Lever
M. Fence Tilt Handle
N. Fence Tilt Lock
O. Outfeed Table Positive Stops
P. Fence Lock
Q. Belt Guard
R. Infeed Table Positive Stops
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
M
N
O
R Q P
Figure 2. Back view of machine.
To reduce your
entire manual BEFORE using
machine.
-7-
Controls &
Components
This section covers the basic controls used during
routine operations.
STOP Button: Stops motor when pushed in and disables the START button. Enable the START button by
twisting the STOP button until it springs forward in
the out position.
START Button: Starts motor only if the STOP button
is in the out position (see Figure 3).
The outfeed table is preset with positive stops, so no
range of movement is allowed (if it gets accidentally
unlocked it will not move). To adjust the outfeed
table positive stops refer to Setting Outfeed Table
Height on Page 46.
Fence Movement: The fence has a lock handle that
keeps it in position (see Figure 5). To move the fence,
loosen the lock handle and slide the fence where
needed.
Fence Tilting: The tilt lock (see Figure 5) secures
the fence at any position in the available range. The
plunger locks into an indexing ring to easily set the
fence tilt to 90°. Positive stops stop the fence at 45°
inward and 45° outward, for common 45° bevel cuts.
Even when the fence is resting against the positive
stops, the tilt lock must be tightened before cutting.
STOP Button
Figure 3. START/STOP button locations.
Table Movement: To move the infeed table, loosen
the table lock (see Figure 4), move the table with the
table lever, then tighten the table lock. The infeed
table will only move through the preset range of the
positive stops. To adjust the infeed table positive
stops, refer to Setting Infeed Table Height on Page
47.
Table Locks
START Button
Plunger
Fence Tilt
Lever
Figure 5. Fence lock, tilt lock and stop block
locations.
Tilt Lock
Fence
Lock Handle
Outfeed
Table Lever
-8-
Infeed Table
Lever
Figure 4. Table control locations.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
For Your Own Safety, Read Instruction Manual
SAFETY
Before Operating This Machine
The purpose of safety symbols is to attract your attention to possible hazardous conditions. This
manual uses a series of symbols and signal words intended to convey the level of importance of the
safety messages. The progression of symbols is described below. Remember that safety messages by
themselves do not eliminate danger and are not a substitute for proper accident prevention measures.
Always use common sense and good judgment.
Indicates an imminently hazardous situation which, if not avoided, WILL
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, COULD
result in death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, MAY
result in minor or moderate injury. It may also be used to alert against
unsafe practices.
NOTICE
This symbol is used to alert the user to useful information about proper
operation of the machine.
Safety Instructions for Machinery
OWNER’S MANUAL. Read and understand this
owner’s manual BEFORE using machine.
TRAINED OPERATORS ONLY. Untrained operators
have a higher risk of being hurt or killed. Only
allow trained/supervised people to use this machine.
When machine is not being used, disconnect power,
remove switch keys, or lock-out machine to prevent
unauthorized use—especially around children. Make
workshop kid proof!
DANGEROUS ENVIRONMENTS. Do not use machinery in areas that are wet, cluttered, or have poor
lighting. Operating machinery in these areas greatly
increases the risk of accidents and injury.
MENTAL ALERTNESS REQUIRED. Full mental alertness is required for safe operation of machinery.
Never operate under the influence of drugs or alcohol, when tired, or when distracted.
ELECTRICAL EQUIPMENT INJURY RISKS. You can
be shocked, burned, or killed by touching live electrical components or improperly grounded machinery.
To reduce this risk, only allow qualified service personnel to do electrical installation or repair work, and
always disconnect power before accessing or exposing electrical equipment.
DISCONNECT POWER FIRST. Always disconnect
machine from power supply BEFORE making adjustments, changing tooling, or servicing machine. This
prevents an injury risk from unintended startup or
contact with live electrical components.
EYE PROTECTION. Always wear ANSI-approved safety glasses or a face shield when operating or observing machinery to reduce the risk of eye injury or
blindness from flying particles. Everyday eyeglasses
are NOT approved safety glasses.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-9-
WEARING PROPER APPAREL. Do not wear clothing, apparel or jewelry that can become entangled
in moving parts. Always tie back or cover long hair.
Wear non-slip footwear to reduce risk of slipping and
losing control or accidentally contacting cutting tool
or moving parts.
HAZARDOUS DUST. Dust created by machinery
operations may cause cancer, birth defects, or longterm respiratory damage. Be aware of dust hazards
associated with each workpiece material. Always
wear a NIOSH-approved respirator to reduce your
risk.
HEARING PROTECTION. Always wear hearing protection when operating or observing loud machinery. Extended exposure to this noise without hearing
protection can cause permanent hearing loss.
REMOVE ADJUSTING TOOLS. Tools left on machinery can become dangerous projectiles upon startup.
Never leave chuck keys, wrenches, or any other tools
on machine. Always verify removal before starting!
USE CORRECT TOOL FOR THE JOB. Only use this
tool for its intended purpose—do not force it or an
attachment to do a job for which it was not designed.
Never make unapproved modifications—modifying
tool or using it differently than intended may result
in malfunction or mechanical failure that can lead to
personal injury or death!
AWKWARD POSITIONS. Keep proper footing and
balance at all times when operating machine. Do
not overreach! Avoid awkward hand positions that
make workpiece control difficult or increase the risk
of accidental injury.
CHILDREN & BYSTANDERS. Keep children and
bystanders at a safe distance from the work area.Stop
using machine if they become a distraction.
GUARDS & COVERS. Guards and covers reduce accidental contact with moving parts or flying debris.
Make sure they are properly installed, undamaged,
and working correctly BEFORE operating machine.
FORCING MACHINERY. Do not force machine. It will
do the job safer and better at the rate for which it was
designed.
NEVER STAND ON MACHINE. Serious injury may
occur if machine is tipped or if the cutting tool is
unintentionally contacted.
STABLE MACHINE. Unexpected movement during
operation greatly increases risk of injury or loss of
control. Before starting, verify machine is stable and
mobile base (if used) is locked.
USE RECOMMENDED ACCESSORIES. Consult this
owner’s manual or the manufacturer for recommended accessories. Using improper accessories will
increase the risk of serious injury.
UNATTENDED OPERATION. To reduce the risk of
accidental injury, turn machine OFF and ensure all
moving parts completely stop before walking away.
Never leave machine running while unattended.
MAINTAIN WITH CARE. Follow all maintenance
instructions and lubrication schedules to keep
machine in good working condition. A machine that
is improperly maintained could malfunction, leading
to serious personal injury or death.
DAMAGED PARTS. Regularly inspect machine for
damaged, loose, or mis-adjusted parts—or any condition that could affect safe operation. Immediately
repair/replace BEFORE operating machine. For your
own safety, DO NOT operate machine with damaged
parts!
MAINTAIN POWER CORDS. When disconnecting
cord-connected machines from power, grab and pull
the plug—NOT the cord. Pulling the cord may damage the wires inside. Do not handle cord/plug with
wet hands. Avoid cord damage by keeping it away
from heated surfaces, high traffic areas, harsh chemicals, and wet/damp locations.
EXPERIENCING DIFFICULTIES. If at any time you
experience difficulties performing the intended
operation, stop using the machine! Contact our
Technical Support at (570) 546-9663.
-10-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Additional Safety for Jointers
Serious cuts, amputation, entanglement, or death can occur from contact with rotating cutterhead
or other moving components! Flying chips can cause blindness or eye injuries. Workpieces or inserts/
knives thrown by cutterhead can strike nearby operator or bystanders with deadly force. To reduce
the risk of these hazards, operator and bystanders MUST completely heed the hazards and warnings
KICKBACK. Occurs when workpiece is ejected from
machine at a high rate of speed. To reduce the risk
of kickback-related injuries, use quality workpieces,
safe feeding techniques, and proper machine setup
or maintenance.
GUARD REMOVAL. Operating jointer without guard
exposes operator to knives/inserts. Except when rabbeting, never remove guards for regular operations
or while connected to power. Turn jointer OFF and
disconnect power before clearing any shavings or
sawdust from around cutterhead. After rabbeting
or maintenance is complete, immediately replace all
guards and ensure they are properly adjusted before
resuming regular operations.
DULL/DAMAGED KNIVES/INSERTS. Dull knives/
inserts can increase risk of kickback and cause poor
workpiece finish. Only use sharp, undamaged knives/
inserts.
OUTFEED TABLE ALIGNMENT. Setting outfeed
table too high can cause workpiece to hit table and
get stuck, increasing risk of kickback. Setting outfeed table too low may cause workpiece to become
tapered from front to back. Always keep outfeed
table even with knives/inserts at top dead center
(highest point during rotation).
INSPECTING STOCK. Impact injuries or fire may
result from using poor workpieces. Thoroughly
inspect and prepare workpiece before cutting. Verify
workpiece is free of nails, staples, loose knots or other
foreign material. Workpieces with minor warping
should be surface planed first with cupped side facing infeed table.
GRAIN DIRECTION. Jointing against the grain or end
grain can increase the risk of kickback. It also requires
more cutting force, which produces chatter or excessive chip out. Always joint or surface plane WITH the
grain.
MAXIMUM CUTTING DEPTH. To reduce risk of kick-
1
back, never cut deeper than
⁄8 " per pass.
CUTTING LIMITATIONS. Cutting a workpiece that
does not meet the minimum dimension requirements can result in breakup, kickback, or accidental
contact with cutterhead during operation. Never
perform jointing, planing, or rabbeting cuts on pieces
3
smaller than 8" long,
⁄4" wide, or 1⁄4" thick.
PUSH BLOCKS. Not using push blocks when surface
planing may result in accidental cutterhead contact.
Always use push blocks when planing materials less
than 3" high or wide. Never pass your hands directly
over cutterhead without a push block.
WORKPIECE SUPPORT. Loss of workpiece control
while feeding can increase risk of kickback or accidental contact with cutterhead. Support workpiece
continuously during operation. Position and guide
workpiece with fence. Support long or wide stock
with auxiliary stands.
FEED WORKPIECE PROPERLY. Kickback or accidental cutterhead contact may result if workpiece is fed
into cutterhead the wrong way. Allow cutterhead to
reach full speed before feeding. Never start jointer
with workpiece touching cutterhead. Always feed
workpiece from infeed side to outfeed side without
stopping until cut is complete. Never back work
toward infeed table.
SECURE KNIVES/INSERTS. Loose knives or improperly set inserts can become dangerous projectiles or
cause machine damage. Always verify knives/inserts
are secure and properly adjusted before operation.
1
Straight knives should never project more than
⁄8 "
(0 .125") from cutterhead body.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-11-
ELECTRICAL
Circuit Requirements
Serious personal injury could occur if you connect the machine to the power source before
you have completed the set up process. DO
NOT connect the machine to the power source
until instructed to do so.
This machine must be connected to the correct size
and type of power supply circuit, or fire or electrical
damage may occur. Read through this section to
determine if an adequate power supply circuit is
available. If a correct circuit is not available, an electrician or qualified service personnel MUST install one
before you can connect the machine to power.
A power supply circuit includes all electrical equipment between the breaker box or fuse panel in the
building and the machine. The power supply circuit
used for this machine must be sized to safely handle
the full-load current drawn from the machine for an
extended period of time. (If this machine is connected to a circuit protected by fuses, use a time delay
fuse marked D.)
Incorrectly wiring or
grounding this machine can
cause electrocution, fire, or
machine damage. To reduce
this risk, only an electrician
or qualified service personnel should do any required
electrical work on this
machine.
Full-Load Current Rating
The full-load current rating is the amperage a
machine draws at 100% of the rated output power.
On machines with multiple motors, this is the amperage drawn by the largest motor or sum of all motors
and electrical devices that might operate at one time
during normal operations.
ST1006/ST1011
Full-Load Current Rating.......................... 15 Amps
This machine is prewired to operate on a power supply circuit that has a verified ground and meets the
following requirements:
ST1006/ST1011 Circuit Requirements
Nominal Voltage .............................................240V
Cycle ............................................................... 60 Hz
Phase ................................................. Single-Phase
Power Supply Circuit ................................20 Amps
Plug/Receptacle ....................................NEMA 6-20
The circuit requirements listed in this manual
apply to a dedicated circuit—where only
one machine will be running at a time. If this
machine will be connected to a shared circuit
where multiple machines will be running at the
same time, consult a qualified electrician to
ensure that the circuit is properly sized for safe
operation.
-12-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
an electrician or qualified service personnel,
and it must comply with all local codes and
This machine is equipped with a power cord that
has an equipment-grounding wire and a grounding
plug. Only insert plug into a matching receptacle
(outlet) that is properly installed and grounded in
accordance with all local codes and ordinances.
DO NOT modify the provided plug!
Grounding
Requirements
This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding
provides a path of least resistance for electric current
to travel—in order to reduce the risk of electric shock.
Improper connection of the equipment-grounding
wire will increase the risk of electric shock. The wire
with green insulation (with/without yellow stripes) is
the equipment-grounding wire. If repair or replacement of the power cord or plug is necessary, do not
connect the equipment-grounding wire to a live
(current carrying) terminal.
Check with a qualified electrician or service personnel if you do not understand these grounding
requirements, or if you are in doubt about whether
the tool is properly grounded. If you ever notice that
a cord or plug is damaged or worn, disconnect it
from power, and immediately replace it with a new
one.
GROUNDED
6-20 RECEPTACLE
No adapter should be used with plug. If plug
does not fit available receptacle, or if machine
must be reconnected for use on a different type
of circuit, reconnection must be performed by
ordinances.
Extension Cords
We do not recommend using an extension cord
with this machine. Extension cords cause voltage
drop, which may damage electrical components and
shorten motor life. Voltage drop increases with longer extension cords and smaller gauge sizes (higher
gauge numbers indicate smaller sizes).
Any extension cord used with this machine must
contain a ground wire, match the required plug and
receptacle, and meet the following requirements:
Minimum Gauge Size ................................ 12 AWG
Maximum Length (Shorter is Better) ............50 ft.
Current Carrying Prongs
6-20 PLUG
Grounding Prong
Figure 6. Typical 6-20 plug and receptacle.
The machine must be properly set up before
it is safe to operate. DO NOT connect this
machine to the power source until instructed
to do later in this manual.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-13-
SETUP
Unpacking
The Model ST1006/ST1011 was carefully packed
when it left our warehouse. If you discover your
machine is damaged immediately call your dealer.
Save the containers and all packing materials for possible inspection by the carrier or its agent. Otherwise,
filing a freight claim can be difficult.
When you are completely satisfied with the condition
of your shipment, you should inventory the contents.
SUFFOCATION HAZARD!
Immediately discard all plastic bags and packing materials to eliminate choking/suffocation hazards for children
and animals.
Items Needed for
Setup
The following items are needed to complete the set
up process, but are not included with your machine:
DESCRIPTION Qty
• Straightedges ............................................................... 1
• Additional People ....................................................... 4
Phillips Screwdriver #2 .............................................. 1
• Wrench or Socket 17mm ......................................... 1
• Wrench or Socket 14mm ......................................... 1
• Wrench or Socket 13mm ......................................... 1
• Dust Collection System ............................................ 1
• Dust Hose 4" ................................................................. 1
READ and understand this
entire instruction manual
before using this machine.
Serious personal injury
may occur if safety and
operational information
is not understood and followed. DO NOT risk your
safety by not reading!
-14-
UNPLUG power cord
before you do any assembly or adjustment tasks!
Otherwise, serious personal injury to you or others may occur!
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Inventory
NOTICE
If you cannot find an item on this list, carefully check around/inside the machine and
packaging materials. Often, these items get
lost in packaging materials while unpacking or
they are pre-installed at the factory.
The following is a list of items shipped with your
machine. Before beginning setup, lay these items out
and inventory them.
Note: If you cannot find an item on this list,
carefully check around/inside the machine and
packaging materials. Often, these items get lost
in packaging materials while unpacking or they
are pre-installed at the factory.
A
B
D
G
Figure 7. Wood crate inventory.
C
E
F
H
I
J
Wood Crate (Figure 7) Qty
A. Jointer Assembly ......................................................... 1
B. Carriage .......................................................................... 1
C. Fence ............................................................................... 1
D. Push Blocks ................................................................... 1
E. Rabbet Table ................................................................. 2
F. Cutterhead Guard ....................................................... 1
G. Hex Wrenches 2.5, 4, 5, 6, 8mm .......................1 Ea.
H. Handle ............................................................................. 1
I. Fence Tilt Lever ............................................................ 1
J. Open-End Wrench 8/10, 12/14mm ................1 Ea.
K. Knife Setting Jig (Not Shown) (ST1006) ............. 1
K. Indexable Carbide Inserts
(Not Shown) (ST1011) ............................................... 1
Cardboard Box (Figure 8) Qty
L. Stand Assembly w/Motor ........................................ 1
M. Pedestal Switch ........................................................... 1
N. Caster Wheel Assembly ............................................ 1
O. Belt Guard ...................................................................... 1
P. Dust Port ........................................................................ 1
Q. V-Belt ............................................................................... 1
If any parts are missing, find the part number in
the back of this manual and contact Woodstock
International, Inc. at (360) 734-3482 or at
techsupport@woodstockint.com.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
L
O
N
Q
Figure 8. Cardboard box inventory.
Hardware (See Hardware Recognition Chart)
• Hex Bolts M8-1.25 x 50 (Wheel/Stand) ............... 1
• Hex Bolts M10-1.5 x 55 (Wheel/Stand) ............... 1
• Flat Washer 8mm (Wheel/Stand) .......................... 2
• Flat Washers 10mm (Wheel/Stand,
Carriage, Pedestal) ...................................................... 6
• Hex Nuts M10-1.5 (Wheel/Stand) ......................... 2
• Cap Screws M8-1.25 x 25 (Jointer/Stand) .......... 8
• Lock Washers 8mm (Jointer/Stand) ..................... 8
• Flange Bolts M6-1 x 10 (Belt Guard) .................... 2
• Hex Nuts M6-1 (Belt Guard) .................................... 2
• Flat Washers 6mm (Belt Guard) ............................. 2
• Cap Screws M6-1 x 20 (Extension Table) ............ 2
• Cap Screws M10-1.5 x 30 (Carriage) ..................... 2
• Cap Screws M8-1.25 x 30 (Fence).......................... 2
• Cap Screws M10-1.5 x 25 (Pedestal) .................... 2
• Lock Washers 10mm (Pedestal) ............................. 2
• Phillips Screws M5-.8 x 16 (Dust Port) ................. 4
• Flat Washers 5mm (Dust Port) ................................ 4
M
P
-15-
Hardware Recognition Chart
USE THIS CHART TO IDENTIFY
HARDWARE DURING THE
INVENTORY/ASSEMBLY
PROCESS.
1
⁄4"
3
⁄8"
1
⁄2"
5
⁄8"
⁄16" INCH APART
1
LINES ARE
5
7
9
3
7
1
1
1
1
2
2
2
2
3
⁄16"
⁄16"
⁄16"
⁄4"
⁄8"
1
⁄4"
1
⁄2"
3
⁄4"
1
1
3
⁄4"
⁄4"
⁄2"
#10
1
⁄4"
5
⁄16"
3
⁄8"
7
⁄16"
1
⁄2"
WASHERS ARE MEASURED BY THE INSIDE DIAMETER
S
A
W
A
W
H
S
E
H
H
S
E
H
S
D
R
E
8mm
A
W
D
R
7
⁄16"
D
R
E
A
W
#10
D
I
A
R
M
E
T
E
5
⁄8"
I
A
I
A
I
A
M
E
T
E
R
R
M
E
T
E
R
M
E
T
E
R
E
H
S
10mm
A
D
R
E
H
3
S
⁄8"
A
W
D
I
A
R
M
E
H
E
S
T
E
A
R
W
4mm
R
W
D
I
A
R
E
H
S
A
W
D
I
I
A
M
E
R
M
E
T
⁄16"
E
T
E
E
R
H
S
A
A
I
D
M
R
E
E
H
S
D
I
R
E
H
S
A
W
T
5
E
⁄16"
R
A
W
A
M
E
T
E
R
9
A
M
R
E
T
5mm
E
H
S
A
W
R
E
12mm
W
D
R
1
D
⁄2"
I
A
M
E
H
S
A
R
E
H
S
A
6mm
I
A
M
E
T
E
R
E
T
E
R
D
I
A
R
M
E
1
T
⁄4"
E
R
W
D
I
A
M
E
T
E
R
W
MEASURE BOLT DIAMETER BY PLACING INSIDE CIRCLE
LINES ARE 1MM APART
5mm
10mm
15mm
20mm
25mm
30mm
35mm
40mm
45mm
50mm
55mm
60mm
65mm
70mm
75mm
4mm
5mm
6mm
8mm
10mm
12mm
16mm
Cap
Screw
Hex
Bolt
External
Retaining
Ring
Key
Carriage
Bolt
Flat
Head
Screw
Internal
Retaining
Ring
Flat Washer
Flange
Bolt
Tap
Screw
E-Clip
Lock
Washer
Button
Head
Screw
Set
Screw
Lock
Nut
Phillips
Head
Screw
Wing
Nut
Hex
Wrench
Hex
Nut
-16-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Cleanup
The unpainted surfaces of your machine are coated
with a heavy-duty rust preventative that prevents
corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little
time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will give
you a better appreciation for the proper care of your
machine's unpainted surfaces.
Before cleaning, gather the following:
• Disposable rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1.
2.
3.
4.
machinery. Avoid using
There are many ways to remove this rust preven-
tative, but the following steps work well in a
wide variety of situations. Always follow the
manufacturer’s instructions with any cleaning product you use and make sure you
work in a well-ventilated area to minimize
exposure to toxic fumes.
Gasoline and petroleum
products have low flash
points and can explode or
cause fire if used to clean
these products to clean
machinery.
Many cleaning solvents are
toxic if inhaled. Only work
in a well-ventilated area.
NOTICE
Avoid chlorine-based solvents, such as acetone or brake parts cleaner, that may damage
painted surfaces.
Put on safety glasses.
Coat the rust preventative with a liberal amount
of cleaner/degreaser, then let it soak for 5–10
minutes.
Wipe off the surfaces. If your cleaner/degreaser
is effective, the rust preventative will wipe off
easily. If you have a plastic paint scraper, scrape
off as much as you can first, then wipe off the
rest with the rag.
Repeat Steps 2–3 as necessary until clean, then
coat all unpainted surfaces with a quality metal
protectant to prevent rust.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-17-
Weight Load
Refer to the
of your machine. Make sure that the surface upon
which the machine is placed will bear the weight
of the machine, additional equipment that may be
installed on the machine, and the heaviest workpiece
that will be used. Additionally, consider the weight
of the operator and any dynamic loading that may
occur when operating the machine.
Space Allocation
Consider the largest size of workpiece that will
be processed through this machine and provide
enough space around the machine for adequate
operator material handling or the installation of
auxiliary equipment. With permanent installations,
leave enough space around the machine to open
or remove doors/covers as required by the maintenance and service described in this manual.
below for required space allocation.
Physical Environment
The physical environment where the machine is
operated is important for safe operation and longevity of machine components. For best results, operate
this machine in a dry environment that is free from
excessive moisture, hazardous chemicals, airborne
abrasives, or extreme conditions. Extreme conditions
for this type of machinery are generally those where
the ambient temperature range exceeds 41°–104°F;
the relative humidity range exceeds 20%–95% (noncondensing); or the environment is subject to vibra-
Place this machine near an existing power source.
Make sure all power cords are protected from traffic, material handling, moisture, chemicals, or other
hazards. Make sure to leave enough space around
machine to disconnect power supply or apply a lock-
Lighting around the machine must be adequate
enough that operations can be performed safely.
Shadows, glare, or strobe effects that may distract or
Site Considerations
Machine Specifications for the weight
tion, shocks, or bumps.
Electrical Installation
Children or untrained people
may be seriously injured by this
machine. Only install in an access
restricted location.
30" Minimum
Working Clearance
See
out/tagout device, if required.
Lighting
761/2"
impede the operator must be eliminated.
Wall
231/2"
-18-
Figure 9. Working clearances.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

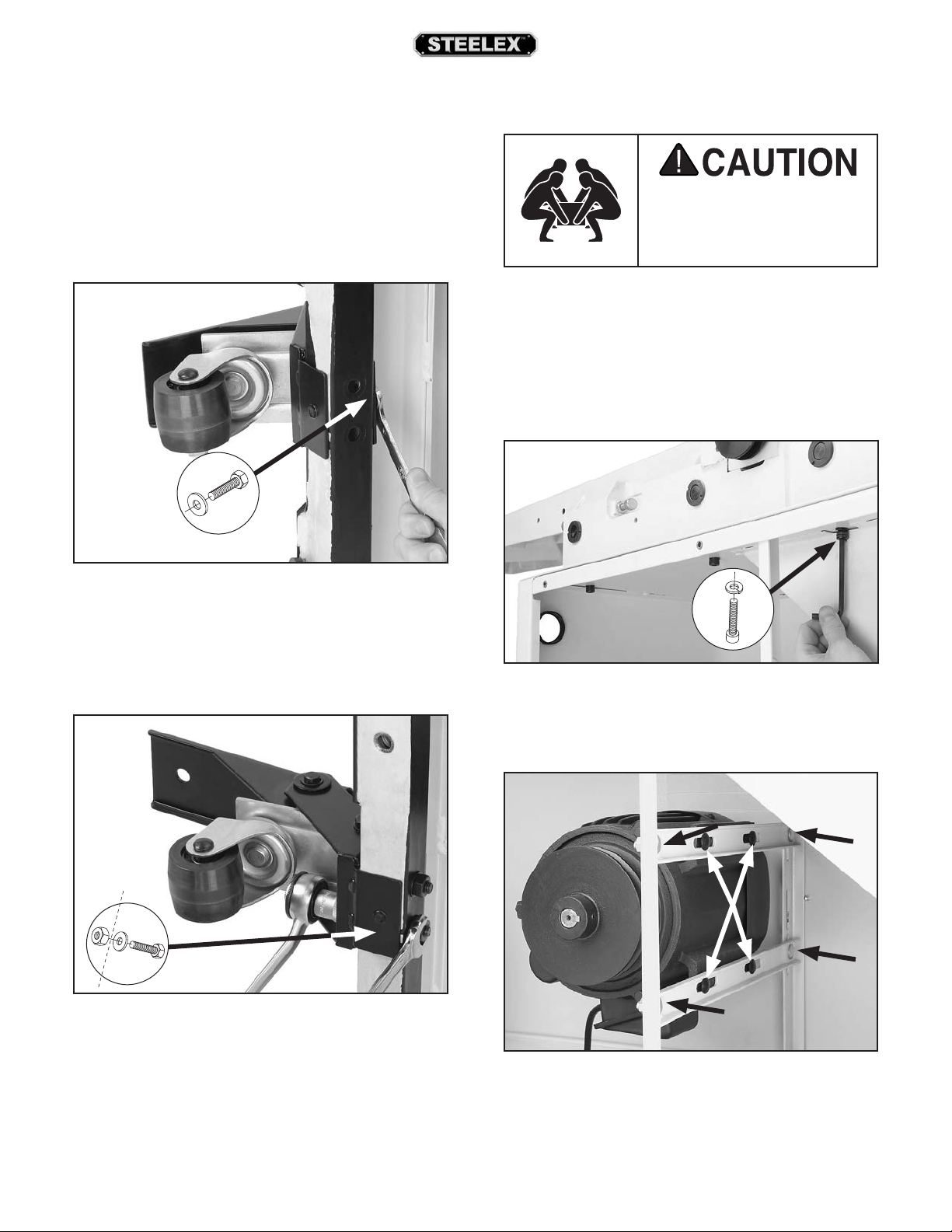

Assembly
To assemble jointer:
1. Carefully lay the stand on its side.
2. Use (1) M8-1.25 x 50 hex bolt and (1) 8mm flat
washer to bolt the wheel assembly to the stand,
as shown in Figure
10.
4. Turn the stand rightside up and remove the
back cover.
The jointer is very heavy. The
next step requires 4 strong
people or power lifting
equipment to lift the jointer.
5. With assistance, lift the jointer onto the stand
and align the mounting holes.
6. Use (8) M8-1.25 x 25 cap screws and (8) 8mm
lock washers to secure the jointer to the stand,
as shown in Figure
12.
Figure 10. Bolting wheel assembly to stand.
3. Use (2) M10-1.5 x 55 hex bolts, (2) 10mm flat
washers, and (2) M10-1.5 hex nuts to further
secure the wheel assembly to the stand, as
shown in Figure
x 2
Figure 11. Securing wheel assembly to stand.
11.
x 8
Figure 12. Securing the jointer to stand.
7. Loosen motor bracket bolts shown in Figure
13.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Figure 13. Motor bracket bolts (black arrows) and
motor mount bolts (white arrows).
-19-

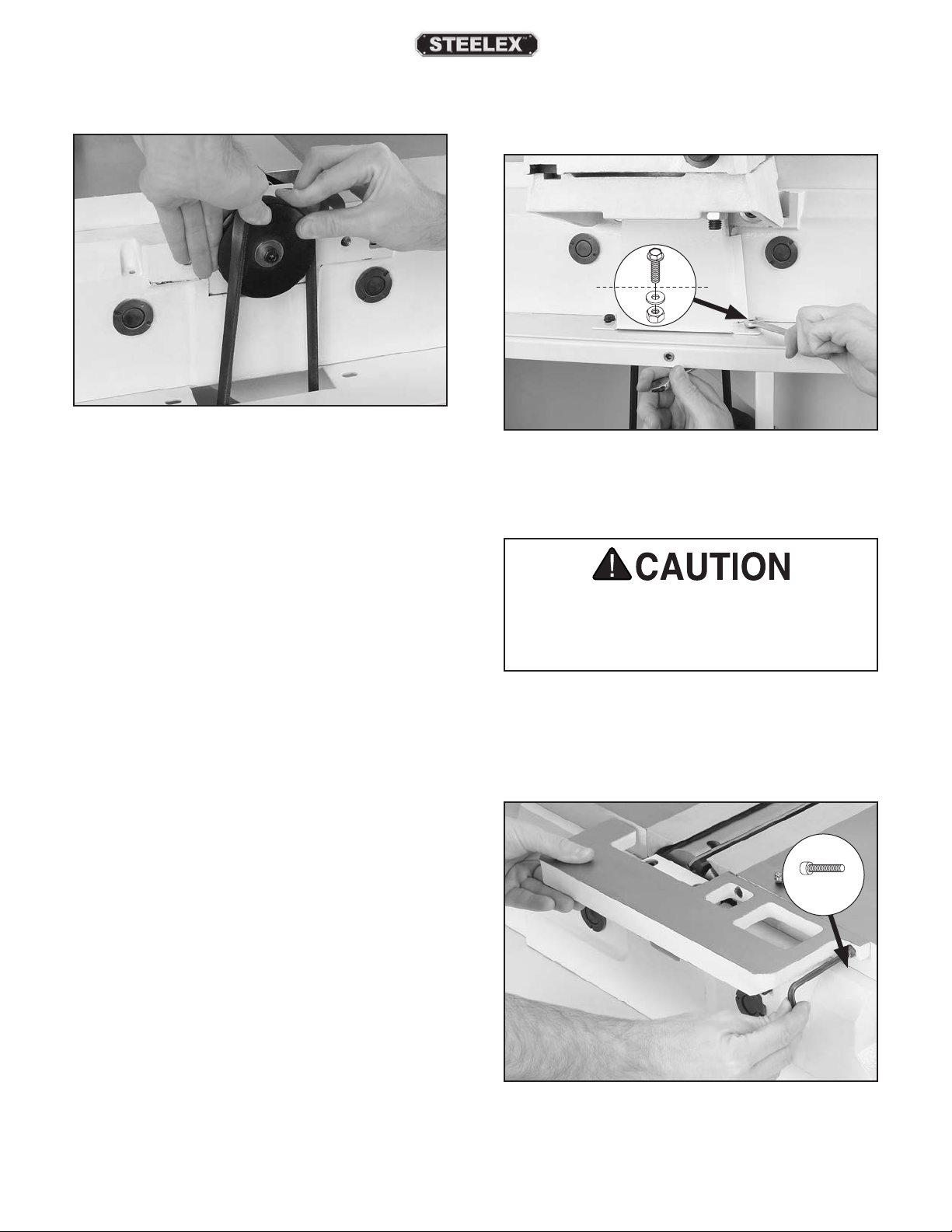

8. Put the V-belt on motor pulley, then roll it onto
the cutterhead pulley, as shown in Figure 14.
Figure 14. Rolling the V-belt onto cutterhead pulley.
9. Check the alignment of the pulleys to make sure
the V-belt is straight up and down.
— If the pulleys are aligned, go to Step 13.
14. Use (2) M6-1 x 10 flange bolts, (2) M6-1 hex
nuts, and (2) 6mm flat washers to install the belt
guard, as shown in Figure 15.
x 2
Figure 15. Installing the belt guard.
15. Replace the cover on the back of the jointer
stand.
— If the pulleys are NOT aligned, follow Steps
10–12.
10. Remove V-belt and loosen motor mount bolts
(see Figure 13).
11. Shift the motor horizontally as needed to align
the pulleys, and tighten the motor mount bolts.
12. Re-install the V-belt on the pulleys.
13. Pull down on the motor with one hand to keep
tension on the V-belt, and tighten the motor
bracket bolts with your other hand.
Note: DO NOT use a mechanical device to push
the motor down farther than you can by hand or
you will overtighten your V-belt, which will lead to
shortened bearing life in the motor or cutterhead.
The belt guard MUST be installed before operating the jointer or the moving V-belt will be
exposed, creating an entanglement hazard at
the back of the jointer.
16. Use (2) M6-1 x 20 cap screws to attach the rab-
bet table to the front of the jointer, as shown
in Figure 16, but do not fully tighten the cap
screws yet.
x 2
-20 -
Figure 16. Attaching rabbet table to jointer.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
17. Use a straightedge to make the extension table
flush with the infeed table, then tighten the two
cap screws to secure the rabbet table in place.
20. Use (2) M10-1.5 x 30 cap screws and (2) 10mm
flat washers to attach the fence carriage base to
the back of the jointer, as shown in Figure 18.
NOTICE
The outfeed table MUST be level with the
knives at their highest point during rotation
or else the workpiece cannot be feed across
the jointer safely. The outfeed table height is
factory set, but we recommend that you check
it to make sure that it didn't change during
shipping.
18. Place a straightedge on the outfeed table so it
extends over the cutterhead.
19. Carefully rotate the cutterhead pulley and notice
if the knife contacts the straightedge when the
knife is at its highest point in the rotation (top
dead center or TDC), as shown in Figure 17.
Straightedge
Outfeed Infeed
Lock Handle
x 2
Figure 18. Fence carriage base mounted on the
back of the jointer.
21. Mount the lock handle on the carriage.
22. Attach the fence to the carriage with the two
M8-1.25 x 30 cap screws, as shown in Figure 19.
Figure 17. Make sure outfeed table is level with
knives at their highest point of rotation (TDC).
—The knife will barely touch the straightedge
when the outfeed table is set correctly. If the
outfeed table is set correctly, continue with
the next step.
— If the knife lifts the straightedge or does not
contact the straightedge, the outfeed table
must be adjusted. Do the procedure given
in Setting Outfeed Table Height Even with
Knives on Page 30, then continue with the
next step in this section.
— If one knife is even with the outfeed table
but other knives are not, then the knife
height must be adjusted. Refer to Adjusting/
Replacing Knives on Page 39.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
x 2
Figure 19. Attaching fence to carriage.
-21-

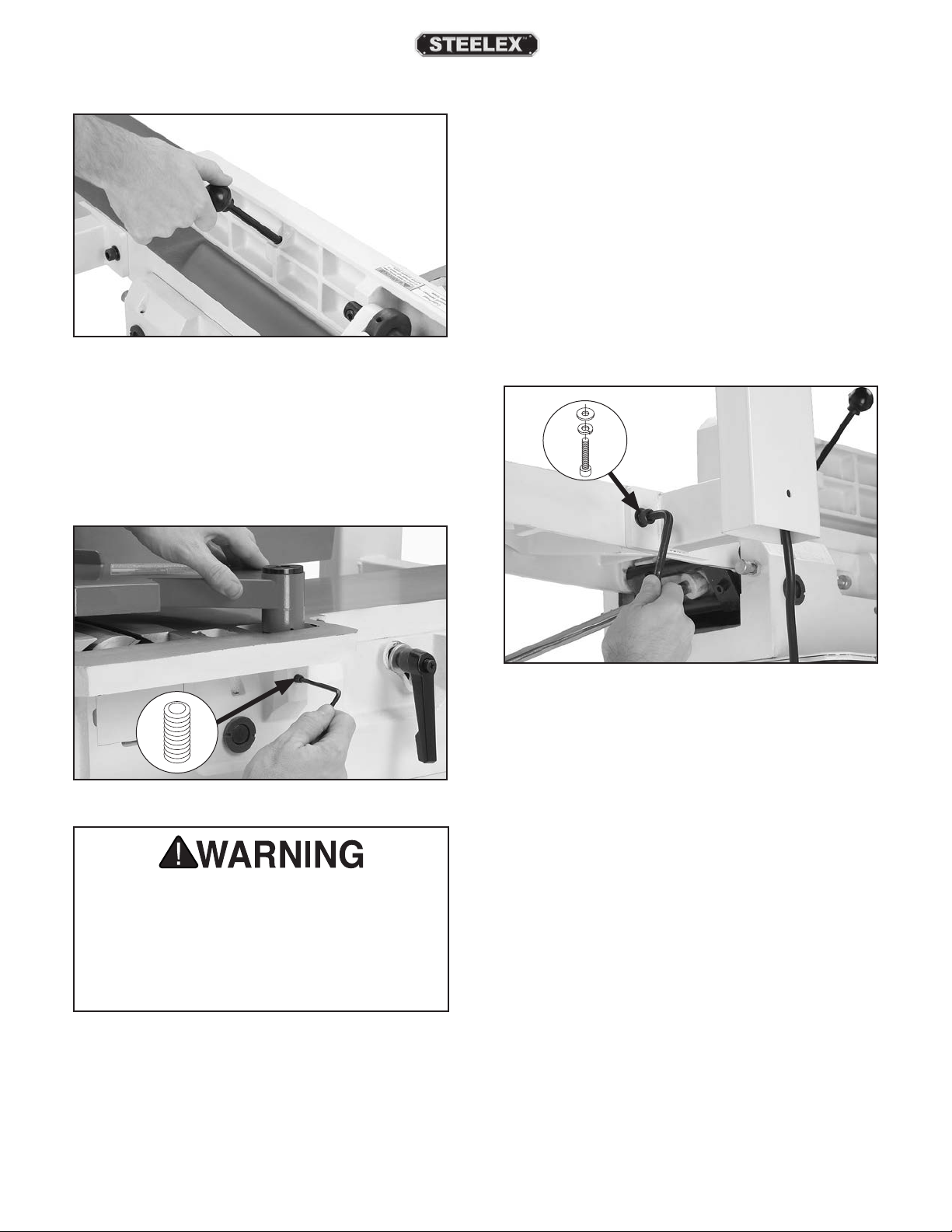

23. Install the tilt lever in the fence (see Figure 20).
Figure 20. Installing the tilt lever.
24. Insert the shaft of the cutterhead guard into the
hole at the front of the infeed table, making sure
that the flat part of the shaft faces the set screw.
25. Tighten the set screw against the shaft (see
Figure 21) to secure the cutterhead guard.
26. Test that the cutterhead guard is working cor-
rectly by pulling it back and letting go. The
cutterhead guard should quickly spring back
over the cutterhead when you do this.
— If the guard does not quickly spring back
over the cutterhead when you perform this
test, then remove it and repeat Steps 24–26.
Do not continue with the assembly until the
cutterhead guard is working correctly.
27. Use (2) M10-1.5 x 25 cap screws, (2) 10mm lock
washers, and (2) 10mm flat washers to attach
the pedestal switch to the back of the jointer, as
shown in Figure 22.
x 2
Figure 21. Securing the cutterhead guard.
The cutterhead guard is a critical safety feature
on this machine—you MUST install and verify
that it is working as intended before using the
jointer! Failure to do this will greatly increase
the chances of a serious injury when operating
the jointer.
Figure 22. Attaching pedestal switch to the back of
the jointer.
-22-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

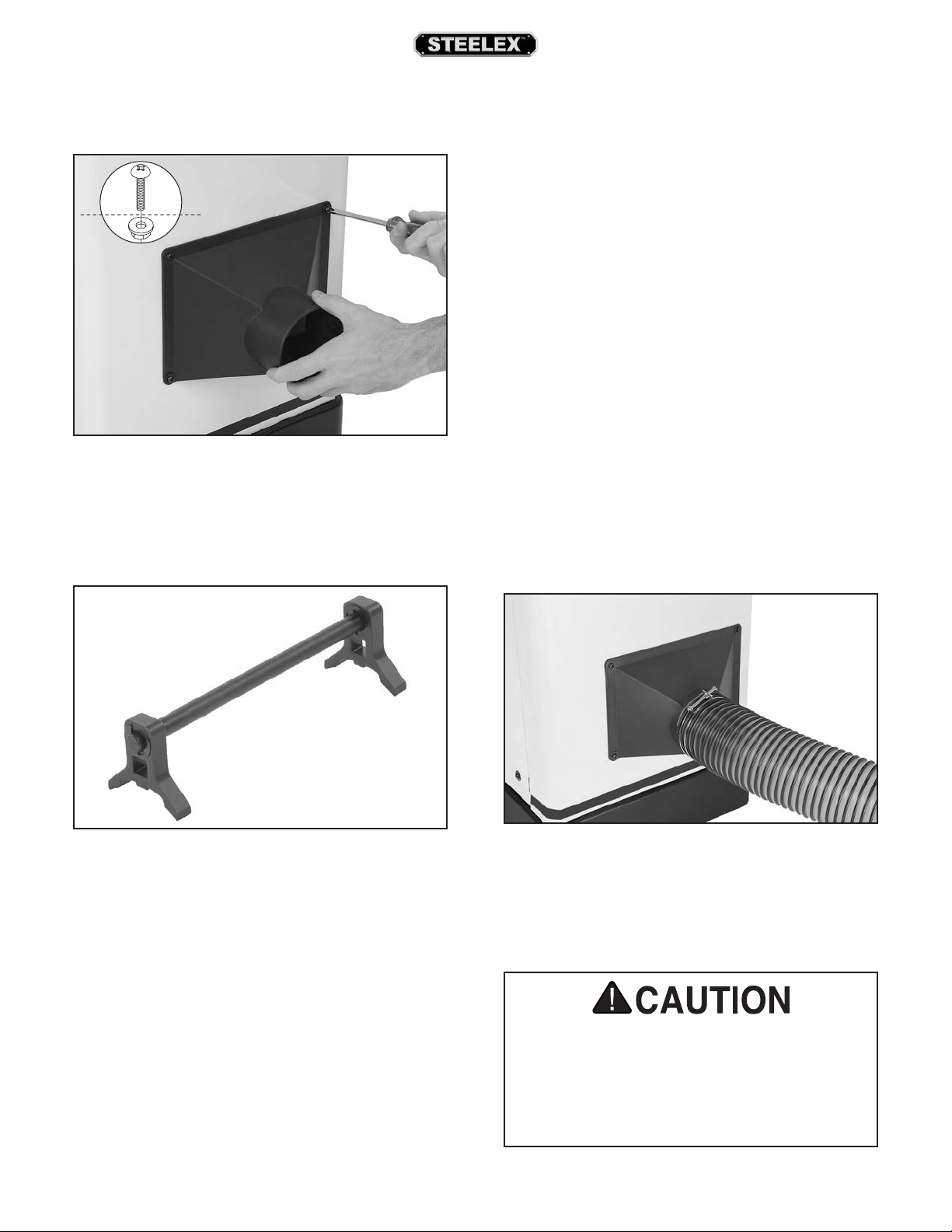

28. Use the four M5-.8 x 16 Phillips head screws and
5mm flat washers to install the dust port on the
jointer stand, as shown in Figure 23.
x 2
Figure 23. Attaching dust port to jointer stand.
Dust Collection
Recommended CFM at Dust Port: ...........400 CFM
Do not confuse this CFM recommendation with the
rating of the dust collector. To determine the CFM at
the dust port, you must consider these variables: (1)
CFM rating of the dust collector, (2) hose type and
length between the dust collector and the machine,
(3) number of branches or wyes, and (4) amount of
other open lines throughout the system. Explaining
how to calculate these variables is beyond the scope
of this manual. Consult an expert or purchase a good
dust collection “how-to” book.
Items Needed Qty
Dust Collection System ...................................................... 1
Dust Hose 4" ........................................................................... 1
Hose Clamps 4" ..................................................................... 2
To connect a dust collection hose:
Knife Setting Jig
Assemble the knife setting jig as shown in Figure 24.
Figure 24. Knife setting jig assembly.
1. Fit a 4" dust hose over the dust port, as shown
in Figure 25, and secure it in place with a hose
clamp.
Figure 25. Dust hose attached to dust port.
2. Tug the hose to make sure it does not come off.
Note: A tight fit is necessary for proper
performance.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
This machine creates substantial amounts of
dust during operation. Breathing airborne dust
on a regular basis can result in permanent
respiratory illness. Reduce your risk by wearing
a respirator and capturing the dust with a dust
collection system.
-23-
Test Run
Serious injury or death can result from
using this machine BEFORE understanding
malfunction or unexpected results that can
Once assembly is complete, test run the machine to
ensure it is properly connected to power and safety
components are functioning correctly.
3. Connect machine to power supply.
4. Twist STOP button clockwise until it pops out
(see Figure 27). This resets switch so machine
will start.
If you find an unusual problem during the test run,
immediately stop the machine, disconnect it from
power, and fix the problem BEFORE operating the
machine again. The Troubleshooting table in the
SERVICE section of this manual can help.
its controls and related safety information.
DO NOT operate, or allow others to operate,
machine until the information is understood.
DO NOT start machine until all preceding setup
instructions have been performed. Operating
an improperly set up machine may result in
lead to serious injury, death, or machine/property damage.
I
S
W
T
T
STOP Button
Figure 27. Resetting the switch.
5. Push START button to start machine. A correctly
operating machine runs smoothly with little or
no vibration or rubbing noises.
6. Press STOP button to turn machine OFF.
7. WITHOUT resetting STOP button, press START
button. Machine should not start.
— If machine does not start, the STOP but-
ton safety feature is working correctly.
Congratulations! The Test Run is complete.
To test run machine:
1. Clear all setup tools away from machine.
2. Push STOP button in (see Figure 26).
STOP
Button
Figure 26. STOP/START button locations.
-24-
START
Button
— If machine does start (with STOP button
pushed in), immediately disconnect power
to machine. The STOP button safety feature is
not working correctly. This safety feature must
work properly before proceeding with regular
operations. Call Tech Support for help.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Recommended
Tighten Belt
Adjustments
For your convenience, the adjustments listed below
have been performed at the factory. However,
because of the many variables involved with shipping, it is possible some of these adjustments may
have changed during transportation and handling.
Before making any further service adjustments, we
recommend operating the machine on a trial basis to
ensure the best possible results.
Factory adjustments that should be verified:
• Model ST1006 Knife Settings (refer to Page 39).
• Table Parallelism (refer to Page 43).
• Depth-of-Cut Scale Calibration (refer to Page
47).
• Fence Stop Accuracy (refer to Page 48).
The final step in the setup process must be done after
approximately 16 hours of operation. During this first
16 hours, the belt will stretch and seat into the pulley grooves. After this time, you must re-tension the
belt to avoid slippage and burn out. Refer to Page
49 when you are ready to perform this important
adjustment.
Note: Pulleys and belt can get hot. This is a normal condition. Allow them to cool before making
adjustments.
A small amount of black belt dust at the bottom
of the belt housing is normal during the life of
the machine and does not indicate a problem
with the machine or belt.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-25-
Overview
OPERATIONS
The Model ST1006/ST1011 will perform many types of
operations that are beyond the scope of this manual.
Many of these operations can be dangerous or deadly if performed incorrectly.
The instructions in this section are written with the
understanding that the operator has the necessary
knowledge and skills to operate this machine. If at
any time you are experiencing difficulties performing
any operation, stop using the machine!
If you are an inexperienced operator, we strongly
recommend that you read books, trade articles, or
seek training from an experienced jointer operator
before performing any unfamiliar operations. Above
all, your safety should come first!
To complete typical operation, operator does
following:
1. Examines workpiece to verify it is safe and suit-
able for cutting.
2. Adjusts fence for width of workpiece and locks it
in place.
3. Adjusts fence tilt, if necessary.
4. Adjusts infeed table height to set depth of cut
per pass.
Eye injuries or respiratory problems can occur
while operating this tool. Wear personal protective equipment to reduce your risk from
these hazards.
Loose hair/clothing could
get caught in machinery
and cause serious personal injury. Keep clothing and
long hair away from moving
machinery.
DO NOT investigate problems or adjust the lathe
while it is running. Wait
until the machine is turned
OFF, unplugged and all
working parts have come
to a complete stop before
proceeding!
5. Puts on safety glasses, respirator, and ear protec-
tion.
6. Locates push blocks.
7. Starts jointer.
8. Holds workpiece firmly against infeed table
and fence, and slides it into cutterhead at a
steady and controlled rate until entire length of
workpiece has advanced beyond cutterhead to
outfeed table.
9. Repeats cutting process until desired results are
achieved.
10. Stops jointer.
-26-
NOTICE
If you have never used this type of machine
or equipment before, WE STRONGLY RECOM
MEND that you read books, trade magazines,
or get formal training before beginning any
projects.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

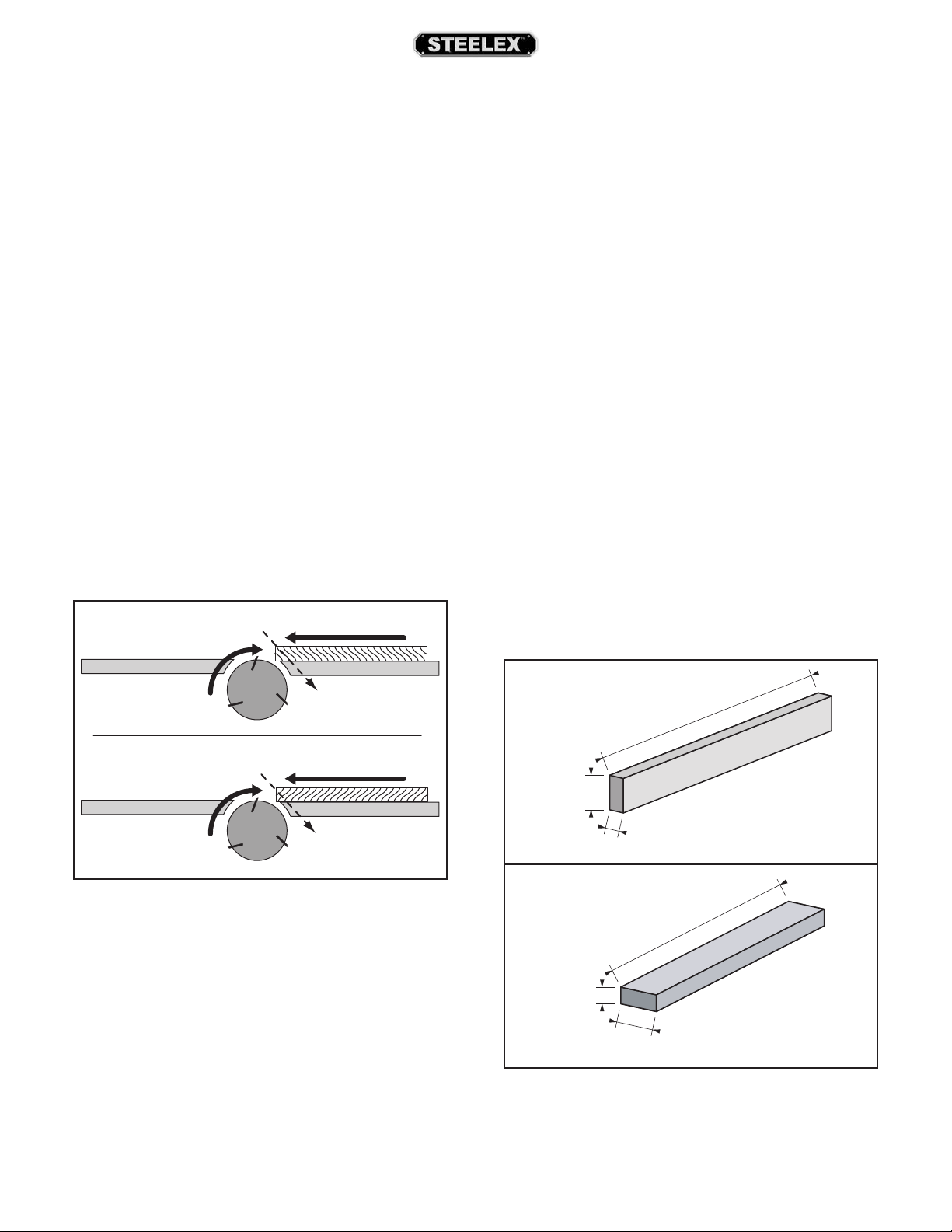

Stock Inspection &
10" Min.
1
/4" Min.
3
/4" Min.
Requirements
Follow these rules when choosing and jointing
stock:
• DO NOT joint or surface plane stock that
contains large or loose knots. Injury to the
operator or damage to the workpiece can occur
if a knot becomes dislodged during the cutting
operation.
• Scrape all glue off the workpiece before
jointing. Glue deposits on the workpiece, hard
or soft, will gum up the cutterhead and produce
poor results.
• Remove foreign objects from the workpiece.
Make sure that any stock you process with the
jointer is clean and free of dirt, nails, staples, tiny
rocks or any other foreign objects that could
damage the cutterhead. These particles could
also cause a spark as they strike the cutterhead
and create a fire hazard.
• Jointing and surface planing with the grain is
safer for the operator and produces a better
finish. Cutting against the grain increases the
likelihood of kickback and workpiece tear-out.
DO NOT cut against the grain! Cutting with the
grain is feeding the stock across the cutterhead
so the grain points down and back, as viewed
from the front edge of the stock (see Figure 28).
Note: If the grain changes direction along the
edge of the workpiece, decrease the depth of
cut and make additional passes.
CORRECT
OUTFEED TABLE
ROTATION
FEED DIRECTION
INFEED TABLE
With Grain
INCORRECT
ROTATION
OUTFEED TABLE
FEED DIRECTION
INFEED TABLE
Note: Wood stacked on a concrete or dirt
surface can have small pieces of concrete or
stone pressed into the surface.
• Make sure all stock is sufficiently dried before
jointing. Wood with a moisture content over
20% will cause unnecessary wear on the cutters
and poor cutting results. Excess moisture can
also hasten rust and corrosion.
• Make sure your workpiece exceeds the min-
imum dimension requirements, as shown in
Figure 29, before processing it through the
jointer, or the workpiece may break or kickback during the operation.
10" Min.
3
/4" Min.
Against Grain
Figure 28. Proper grain alignment with the
cutterhead.
• Only process natural wood fiber through
your jointer. Your jointer is designed to cut
only natural wood stock. This machine is NOT
designed to cut metal, glass, stone, tile, products with lead-based paint, or products that
contain asbestos—cutting these materials with
a jointer may lead to injury.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
1
/4" Min.
10" Min.
1
/2" Min.
1" Min.
Figure 29. Minimum stock dimensions for jointer.
-27-

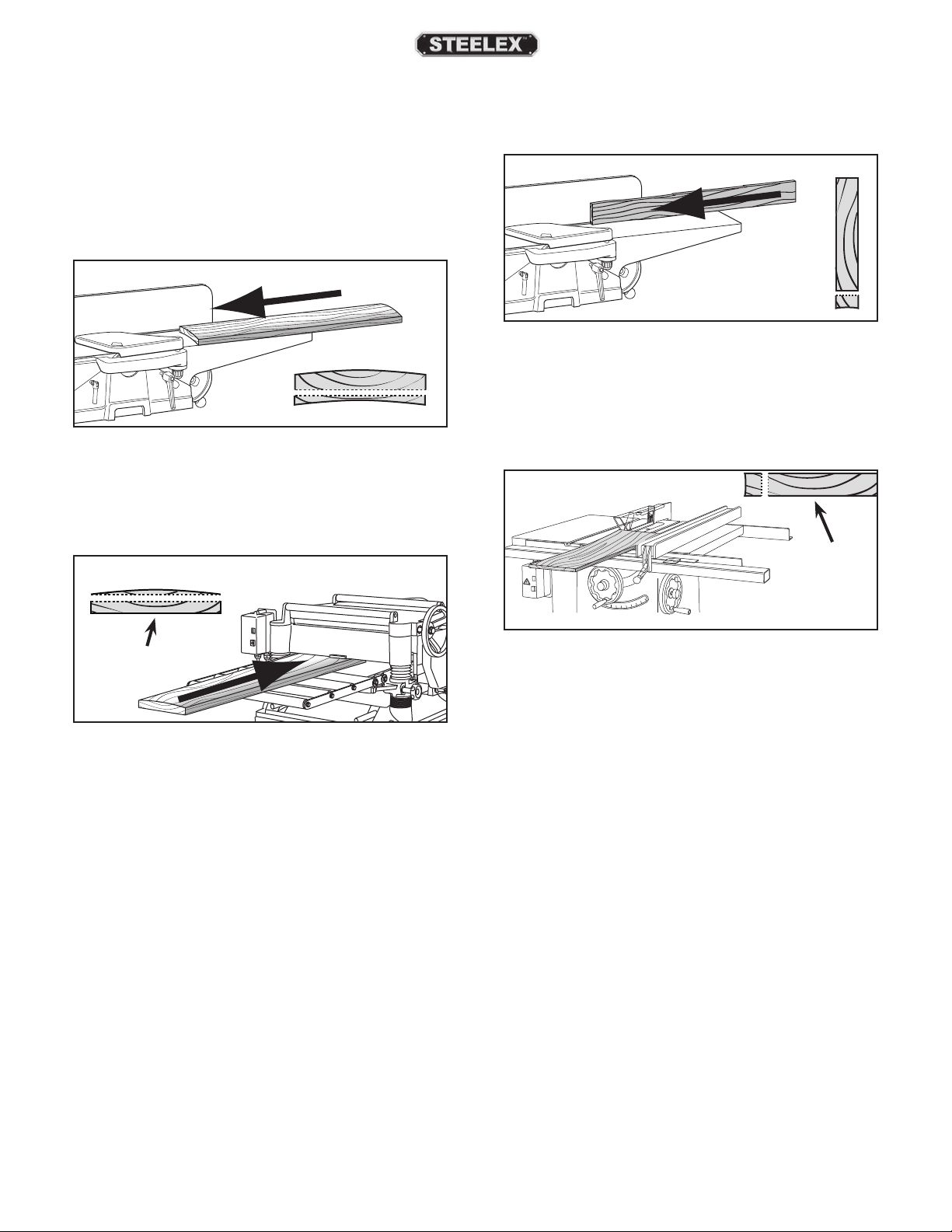

Squaring Stock
Squaring stock involves four steps performed in the
order below:
1. Surface Plane On The Jointer: The concave
face of the workpiece is surface planed flat with
the jointer (see Figure 30).
Figure 30. Surface plane on the jointer.
2. Surface Plane On a Thickness Planer: The
opposite face of the workpiece is surface planed
flat with a thickness planer (see Figure 31).
3. Edge Joint On The Jointer: The concave edge
of the workpiece is jointed flat with the jointer
(see Figure 32).
Figure 32. Edge joint on the jointer.
4. Rip-Cut On A Table Saw: The jointed edge of
the workpiece is placed against a table saw
fence and the opposite edge cut off (see Figure
33).
Previously
Surface Planed
Face
Figure 31. Surface plane on a thickness planer.
Previously
Jointed Edge
45
30
15
Figure 33. Rip-cut on a table saw.
-28-

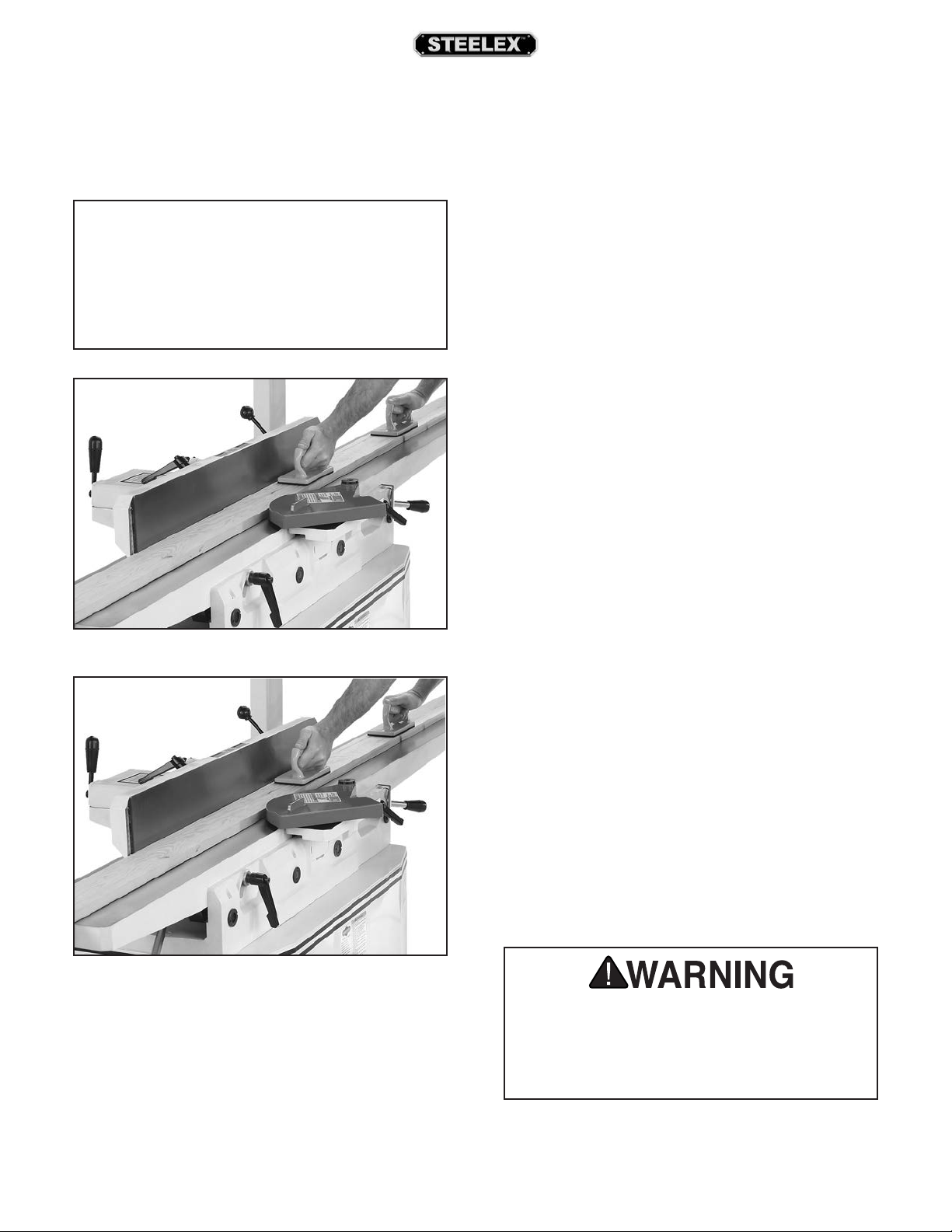

ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
To surface plane on jointer:
1.
stock to ensure it is safe and suitable
Stock Inspection &
2.
infeed table height to desired cutting depth
For safety reasons, do not exceed
" per pass when surface
3
4
5
workpiece firmly against fence and infeed
To ensure workpiece remains sta-
of workpiece must
6. Feed workpiece completely across cutterhead
while keeping it firmly against fence and tables
Keep hands at least 4" away from
cutterhead during the entire cut. Instead of
allowing a hand to pass directly over cutterhead, lift it up and over cutterhead, and safely
reposition it on the outfeed side to continue
supporting workpiece. Use push blocks whenever practical to further reduce risk of accidental
7
When squaring up stock, cut opposite side of
workpiece with a planer instead of the jointer to
ensure boths sides are parallel.
Surface Planing
The purpose of surface planing (see Figures 34–35)
on the jointer is to make one flat face on a piece of
stock to prepare it for thickness planing on a planer.
NOTICE
If you are not experienced with a jointer,
set depth of cut to "0" and practice feeding
workpiece across the tables as described for
each of the jointing procedures. This process
will better prepare you for actual operation.
Inspect
for the operation (see
Requirements section).
Set
for each pass.
IMPORTANT:
a cutting depth of 1⁄16
planing.
. Set fence to 90˚.
Figure 34. Example of surface planing operations.
. Start jointer.
. Place
table.
IMPORTANT:
ble during cut, concave sides
face toward table and fence.
during the entire cut.
IMPORTANT:
hand contact with cutterhead.
. Repeat Step 6 until entire surface is flat.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Figure 35. Illustration of surface planing results.
Tip:
Failure to use push blocks when surface planing could result in your hands contacting rotating cutterhead, which will cause serious personal injury. ALWAYS use push blocks when
surface planing on jointer!
-29-

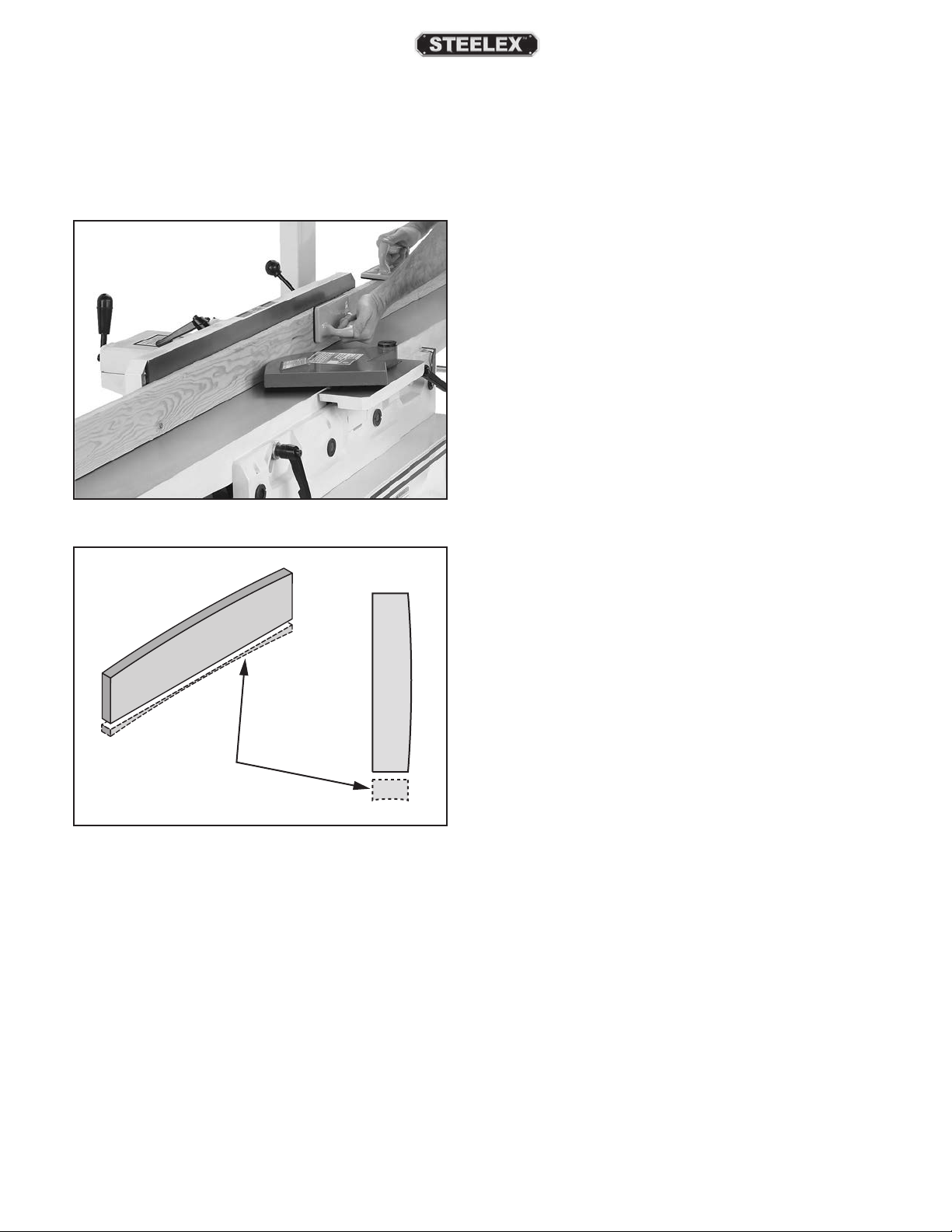

Edge Jointing
The purpose of edge jointing is to produce a finished,
flat-edged surface that is suitable for joinery or finishing, as shown in Figures 36–37. It is also a necessary
step when squaring rough or warped stock.
To edge joint on jointer:
1. Inspect stock to ensure it is safe and suitable
for the operation (see Stock Inspection &
Requirements section).
2. Set infeed table height to desired cutting depth
for each pass.
Figure 36. Example of edge jointing operation.
Removed
Surface
IMPORTANT: For safety reasons, cutting depth
should never exceed
3. Set fence to 90˚.
4. Start jointer.
5. Place workpiece firmly against fence and infeed
table.
IMPORTANT: To ensure workpiece remains
stable during cut, concave sides of workpiece
must face toward table and fence.
6. Feed workpiece completely across cutterhead
while keeping it firmly against fence and tables
during the entire cut.
IMPORTANT: Keep hands at least 4" away from
cutterhead during the entire cut. Instead of
allowing a hand to pass directly over cutterhead,
lift it up and over cutterhead, and safely reposition it on the outfeed side to continue supporting workpiece. Use push blocks whenever
practical to further reduce risk of accidental
hand contact with cutterhead.
1
⁄8" per pass.
Figure 37. Illustration of edge jointing results.
-30-
7. Repeat Step 6 until the entire edge is flat.
Tip: When squaring up stock, cut opposite edge
of workpiece with a table saw instead of the
jointer—otherwise, both edges of workpiece will
not be parallel with each other.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Bevel Cutting
To bevel cut on jointer:
1.
stock to ensure it is safe and suitable
Stock Inspection &
2
infeed table height to cutting depth desired
Cutting depth for bevel cuts is typically
, depending on hardness and
3
4
workpiece against fence and infeed table
5
6
push block in your leading hand, press
workpiece against table and fence with firm
pressure, and feed workpiece over cutterhead
When your leading hand gets within 4" of
the cutterhead, lift it up and over cutterhead, and
once
. Now, focus your pressure
on outfeed end of the workpiece while feeding,
and repeat same action with your trailing hand
keep
your hands safe, DO NOT let them get closer than
at any time during
7
as necessary, until you
are satisfied with the results.
Bevel cuts (see Figures 38–39) can be made by
setting the fence at the desired angle and feeding
the workpiece firmly along the fence face, with the
bottom inside corner firmly against the table. The
cutting process typically requires multiple passes or
cuts to bevel the entire edge of a workpiece.
Inspect
for the operation (see
Requirements section).
. Set
for each pass.
Note:
between 1⁄16" and 1⁄8"
width of stock.
. Set fence tilt to desired angle of cut.
. Place
with concave side face down.
. Start jointer.
Figure 38. Fence setup for a bevel cut of 45°.
Removed
Surface
Figure 39. Illustration of bevel cutting results.
. With a
with a push block in your trailing hand.
Note:
place push block on portion of the workpiece
it is 4" past cutterhead
when it gets within 4" of cutterhead. To help
4" from moving cutterhead
operation!
. Repeat cutting process,
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-31-

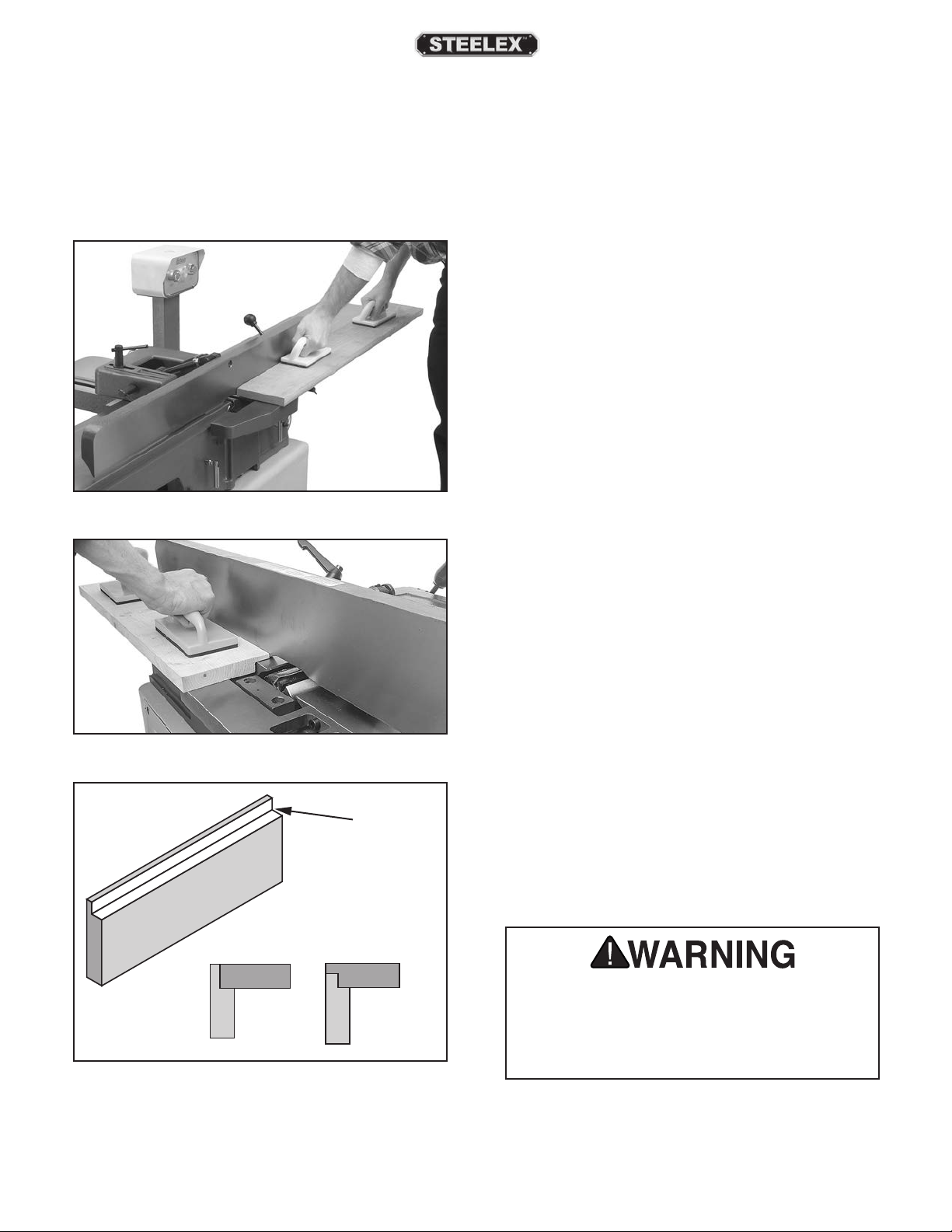

Rabbet Cutting
The purpose of rabbet cutting (see Figures 40–42)
is to remove a section of the workpiece edge, as
shown below. When combined with another rabbet
cut edge, the rabbet joints create a simple, yet strong
method of joining stock.
Figure 40. Typical rabbet cutting operation.
To rabbet cut on jointer:
1. Inspect stock to ensure it is safe and suitable
for the operation (see Stock Inspection &
Requirements section).
2. Set infeed table height to desired cutting depth
for each pass.
IMPORTANT: For safety reasons, cutting depth
should never exceed 1⁄8" per pass.
3. Remove cutterhead guard.
4. Set fence to 90˚ and near front of jointer, so
amount of exposed cutterhead in front of fence
matches size of desired rabbet.
5. Start jointer.
6. Place workpiece firmly against fence and infeed
table.
Figure 41. Completed rabbet cutting operation.
Removed
Surface
Figure 42. Illustration of rabbet cutting effects and
a few sample joints.
IMPORTANT: To ensure workpiece remains sta-
ble during cut, concave sides of workpiece must
face toward table and fence.
7. Feed workpiece completely across cutterhead
while keeping it firmly against fence and tables
during entire cut.
IMPORTANT: Keep hands at least 4" away from
cutterhead during the entire cut. Instead of
allowing a hand to pass directly over cutterhead,
lift it up and over cutterhead, and safely reposition it on the outfeed side to continue supporting workpiece. Use push blocks whenever practical to further reduce risk of accidental hand
contact with cutterhead.
8. Repeat Step 7 until rabbet is cut to depth.
When cutterhead guard is removed, attempting any other cut besides a rabbet directly exposes operator to moving cutterhead.
ALWAYS replace cutterhead guard after rabbet
cutting!
-32-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

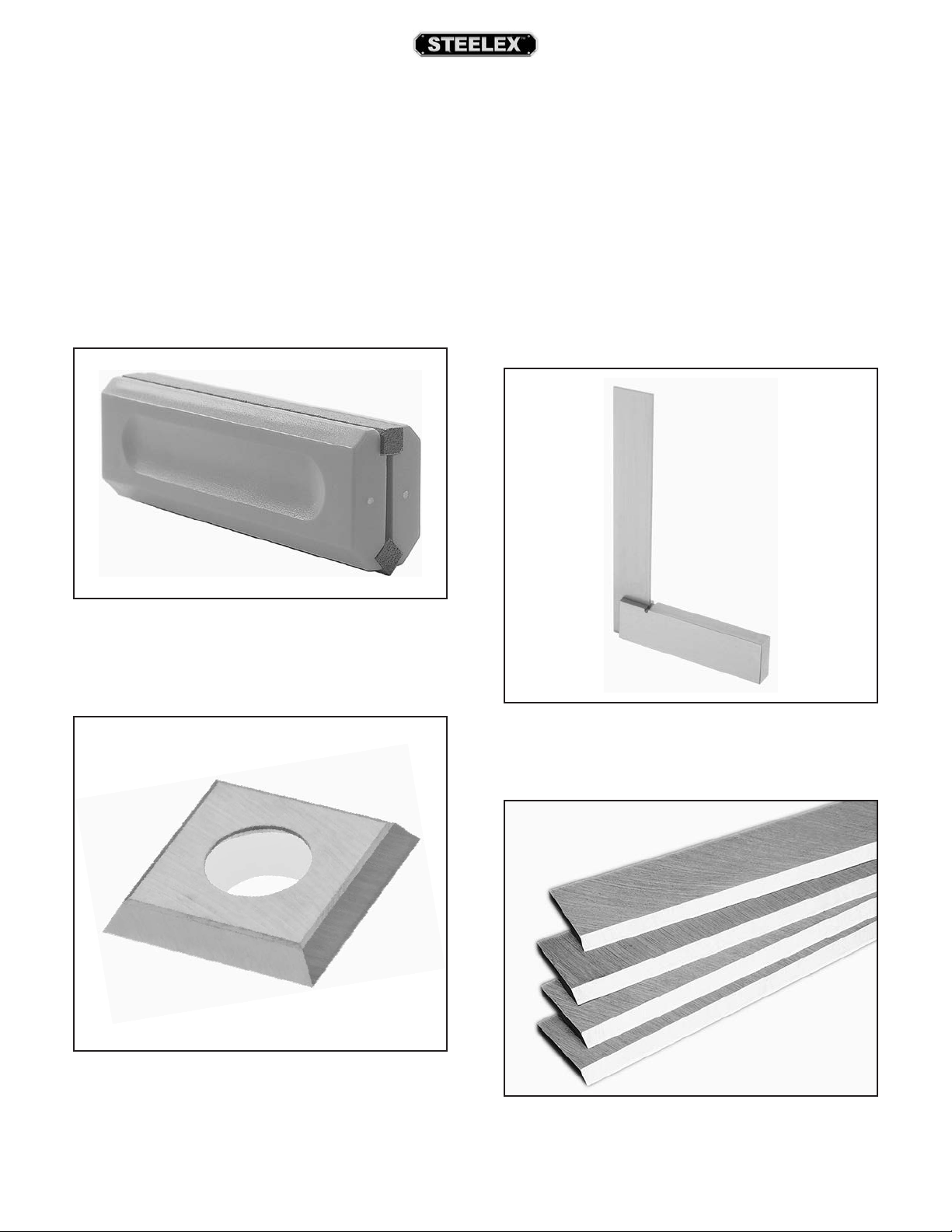

ACCESSORIES
The following lathe accessories may be available through your local Woodstock International Inc. Dealer. If you
do not have a dealer in your area, these products are also available through online dealers. Please call or e-mail
Woodstock International Inc. Customer Service to get a current listing of dealers at: 1-800-545-8420 or at
sales@woodstockint.com.
The D1123 Knife Honer (ST1006) sharpens plan-
er and jointer knives to a razor keen edge without
removing having to remove them from cutterheads.
Features two 400-grit stones, a flat stone for sharpening bevels, and a diagonal stone for flat edges.
Figure 43. D1123 Knife Honer.
The D4018 Indexable Carbide Inserts (Set of 10)
measure 14mm x 14mm x 2mm and are the replacement inserts for the ST1011.
Our D3833 4" Precision Square is made of hard-
ened tempered polished steel, these 4 " precision
squares are perfect for precision 90° layout and
machine set-up. The blade measures 4" and the
beam 3. Blade edges and beam faces are accurate to
within ± 0.0006".
Figure 45. 4" Precision Square.
Figure 44. Indexable Carbide Insters for ST1011.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
The D4613 8" HSS Jointer Knives (Set of 4) are the
replacement blades for the Steelex ST1006.
Figure 46. HSS Jointer Knives for Model ST1006.
-33-
MAINTENANCE
To reduce risk of shock or
accidental startup, always
disconnect machine from
power before adjustments,
maintenance, or service.
General
Regular periodic maintenance on your STEELEX
Model ST1006/ST1011 will ensure its optimum performance. Make a habit of inspecting your machine each
time you use it.
Check for the following conditions and repair or
replace when necessary:
• Loose mounting bolts.
• Worn switch.
• Worn or damaged cords and plugs.
• Damaged V-belt.
• Any other condition that could hamper the safe
operation of this machine.
Schedule
For optimum performance from your machine, follow
this maintenance schedule and refer to any specific
instructions given in this section.
Cleaning/Protecting
Vacuum excess wood chips and sawdust, and wipe
off the remaining dust with a dry cloth. If any resin
has built up, use a resin dissolving cleaner to remove
it.
Protect the unpainted cast iron table by wiping it
clean after every use—this ensures moisture from
wood dust does not remain on bare metal surfaces.
®
Keep the table rust-free with regular applications of a
high-quality metal protectant.
Lubrication
NOTICE
Failure to follow reasonable lubrication practices as instructed in this manual for your
machine could lead to premature failure of
components and void the warranty.
Your jointer features bearings that are lubricated
and sealed at the factory. These bearing do not
require any further attention unless they need to be
replaced. If a bearing fails, your planer will probably
develop a noticeable rumble or vibration, which will
increase when the machine is under a load. The bearings are standard sizes and can be replaced through
Woodstock.
Note: This maintenance schedule is based on average
daily usage. Adjust the maintenance schedule to match
your usage, to keep your planer running smoothly.
Daily:
• Vacuum all dust on and around the table.
• Clean machine and protect unpainted cast- iron.
• Tighten loose mounting bolts.
• Check/sharpen/replace damaged or worn knives
(Page 38).
Every Month:
• Check V-belt tension, damage, and wear (Page
48).
• Clean/vacuum dust buildup from inside cabinet
and off of motor.
-34-
V-Belts
To ensure optimum power transmission from the
motor to the blade, the V-belt must be in good condition (free from cracks, fraying and wear) and properly
aligned and tensioned (refer to the instructions on
Page 48).
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
The following troubleshooting tables cover common problems that may occur with this machine. If you need
replacement parts or additional
Note:
, and if available, your
original purchase receipt. This information is required to properly assist you.
SERVICE
Troubleshooting
troubleshooting help, contact our Technical Support.
Before contacting Tech Support, find the machine serial number and manufacture date
Motor and Electrical
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Machine does not
start or a breaker
trips immediately
after startup.
Machine stalls or is
underpowered.
Machine has
vibration or noisy
operation.
1. STOP button depressed.
2. Incorrect power supply voltage or circuit size.
3. Power supply circuit breaker tripped/fuse blown.
4. Motor wires connected incorrectly.
5. Wiring open/has high resistance.
6. START/STOP switch at fault.
7. Start capacitor at fault.
8. Thermal overload relay has tripped.
9. Contactor not energized/has poor contacts.
10. Centrifugal switch at fault.
11. Motor at fault.
1. Workpiece material not suitable.
2. Excessive feed rate.
3. Excessive depth of cut.
4. Dull knives/inserts.
5. Dust collection problem, causing internal
components to clog up with shavings.
6. Belt slipping; oil/grease on belt.
7. Pulley loose or not properly aligned.
8. Motor overheated.
9. Plug/receptacle at fault.
10. Run capacitor at fault.
11. Contactor not energized/has poor contacts.
12. Motor at fault.
1. Motor or other component loose.
2. Belt worn or loose.
3. Motor fan rubbing on fan cover.
4. Pulley loose or not properly aligned.
5. Knives/inserts at fault.
6. Cutterhead bearings at fault.
7. Centrifugal switch at fault.
8. Motor bearings at fault.
1. Rotate button head to reset.
2. Ensure correct power supply voltage and circuit size.
3. Ensure circuit is sized correctly and free of shorts. Reset
circuit breaker or replace fuse.
4. Correct motor wiring connections.
5. Check/x broken, disconnected, or corroded wires.
6. Replace switch.
7. Test/replace.
8. Reset; adjust trip load dial if necessary; replace.
9. Test all legs for power/replace.
10. Adjust/replace centrifugal switch if available.
11. Test/repair/replace.
1. Ensure workpiece is suitable for jointing (Page 27).
2. Reduce feed rate.
3. Reduce depth of cut.
4. Sharpen/replace knives (Page 38); rotate/replace
inserts (Page 41).
5. Clear blockages; move machine closer to dust collector;
upgrade dust collector.
6. Tension/replace belt (Page 48); clean belt; ensure
pulleys are aligned (Page 49).
7. Re-align pulleys; replace shaft key; tighten pulley set
screw.
8. Clean motor, let cool, and reduce workload.
9. Test for good contacts/correct wiring.
10. Test/repair/replace.
11. Test all legs for power/replace.
12. Test/repair/replace.
1. Inspect/replace damaged bolts/nuts, and retighten
with thread locking uid.
2. Inspect/replace belt (Page 48).
3. Fix/replace fan cover; replace loose/damaged fan.
4. Re-align pulleys; replace shaft key; tighten pulley set
screw.
5. Resharpen/replace knives; set knife alignment/height
correctly.
6. Replace bearing(s)/realign cutterhead.
7. Replace.
8. Test by rotating shaft; rotational grinding/loose shaft
requires bearing replacement.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-35-
Operations
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Tables are hard to
adjust.
Excessive snipe
(gouge in end
of board that is
uneven with rest
of cut).
Workpiece stops in
middle of cut.
Workpiece
chipping, tear-out,
indentations, or
overall rough cuts.
Fuzzy grain left in
workpiece.
Long lines or
ridges that run
along the length
of the board.
Uneven cutter
marks, wavy
surface, or chatter
marks across face
of workpiece.
Glossy surface;
scorching or
burn marks on
workpiece.
Workpiece is
concave or convex
along its length
after jointing.
1. Table lock is engaged/partially engaged.
2. Table stops blocking movement.
1. Outfeed table is set too low, or knives (straight
knife cutterheads only) set too high.
2. Operator pushing down on trailing end (infeed
side) of workpiece as it leaves cutterhead.
1. Outfeed table set too high. 1. Align outfeed table with cutterhead knives/inserts at
1. Not feeding workpiece to cut "with the grain."
2. Dull knives/inserts.
3. Workpiece not suitable for jointing.
4. Nicked or chipped knives or inserts.
5. Feeding workpiece too fast.
6. Excessive depth of cut.
7. Lack of proper dust collection or clogged dust
port.
1. Wood has high moisture content.
2. Dull knives/inserts.
1. Nicked or chipped knives/inserts.
2. Loose or incorrectly installed insert(s).
3. Dirt or debris under carbide inserts (spiral
cutterheads only).
1. Feeding workpiece too fast.
2. Knives/inserts not positioned at even heights in
the cutterhead.
3. Dirt or debris under carbide inserts (spiral
cutterheads only).
1. Dull knives/inserts.
2. Feed rate too slow.
1. Workpiece not held with even pressure against
outfeed table during cut.
2. Workpiece too uneven at start of operation.
3. Outfeed table not parallel with infeed table.
1. Completely loosen table locks.
2. Loosen/reset table stop bolts.
1. Align outfeed table with cutterhead knives/inserts at
top dead center (Page 45).
2. Focus most of the workpiece pressure against outfeed
table while cutting.
top dead center (Page 45).
1. Turn workpiece 180° before feeding again.
2. Sharpen/replace knives; rotate/replace insert(s) (Page
38).
3. Ensure workpiece is suitable for jointing (Page 27).
4. Replace knives (Page 38); rotate/replace insert(s) (Page
41).
5. Reduce feed rate.
6. Reduce depth of cut.
7. Clear blockages, ensure dust collection is operating
eciently; upgrade dust collector.
1. Ensure wood moisture content is less than 20%. Allow
to dry if necessary.
2. Replace/rotate knives/inserts (Page 38).
1. Replace/rotate knives/inserts (Page 38).
2. Remove/replace insert(s) and install properly (Page 41).
3. Remove inserts, properly clean mounting pocket and
re-install (Page 41).
1. Reduce feed rate.
2. Position knives so they are set up evenly in cutterhead
(Page 38). Remove, clean, and re-install any inserts that
are "raised" in cutterhead (Page 41).
3. Remove inserts, properly clean mounting pocket and
re-install (Page 41).
1. Sharpen/replace knives; rotate/replace insert(s) (Page
38).
2. Increase feed rate.
1. Apply even downward pressure against workpiece
throughout entire travel along outfeed side during cut.
2. Take partial cuts to remove extreme high spots before
doing a full pass.
3. Check/adjust table parallelism (Page 42).
-36-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
General
Inspecting Knives
This section covers the most common service adjustments or procedures that may need to be made
during the life of your machine.
If you require additional machine service not
included in this section, please contact Woodstock
International Technical Support at (360) 734-3482 or
send e-mail to: techsupport@woodstockint.com.
MAKE SURE that your machine is unplugged
during all service procedures! If this warning is
ignored, serious personal injury may occur.
The height of the knives can be inspected with a
straightedge to ensure that they are set even with the
outfeed table at their highest point in the cutterhead
rotation, or top dead center (TDC).
To inspect the knives:
1. DISCONNECT MACHINE FROM POWER!
2. Remove cutterhead guard or block it open.
3. Using a straightedge on outfeed table, check
height of each knife at positions shown in Figure
47.
Black Lines Represent
Straightedge Positions
From Overhead View
Knife at TDC
Straightedge
Outfeed Infeed
Figure 47. Using a straightedge to inspect knives.
— Knives are set correctly set when they just
touch bottom of straightedge at TDC in each
of straightedge positions.
— If knives do not touch straightedge or they lift
up at any position, then those knives need to
be adjusted.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-37-
Adjusting/Replacing
Knives (ST1006)
Setting the knives correctly is crucial to the proper
operation of the jointer and it plays an important role
in keeping the knives sharp. If one knife is higher than
the others, it will do the majority of the work, and
thus, become dull much faster.
There are two options for setting the knives—the
straightedge method and the knife-setting jig method. Each option has advantages and disadvantages; the correct one for you will become a matter
of personal preference. For best results, the tables
must be parallel with each other (refer to Checking/
Adjusting Table Parallelism on Page 42) and the
outfeed table height must be properly set (refer to
Setting Outfeed Table Height on Page 45).
Knife-Setting Jig Method: Both tables are lowered
to fit the jig on the cutterhead, as shown in Figure
49, and the knife heights are set to just touch the
middle pad of the jig.
The knife setting jig makes it easy to ensure that the
knives project out of the cutterhead evenly. After
using the knife setting jig to set the knives, you have
to re-adjust the outfeed table height to ensure that
it is even with the knives at their highest point of
rotation.
If you are using the positive stops on the tables, they
will need to also be reset before operation. Also, for
the knife setting jig to work correctly, the outfeed
table must be parallel with the cutterhead.
Straightedge Method: A high-quality straightedge
(or Jointer Pal
and the knife heights are set to the bottom of the
straightedge, (see Figure 52). Because the knife pro-
jection height from the cutterhead is dependent on
the outfeed table height, the outfeed table must be
set as described in Setting Outfeed Table Height on
Page 45 for this method to work correctly.
Outfeed Infeed
Figure 48. Example of straightedge method for
When using the straightedge method to set the
knives, you will not need to move the outfeed table
once it is set and you will always be assured that the
knives are even with the outfeed table in their highest point of rotation (TDC)—even if the cutterhead is
not parallel with the outfeed table.
®
) is held flat against the outfeed table
Straightedge
setting knife heights.
Middle
Pad
Figure 49. Example of knife-setting jig positioned
over cutterhead knife.
-38-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
The Model ST1006 comes with both jack screws and
springs inside the cutterhead to provide two options
for adjusting the knives (see Figure 50).
Note: Only one of these options is needed to set the
knives—Step 5 gives the details.

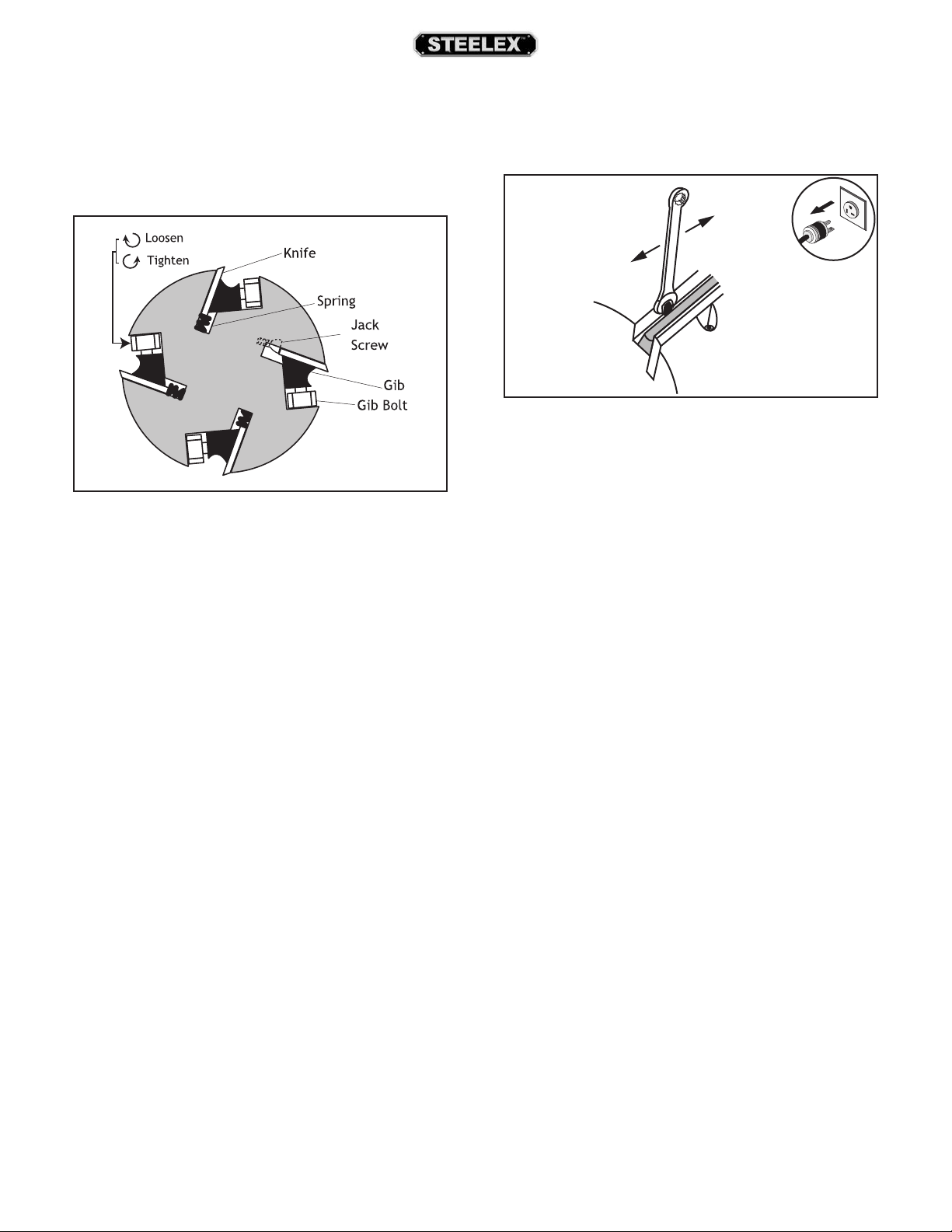

Figure 50. Cutterhead profile diagram.
Tools Needed Qty
Knife-Setting Jig ................................................................... 1
Hex Wrench 3mm ................................................................. 1
Open-End Wrench 10mm.................................................. 1
5. Loosen the cutterhead gib bolts (see Figure 51),
starting in the middle, and alternating back and
forth until all of the gib bolts are loose, but not
falling out.
Loosens
Knife
Tightens
Knife
Figure 51. Gib bolt loosening/tightening direction.
First Time Only
If this is the first time you are setting the knives,
remove the gib and knife from the cutterhead.
Decide which adjustment option you are going
to use between the jack screws and the springs.
—If you decide to use the jack screws, remove
the springs from the cutterhead (they are
located directly below the knives).
To adjust/replace the knives:
1. DISCONNECT JOINTER FROM POWER SOURCE!
2. Remove the cutterhead guard from the table
and move the fence back as far as it will go.
3. Open the back cover to expose the cutterhead
pulley.
4. Rotate the cutterhead pulley to get access to
one of the cutterhead knives.
—If you decide to use the springs, just thread the
jack screws completely into the cutterhead so
they will not get lost. Replace the gib and
knife.
6. Remove and clean the gibs and clean inside
the cutterhead slot to remove all pitch or
sawdust. Coat the knives and gibs with a
metal protectant, then fit the gibs back in the
cutterhead with the new knives.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-39-

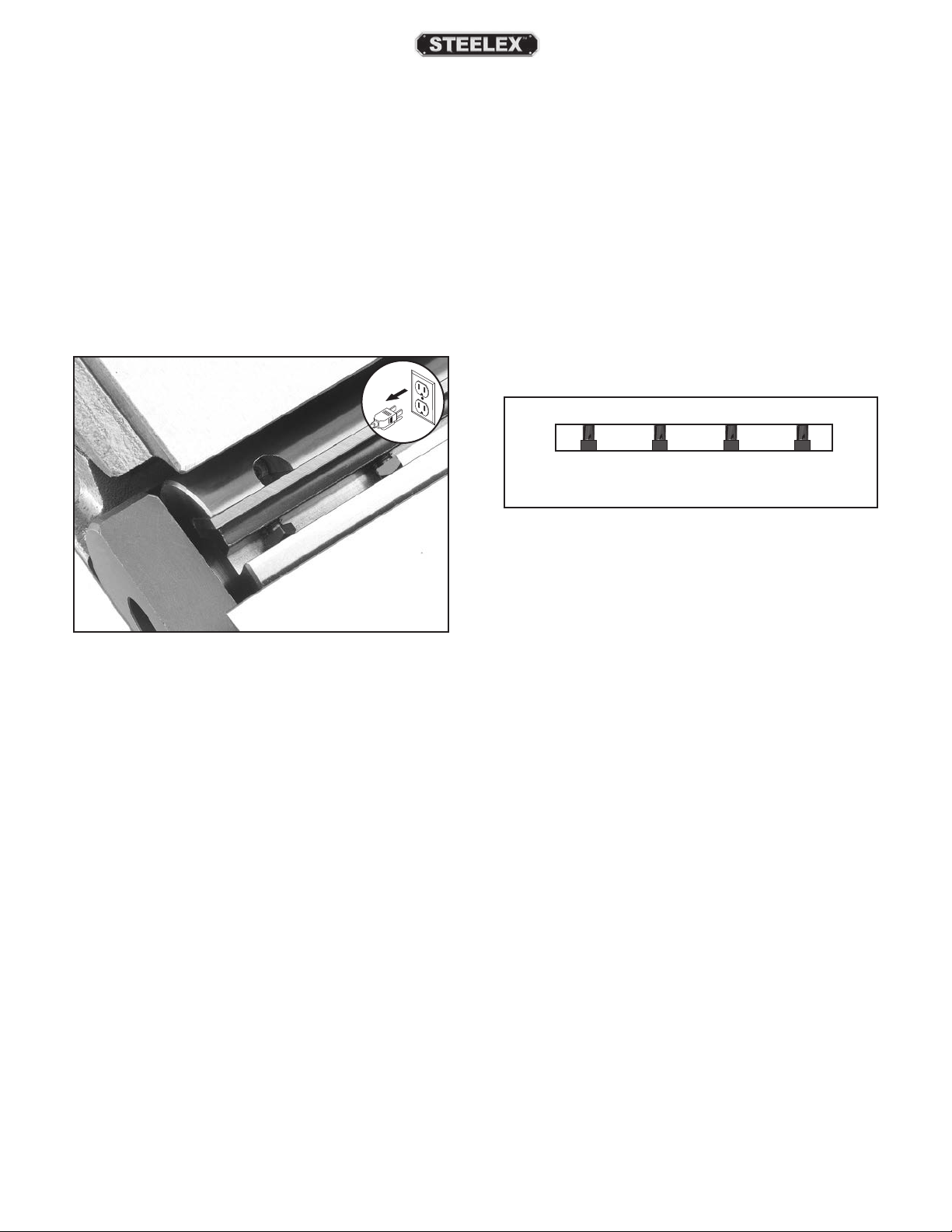

7. Adjusting the knife heights:
Jack Screws: Using a 3mm hex wrench, find
the jack screws through the access holes in the
cutterhead (see Figure 58) and rotate the jack
screws to raise or lower the knife. When the knife
is set correctly, it will barely touch the bottom
of the straightedge or the knife setting jig middle pad (depending on which method you are
using). Snug the gib bolts tight enough to just
hold the knife in place. Repeat on the other side
of the cutterhead, then repeat Steps 5–7 with
the rest of the knives.
Springs: Push the knife down with the straight-
edge or middle pad of the knife setting jig, keeping the straightedge flat against the outfeed
table or the knife setting jig feet evenly against
the cutterhead (depending on which method
you are using). Tighten the gib bolts just tight
enough to hold the knife in place. Repeat on the
other side of the cutterhead, then repeat Steps
5–7 with the rest of the knives.
8. Rotate the cutterhead to the first knife you start-
ed with. Slightly tighten all the gib bolts, starting
at the ends and working your way to the middle
by alternating left and right (see Figure 53).
Repeat this step on the rest of the knives.
Figure 52. Jack screw access hole.
3
Figure 53. Gib bolt tightening sequence.
9. Repeat Step 8.
10. Repeat Step 8, but final tighten each gib bolt.
11. If you used the knife setting jig to set the
knife heights, use the straightedge to adjust
the outfeed table height evenly with the knives
at top dead center (the highest point in their
rotation). If you used the straightedge to set the
knife heights, skip to the next step.
12. Replace the cutterhead guard and the close the
back cover.
1
42
-40-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Rotating/Replacing
Cutterhead Inserts
(ST1011)
2. Remove cutterhead guard from table, and lower
infeed and outfeed tables as far as they go, to
provide access to cutterhead (see Figure 55).

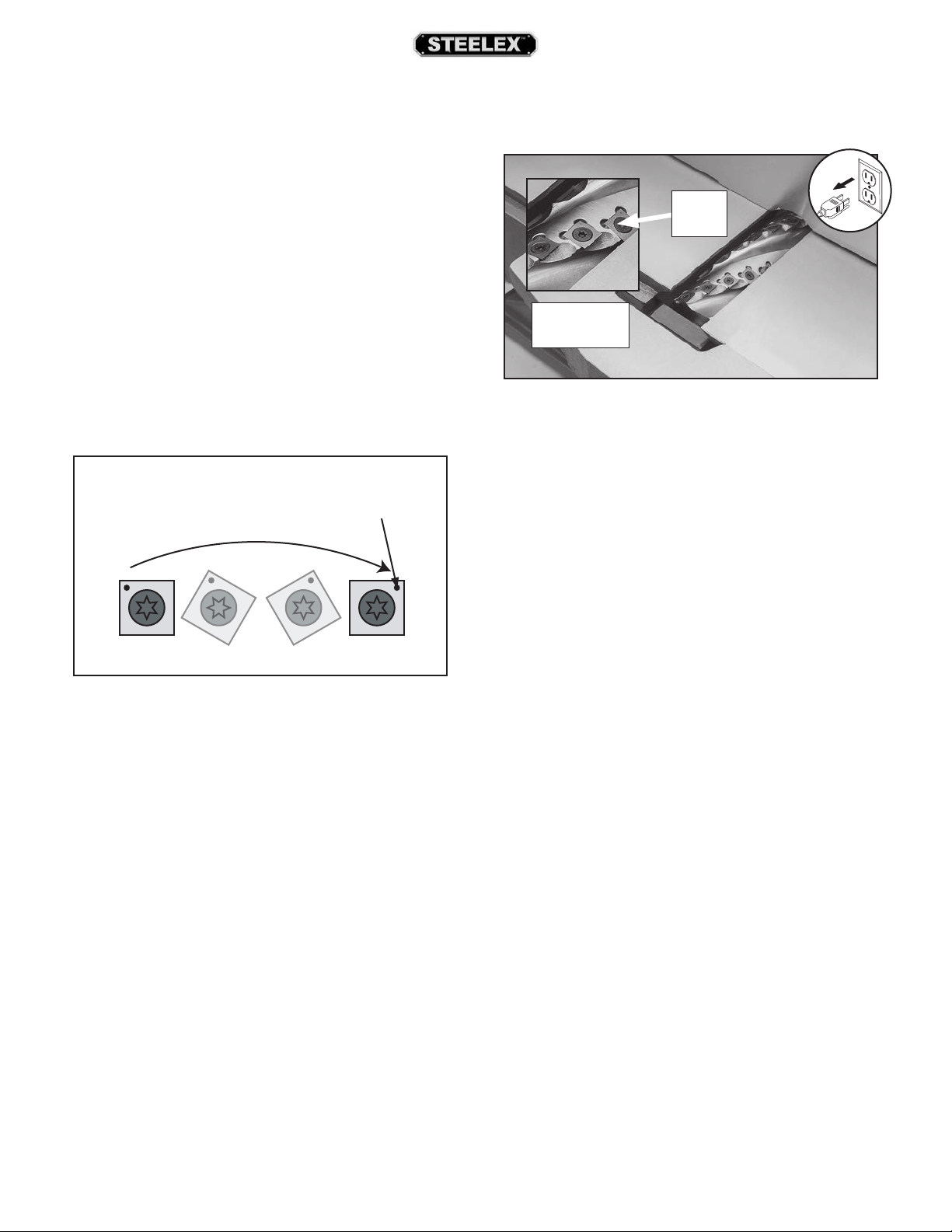

This spiral cutterhead is equipped with indexable carbide inserts. Each insert can be rotated to reveal any
one of its four cutting edges. Therefore, if one cutting
edge becomes dull or damaged, simply rotate it 90˚
to reveal a fresh cutting edge (see Figure 54).
Each insert has a reference dot on one corner. As the
insert is rotated, the reference dot location can be
used as an indicator of which edges are used and
which are new. When the reference dot revolves back
around to its starting position, the insert should be
replaced.
Reference
Dot
Torx
Screw
Cutterhead
Insert
Figure 55. Cutterhead inserts and Torx screws.
3. Remove cabinet rear access panel to expose
cutterhead pulley.
4. Rotate cutterhead pulley to provide access to
insert(s) to be rotated/replaced.
5. Put on heavy leather gloves for protection.
6. Remove any sawdust or debris from head of
insert, Torx screw, and surrounding area.
Figure 54. Insert rotating sequence.
Tools Needed Qty
Phillips Screwdriver ............................................................. 1
Torque Wrench ...................................................................... 1
T-20 Torx Bit ............................................................................ 1
Precision Straightedge ....................................................... 1
To rotate or replace spiral cutterhead insert:
1. DISCONNECT MACHINE FROM POWER!
7. Remove Torx screw and insert, then clean all
dust and debris from both parts and pocket they
were removed from.
Tip: Use low-pressure compressed air or vac-
uum nozzle to clean cutterhead pocket.
8. Re-install insert so that a fresh cutting edge
faces outward, making sure it is properly seated
in cutterhead pocket.
— If all four insert cutting edges have been
used, replace insert with a new one. Always
position reference dot in same position when
installing a new insert.
9. Lubricate Torx screw threads with a small
amount of light machine oil, wipe excess off,
and torque screw to 48–50 inch/pounds.
Note: If too much oil is applied to the
threads, excess will attempt to squeeze out
of threadedhole as you install insert and
force it to raise slightly, making it out of
alignment.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-41-

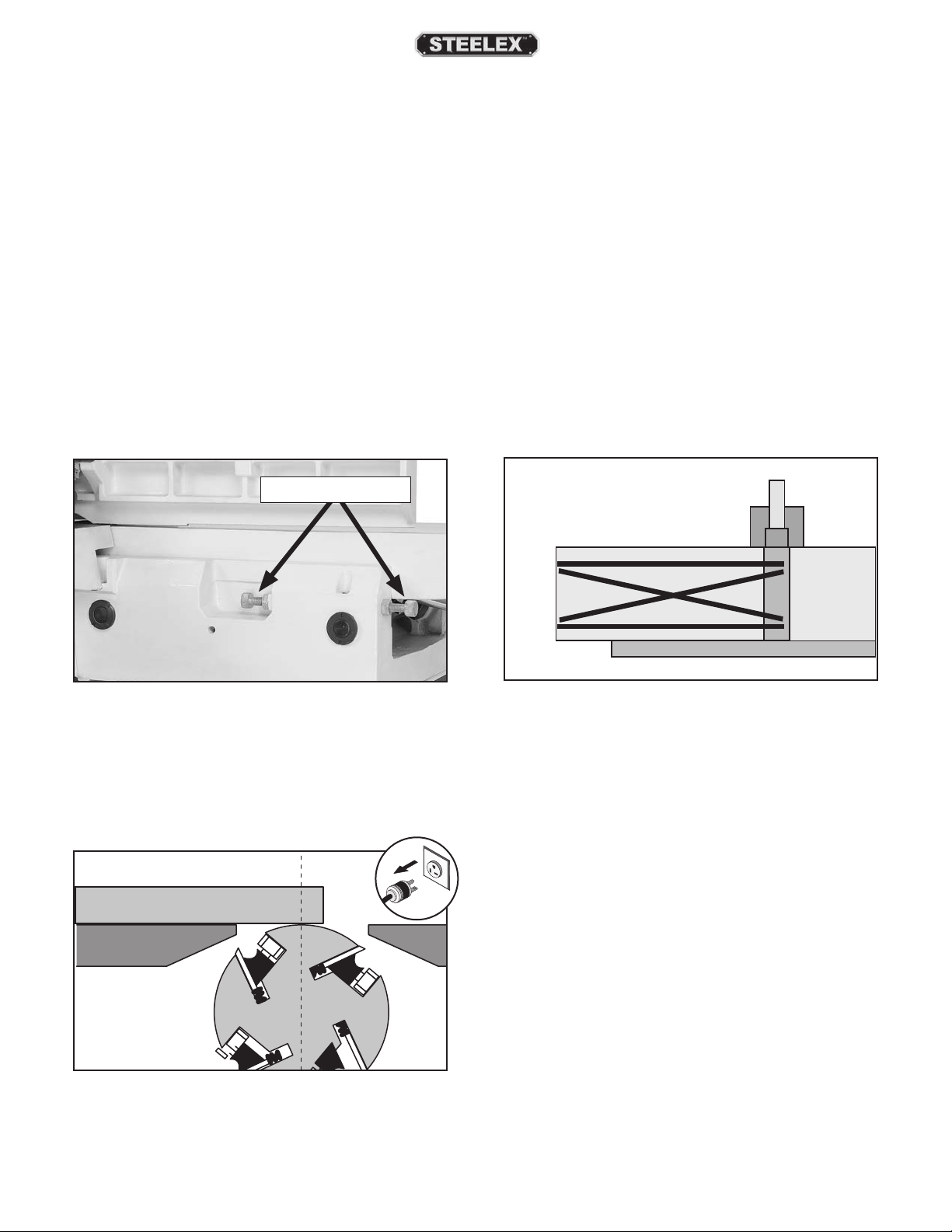

Checking/Adjusting
Table Parallelism
If the tables are not parallel with the cutterhead or
each other, then poor cutting results and kickback
may occur.
To check the outfeed table parallelism:
1. DISCONNECT MACHINE FROM POWER!
5. Place the straightedge in the positions shown
in Figure 58. In each position, the straightedge
should touch the cutterhead and sit flat on the
outfeed table.
— If the straightedge touches the cutterhead
and sits flat across the outfeed table in each
position, then the outfeed table is already
parallel with the cutterhead. Check the infeed
table to make sure that it is parallel with the
outfeed table.
2. Remove the cutterhead guard and fence.
3. Loosen the outfeed table lock located at the
front of the machine, and loosen the jam nuts
and adjustment bolts located at the back of the
machine (see Figure 56).
Positive Stop Bolts
Figure 56. Table positive stop bolts.
4. Place the straightedge on the outfeed table
so it hangs over the cutterhead, and lower
the outfeed table until the straightedge just
touches the cutterhead body, as shown in
Figure 57 (rotate the cutterhead if necessary).
— If the straightedge does not touch the
cutterhead and sit flat on the outfeed table in
any of the positions, then the outfeed table is
not parallel with the cutterhead. Correct the
outfeed table parallelism, then correct the
infeed table parallelism.
Black Lines Represent
Straightedge Positions
from Overhead View
Figure 58. Straightedge positions for verifying if
outfeed table is parallel with cutterhead.
Straightedge
Outfeed Table
Figure 57. Adjusting outfeed table even with
cutterhead body.
-42-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Straightedge
Outfeed Table Infeed Table
To check the infeed table parallelism:
1. Follow all the steps for checking the outfeed
table parallelism to first make sure that the
outfeed table is parallel with the cutterhead.
2. Raise the outfeed table higher than the
cutterhead.
Adjusting Table Parallelism
For safe and proper cutting results, the tables must
be parallel with the cutterhead. Adjusting them to
be parallel is a task of precision and patience, and
may take up to one hour to complete. Luckily, this is
considered a permanent adjustment and should not
need to be repeated for the life of the machine.
3. Place the straightedge halfway across the infeed
table and halfway over the outfeed table, and
adjust the infeed table even with the outfeed
table, as shown in Figure 59.

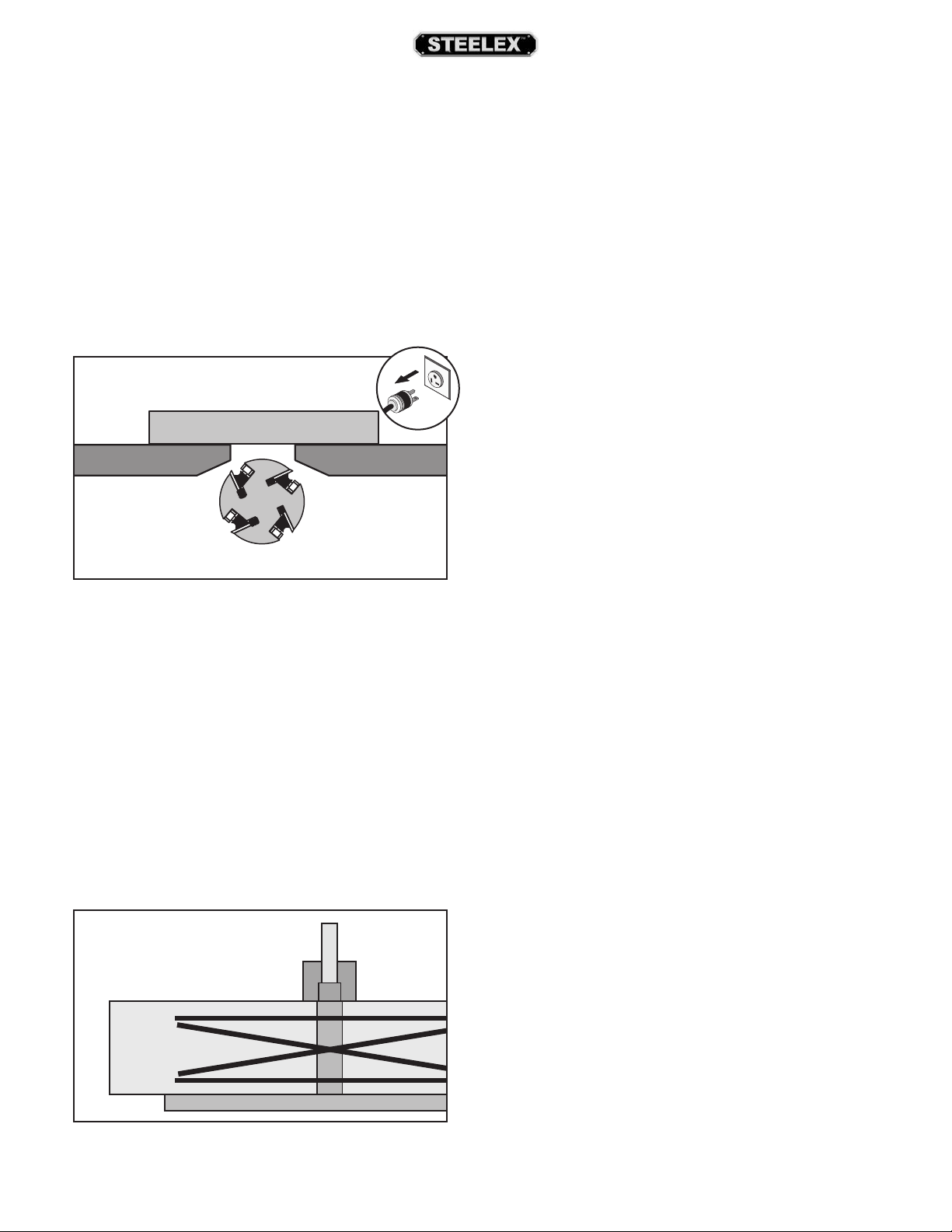

Figure 59. Infeed and outfeed tables set evenly.
4. Place the straightedge in the positions shown
in Figure 60. In each position, the straightedge
should sit flat against both the outfeed table
and the infeed table.
— If the straightedge sits flat against both the
infeed and outfeed table, then the tables are
parallel.
Due to the complex nature of this task, we recommend that you double check the current table positions to make sure that they really need to be adjusted before starting.
The tables have four eccentric bushings under each
corner that allow the tables to be adjusted parallel.
These eccentric bushings are locked in place by piggybacked set screws (one on top of the other) and
adjusted when the eccentric bushing is rotated.
The correct order for adjusting the table parallelism
is to first adjust the outfeed table parallel with the
cutterhead, then adjust the infeed table parallel with
the outfeed table.
When setting the outfeed table, all measurements
must be made from the cutterhead body—not the
knives—or results may get skewed the next time you
change knives.
IMPORTANT: The next steps are intended to be performed in succession with the same steps for checking
the outfeed table. Do not continue until you have followed those steps.
— If the straightedge does not sit flat against
both the infeed and outfeed table in any of
the positions, then the infeed table needs to
be adjusted parallel with the outfeed.
Black Lines Represent
Straightedge Positions
from Overhead View
Figure 60. Straightedge positions for checking
infeed/outfeed parallelism.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-43-
To adjust the table parallelism:
1. Place the straightedge on the outfeed table
so it hangs over the cutterhead, and lower
the outfeed table until the straightedge just
touches the cutterhead body, as shown in
Figure 57 (rotate the cutterhead if necessary).
2. Remove the set screw from each of the four
eccentric bushings (see Figure 61) under the
outfeed table, and loosen the set screws underneath those removed set screws.
Black Lines Represent
Straightedge Positions
from Overhead View
Figure 62. Straightedge positions for verifying if
outfeed table is parallel with cutterhead.
Set Screw
Location
Eccentric
Bushing
Figure 61. Eccentric bushing and set screw location.
3. Place the straightedge in one of the positions
shown in Figure 62, and adjust the table (a
small hammer and punch or pin-type spanner
wrench may be necessary to turn the eccentric
bushings) so that the straightedge touches the
cutterhead while lying flat across the outfeed
table. Repeat this step with each of the remaining straightedge positions as many times as
necessary until the outfeed table is parallel with
the cutterhead.
4. Tighten/replace the set screws in the eccentric
bushings on the outfeed table.
5. Remove the set screw from each of the four
eccentric bushings under the outfeed table,
and loosen the set screws underneath those
removed set screws.
6. Place the straightedge halfway across the infeed
table and halfway over the outfeed table, and
adjust the infeed table even with the outfeed
table, as shown in Figure 59.
7. Place the straightedge in one of the positions
shown in Figure 60, and adjust the eccentric
bushings under the infeed table so the straightedge lies flat against both tables. Repeat this
step with each of the remaining straightedge
positions as many times as necessary until the
infeed table is parallel with the outfeed table.
8. Tighten/replace the set screws in the eccentric
bushings on the infeed table.
9. Set the outfeed table height (see Page 30).
-44-
10. Set the knives (refer to Page 38).
11. Reinstall the cutterhead guard and fence.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

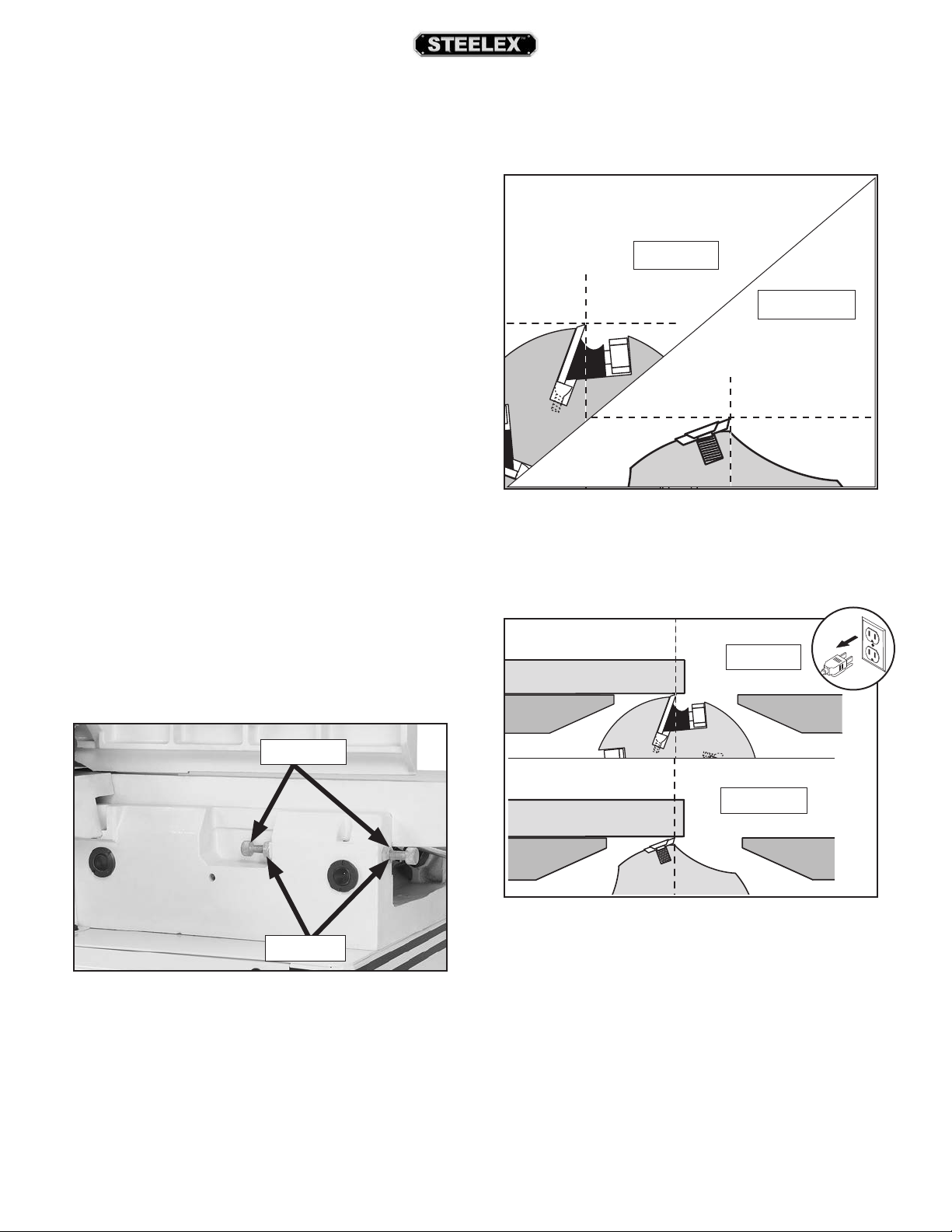

Setting Outfeed Table
Top Dead
Center
Height
The outfeed table height must be even with the
top of the cutterhead knives. If the outfeed table is
set too low, there will be snipe. If the outfeed table
is set too high, the workpiece will hit the edge of
the outfeed table during operation, increasing the
chance of kickback.
6. Use motor pulley to rotate cutterhead until one
of the knives or inserts is at top dead center (its
highest point during rotation), as illustrated in
Figures 64–65.
Top Dead
Center
ST1006
Tools Needed Qty
Straightedge .......................................................................... 1
Open-End Wrench 16mm.................................................. 1
To set outfeed table height:
1. DISCONNECT MACHINE FROM POWER!
2. Remove cutterhead guard, fence, and cabinet
rear access panel.
3. Knife-Style Cutterhead Only: Correctly set
knife heights. Refer to Adjusting/Replacing
Knives (ST1006) on Page 38 for detailed
instructions.
4. Loosen outfeed table lock located at front of
machine, and loosen jam nuts and positive stop
bolts located at back of machine just behind
outfeed table (see Figure 63).
Stop Bolts
ST1011
Figure 64. Knife or insert at top dead center.
7. Use outfeed table adjustment lever to set
outfeed table so that knife or insert barely
touches straightedge, as illustrated in Figure 65.
ST1006
Straightedge
Outfeed Infeed
Jam Nuts
Figure 63. Outfeed table positive stop bolts.
5. Place straightedge on outfeed table so it extends
over cutterhead.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
ST1011
Straightedge
Outfeed Infeed
Figure 65. Using straightedge to check outfeed
table height.
8. Tighten outfeed table lock located at front of
machine, and tighten outfeed positive stop
bolts and jam nuts located at back of machine
(see Figure 63) so that outfeed table will not
move during operation.
9. Re-install cutterhead guard, fence, and cabinet
rear access panel.
-45-

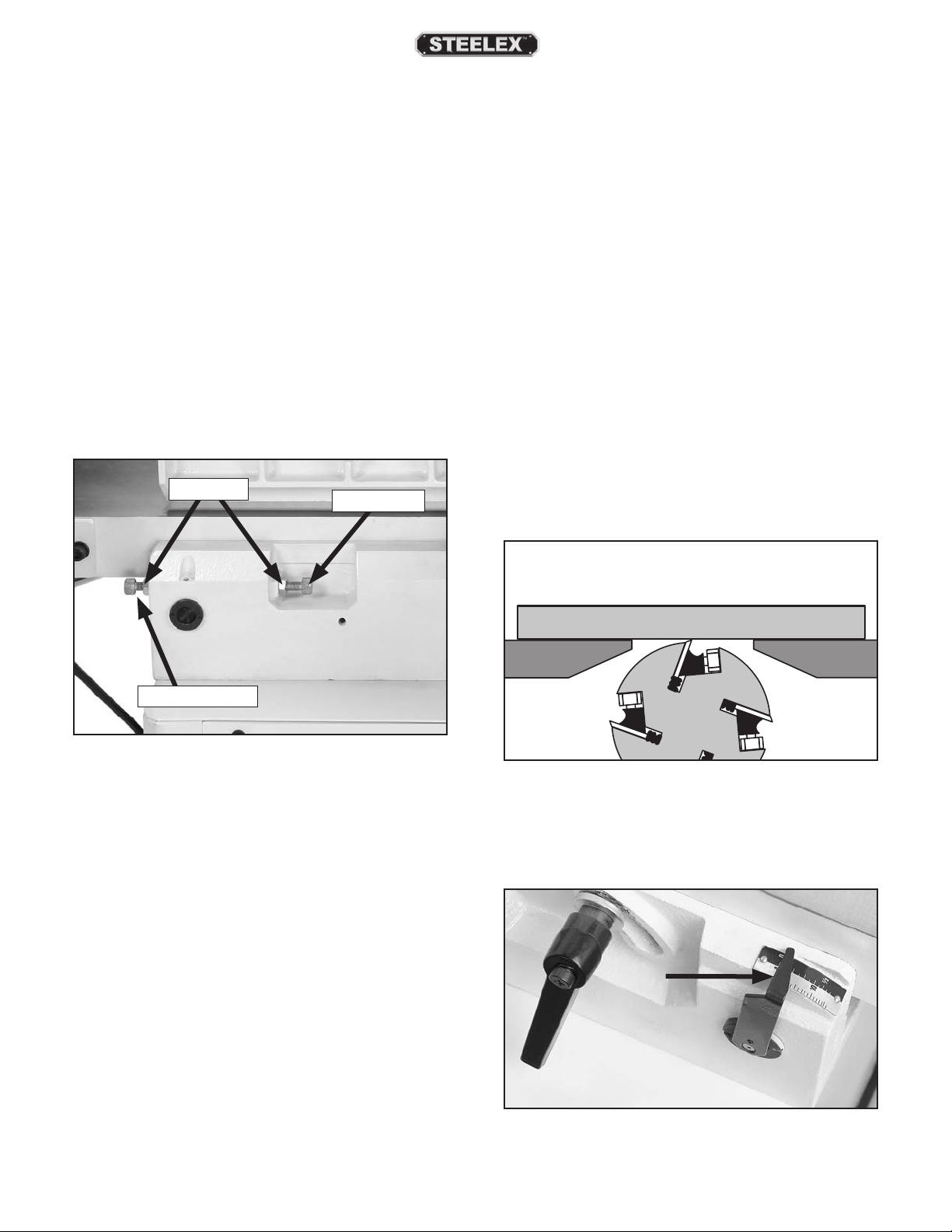

Setting Infeed Table
Calibrating Depth
Height
The infeed table on the Model ST1006/ST1011 has
positive stop bolts that, when properly set up, allow
the operator to quickly adjust the infeed table
between finish/final cuts and shaping/heavy cuts.
We recommend setting the minimum depth of cut to
1
/32" and the maximum depth of cut to 1/8" for most
operations. DO NOT exceed
machine or kickback and serious injury may occur!
Each positive stop bolt (see Figure 66) controls the
top or bottom range of the table movement. The jam
nut locks the positive stop bolt in position so it will
not move during operation.
Jam Nuts
1
⁄8 " cut per pass on this
Top Height
Scale
The depth-of-cut scale can be calibrated or "zeroed"
to make sure the cutting depth shown on the scale
matches the actual cutting depth (per pass).
Tools Needed Qty
Straightedge .......................................................................... 1
Phillips Screwdriver #2 ....................................................... 1
To calibrate the depth scale:
1. DISCONNECT MACHINE FROM POWER!
2. Loosen the infeed table positive stop bolts (see
Figure 66).
3. Use a straightedge to help adjust the infeed
table exactly even with the outfeed table, as
shown in Figure 67.
Bottom Height
Figure 66. Positive stop bolts for infeed table.
Straightedge
InfeedOutfeed
Figure 67. Infeed table even with outfeed table.
4. Using a screwdriver, adjust the scale pointer to
“0” (see Figure 68), then reset the infeed table
positive stops.
-46-
Figure 68. Depth scale adjusted to “0” position.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Setting Fence Stops
The fence stops simplify the task of adjusting the
fence to 45˚ inward, 90˚, and 45˚ outward (135˚).
To set 45˚ inward fence stop:
1. DISCONNECT MACHINE FROM POWER!
2. Tilt the fence approximately 45° inward (Figure
69) onto the positive stop bolts, using a 45°
square as a gauge.
3. Loosen the jam nut on the 45° inward positive
stop bolt shown in Figure 69.
2. Using a 90° square, adjust the fence to the 90°
position, as shown in Figure 71.
Figure 71. Adjusting fence to 90˚.
3. Tighten the set screw in the plunger lock collar.
Positive
Stop
Jam Nut
Figure 69. Fence adjusted 45˚ inward.
4. Adjust the positive stop bolts until the fence is
exactly 45° inward while resting on the bolts
(verify the angle with a 45° square).
5. Retighten the jam nut loosened in Step 2.
To set 90˚ fence stop:
1. Loosen the set screw in the plunger lock collar
shown in Figure 70, and loosen the fence tilt
lock.
4. Adjust the indicator (if necessary) to 0° to
calibrate the fence tilt scale.
To set 45° outward fence stop:
1. Loosen the fence tilt lock, and position the fence
against the 45° outward positive stop bolt.
2. Loosen the jam nut on the 45˚ outward fence
positive stop bolt (see Figure 72).
3. Adjust the 45˚ outward positive stop bolt until
the fence is exactly 45° outward while resting on
the bolt, as shown in Figure 72.
Plunger Lock
Collar
Fence Tilt
Scale
Figure 70. Fence controls.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
45° Outward
Positive Stop
Bolt
Figure 72. Adjusting fence 45˚ outward.
4. Retighten the jam nut loosened in Step 2.
-47-

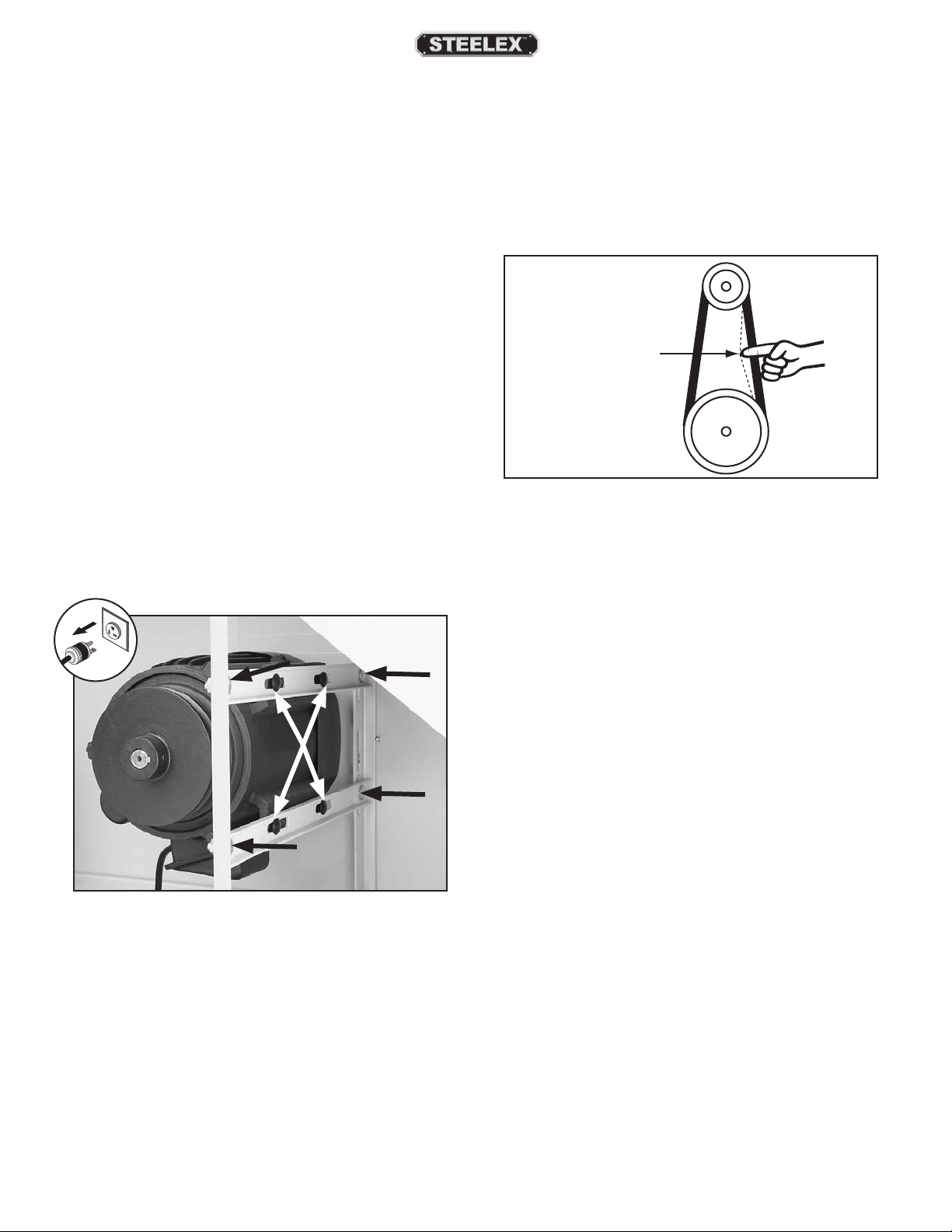

Tensioning/Replacing
V-Belt
To ensure optimum power transmission from the
motor to the cutterhead, the belt must be in good
condition (free from cracks, fraying and wear)
and properly tensioned. As the machine is used, the
belts will slightly wear and stretch, eventually losing
their efficiency of transmitted power until they can
be retensioned.
Also, a new belt typically has a break-in period, and
should be checked/retensioned after the first 16
hours of belt life, as it will stretch and seat during this
time.
4. Press belt with moderate pressure in center to
check belt tension. Belt is correctly tensioned
when there is approximately
pushed, as shown in Figure 74.
—If there is more than
check belt tension, repeat the tensioning procedure until it is correct.
Cutterhead Pulley
Approximately
1
/4" Deection
1
⁄4" deflection when
1
⁄4" deflection when you
Tool Needed Qty
Wrenches or Sockets 13mm ............................................. 2
Tensioning Belt
1. DISCONNECT MACHINE FROM POWER!
2. Remove cabinet rear access panel and loosen
motor bracket fasteners shown in Figure 73.
Motor Pulley
Figure 74. Correct belt deflection when properly
tensioned.
4. Tighten motor bracket fasteners (see Figure 73),
and replace cabinet rear access panel.
Replacing Belt
1. DISCONNECT MACHINE FROM POWER!
2. Remove cabinet rear access panel and loosen
motor bracket fasteners shown in Figure 73.
3. Have another person lift motor as you remove
belt and replace it with a new one. It may help
to use a 2x4 as a lever to raise motor.
4. Follow Steps 4–5 in Tensioning Belt procedure
above to set correct belt tension.
Figure 73. Motor bracket bolts (black arrows) and
motor mount bolts (white arrows).
3. Press down on motor to keep tension on belt.
-48-
5. Tighten motor bracket fasteners (see Figure 73)
and replace cabinet rear access panel.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

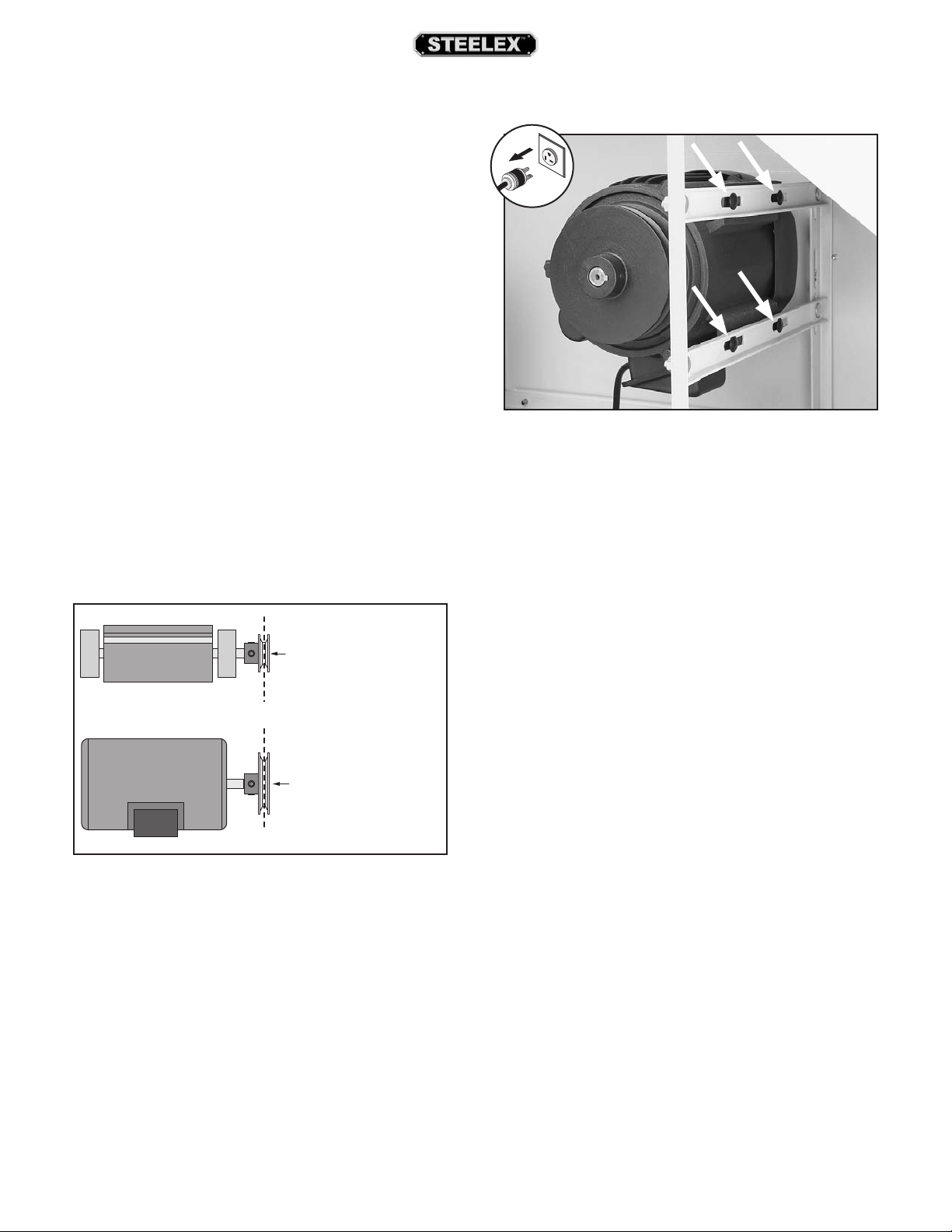

Pulley Alignment
Cutterhead
Pulley
Motor
Pulley
Alignment
Pulley alignment is another important factor in power
transmission and belt life. The pulleys should be parallel to each other and in the same plane (coplanar)
for optimum performance.
Each pulley can be adjusted by loosening the motor
mount bolts, sliding the motor in or out, and retightening the fasteners to lock the motor pulley in place.
To align the pulleys:
1. DISCONNECT MACHINE FROM POWER!
2. Open the back cover and remove the belt guard.
4. Loosen the motor mount bolts shown in
Figure 76.
3. Visually check the alignment of the two pulleys
to make sure that they are aligned and that the
V-belts are straight up and down (see Figure
75).
— If the pulleys are aligned, go to Step 8.
— If the pulleys are NOT aligned, do Steps 4–7.
Figure 75. Pulleys aligned.
Figure 76. Motor mount bolts for adjusting pulley
alignment (white arrows).
5. Shift the motor horizontally as needed to align
the motor pulley with the cutterhead pulley.
6. Tighten the motor mount bolts.
7. Close the back cover and reinstall the belt guard.
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-49-

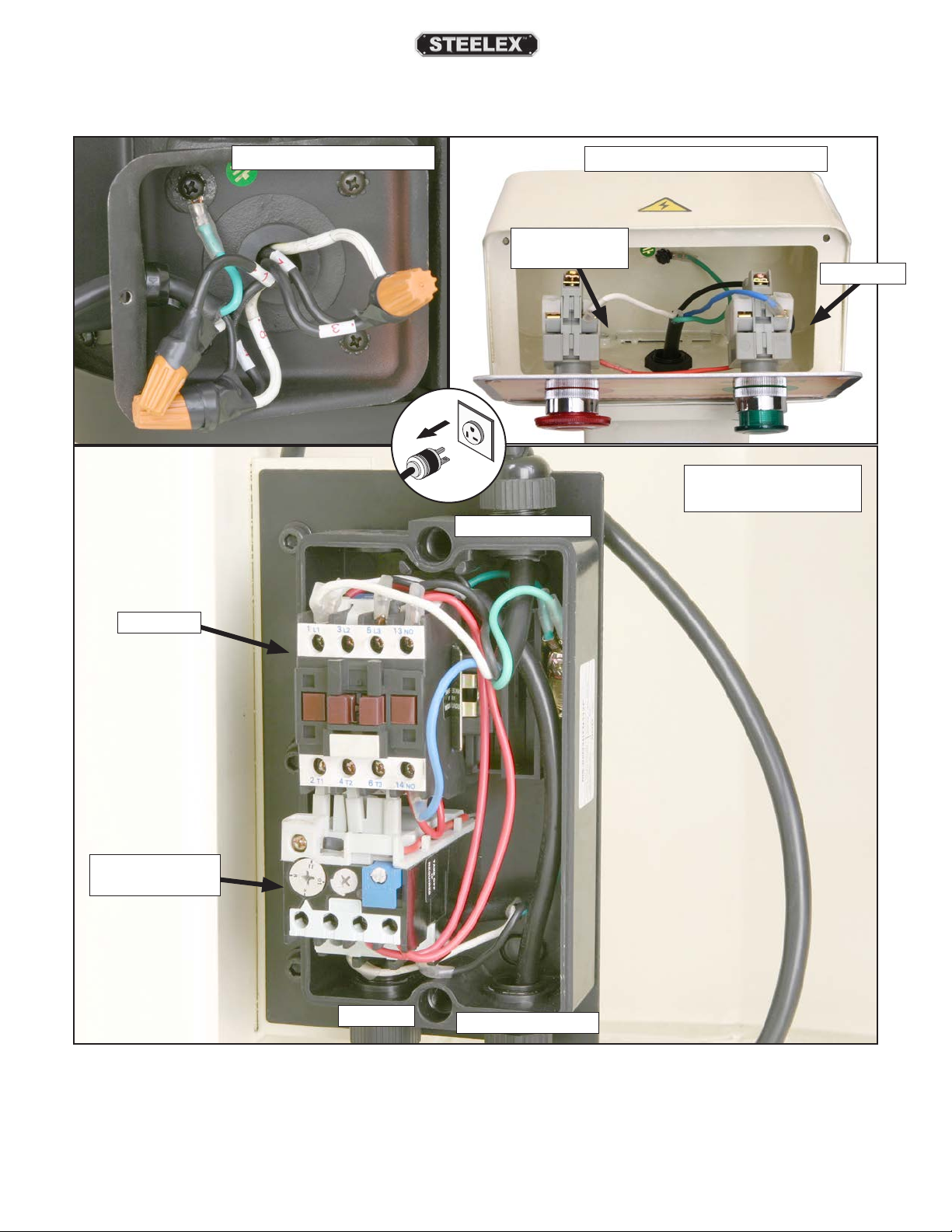

ELECTRICAL COMPONENTS
Motor Junction Box
Control Panel Assembly
STOP/Reset
Switch
ON Switch
Magnetic Switch
Assembly
To Control Panel
Contactor
Thermal
Overload Relay
To Motor
To Power Source
-50-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
ON
Switch
Top
STOP/Reset
Switch
Hot
Ground

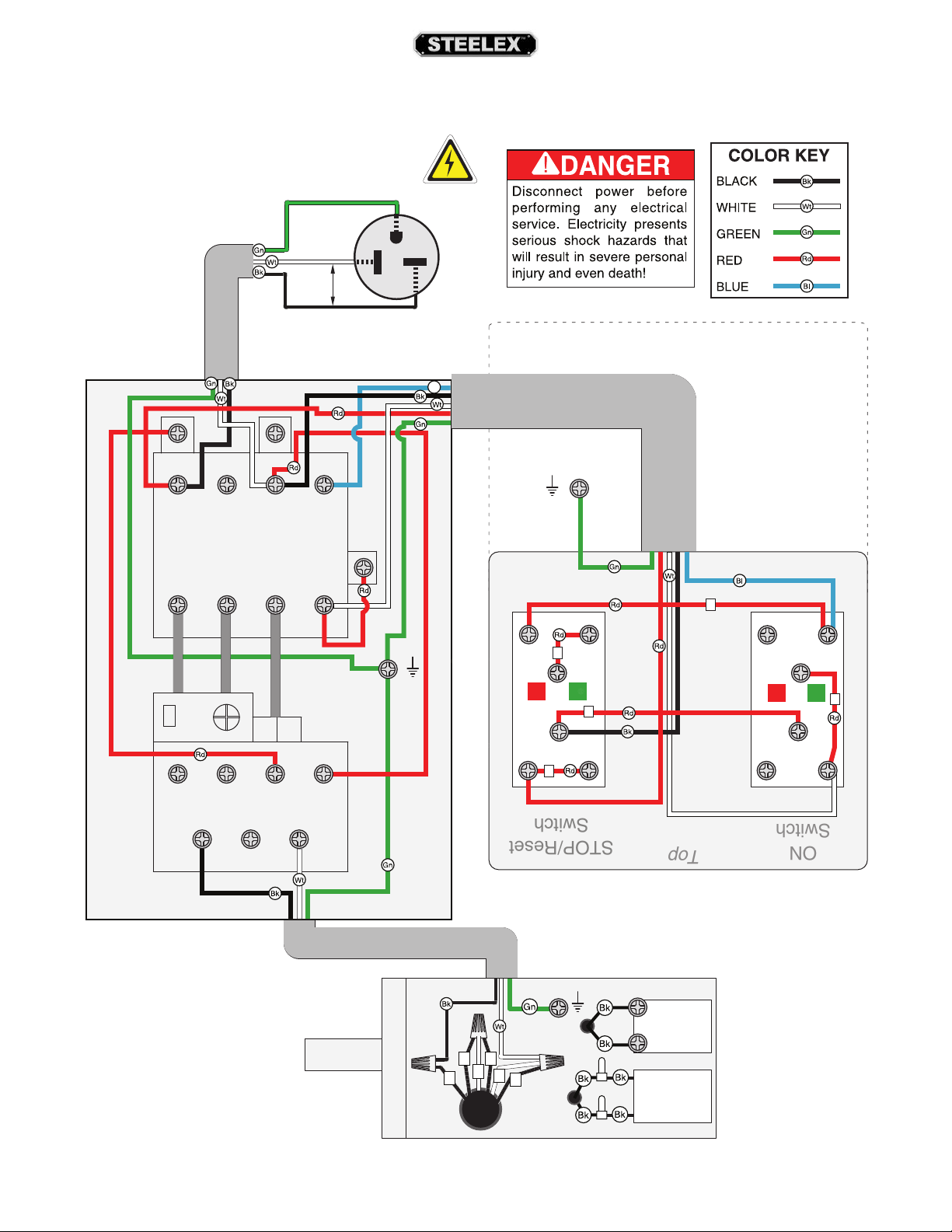

ST1006/ST1011 Wiring Diagram
240 VAC
G
Hot
240
VAC
6-20 PLUG
Bl
A1
1L1 3L2 5L3
13no
Contactor
2T1 4T2 6T3
98 97 96 95
14no
Thermal Overload
Hot
Hot
Ground
CONTROL
PANEL
(from behind)
A2
3
1
5
4
2
Ground
MAGNETIC
SWITCH
ASSEMBLY
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
240V
MOTOR
1
3 2
5
Start
Ground
8
4
Capacitor
200MFD
250VAC
Run
Capacitor
30MFD
450VAC
-51-

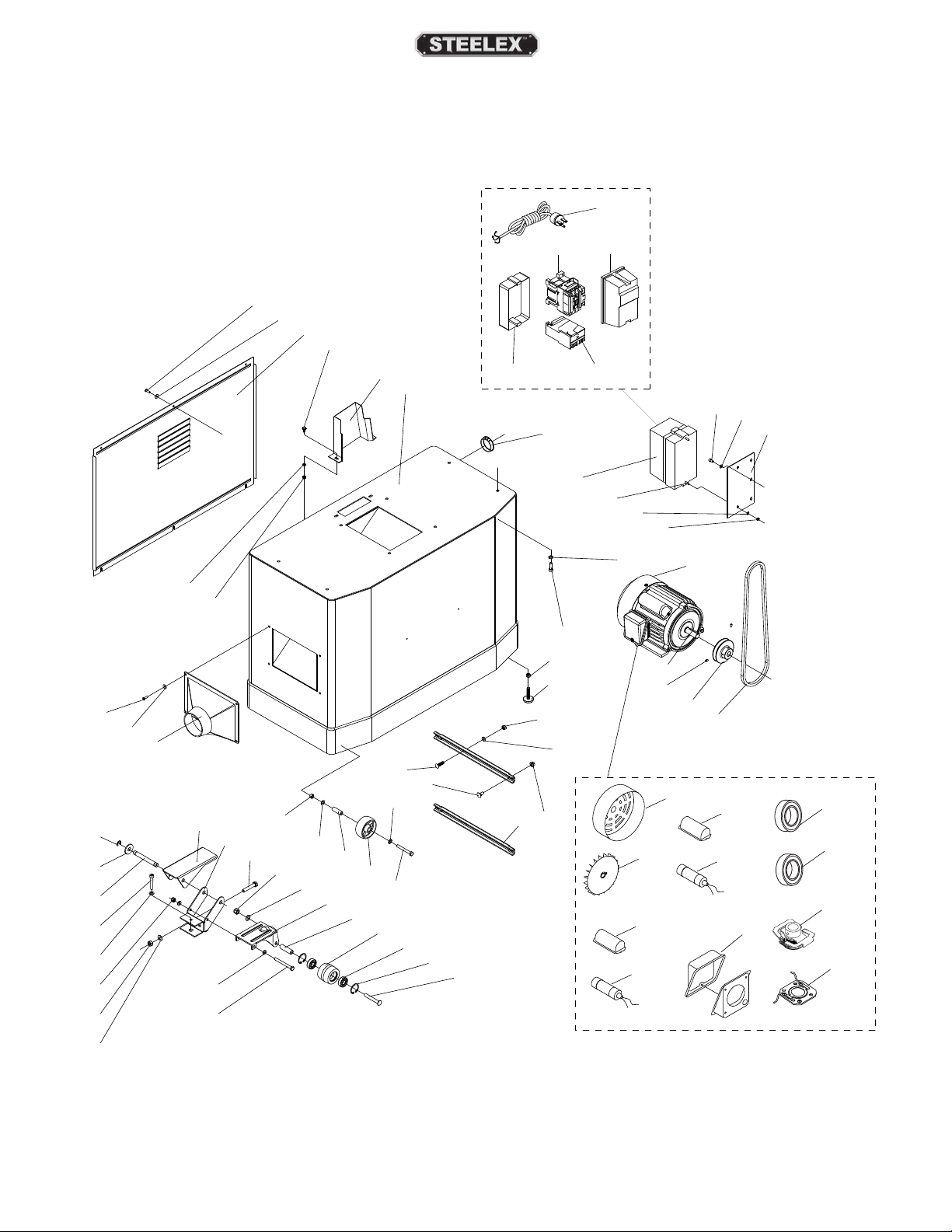

PARTS
Stand Breakdown
35-5
42
43
44
45
46
47
23
22
20
35
29
35-4
35-3
34
30
33
32
27
26
28-2
28-5
28-6
25
28-1
28
24
37
28-3
28-4
28-7
38
39
28-8
28-9
28-10
28-11
35-2
63
1
2
3
52
35-1
16
36
21
17
4
5
6
7
8
9
10
19
18
12
60
11
59
58
12
57
13
56
14
15
55
54
53
62
61
51
48
49
-52-
50
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Stand Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 XST1006001 FLAT WASHER 5MM 28-11 XST1006028-11 CONTACT PLATE 16MM
2 XST1006002 MOTOR ACCESS PANEL 29 XST1006029 CAP SCREW M8-1.25 X 25
3 XST1006003 FLANGE SCREW M6-1 X 12 30 XST1006030 LOCK WASHER 8MM
4 XST1006004 BELT GUARD 32 XST1006032 HEX NUT M5-.8
5 XST1006005 CABINET STAND 33 XST1006033 FLAT WASHER 5MM
6 XST1006006 FLAT WASHER 6MM 34 XST1006034 PHLP HD SCR M5-.8 X 20
7 XST1006007 HEX NUT M6-1 35 XST1006035 MAGNETIC SWITCH ASSEMBLY
8 XST1006008 PHLP HD SCR M5-.8 X 16 35-1 XST1006035-1 MAG SWITCH REAR COVER
9 XST1006009 FLAT WASHER 5MM 35-2 XST1006035-2 CONTACTOR NHD C-09D 230V
10 XST1006010 DUST PORT 4" 35-3 XST1006035-3 OL RELAY NHD NTH-17 14-17A
11 XST1006011 HEX NUT M8-1.25 35-4 XST1006035-4 MAG SWITCH COVER (FRONT)
12 XST1006012 FLAT WASHER 8MM 35-5 XST1006035-5 POWER CORD 12G 3W 72" 6-20P
13 XST1006013 WHEEL SLEEVE 36 XST1006036 STRAIN RELIEF
14 XST1006014 WHEEL 37 XST1006037 CAP SCREW M6-1 X 10
15 XST1006015 HEX BOLT M8-1.25 X 65 38 XST1006038 FLAT WASHER 6MM
16 XST1006016 MOTOR BRACKET 39 XST1006039 SWITCH MOUNTING PLATE
17 XST1006017 FLANGE NUT 5/16-18 42 XST1006042 EXT RETAINING RING 9MM
18 XST1006018 CARRIAGE BOLT 5/16-18 X 3/4 43 XST1006043 FLAT WASHER 12MM
19 XST1006019 CARRIAGE BOLT 5/16-18 X 1-1/4 44 XST1006044 CLEVIS PIN
20 XST1006020 FLAT WASHER 5/16 45 XST1006045 HEX BOLT M8-1.25 X 50
21 XST1006021 HEX NUT 5/16-18 46 XST1006046 FLAT WASHER 8MM
22 XST1006022 ADJUSTABLE FOOT 3/8-15 X 1/34 47 XST1006047 HEX NUT M8-1.25
23 XST1006023 HEX NUT 3/8-16 48 XST1006048 HEX NUT M10-1.5
24 XST1006024 V-BELT A-45 4L450 49 XST1006049 FLAT WASHER 10MM
25 XST1006025 MOTOR PULLEY 50 XST1006050 HEX BOLT M8-1.25 X 100
26 XST1006026 SET SCREW M6-1 X 6 51 XST1006051 FLAT WASHER 8MM
27 XST1006027 KEY 5 X 5 X 30 52 XST1006052 FOOT PEDAL WHEEL AXLE
28 XST1006028 MOTOR 3HP 240V 1-PH 53 XST1006053 INT RETAINING RING 35MM
28-1 XST1006028-1 MOTOR FAN COVER 54 XST1006054 BALL BEARING 6202-2RS
28-2 XST1006028-2 MOTOR FAN 55 XST1006055 FOOT PEDAL WHEEL
28-3 XST1006028-3 CAPACITOR COVER 56 XST1006056 FOOT PEDAL WHEEL SLEEVE
28-4 XST1006028-4 S CAPACITOR 200M 250V 57 XST1006057 FOOT PEDAL BASE
28-5 XST1006028-5 CAPACITOR COVER 58 XST1006058 FLAT WASHER 10MM
28-6 XST1006028-6 R CAPACITOR 30M 450V 59 XST1006059 HEX NUT M10-1.5
28-7 XST1006028-7 MOTOR JUNCTION BOX 60 XST1006060 HEX BOLT M10-1.5 X 55
28-8 XST1006028-8 BALL BEARING 6204ZZ 61 XST1006061 FOOT PEDAL BRACKET
28-9 XST1006028-9 BALL BEARING 6203ZZ 62 XST1006062 FOOT PEDAL
28-10 XST1006028-10 CENTRIFUGAL SWITCH 16MM 3450 63 XST1006063 PHLP HD SCR M5-.8 X 16
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-53-
103
121
104
120
101
102
105
112
118
119
106
107
123

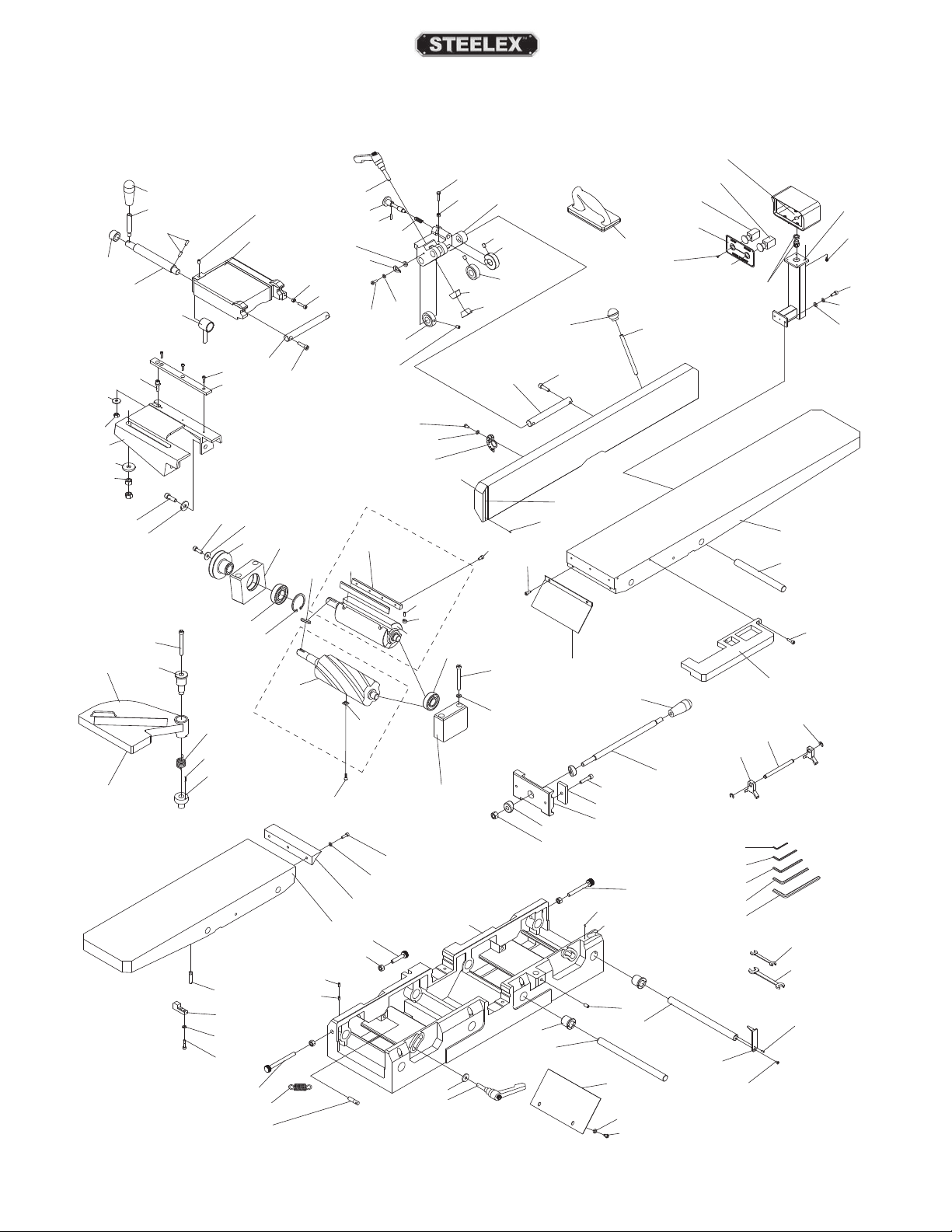

Jointer Breakdown
133
124
108
109
129
125
130
131
126
128
132
127
138
139
134
140
135
137
136
138
141
123
145
124
218
233
146
231
232
230
229
239
234
235
236
237
238
122
113
114
115
176
175
116
117
173
174
172
177
178
179
184
185
186
187
168
195
171
170
167
196
197
169
240
ST1011
163
Only
242
194
193
183
164
241
180
191
192
165
181
143
ST1006
Only
162
182
144
142
160
161
201
202
147
159
158
188
166
156
157
155
203
149
211
212
204
148
154
215
216
210
189
190
198
214
217
205
206
199
200
150
151
153
152
226
228
227
213
221
222
223
224
225
219
220
208
207
209
-54-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Jointer Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 XST1006101 KNOB M10-1.5 152 XST1006152 RABBET TABLE EXTENSION
102 XST1006102 STUD 153 XST1006153 CAP SCREW M6-1 X 20
103 XST1006103 BUSHING 154 XST1006154 CHIP DEFLECTOR
104 XST1006104 ECCENTRIC SHAFT 155 XST1006155 CAP SCREW M6-1 X 12
105 XST1006105 SET SCREW M6-1 X 16 156 XST1006156 CAP SCREW M8-1.25 X 80
106 XST1006106 SET SCREW M8-1.25 X 12 157 XST1006157 LOCK WASHER 8MM
107 XST1006107 FENCE CARRIAGE 158 XST1006158 BEARING BLOCK (L)
108 XST1006108 HEX NUT M6-1 159 XST1006159 BALL BEARING 6004-2RS
109 XST1006109 HEX BOLT M6-1 X 25 160 XST1006160 SET SCREW M5-.8 X 16 (ST1006)
112 XST1006112 COLLAR 161 XST1006161 KNIFE LIFTER (ST1006)
113 XST1006113 CARRIAGE MOUNT 162 XST1006162 CUTTERHEAD 8" 4-KNIFE (ST1006)
114 XST1006114 FLAT WASHER 12MM 163 XST1006163 KEY 6 X 6 X 35
115 XST1006115 HEX NUT M12-1.75 164 XST1006164 KNIFE (SET OF 4) (ST1006)
116 XST1006116 CAP SCREW M10-1.5 X 30 165 XST1006165 GIB (ST1006)
117 XST1006117 FLAT WASHER 10MM 166 XST1001166 GIB SCREW (ST1011)
118 XST1006118 CAP SCREW M5-.8 X 16 167 XST1006167 INT RETAINING RING 47MM
119 XST1006119 GIB 168 XST1006168 BALL BEARING 6005-2RS
120 XST1006120 ECCENTRIC STUD 169 XST1006169 BEARING BLOCK (R)
121 XST1006121 FLAT WASHER 8MM 170 XST1006170 CUTTERHEAD PULLEY ALUMINUM
122 XST1006122 HEX NUT M8-1.25 171 XST1006171 FLAT WASHER 8MM
123 XST1006123 CONNECTING SHAFT W/2 HOLES 172 XST1006172 CAP SCREW M8-1.25 X 25
124 XST1006124 CAP SCREW M8-1.25 X 30 173 XST1006173 CAP SCREW M8-1.25 X 80
125 XST1006125 FLAT WASHER 6MM 174 XST1006174 GUARD CLAMP
126 XST1006126 TILT SCALE POINTER 175 XST1006175 CUTTERHEAD GUARD
127 XST1006127 FLAT WASHER 6MM 176 XST1006176 GUARD WARNING LABEL
128 XST1006128 BUTTON HD CAP SCREW M6-1 X 16 177 XST1006177 TORSION SPRING
129 XST1006129 LOCK LEVER M10-1.5 X 35 178 XST1006178 ROLL PIN 3 X 16
130 XST1006130 INDEX PIN ASSEMBLY 179 XST1006179 SPRING RETAINER
131 XST1006131 ROLL PIN 3 X 20 180 XST1006180 TABLE LIP
132 XST1006132 COMPRESSION SPRING 181 XST1006181 FLAT WASHER 6MM
133 XST1006133 HEX BOLT M6-1 X 25 182 XST1006182 CAP SCREW M6-1 X 20
134 XST1006134 HEX NUT M6-1 183 XST1006183 OUTFEED TABLE
135 XST1006135 FENCE SWIVEL BASE 184 XST1006184 SPRING PIN W/HOLE
136 XST1006136 LOCK COLLAR 185 XST1006185 BUMPER
137 XST1006137 SET SCREW M8-1.25 X 12 186 XST1006186 LOCK WASHER 6MM
138 XST1006138 LOCK COLLAR 187 XST1006187 CAP SCREW M6-1 X 25
139 XST1006139 SET SCREW M8-1.25 X 12 188 XST1006188 TABLE BASE
140 XST1006140 CLAMP 189 XST1006189 RIVET 2 X 4MM NAMEPLATE, STEEL
141 XST1006141 THREAD CLAMP 190 XST1006190 HEIGHT SCALE
142 XST1006142 TILT SCALE 191 XST1006191 SHORT ADJUSTING SCREW
143 XST1006143 PHLP HD SCR M6-1 X 10 192 XST1006192 HEX NUT M10-1.5
144 XST1006144 FLAT WASHER 6MM 193 XST1006193 SET SCREW M6-1 X 10
145 XST1006145 KNOB M10-1.5 ROUND 194 XST1006194 SET SCREW M6-1 X 10
146 XST1006146 STUD 195 XST1006195 ADJUSTING SCREW M10-1.5 X 110
147 XST1006147 FENCE 196 XST1006196 EXTENSION SPRING
148 XST1006148 SCALE 197 XST1006197 SPRING PIN
149 XST1006149 RIVET 198 XST1006198 CHIP BREAKER
150 XST1006150 INFEED TABLE 199 XST1006199 FLAT WASHER 6MM
151 XST1006151 TABLE SHAFT 202MM 200 XST1006200 HEX BOLT M6-1 X 12
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
-55-
Jointer Parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
201 XST1006201 FLAT WASHER 8MM 222 XST1006222 HEX WRENCH 4MM
202 XST1006202 TABLE LOCK LEVER M8-1.25 X 30 223 XST1006223 HEX WRENCH 5MM
203 XST1006203 ECCENTRIC BUSHING 224 XST1006224 HEX WRENCH 6MM
204 XST1006204 TABLE SHAFT 281MM 225 XST1006225 HEX WRENCH 8MM
205 XST1006205 SET SCREW M8-1.25 X 16 226 XST1006226 EXT RETAINING RING 8MM
206 XST1006206 TABLE SHAFT 281MM 227 XST1006227 KNIFE GAUGE BLOCK
207 XST1006207 DEPTH-OF-CUT POINTER 228 XST1006228 KNIFE GAUGE ROD
208 XST1006208 ROLL PIN 3 X 10 229 XST1006229 CONTROL BOX
209 XST1006209 FLAT HD SCR M4-.7 X 10 230 XST1006230 START BUTTON
210 XST1006210 PIVOT BRACKET 231 XST1006231 STOP BUTTON
211 XST1006211 ADJUSTING BLOCK 232 XST1006232 CONTROL PANEL FACE
212 XST1006212 HEX NUT M12-1.75 233 XST1006233 TAP SCREW M4 X 8
213 XST1006213 LEVER 234 XST1006234 SWITCH PEDESTAL ARM
214 XST1006214 HANDLE KNOB M12-1.75 235 XST1006235 FLANGE SCREW M6-1 X 16
215 XST1006215 CAP SCREW M8-1.25 X 40 236 XST1006236 CAP SCREW M10-1.5 X 25
216 XST1006216 CLAMP PLATE 237 XST1006237 LOCK WASHER 10MM
217 XST1006217 MEDIUM ADJUSTING SCREW 238 XST1006238 FLAT WASHER 10MM
218 XST1006218 PUSH BLOCK 239 XST1006239 BALL STRAIN RELIEF
219 XST1006219 WRENCH 8 X 10MM OPEN-ENDS 240 XST1011240 8" HELICAL CUT TERHEAD (ST1011)
220 XST1006220 WRENCH 12 X 14MM OPEN-ENDS 241 XST1011241 CUTTERHEAD INSERT 15 X 15 X 2.5MM (ST1011)
221 XST1006221 HEX WRENCH 2.5MM 242 XST1011242 FLAT HD TORX T20 M6-1 X 15
-56-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)

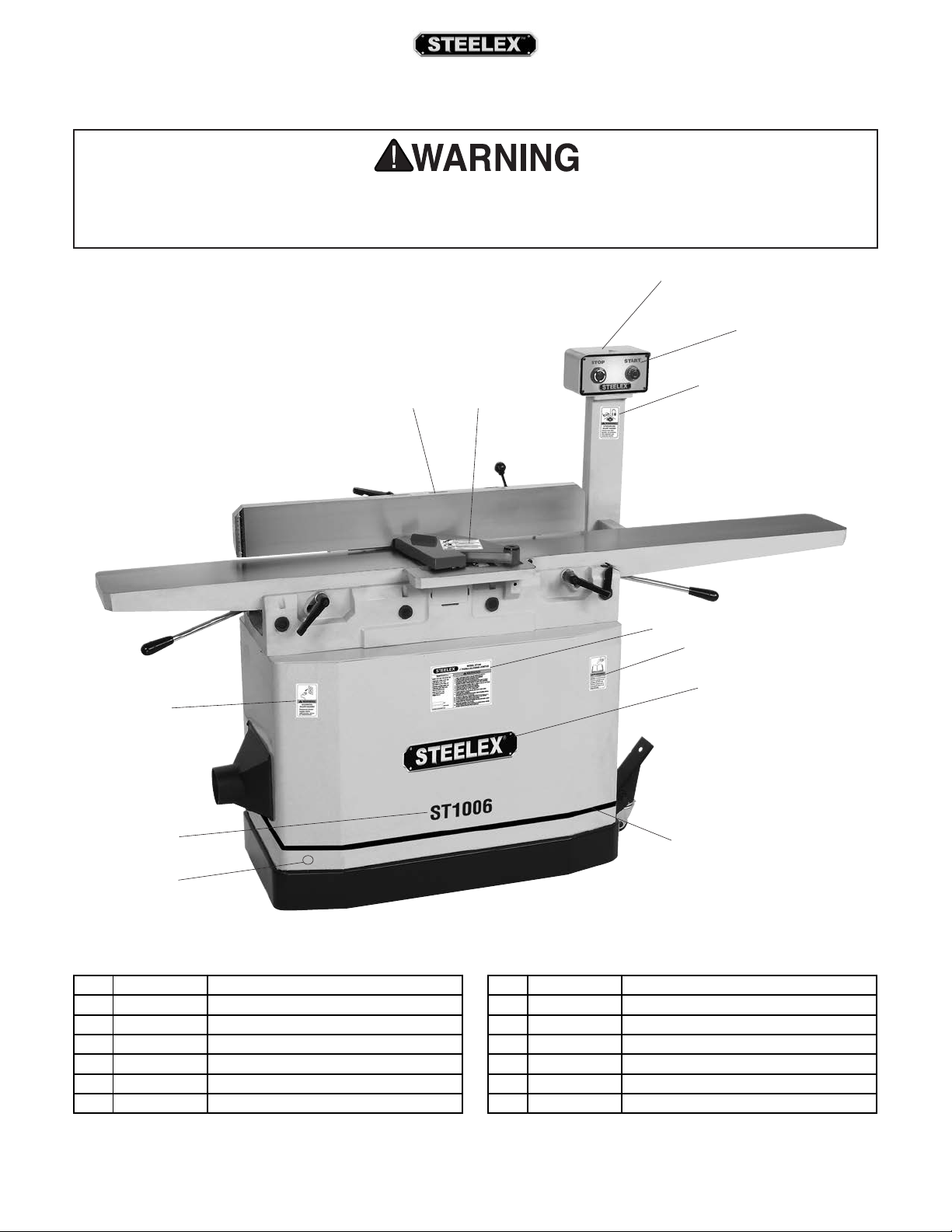

Labels/Cosmetics
303
REF PART # DESCRIPTION REF PART # DESCRIPTION
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine MUST
maintain the original location and readability of the labels on the machine. If any label is removed or becomes
unreadable, REPLACE that label before using the machine again.
304
309
301 302
305
310
306
307
311
312
301 XST1006301 FENCE/CUTTERHEAD WARNING LABEL 308 XST1006308 DECORATIVE STRIPE TAPE
302 XST1006302 CUTTERHEAD GUARD WARNING LABEL 309 XST1006309 DISCONNECT POWER LABEL
303 XST1006303 ELECTRICITY LABEL 310 XST1006310 MACHINE ID LABEL (ST1006)
304 XST1006304 CONTROL PANEL LABEL 310 XST1011310 MACHINE ID LABEL (ST1011)
305 XST1006305 EYE/EAR/LUNG INJURY HAZARD LABEL 311 XST1006311 MODEL NUMBER LABEL (ST1006)
306 XST1006306 READ MANUAL LABEL 311 XST1011311 MODEL NUMBER LABEL (ST1011)
307 XST1006307 STEELEX LOGO PLATE 312 XST1006312 TOUCH-UP PAINT, STEELEX BEIGE
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
308
-57-
WARRANTY
Woodstock International, Inc. warrants all STEELEX® machinery to be free of defects from workmanship and
materials for a period of two years from the date of original purchase by the original owner. This warranty does
not apply to defects due directly or indirectly to misuse, abuse, negligence or accidents, lack of maintenance, or
reimbursement of third party expenses incurred.
Woodstock International, Inc. will repair or replace, at its expense and at its option, the
or machine part which in normal use has proven to be defective, provided that the original owner returns
the product prepaid to the
Bellingham, WA office, with proof of their purchase of the product within two years, and provides Woodstock
International, Inc. reasonable opportunity to verify the alleged defect through inspection. If it is determined
there is no defect, or that the defect resulted from causes not within the scope of Woodstock International Inc.'s
warranty, then the original owner must bear the cost of storing and returning the product.
This is Woodstock International, Inc.'s sole written warranty and any and all warranties that may be implied by
law, including any merchantability or fitness, for any particular purpose, are hereby limited to the duration of
this written warranty. We do not warrant that
acts. In no event shall Woodstock International, Inc.'s liability under this warranty exceed the purchase price paid
for the product, and any legal actions brought against Woodstock International, Inc. shall be tried in the State of
Washington, County of Whatcom. We shall in no event be liable for death, injuries to persons or property or for
incidental, contingent, special or consequential damages arising from the use of our products.
Every effort has been made to ensure that all
We reserve the right to change specifications at any time because of our commitment to continuously improve
the quality of our products.
STEELEX
®
factory service center or authorized repair facility designated by our
STEELEX
STEELEX
®
machinery complies with the provisions of any law or
®
machinery meets high quality and durability standards.
STEELEX
®
machine
-58-
ST1006/ST1011 8" Jointer (Mfd. Since 3/16)
Warranty Registration
Name _______________________________________________________________________________________
Street _______________________________________________________________________________________
City __________________________ State _____________________________Zip _________________________
Phone # _______________________ Email ____________________________Invoice # ____________________
Model #_________Serial #______________Dealer Name__________________Purchase Date___________
The following information is given on a voluntary basis. It will be used for marketing purposes to help us develop better products
and services. Of course, all information is strictly confidential.
1. How did you learn about us?
_____ Advertisement _____ Friend _____ Local Store
_____ Mail Order Catalog _____Website _____ Other:
2. How long have you been a woodworker/metalworker?
_____ 0-2 Years ____ 2-8 Years ____ 8-20 Years ____ 20+ Years
®
3. How many of your machines or tools are STEELEX
_____ 0-2 ____ 3-5 ____ 6-9 ____ 10+
4. Do you think your machine represents a good value? _____ Yes _____ No
?
CUT ALONG DOTTED LINE
®
5. Would you recommend STEELEX
products to a friend? _____ Yes _____ No
6. What is your age group?
_____ 20-29 _____ 30-39 _____ 40-49
_____ 50-59 _____ 60-69 _____ 70+
7. What is your annual household income?
_____ $20,000-$29,000 _____ $30,000-$39,000 _____ $40,000-$49,000
_____ $50,000-$59,000 _____ $60,000-$69,000 _____ $70,000+
8. Which of the following magazines do you subscribe to?
____ Cabinet Maker
____ Family Handyman
____ Hand Loader
____ Handy
____ Home Shop Machinist
____ Journal of Light Cont.
____ Live Steam
____ Model Airplane News
____ Modeltec
____ Old House Journal
____ Popular Mechanics
____ Popular Science
____ Popular Woodworking
____ Practical Homeowner
____ Precision Shooter
____ Projects in Metal
____ RC Modeler
____ Rie
____ Shop Notes
____ Shotgun News
____ Today’s Homeowner
____ Wood
____ Wooden Boat
____ Woodshop News
____ Woodsmith
____ Woodwork
____ Woodworker West
____ Woodworker’s Journal
____ Other:
9. Comments: _____________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
FOLD ALONG DOTTED LINE
FOLD ALONG DOTTED LINE
Place
Stamp
Here
WOODSTOCK INTERNATIONAL INC.
P.O. BOX 2309
BELLINGHAM, WA 982272309
TAPE ALONG EDGESPLEASE DO NOT STAPLE
Loading...
