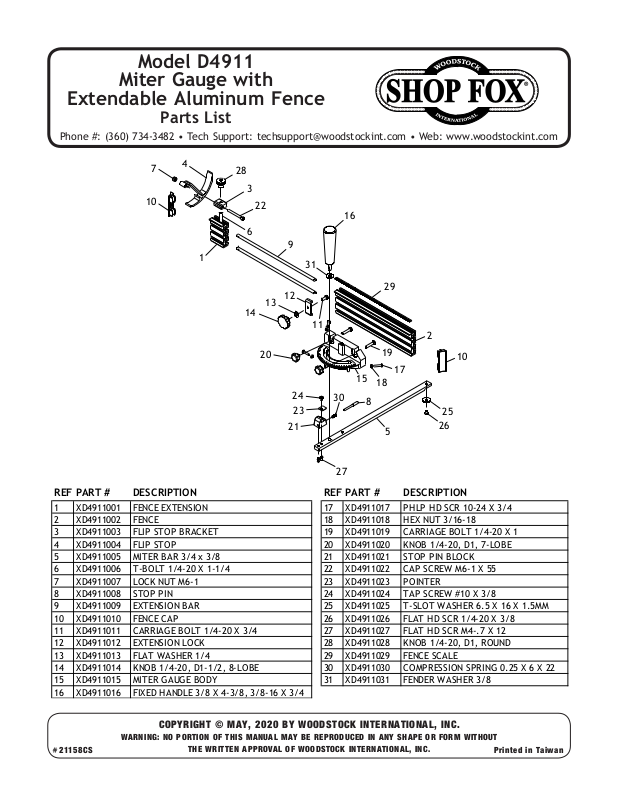

Page 1
Model D4911
16 XD4911016 FIX ED HANDLE 3/8 X 4-3/8, 3/8-16 X 3/4
27
Miter Gauge with
Extendable Aluminum Fence
Parts List
Phone #: (360) 734-3482 • Tech Support: techsupport@woodstockint.com • Web: www.woodstockint.com
10
7
4
1
28
3
6
14
22
20
13
12
9
21
24
23
31
11
30
16
15
29
2
19
17
18
8
5
10
25
26
REF PAR T # DESCRIPTION REF PAR T # DESCRIPTION
1 XD4911001 FENCE EX TENSI ON 17 XD4911017 PH LP H D SCR 10- 24 X 3/4
2 XD4911002 FENCE 18 XD4911018 HEX NUT 3/16-18
3 XD4911003 FLIP STOP BRACKET 19 XD4911019 CARRIAGE BOLT 1/4-20 X 1
4 XD4911004 FLIP STOP 20 XD4911020 KNOB 1/4-20, D1, 7-LO BE
5 XD4911005 MITER BAR 3/4 x 3/8 21 XD4911021 STOP PIN BLOCK
6 XD4911006 T-BOLT 1/4-20 X 1-1/4 22 XD4911022 CAP SCREW M6-1 X 55
7 XD4911007 LO CK NUT M6-1 23 XD4911023 POI NTER
8 XD4911008 STOP PIN 24 XD4911024 TAP SCREW #10 X 3/8
9 XD4911009 EXTENSION B AR 25 XD4911025 T-SLOT WASH ER 6. 5 X 16 X 1.5MM
10 XD4911010 FENCE CAP 26 XD4911026 FLAT HD SCR 1/4-20 X 3/8
11 XD4911011 CARRIAGE BO LT 1/4-20 X 3/4 27 XD4911027 FLAT HD SCR M4-.7 X 12
12 XD4911012 EXTENS ION LOCK 28 XD4911028 KNOB 1/4-20, D1, ROUND
13 XD4911013 FLAT WASHER 1/4 29 XD4911029 FENCE SCALE
14 XD4911014 KNOB 1/4- 20, D1- 1/2, 8- LOBE 30 XD4911030 COMPRESSION SP RI NG 0. 25 X 6 X 22
15 XD4911015 MITER GAUGE BODY 31 XD4911031 FENDER WASHER 3/8
COPYRIGHT © MAY, 2020 BY WOODSTOCK INTERNATIONAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT
THE WRITTEN APPROVAL OF WOODSTOCK INTERNATIONAL, INC.
Printed in Taiwan#21158CS
