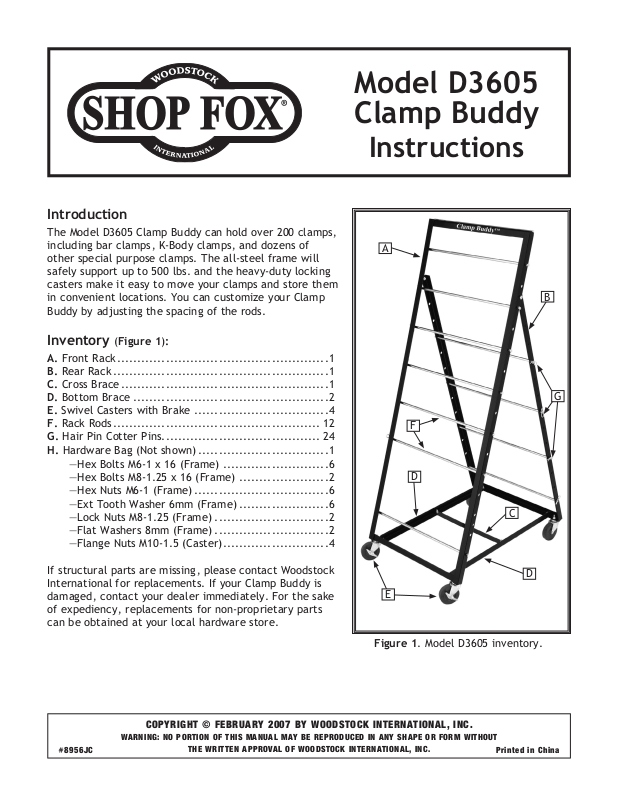

Steelex D3605 User guide

Introduction

The Model D3605 Clamp Buddy can hold over 200 clamps,
including bar clamps, K-Body clamps, and dozens of
other special purpose clamps. The all-steel frame will
safely support up to 500 lbs. and the heavy-duty locking
casters make it easy to move your clamps and store them
in convenient locations. You can customize your Clamp
Buddy by adjusting the spacing of the rods.

Inventory (Figure 1):

A. Front Rack ....................................................1

B. Rear Rack .....................................................1

C. Cross Brace ...................................................1

D. Bottom Brace ................................................2

E. Swivel Casters with Brake .................................4

F. Rack Rods ................................................... 12

G. Hair Pin Cotter Pins ....................................... 24

H. Hardware Bag (Not shown) ................................1

—Hex Bolts M6-1 x 16 (Frame) ..........................6

—Hex Bolts M8-1.25 x 16 (Frame) ......................

—Hex Nuts M6-1 (Frame) .................................

—Ext Tooth Washer 6mm (Frame) ......................

—Lock Nuts M8-1.25 (Frame) ............................

—Flat Washers 8mm (Frame) ............................

—Flange Nuts M10-1.5 (Caster) ..........................

2
6
6
2
2
4

Model D3605
Clamp Buddy

Instructions

A

B

G

F

D

C

If structural parts are missing, please contact Woodstock
International for replacements. If your Clamp Buddy is
damaged, contact your dealer immediately. For the sake
of expediency, replacements for non-proprietary parts
can be obtained at your local hardware store.

COPY RIGHT © FEBRUARY 2007 BY WOODS TOCK INTERNATIONAL, INC.

WARNING: NO PORTION OF THIS MANUA L MA Y BE REPRO DU CED IN A NY S HA PE O R FO RM WIT HOUT

THE WRITTEN APPROVA L OF WOODS TOCK I NTERNATIO NA L, I NC.

D

E

Figure 1. Model D3605 inventory.

Printed in China#8956JC

Model D3605 Clamp Buddy

Assembly

We recommend that you have an assistant help position
the pieces while you assemble the rack. Assembly will be
easiest if you start with the rack resting on its side.

NOTICE

Do not fully tighten bolts, washers and hex nuts
until all components are assembled.

To assemble the rack, do these steps:

1. Use the M8-1.25 x 16 hex bolts, flat washers, and

lock nuts to attach the rear rack to the front rack as
shown in Figure 2

2. Use the M6-1 x 16 hex bolts, tooth washers, and hex

nuts to attach the two bottom braces to the front
and rear racks as shown in Figure 3

3. Use the remaining hex bolts, tooth washers, and hex
nuts to attach the cross brace as shown in Figure 3

4. Use the flange nuts to fasten the swivel casters to
the base. Final tighten all bolts, then turn the stand
upright.

.

.

Rear Rack

Front Rack

Figure 2. Rear rack attached to front

rack.

.

Bottom

Braces

Cross

Brace

Figure 3. Completed base assembly with

casters.

-2-

Model D3605 Clamp Buddy

































REF PART�# DESCRIPTION REF PART�# DESCRIPTION

1 XD3605001 SWIVEL�CASTER�W/BRAKE 8 XPB83M HEX�BOLT�M6-1�X�16
2 XD3605002 CROSS�BRACE 9 XPB03M HEX�BOLT�M8-1.25�X�16
3 XD3605003 REAR�RACK 10 XPN01M HEX�NUT�M6-1
4 XD3605004 BOTTOM�BRACE 11 XPTLW05M EXT�TOOTH�WASHER�6MM
5 XD3605005 FRONT�RACK 12 XPLN04M LOCK�NUT�M8-1.25
6 XD3605006 RACK�ROD 13 XPW01M FLAT�WASHER�8MM
7 XD3605007 HAIR�PIN�COTTER�PIN 14 XPFN03 FLANGE�NUT�M10-1.5

PARTS BREAKDOWN

For questions contact Woodstock International Technical Support at [phone], or send

Parts List

e-mail to: [e-mail]

.
