Steele SP-GG350 User Manual

350O

Owner's Manua!

SP-GG350

tons_nvlcECALL:888-8964881

PARASERVICIOLLAME:

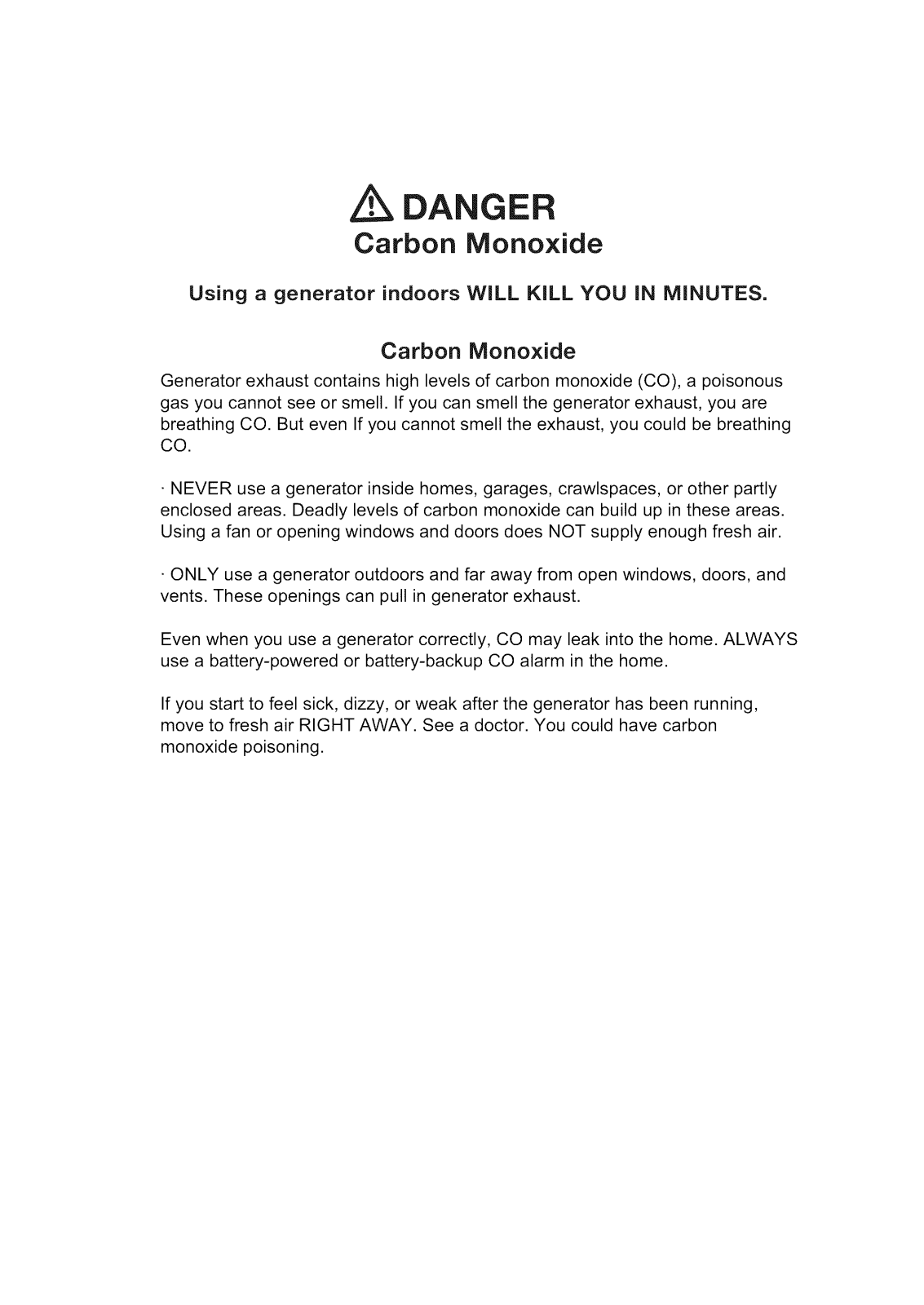

DANGER

Carbon Monoxide

Using a generator indoors WiLL KiLL YOU iN MINUTES.

Carbon Monoxide

Generator exhaust contains high levels of carbon monoxide (CO), a poisonous

gas you cannot see or smell. If you can smell the generator exhaust, you are

breathing CO. But even If you cannot smell the exhaust, you could be breathing
CO.

•NEVER use a generator inside homes, garages, crawlspaces, or other partly
enclosed areas. Deadly levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors does NOT supply enough fresh air.

•ONLY use a generator outdoors and far away from open windows, doors, and

vents. These openings can pull in generator exhaust.

Even when you use a generator correctly, CO may leak into the home. ALWAYS
use a battery-powered or battery-backup CO alarm in the home.

If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AWAY. See a doctor. You could have carbon

monoxide poisoning.

3.5KWGenerator

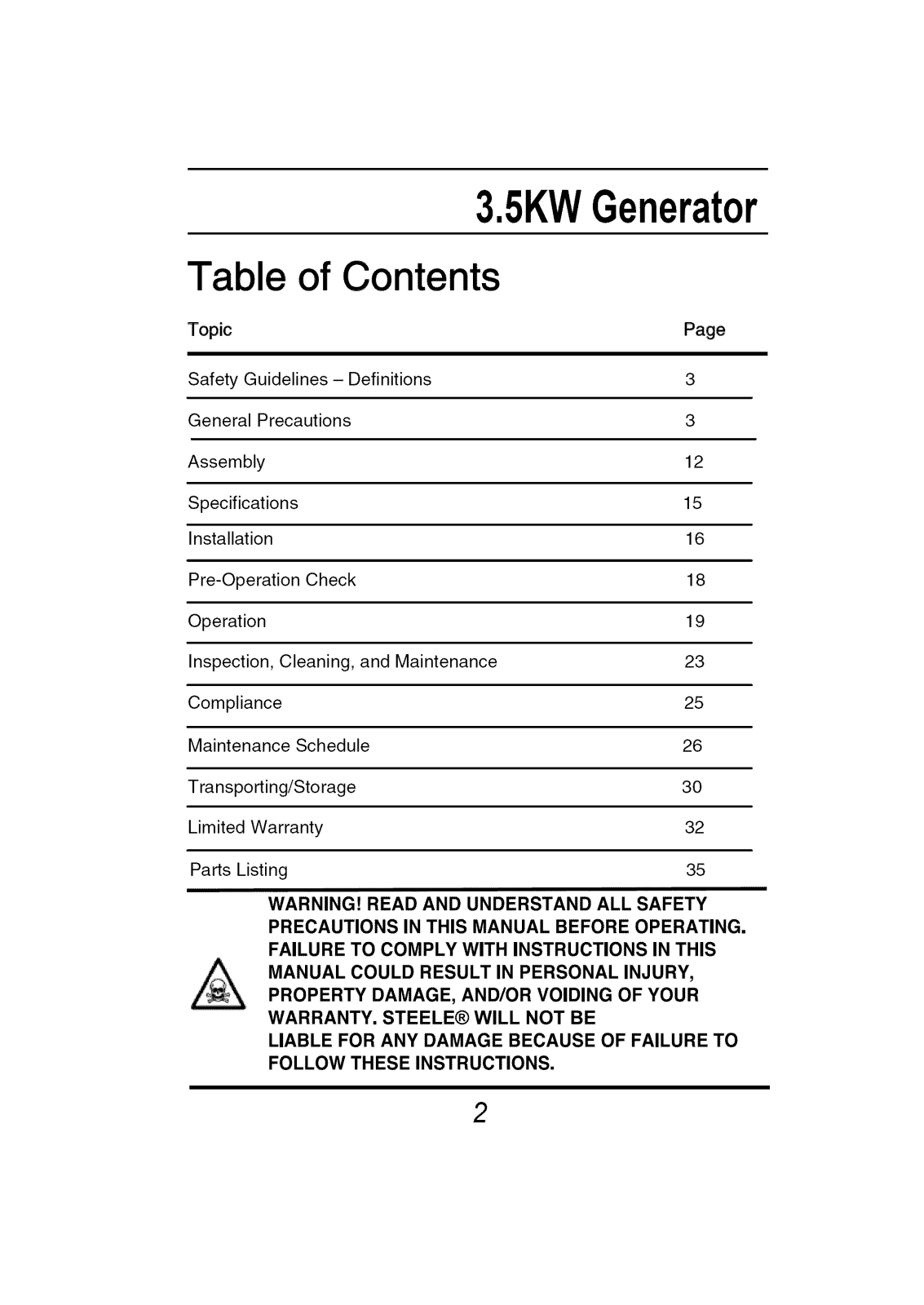

Table of Contents

Topic Page

Safety Guidelines - Definitions 3
General Precautions 3

Assembly 12

Specifications 15
Installation 16

Pre-Operation Check 18

Operation 19
Inspection, Cleaning, and Maintenance 23

Compliance 25

Maintenance Schedule 26

Transporting/Storage 30

Limited Warranty 32

Parts Listing 35

WARNING! READ AND UNDERSTAND ALL SAFETY
PRECAUTIONS IN THIS MANUAL BEFORE OPERATING.
FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS

MANUAL COULD RESULT IN PERSONAL INJURY,
PROPERTY DAMAGE, AND/OR VOIDING OF YOUR

WARRANTY. STEELE® WILL NOT BE

LIABLE FOR ANY DAMAGE BECAUSE OF FAILURE TO
FOLLOW THESE INSTRUCTIONS.

2

Owner'sManual

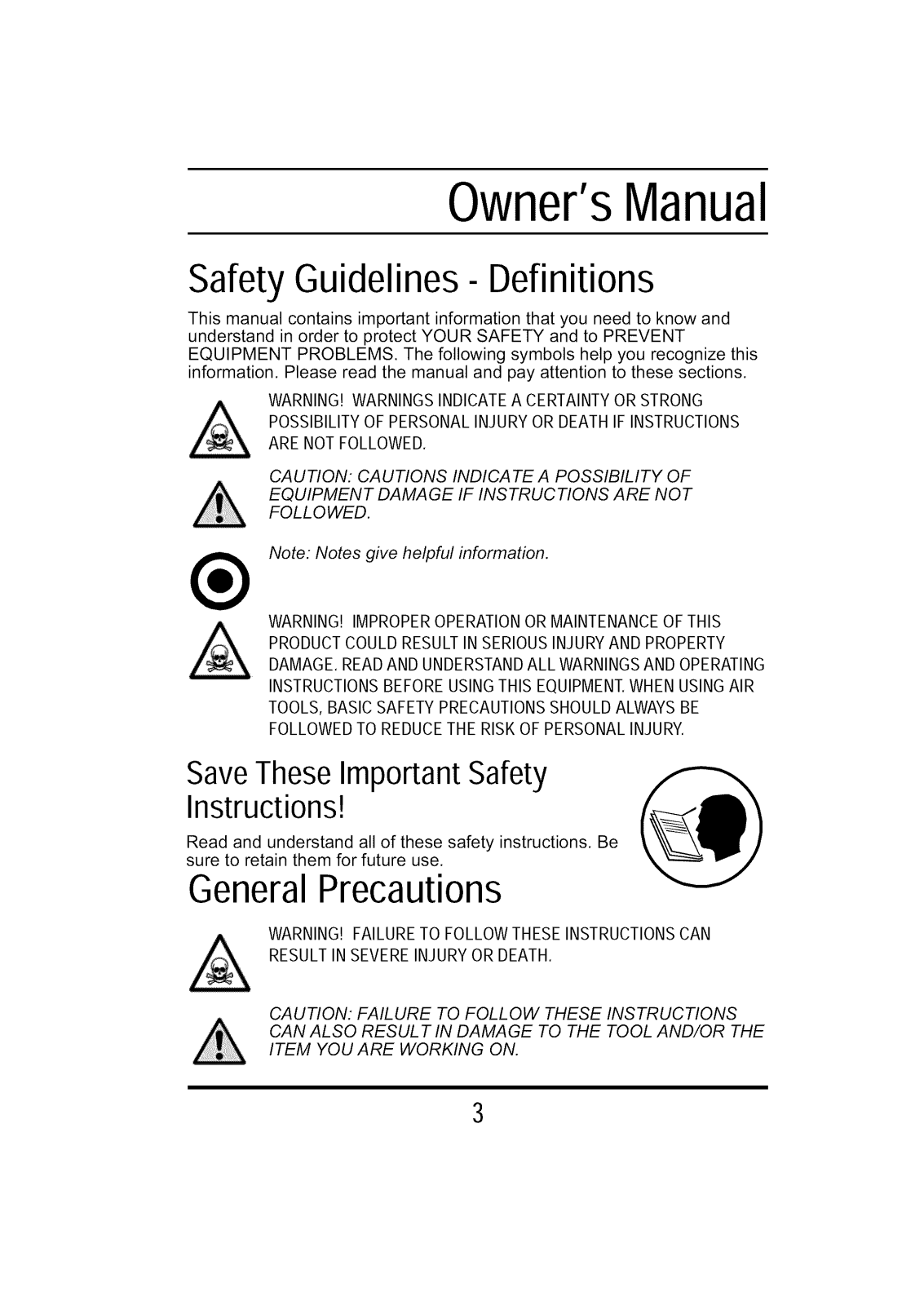

Safety Guidelines- Definitions

This manual contains important information that you need to know and
understand in order to protect YOUR SAFETY and to PREVENT

EQUIPMENT PROBLEMS. The following symbols help you recognize this
information. Please read the manual and pay attention to these sections.

WARNINGJWARNINGSINDICATEA CERTAINTYORSTRONG
POSSIBILITYOFPERSONALINJURYOR DEATHIF INSTRUCTIONS
ARENOTFOLLOWED.

CAUTION: CAUTIONS INDICATE A POSSIBILITY OF
EQUIPMENT DAMAGE IF INSTRUCTIONS ARE NOT

FOLLOWED.

Note: Notes give helpful information.

®

WARNINGJIMPROPEROPERATIONORMAINTENANCEOFTHIS
PRODUCTCOULDRESULTINSERIOUSINJURYANDPROPERTY
DAMAGE.READANDUNDERSTANDALL WARNINGSANDOPERATING

INSTRUCTIONSBEFOREUSINGTHISEQUIPMENT.WHENUSINGAIR
TOOLS,BASICSAFETYPRECAUTIONSSHOULDALWAYSBE

FOLLOWEDTOREDUCETHE RISKOF PERSONALINJURY.

SaveThese Important Safety

Instructions!

Read and understand all of these safety instructions. Be
sure to retain them for future use.

General Precautions

WARNINGJFAILURETOFOLLOWTHESEINSTRUCTIONSCAN
RESULTINSEVEREINJURYORDEATH.

CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS
CAN ALSO RESUL T IN DAMAGE TO THE TOOL AND/OR THE

ITEM YOU ARE WORKING ON.

3

3.5KWGenerator

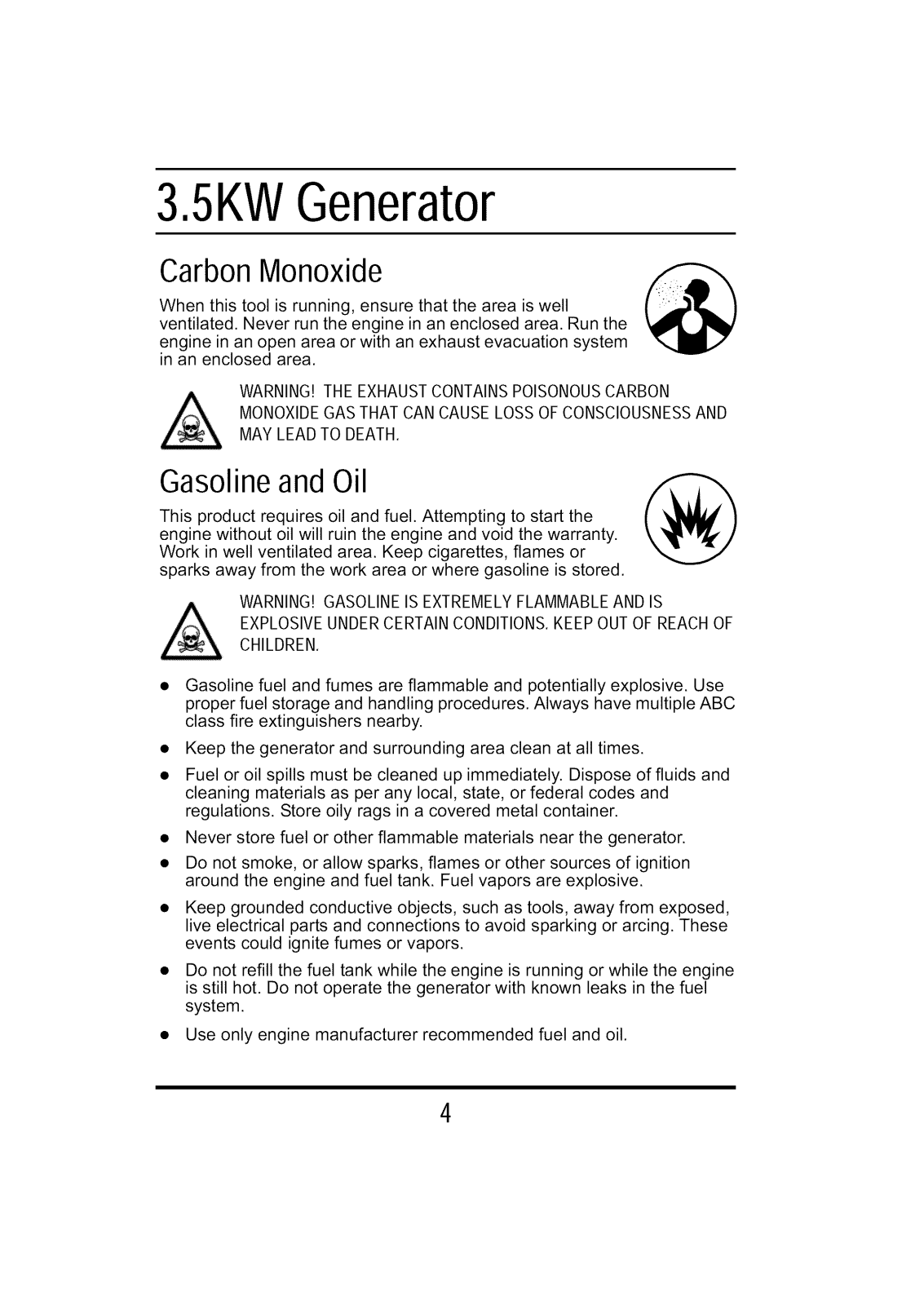

Carbon Monoxide

When this tool is running, ensure that the area is well
ventilated. Never run the engine in an enclosed area. Run the

engine in an open area or with an exhaust evacuation system
in an enclosed area.

WARNING!THE EXHAUSTCONTAINSPOISONOUSCARBON
MONOXIDEGASTHATCANCAUSELOSSOFCONSCIOUSNESSAND
MAYLEADTO DEATH.

Gasoline andOil

This product requires oil and fuel. Attempting to start the
engine without oil will ruin the engine and void the warranty.
Work in well ventilated area. Keep cigarettes, flames or
sparks away from the work area or where gasoline is stored.

WARNING!GASOLINEISEXTREMELYFLAMMABLEANDIS
EXPLOSIVEUNDERCERTAINCONDITIONS.KEEPOUTOF REACHOF
CHILDREN.

Gasoline fuel and fumes are flammable and potentially explosive. Use

proper fuel storage and handling procedures. Always have multiple ABC

class fire extinguishers nearby.

Keep the generator and surrounding area clean at all times.
Fuel or oil spills must be cleaned up immediately. Dispose of fluids and

cleaning materials as per any local, state, or federal codes and

regulations. Store oily rags in a covered metal container.

• Never store fuel or other flammable materials near the generator.

• Do not smoke, or allow sparks, flames or other sources of ignition
around the engine and fuel tank. Fuel vapors are explosive.

Keep grounded conductive objects, such as tools, away from exposed,
live electrical parts and connections to avoid sparking or arcing. These

events could ignite fumes or vapors.

Do not refill the fuel tank while the engine is running or while the engine
is still hot. Do not operate the generator with known leaks in the fuel

system.

Use only engine manufacturer recommended fuel and oil.

4

Owner'sManual

General Precautions (cont'd)

Gasoline andOil (cont'd)

Excessive buildup of unburned fuel gases in the exhaust system can

create a potentially explosive condition. This buildup can occur after

repeated failed start attempts, valve testing, or hot engine shutdown. If
this occurs, open exhaust system drain plugs, if equipped, and allow the
gases to dissipate before attempting to restart the generator.

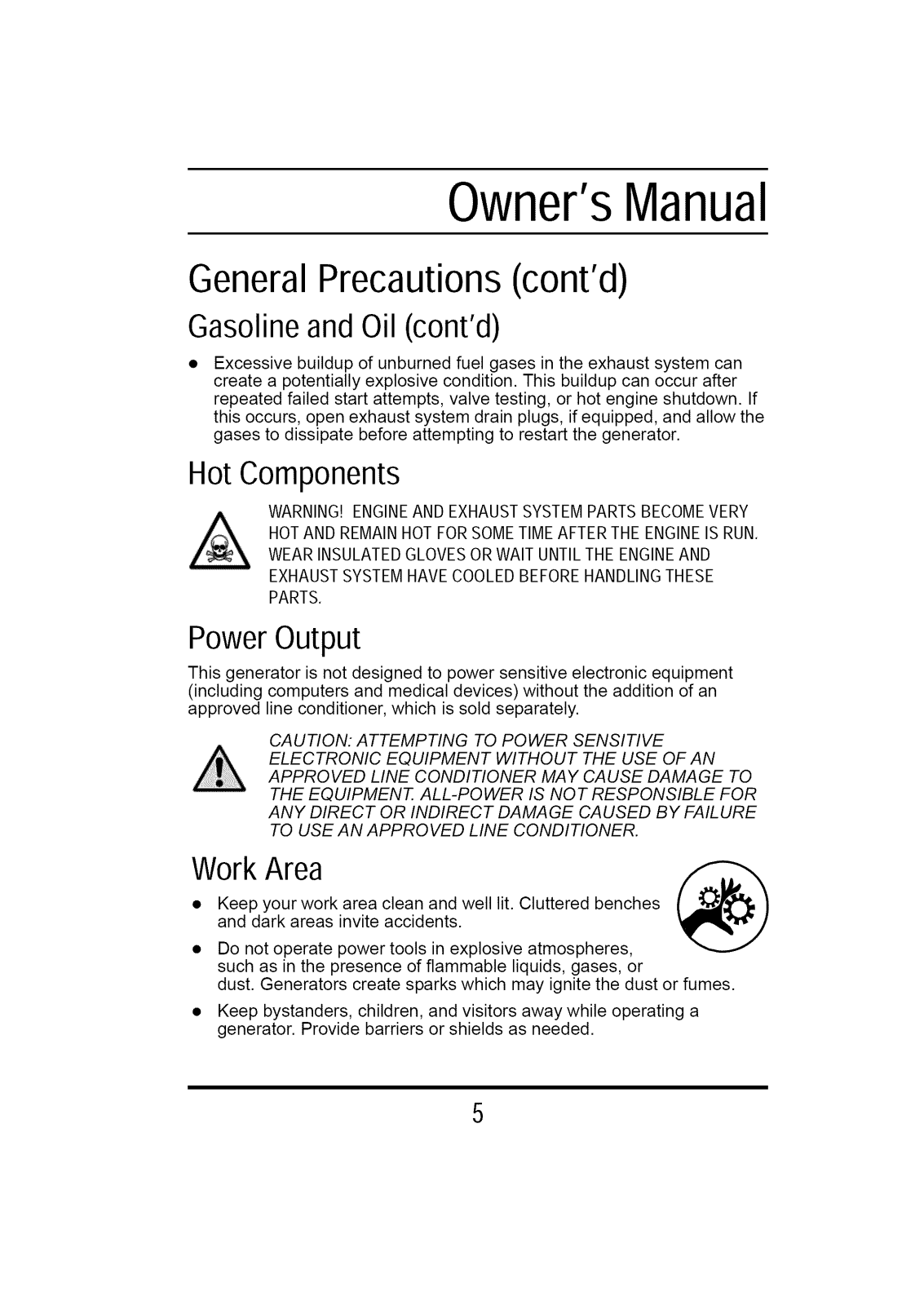

HotComponents

WARNING!ENGINEAND EXHAUSTSYSTEMPARTSBECOMEVERY
HOTAND REMAINHOTFORSOMETIMEAFTERTHEENGINEISRUN.
WEARINSULATEDGLOVESORWAITUNTILTHEENGINEAND
EXHAUSTSYSTEMHAVECOOLEDBEFOREHANDLINGTHESE
PARTS.

PowerOutput

This generator is not designed to power sensitive electronic equipment
(including computers and medical devices) without the addition of an
approved line conditioner, which is sold separately.

CAUTION: ATTEMPTING TO POWER SENSITIVE
ELECTRONIC EQUIPMENT WITHOUT THE USE OF AN
APPROVED LINE CONDITIONER MAY CAUSE DAMAGE TO

THE EQUIPMENT. ALL-POWER IS NOT RESPONSIBLE FOR

ANY DIRECT OR INDIRECT DAMAGE CAUSED BY FAILURE

TO USE AN APPROVED LINE CONDITIONER.

WorkArea

• Keep your work area clean and well lit. Cluttered benches
and dark areas invite accidents.

• Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases, or
dust. Generators create sparks which may ignite the dust or fumes.

• Keep bystanders, children, and visitors away while operating a
generator. Provide barriers or shields as needed.

5

3.5KWGenerator

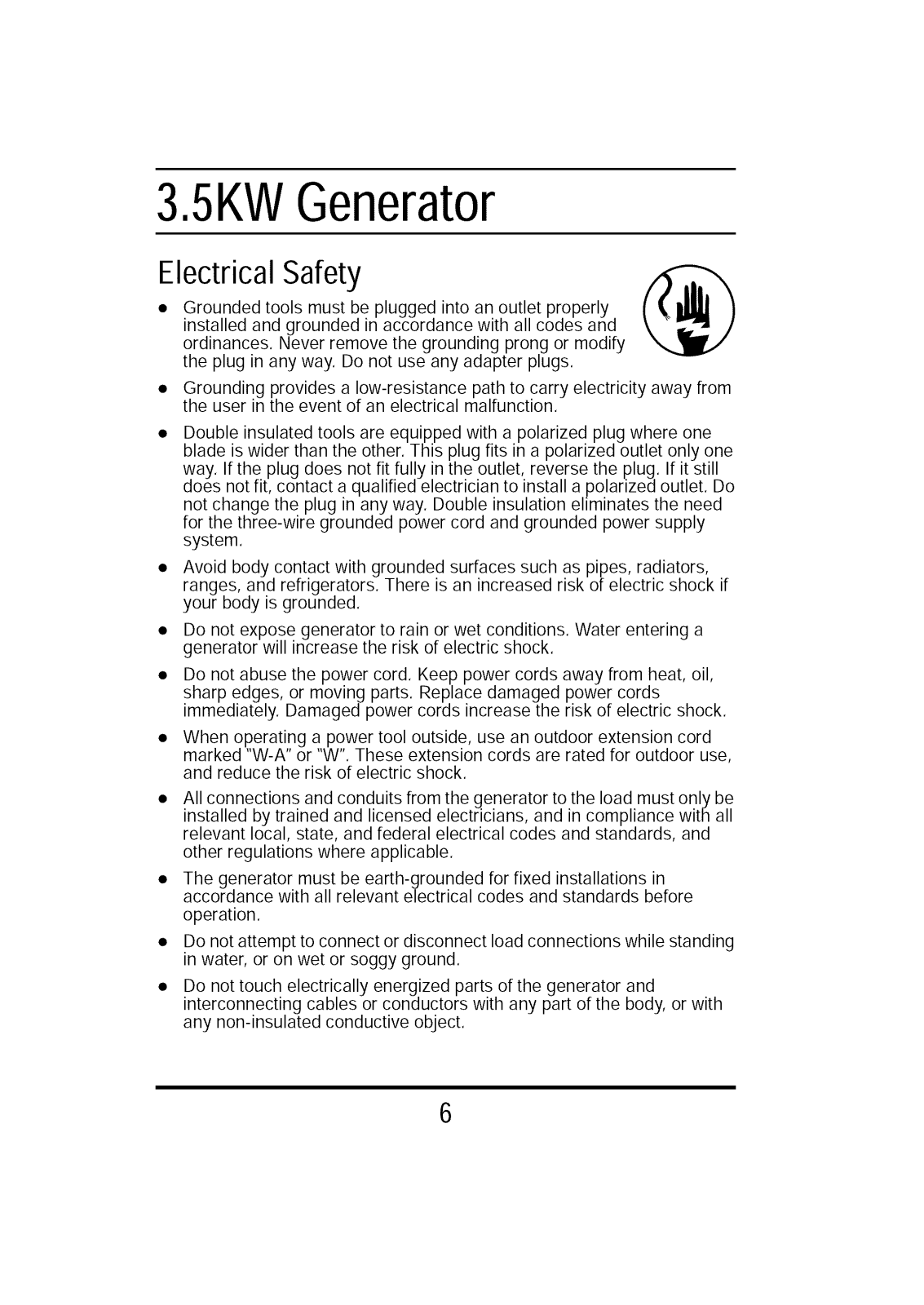

• Grounded tools must be plugged into an outlet properly
installed and grounded in accordance with all codes and

Electrical Safety @

ordinances, Never remove the grounding prong or modify
the plug in any way, Do not use any adapter plugs,

• Grounding provides a low-resistance path to carry electricity away from
the user in the event of an electrical malfunction,

• Double insulated tools are equipped with a polarized plug where one
blade is wider than the other. This plug fits in a polarized outlet only one

way. If the plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician to install a polarized outlet. Do

not change the plug in any way. Double insulation eliminates the need
for the three-wire grounded power cord and grounded power supply

system.

• Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if

your body is grounded.

• Do not expose generator to rain or wet conditions. Water entering a
generator will increase the risk of electric shock.

• Do not abuse the power cord. Keep power cords away from heat, oil,
sharp edges, or moving parts. Replace damaged power cords
immediately. Damaged power cords increase the risk of electric shock.

• When operating a power tool outside, use an outdoor extension cord
marked "W-A" or "W". These extension cords are rated for outdoor use,
and reduce the risk of electric shock.

• All connections and conduits from the generator to the load must only be
installed by trained and licensed electricians, and in compliance with all

relevant local, state, and federal electrical codes and standards, and
other regulations where applicable.

• The generator must be earth-grounded for fixed installations in
accordance with all relevant electrical codes and standards before

operation.

• Do not attempt to connect or disconnect load connections while standing
in water, or on wet or soggy ground.

• Do not touch electrically energized parts of the generator and
interconnecting cables or conductors with any part of the body, or with
any non-insulated conductive object.

6

Owner'sManual

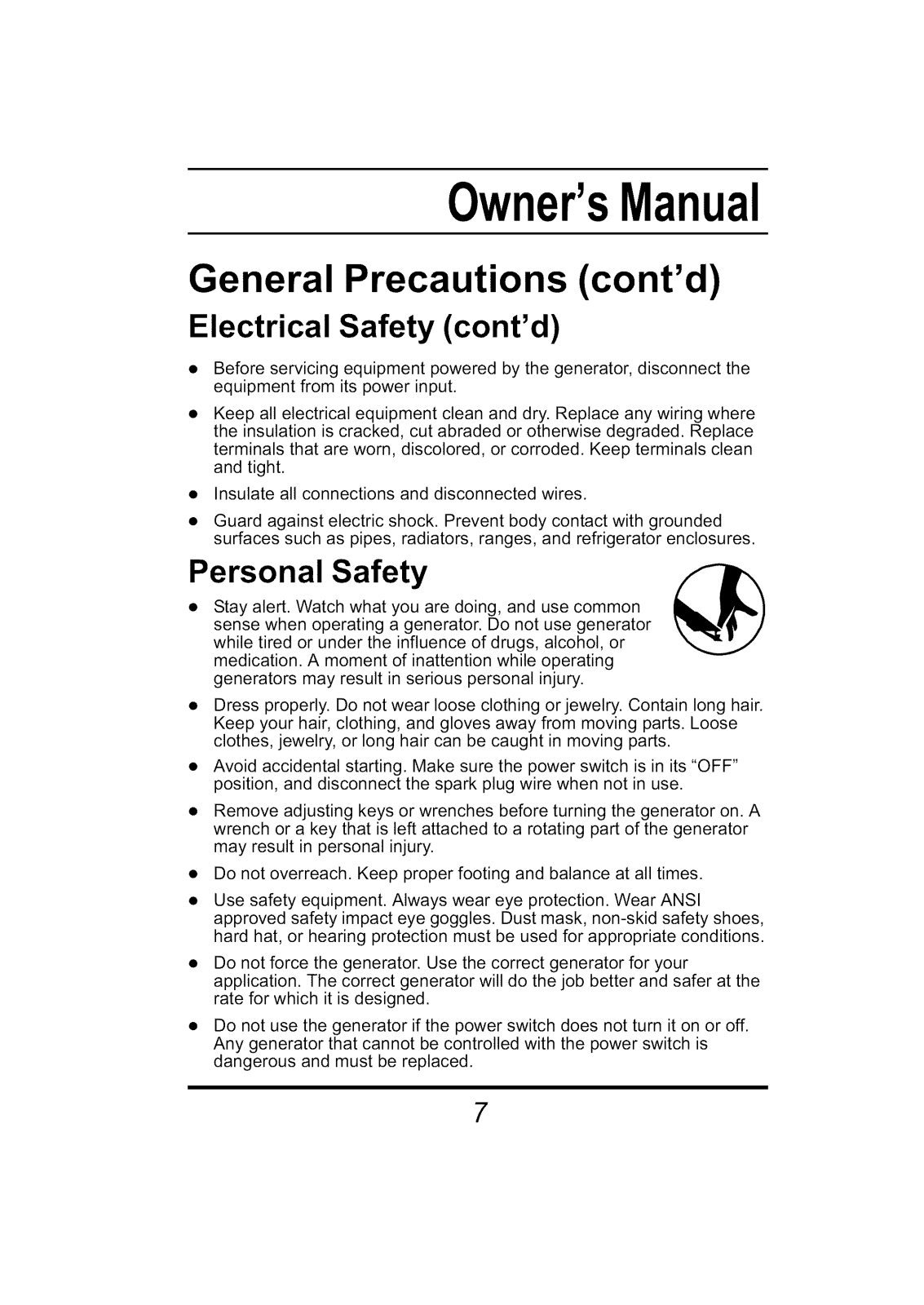

General Precautions (cont'd)

Electrical Safety (cont'd)

Before servicing equipment powered by the generator, disconnect the

equipment from its power input.

Keep all electrical equipment clean and dry. Replace any wiring where

the insulation is cracked, cut abraded or otherwise degraded. Replace
terminals that are worn, discolored, or corroded. Keep terminals clean

and tight.

Insulate all connections and disconnected wires.

Guard against electric shock. Prevent body contact with grounded
surfaces such as pipes, radiators, ranges, and refrigerator enclosures.

Personal Safety

Stay alert. Watch what you are doing, and use common
sense when operating a generator. Do not use generator

while tired or under the influence of drugs, alcohol, or

medication. A moment of inattention while operating

generators may result in serious personal injury.

• Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

• Avoid accidental starting. Make sure the power switch is in its "OFF"
position, and disconnect the spark plug wire when not in use.

• Remove adjusting keys or wrenches before turning the generator on. A

wrench or a key that is left attached to a rotating part of the generator

may result in personal injury.

• Do not overreach. Keep proper footing and balance at all times.

• Use safety equipment. Always wear eye protection. Wear ANSI

approved safety impact eye goggles. Dust mask, non-skid safety shoes,

hard hat, or hearing protection must be used for appropriate conditions.

• Do not force the generator. Use the correct generator for your

application. The correct generator will do the job better and safer at the

rate for which it is designed.

• Do not use the generator if the power switch does not turn it on or off.

Any generator that cannot be controlled with the power switch is
dangerous and must be replaced.

7

3.5KWGenerator

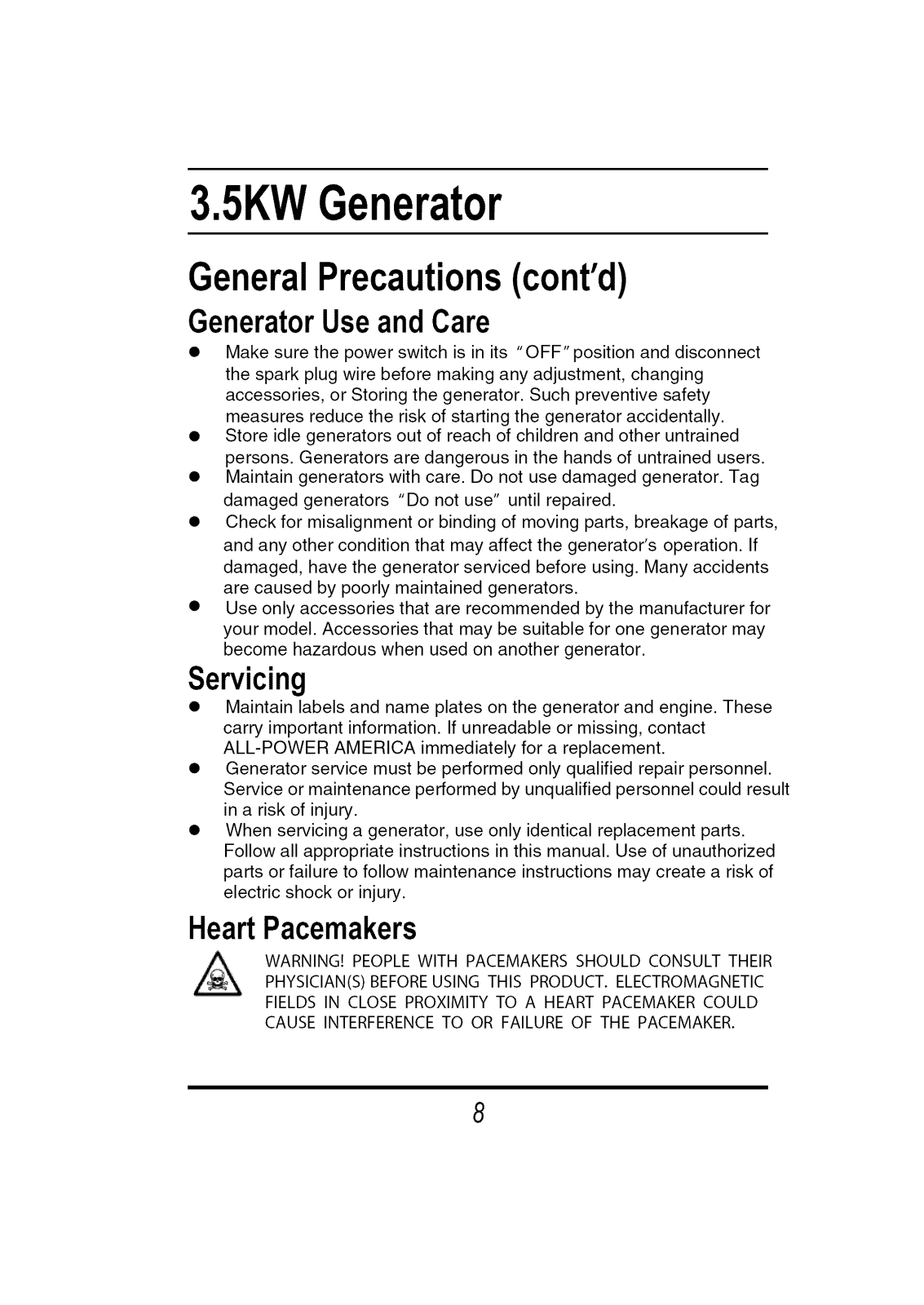

GeneralPrecautions(cont'd)

GeneratorUseandCare

• Make sure the power switch is in its "OFF" position and disconnect

the spark plug wire before making any adjustment, changing
accessories, or Storing the generator. Such preventive safety

measures reduce the risk of starting the generator accidentally.

• Store idle generators out of reach of children and other untrained

persons. Generators are dangerous inthe hands of untrained users.

• Maintain generators with care. Do not use damaged generator. Tag

damaged generators "Do not use" until repaired.

• Check for misalignment or binding of moving parts, breakage of parts,

and any other condition that may affect the generator's operation. If
damaged, have the generator serviced before using. Many accidents
are caused by poorly maintained generators.

• Use only accessories that are recommended by the manufacturer for

your model. Accessories that may be suitable for one generator may

become hazardous when used on another generator.

Servicing

• Maintain labels and name plates on the generator and engine. These

carry important information. If unreadable or missing, contact
ALL-POWER AMERICA immediately for a replacement.

• Generator service must be performed only qualified repair personnel.

Service or maintenance performed by unqualified personnel could result
in a risk of injury.

• When servicing a generator, use only identical replacement parts.

Follow all appropriate instructions in this manual. Use of unauthorized
parts or failure to follow maintenance instructions may create a risk of

electric shock or injury.

HeartPacemakers

WARNING! PEOPLE WITH PACEMAKERS SHOULD CONSULT THEIR
PHYSICIAN(S) BEFOREUSING THIS PRODUCT. ELECTROMAGNETIC

FIELDS IN CLOSE PROXIMITY TO A HEART PACEMAKER COULD
CAUSE INTERFERENCE TO OR FAILURE OF THE PACEMAKER.

8

Owner'sManual

General Precautions (cont'd)

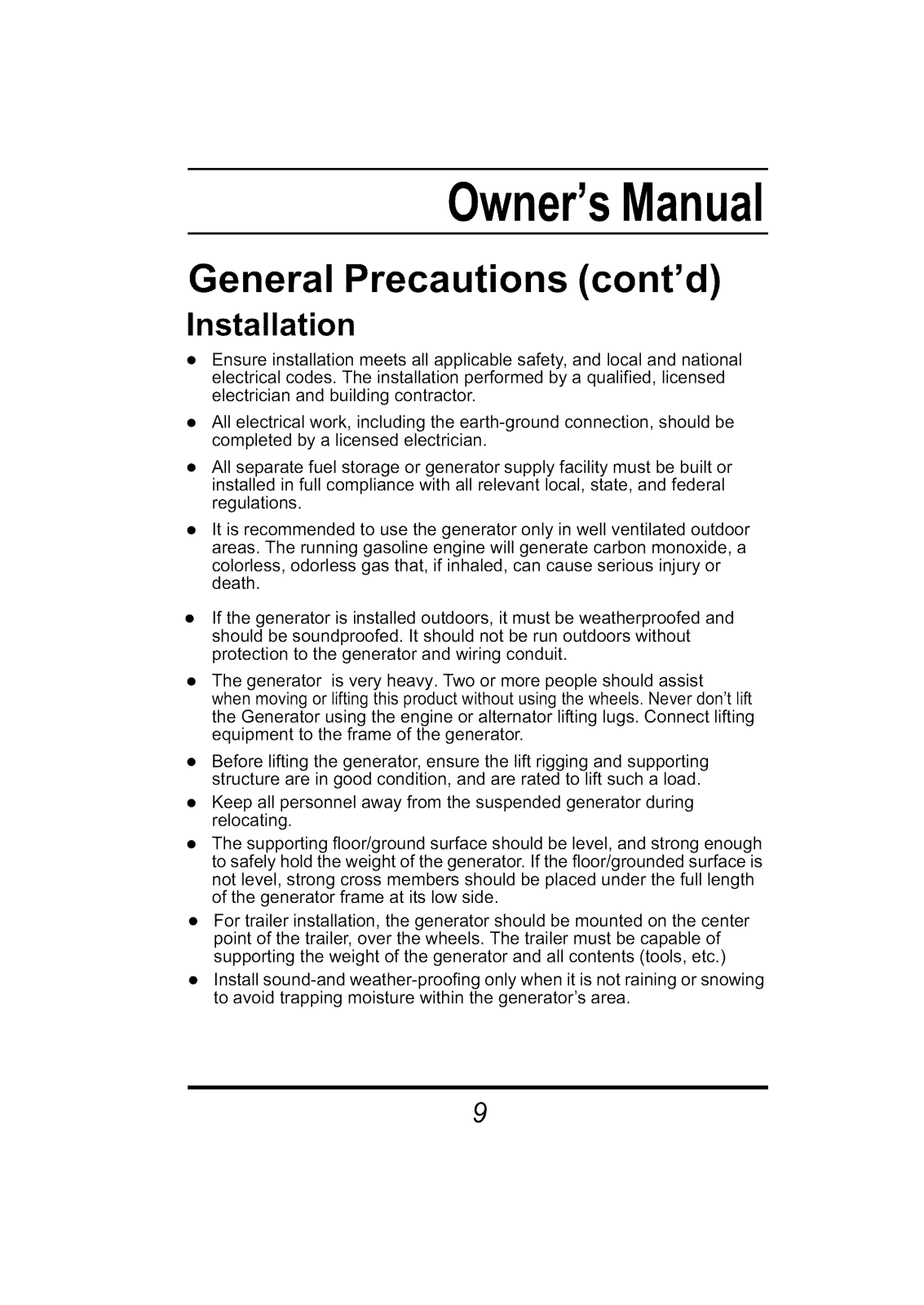

Installation

Ensure installation meets all applicable safety, and local and national

electrical codes. The installation performed by a qualified, licensed
electrician and building contractor.

All electrical work, including the earth-ground connection, should be
completed by a licensed electrician.

All separate fuel storage or generator supply facility must be built or

installed in full compliance with all relevant local, state, and federal
regulations.

It is recommended to use the generator only in well ventilated outdoor

areas. The running gasoline engine will generate carbon monoxide, a
colorless, odorless gas that, if inhaled, can cause serious injury or

death.

If the generator is installed outdoors, it must be weatherproofed and

should be soundproofed. It should not be run outdoors without

protection to the generator and wiring conduit.

The generator is very heavy. Two or more people should assist
when moving or lifting this product without using the wheels. Never don't lift
the Generator using the engine or alternator lifting lugs. Connect lifting
equipment to the frame of the generator.

• Before lifting the generator, ensure the lift rigging and supporting
structure are in good condition, and are rated to lift such a load.

• Keep all personnel away from the suspended generator during

relocating.

• The supporting floor/ground surface should be level, and strong enough
to safely hold the weight of the generator. If the floor/grounded surface is

not level, strong cross members should be placed under the full length

of the generator frame at its low side.

• For trailer installation, the generator should be mounted on the center
point of the trailer, over the wheels. The trailer must be capable of

supporting the weight of the generator and all contents (tools, etc.)

• Install sound-and weather-proofing only when it is not raining or snowing

to avoid trapping moisture within the generator's area.

9

3.5KWGenerator

General Precautions

(cont'd)

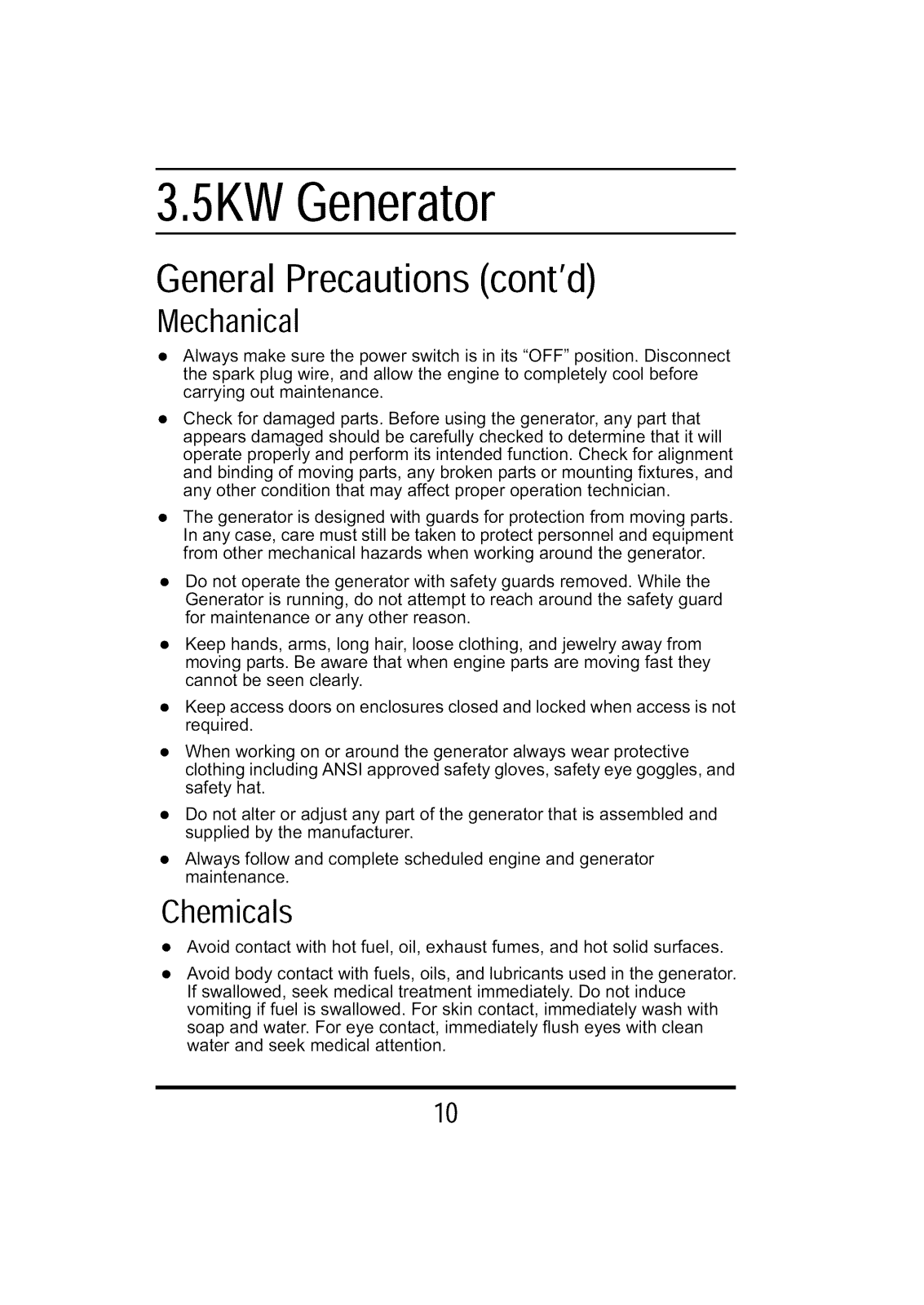

Mechanical

Always make sure the power switch is in its "OFF" position. Disconnect
the spark plug wire, and allow the engine to completely cool before

carrying out maintenance.
Check for damaged parts. Before using the generator, any part that

appears damaged should be carefully checked to determine that it will
operate properly and perform its intended function. Check for alignment

and binding of moving parts, any broken parts or mounting fixtures, and
any other condition that may affect proper operation technician.

The generator is designed with guards for protection from moving parts.

In any case, care must still be taken to protect personnel and equipment

from other mechanical hazards when working around the generator.

Do not operate the generator with safety guards removed. While the

Generator is running, do not attempt to reach around the safety guard
for maintenance or any other reason.

Keep hands, arms, long hair, loose clothing, and jewelry away from
moving parts. Be aware that when engine parts are moving fast they

cannot be seen clearly.

Keep access doors on enclosures closed and locked when access is not
required.

When working on or around the generator always wear protective
clothing including ANSI approved safety gloves, safety eye goggles, and

safety hat.

Do not alter or adjust any part of the generator that is assembled and

supplied by the manufacturer.
Always follow and complete scheduled engine and generator

maintenance.

Chemicals

Avoid contact with hot fuel, oil, exhaust fumes, and hot solid surfaces.
Avoid body contact with fuels, oils, and lubricants used in the generator.

If swallowed, seek medical treatment immediately. Do not induce

vomiting iffuel is swallowed. For skin contact, immediately wash with
soap and water. For eye contact, immediately flush eyes with clean

water and seek medical attention.

10

Owner's Manual

General Precautions (cont'd)

Noise

Prolonged exposure to noise levels above 85 dB is hazardous to hearing.

Always wear ANSI approved ear protection when operating or working

around the Generator when it is running.

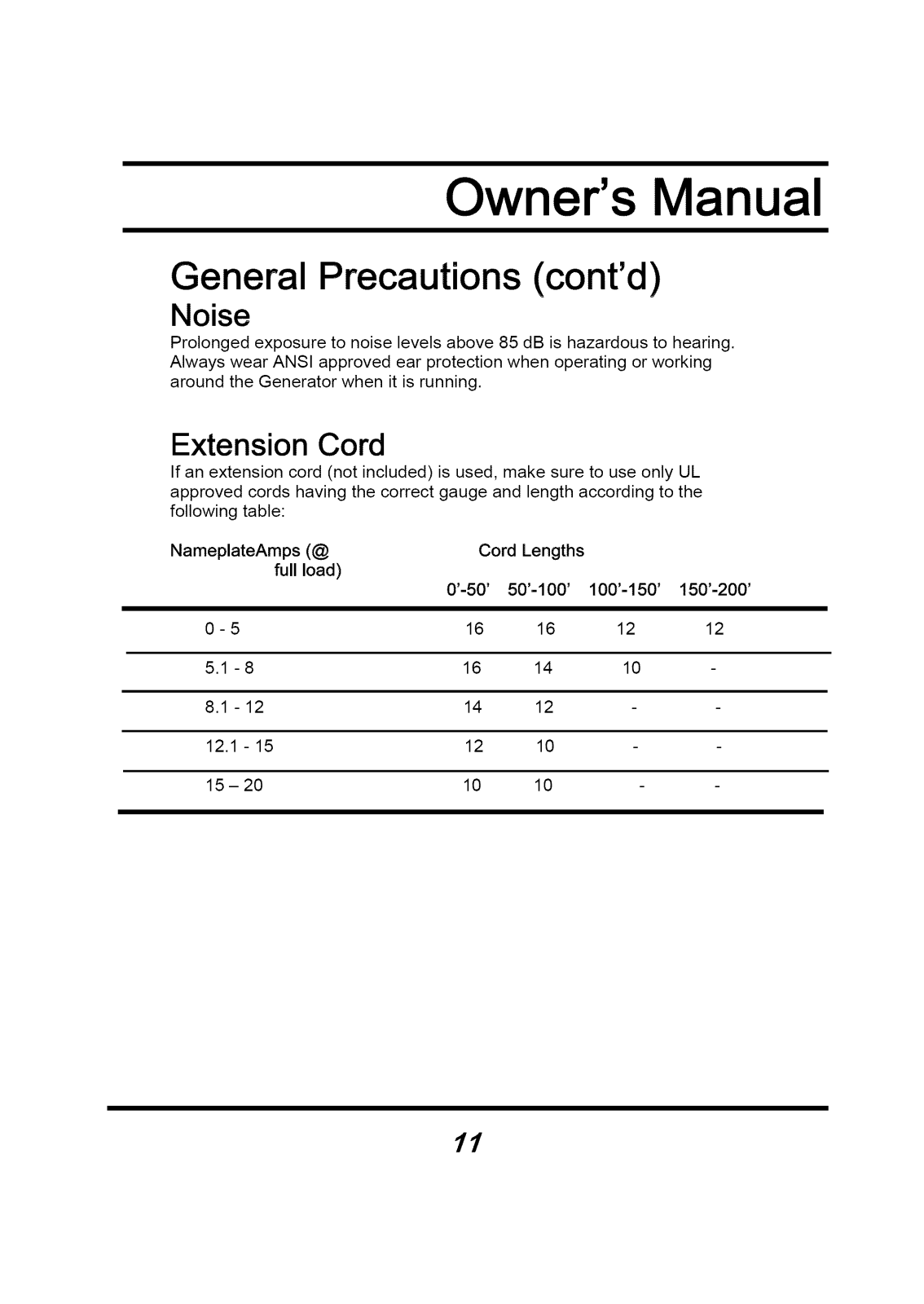

Extension Cord

If an extension cord (not included) is used, make sure to use only UL
approved cords having the correct gauge and length according to the

following table:
NameplateAmps (@

full load)

0-5

5.1 -8

8.1 - 12

12.1 - 15
15-20

Cord Lengths

0'-50' 50'-100'

16 16

16 14

14 12
12 10

10 10

100'-150'

12

10

150'-200'

12

11

3. KW Gen rator

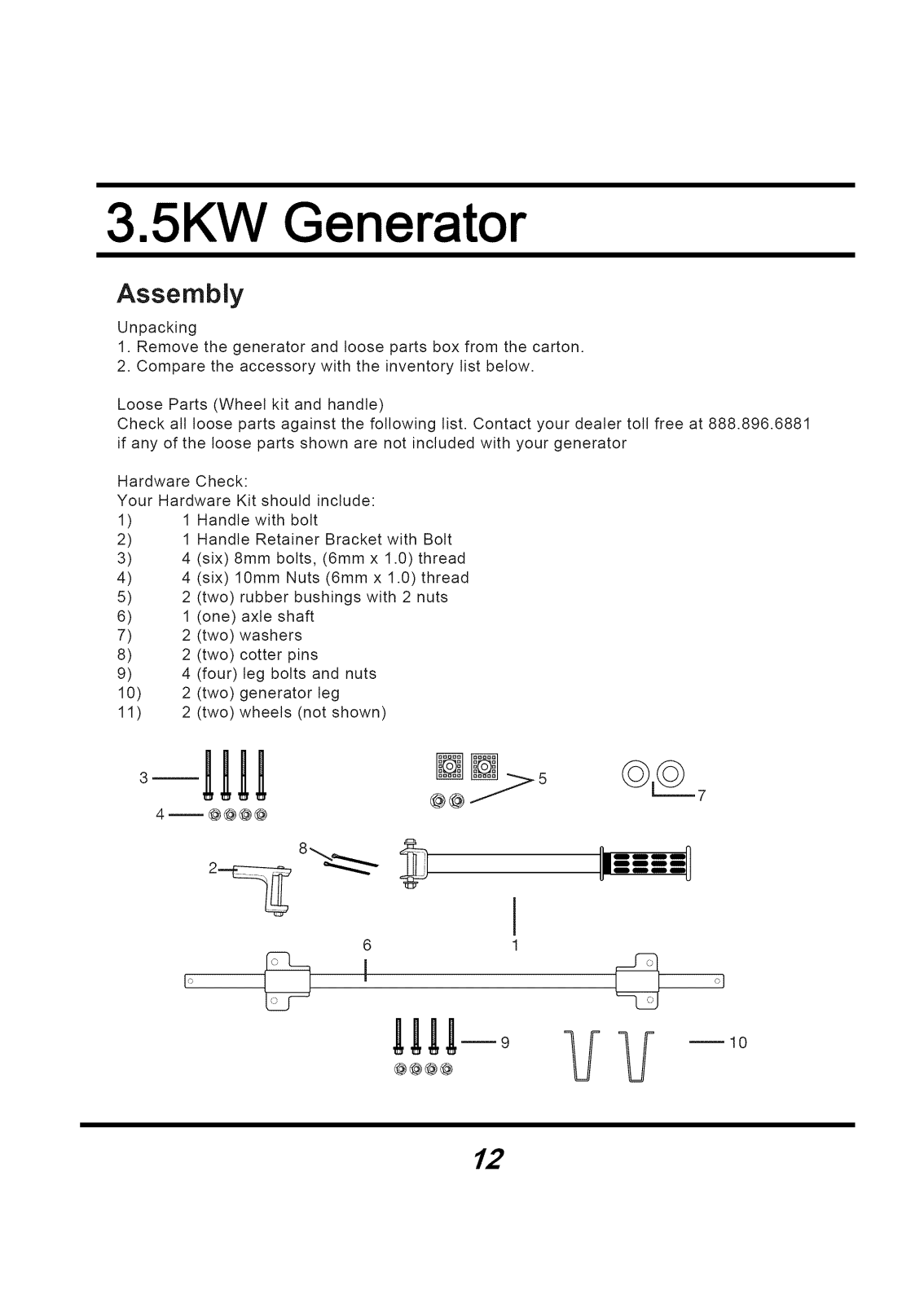

Assembly

Unpacking

1. Remove the generator and loose parts box from the carton.

2. Compare the accessory with the inventory list below.

Loose Parts (Wheel kit and handle)

Check all loose parts against the following list. Contact your dealer toll free at 888.896.6881

if any of the loose parts shown are not included with your generator

Hardware Check:

Your Hardware Kit should include:

1 1 Handle with bolt
2
3
4

5
6
7
8

9

10)

11)

1 Handle Retainer Bracket with Bolt

4 (six) 8mm bolts, (6mm x 1.0) thread
4 (six) 10mm Nuts (6mm x 1.0) thread
2 (two) rubber bushings with 2 nuts

1 (one) axle shaft
2 (two) washers
2 (two) cotter pins

4 (four)leg bolts and nuts
2 (two) generator leg
2 (two) wheels (not shown)

4_@@@@

6

I

I

1

@@@@

12

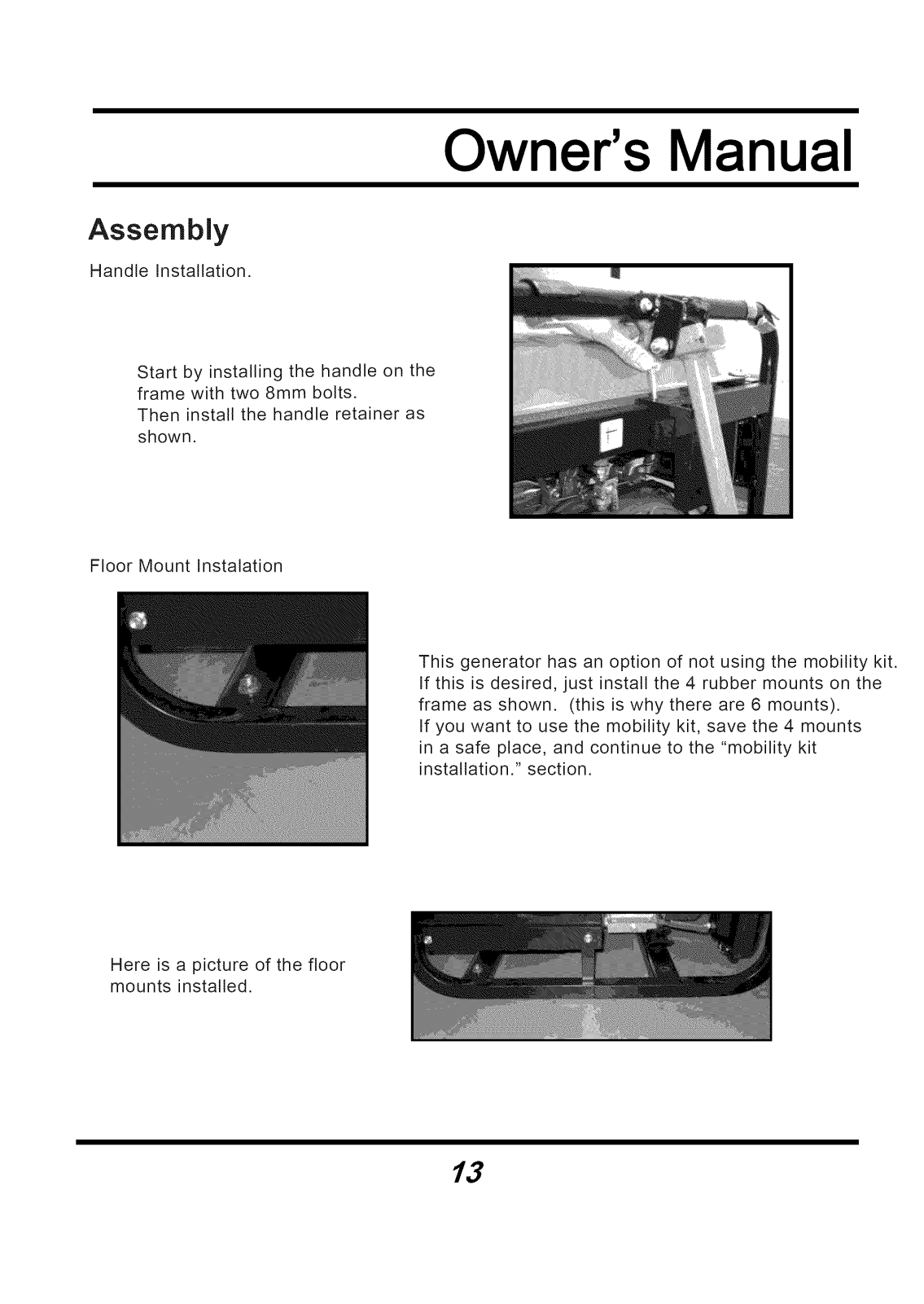

Assembly

Handle Installation.

Start by installing the handle on the

frame with two 8mm bolts.

Then install the handle retainer as
shown.

Floor Mount Instalation

Own r's Manual

This generator has an option of not using the mobility kit.
If this is desired, just install the 4 rubber mounts on the
frame as shown. (this is why there are 6 mounts).
If you want to use the mobility kit, save the 4 mounts
in a safe place, and continue to the "mobility kit

installation." section.

Here is a picture of the floor
mounts installed.

I3

Generator

Assembly

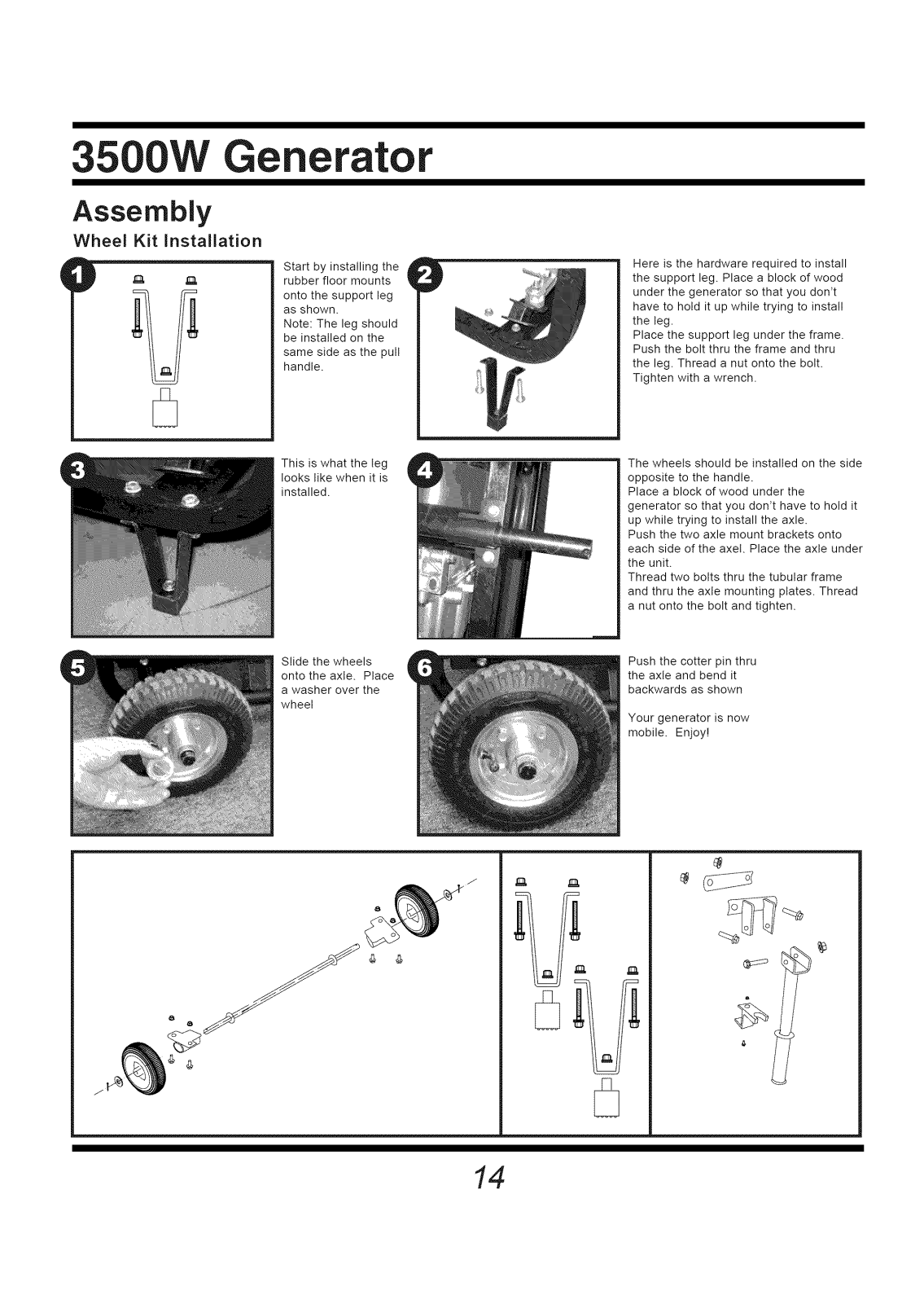

Wheel Kit Installation

Start by installing the
rubber floor mounts

onto the support teg
as shown.

Note: The leg should
be installed on the

same side as the putt
handle.

Here is the hardware required to install

I

the support leg. Place a block of wood

under the generator so that you don't
have to hold it up while trying to install

the teg.

Place the support leg under the frame.
Push the bolt thru the frame and thru

the leg. Thread a nut onto the bolt.
Tighten with a wrench.

This is what the leg
looks like when it is

installed.

Slide the wheels
onto the axle. Place
a washer over the
wheel

The wheels should be installed on the side
opposite to the handle.

Place a block of wood under the
generator so that you don't have to hold it

up while trying to install the axle.
Push the two axle mount brackets onto

each side of the axet. Place the axte under
the unit.
Thread two bolts thru the tubular frame

and thru the axle mounting plates. Thread
a nut onto the bolt and tighten.

Push the cotter pin thru
the axle and bend it
backwards as shown

Your generator is now
mobile. Enjoy!

/

14

Owner's Manual

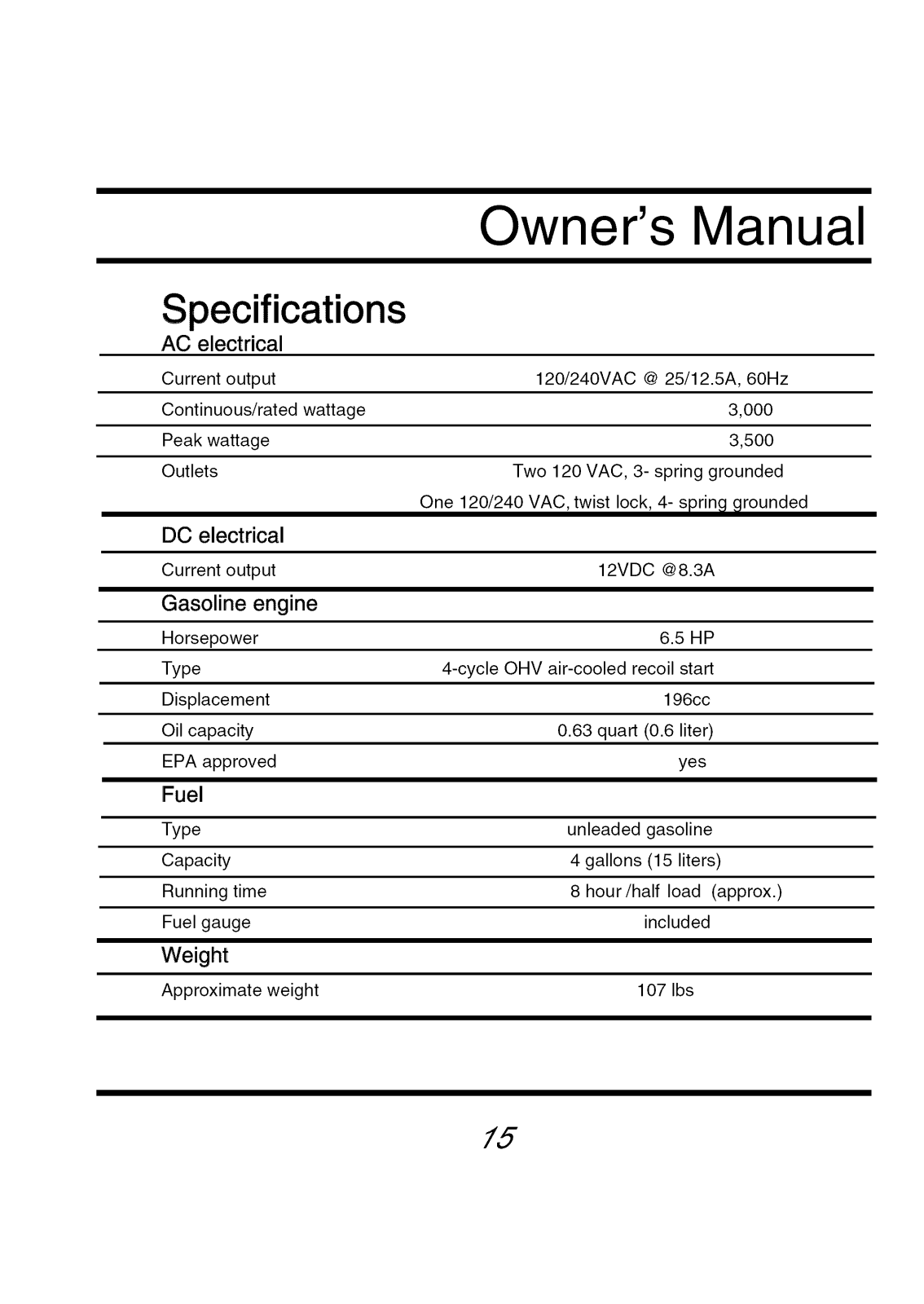

Specifications

AC electrical

Current output 120/240VAC @ 25/12.5A, 60Hz
Continuous/rated wattage 3,000
Peak wattage 3,500

Outlets Two 120 VAC, 3- spring grounded

One 120/240 VAC, twist lock, 4- sprin_ _rounded

DC electrical

Current output 12VDC @8.3A

Gasoline engine

Horsepower 6.5 HP
Type 4-cycle OHV air-cooled recoil start
Displacement 196cc
Oil capacity 0.63 quart (0.6 liter)

EPA approved yes

Fuel

Type unleaded gasoline
Capacity 4 gallons (15 liters)
Running time 8 hour/half load (approx.)
Fuel gauge included

Weight

Approximate weight 107 Ibs

75-

3.5KW Generator

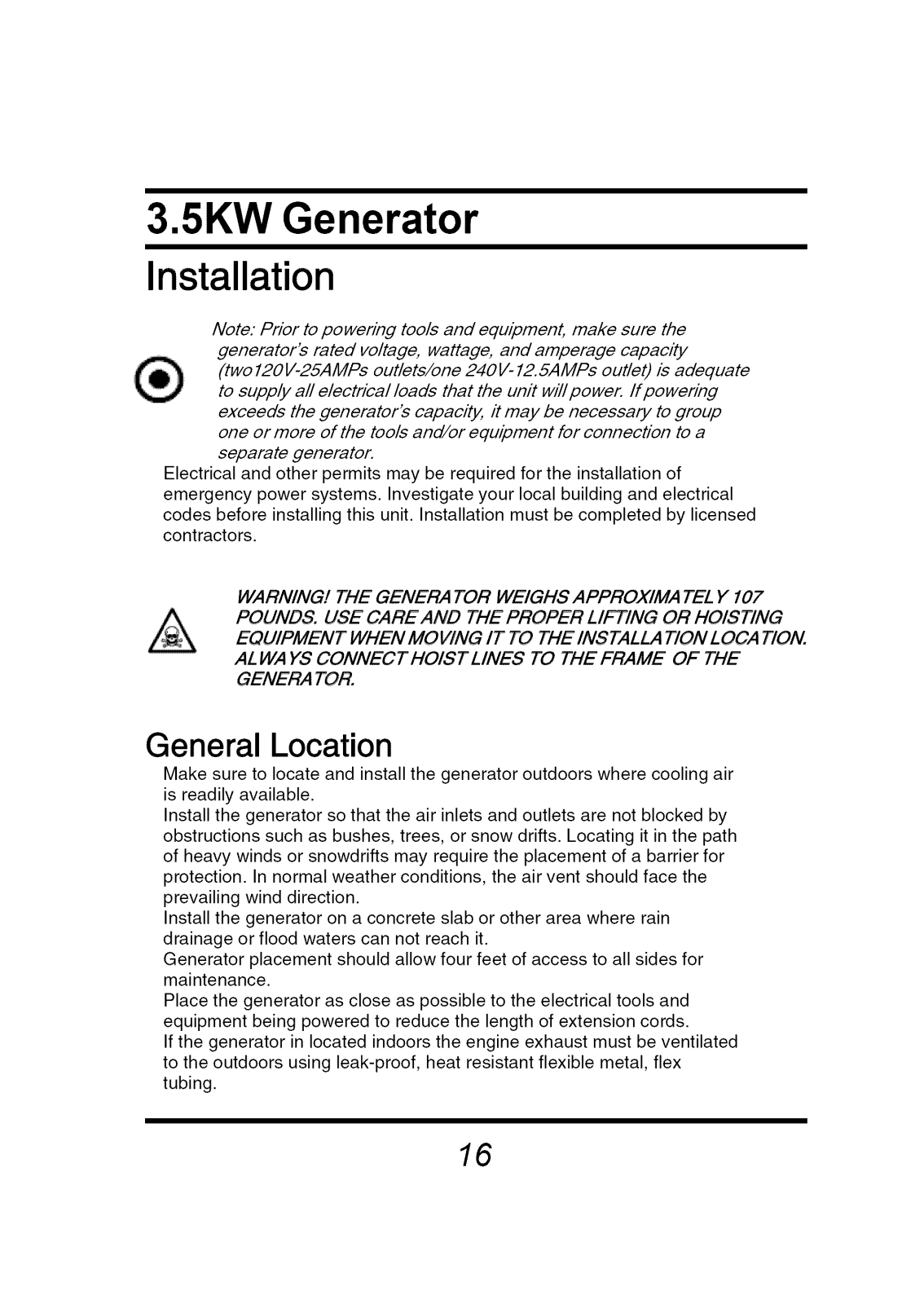

Installation

Note. Prior to powering tools and equipment, make sure the

generator's rated voltage, wattage, and amperage capacity

(two 120V-25AMPs outlets/one 240V- 12.SAMPs outlet) is adequate
to supply all electrical loads that the unit willpower./fpowering

exceeds the generator's capacity, it may be necessary to group
one or more of the tools and/or equipment for connection to a

separate generator.

Electrical and other permits may be required for the installation of
emergency power systems. Investigate your local building and electrical

codes before installing this unit. Installation must be completed by licensed
contractors.

WARNING! THE GENERA TOR WEIGHS APPROXIMA TEL Y 107

POUNDS. USE CARE AND THE PROPER LIFTING OR HOISTING
EQUIPMENT WHEN MOVING IT TO THE INSTALLA TION LOCATION.

AL WAYS CONNECT HOIST LINES TO THE FRAME OF THE

GENERA TOR.

General Location

Make sure to locate and install the generator outdoors where cooling air
is readily available.

Install the generator so that the air inlets and outlets are not blocked by
obstructions such as bushes, trees, or snow drifts. Locating it inthe path

of heavy winds or snowdrifts may require the placement of a barrier for
protection. In normal weather conditions, the air vent should face the

prevailing wind direction.
Install the generator on a concrete slab or other area where rain

drainage or flood waters can not reach it.
Generator placement should allow four feet of access to all sides for

maintenance.
Place the generator as close as possible to the electrical tools and

equipment being powered to reduce the length of extension cords.
If the generator in located indoors the engine exhaust must be ventilated

to the outdoors using leak-proof, heat resistant flexible metal, flex
tubing.

16
