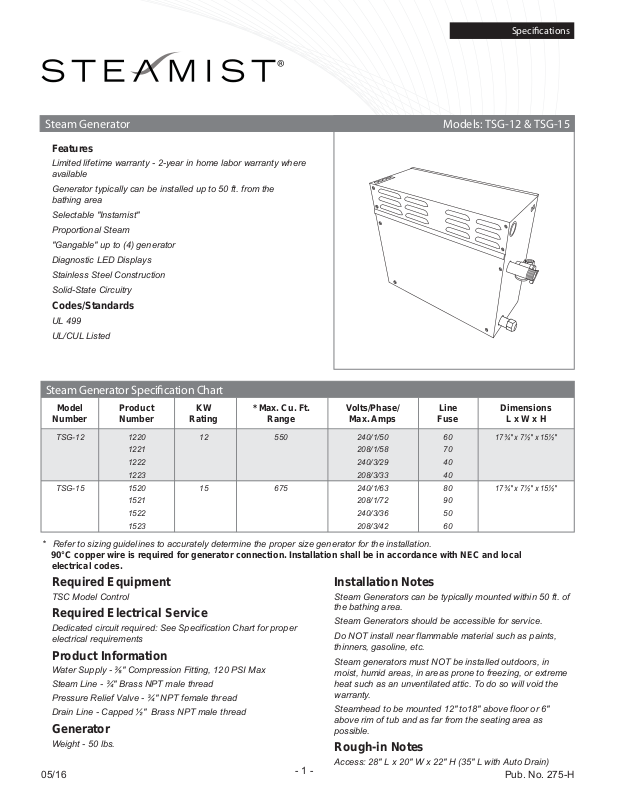

Steamist TSG1222 Specifications

Specications

®

Steam Generator Models: TSG-12 & TSG-15

Features

Limited lifetime warranty - 2-year in home labor warranty where
available

Generator typically can be installed up to 50 ft. from the
bathing area

Selectable "Instamist"

Proportional Steam

"Gangable" up to (4) generator

Diagnostic LED Displays

Stainless Steel Construction

Solid-State Circuitry

Codes/Standards

UL 499

UL/CUL Listed

Steam Generator Specication Chart

Model

Number

TSG-12

TSG-15

* Refer to sizing guidelines to accurately determine the proper size generator for the installation.

90°C copper wire is required for generator connection. Installation shall be in accordance with NEC and local

electrical codes.

Required Equipment

TSC Model Control

Required Electrical Service

Dedicated circuit required: See Specification Chart for proper
electrical requirements

Product Information

Water Supply - ⅜" Compression Fitting, 120 PSI Max

Steam Line - ¾" Brass NPT male thread

Pressure Relief Valve - ¾" NPT female thread

Drain Line - Capped ½" Brass NPT male thread

Generator

Weight - 50 lbs.

05/16

Product
Number

1220

1221

1222

1223

1520

1521

1522

1523

KW

Rating

12

15

* Max. Cu. Ft.

Range

550

675

- 1 -

Volts/Phase/

Max. Amps

240/1/50

208/1/58

240/3/29

208/3/33

240/1/63

208/1/72

240/3/36

208/3/42

Line

Fuse

60

70

40

40

80

90

50

60

Dimensions

L x W x H

17¾" x 7½" x 15½"

17¾" x 7½" x 15½"

Installation Notes

Steam Generators can be typically mounted within 50 ft. of
the bathing area.

Steam Generators should be accessible for service.

Do NOT install near flammable material such as paints,
thinners, gasoline, etc.

Steam generators must NOT be installed outdoors, in
moist, humid areas, in areas prone to freezing, or extreme
heat such as an unventilated attic. To do so will void the
warranty.

Steamhead to be mounted 12" to18" above floor or 6"
above rim of tub and as far from the seating area as
possible.

Rough-in Notes

Access: 28" L x 20" W x 22" H (35" L with Auto Drain)

Pub. No. 275-H

Specications

Dimensional Drawing Models: TSG-12 & TSG-15

*17 ¾"

*7 ½"

Access Panel

15 ½"

SER

NO.

NO.

SIZE IN.

MODEL

SET

CAP

PSIG

LBS/HR

Water Inlet ⅜"

6 ⅞"

8 ¾"

10

"

Compression Fitting

1⅛"

1¾"

Front Access Front Side View

* Add ¼" to the dimension for the louvers

5 ⅝"

4"

1 ¼"

5 ¾"

Back View

Mounting Holes

16"

Knockouts for

Control Cables

¾" Steam Outlet

¾" Safety Relief Valve

½" Capped Drain Line for

Optional Auto Drain

Top of Access

Panel

Top View

05/16
