Steamist TSC, TSC-350 Installation Instructions Manual

®

Installation Instructions

®

®

C

LISTED 995C

US

Steambath Control

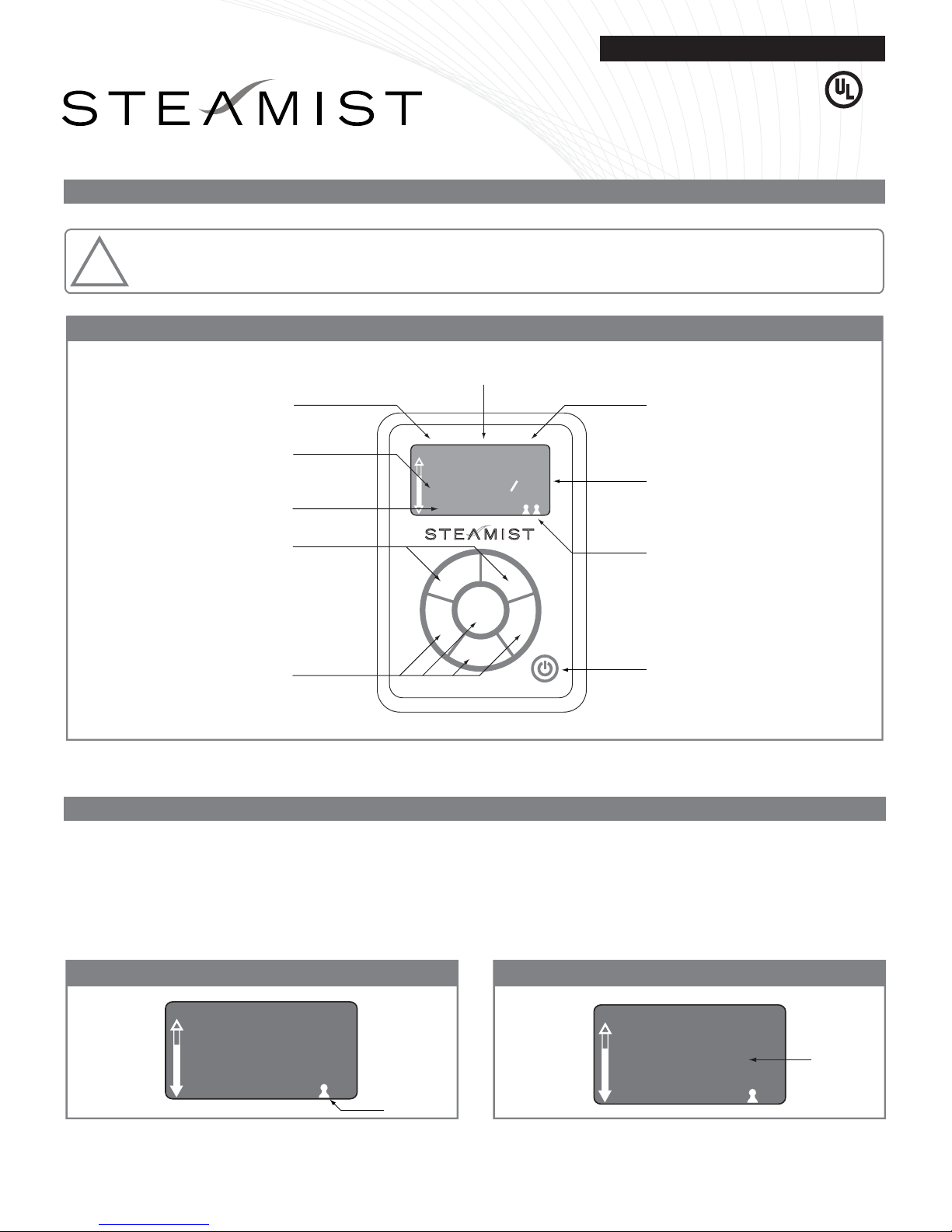

Control Features

1. Set Point: Indicates steamroom setpoint temperature.

2. Temperature Display: Indicates ambient room temperature.

3. ON/OFF Keypad: Press keypad to start the system as a

guest user. Press the Keypad any time the system is on to
turn it off.

4. Navigation Keys: UP/Down Arrows, Menu, and Select.

5. User 1 / User 2: Press to select Pre-Set user settings.

6. Clock: Displays current time.

7. Duration: Remaining time of the system cycle.

IMPORTANT: Control must be installed inside the steam- room

for proper operation of the system.
Cleaning Instructions: Use a damp cloth and mild soap. Do

NOT use abrasive cleaners which might scratch the surface or
the base of the control.

Total Sense Digital Control

6

03 : 38 : 17 112

STEAM

°

112

5

12

^

4

7

110

^

^

SELECT

MENU

Model: TSC

1

°

°

F

^

^

2

^

3

Installation Instructions

1. Pre-Installation - Control Location

The TSC Control must be installed inside the steam- room.
For convenience the recommended height from the floor is
four feet. Provide a 1½" hole in the wall at this location (see
Figure 1).

IMPORTANT: Multi-conductor cable must be installed so
that the end will not be buried inside the wall. The unit will
not operate unless the control is installed.

2. Electrical Rough-in

Remove the multi-conductor cable from the control packing
box. Carefully route the multi-conductor control cable from
the steam generator to the TSC located inside the steam­room (see Figure 1). Route multi-conductor cable through a
¾" conduit to protect the cable from damage and to facilitate
replacement if necessary.

WARNING: Elderly persons, pregnant women, or those suffering from heart disease, high blood pressure, diabetes, or
who are otherwise not in good health, do not use this device unless directed to do so by a physician. Also, do not use

!

steambath while under the influence of alcohol.

Figure 1

IMPORTANT: Run the
Control Cable through
a ¾” conduit.

1½“ Hole

located four feet

from the floor

To Steam Generator

Double-Sided
Adhesive Pad

Coupler

IMPORTANT: The TSC Control will only function with one of the following Steamist Generator models: TSG-7, TSG-10 or TSG-15
steam generators.

02/09

- 1 -

Pub. No. 202-A

Installation Instructions

Installation Instructions Model: TSC

3. Control and Cable Installation

a) Locate the previously installed cable and black plastic

strain relief clamp which is in the control packing box.
Locate the knockout on the steam generator for the
control cable (see Figure 1).

b) Place strain relief around cable about seven inches from

the end and insert into the hole. Remove the protective
covering labeled “Remove Before Installation” from the
modular jack found on the PC board.

c) Remove the protective cap from the multi-conductor

cable plug. Connect the cable to the modular jack.
d) Close and secure generator cover.
e) Locate Telco Jack at female coupler, on back of the

TSC control. Remove the protective covering labeled

“Remove Before Installation”. Remove protective cap

from cable and plug into jack. Check that the orientation

of the plug properly aligns with the jack. A snap will

indicate the plug is installed correctly (see Figure 2).
WARNING: Test the control for operation before

continuing on to the next step.
f) Peel adhesive liner from back of the control. Apply the

control to the wall. Press firmly and hold for a few

seconds.
g) After the control is in place, apply silicone (supplied)

around the control to form a watertight seal.

Figure 3

Figure 4

N I

. U
. S

A
.

Coupler

Adhesive Liner

Control Cable

to Generator

M
A

I
t

D

e

e N

E

t
1
/

o N m

2

L C

.

L F

1 3

A E

O .

R

0 2 5

Z
.

E N O C I L I S

Figure 2 - Cable Installation on Steam Generator

¾" Conduit

To Control

Modular Jacks:

All four modular jacks are

identical and will work in

any combination.

Connect into any jack.

IMPORTANT: The adhesive on the back of the TSC control
will NOT seal this control. It is the responsibility of the
installer to seal this control to the wall with the supplied
silicone. Water damage to the control is not covered by
the warranty.

Knockouts for

Strain Relief

Clamps

Relay

Board

Power
Board

Fuses

Ground

Connection

02/09

- 2 -

Pub. No. 202-A

Installation Instructions

Installation Instructions Model: TSC

Installation Instructions for Steamhead &
Center Hub

1. Make sure the 3/4" nipple protrudes beyond the tile

approximately 1/2" (see Figure 5).

2. Wrap the nipple with pipe sealant tape.

3. Put a bead of silicone around the outer edge of the Back

Plate (see Figure 5) and center the Back Plate over the pipe
in an upright position. While holding it in place screw the
Center Hub onto the nipple, using a ⅜" Hex Key to tighten.

4. The Center Hub MUST be aligned with the four walls in the

vertical and horizontal position (see Figure 6). Make sure the
steamhead O-ring is fully seated into the Back Plate. If the
nipple is sticking out too far the O-ring will not make a proper
seal and the nipple must be adjusted.

5. Apply a small amount of silicone at the back center point of

the Cover Plate. This will aid in preventing movement of this
plate (see Figure 6).

6. Place the Cover Plate over the Center Hub. This is accom-

plished by first hooking the top and then snapping the bottom
into place.

7. Adjust the Back Plate and Cover Plate to line up squarely,

and clean excess silicone with rubbing alcohol.

Figure 6 - Center Hub Installation

Apply a small

amount of
silicone to

prevent

movement

IMPORTANT:

Install top first

MUST be vertical

After inserting the top,

snap in the bottom

Figure 5 - Steamhead Installation

3/4" NPT (Brass Pipe)
Must use sealant tape

Apply silicone around

the steam pipe to form a

watertight seal

1/2"

Back Plate

Aromatherapy

Reservoir

Center Hub

Apply silicone around

the back edge of Back

Plate to seal and

prevent movement

O-Ring MUST

seal to inside of

the Back Plate

3/8" Hex Key

Hole

Cover Plate

02/09

- 3 -

Pub. No. 202-A

®

Installation Instructions

Installation Instructions Model: TSC

The Total Sense Control (TSC) has a built in temperature
sensor and therefore requires the TSC control to be installed
inside the steam room.

Max Temperature setting: 120°F
Max Time setting: 60 Minutes

Figure 7 - Installation Suggestions

Steamhead Installation

Steamhead should be mounted

18" above the finished floor or 6"

above the rim of the tub as far

from the bather as possible

^

12

Required Inside Installation

TSC Control. Locate away

from the direct line of shower

spray and do NOT locate

above steamhead.

^

^

^

^

^

MENU

All Instructions must be given to the homeowner for future use.

East Coast Office: 25 E. Union Ave., East Rutherford, NJ 07073 • Tel: [phone] • Fax: [phone]

®

West Coast Office: 315 W. Pondera St., Suite F, Lancaster, CA 93534 • Tel: [phone] • Fax: [phone]

02/09

- 4 -

Pub. No. 202-A

®

Programming and Operating Instructions

®

®

C

US

Operation Model: TSC

WARNING: Elderly persons, pregnant women, or those suffering from heart disease, high blood pressure, diabetes, or
who are otherwise not in good health, do not use this device unless directed to do so by a physician. Also, do not use

!

steambath while under the influence of alcohol.

Figure 1: Total Sense Digital Control

Cycle Timer

Clock

Temperature Setting

Audio Input Selected

Dual function keys are used

to start user 1 or 2 programs

and to skip forward or

backward on the iPod playlist.

03 : 38 : 17 112

STEAM

112

110

°

^

^

^

^

iPod

^

^

^

12

SELECT

°

°

F

^

^

Temperature Setting

Room Temperature

User 2 indicator shown, one
icon indicates user 1 and
no icon indicates the guest.

^

MENU

Menu navigation keys

The Total Sense Control (TSC) has a built in temperature sensor and therefore MUST be installed inside the steam room.

Operation Model: TSC

Programming the User Settings

To program User 1, press the user 1 select button. The display
will show the User one icon. It will also show the steam bath
temperature settings, as shown in Figure 2. In the steam
mode the set temperature is easily adjusted with the Up and
Down arrows (Figure 2).

Press the Select button and the remaining cycle time is shown.
The time may be adjusted up or down from 0-60 minutes.
Adjusting the time in this window only alters the current cycle
(Figure 3).

Power ON/OFF button and
Guest Setting

03 : 38 : 17 112

STEAM

°

112

70

°

02/08

Figure 3Figure 2

°

F

User 1 Icon

03 : 38 : 17 112

STEAM

112

°

:59

- 1 -

°

Remaining

Cycle Time

Pub. No. 207-A

Programming and Operating Instructions

Operation Model: TSC

To adjust the default cycle time, press and hold the MENU
button until the setup window is displayed. This displays the
system setting discussed later in this document and also is
where the default timer is changed (Figure 4).

Figure 4

Total Sense Control

Cycle Timer

System Settings
Control Settings

With the CYCLE TIMER highlighted, Press select. Use the
arrow Up or Down buttons to adjust the default time cycle for
that current user (Figure 5).

Figure 5

Cycle Timer (mins)

60

Figure 7

AudioSense

VOLUME
BASS
TREBLE

MUSIC B

Press the MENU button to return to the previous AudioSense
Mode.

Press the MENU again to switch to ChromaSense mode.
While in the ChromaSense mode, use the select button to
toggle between the different ChromaSense mood lights. Use
the arrow keys to adjust the light intensity (Figure 8).

BALANCE
INPUT

Figure 8

03 : 38 : 17 112

ChromoSense

WHITE

70

°

°

F

Press the MENU button to back out of the current display
which will bring you back to the TOTAL SENSE CONTROL
screen, Press the MENU button again to return to the USER 1
STEAM screen. Press the MENU button a third time and if the
AudioSense option is installed the display will show the
AudioSense Mode. In this mode pressing the Up or Down
arrows changes the volume. The bottom of the display shows
the selected audio input (Figure 6).

Figure 6

03 : 38 : 17 112

AudioSense

VOLUME

Pressing the SELECT button while in AudioSense mode, gives
you more options to adjust you music settings. Press the select
button again until the setting you want to adjust is highlighted.
Then use the Up or Down arrow buttons to adjust that setting.
High light INPUT to select between iPod, Music A and Music
B. Music A is the 3.5 mm phone jack input on the left side of
the TSC control module. Music B is the RCA jacks on the side
of the TSC control module (Figure 7).

70

MUSIC B

°

°

F

Press the MENU button to toggle the AromaSense mode. The
selected pump either 1 or 2 is shown. To change the selected
pump, press the select button. Pressing the select button
toggles between pump 1 and 2. To adjust the intensity of the
oil press the Up or Down button. The lowest ON setting is
slightly less than one drop per minute and the highest setting is
about 5 drops per minute. To turn the selected pump off press
the down button until the word OFF is displayed (Figure 9).

Figure 9

03 : 38 : 17 112

AromaSense

PUMP 2

Off

Press the MENU button again to return to the Steam mode.
This completes all the user settings for User 1. To set up
USER 2 press the power OFF button to turn the power off.
Then press USER 2 and repeat the above steps for the custom
settings for User 2.

NOTE: 2 user icons will be shown in the display. The guest
setting which is selected by pressing the power button when
the control is off and indicated by no user icons in the display
programs the same as User 1 and 2. The guest setting works
as a third user setting.

70

°

°

F

02/08

- 2 -

Pub. No. 207-A

Programming and Operating Instructions

Programming the System Settings Model: TSC

Programming the System Settings

Power on TSC control by pressing either USER 1, USER 2 or
the power button. Press and hold the MENU button to enter
the setup window. You will see the Cycle timer that was
programmed earlier and the "System Settings." Highlight
"System Settings" using the Up or Down arrows and press
select (Figure 10).

Figure 10

Total Sense Control

Cycle Timer

System Settings

Control Settings

The first system setting is INSTAMIST. This selects the instant
on feature which keep the water hot and ready for your next
steam bath. This feature uses an average of 60 watts of
electricity to keep the water hot. If the steam bath is not used
for long periods of time you may prefer to turn this setting off.
When this feature is turned on you may hear a slight rumbling
sound occasionally as the heater is periodically cycled on for a
few seconds.

With Instamist highlighted in the display press select. The
INSTAMIST is turned on and off with the Up or Down arrows
(Figure 11).

Figure 11

Figure 12

AudioSense Input

MUSIC A
MUSIC B
iPod

Press MENU to return to the previous display. The next system
setting is Temperature Fahrenheit or Celsius setting. Select
this setting and change between the F and C with the Up or
Down arrows (Figure 13).

Figure 13

Temperature Units

F

Press MENU to return to the previous display. The next system
setting is Restore Defaults setting. This setting is intended to
return the control to the factory setting. Select this setting and
change between yes and no with the arrow Up or Down
arrows. If yes is selected the defaults will be restored when the
Menu button is pressed after yes is selected (Figure 14).

InstaMist

Off

Press MENU to return to the previous display. The next system
setting is AudioSense Input. Highlight AudioSense and press
select. This setting allows you to further adjust the volume
based on the input level of the audio source connected to the
TSC Control Module. Use the SELECT button to toggle
between the three input choices. These settings should start at
the lowest settings. Use the arrow Up or Down buttons to
increase or decrease the input volume boost. The iPod setting
should be set at the lowest setting. Depending on the audio
source connected to the Music A and B you may need to
increase the input boost to get a more acceptable volume
level. This is a global setting for all users. After making
changes to these settings you will need to re adjust the volume
for each user (Figure 12).

Figure 14

Restore Defaults

NO

Press MENU to return to the previous display. The next system
setting is Connected Devices. Selecting this displays a list of
the connected devices. This is used for troubleshooting
purposes to determine if all the devices are properly connected
and communicating with the control (Figure 15).

Figure 15

Gen 2

Gen 1 YES
Gen 3 NO
AudioSense
ChromoSense
AromaSense
Outside Control
Wireless Remote

Gen 4

NO
NO
v10
v10
v10
NO
NO

02/08

- 3 -

Pub. No. 207-A

Programming and Operating Instructions

Programming the Control Settings Model: TSC

Press the MENU button twice to enter the setup window.
Highlight Control Settings and press the select button (Figure

16).

Figure 16

Total Sense Control

Cycle Timer
System Settings

Control Settings

Set Time is already highlighted press the select button to
change the time (Figure 17).

Figure 17

Total Sense Control

Set Time

Clock Display

Display Contrast
Display Backlight
Keypad Backlight

Change the hour with the Up or Down arrow. Press SELECT to
toggle between hours and minutes. Use the arrow buttons to
change the minutes. The clock will keep time even with a brief
power interruption of less than a day (Figure 18).

Press MENU to return to the previous display. The next control
setting is the display contrast. If necessary this setting adjusts
the contrast for optimum viewing. With the LCD Contrast
highlighted press select and use the arrow buttons Up or Down
to adjust the contrast (Figure 20).

Figure 20

LCD CONTRAST

Press MENU to return to the previous display. The next control
setting is the LCD Display Backlight adjustment. If desired to
adjust the LCD backlight, highlight this selection and press
select. Use the arrow buttons Up or Down to adjust the
Backlight (Figure 21).

Figure 21

LCD BACKLIGHT

Figure 18

03:14

Press MENU to return to the previous display. The next control
setting is the clock display. This setting turns the clock function
on or off. With the clock display highlighted press select and
use the arrow buttons Up or Down to turn the clock function on
or off (Figure 19).

Figure 19

Clock Display

ON

Press MENU to return to the previous display. The next control
setting is the Keypad Backlight adjustment. If desired to adjust
the Keypad backlight, highlight this selection and press select.
Use the arrow buttons Up or Down to adjust the backlight
(Figure 22).

Figure 22

KEY LIGHTING

Press the power button to exit and turn off.

East Coast Office: 25 E. Union Ave., East Rutherford, NJ 07073 • Tel: [phone] • Fax: [phone]

®

West Coast Office: 315 W. Pondera St., Suite F, Lancaster, CA 93534 • Tel: [phone] • Fax: [phone]

02/08

- 4 -

Pub. No. 207-A

®

Specications

®

Steambath Control Model: TSC

Product Information – TSC

5-years parts warranty
Programmable Time and Temperature.
Operates AromaSense, AudioSense and ChromaSense options.
Digital display of ambient and set temperature.
Icons for system status - heating and set temp.

Dimensions: 4" x 5⅝"

Package Includes: Control, 25-Ft. Multi-Conductor Cable,

6-Pin Coupler, Steamhead (Delivers 360-Degree Steam Disper­sion), Strain Relief Clamp, Silicone Sealant, Installation and
Operating Instructions.

Required Electrical Service:

Low-voltage connection from
TSG generator via multi-conductor cable (supplied).

Notes

Installation Notes:

Surface Mount - 1½" hole required.
Mounts inside the steam room.
Steamist recommends that the multi-conductor cable be run

through ¾" conduit to protect cable from damage and to facilitate
easy replacement.

Mount control near seating area and not above steamhead.

Rough-in Notes:

Control should be mounted 48" above the floor.
Steamhead to be mounted 18" above the finished floor or

6" above the rim of the tub and as far from the seating area
as possible.

TSC

5⅝"

Package Contents

Strain Relief Clamp

110

^

^

°

°

F

^

^

03 : 38 : 17 112

STEAM

°

112

^

12

SELECT

^

MENU

4"

M

A

I

t

D

N

e

E

te
1

NI

/

oNm

2

.
3

ELC

LF

.U

A

S

51

O.

2

.

R

A

0

Z

.

.

6-Pin Coupler

ENOCILIS

Silicone Sealant

Product No. - Finishes:

TSC-PC - Polished Chrome
TSC-PN - Polished Nickel
TSC-BN - Brushed Nickel
TSC-AB - Antique Brass
TSC-PB - Polished Brass
TSC-PG - Polished 24K Gold
TSC-ORB - Oil-Rubbed Bronze

02/09

- 1 -

360-Degree Diffusing

Steamhead

25-Ft. Multi-Conductor Cable

Pub. No. 214-A

®

®

®

Wiring Layout

120V

120V

TSC Digital

Control
Module

CONTROL CABLECONTROL CABLE

Aroma

Box

Control Cable

Special Light Cable

Standard Speaker Wire

Category 5 Cable

Tube
Tube

Wireless
Receiver

Standard Speaker Wire

Control Cable

iPod

Cradle

Aroma

Injection Tee

Specications

.

.

.

.

.

.

.

.

.

.
.

.

.

.
.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.
.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

TSS-CL

Classic

Speaker

°

03 : 38 : 17 112

STEAM

°

F

110

°

112

^

^

^

^

12

^

^

MENU

TSC

Control

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

.

.

.

.

.

.

.

TSS-CL

.

.

.

.

.

.

Invisible

.

.

.

.

.

.

.

.

.

Speakers

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.

.
.

.

.

START1START

2

STOP

TSR
Remote
Control

East Coast Office: 25 E. Union Ave., East Rutherford, NJ 07073 • Tel: [phone] • Fax: [phone]

®

West Coast Office: 315 W. Pondera St., Suite F, Lancaster, CA 93534 • Tel: [phone] • Fax: [phone]

02/09

- 2 -

Pub. No. 214-A
