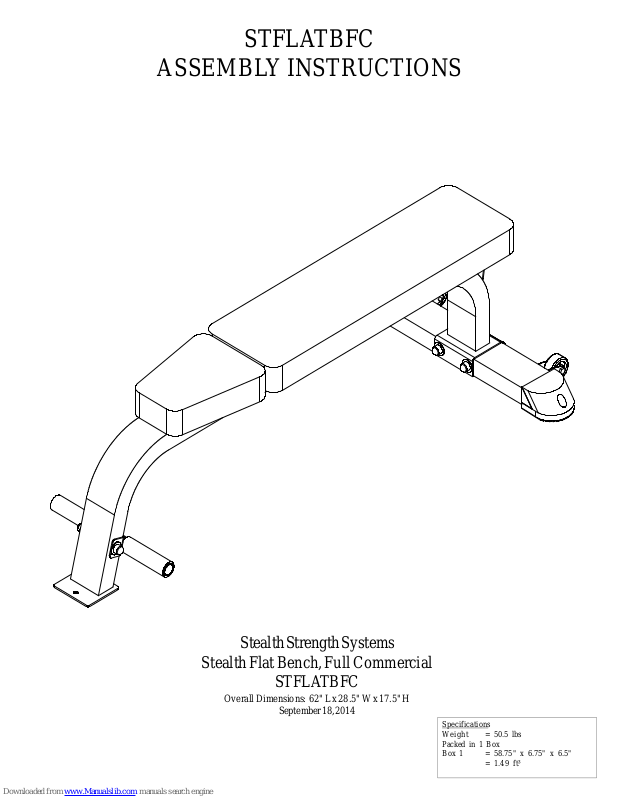

STFLATBFC
ASSEMBLY INSTRUCTIONS
Stealth Flat Bench, Full Commercial
Stealth Strength Systems
STFLATBFC
Overall Dimensions: 62" L x 28.5" W x 17.5" H
September 18, 2014
Specifications
Weight = 50.5 lbs
Packed in 1 Box
Box 1 = 58.75" x 6.75" x 6.5"
= 1.49 ft³
Parts list
Item Description ..............................Qty
1 Main Frame ...............................1
2 Rear Base .................................1
3 Foot Rest...................................1
4 Seat Pad ...................................1
5 Back Pad ..................................1
6 Lot Label ....................................... 1
Bolt Length
Item Description ..............................Qty
A 3/8" x 3-1/4" Bolt ........................ 4
B 1/2" x 5" Bolt.............................. 3
C 3/8" Washer............................... 4
D 1/2" Washer............................... 6
E 1/2" Locknut............................... 3
F Acorn Cap 1/2" .......................... 6
-2-
4
5
1
6
2
3
-3-
1. Bolt Rear Base (2) to Main Frame (1) using bolting shown.
F
E
B
D
F
D
2. Bolt Foot Rest (3) to Main Frame (1) using bolting shown.
3. Bolt Seat Pad (4) and Back Pad (5) to Main Frame (1) using bolting shown.
B
F
D
D
E
C
4 Places
F
-4-
A
4 Places
WARRANTY
Stealth Strength Systems, Manufacturer’s Limited Lifetime Warranty
Northern Lights warrants to its customers that Stealth Strength Systems equipment will be free from defects in material and
workmanship under normal use and service for the following period and in the following respects:
LIFETIME WARRANTY Structural Frame and Weight Stacks
FIVE YEAR WARRANTY Pulleys and Pivot Bearings
ONE YEAR WARRANTY Cables, Grips, Knobs, Linear Shafts and Linear Bearings and all other parts
NINETY DAY WARRANTY Upholstery
This warranty is for original product owners and does not cover damage resulting from product alterations, misuse, abuse,
improper assembly, normal wear and tear or other conditions, which are beyond our control.
No other express warranty has been made or will be made on behalf of Northern Lights with respect to any Stealth Strength
Systems product or the operation, repair or replacement of any Stealth Strength Systems product. Northern Lights shall not
be responsible for injury, loss of use of the product, inconveniences, loss or damage to personal property, whether direct or
indirect.
This warranty does not include any implied warranties or liability for incidental or consequential damages created by any
provincial or state law.
If you feel that a Stealth Strength Systems product is defective, please contact our parts department at (800) 461-1709.
