Staub Electronics B-300-HDMATRIX-RCVR User Manual

OWNER’S MANUAL
B-300-HDMATRIX-RCVR
BINARY SINGLE CAT 5E/6 HDMI 1.4
EXTENDER FOR USE WITH
B-300 HDMATRIX SERIES SWITCHERS
B-300-HDMATRIX-RCVR Installation and Users Manual
IMPORTANT SAFETY INSTRUCTIONS
1. Read and follow all instructions and warnings in this manual. Keep for future reference.
2. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including ampliers).
3. Do not install the unit near water or where moisture is present.
4. Clean with a dry cloth.
5. Unplug this apparatus during lightning storms or when unused for long periods of time.
6. Protect the power cord from being walked on or pinched particularly at plug, convenience receptacles, and the point where it exits from the apparatus.
7. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
8. To completely disconnect this equipment from the AC mains, disconnect the power supply cord plug from the AC receptacle.
The lightning ash with arrowhead symbol, within an
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK.
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
equilateral triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product’s enclosure that may be of sucient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
OVERVIEW
The B-300-HDMATRIX-RCVR extends HDMI from a B-300-HDMATRIX series switcher over single Cat5e/6 130 feet at 1080P60 24Bit color,t including all HDMI 1.4a 3D formats.
PACKAGE CONTENTS
• (1) B-300-HDMATRIX-RCVR
• (1) +5V 4A DC power supply
• (1) User manual
• (1) IR Adapter
pg.2
B-300-HDMATRIX-RCVR Installation and Users Manual
FEATURES
• Support for HDMI 1.4a 3D formats
• Extends the transmission up to 200 ft. from the HDMI source at HD 1080i or 720p 24-Bit
• Extends the transmission up to 130 ft. from the HDMI source at Full HD 1080p 24-Bit
• Extends the transmission up to 65 ft. from the HDMI source at Full HD 1080p 36-Bit
• HDCP 2.0 compliant
• DTS-HD Master and Dolby TrueHD audio support
• Bi-directional IR pass-through
• Supports full-frequency IR signal from 20kHz to 60kHz
See Important Connection Notes! for cautions regarding connection and operation.

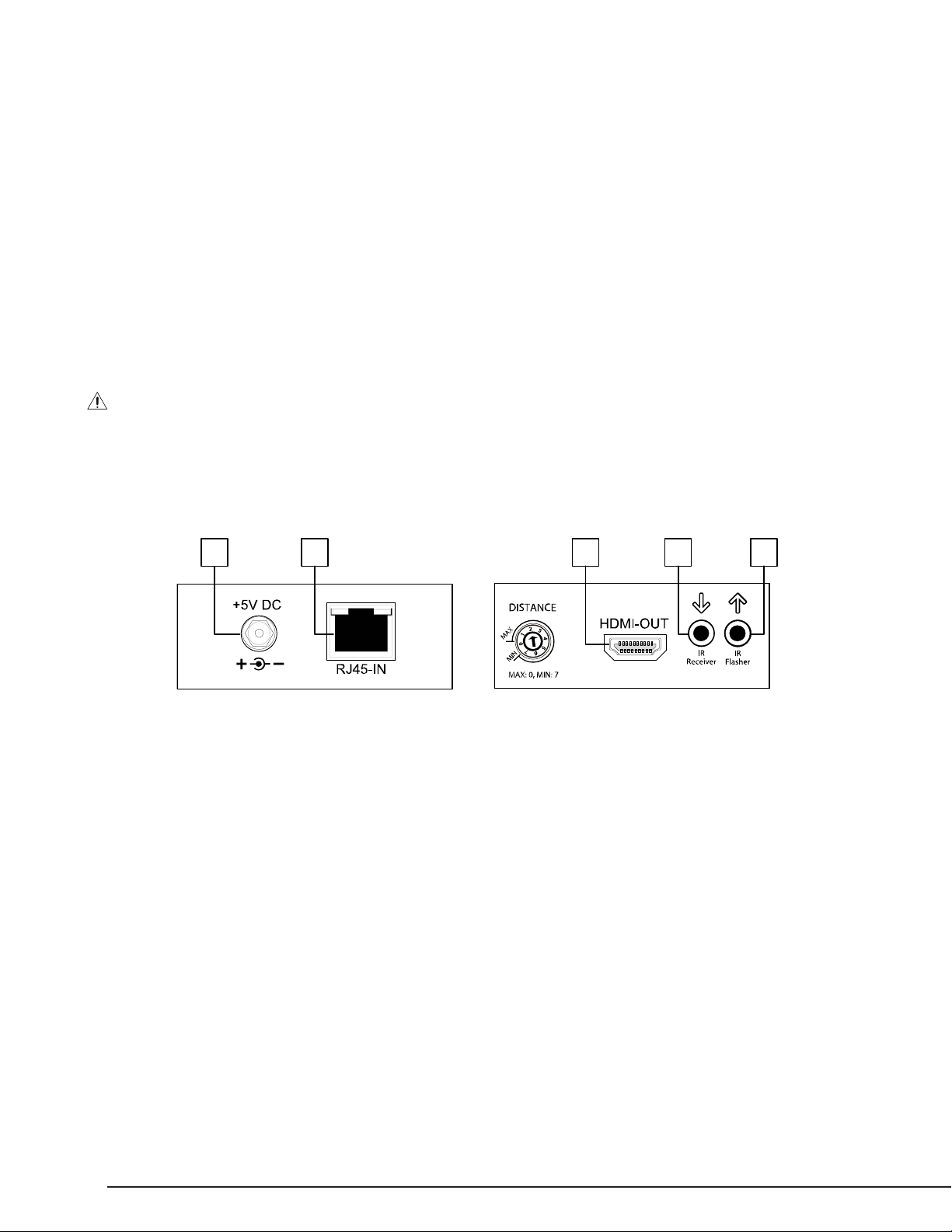

CONNECTIONS
3 4 51 2
1. Latch-locking power jack: Connect to included 5V 4A DC power supply.
2. RJ45: Plug in a Cat5e/6 cable from B-300-HDMATRIX Output.
3. HDMI OUT: Connect to an HDMI display with a HDMI male-to-male cable.
4. IR Receiver: Infrared 3.5mm jack for IR receiver.
5. IR Flasher: Infrared 3.5mm jack for IR asher
pg.3
B-300-HDMATRIX-RCVR Installation and Users Manual
BASIC CONNECTIONS
B-300-HDMATRIX-4x4
Cat5e/Cat6 (Shielded Recommended)
B-300-HDMATRIX-RCVR
HDMI cable (1m max length)
IR Receiver
HDTV
IMPORTANT CONNECTION NOTES!
CAUTION: The IR Receiver 3.5mm jack provides 12V power for IR receivers that can damage ashers and
control systems. Check carefully before plugging an IR Flasher or IR Receiver into the respective IR sockets.
Manufacturer’s Warranty will not cover the damage. See IR Control Connections section for proper cabling.
• To reduce video dropout problems from ceiling fans and other EMI issues, it is strongly recommended
that shielded CAT5e/CAT6 and shielded RJ45 connectors are used with this extender product. “EZ-end”
connectors are not recommended for use with HDMI extenders.
• The transmission distance is subject to the grade of installed cable(s), source device, and display. Any
keystone jack along the transmission path will reduce the transmission performance signicantly
• 1 meter or shorter HDMI cable is recommended for connecting the B300-HDMATRIX-RCVR to the display.
CALIBRATION
1
1. Distance control: Adjust the 8-level equalization control to the received HDMI signals. The HDMI signal level varies from 0 (strongest) to 7 (weakest) for respective transmission length from longest possible range to short distance.
CAUTION: Inappropriate signal level setting may cause an overpowering issue that would shorten the product life signicantly. Follow the steps below to adjust the distance setting in order to avoid overdriving.
ADJUSTING FOR DISTANCE
1. Set the distance control to 7 (Weakest).
2. Select a source that is outputting the highest-quality video that will be transmitted over the extender. If you see ickering or blinking images on the display:
pg.4
Adjust the signal level from 7 to 0 one step at a time, and stop turning the rotary switch when the audio/ video is playing normally.
B-300-HDMATRIX-RCVR Installation and Users Manual

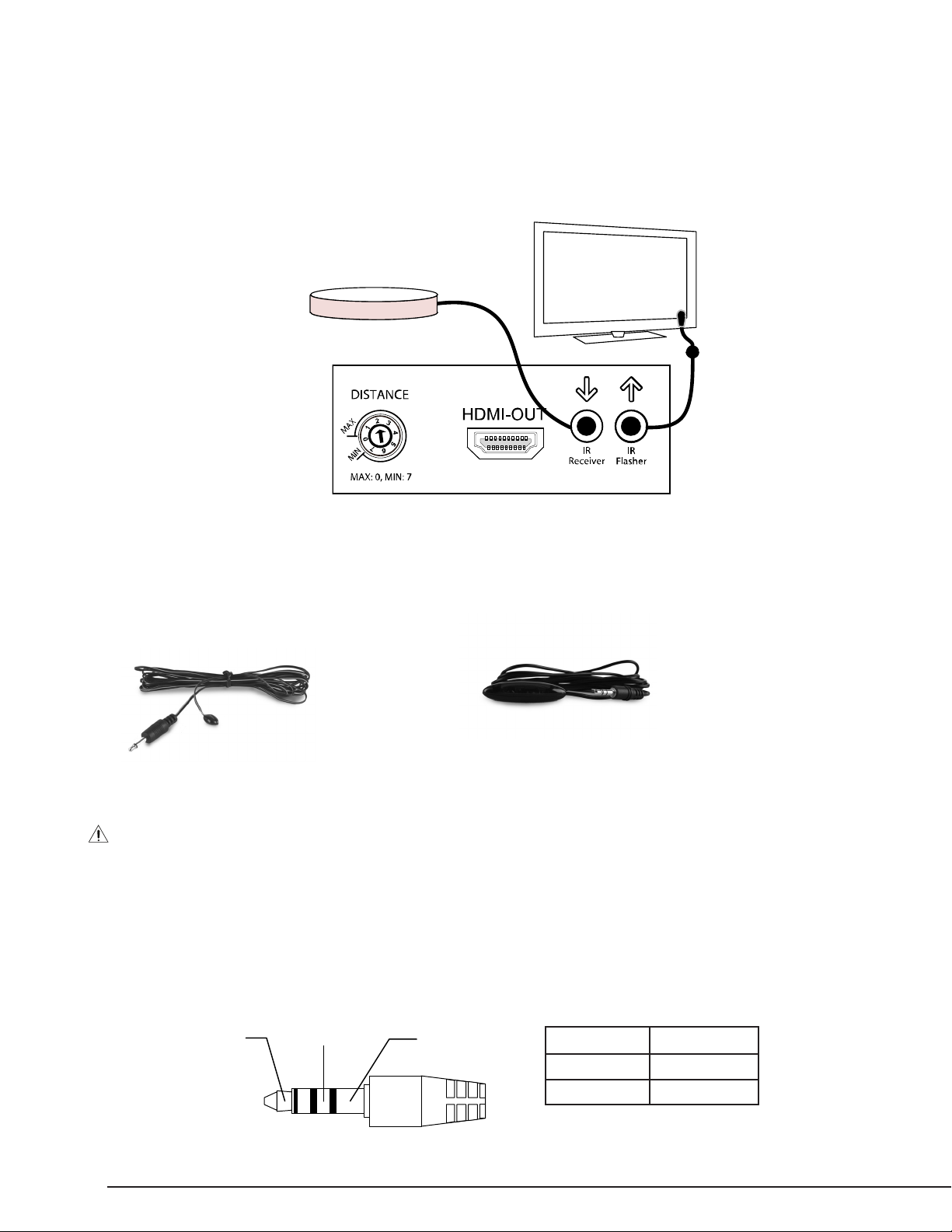

IR PASS-THROUGH
Bi-directional IR signals are also transmitted between the B-300-HDMATRIX-RCVR and the B-300-
HDMATRIX-4x4 or B-300-HDMATRIX-8x8 switchers over the Cat5e/6 cable. Each B-300-HDMATRIX-RCVR
will need an IR Receiver to send IR from the RCVR to the switch, and an IR asher to use IR sent from the switch to the RCVR (sold separately).
IR Receiver
HDTV
NOTE: This product was specically engineered for Episode® IR products. Use of the following products is
highly recommended (not included):
IR Flasher (Episode® IRF-1 or Episode® IRF-2)
IR Receiver
(Episode® IR-SM-3660 or Episode® IR-TT-3660)
pg.5
IR CONTROL CONNECTIONS
CAUTION: Before connecting an IR Receiver or an IR control system, verify that the B-300-HDMATRIX­RCVR is OFF to avoid damaging the unit.
Pin out congurations for IR receivers and control systems vary. Before connecting to this input, review this section carefully in order to match the pin outs for the HDMatrix.
Before connecting an IR Receiver or to an IR control system, verify that the HDMatrix is OFF to ensure
proper operation when connected.
IR Signal
(Tip)
GND
(Ring)
12v DC
(Sleeve)
IR Signal Tip
GND Ring
12v DC Sleeve
B-300-HDMATRIX-RCVR Installation and Users Manual

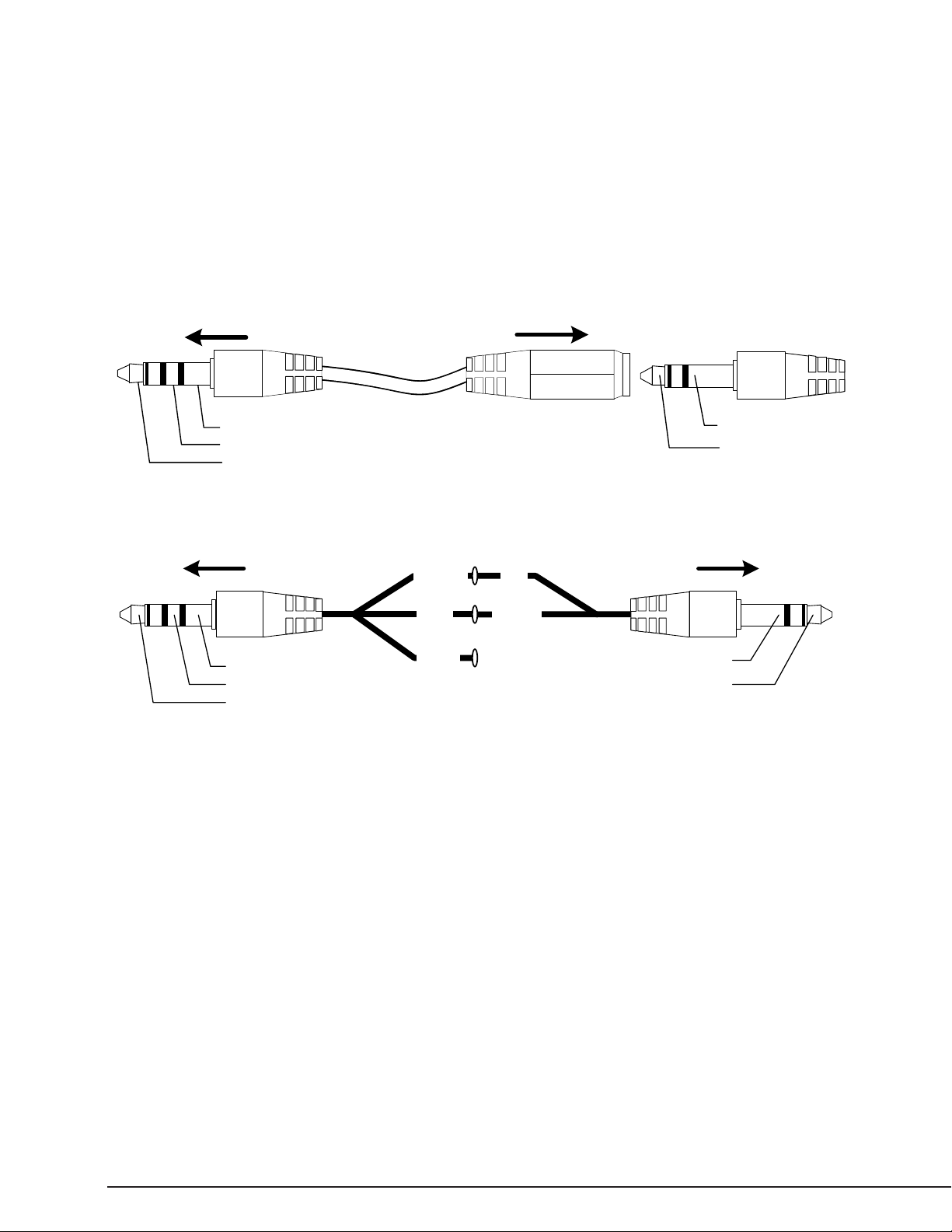

CONNECTING A CONTROL SYSTEM OR IR CONNECTING BLOCK
When connecting a control system or connecting block to the IR Receiver jack, the 12V DC (Sleeve) must not be connected. Connections of this type require the use of the included Stereo to Mono IR Adaptor or a custom cable made. A mono 3.5mm cable should not be used as it will short out the 12 VDC to GND and will make the connection inoperable.
Stereo to Mono IR Adaptor
To B-300-HDMATRIX-RCVR
12V DC (Sleeve)
GND (Ring)
IR Signal (Tip)
Custom Cable Construction
To B-300-HDMATRIX-RCVR
12V DC (Sleeve) GND (Ring) IR Signal (Tip)
IR Signal
(Tip)
GND
(Ring)
12V DC
(Sleeve)
To IR Control System/
Connecting Block
GND (Sleeve)
IR Signal (Tip)
To IR Control System/
Connecting Block
(Tip)
(Sleeve)
GND (Sleeve)
IR Signal (Tip)
pg.6
INSTALLATION
1. Connect a HDMI source (such as a Blu-ray Disc player) to the B-300-HDMATRIX switcher.
2. Connect a HDMI display (such as a LCD TV) to the receiver.
3. Connect IR Flasher/Receiver as needed to the receiver-300-HDMATRIX-RCVR and he B-300-HDMATRIX
switcher.
4. Connect a Cat5e/6 cable between the units.
5. Connect the 5V 4A DC power supply unit to the power jack of the B-300-HDMATRIX-RCVR.
6. Adjust the Distance setting on the B-300-HDMATRIX-RCVR as described above in Distance Control.
B-300-HDMATRIX-RCVR Installation and Users Manual
1080p / 1080i / 720p
SPECIFICATIONS
Technical HDMI Compliance Full HD 1080P60, Deep Color
HDCP Compliance Yes Video Bandwidth Single-link 225MHz (6.75Gbps)
Video Support
HDMI over UTP Transmission (24-bit)
Audio Support Surround sound (up to 7.1ch) or
Distance Control 8-level control Signal Input 1x RJ45
HDMI Output 1x HDMI Type A
IR Pass­Through
IR Receiver 3.5mm Stereo (powered) IR Flasher 3.5mm Mono (unpowered) Mechanical Housing Metal enclosure Dimensions (L x W x H) 2.9” x 3.5” x 1”
Weight 1.1 lbs Power Supply 5V 4A DC Power Consumption 3 Watt (max) Operation Temperature 32~104°F Storage Temperature -4~140°F Relative Humidity 20~90% RH (no condensation) Certifications CE,FCC,RoHs
(36bit), 3D (1.4a)
to 36-bit color Full HD (1080p)-130ft (CAT5e) /
165ft (CAT6) HD (720p/1080i)- 165ft (CAT5e) /
200ft (CAT6)
stereo digital audio
Type: Bi-directional Carrier frequency:
20-60kHz
/480p / 480i up
WARRANTY
Two-Year Limited Warranty
This Binary™ product has a 2-year limited Warranty. This warranty includes parts and labor repairs on all components found to be defective in material or workmanship under normal conditions of use. This warranty shall not apply to products which have been abused, modied or disassembled. Products to be repaired under this warranty must be returned to SnapAV or a designated service center with prior notication and an assigned return authorization number (RA).
pg.7
© 2011 Binary
