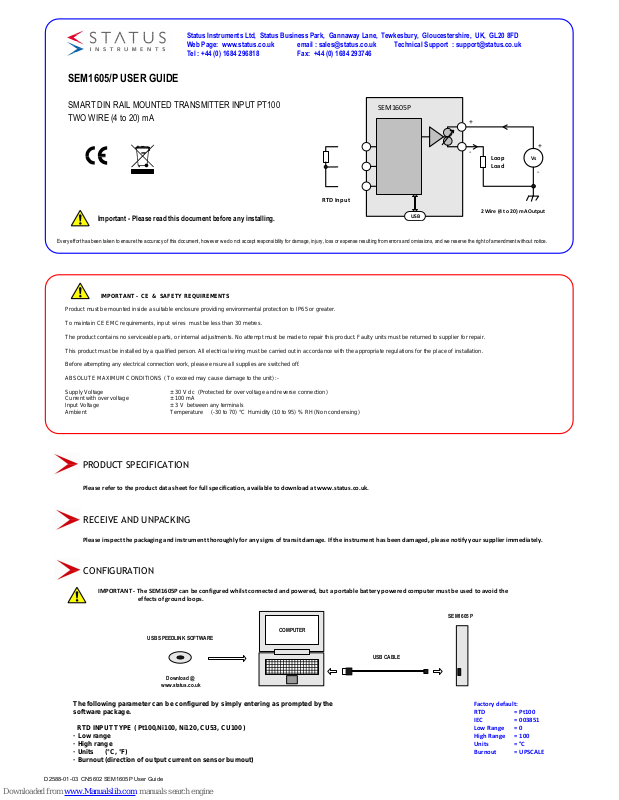

D2588-01-03 CN5602 SEM1605P User Guide
IMPORTANT - CE & SAFETY REQUIREMENTS
Product must be mounted inside a suitable enclosure providing environmental protection to IP65 or greater.
To maintain CE EMC requirements, input wires must be less than 30 metres.
The product contains no serviceable parts, or internal adjustments. No attempt must be made to repair this product. Faulty units must be returned to supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit) :Supply Voltage ± 30 V dc (Protected for over voltage and reverse connection)
Current with over voltage ± 100 mA
Input Voltage ± 3 V between any terminals
Ambient Temperature (-30 to 70) °C Humidity (10 to 95) % RH (Non condensing)
SEM1605/P USER GUIDE
SMART DIN RAIL MOUNTED TRANSMITTER INPUT PT100
TWO WIRE (4 to 20) mA
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
Important - Please read this document before any installing.
Please refer to the product data sheet for full specification, available to download at www.status.co.uk.
Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please notify your supplier immediately.
The following parameter can be configured by simply entering as prompted by the
software package.
RTD INPUT TYPE ( Pt100,Ni100, Ni120, CU53, CU100 )
· Low range
· High range
· Units (°C, °F)
· Burnout (direction of output current on sensor burnout)
Factory default:
RTD = Pt100
IEC = 003851
Low Range = 0
High Range = 100
Units = °C
Burnout = UPSCALE
Status Instruments Ltd, Status Business Park, Gannaway Lane, Tewkesbury, Gloucestershire, UK, GL20 8FD
Web Page: www.status.co.uk email : sales@status.co.uk Technical Support : support@status.co.uk
Tel : +44 (0) 1684 296818 Fax: +44 (0) 1684 293746
SEM1605 P
USB SPEEDLINK SOFTWARE
USB CABLE
Download @
www.status.co.uk
COMPUTER
IMPORTANT - The SEM1605P can be configured whilst connected and powered, but a portable battery powered computer must be used to avoid the
effects of ground loops.
PRODUCT SPECIFICATION
RECEIVE AND UNPACKING
CONFIGURATION
RTD Inp ut
2 Wire (4 to 20) mA Output
SEM1605P
Vs
Loop
Load
USB
+
-
+
-
D2588-01-03 CN5602 SEM1605P User Guide
SUPPLY (Vs) = (10 to 30) V dc
MAX LOAD KΩ = [(Vs – 10)/20]
OUTPUT
2 Wire (4 to 20) mA
INPUT CONNECTION
RTD wire must be equal length and type .
To maintain CE compliance cable length must be less than 30
metres.
OUTPUT CONNECTION
Use twisted pair or screened cables for cable lengths greater
than 30 metres. Max cable length 1000 metres. Ensure loop is
grounded at one point.
Vs
Loop
Load
+
-
9
7
8
2
1
INPUT
RTD
Ø 3mm
Screw Driver
Screened Cable Twisted Pair Cable
TURN OFF SUPPLY BEFORE WORKING ON ANY ELECTRICAL CONNECTION
SEM1605P Enclosure
Style DIN 43880 (1 module width)
Material Polyamide 6.6 self extinguishing
Terminals Screw terminal
Cable 2.5 mm Max
Colour Grey
Ø 3 mm
90 mm
MOUNTING
Screw driver
EN50022 DIN RAIL
56.4 mm17.5 mm
1
2
11 1210
987
4 5 6
1 2 3
To fit or release module
Insert screw driver into
slot and lever latch
away from body
1
2
+ 70 °C Max
- 30 °C Min
1
2
ADJUST
STATE
ADJUST
STATE
+
_
MECHANICAL INSTALLATION
ELECTRICAL INSTALLATION
USB
SEM1605 P
Ø 3mm
Screw Driver
20
2020
20....000
000 000
000
Digital mA meter
Power supply (10 to 30) Vdc
Resistor Decade box
User adjust function allows manual adjustment of the output current,
this is useful for minor calibration adjustment or trimming out any
sensor error, ± 5% of range adjustment is available at both offset and
span. Raise and lower buttons are provided on the front panel of the
transmitter, accessed using a 3 mm flat blade screw driver. Insert the
screw driver into the appropriate slot to operate the button. The
button has a click action.
METHOD
1.0 In USBSPeedLink software set the “Buttons” drop box to
trim (this is the default setting).
Connect transmitter to a suitable Resistor decade box or
sensor. Connect output to a dc supply, connecting a digital mA
current meter in series with the output. Turn supply on, set
input to either offset or span calibration point.
+
-
20
2020
20....000
000 000
000
+
-
SEM1605P
or
23.0 Adjust output
current by pressing
either the raise or lower
button, single click to
step advance , or press
continuously to auto
advance.
Raise
Lower
34.0 Once adjust is
complete allow 30
seconds with no button
press, the trans mitter will
time out and return to
normal operation.
D2588-01-03 CN5602 SEM1605P User Guide
> 30 s
The transmitter will
automatically detect the
correct adjust point (offset
or span) based on the
output current drive. Offset
will be adjusted when the
current is between (3.8 to
6) mA, span when the
current is between (18 to
22) mA. No trim action
occurs at any other current.
offset
span
3.8 6
18
22 mA
or sensor
ADJUST
STATE
ADJUST
STATE
ADJUST
STATE
Button Configuration options.
The SEM1605P has three options selectabe in the USB Speed Link software, Trim, Range and off
Ω
Ω
Ø 3mm
Screw Driver
Power supply (10 to 30) Vdc
Resistor Decade box
User range function allows manual adjustment of the 4 mA and 20 mA
output range in relation to the input value.
Method In USBSPeedLink software set the “Buttons” drop box
to active range (this is not the default setting).
1.0 Connect the resistor decade box or the input sensor to the
SEM1605P using the three connection terminals. Connect the
SEM1605P to a (10 to 30) VDC power supply, a digital ammeter
connected in series with the SEM1605P will be useful to
monitor the (4 to 20) mA current but is not essential.
Turn on the supply and allow 1 minute warm up period.
2.0 Set the resistance decade box to the equivalent resistance
of the sensor for the required low range temperature, or apply
required low range temperature to the sensor.
Allow 10 seconds for the SEM1605P to settle.
3.0 Press and hold the Low range ADJUST button, marked with
a blue down arrow, until the STATE LED starts to flash, then
release the button.
Press and release the Low range ADJUST button again, the
STATE LED will flash quickly for a short time and the new low
range will be stored. The output current will go to 4.0 mA.
4.0 Set the resistance decade box to the equivalent resistance
of the sensor for the req uired high range temperature, or apply
required high range temperature to the sensor.
Allow 10 seconds for the SEM1605P to settle.
5.0 Press and hold the High range ADJUST button, marked with
a Red up arrow, until the STATE LED starts to flash, then
release the button.
Press and release the High range ADJUST button again, the
STATE LED will flash quickly for a short time and the new high
range will be stored. The output current will go to 20.0 mA.
The ranging of the SEM1605P is now complete.
Note:- The Low and High u ser adjust can be set individually and
in any order as required.
+
-
+
-
SEM1605P
or
or sensor
Ω
Ω
Pressing the button has no action.
USER ADJUST
USER RANGE
OFF
2.0 Press and hold the
red up arrow for 10 s
until the STATE LED
starts to flash, then
release the button
