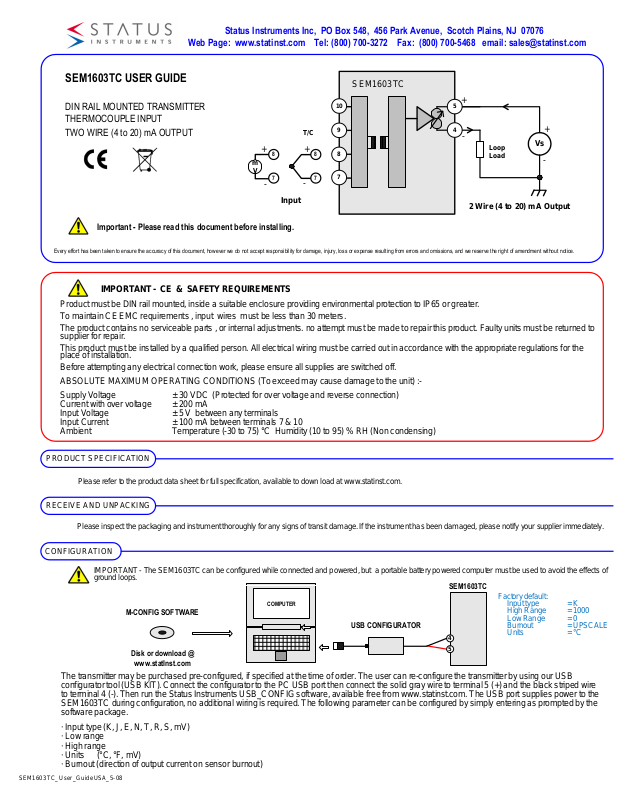

SEM1603TC USER GUIDE
DIN RAIL MOUNTED TRANSMITTER
SEM1603TC
10
+
5
THERMOCOUPLE INPUT
TWO WIRE (4 to 20) mA OUTPUT
m
V
-
T/C
8
7 7
++
-
Input
9
8
8
7
4
-
Loop
Load
2 Wire (4 to 20) mA Output
Important - Please read this document before installing.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
IMPORTANT - CE & SAFETY REQUIREMENTS
Product must be DIN rail mounted, inside a suitable enclosure providing environmental protection to IP65 or greater.
To maintain CE EMC requirements , input wires must be less than 30 meters.
The product contains no serviceable parts , or internal adjustments. no attempt must be made to repair this product. Faulty units must be returned to
supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the
place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM OPERATING CONDITIONS (To exceed may cause damage to the unit) :Supply Voltage ± 30 VDC (Protected for over voltage and reverse connection)
Current with over voltage ± 200 mA
Input Voltage ± 5 V between any terminals
Input Current ± 100 mA between terminals 7 & 10
Ambient Temperature (-30 to 75) °C Humidity (10 to 95) % RH (Non condensing)
+
Vs
-
PRODUCT SPECIFICATION
Please refer to the product data sheet for full specification, available to down load at www.statinst.com.
RECEIVE AND UNPACKING
Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please notify your supplier immediately.
CONFIGURATION
IMPORTANT - The SEM1603TC can be configured while connected and powered, but a portable battery powered computer must be used to avoid the effects of
ground loops.
The transmitter may be purchased pre-configured, if specified at the time of order. The user can re-configure the transmitter by using our USB
configurator tool (USB KIT). Connect the configurator to the PC USB port then connect the solid gray wire to terminal 5 (+) and the black striped wire
to terminal 4 (-). Then run the Status Instruments USB_CONFIG software, available free from www.statinst.com. The USB port supplies power to the
SEM1603TC during configuration, no additional wiring is required. The following parameter can be configured by simply entering as prompted by the
software package.
· Input type (K, J, E, N, T, R, S, mV)
· Low range
· High range
· Units (°C, °F, mV)
· Burnout (direction of output current on sensor burnout)
SEM1603TC_User_GuideUSA_5-08
M-CONFIG SOFTWARE
Disk or download @
www.statInst.com
COMPUTER
USB CONFIGURATOR
SEM1603TC
4
5
Factory default:
Input type = K
High Range = 1000
Low Range = 0
Burnout = UPSCALE
Units = °C
MECHANICAL INSTALLATION
1 2 3
4 5 6
1
2
987
11 1210
ELECTRICAL INSTALLATION
MOUNTING
Screw driver
1
Ø 3 mm
2
EN50022 DIN RAIL
90 mm
2
+ 70 °C Max
- 20 °C Min
SEM1603 Enclosure
Style DIN 43880 (1 module width)
Material Polyamide 6.6 self extinguishing
Terminals Screw terminal
56.4 mm17.5 mm
Screw Driver
Cable 2.5 mm Max
Color Gray
Ø 3mm
TURN OFF SUPPLY BEFORE WORKING ON
ANY ELECTRICAL CONNECTION
1
mm
3
Ø
To fit or release module
Insert screw driver into
slot and lever latch
away from body
SEM1603TC
10
T/C
8
m
V
7 7
-
INPUT CONNECTION
For cable lengths < 3 meters shielded or twisted pair is not required.
For cable lengths > 3 meters and < 30 meters shielded or twisted pair is required.
Cable lengths > 30 meters are not recommended.
Inputs of all three wires must be equal length (resistance).
++
-
9
8
8
7
SUPPLY (Vs) = (11 to 30) VDC
MAX LOAD Ohms = (Vs - 11) / 0.021
+
5
4
-
Loop
Vs
Load
OUTPUT
2 Wire (4-20) mA
Max cable length 1000 meters
Use twisted pair cable > 30 meters
+
-
SEM1603TC_User_GuideUSA_5-08
