Page 1

RESIDENTIAL

MANUFACTURED

SELECT

HOUSING

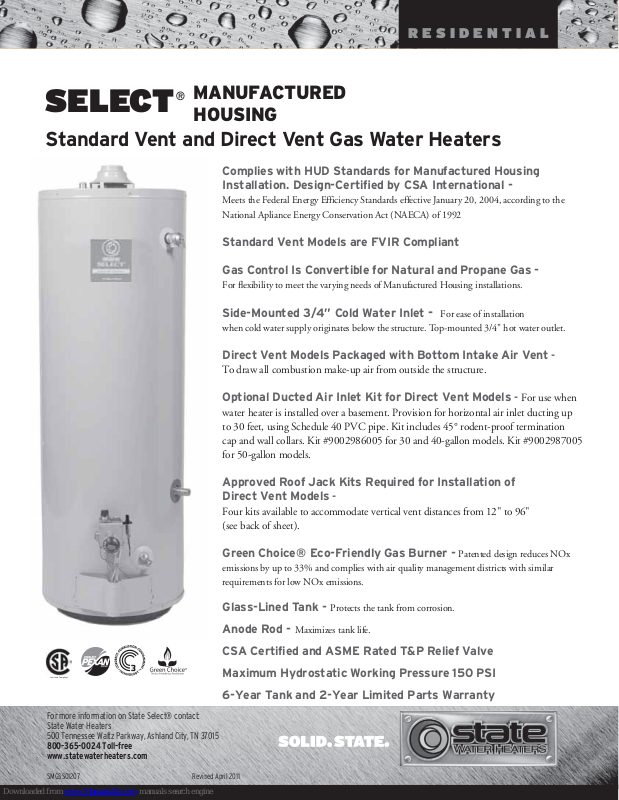

Standard Vent and Direct Vent Gas Water Heaters

Complies with HUD Standards for Manufactured Housing Installation. Design-Certiﬁed by CSA International -

Meets the Federal Energy Efficiency Standards effective January 20, 2004, according to the National Apliance Energy Conservation Act (NAECA) of 1992

Standard Vent Models are FVIR Compliant

Gas Control Is Convertible for Natural and Propane Gas -

For ﬂexibility to meet the varying needs of Manufactured Housing installations.

Side-Mounted 3/4” Cold Water Inlet - For ease of installation

when cold water supply originates below the structure. Top-mounted 3/4" hot water outlet.

Low Lead Compliant

Direct Vent Models Packaged with Bottom Intake Air Vent -

To draw all combustion make-up air from outside the structure.

Optional Ducted Air Inlet Kit for Direct Vent Models - For use when

water heater is installed over a basement. Provision for horizontal air inlet ducting up to 30 feet, using Schedule 40 PVC pipe. Kit includes 45° rodent-proof termination cap and wall collars. Kit #9002986005 for 30 and 40-gallon models. Kit #9002987005 for 50-gallon models.

Approved Roof Jack Kits Required for Installation of Direct Vent Models -

Four kits available to accommodate vertical vent distances from 12" to 96" (see back of sheet).

Green Choice® Eco-Friendly Gas Burner - Patented design reduces NOx

emissions by up to 33% and complies with air quality management districts with similar requirements for low NOx emissions.

Glass-Lined Tank - Protects the tank from corrosion.

Anode Rod - Maximizes tank life.

CSA Certified and ASME Rated T&P Relief Valve

Maximum Hydrostatic Working Pressure 150 PSI

For more information on State Select® contact: State Water Heaters 500 Tennessee Waltz Parkway, Ashland City, TN 37015

800-365-0024 Toll-free www.statewaterheaters.com

SMGSS01207 Revised April 2011

6-Year Tank and 2-Year Limited Parts Warranty

Page 2

RESIDENTIAL

MANUFACTURED

SELECT

HOUSING

StandardVent and DirectVent Gas Water Heaters

MODEL PEAK ENERGY GAL. BTU INPUT RECOVERY R DIMENSIONS IN INCHES APPROX.

NUMBER DEMAND FACTOR CAP. PER HOUR 90°F RISE VALUE SHIPPING

STANDARD VENT MODELS – See Figure 2

GS6 30 YOMT 54 0.61 30 30,000 31 16 59-1/2 56 18 15 16-3/4 51-1/4 3 125

GS6 40 YOMT 63 0.59 40 30,000 31 16 60 56-1/2 20 15 20-3/4 51-1/4 3 150

DIRECT VENT MODELS (ORDER ROOF JACK KIT SEPARATELY) – See Figure 1

DIRECT

PR6 30 NHDST2 54 0.61 30 30,000 31 16 – 56 18 15-1/4 16-3/4 51-1/2 3-1/2 115

PR6 40 NHDST2 64 0.59 40 32,000 33 16 – 56-1/2 20 15-1/4 20-3/4 51 3-1/2 134

PR6 50 NHDST2 77 0.58 50 38,000 39 16 – 56 22 15-1/4 23-1/4 50-1/2 4-1/2 170

Direct Vent model are not FVIR Compliant Recoveries are rounded to nearest gallon.

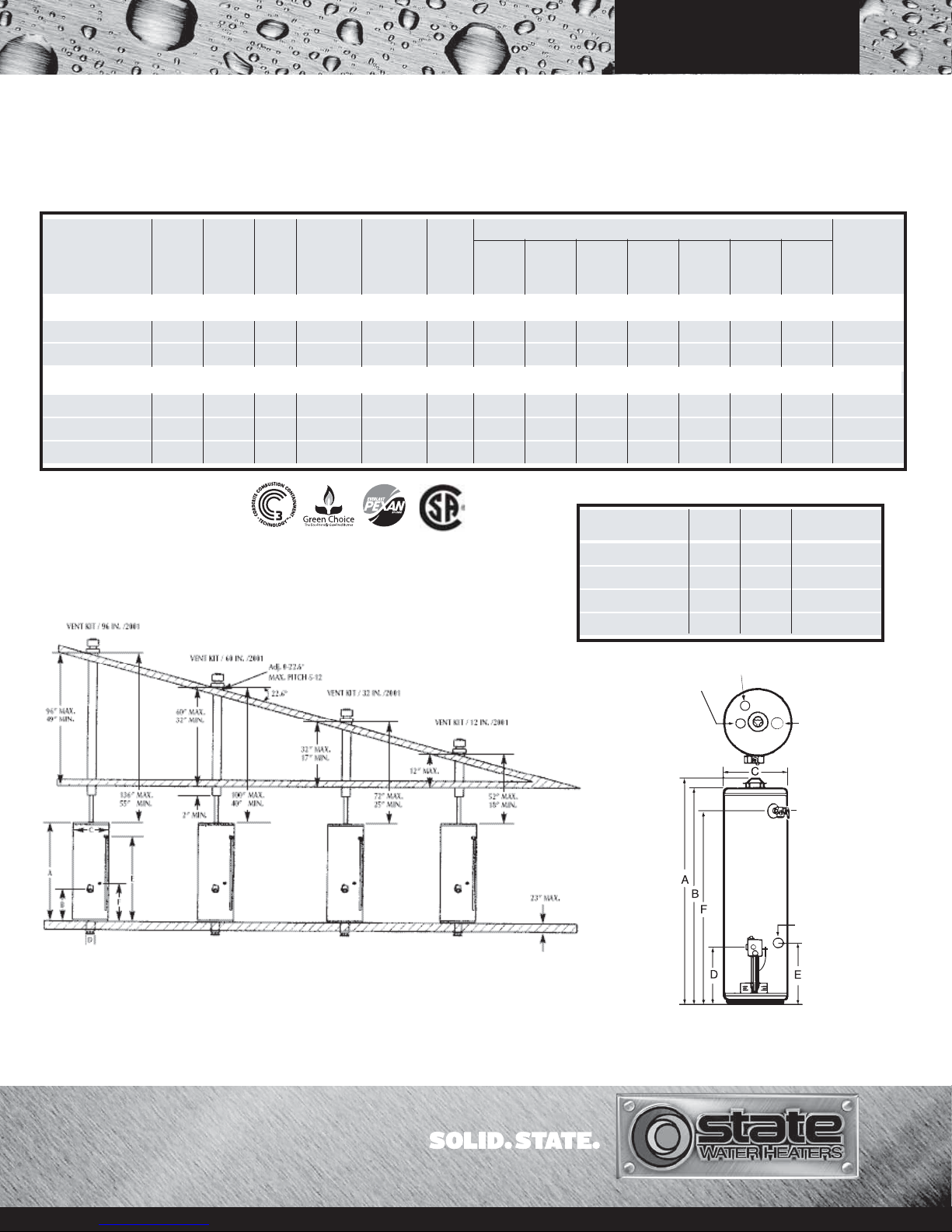

Approved Roof Jack Kits for Direct Vent Models

Direct Vent Manufactured Housing water heaters must be installed using one of these approved Roof Jack Kits, which must be ordered separately. “Min.” and “Max.” dimensions indicate kit adjustability for varying vent distances, as shown in drawing.

OUTPUT NATURAL/ GALLONS A B C D E F DRAFT WEIGHT

(1st Hour PROPANE HOOD (LBS.)

Rating OUTLET

Gallons)

35,500/32,000

35,500/35,5003636

Low Lead Compliant

61-1/2

61-3/4

58-1/4

13-1/4

KIT NUMBER MIN. MAX. SHIP. WEIGHT

9002964005 – 12" 10 lbs.

9002965005 17" 32" 13 lbs.

9002966005 32" 60" 27 lbs.

9002967005 49" 96" 22 lbs.

14-1/4

51-3/4

3-4

AIR

INLET (G)

Direct Vent Models

(Figure 1)

For complete information on limited warranties, consult written warranty, or contact the State Customer Care Center, 1-800-365-0024.

State Industries, Inc. reserves the right to make product changes or improvements without prior notice.

For more information on State Select® contact: State Water Heaters 500 Tennessee Waltz Parkway, Ashland City, TN 37015

800-365-0024 Toll-free www.statewaterheaters.com

HOT

ANODE ROD

CONNECTION 3/4” FEMALE CONNECTION

GAS CONNECTOR

1/2” FEMALE

Standard-Vent Models

PLUG ON 30 & 40 GALLON COLD INLET ON 50 GALLON

T&P VALVE

COLD CONNECTION 3/4” FEMALE CONNECTION

(Figure 2)

SMGSS01207 Revised April 2011
