State Water Heaters GP650YTPDT, SHE50100NE, Involve HC-Wave, Premier Power-Vent DV GP650YTPDT, Force 90+ SHE50100NE Brochure
Page 1
RESIDENTIAL Premier
®
Power-Vent DV
COMMERCIAL Force 90+
™
State Industries, Inc.
500 Tennessee Waltz Parkway
Ashland City, TN 37015
1-800-365-0024
www.statewaterheaters.com
JUNE2008R © 2008 State Industries, Inc. Printed in U.S.A. SBGBR00108
MODEL
THERMAL
EFFICIENCY
FIRST HOUR
DELIVERY
Premier®Power-Vent DV
50-Gallon/100,000 BTU
96% 164 GALLONS
Standard 40-Gallon/
40,000 BTU
78% 71 GALLONS
Standard 50-Gallon/
40,000 BTU
78% 91 GALLONS
Premier®Power-Vent
50-Gallon/76,000 BTU
90% 127 GALLONS
SPECIFICATIONS
PERFORMANCE COMPARISON
MODEL
THERMAL
EFFICIENCY
RECOVERY
GALLON
AT 100°F
Force 90+™/
SHE50100NE
96% 116 GALLONS
Typical 70-Gallon/
120,000 BTU
Commercial Gas Model
80% 115 GALLONS
PERFORMANCE COMPARISON
Easy to install • Connects to 1/2˝ gas line • Vents using standard PVC •
Small footprint-22˝
Vent length in feet
2˝ PVC 20 feet • 3˝ PVC 60 feet • 4˝ PVC 120 feet • Vertical or horizontal
MODEL
GALLON
CAPACITY
BTU INPUT
RECOVERY
100°F RISE
HEIGHT DIAMETER
SHE50100NE 50 100,000 116 70-5/8˝ 22˝
SHE50100NE available in Natural Gas or Propane.
GP650YTPDT available in Natural Gas or Propane.
SPECIFICATIONS
Easy to install • Connects to 1/2˝ gas line • Vents using standard PVC •
Small footprint-22˝
Vent length in feet
MODEL
GALLON
CAPACITY
FIRST HOUR
DELIVERY
RECOVERYGALLONS PER
HOUR AT 90ºF
BTU INPUT HEIGHT DIAMETER
GP650YTPDT 50 164 129 100,000 70-5/8˝ 22˝

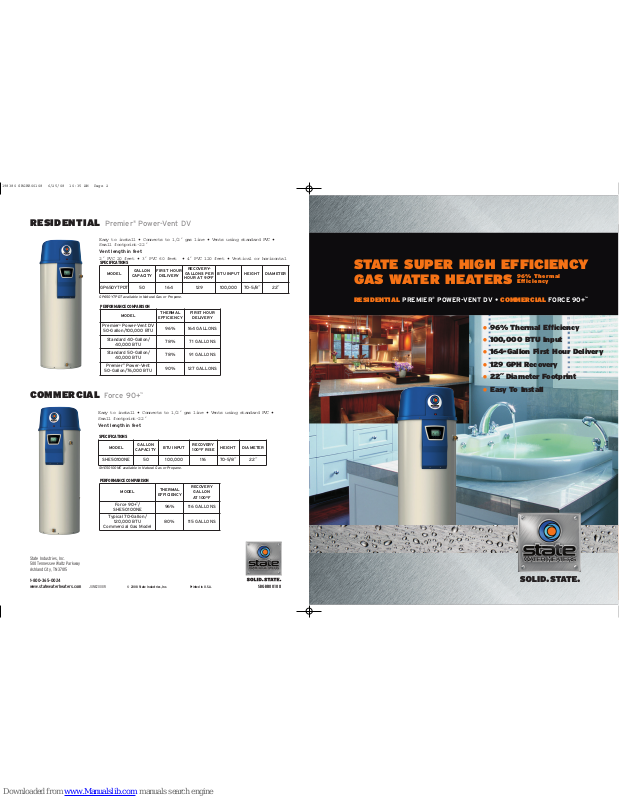

STATE SUPER HIGH EFFICIENCY
GAS WATER HEATERS
RESIDENTIAL PREMIER®POWER-VENT DV • COMMERCIAL FORCE 90+
™
96% Thermal
Efficiency
• 96% Thermal Efficiency
• 100,000 BTU Input
• 164-Gallon First Hour Delivery
• 129 GPH Recovery
• 22˝ Diameter Footprint
• Easy To Install
198380 SBGBR00108 6/25/08 10:35 AM Page 2
Page 2
PREMIER®POWER-VENT DV
RESIDENTIAL GAS WATER HEATER
Durability and performance for a constant*
supply of hot water!
Designed for today’s lifestyles,
the Premier
®
Power-Vent DV is wellsuited for larger homes with multiple
bathrooms and whirlpool tubs and for
families with teenagers, who typically
take longer and more frequent showers
.
Unlike standard 50-gallon units,
this water heater has a substantially higher
first-hour delivery and recovery, providing
homeowners with a nonstop flow of hot water.*
And with 96% thermal efficiency, it heats
more water for significantly less, which
equates to welcome energy savings.
Compared to on-demand water
heaters, the Premier
®
Power-Vent DV
manages changes in demand more effectively
and delivers a nonstop* supply of hot water.
And unlike on-demand units, there won’t be
any surprises during installation because size
and placement of gas and water lines are
identical to a conventional tank-type
gas water heater.
1 Premium-Grade Glass
Lining provides superior protection
against leaks.
2 Dual Anode Rods provide the
highest quality defense against leaks.
3 Low-NOx Burner for “eco-friendly”
operation complies with Southern
California and Texas Low-NOx standards.
4 Hot and Cold Recirculating
Connections conveniently located
on side of unit for combination hot
water/space heating or hot water/
radiant floor heating applications.
5 PEXAN™Dip Tube for Long Life
made from a rugged cross-link polymer
for superior resistance to thermal
oxidation, with “diffuser” design to
help reduce sediment build-up.
6 Fully Submerged Coil
Heat Exchanger with helical
configuration maximizes heat transfer
area for 96% thermal efficiency and
superior hot water output.
7 On/Off Control helps simplify
service and allows total shutdown during
vacation by cutting all power to the
water heater with the flick of a switch.
• Power-Vent Flexibility uses 2˝, 3˝
or 4˝ PVC pipe and provides outstanding
flexibility in location of water heater
through use of long combined horizontal
and vertical vent runs.
• Easy Removal of Flue Gas
Condensate created by 96%
efficiency, using condensate elbow and
outlet supplied with water heater.
• Premium Electronic Control
provides precise temperature control due
to its state-of-the-art design. Mounted at
eye level, the easy-to-read LCD panel gives
both current operating modes as well as
performance history maintenance and
quick trouble shooting.
* 4.3 GPM continuous flow, based on 65ºF inlet water temperature and 110ºF outlet water temperature.
The ideal choice for high-demand homes
With the Premier®Power-Vent DV, you have a water heater with
96% thermal efficiency for high-demand residential applications.
Homeowners can say goodbye to cold showers because this advanced
alternative to larger water heaters or on-demand units can go
FORCE 90+
™
COMMERCIAL GAS WATER HEATER
With a design for light commercial
applications, the Force 90+
™
puts 100,000
BTU input into the tank to deliver more hot
water than any “conventional” 50-gallon unit.
With its compact 22˝ footprint, Force 90+
™
is
the ideal choice to give smaller businesses and
institutions more hot water in the same space
or less than conventional units, with significant
savings on their energy bills.
Get maximum service life with a
quality commercial grade glass lining,
protected by two anode rods, to meet the
demands of commercial applications. The
interior of the heat exchanger is also glass
lined to protect against flue gas condensate.
Helical coil heat exchanger provides
maximum heating power because unlike
conventional light-commercial heaters with a
“flue tube” that vents hot combustion gases
straight up and out, the Force 90+
™
achieves
96% thermal efficiency by circulating them
around and around. This design provides much
more heat transfer surface, keeps heat in the
heat exchanger longer, and allows the Force
90+
™
to handle 100,000 BTU input for
extraordinary water heating power.
A force for high efficiency at 96%
State offers a truly comprehensive line of commercial gas and
electric water heaters, plus commercial storage tanks up to 10,000
gallons. And when a light commercial application calls for the very
best, look to State’s line of high-efficiency Force 90+
™
units to
* 4.3 GPM continuous flow, based on 65ºF inlet water temperature and 110ºF outlet water temperature.
2
5
3
6
7
1
4
