ULTRAFORCE - MODEL SUF 130-300/400
See Page 2
COMMERCIAL WATER HEATER PARTS LIST
Model SUF-130-300
Model SUF-130-400
Series 100/101
OPERATING CONTROL
See Page 3- 4
EXHAUST ELBOW, VENT KIT & BLOWER INTAKE PARTS
See Page 6
GAS VALVE
See Page 5
BLOWER/BURNER ASSEMBLY
See Page 5
PRINTED 0307 197484-001
1
ULTRA FORCE SUF-130-300 / 400- PARTS LIST
SUF 130-300 SUF 130-400
Item Description 100/101 100/101
1 ......... Cleanout Gasket ........................................................................................ 9004099015 ..................9004099015
2 ......... Cover, Cleanout ......................................................................................... 9004098005 .................. 9004098005
3 ......... Temperature and Pressure Relief Valve ...................................................... 9005903205 ..................9005903205
Standard hardware items may be purchased locally.
3
2
SUF 130-300/400 - OPERATING CONTROL
SUF 130-300 SUF 130-400
Item Description 100/101 100/101
1 ......... Switch, On/Off ........................................................................................... 9005929215 .................. 9005929215
2 ......... Display Overlay ......................................................................................... 9006241005 .................. 9006241005
3 ......... Display Board ............................................................................................9006240005 ..................9006240005
4 ......... Electronic Controller - Natural Gas ............................................................ 9006233005 ..................9006236005
4 ......... Electronic Controller - LP ...........................................................................9006234005 ..................9006236005
5 ......... Switch, Blocked Inlet ................................................................................. 9006083215 .................. 9006006215
6 ......... Switch, Blower Prover ............................................................................... 9004586215 .................. 9006002215
7 ......... Switch, Blocked Outlet ...............................................................................9006087215 ..................9006088215
8 ......... VFD Assembly ...............................................................................................---------- ......................9006245005
9 ......... Powered Anode - Short .............................................................................9006247005 ..................9006247005
10 ........ Powered Anode - Long ..............................................................................9006246005 ..................9006246005
11 ........ Tubing - 1/4" Silicone ................................................................................. 9006249015 ..................9006249015
12 ........ Probe, Upper .............................................................................................9004238215 ..................9004238215
13 ........ Probe, Lower (not shown) ......................................................................... 9006242015 .................. 9006242015
3
GAS VALVE
SUF 130-300 SUF 130-400
Item Description 100/101 100/101
1 ......... Switch, Low Gas Pressure ........................................................................ 9006084215 .................. 9006084215
LP Gas ....................................................................................................... 9004474215 ..................9004474215
2 ......... Valve, Natural Gas .....................................................................................9006085205 .................. 9006085205
Valve, LP Gas ............................................................................................ 9006086205 .................. 9006086205
3 ......... Orice, Natural Gas ................................................................................... 9006090215 ..................9006091215
Orice, LP Gas ..........................................................................................9006092215 .................. 9006093215
4 ......... Orice Holder ............................................................................................. 9006094215 ..................9006094215
Standard hardware items may be purchased locally.
4

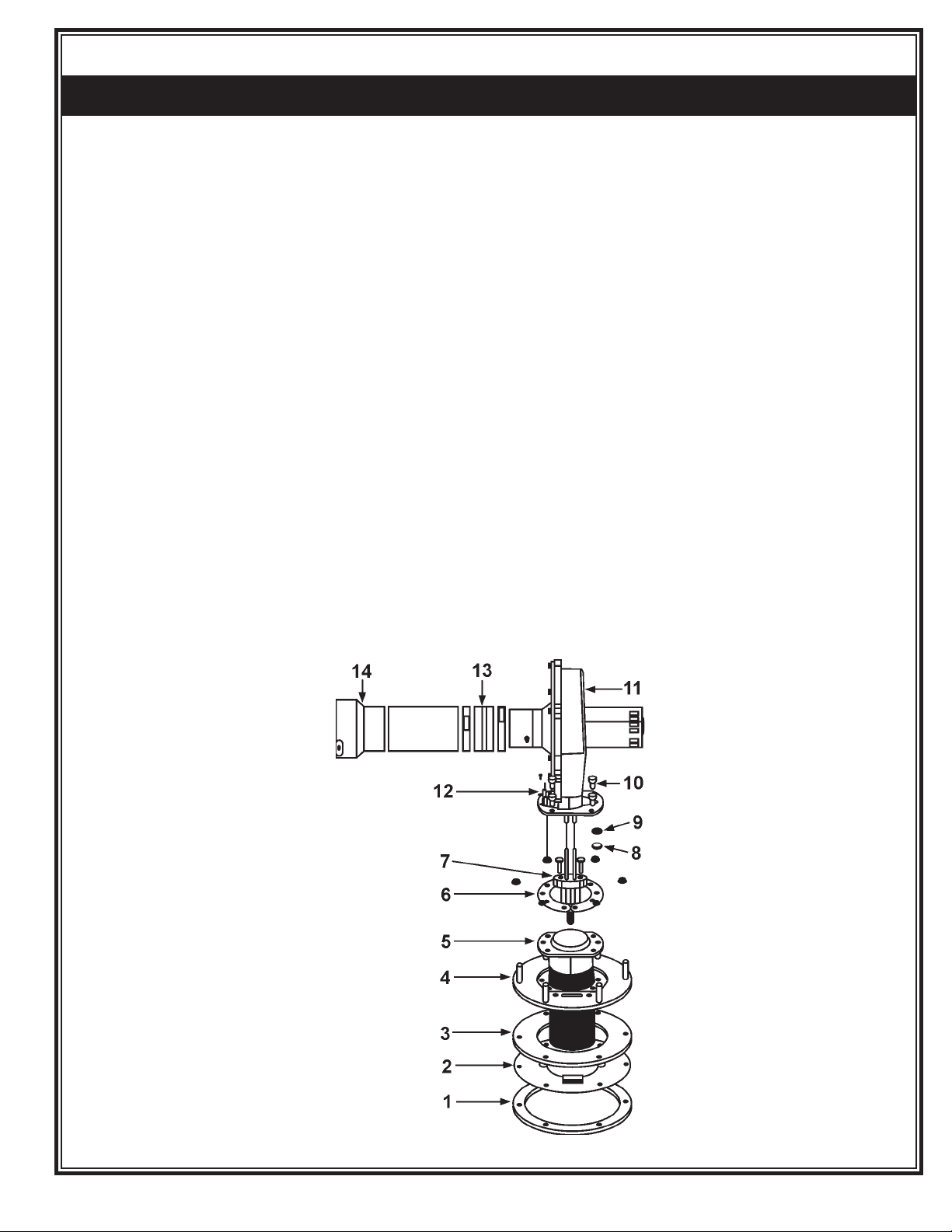

BLOWER/BURNER ASSEMBLY
SUF 130-300 SUF 130-400
Item Description 100/101 100/101
1 ......... Gasket - 8" ................................................................................................. 9006095205 .................. 9006095205
2 ......... Shield - Heat .............................................................................................. 9006096205 .................. 9006096205
3 ......... Gasket - Insulation ..................................................................................... 9006097205 ..................9006097205
4 ......... Flange - Burner .......................................................................................... 9006098205 ..................9006098205
5 ......... Burner Assembly .......................................................................................9006099205 ..................9006099205
6 ......... Gasket - Burner .........................................................................................9006100205 ..................9006100205
7 ......... Ignitor ......................................................................................................... 9006101205 ..................9006101205
8 ......... Window - Observation ...............................................................................9006102215 ..................9006102215
9 ......... Gasket - Viewport ...................................................................................... 9006103215 ..................9006103215
10 ........ Screw - Socket Head Cap .........................................................................9006104215 ..................9006104215
11 ........ Blower/Motor ............................................................................................. 9006105205 .................. 9006114205
12 ........ Sensor - Flame .......................................................................................... 9006106205 ..................9006106205
13 ........ Coupling - Power Vent ............................................................................... 9006107205 ..................9006107205
14 ........ Blower Intake Reducer Assembly .............................................................. 9006108205 .................. 9006108205
Standard hardware items may be purchased locally.
5

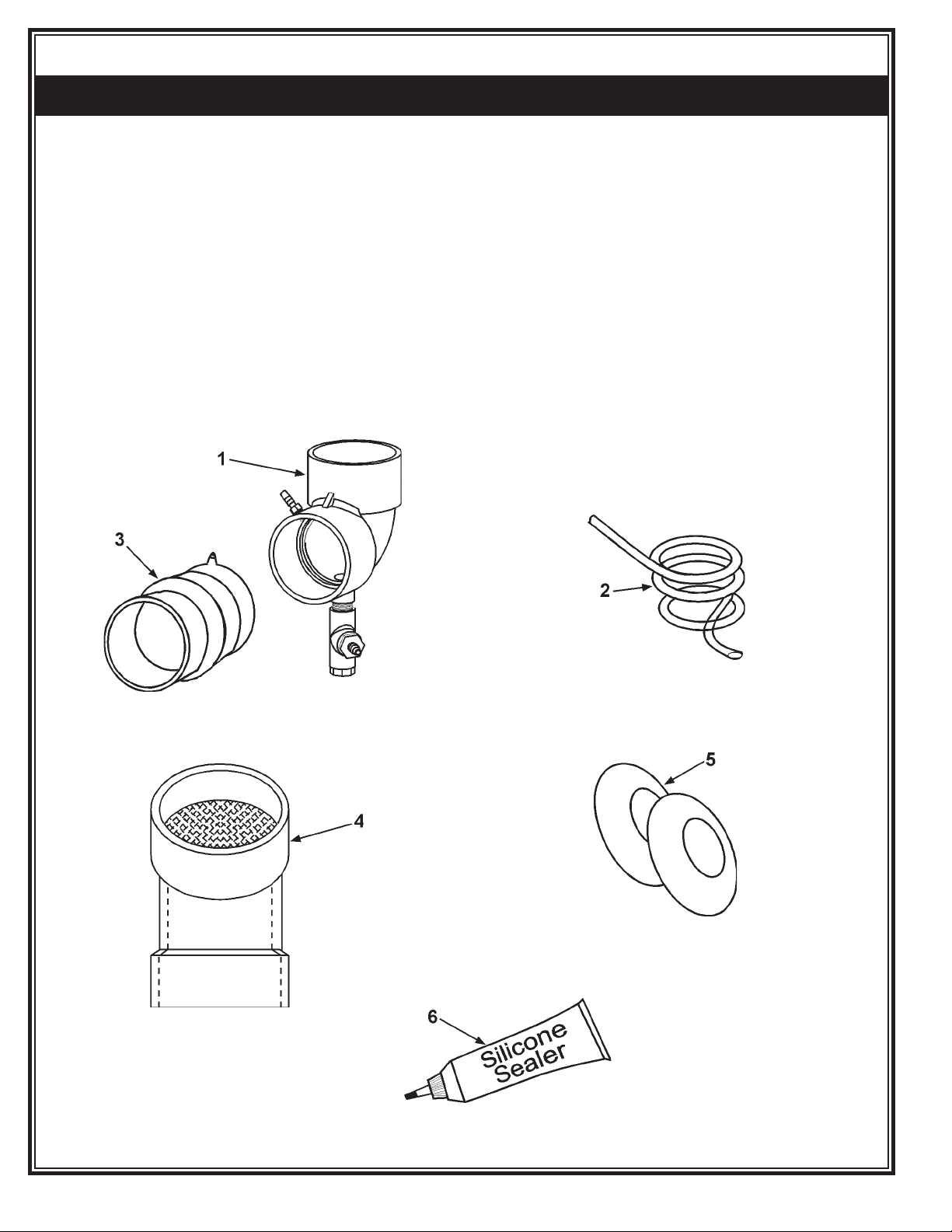

EXHAUST ELBOW, VENT KIT & BLOWER INTAKE PARTS
SUF 130-300 SUF 130-400
Item Description 100/101 100/101
EXHAUST ELBOW AND FITTINGS
1 ......... Exhaust Elbow Assembly ..........................................................................9006109205 ..................9006109205
2 ......... Tubing ........................................................................................................ 9006110215 .................. 9006110215
3 ......... Connector, Exhaust ................................................................................... 9006111205 .................. 9006111205
VENT KIT PARTS
4 ......... Intake/Vent Terminal .................................................................................. 9006112205 .................. 9006112205
5 ......... Wall Plates (2 required) ............................................................................. 9006113205 .................. 9006113205
6 ......... Silicone Sealer, 2 oz. Tube ............................................................................ 181564 .......................... 181564
6
NOTES:
500 TENNESSEE WALTZ PARKWAY
ASHLAND CITY,
Phone: 800-365-0024 Fax: 800-644-9306
www.statewaterheaters.com
TN 37015
