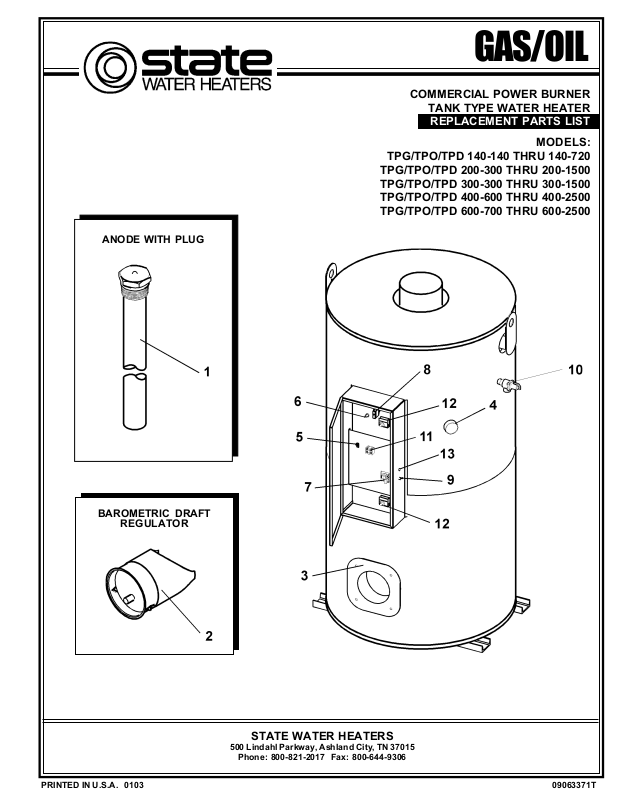

State TPD 140-140 Parts List

ANODE WITH PLUG

GAS/OIL

COMMERCIAL POWER BURNER

TANK TYPE WATER HEATER

REPLACEMENT PARTS LIST

MODELS:

TPG/TPO/TPD 140-140 THRU 140-720 TPG/TPO/TPD 200-300 THRU 200-1500 TPG/TPO/TPD 300-300 THRU 300-1500 TPG/TPO/TPD 400-600 THRU 400-2500 TPG/TPO/TPD 600-700 THRU 600-2500

BAROMETRIC DRAFT

REGULATOR

STATE WATER HEATERS

500 Lindahl Parkway, Ashland City, TN 37015

Phone: 800-821-2017 Fax: 800-644-9306

PRINTED IN U.S.A. 0103 09063371T

Item Description Qty. Part number

1........... Anode Plug

TPG/TPO/TPD 140-140 thru 140-720 ......................................... 2..................................................06900229

TPG/TPO/TPD 200-700 thru 200-800and

TPG/TPO/TPD 300-300 THRU 300-800 ...................................... 3 .................................................. 06900229

TPG/TPO/TPD 200-1000 thru 200-1500, TPG/TPO/TPD 300-1000 thru 300-1500 and

TPG/TPO/TPD 400-600 thru 400-1250 ....................................... 4.................................................. 06900229

TPG/TPO/TPD 400-1500 thru 400-2000 ..................................... 5 .................................................. 06900229

TPG/TPO/TPD

TPG/TPO/TPD 600-720 thru 600-2500 ....................................... 6.................................................. 06900229

2........... Barometric Draft Regulator

TPG/TPO/TPD 140-140 .............................................................. 1 ................................................. 060005005

TPG/TPO/TPD 140-199, 140-270

TPG/TPO/TPD 200-300, 300-300 ............................................... 1.................................................. 06005006

TPG/TPO/TPD 140-400 .............................................................. 1 .................................................. 06005007

TPG/TPO/TPD 140-540, 200-600 and

TPG/TPO/TPD 300-600, 400-600 ............................................... 1.................................................. 06005008

TPG/TPO/TPD 140-720, 200-800, TPG/TPO/TPD 200-1000, 300-800,

TPG/TPO/TPD

TPG/TPO/TPD 300-1000, 400-800, TPG/TPO/TPD 400-1000, 600-720 and

TPG/TPO/TPD 600-1000 ............................................................ 1 .................................................. 06005010

TPG/TPO/TPD 200-1250, 200-1500, TPG/TPO/TPD 300-1250, 300-1500, TPG/TPO/TPD 400-1250, 400-1500,

TPG/TPO/TPD 600-1250, 600-1500 ........................................... 1.................................................. 06005012

TPG/TPO/TPD 400-1750, 400-2000,

TPG/TPO/TPD 600-1750, 600-2000 ........................................... 1.................................................. 06005014

TPG/TPO/TPD 400-2250, 400-2500,

TPG/TPO/TPD

TPG/TPO/TPD 600-2250, 600-2500 ........................................... 1.................................................. 06005016

3 ............ Gasket, Burner

HSG 200/400 ............................................................................. 1 .................................................. 10001119

J15A-10, J30A-12 ...................................................................... 1 .................................................. 10001119

CR2-G-15, CR2-G-20A ............................................................... 1.................................................. 10001117

4 ............ Gauge, Pressure & Temperature ............................................... 1 ..................................................06401008

5 ............ Ground, Lug ............................................................................... 1 .................................................. 04800002

6 ............ Probe, Low Water Cut-Off .......................................................... 1 ..................................................04600020

7 ............ Relay, Low Water Cut-Off .......................................................... 1.................................................. 04600011

8 ............ Switch, High Limit-Manual Reset 220°F

TPG/TPO/TPD

TPG/TPO/TPD 600-720 / 600-2500 ............................................ 1.................................................. 03500110

All Other Models ........................................................................ 1 .................................................. 10002512

Well (See Above) ....................................................................... 1 .................................................. 03500000

9 ............ Switch, Pilot (On/Off) 120V........................................................ 1 .................................................. 10002508

10 .......... Temperature & Pressure Valve (125lbs.)

140,000 BTU thru 255,000 BTU ................................................. 1 .................................................. 01205125

255,000 BTU thru 1,000,000 BTU .............................................. 1.................................................. 01206125

1,200,000 BTU thru 2,000,000 BTU ........................................... 1.................................................. 01207125

2,200,000 BTU thru 2,500,000 BTU ........................................... 1.................................................. 01208125

11 .......... Terminal Strip ............................................................................ 1.................................................. 02600022

TPG/TPO/TPD

12 .......... Thermostat Range 94°F to 194°F....................................................................................................03100081

13 .......... Pilot Light .................................................................................. 1 .................................................. 04700012

For Burner Parts, Refer to Burner O & M Manual.
