State Water Heater Parts Fulllment
125 Southeast Parkway • Franklin, TN 37068
www.statewaterheaters.com • 1-800-821-2017
COMMERCIAL GAS SERVICE PARTS LIST
MODELS:
SUF 60-120 through SUF 100-250
SERIES 100/101
DISPLAY CONTROL ASSEMBLY
See Page 2
BLOWER/BURNER ASSEMBLY
See Page 4 & 5
SUF 60-120 through SUF 100-250
See Page 2
INNER COVER CONTROL ASSEMBLY
See Page 3
GAS VALVE
See Page 6
EXHAUST ELBOW ASSEMBLY - VENT KIT ASSEMBLY
ELECTRONIC ANODE
See Page 8
See Page 7
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
PRINTED 0809 197785-004
CLEANOUT ASSEMBLY/TEMPERATURE & PRESSURE VALVE
SUF 60 120/A SUF 100 150/A SUF 100 199/A SUF 100 250/A
Item Description 100/101 100/101 100/101 100/101
1 Cleanout Gasket..............................................9004099015 ................9004099015 ................9004099015 ............... 9004099015
2 Cleanout Plate .................................................9004098005 ................9004098005 ................9004098005 ............... 9004098005
3 T & P Valve ......................................................9005899205 ................9005899205 ................9005899205 ............... 9005903205
4 Lower Probe ....................................................9006242015 ................9006242015 ................9006242015 ............... 9006242015
5 Thread Forming Screws ..................................9004100215 ................9004100215 ................9004100215 ............... 9004100215
Standard hardware items may be purchased locally.
CLEANOUT ASSEMBLY
DISPLAY CONTROL ASSEMBLY
SUF 60 120/A SUF 100 150/A SUF 100 199/A SUF 100 250/A
Item Description 100/101 100/101 100/101 100/101
1 SUF Display Overlay .......................................9006241005 ................9006241005 ................9006241005 ............... 9006241005
2 On/Off Switch ..................................................192699-000 ................192699-000 ................192699-000 ................192699-000
3 Switch Wire Connection ..................................197758-000 ................197758-000 ................197758-000 ................197758-000
4 Display Panel ........................................................................................................................................................................
5 User Interface Module - UIM ...........................9006240005 ................9006240005 ................9006240005 ............... 9006240005
6 Splatter Shield .................................................197763-000 ................197763-000 ................197763-000 ................197763-000
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
INNER COVER CONTROL ASSEMBLY - 60 120/A & 100 150/A
SUF 60 120/A SUF 100 150/A
Item Description 100 101 100 101
1 Controller .........................................................9006300005 ................9006304005 ................9006301005 ............... 9006305005
2 Switch-blower prover .......................................9006280015 ................9006280015 ................9006280015 ............... 9006280015
3 Switch-blocked inlet.........................................9006288015 ................9006281015 ................9006288015 ............... 9006281015
4 Switch-blocked outlet ......................................9006287015 ................9006287015 ................9006289015 ............... 9006287015
5 Upper Probe ....................................................9004238215 ................9004238215 ................9004238215 ............... 9004238215
INNER COVER CONTROL ASSEMBLY - 100 199/A & 100 250/A
SUF 100 199/A SUF 100 250/A
Item Description 100 101 100 101
1 Controller .........................................................9006302005 ................9006306005 ................9006303005 ............... 9006307005
2 Switch-blower prover .......................................9006280015 ................9006280015 ................9006280015 ............... 9006280015
3 Switch-blocked inlet.........................................9006288015 ................9006281015 ................9006281015 ............... 9006281015
4 Switch-blocked outlet ......................................9006289015 ................9006282015 ................9006282015 ............... 9006282015
5 Upper Probe ....................................................9004238215 ................9004238215 ................9004238215 ............... 9004238215
Standard hardware items may be purchased locally.
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
BURNER/BLOWER ASSEMBLY - 60 120/A & 100 150/A
SUF 60 120/A SUF 100 150/A
Item Description 100 101 100 101
1 Blower Assembly .............................................9006272005 ................9006272005 ................9006273005 ............... 9006273005
2 Burner ..............................................................9006275005 ................9006276005 ................9006277005 ............... 9006278005
3 Burner Flange..................................................197932-000 ................ 197932-000 ................ 197932-000 ................ 197932-000
4 Burner Gasket .................................................9006909005 ................9006909005 ................9006909005 ............... 9006909005
5 Condensate Tee ..............................................181865-000 ................181865-000 ................ 181865-000 ................181865-000
6 Coupling-Power Vent.......................................9006107205 ................9006107205 ................9006107205 ............... 9006107205
7 Flame Sensor ..................................................9006106205 ................9006106205 ................9006106205 ............... 9006106205
8 Flange Gasket ................................................. 194817-000 ................ 194817-000 ................ 194817-000 ................ 194817-000
9 Hose Barb 1/2" x 1/4" ...................................... 181863-000 ................ 181863-000 ................ 181863-000 ................ 181863-000
10 Igniter ..............................................................9006101205 ................9006101205 ................9006101205 ............... 9006101205
11 Observation Window .......................................9006102215 ................9006102215 ................9006102215 ............... 9006102215
12 Mesh Wire Screen ...........................................9006027015 ................9006027015 ................9006027015 ............... 9006027015
13 Stud 5-16-18 x 1 3/4" ......................................196881-000 ................ 196881-000 ................ 196881-000 ................196881-000
14 Truss Hd Machine Screw 1/4-20 x1.00" ..........194816-000 ................ 194816-000 ................194816-000 ................ 194816-000
15 Viewport Gasket ..............................................9006103215 ................9006103215 ................9006103215 ............... 9006103215
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
BURNER/BLOWER ASSEMBLY - 100 199/A & 100 250/A
SUF 100 199/A & 100 250/A SUF 100 199/A & 100 250/A
Item Description 100 101
1 Blower Assembly .................................................................. 9006274005 ............................................ 9006274005
2 Burner ................................................................................... 9006279005 ............................................9006279005
3 Burner - Adapter ....................................................................197607-000 ............................................ 197607-000
4 Burner - Gasket A ..................................................................197618-000 ............................................ 197618-000
5 Burner Flange........................................................................197611-000 ............................................ 197611-000
6 Burner - Gasket B................................................................. 9006909005 ............................................9006909005
7 Condensate Tee ....................................................................181865-000 ............................................ 181865-000
8 Flame Sensor ....................................................................... 9006106205 ............................................ 9006106205
9 Flange - Gasket .....................................................................194817-000 ............................................ 194817-000
10 Gas Valve - Venturi Assembly ..............................................9006285005 ............................................9006286005
11 Hose Barb .............................................................................181863-000 ............................................ 181863-000
12 Igniter ...................................................................................9006101205 ............................................ 9006101205
13 Intake Connector ...................................................................197604-000 ............................................ 197604-000
14 Switch-Low Gas Pressure .................................................... 9006256015 ............................................ 9006255015
15 Observation Window ............................................................ 9006102215 ............................................9006102215
16 Stud 5/16-18 x 1 3/4" .............................................................196881-000 ............................................ 196881-000
17 Truss Hd Machine Screw 1/4-20 x 1.00 ................................194816-000 ............................................ 194816-000
18 Venturi Gasket .......................................................................197789-000 ............................................ 197789-000
19 Venturi Mounting Screw ........................................................197790-000 ............................................ 197790-000
20 Viewport Gasket ................................................................... 9006103215 ............................................ 9006103215
21 Mesh Wire Screen ................................................................ 9006027015 ............................................ 9006027015
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
GAS VALVE ASSEMBLY - 60 120/A
SUF 60 120/A SUF 60 120/A
Item Description 100 101
1 Gas Valve .................................................................................... 9004535205 ..............................9004536205
2 Orice .......................................................................................... 9006259015 ..............................9006257015
3 Orice Holder .............................................................................. 9006094215 ..............................9006094215
4 Switch - Low Gas Pressure ......................................................... 9006256015 ..............................9006255015
GAS VALVE ASSEMBLY - 100 150/A
SUF 100 150/A SUF 100 150/A
Item Description 100 101
1 Gas Valve .................................................................................... 9006283005 ..............................9006284005
2 Orice .......................................................................................... 9006260015 ..............................9006258015
3 Orice Holder .............................................................................. 9006094215 ..............................9006094215
4 Switch - Low Gas Pressure ......................................................... 9006256015 ..............................9006255015
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
EXHAUST CONNECTOR ASSEMBLY - 60 120/A - 100 250/A
SUF 60 120/A - 100 250/A
Item Description 100/101
1 Exhaust Connector .........................................................................................................................9006157205
2 Exhaust Elbow Assembly ...............................................................................................................9006261005
3 Tubing - Condensate ......................................................................................................................9004490215
VENT KIT ASSEMBLY - 60 120/A - 100 250/A
SUF 60 120/A - 100 250/A
Item Description 100/101
1 Exhaust Screen ..............................................................................................................................9006027015
2 Intake - Screen Collar Assembly .................................................................................................... 182162-000
3 PVC 45 Degree Elbow ...................................................................................................................181901-000
4 Silicone ...........................................................................................................................................9004365105
5 Wall Plate .......................................................................................................................................9004364105
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com

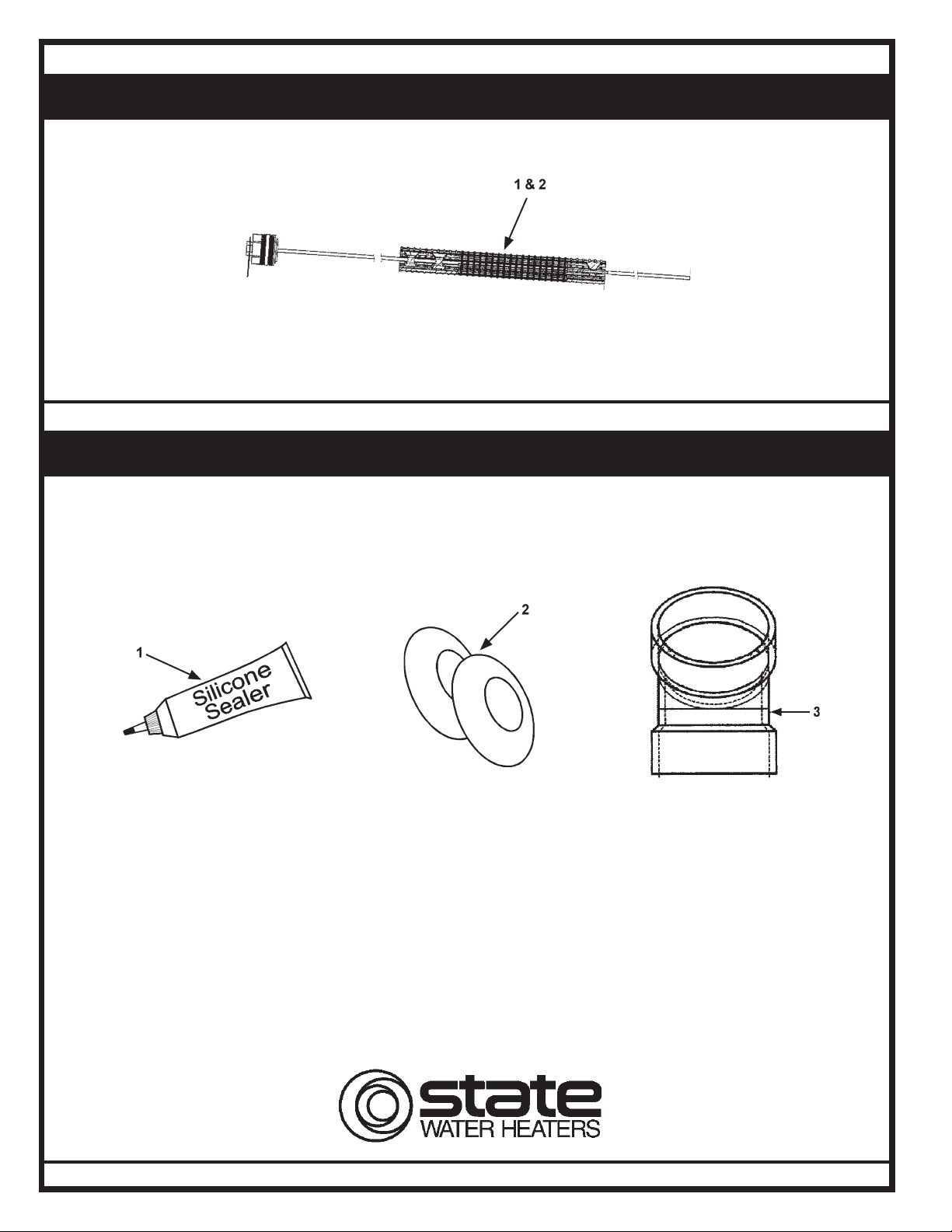

ELECTRIC ANODE ASSEMBLY - 60 120/A - 100 250/A
SUF 60 120/A SUF 100 150/A, 199/A, 250/A
Item Description 100/101 100/101
1 Electric Anode ................................................................................. ---------- ..................................9006246005
2 Electric Anode ............................................................................. 9006559005 ..............................9006247005
OPTIONAL VENT KIT ASSEMBLY FOR 4" VENTING (ALL MODELS) 9006311005
SUF 60 120/A - 100 250/A
Item Description 100/101
1 Silicone ..............................................................................................................................................
2 Wall Plate ..........................................................................................................................................
3 Vent Terminal Assembly 4" ................................................................................................................
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
