Assembly & Setup
TreadClimber
INSTALLATION INSTRUCTIONS
STAR TRAC FITNESS 1 of 14 635-4175 Rev: B
Assembly & Setup
NOTICE
Installation of this product requires that 2 or more people are available
to safely perform certain steps outlined by this document.
STAR TRAC FITNESS 2 of 14 635-4175 Rev: B
Assembly & Setup
1. Locate an open area to unbox the packaged
TreadClimber® (Fig.1).
2. Cut all straps to remove the cardboard packaging along
with any protective wrapping to expose the palletized
TreadClimber base and assembly components (Fig. 2).
3. Move all unattached components off the TreadClimber
base (Fig. 3).
Components:
A. Console Frame
B. Neck Mast
C. Rear Corner Shroud (Left & Right)
D. Hardware Pack
E. Handrail Grommets
F. Owner’s Manual
G. Neck Grommet
H. Power Cord
I. Rear Shroud
J. Upper Handrails (Left & Right)
K.
Lower Handrails (Left & Right)
Fig. 1
Fig. 2
STAR TRAC FITNESS 3 of 14 635-4175 Rev: B
Fig. 3
Assembly & Setup
4. Breakaway the rear bottom section (Fig. 4) of the
cardboard pallet.
5. Remove the alternator shroud (Fig. 5) located under
the two treadle assemblies at the front of the
TreadClimber base.
6. Locate the two transport grip handles (Fig. 6) that come
with the packaged base and attach them to the “J”
hooks located near each front corner of the
TreadClimber base.
Fig. 4
Fig. 5
STAR TRAC FITNESS 4 of 14 635-4175 Rev: B
Fig. 6
Hardware:
Final Torque:
o
Assembly & Setup
7. With two people, pull the TreadClimber base
backwards (Fig 7) until all four wheels are driven off the
pallet and the base is safely on to the ground.
8. Remove and store the transport grip handles (Fig. 8)
once the TreadClimber base is safely on the floor. The
transport grip handles can be reattached for future
transport.

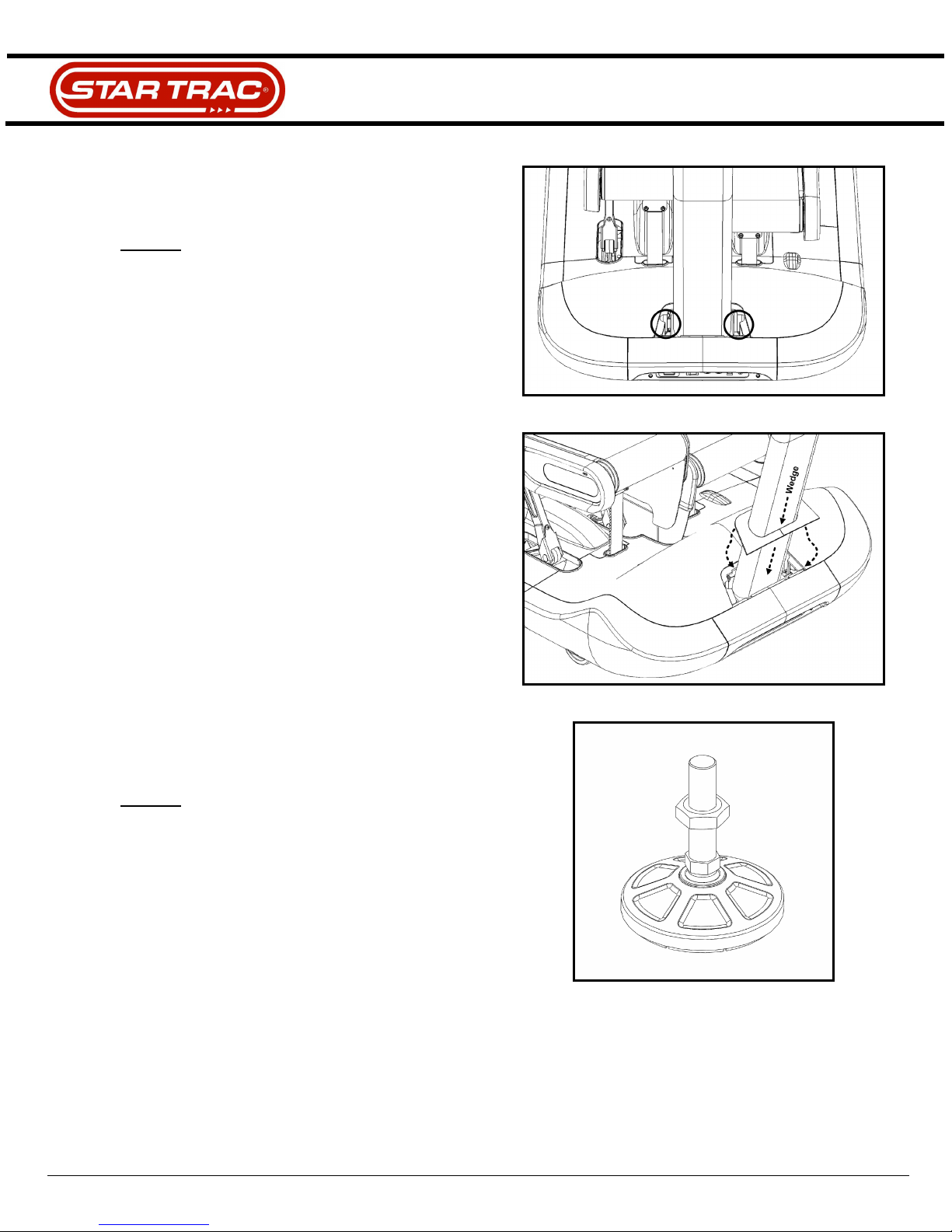

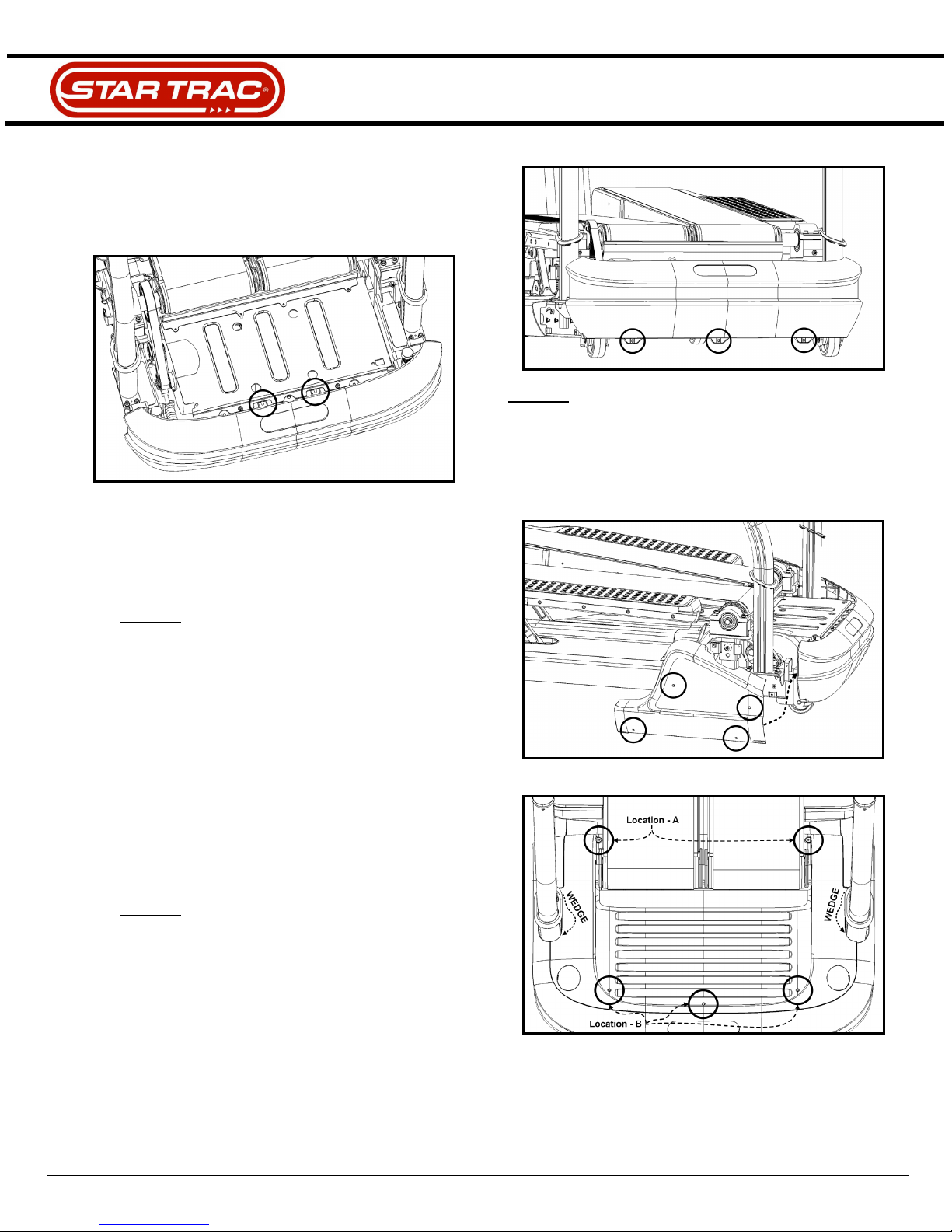

9. Mount the neck mast (Fig. 9) to the base by lightly
torquing four socket head cap screws in place at the
front of the base frame.
o 5/16-18 X .75” Socket Head Cap Screw (Location – A)
o 5/16-18 X 1.0” Socket Head Cap Screw (Location – B)
QTY: 2 Each
o 5/16 Split Lock Washer
o 5/16 Flat Washer
QTY: 4 Each
Fig. 7
Fig.8
240 In-Lbs (27 Nm)
STAR TRAC FITNESS 5 of 14 635-4175 Rev: B
Fig. 9
